APP Software Smart Auto Detection Capture Tracking Face Recognition Security Camera

we have successfully developed one of the most outstanding products-LSVISION APP Software Smart Auto Detection Capture Tracking Face Recognition Access Control Security System with Infrared Camera.We have conducted many practical experiments which prove that the product can function its greatest effect in the field(s) of CCTV Camera.

شارك لـ

With immense market knowledge, we have been able to provide optimum quality LSVISION APP Software Smart Auto Detection Capture Tracking Face Recognition Access Control Security System with Infrared Camera. Based on LSVISION APP Software Smart Auto Detection Capture Tracking Face Recognition Access Control Security System with Infrared Camera properties, we have selected technology to manufacture the product after conducting multiple tests and experiments.Our product is qualified for being used in the application field(s) of Face Recognition Security Camera. After years of growth and development,Shenzhen LSVISION Technology Co., Ltd. have constructed characteristic corporate culture systems and confirmed our business principle of ‘customer first’. We will always focus on customers’ needs and promise that we will provide the most satisfying and valuable products.

Place of Origin:	Guangdong, China	Brand Name:	لوس أنجلوس فيجن
Model Number:	LS-FR100	Warranty:	1 Year
Special Features:	Indoor	Sensor:	CMOS
Style:	BULLET CAMERA	Function:	Alarm I/O
Video Compression Format:	H.265	Data Storage Options:	Cloud, NVR
Application:	Outdoor, Indoor, Applicable to school, supermarket, hospital, community, etc	Customized support:	Customized logo
Key Feauture1:	Face capture and recognition	Key Feauture2:	Up to two face databases management
Key Feauture3:	intelligent face algorithm	Video Standard:	H.265/ H.264
Wide dynamic range:	≥120dB	Interface Protocol:	GB28181
Alarm:	Sound and light alarm	Face Image Inventory:	Support 22400 face image inventory
Power Supply:	Support POE(802.3at) &mobile app	Certification:	ce, FCC

More Recommendation

Product Description

Face Recognition Camera and Nvr Alarm Kit

.Face recognition application integrated package, can be used to prevent thieves, anti-theft, anti-customary stealing, early warning of dangerous personnel, is your store security butler!

· Built-in intelligent face algorithm to support face capture in complex environments; support face tracking, face exposure mode, face automatic filtering; front face database storage, recommended to import 22400 digital photos, black and white list can be set To achieve real-time comparison of front-end faces.

· The mobile terminal can realize real-time image preview of the hard disk recorder, network camera, remote video playback, local picture and video storage, and alarm push information management through the wireless network;

Application:
Applicable to school, supermarket, hospital, community, etc. for face monitoring and monitoring!
Realize face monitoring, control, black and white list setting, face-based search query!

* Stranger (Non-Whitelist) Alarm

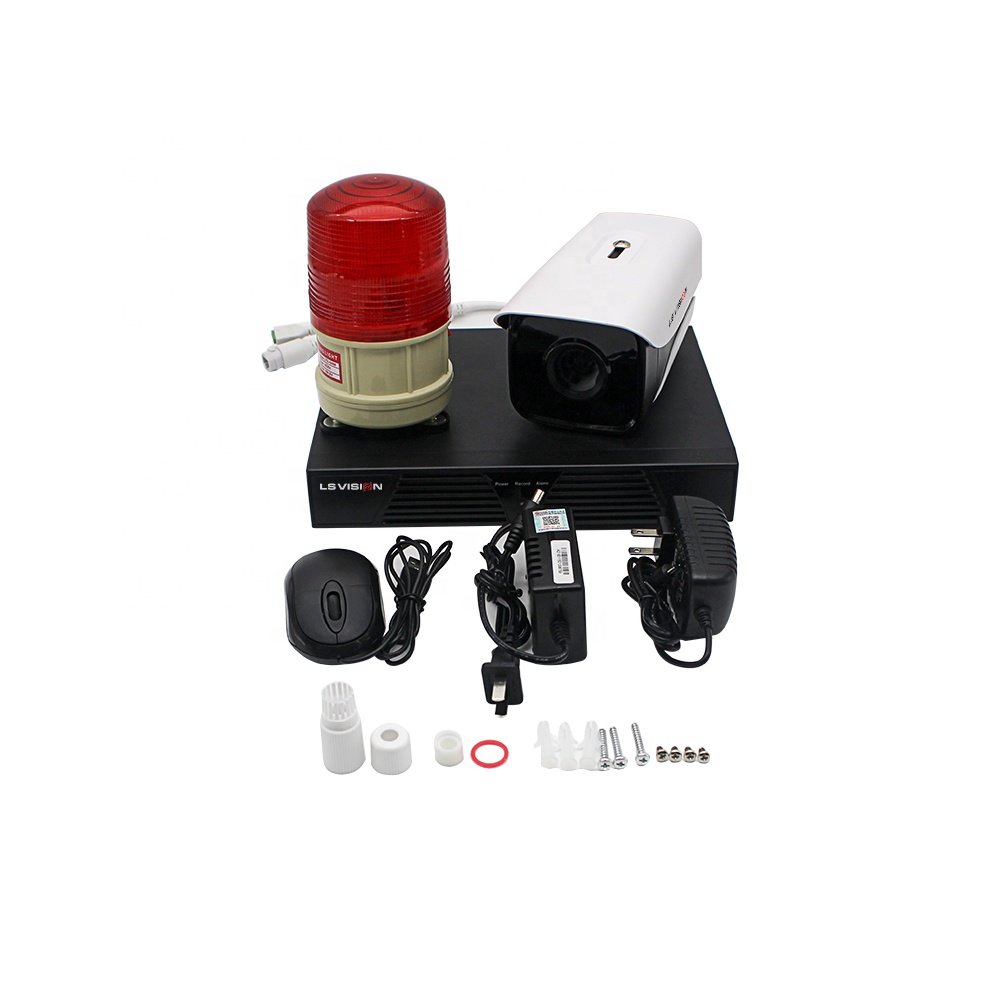

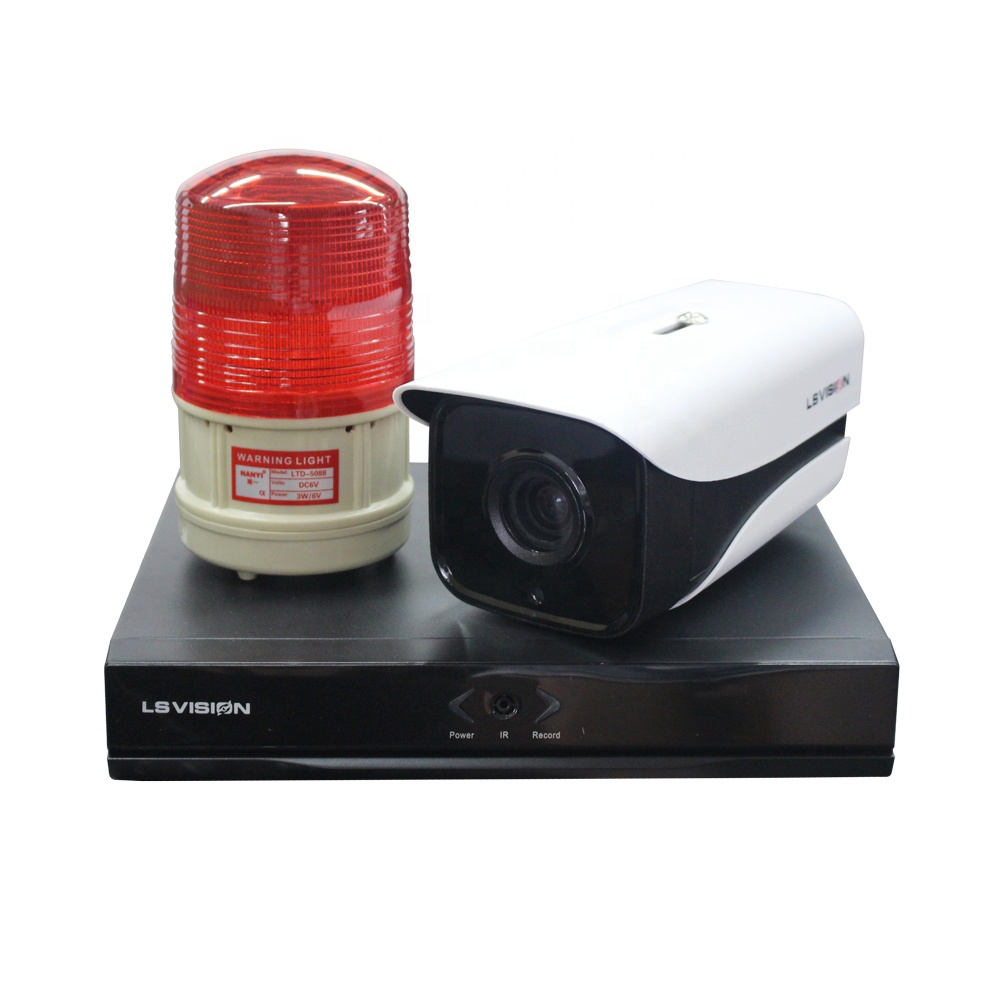

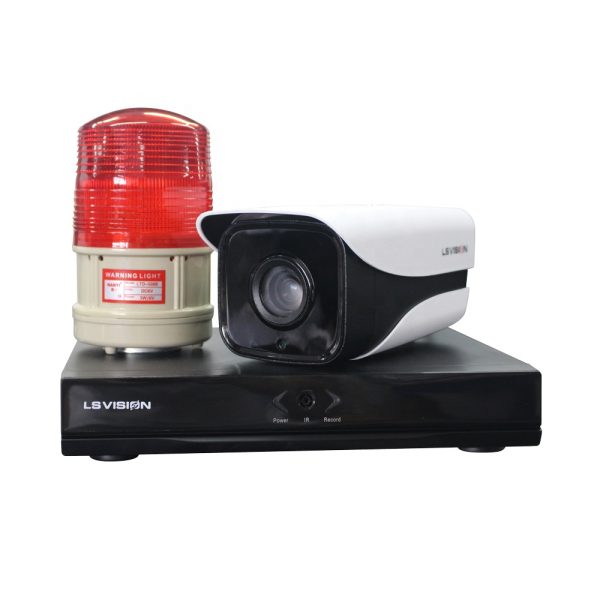

1pcs Face Recognition IP Camera + 1pcs Face NVR + 1pcs Alarm

كاميرا IP

Hi3519+1/1.8″ 2.0MP Sony385 CMOS;
H.265/H.264/MJPEG Coding;
Motorized lens 9-22mm;
4pcs IR led,IR distance 30 meter;
> 120dB Digital WDR;
3D Digital Noise Reduction;
Up to two face databases management;
Support 6400 face image inventory;
Support POE(802.3at) &mobile app

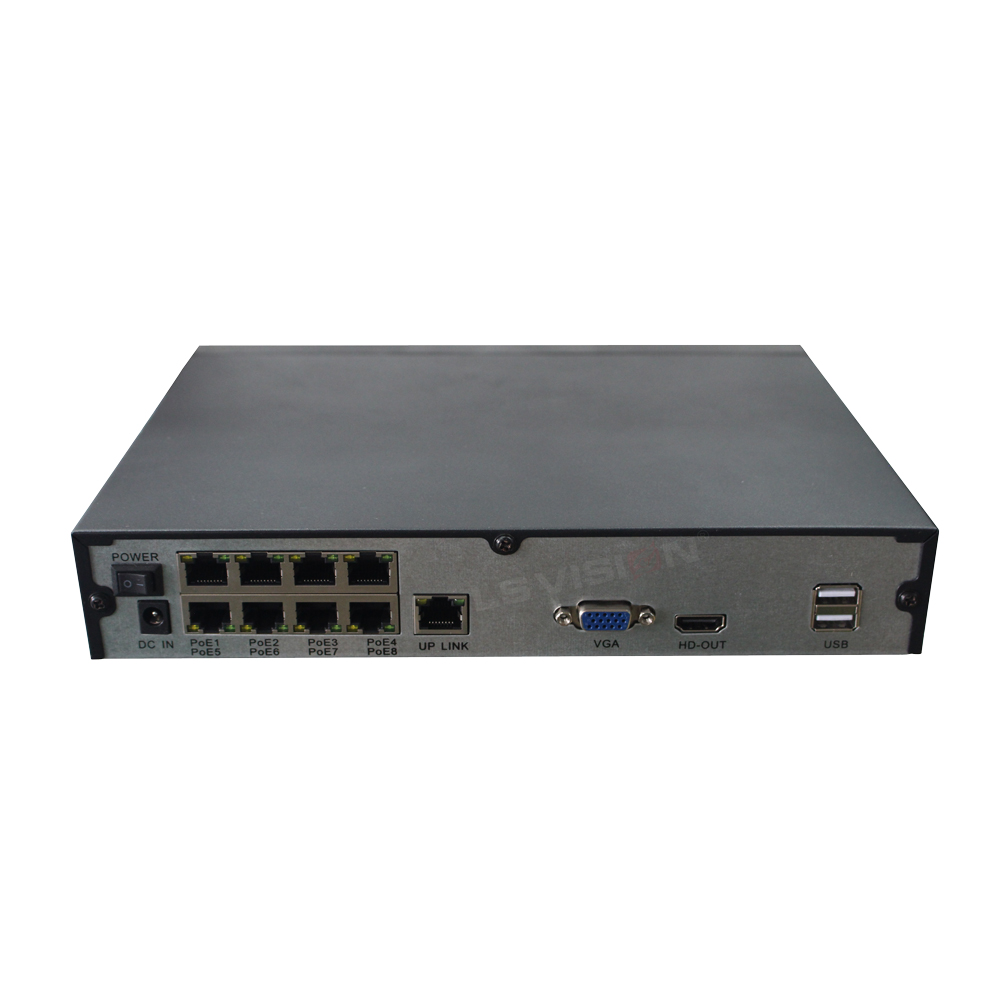

NVR

Hi3520DV200
H.264 Coding;
Support 1CH 1080P Face Recognition IPC +3CH 1080P;
ordinary IPC video Input;
1 CH 1080P Playback;
VGA Interface 1CH,HDMI Interface 1CH;
2 CH USB2.0 Interface,1CH SATA(2 T) Interface;
Support face comparison details query;
Support face playback;

Alarm :Sound and light alarm

Key Features

Compared to traditional system, we add ” smart analytics” section, which we do technology grasp, analyze, compare and alarm on camera.

NVR’s function is to record.

Two way one is to use colour pic which saved in your PC; another is scence capturing.

A face library max support 22400 pic.

There are two ways to upload face pic into face libary: imported from local or snap face at sence.

Can set comparison similarlity as parameter to analyze and compare.

The core algorithm technlogy we used like multiple dimensions like the distance between human eyes distance, Cheekbones heigh and other other pieces of facial features.

Also we can grasp, analyze, compare very fast.

LSVISION H.265 2MP Analysis Smart 3D Face Recognition Security Camera Support Auto Motion Detection and Capture

H.265 Face Recognition Camera and NVR kit:

Specially designed for small shops and facades , a ALL-IN-ONE face recognition application integrated kit, can be used to prevent thieves, burglar theft, anti – theft, dangerous personnel early warning, is your shop safety stewardship!

Functions for face recognition camera:

1,Embedded smart face algorithm, which supports face capture in complex environment.

2,Support face tracking, face exposure mode, and face automatic filtering.

3,Support front-end face alignment.

4,support the detection, tracking, snapping, grading, screening, feature extraction and recognition of moving faces, and outputs the best alignment results.

5,supports the detection of up to 32 targets per frame and the recognition speed is fast.

6,The face capture scenes are backlighting scenes and ordinary scenes for backlighting and normal environment respectively. Two modes can be set up.

7,Aiming at the optimization of face application scene, it is suitable for face detection, feature extraction and recognition.

8,Support face exposure function, wide dynamic range of 120dB, suitable for monitoring under backlight environment;

9,Support area selection of face recognition; multi parameter setting, face parameter setting, professional level capture rate;

10,The setting range of facial image quality (1-99) is adjustable.

11,Support face detection with more than 30*30-300*300 pixels.

12,Support the upload of face pictures and original pictures, and the quality of face picture coding can be adjusted.

13,The number of supporting snapshots can be set up.

14,Supports the management of up to 2 people’s face databases, and each face library supports more than 3200 face importing.

General Function:

1,The maximum resolution is up to 2 million pixels (1920 x 1080), and can output real-time 30fps images at this resolution, and the image is more fluent.

2,Scan CMOS by line by line to capture motion images without aliasing.

3,Adopt the latest standard H.265 video compression technology, high compression ratio, accurate and stable code flow control.

4,Built in automatic day and night type dual filter switching mechanism, with manual or automatic color to turn black and other switching mode.

5,Support digital wide dynamic, 3D digital noise reduction function.

Specification

Sensor type	1/1.8″ Progressive Scan CMOS
Electronic shutter	1/25s~1/10000s
Minimum illuminance	Color 0.001Lux@ F1.2; Black and white 0.0001Lux@ F1.2;
Signal-to-noise ratio	≥50dB(AGC OFF)
Wide dynamic range	≥120dB
De-noising	3D digital noise reduction
Lens type	3.6-11mm F1.4, horizontal field angle 106.8 degree ~44.2 degrees.
Video compression standard	H.265+/H.265/H.264/MJPEG
H.265 encoding type	Main Profile
Video code rate	32 Kbps~16Mbps
Audio compression format	G.711a/ G.711u/G.726
Image settings	can adjust brightness, contrast, saturation, sharpness, white balance; AWB (automatic white balance), AGC (automatic gain), AE (automatic exposure control); support for privacy area occlusion; OSD superposition; image rotation: normal 90 / 270 degree automatic, manual or automatic color blackening and other switching modes
The maximum image size	1920 × 1080
main stream	1080P(1920×1080)/1280×720
Auxiliary code stream	D1(704×576)/VGA(640×480)/640×352/QVGA(320×240)
Video frame rate	50Hz: 50fps (1920×1080,1280×960,1280×720) 60Hz: 60fps (1920×1080,1280×960,1280×720)
Character superposition	الدعم
Smart encoding	supports low bit rate, low latency, ROI region of interest enhancement coding, and supports 4 ROI regions.
Smart detection	supports occlusion detection, defocus detection, luminance detection, color detection, sound detection, remnants detection, mobile detection, virtual cordon, regional intrusion
Smart control	supports intelligent control alarm opening, alarm closing, fault clearing, intelligent noise reduction.
Intelligent analysis	face capture, face tracking and face automatic filtering
Picture format	capture pictures using JPEG coding
The sensitivity	0-10 adjustable, the lower the sensitivity, the higher the image quality.
Area settings	support face recognition area selection
Upload mode	private protocol, hokang protocol, FTP upload
Network Video Recording
Master control	Hi3520DV200
Operating system	embedded Linux operating system
Decode type	H.265
Video access	4ch 1080P
Replay	1ch 1080P
Video recording	manual recording, alarm recording, dynamic detection, video recording, general video recording.
Video query	channel retrieval, calendar retrieval, event retrieval, time retrieval
Record Storage	local hard disk storage
VGA interface	1
HDMI interface	1
USB interface	2 USB2.0 interface
Hard disk	1 SATA interface (single maximum support 4T hard disk)
Network interface	10M/100M adaptive Ethernet port
Network protocol	1 channel audio input (MIC IN/Line IN); 1 way audio output interface
الطاقة	12V/2A
الطاقة	<10W(without hard disk)
Working temperature	-10°C ~60°C
Working humidity	10% ~ 90%RH
