LS VISION 8 Channel 1080P Home Surveillance Security NVR Systems with Wifi IP Camera

شارك لـ

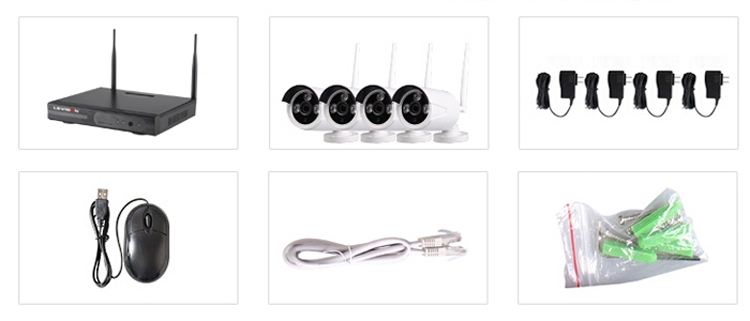

Accessories

Specification

NVR

الطراز	LS-WK7208
Operating System	Embedded Linux OS
AV(video)input
Network Video	8CH
Network video input broad bank	20Mbps
AV (video) output
HDMI input	1ch，resolution：1920*1080, 1024×768，1366×768，1440×900,1920x1080p
VGA output	1ch，resolution：1920*1080, 1024×768，1366×768，1440×900,1920x1080p
AV CODEC Specification
Video Resolution	D1/1080P
synch-playback	8CH
Video Control
Video/Capture mode	Manual、Time、Motion、Alarm
Playback mode	Real time、Routine、Event
Backup	USB backup
Alarm
Alarm Input	4ch (optional)
Alarm Output	1ch (optional)
Hard Disk
Type	1*SATA interface
Max Capacity	4 TB at most for each
External Interface
Network Interface	1 adaptable RJ45 10M/100M, 1 WIFI interface
USB Interface	2 USB 2.0
Network Control
Protocol	UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) DHCP (Automatically obtain an IP address), etc…
Others
Power Supply	DC12V3A
Power Consumption (W)	≤5W（Without HDD）
Operate Temperature (°C)	-10℃~+55℃
Working Humidity (%) RH	10%~90%
Size	257mm（W）×210mm（V）×45mm（H）
Weight（excluding HDD）	≤1Kg

كاميرا IP

الطراز	LS-FW130
Technical Parameters
Sensor	1/3” Progressive Scan Sensor
Signal System	PAL/NTSC
Resolution	1080P; 1920*1080, 1280 x 960 16 : 9 High Defination
Minimum illumination	Color: 0.1 Lux; B/W: 0.01 Lux
Shutter	1/25s to 1/25,000s
Lens	3.6/4/6mm (optional)
OSD	Date Time & Title
White Balance	Auto
Day&Night	Auto / Color / BW
3D-DNR	Auto
Mirror/Flip	On / Off
Frame Specification	Three Streaming at the Same Time: 19201080 1280×960@30fps or below 19201080 640×480@30fps or below
S/N	> 39.1 Db
Interface	RJ45 / WIFI 802.11b/g/n
General Specification
Anti-thunder Level	Standard IEC61000-4-5
Ambient Temperature/Humidity	-10℃ to +50℃ / 30% to 80% RH
Working Temperature/Humidity	-20℃ to +60℃ / 20% to 90% RH
Power Input	DC12V-1A
Power consumption	≤6W
Size	205(L)×70(W)×55 (H)mm
الوزن	0.5Kg

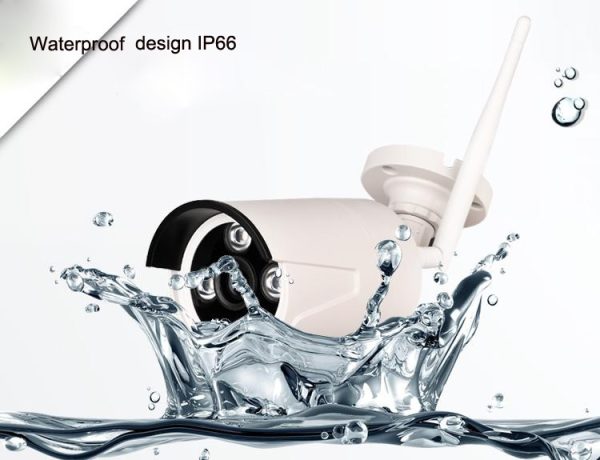

Level of Protection	IP66

WIFI NVR Kit Online Demo Image on IE

Online: http://lsvision.xicp.net:8096/

User name : admin Password : without

WIFI NVR kit Mobile APP Image
