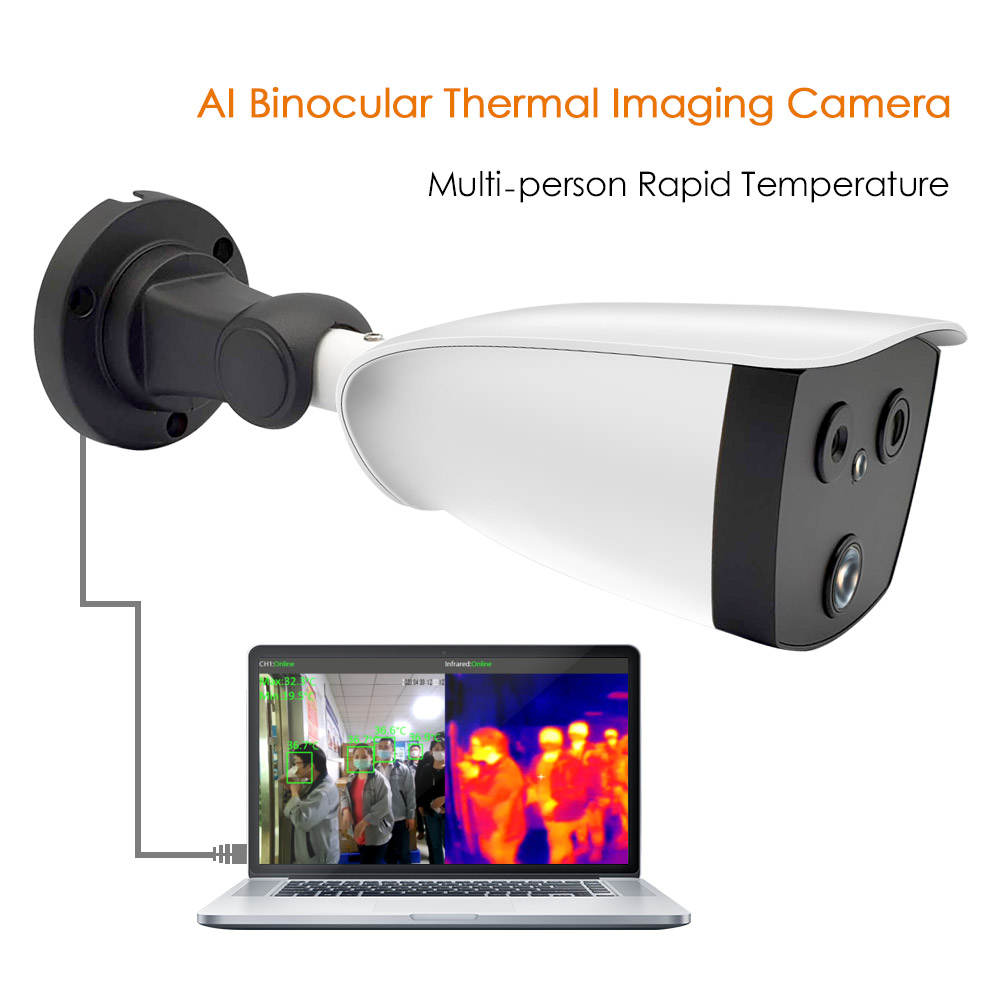

CE FCC Non-contact AI Binocular Thermal Imaging Camera Optical Bi-spectrum Fever Detection Network Bullet CCTV IP Camera Scanner

Our CE FCC Non-contact AI Binocular Thermal Imaging Camera Optical Bi-spectrum Fever Detection Network Bullet CCTV IP Camera Scanner has been tested to reach international and national standards. Due to the devotion of our employees such as designers and R&D experts, it is designed to be eye-catching in its appearance and powerful in its newly-updated functions. With it’s excellent features, our IP Camera/NVR/Solar Camera/Smart Battery Camera is much more competitive in the market, bringing more benefits to customers.

Partager avec :

As a driven company,Shenzhen LSVISION Technology Co., Ltd. has been developing products on our own on a regular basis, one of which is IP Camera/NVR/Solar Camera/Smart Battery Camera.It is the newest product and bound to bring benefits to customers. We can manufacture this product to your exact specifications. Shenzhen LSVISION Technology Co., Ltd. intend to gather more industry talents because people’s wisdom is driven source for us to advance forward. We plan to allocate a large amount of money for product development and technology upgrades. What’s more, we aim to become an influential enterprise in the global market.

Lieu d'origine : Guangdong, Chine Nom de marque : LSVISION
Numéro de modèle : LS-TI003 Caractéristiques spéciales : Imperméable à l'eau / Imperméable aux intempéries
Capteur : CCD Format de compression vidéo : H.265
Nom du produit : AI Face Imagination Scanning Analysic IP Thermal Camera Capteur d'image : 1920x1080P
Sensor type: 1/2.8″ 2.0M Pixel CMOS Day& Night: ModeiR cut filter with auto switch
Temperature Measurement: Support global and local temperature Web Client Language: languages English, Chinese
Face snapping: Built-in Al algorithm, Supports simultaneous detection of 20-30 faces Temperature Range: From-15°C to +150°C
Field of View: 84° x 45° (H x V) Focal Length: 4mm
Certification : CE FCC

CE FCC Non-contact AI Binocular Thermal Imaging Camera Optical Bi-spectrum Fever Detection Network Bullet CCTV IP Camera Scanner

Description du produit
Modèle
LS-TI003
Thermal Camera
Type de capteur
Vox Uncooled Focal Plane Arrays
Résolution
256×192
Pixel Interval
12pm
NETD
Less than 60 mK (@25°C.F#=1.1)
Aperture
F1.0
Field of View
35° x 27° (H x V)
Optical
Capteur d'image
1/2.8″ 2.0M Pixel CMOS
Résolution
1920x1080P
Min. Éclairage
Color: 0.005Lux @ (F1.2, AGC ON), B/W 0.001 皿@ (F1.2, AGC ON)
Field of View
84° x 45° (H x V)
Focal Length
4mm
Shutter Speed
1s to 1/100,000s
Balance des blancs
Auto/Manual/ATW (Auto-tracking White Balance)/lndoor/Outdoor/Daylight Lamp/Sodium Lamp
Day& Night
ModeiR cut filter with auto switch
WDR
80 dB
Fonctionnalité
Bi-spectrum Image Fusion
Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture
Combines details of thermal and optical image PIP, overlay thermal image on optical image
Smart Function
Face snapping
Built-in deep learning Al algorithm, Supports simultaneous detection of
20-30 faces
Temperature Measurement
Support global and local temperature
Temperature Range
From-15°C to +150°C
Temperature Accuracy
Target temperature 35°C A 38°C ±0.3 °C
Target temperature 20°C A 33°C ±0.6 °C
Target temperature 38°C A 50°C ±0.6 °C
Réseau
Main Stream
Thermal: 25fps(1920 x 1080, 1280 x 720)
Sub Stream
Thermal: 25fps(704 x 576, 352 x 288)
Compression vidéo
H.264 (Baseline/Main/High Profile) /MJPEG/H.265
Compression audio
G 711u/G711a/G.7221/MP2L2/G.726/PCM
Protocoles
TCP/IP, , GB/T 28181, DHCP. RTP, RTSP,PPPoE UPnP, UDP
API
(Profile S, Profile G, Profile T), SDK
Général
Web Client Language
languages English, Chinese
Puissance
DC 12V, 0.65A
Work Temperature/H umidity
From -20°C to 55°C; Humidity: 95% or Less
Protection Level
IP66
Dimension
246 mm x 101 mm x 81 mm (with bracket)
Poids
Approx. 1.0 kg
