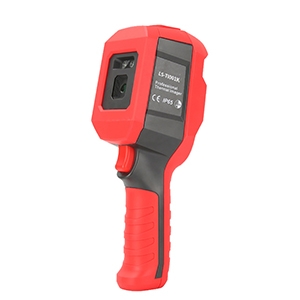

handheld portable thermal camera China Manufacturer CE Certification digital thermal imager detector camera cctv system
| Key Feature |
2.8″ TFT screen
Infrared resolution: 160*120
Range of temperature measurement :30℃~45℃
Accuracy: ±0.5℃（1m）
Photographed function and SD card storage
Point temperature measurement
Type-C USB interface for lithium battery charging
1/4″ tripod mounting hole
| Technical Specification |
|
Modèle |
LS-TI001 |
|
Thermal Camera |
|
|
Type de capteur |
Uncooled focal plane array |
|
Temperature range |
30℃~45℃ |
|
Résolution |
0.1℃ |
|
Précision |
±0.5℃（ @ 25℃ ambient temperature） |
|
Minimum measuring distance |
15cm |
|
Optimal measuring distance |
1m |
|
Temperature measurement response time |
≤500ms (95% of reading) |
|
Thermal resolution |
19200 (160×120) |
|
Pixel dimensions |
12μm |
|

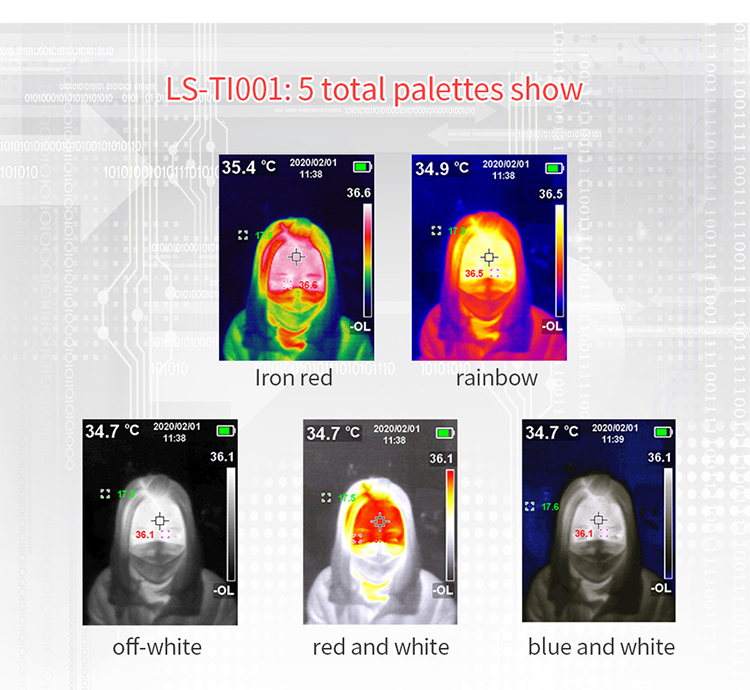

Palettes |

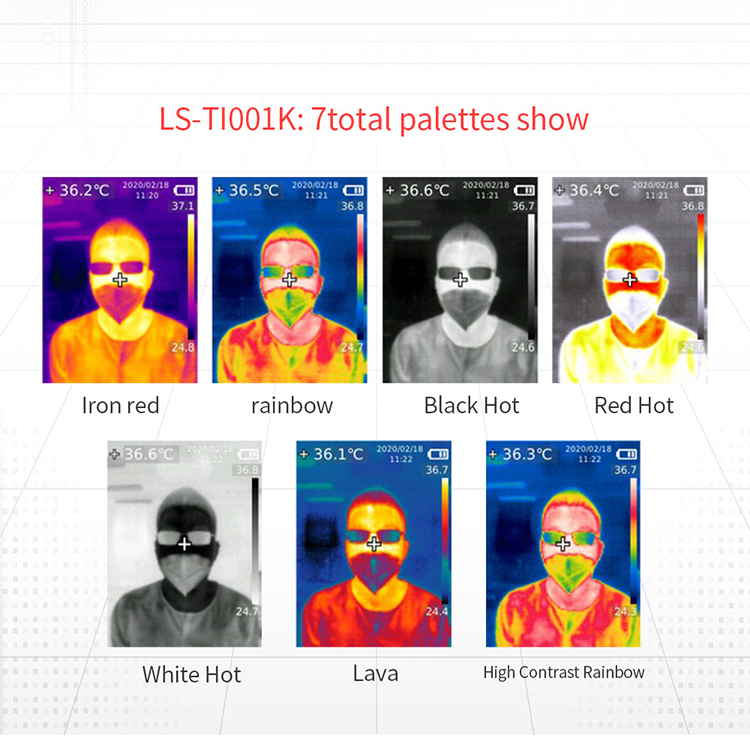

Iron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow |
|
Bandwidth of infrared spectroscopy |
8~14μm |
|
Field of view (FOV) |
56°(H) × 42°(V) |
|
Instantaneous field of view (IFOV) |
6mrad |
|
Thermal imaging sensitivity |
＜50mk |
|
Taux de rafraîchissement |
＜9Hz |
|
Temperature display |

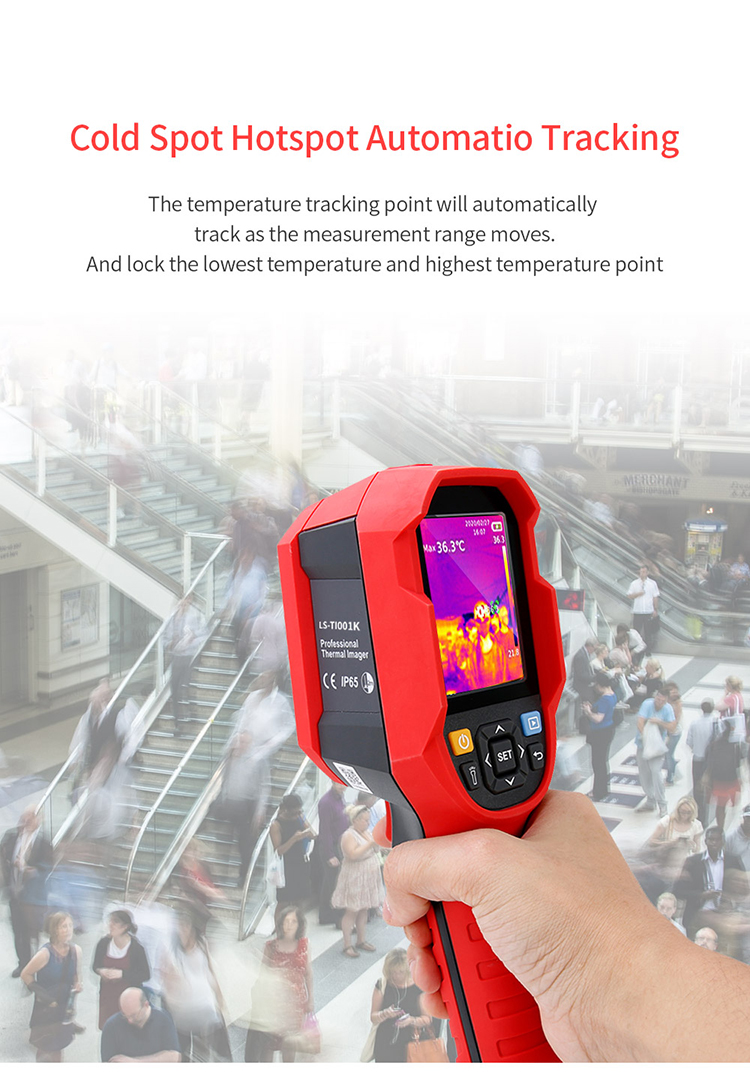

Center temperature measurement and high temperature tracking (default) |
|
Format de l'image |
BMP |
|
Image mode |
Thermal camera, visible camera, image blending |
|
Temperature measuring point |
Besides central point, 3 temperature measuring points can be added |
|
Display resolution |
320×240 |
|
Visual camera |
|
|
Resolution of visible camera |
640×480 |
|
Display resolution |
320×240 |
|
Image blending |
0% (total visual camera), 25%, 50%, 75%, 100% (total thermal camera) |
|
PC analysis software (PC) |
|
|

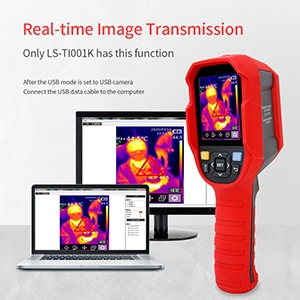

Real-time image transmission |
N/A |
|
PC analysis software（PC） |
N/A |
|
Data communication |
N/A |
|
Auto power off |
Selectable (5min, 10min, 30min), 30min auto power off (default) |
|
Battery life |
≥6 hours |
|
Charging time |
5 hours |
|
Charging voltage/current |
5V/2A |
|

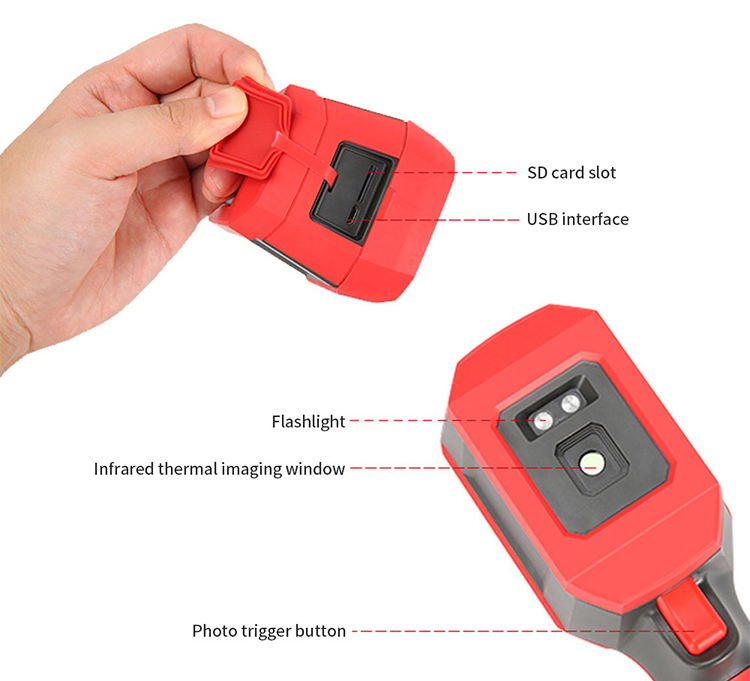

Image storage |
Micro SD card |
|
Puissance |
A single Li-ion 3.7V/5000mAh 26650 battery |
|
Display |
2.8″ TFT LCD |
|
Product color |
Red + grey |
|

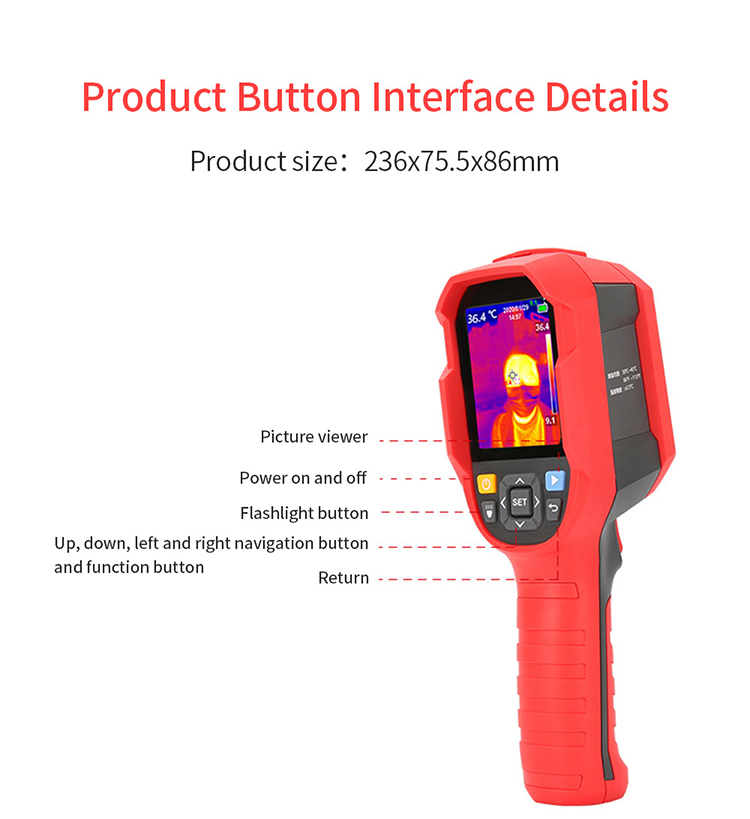

Product size |
236mm x 75.5mm x 86mm |
|
Standard accessories |
Manual, 16GB TF card |
|
Standard carton gross weight |
2.2kg |
| Image détaillée |
