The core competitiveness of a company is its capabilities in research and development.Shenzhen LSVISION Technology Co., Ltd., as a technology-driven enterprise, has been striving forward to enhance our R&D capabilities and successfully developed Indoor Outdoor Thermal Imagimg Human Body Thermometer Camera Face Recognition Screening System Built-in Black Body. It is designed to meet the industry criterion. Shenzhen LSVISION Technology Co., Ltd. always adhere to the principle of ‘creating values for customers and bringing benefits to stakeholders’. In the process of development, we highly focus on the quality and ensure no flawless product delivered to customers.
| Tempat Asal: | Guangdong, Tiongkok | Nama Merek: | LSVISION |
| Nomor Model: | LS-TI006 | Garansi: | 1 Tahun |
| Fitur Khusus: | Face Recognition, People Counting, Temperature Measurement | Sensor: | CCD |
| Jaringan: | Ip | Fungsi: | Waterproof / Weatherproof, Thermal image |
| Format Kompresi Video: | H.265 | Opsi Penyimpanan Data: | Cloud, Memory Card, NVR |
| Aplikasi: | Dalam ruangan, Luar ruangan | Dukungan yang disesuaikan: | Logo yang disesuaikan, OEM, ODM |
| Nama produk: | Indoor Outdoor Thermal Infrared Imagimg Temperature Camera | Measurement Range: | 20°c -50°c |
| Field Angle(Calculated Value): | 40°C*30°C | Calibration: | Self-Calibration |
| Detector Type: | Uncoiled Infrared Array Sensor | Temperature resolution: | 0.01°C |
| Pixel Pitch: | 17μm | Resolusi: | illion Pixels)> 1920*1080(2 M>illion Pixels) |
| Effective emissivity: | 0.96 ±0.02 | Temperature stability: | ±0.1°C/60min> >±0.1°C/60min |
| Saluran: | 4 | Sertifikasi: | ce, FCC |

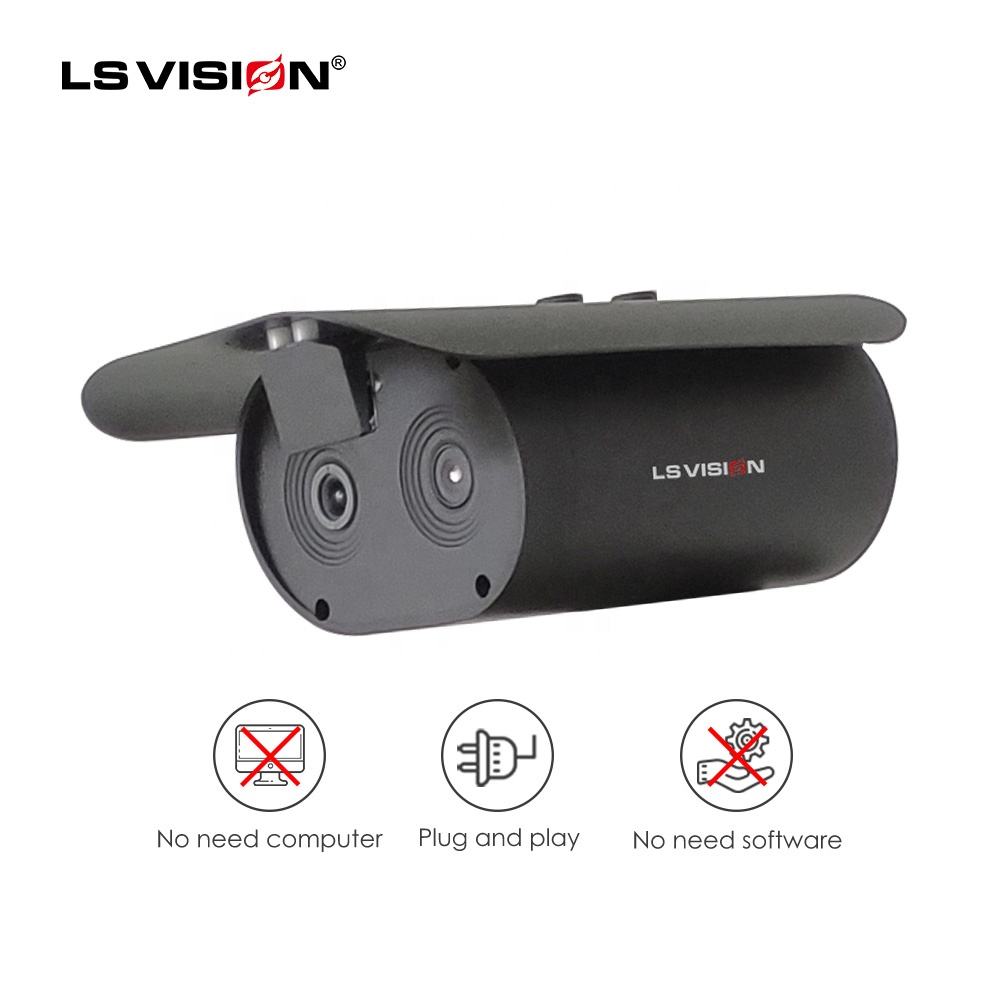

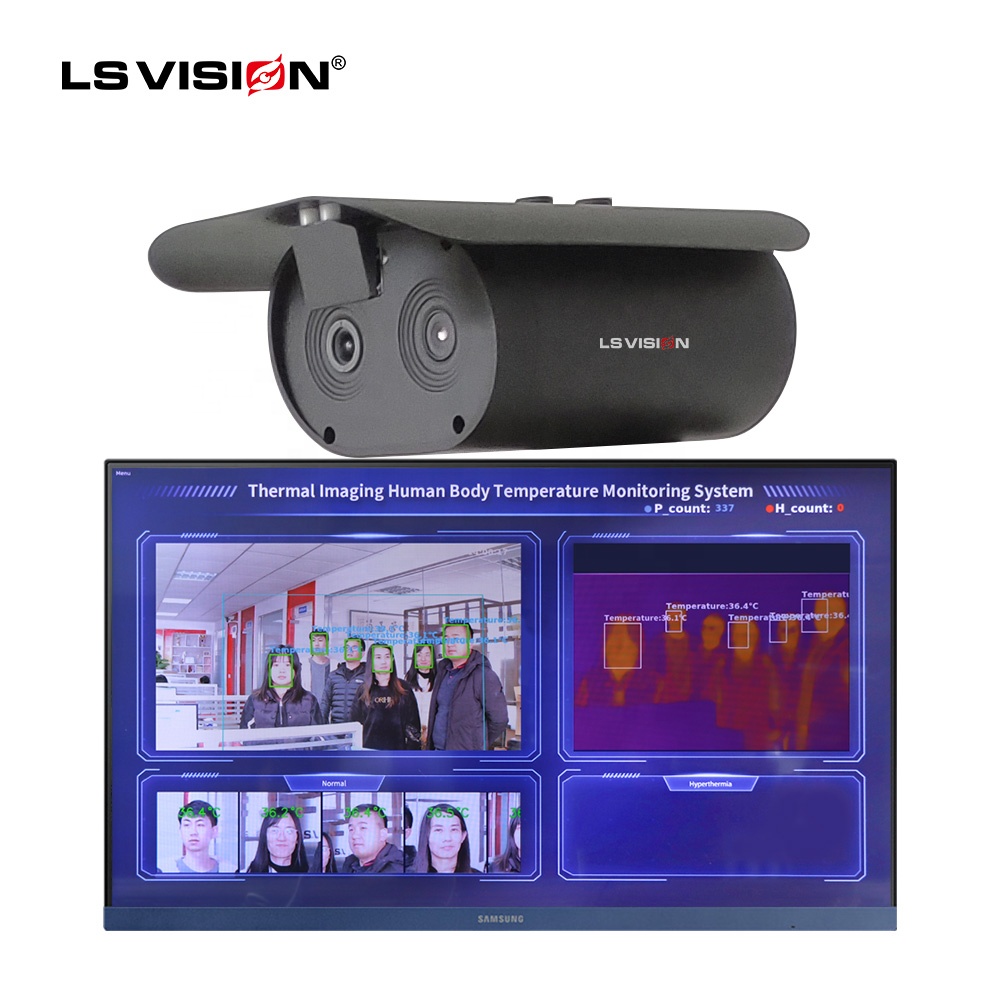

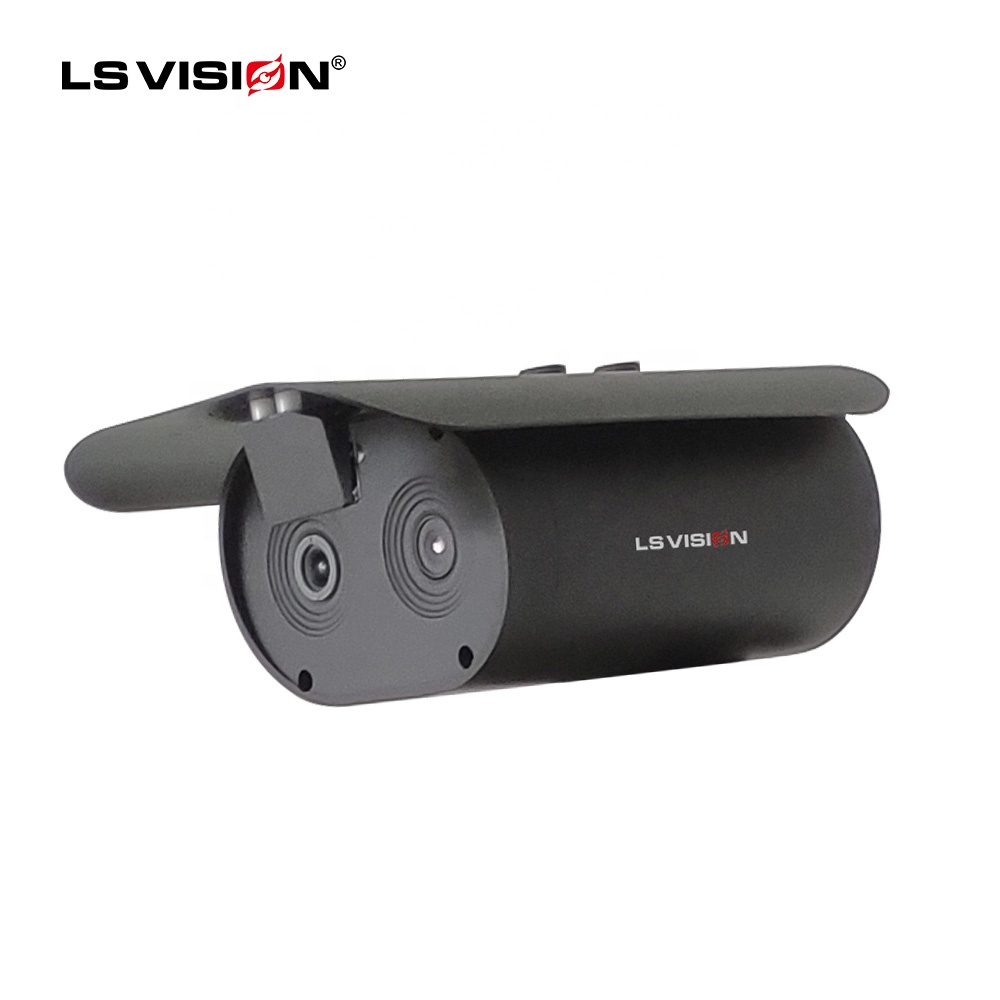

Indoor Outdoor Thermal Infrared Imagimg Military Grade Temperature Camera Face Recognition Screening System Built-in Black Body
Deskripsi Produk
Deskripsi Produk
Artificial intelligence temperature measurement system

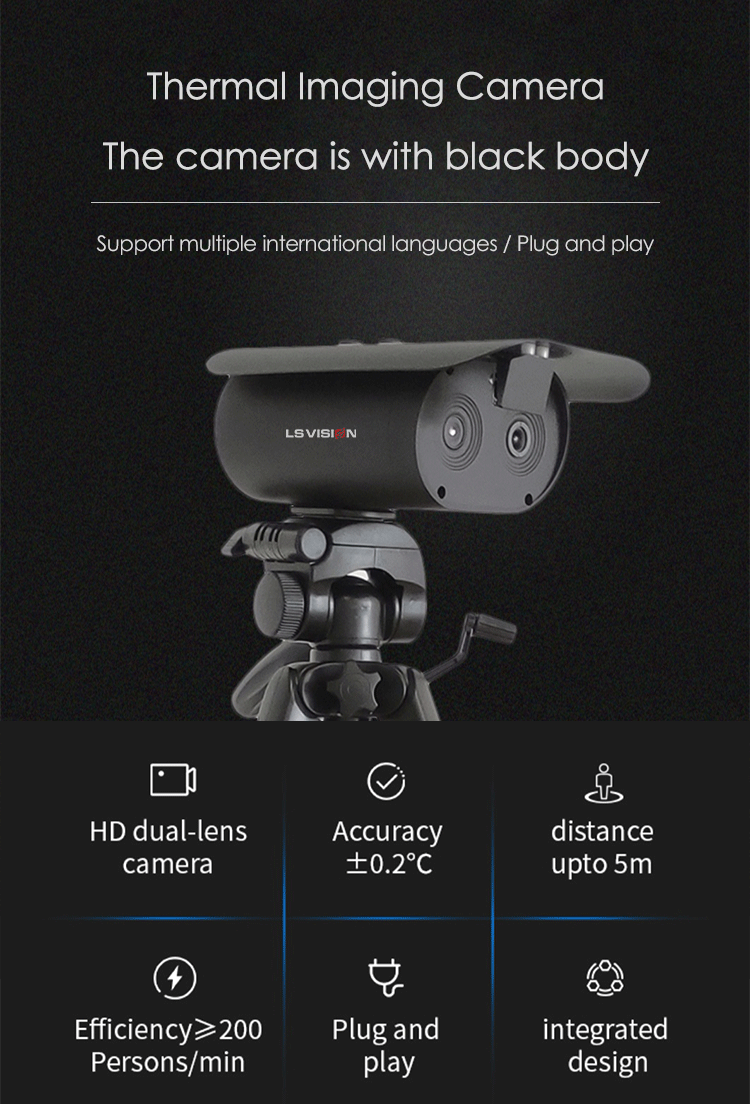

The product integrates a high-sensitivity infrared camera, high-definition visible light camera, high-precision black body,high-performance temperature measurement engine, non-medical, human Industrial intelligence drive, automatic alarm, visualization platform, high-precision thermal imaging detection system. W-DM80I is based on artificial intelligence algorithm and infrared thermal imaging temperature measurement technology. It can quickly check and warn people with fever symptoms in the crowd, and

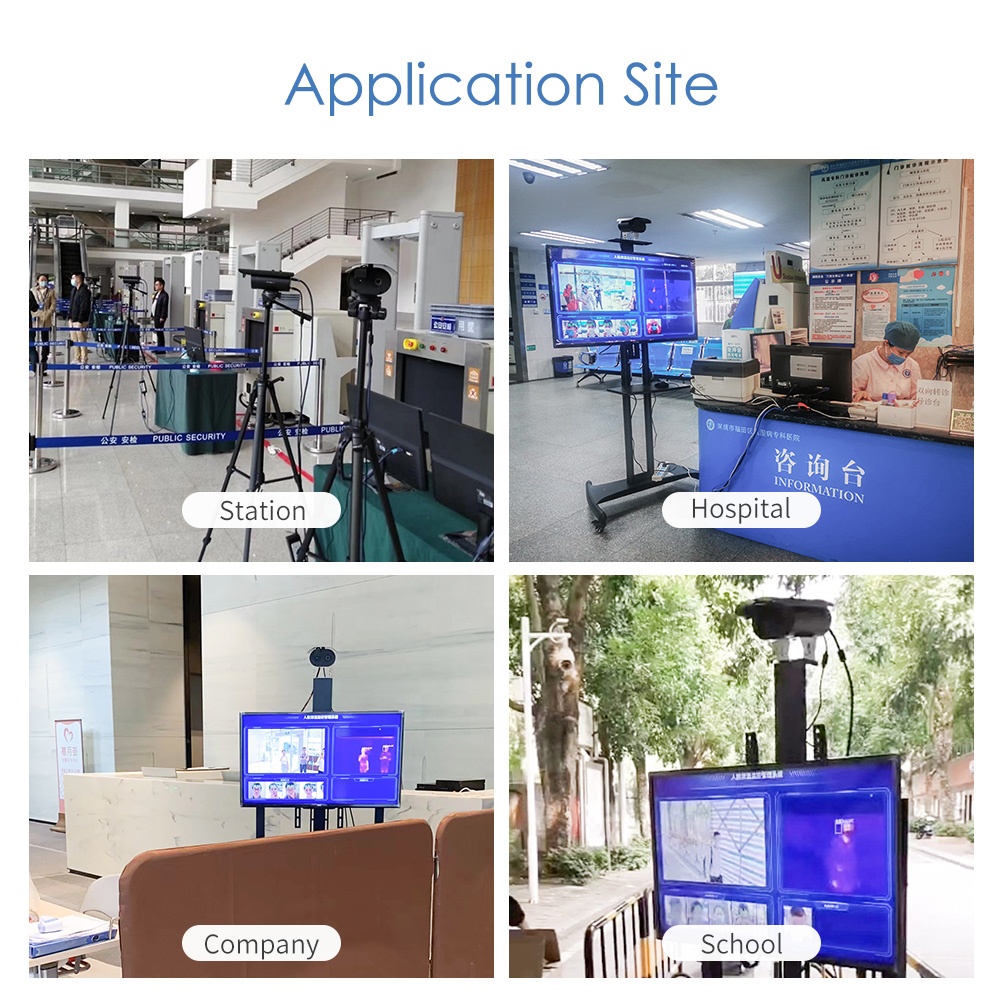

accurately display the highest temperature value. The equipment is widely used in large public places such as airports, stations,schools, hospitals, factories and shopping malls.
accurately display the highest temperature value. The equipment is widely used in large public places such as airports, stations,schools, hospitals, factories and shopping malls.

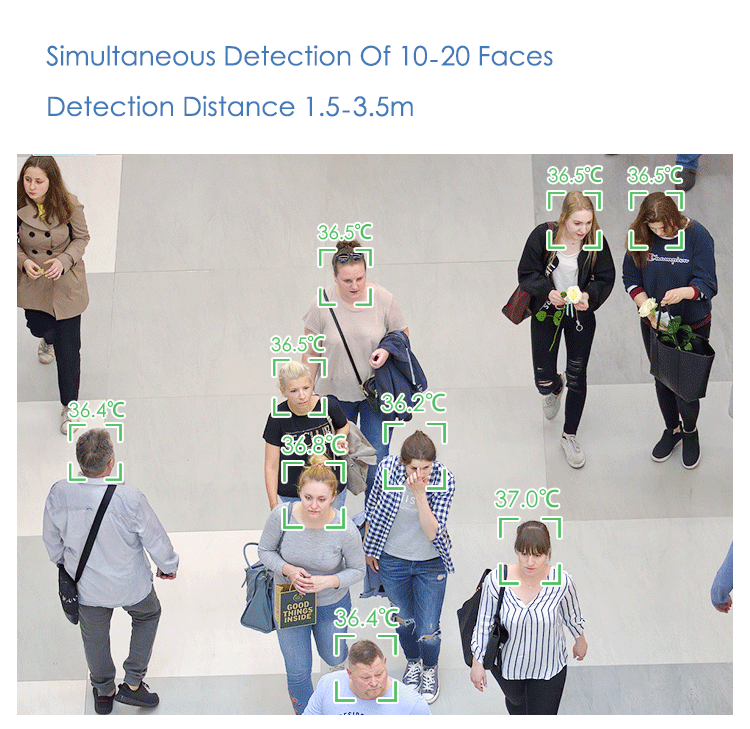

The system is equipped with automatic face recognition and capture, and can quickly detect the thermal temperature of the forehead in milliseconds, with an accuracy of 0.2°C. At the same time, LS-TI006 has an automatic temperature algorithm based on artificial intelligence technology, without on-site manual intervention, can accurately identify and count the number of people passing by, and quickly analyze and display the temperature of individual personnel.
Fitur:
Quick Detection Large streams of people can be measured and detected with in 0.05 seconds. Sensitivity The temperature resolution of the instrument can reach ± 0.2 ℃ , which is suitable for long distance in high volume traffic areas. Discrete Measurement Measurement can be carried out without the complete knowledge of the detected object.
Great User Experience Mufti-visual presentation with strong curability, affinity, scientific, and technological capabilities.
|
Model
|
LS-TI006
|
|
|
Temperature Measurement
|
||
|
Measurement Range
|
20°c -50°c
|
|
|
Field Angle(Calculated Value)
|
40°C*30°C
|
|
|
Calibration
|
Self-Calibration
|
|
|
Measurement Distance
|
1.5-5m
|
|
|
Infrared Camera
|
||
|
Detector Type
|
Uncoiled Infrared Array Sensor
|
|
|
Resolusi
|
160X120
|
|
|
Pixel Pitch
|
17μm
|
|
|
NETD
|
≤60mk(F/1,300K, 50Hz)
|
|
|
Kecepatan Bingkai
|
15 Hz
|
|
|
Temperature Measurement Data Output
|
Full Range Temperature Output
|
|
|
People Per Second
|
200 people in one minute
|
|
|
Visible Camera
|
||
|
Resolusi
|
1920*1080(2 M>illion Pixels)
|
|
|
Imaging Device
|
1/2.7inch CMOS
|
|
|
Minimum Illuminance0.01
|
Lu(Color Mode),0.001Lux(Black and White Mode)
|
|
|
Signal to Noise Ratio
|
>56dB
|
|
|
Other Parameters
|
HAIRCUT Automatic Switching, Backlight Compensation, Strong Light Suppression, Automatic White Balance
|
|
|

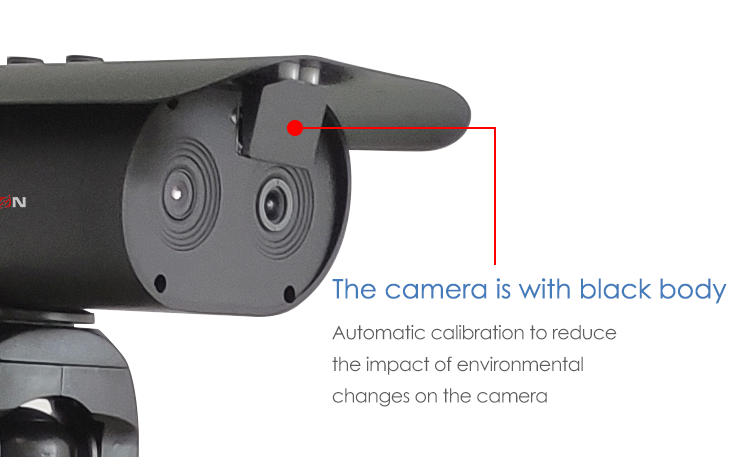

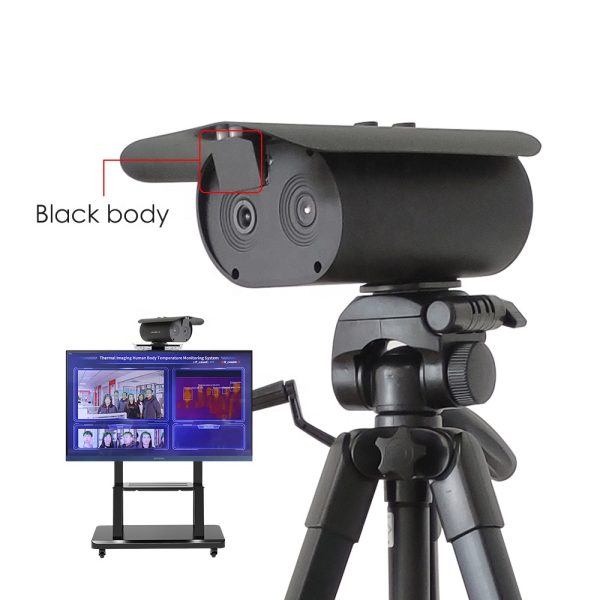

Black body
|
|
|
|
Black target surface diameter
|
20mm*30mm
|
|
|
Effective emissivity
|
0.96 ±0.02
|
|
|
temperature range
|
(Ambient temperature+5°C)~(50°C)
|
|
|
Temperature resolution
|
0.01°C
|
|
|
Temperature stability
|
>±0.1°C/60min
|
|
|
Heating time
|
<2minute
|
|
|
Motherboard parameters
|
||
|
SOC
|
Broad com BCM2711
|
|
|
CPU
|
64 bit 1.5GHz Temperature stability (28nm)
|
|
|
Bluetooth
|
5.0
|
|
|
USB
|
USB 2.0*2/USB 3.0*2
|
|
|
Micro *2 support 4K60
|
||
|
Powered by
|
Hype C(5V 3A)
|
|
|
Jaringan
|
Wi-Fi 802.11AC,Gigabit
|
|
|
multimedia
|
H.265(4Kp60 decode) H.264(1080p60 decode,1080p30 encode) Opening es,3.0 graphics)
|
|
|
Other Parameters
|
||
|
Installation Environment
|
Indoor or Outdoor
|
|
|
castellations Method
|
Support, Wall Mounting, Hoisting
|
|
|
Suhu Kerja
|
0℃~40℃
|
|
|

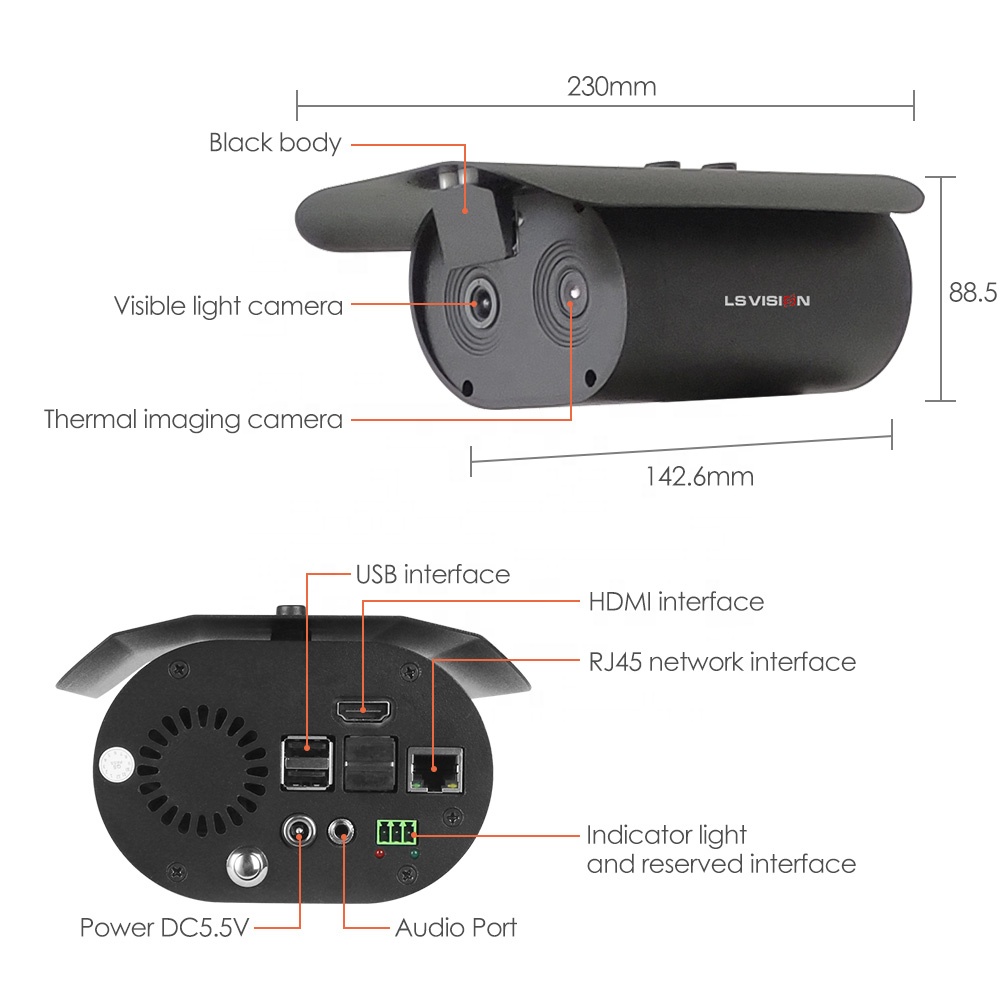

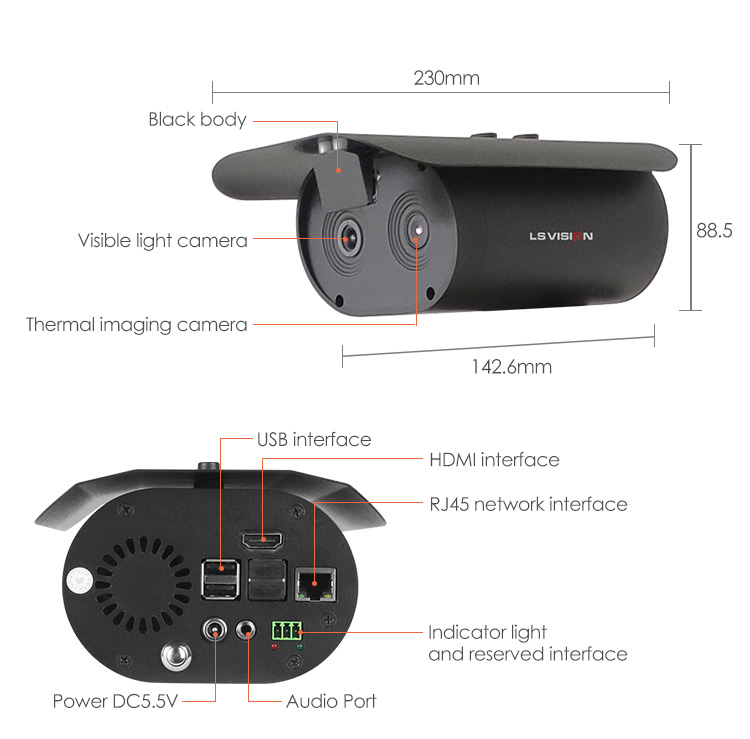

Ukuran
|
230mmx142.6mmx88.5mm
|
|
|
out packing size
|
265 (L) * 270 (W) * 150 (H) mm
|
|
|
Berat
|
1.5 KG
|
|
