LSVISION – LS VISION Ambarella A12 3G 4G Wifi LTE 12 Hours Continuous Recording IP68 Shockproof Body Worn Camera Support Remote Live View Body Worn Camera

The technologies can ensure our manufacturing process is streamlined and upgraded, which saves a lot of time and energies for us.Its coverage of application has been expanded to the field(s) of Body Worn Camera.

Bagikan ke:

LS VISION Ambarella A12 3G 4G Wifi LTE 12 Hours Continuous Recording IP68 Shockproof Body Worn Camera Support Remote Live View is highly recognized by more and more people for its wide and useful application(s) in CCTV Camera. it is highly acclaimed by the clients for its unique features. Shenzhen LSVISION Technology Co., Ltd. have long desired to become one of the most influential enterprises in the industry. At present, we are busy improving our capabilities in product manufacturing, and gathering talents especially technical talents to develop our own core technologies.

Tempat Asal:	Guangdong, Tiongkok	Nama Merek:	VISI LS
Nomor Model:	LS-BC4G416	Fitur Khusus:	Tahan air / Tahan Cuaca
Sensor:	CMOS	Teknologi:	Infrared
Item:	H.264 3G 4G Wifi Body Camera	Sensor Gambar:	Ambarella A12S2L and OV4689 senor (4MP)
Resolusi:	Up to 1920x1080P 30fps video resolution	Snap shot:	Up to 40 million pixels for snap shot
GPS:	Pelacakan Jarak Jauh	Night Vision:	up to 10 meters with visible shape image
3G/4G-LTE:	Live Streaming	Image Angle:	over 120°
Tahan air:	IP68 Water-proof

Deskripsi Produk

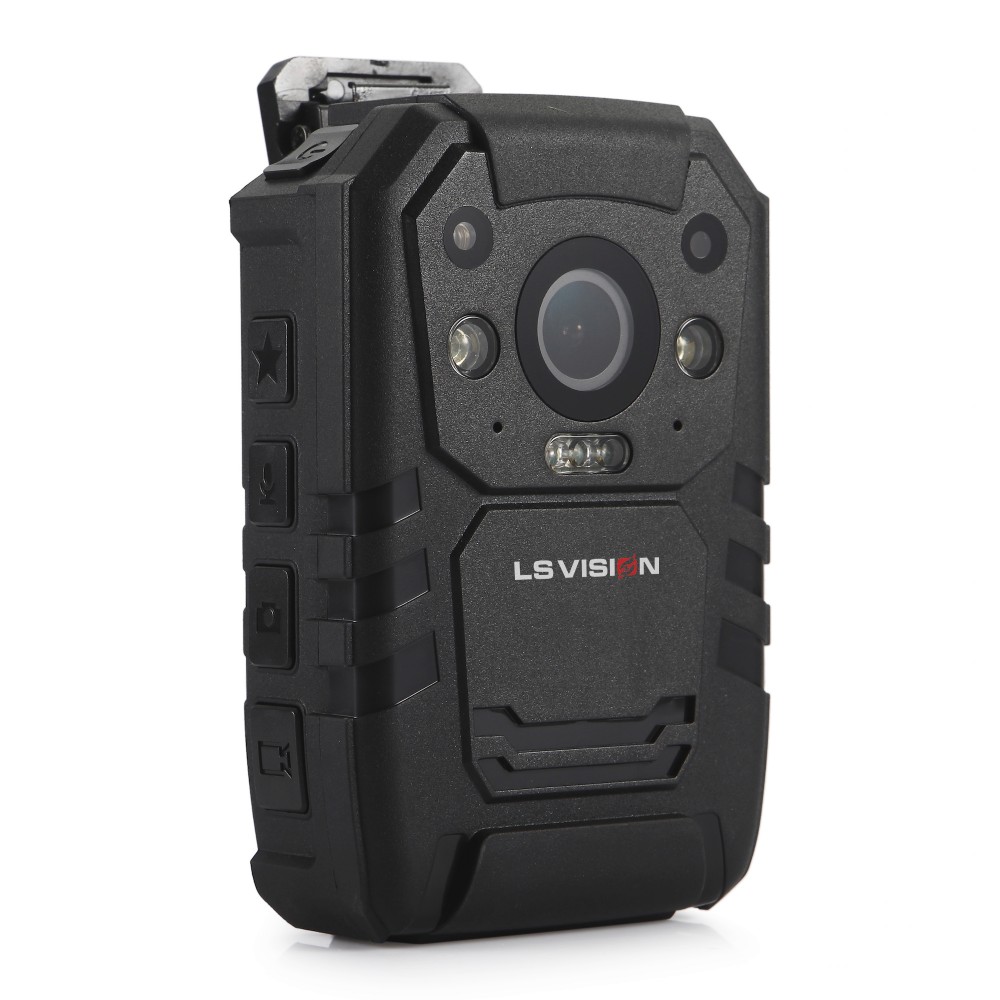

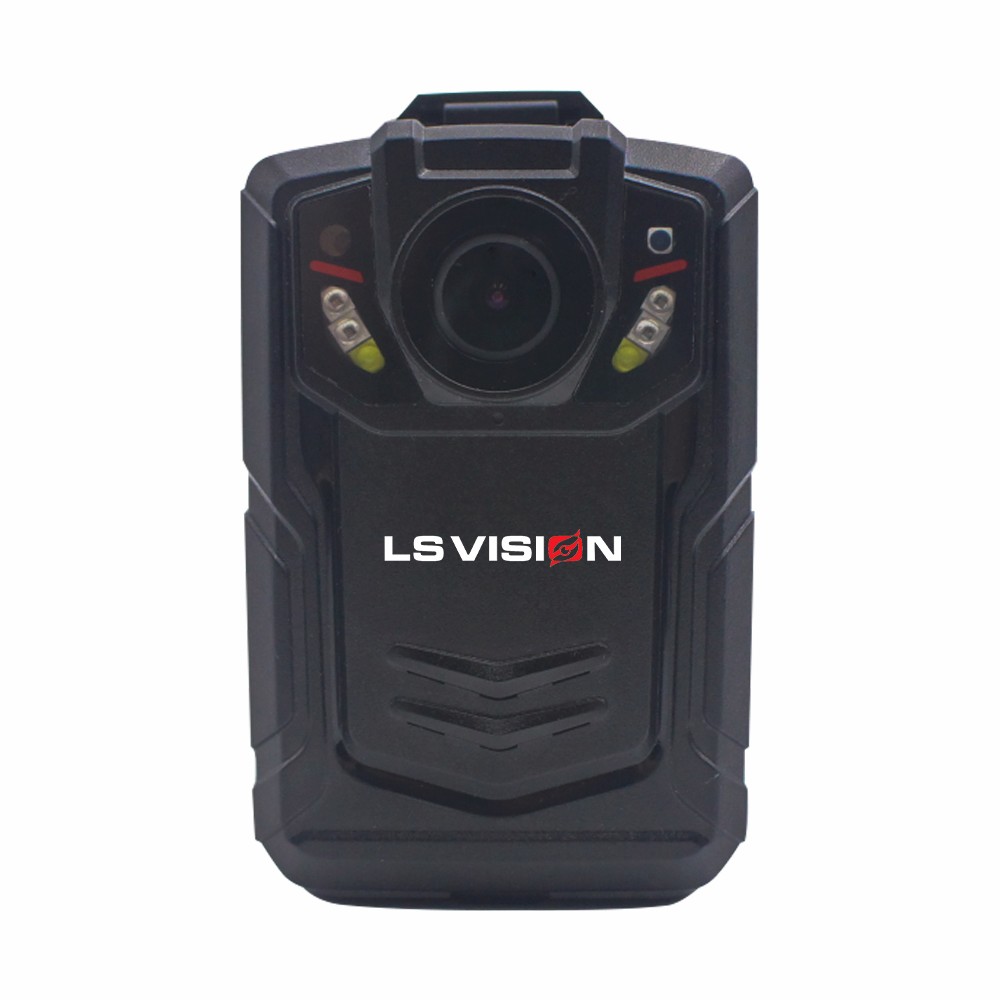

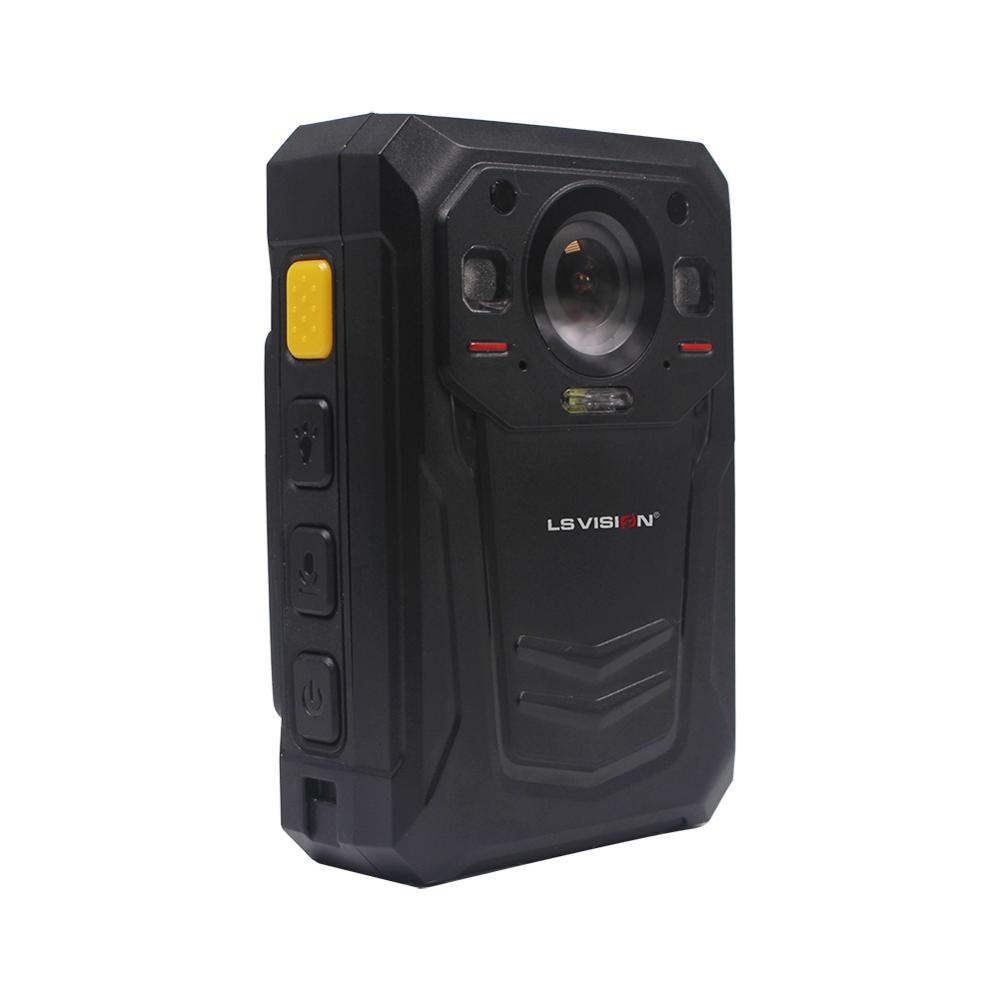

LS VISION Ambarella A12 3G 4G Wifi LTE 12 Hours Continuous Recording IP68 Shockproof Body Worn Camera Support Remote Live View

Fitur Utama:

Ambarella A12 and 1/3′ color 4MP CMOS

Support WIFI,3G/4G LTE

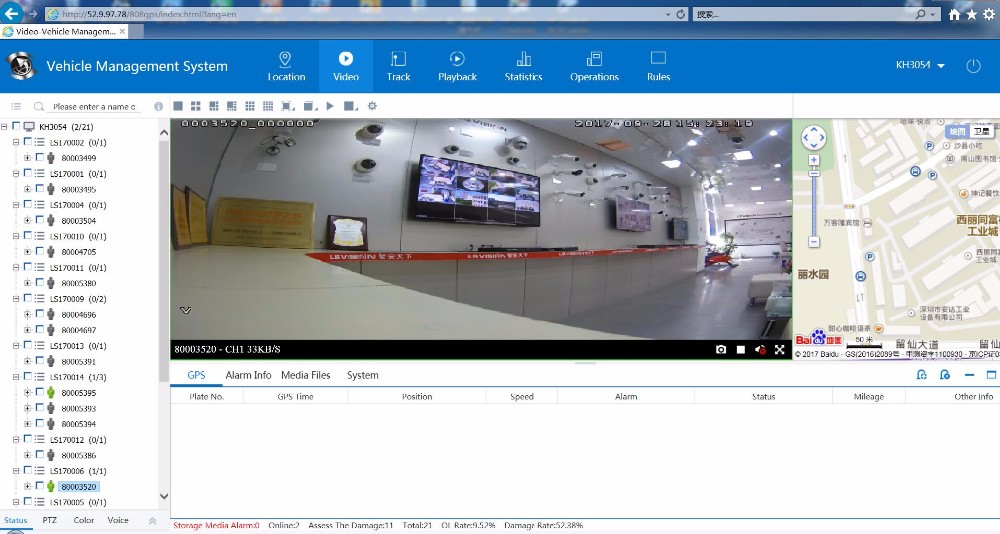

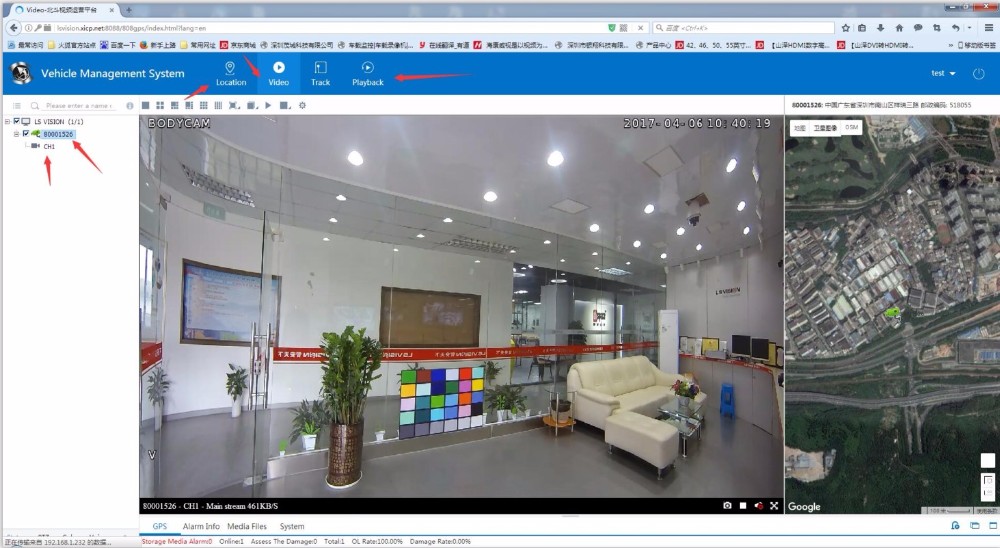

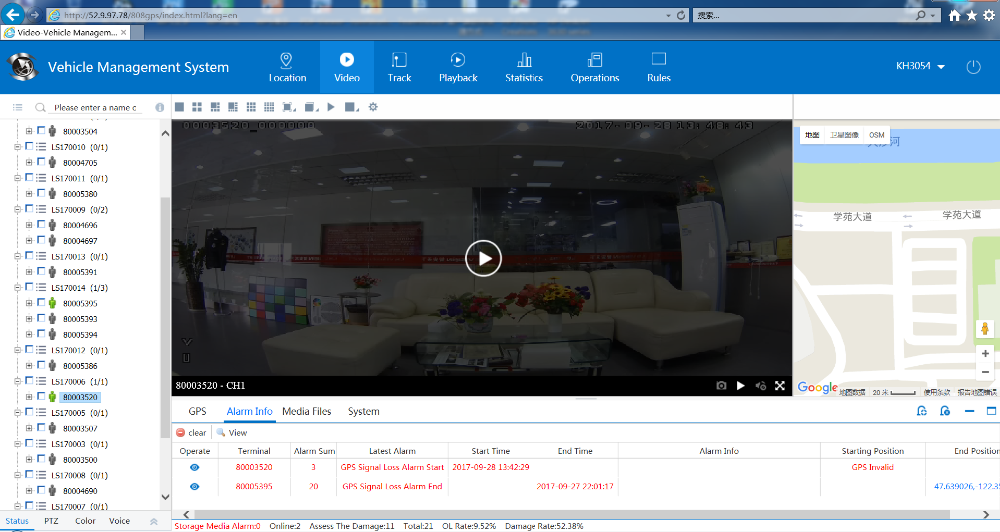

Remote Live View and Two-way Talk Back

Built in GPS/BDS , Remote Live Tracking

Up to 1920x1080P 30fps for recording and up to 8640×4752(40M) for snap

Support external button camera (optional)

3600mAh for 1080p30 continuous recording upto 12h, for continuous 4G remote view up to 6.5h, Full charged within 3h

IP68 waterproof and 2 meters shock-proof

Support DEWARP function to make the view more accurate and realistic

Support infrared night vision and Pre/Post event recording

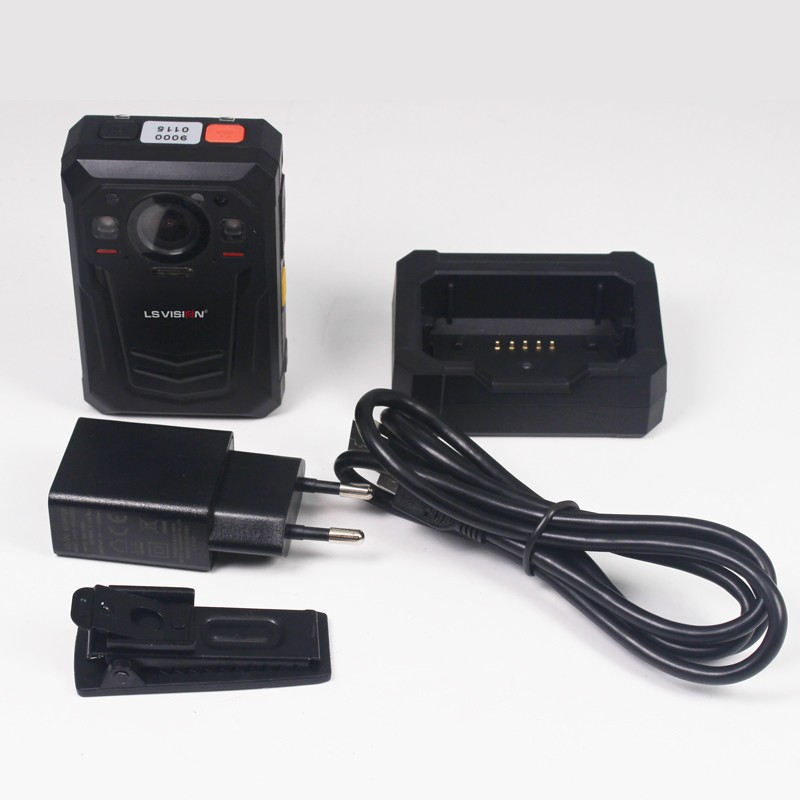

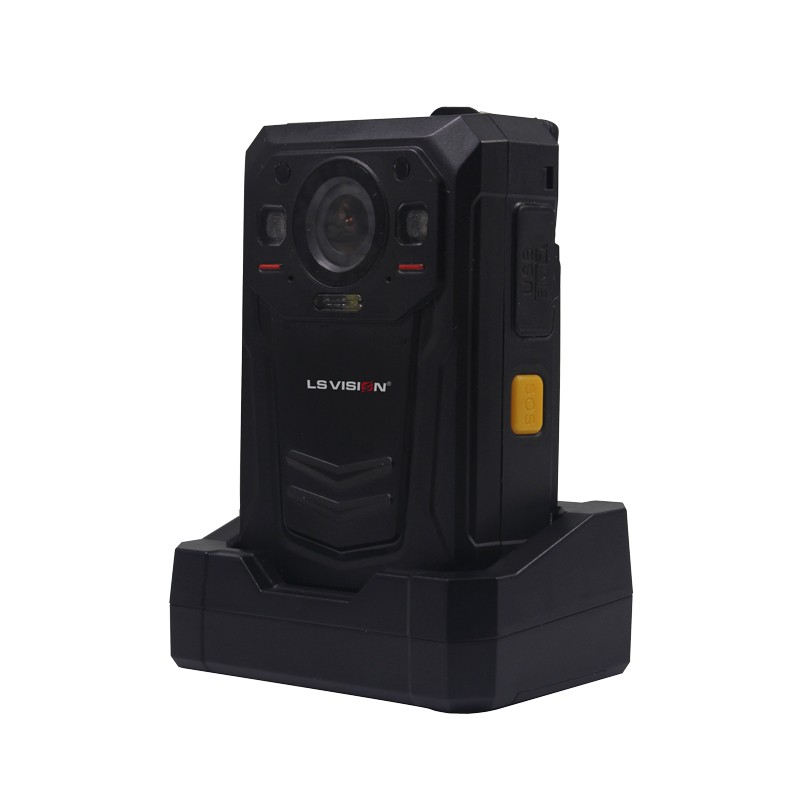

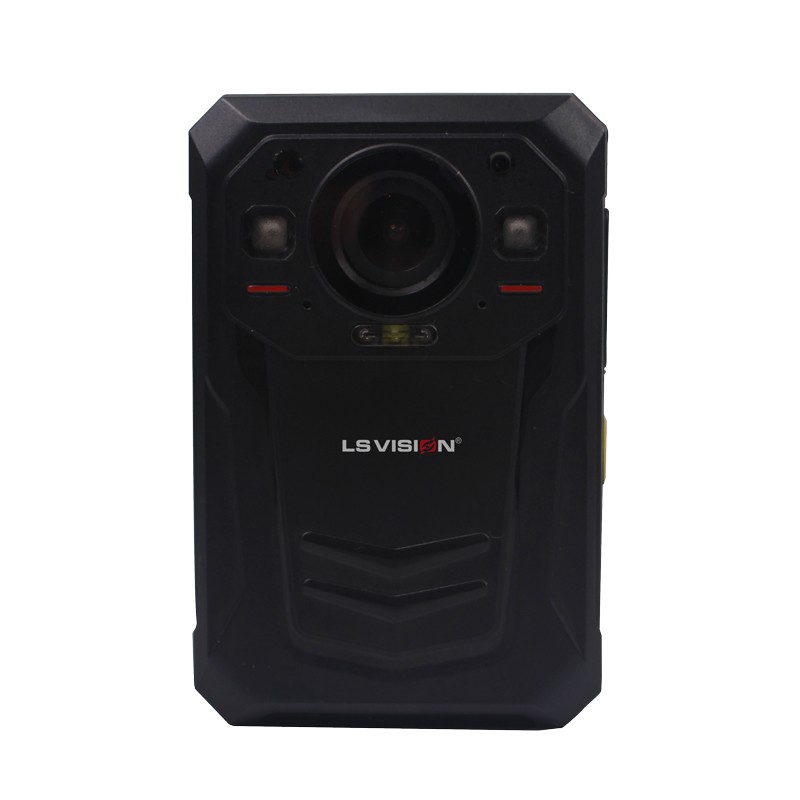

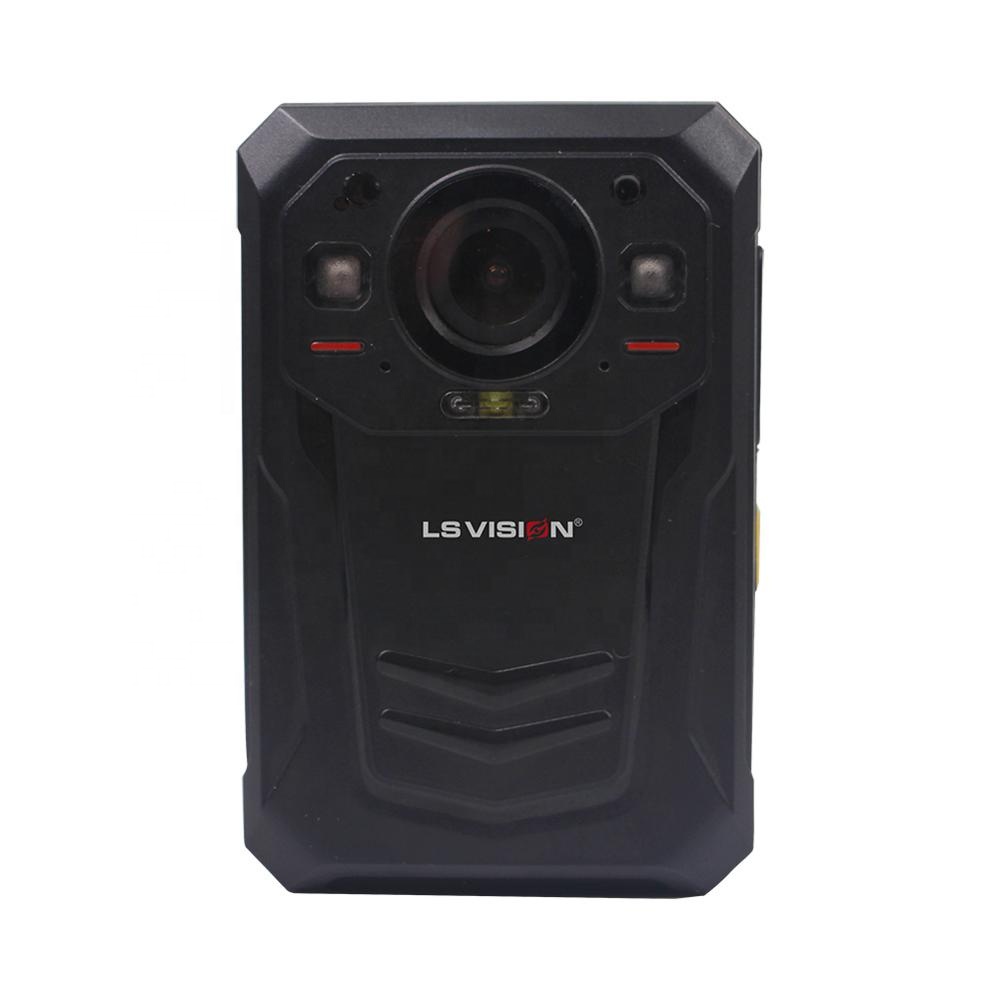

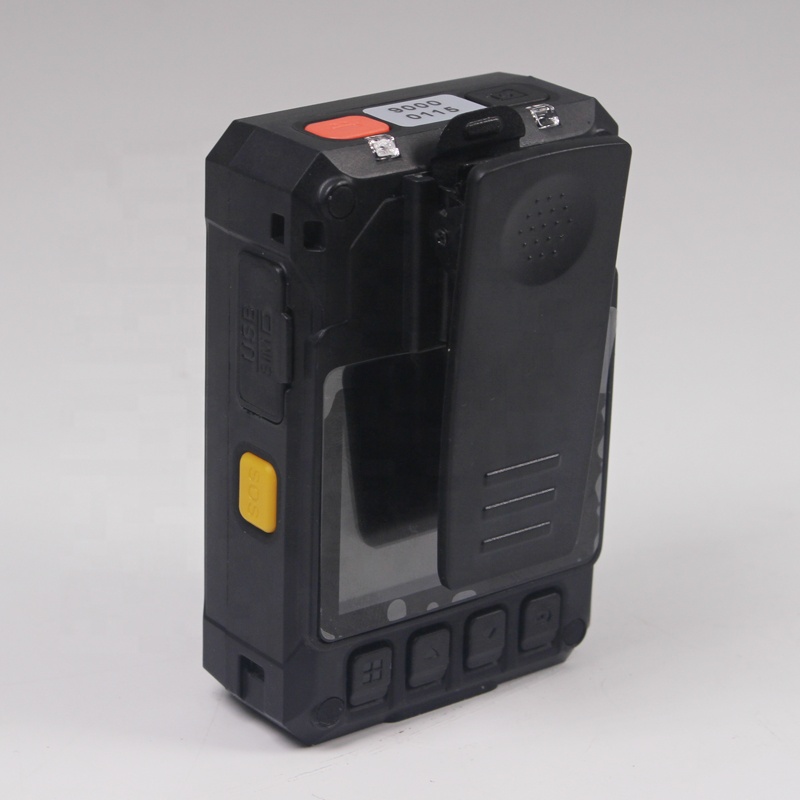

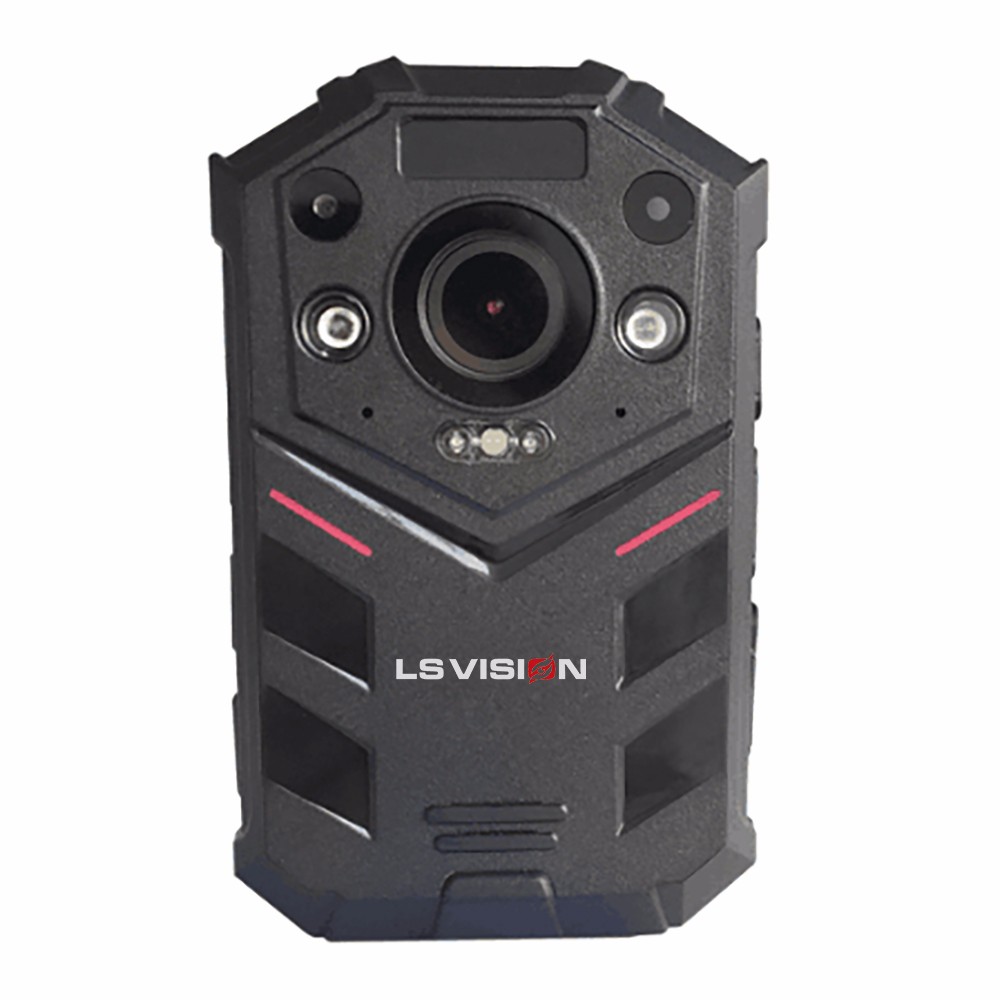

Detailed Images

Spesifikasi

Item	LS-BC4G416/LS-BC4G432/LS-BC4G464/LS-BC4G4128

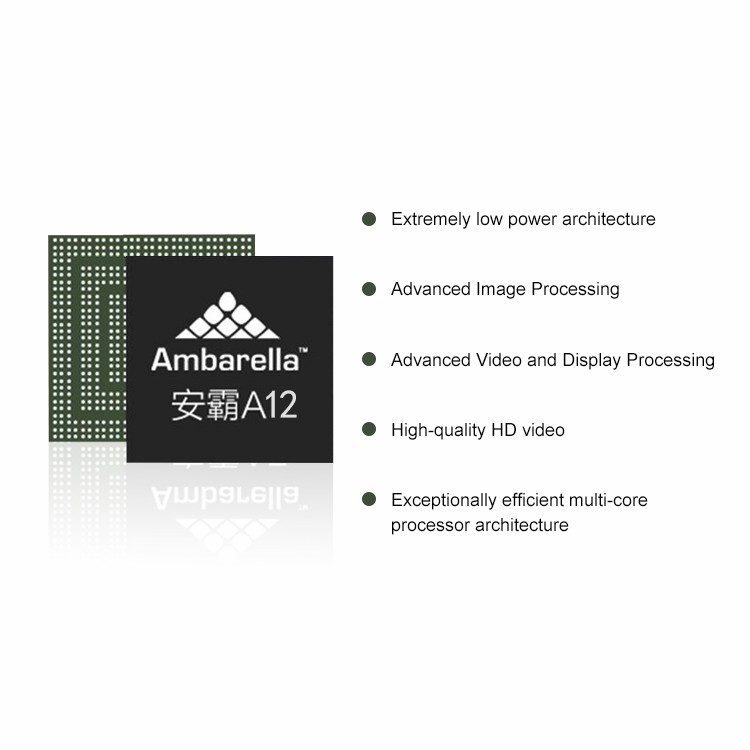

Chipset	Ambarella A12
OS	Linux 3.10.73
Startup Time	< 8 Seconds(From power on recording)
Sensor Gambar	1/3″color CMOS sensor,4MP
Image Angle	﹥120°
Resolusi Perekaman	1920x1080P, 1280x720P, 640x360P
FPS	5,10,15,20,25,30 fps
Snap shot	8640×4752/7680×4288/5760×3216/3840×2144/2880×1584/1920×1080
Kompresi Video	H.264
Format Video	AVI
Photo Format	JPG
Kompresi Audio	PCM
Audio Format	WAV
IR-Cut	Automatic/Manual operation
IR Light	2 IR lights

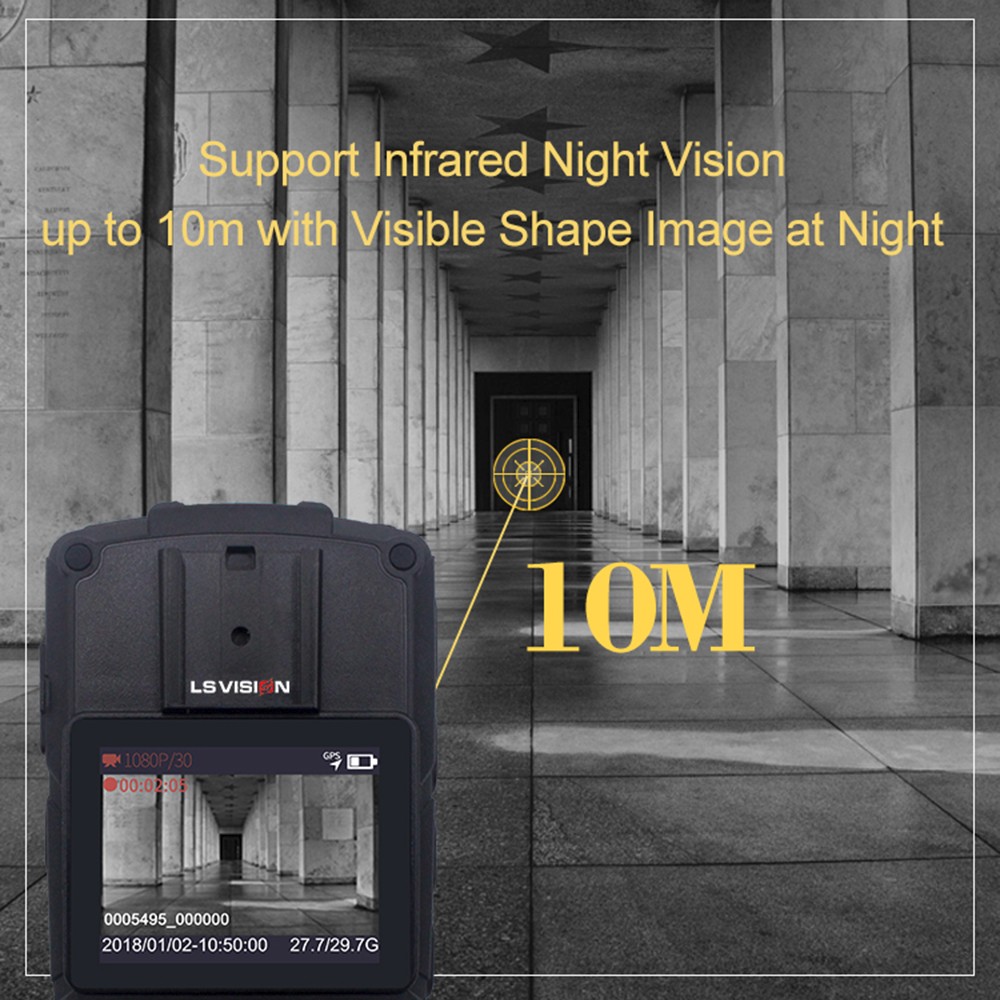

Night Vision	Up to 10 meters with visible shape image at night
DEWARP	DEWARP processing for fish eye lens or wide angle lens
Snap during recording	Support snap during recording function
WiFi	Support wifi connection and AP
GPS	Built in GPS(GLONASS/BDS optional)
3G/4G	Built in 3G/4G-LTE module
Pre-record	20s/10s/5s/Off adjustable
Post-record	20s/10s/5s/Off adjustable
Record Encryption	Support encrypt recording video
Safe mode	Need password to enter setting menu or playback
Playback	1-128X times Fast Forward and rewind
Memperbesar	Support 1~8 times Zoom
Alarm function	Support one-key alarm and upload to the platform
Overwrite function	Dukungan
Tanda Air	User ID, Time and date Stamp, GPS coordinates, Speed Imbedded into Video
Tahan air	IP68
Shock-proof	2 meters
Kapasitas Baterai	3600mAh built-in non-removable battery
Continuous working time	3600mAh for 1080p30 continuous recording upto 12h, for continuous 4G remote view up to 6.5h
Waktu pengisian daya	Full charged within 3h (use the standard power adaptor)
Kapasitas Penyimpanan	16GB (16GB/32GB/64GB/128GB optional)
External button camera	Support (optional)
Interphone input	Dukungan
LED light function	Dukungan
Laser light	Dukungan
Data Port	Mini USB
Charging Base	Untuk pengisian baterai dan transmisi data

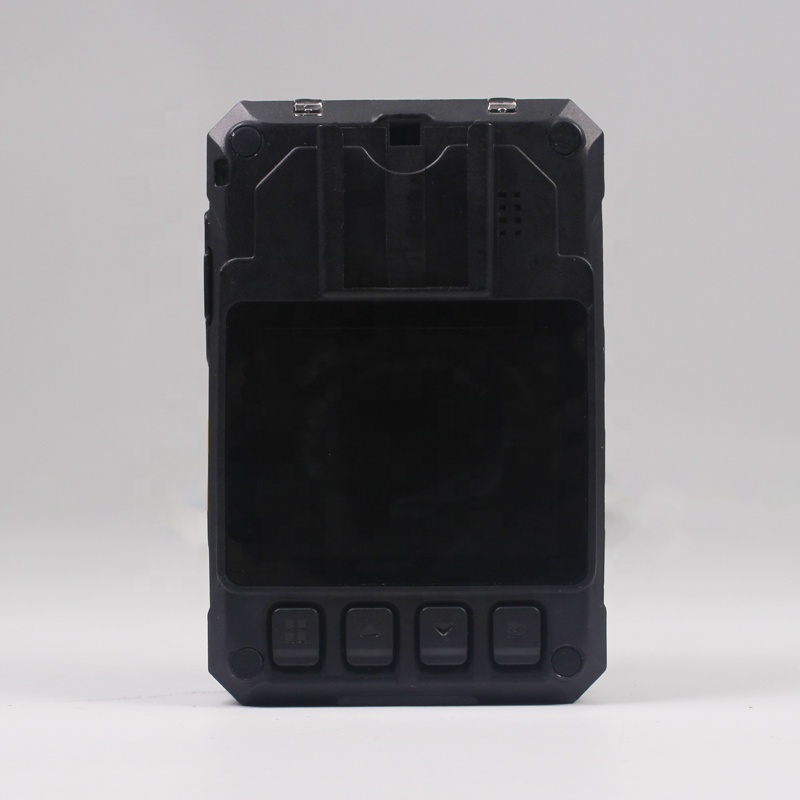

LCD	2.0 inch TFT-LCD High-Resolution Color Display
Device log	Dukungan
Dimensi	83.254.829.8mm
Berat	145g
Suhu Kerja	-40℃~60℃
Kelembaban Kerja	40%~80%(RH)

4G Series Body Camera.

. Ambarella A12

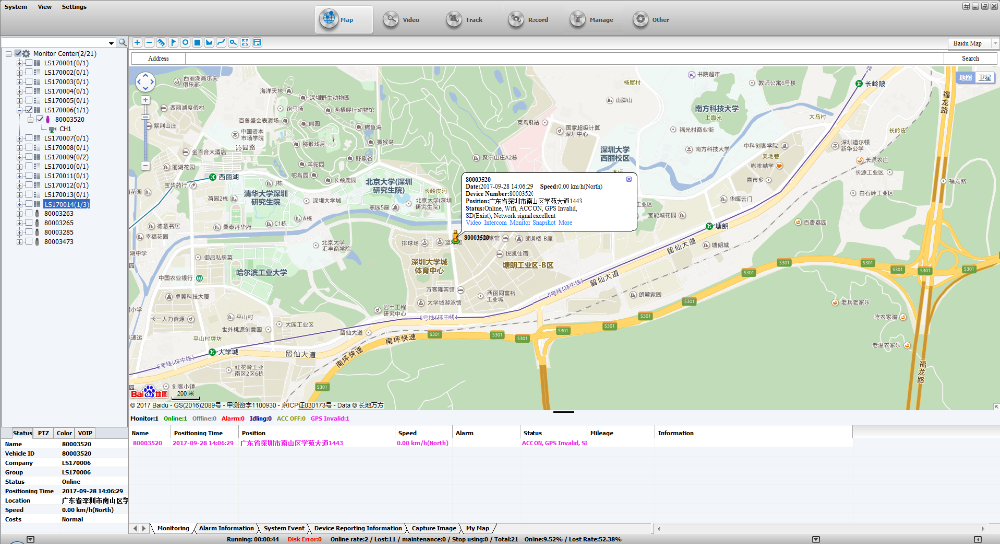

. Built-in GPS: Remote Live Tracking
. Built-in 3G / LTE-4G/Live Streaming

. WIFI Wireless Video/Audio transmission;

. 1080P 30fps Record; 720P 30fps for 4G live view

. 16G/32G/64G/128G

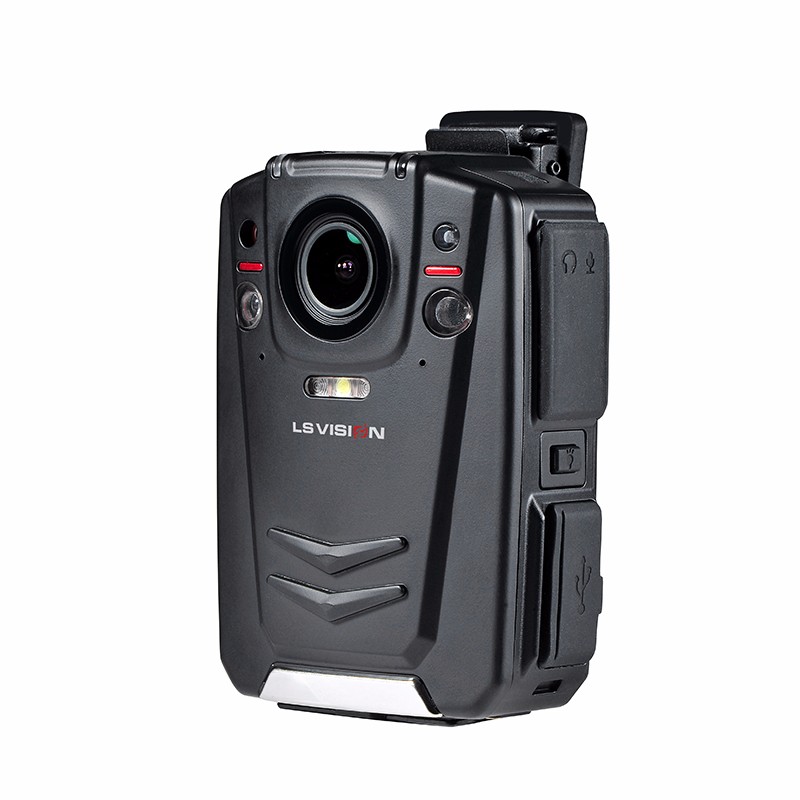

4G Series Body Worn Camera

. Ambarella A12 and OV4689 senor (4MP)

. Up to 1920x1080P 30fps video resolution
. Support H.264/H.265, 4G LTE;
. Support night vision;
. IP68 waterproof and 2m drop resistant
. Pre-record and Post-record
. Support encrypt recording video function
. 16G/32G/64G/128G

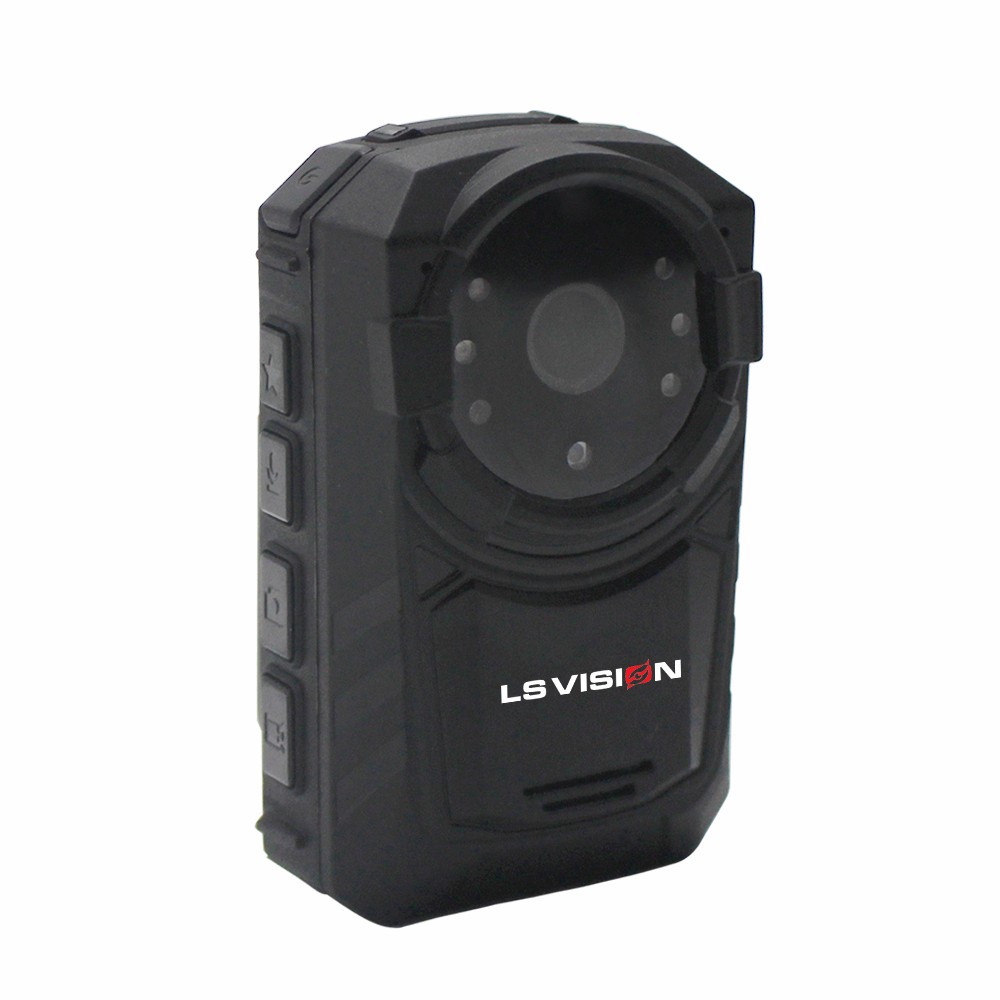

Normal Series Body Worn Camera

. Ambarella A7 dan OV4689 senor (5MP)
. Sudut pandang lebar 140°
. with GPS & Night Vision Function
. support 11 hours 720P 30fps recording
. IP67 waterproof and 1m drop resistant
. Pre-record and Post-record
. 16G/32G/64G

Normal Series Police Body Camera

. Ambarella A7 and 5MP CMOS Sensor
. 2304x1296p 30fps for recording
. 140 degree Wide Angle

. . with GPS & Night Vision Function

. Pre-record(max 45s) & Post-record(10min)

. 16G/32G/64G/128G

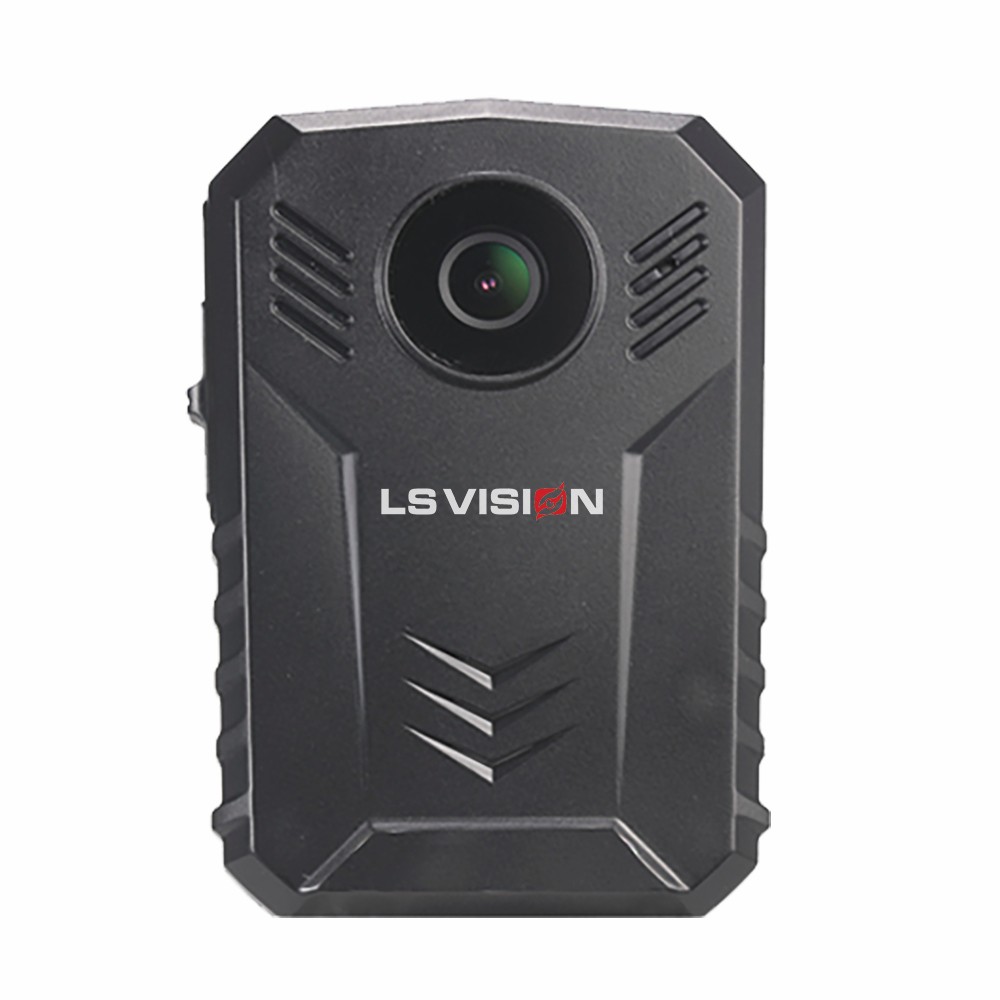

Simple Series Body Worn Wearable Camera

. Ambarella A12 and OV4689 senor (5MP)

. with GPS & WiFi & Bluethooth & Night Vision Function

. without LCD display

. 16G/32G/64G/128G

Simple Series Body Camera (GPS)

. Ambarella A7 dan OV4689 senor (5MP)
. Sudut pandang lebar 140°

. Mendukung GPS
. support 8 hours 720P 30fps recording
. Tidak ada layar LCD

16G/32G/64G/128G

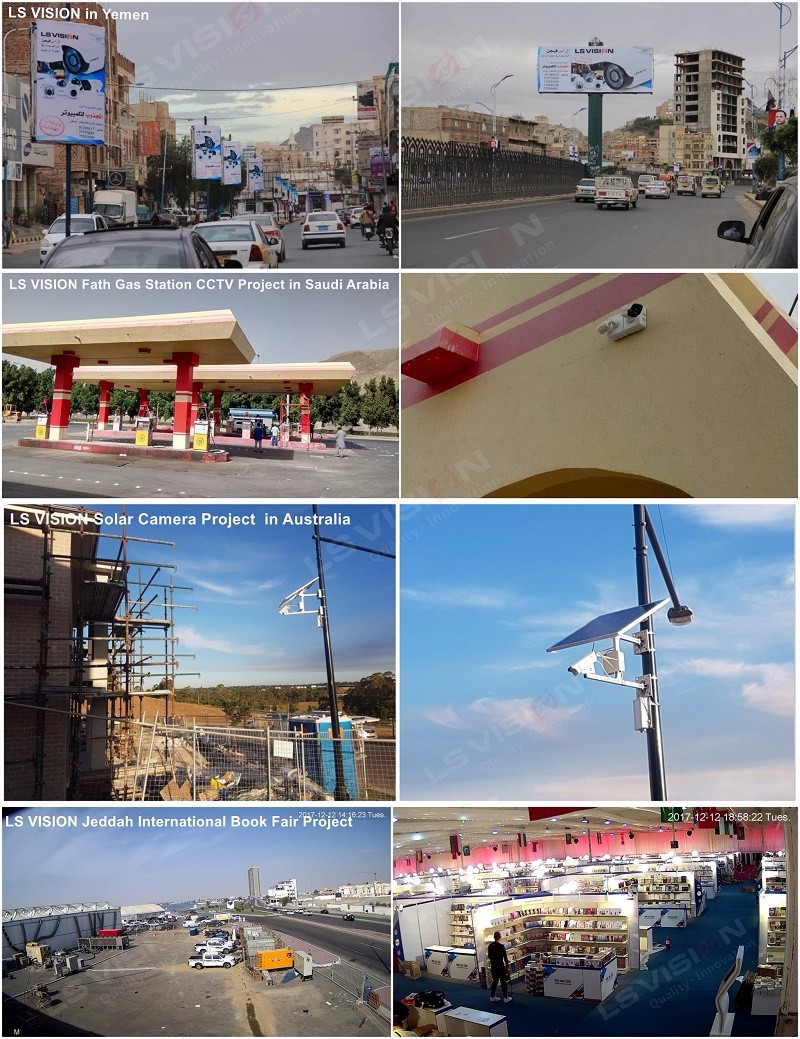

Proyek Keamanan

VISI LS

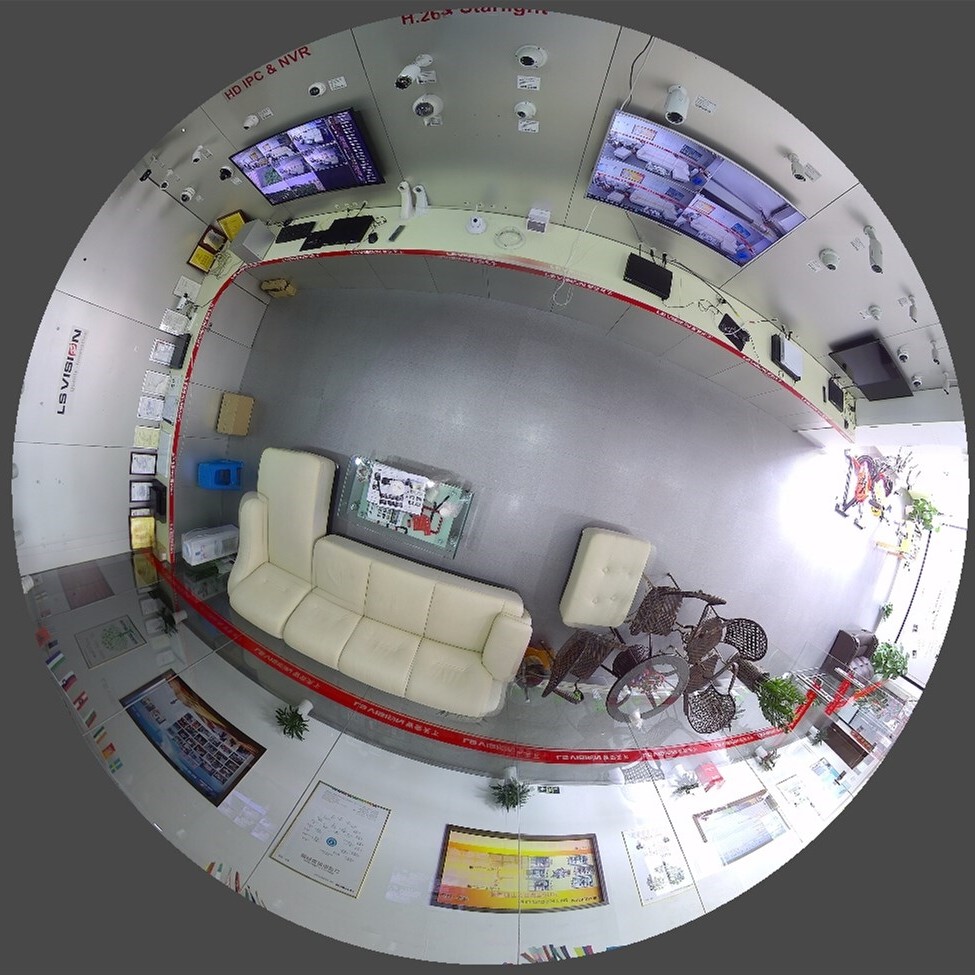

LS VISION 360 Degree Panoramic Video CCTV Camera View
