Our professional engineers have expertise in using technologies. It has a wide scope of range and is widely seen in the field(s) of CCTV Camera. it is highly acclaimed by the clients for its unique features. To keep ourselves ahead of other competitors, we will strive forward to improve our R&D strength and technology ability. Shenzhen LSVISION Technology Co., Ltd. hope that one day we will develop more and better products without relying on others’ technologies.
| Tempat Asal: | Guangdong, Tiongkok | Nama Merek: | LSVISION |
| Nomor Model: | LS-TI001K | Fitur Khusus: | Waterproof / Weatherproof, Waterproof / Weatherproof |
| Sensor: | CCD, CCD | Format Kompresi Video: | H.265 |
| Nama produk: | PC Handheld Portable Infrared Thermal Imager | Resolusi: | 19200 (160*120) |
| Accuracy: | ±0.5℃ | Temperature range: | 30℃~45℃ |
| Catu Daya: | DC 12V, 0.65A | Sensor Gambar: | Uncooled focal plane array |
| Frame rate: | <9Hz | Display resolution: | 320*240 |

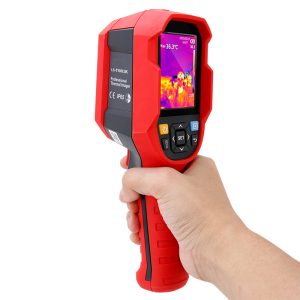

PC Handheld Portable Infrared Thermal Imager Heat Detector Body Human Fever Scanner Measurement Real-time Transminsion Camera
Deskripsi Produk
|
Model
|
LS-TI001K
|
|
|
Thermal Camera
|
||
|
Sensor type
|
Uncooled focal plane array
|
|
|
Temperature range
|
30℃~45℃
|
|
|
Resolusi
|
0.1℃
|
|
|
Accuracy
|
±0.5℃（ @ 25℃ ambient temperature）
|
|
|
Minimum measuring distance
|
15cm
|
|
|
Optimal measuring distance
|
1m
|
|
|
Temperature measurement response time
|
≤500ms (95% of reading)
|
|
|
Thermal resolution
|
19200 (160×120)
|
|
|
Sensor Gambar
|
12μm
|
|
|
Palettes
|
Iron red, rainbow, glowing white, glowing black, glowing red, lava, high-contrast rainbow
|
|
|
Bandwidth of infrared spectroscopy
|
8~14μm
|
|
|
Field of view (FOV)
|
56°(H) × 42°(V)
|
|
|
Instantaneous field of view (IFOV)
|
6mrad
|
|
|
Thermal imaging sensitivity
|
＜50mk
|
|
|
Frame rate
|
＜9Hz
|
|
|
Temperature display
|
Center temperature measurement and high temperature tracking (default)
|
|
|
Image format
|
BMP
|
|
|
Image mode
|
Thermal camera, visible camera, image blending
|
|
|
Temperature measuring point
|
Besides central point, 3 temperature measuring points can be added
|
|
|
Display resolution
|
320×240
|
|
|
Visual camera
|
||
|
Resolution of visible camera
|
640×480
|
|
|
Display resolution
|
320×240
|
|
|
Image blending
|
0% (total visual camera), 25%, 50%, 75%, 100% (total thermal camera)
|
|
|
PC analysis software (PC)
|
||
|
Real-time image transmission
|
N/A
|
|
|
PC analysis software（PC）
|
N/A
|
|
|
Data communication
|
N/A
|
|
|
Auto power off
|
Selectable (5min, 10min, 30min), 30min auto power off (default)
|
|
|
Battery life
|
≥6 hours |
|
|
Waktu pengisian daya
|
5 hours
|
|
|
Charging voltage/current
|
5V/2A
|
|
|
Image storage
|
Micro SD card
|
|
|
Daya
|
A single Li-ion 3.7V/5000mAh 26650 battery |
|
|
Display
|
2.8″ TFT LCD |
|
|
Product color
|
Red + grey
|
|
|
Product size
|
236mm x 75.5mm x 86mm
|
|
|
Standard accessories
|
Manual, 16GB TF card
|
|
|
Standard carton gross weight
|
2.2kg
|
|
Spesifikasi
