Having set up a team who are always involved in the product R&D,Shenzhen LSVISION Technology Co., Ltd. keeps developing products on a regular basis. Our H.265 Complete Wired Bullet 5.0MP Full HD POE Outdoor CCTV Camera Security Video Day Night Vision IP NVR Surveillance Systems is launched to all customers from different fields. At Shenzhen LSVISION Technology Co., Ltd., it is our goal to provide the highest quality products and superior service to our customers, both being our top priority. Relying on our excellent products and sensible marketing strategy,Shenzhen LSVISION Technology Co., Ltd. hold a firm belief that we will take a large market share in the future and benefit our stakeholders as well.
| 保証： | 1 Year, 1 Year | センサー | CMOS, 1/2.9″CMOS |
| Network: | Ip | 機能： | Waterproof / Weatherproof, NIGHT VISION |
| データ保管オプション： | Full HD, NVR | アプリケーション | Indoor, Outdoor |
| カスタマイズされたサポート： | Customized logo | 原産地 | 中国・広東省 |
| ブランド名 | LSビジョン | モデル番号 | LS-PK2504 |
| ビデオ圧縮フォーマット： | H.265 | 解決： | 5MP, 5MP Or 8MP |
| 特別な特徴がある： | NIGHT VISION, Waterproof / Weatherproof | 商品名 | POE NVR Kit |
| IR距離： | 15-20m | Video decoding: | H.265/H.264 |
| SATA: | Support one 8TB HDD | POE: | 8CH RJ45 10M/100M アダプティブ・イーサネット・インターフェース |
| Camera type: | PoE Bullet IP Camera | Waterproof: | IP66 Water-proof |
| 認証だ： | OEM |
Details
Key Feature
Outside Camera
luminum Housing

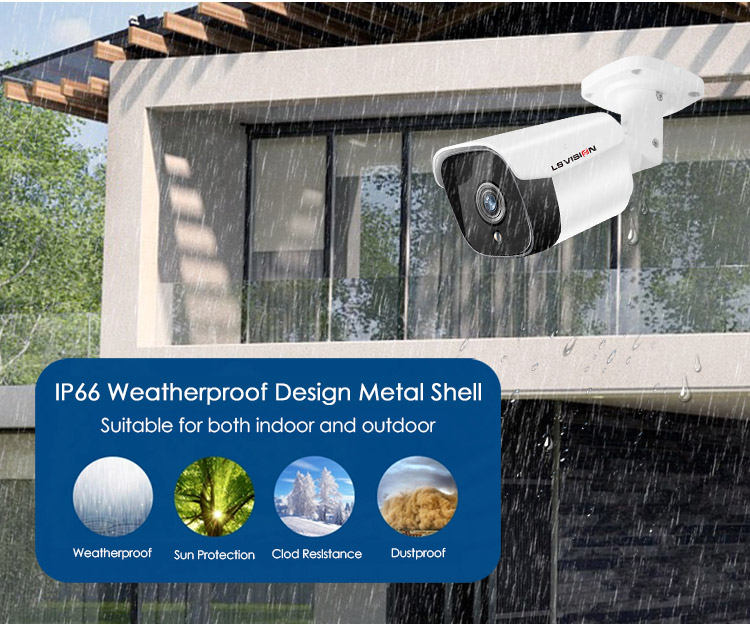

IP66 Waterproof Outdoor Use
5MP POE Bullet Camera

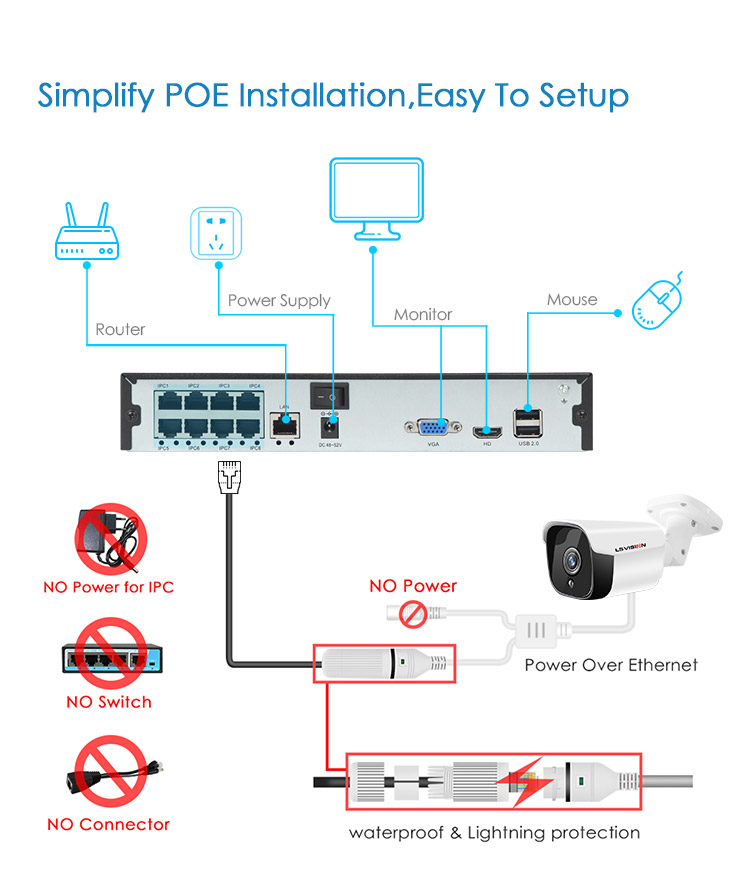

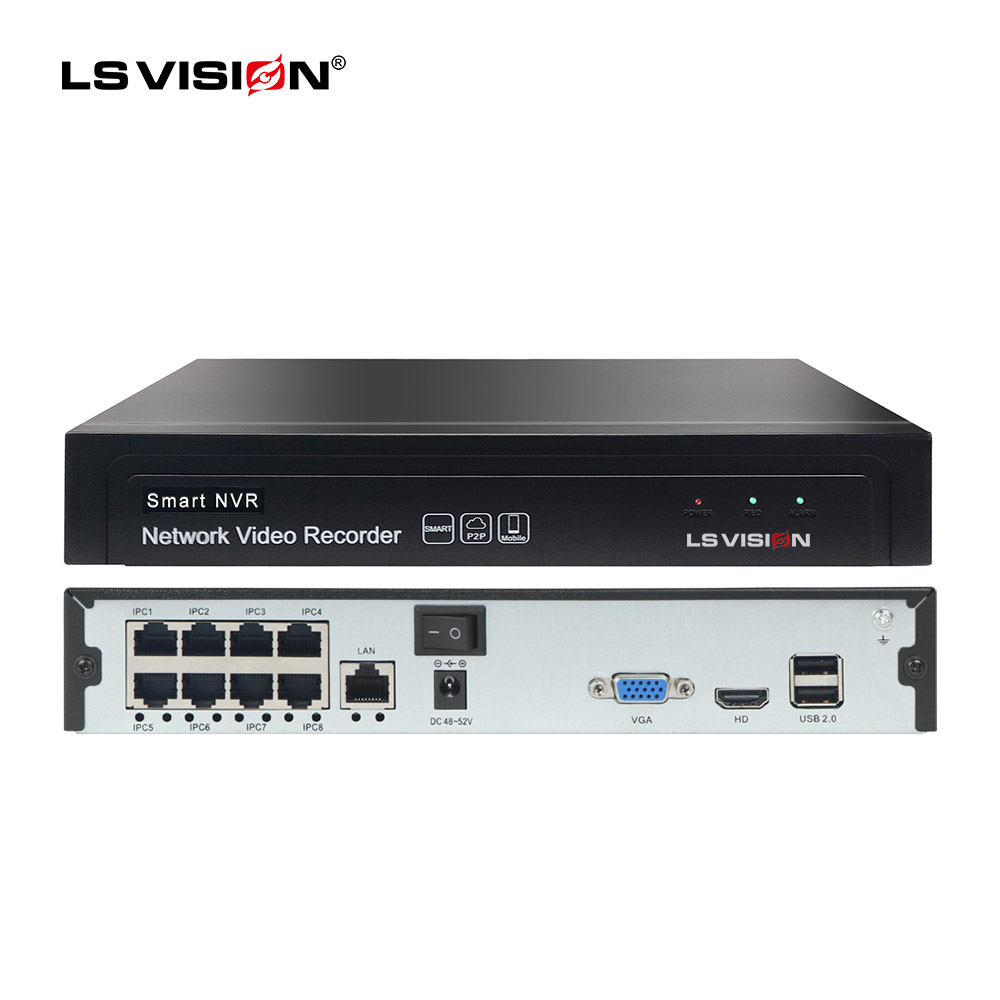

Remote Control NVR
Stand with 8ch Built-in POE NVR
Max Support 6TB HDD

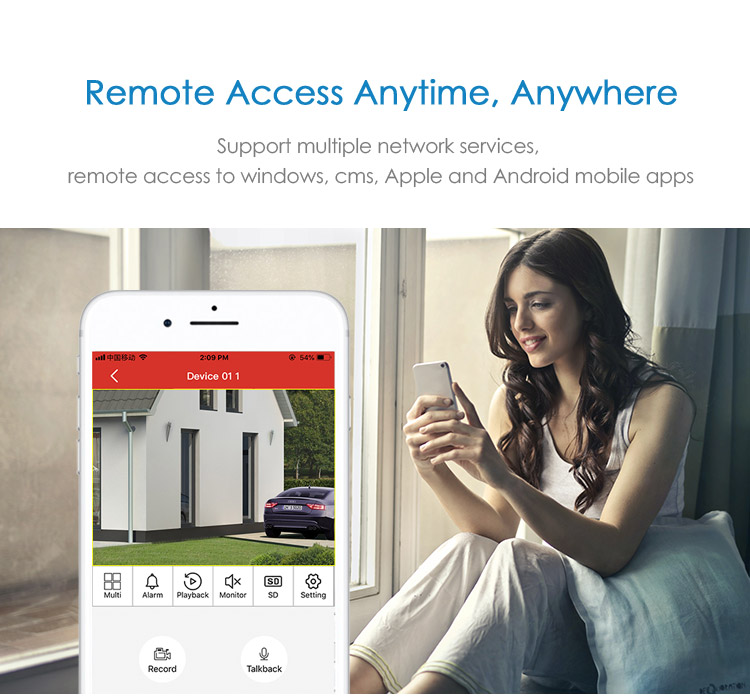

1 WAN Port support P2P Remote Contol
8ch POE Port
& VGA Output Support
Kits Packaging with all accessories :20 meter cable*4, mouse*1, 48v power supply*1

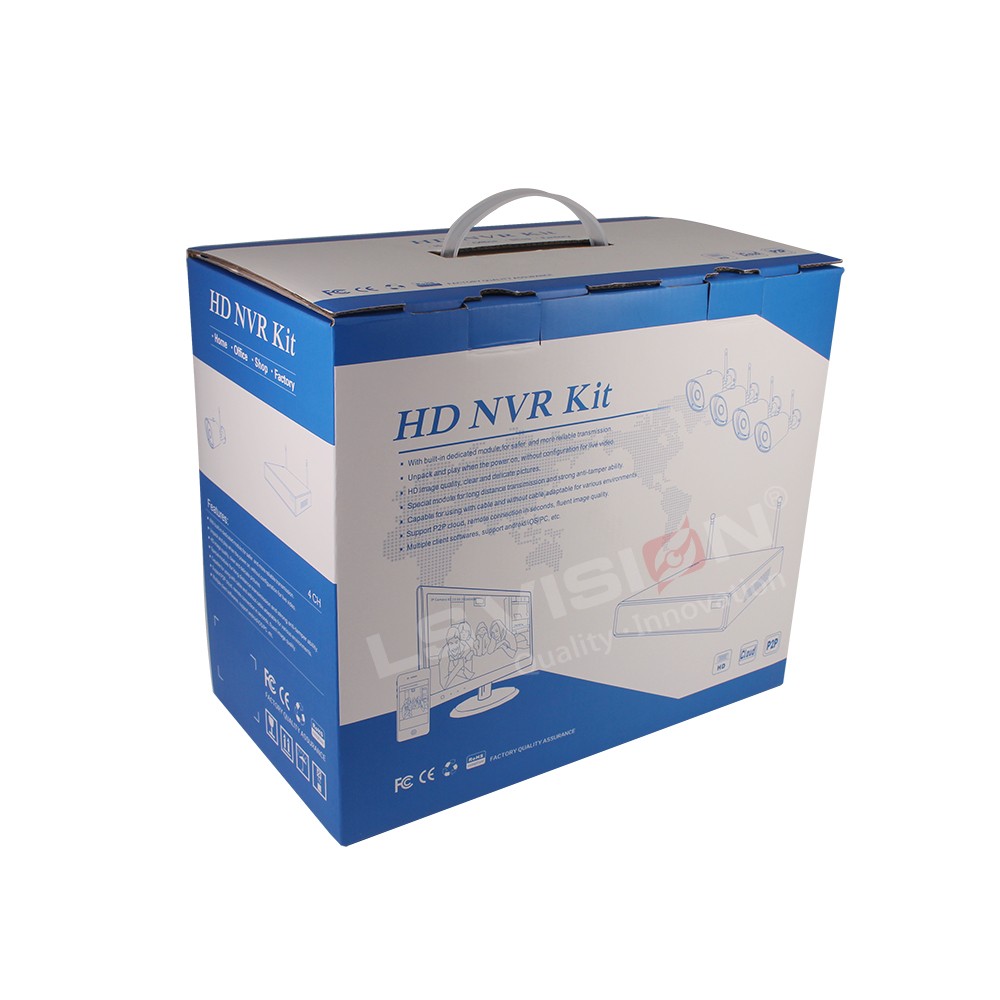

Support OEM Packaging at 500 sets
* P2P
* 8CH 5MP@20fps video input and 4CH sync playback
* Support /VGA;1 SATA max 6T
* 20 meter cable*4, mouse*1, 48v power supply*1

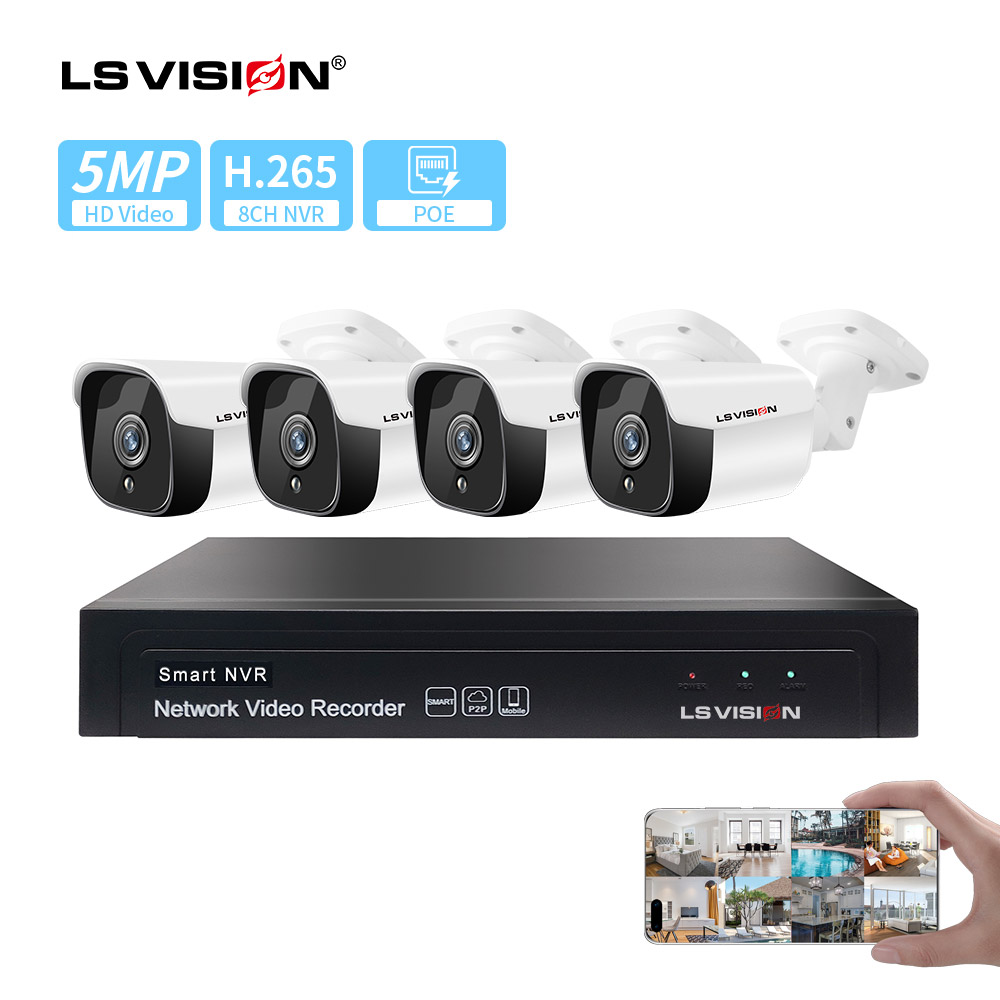

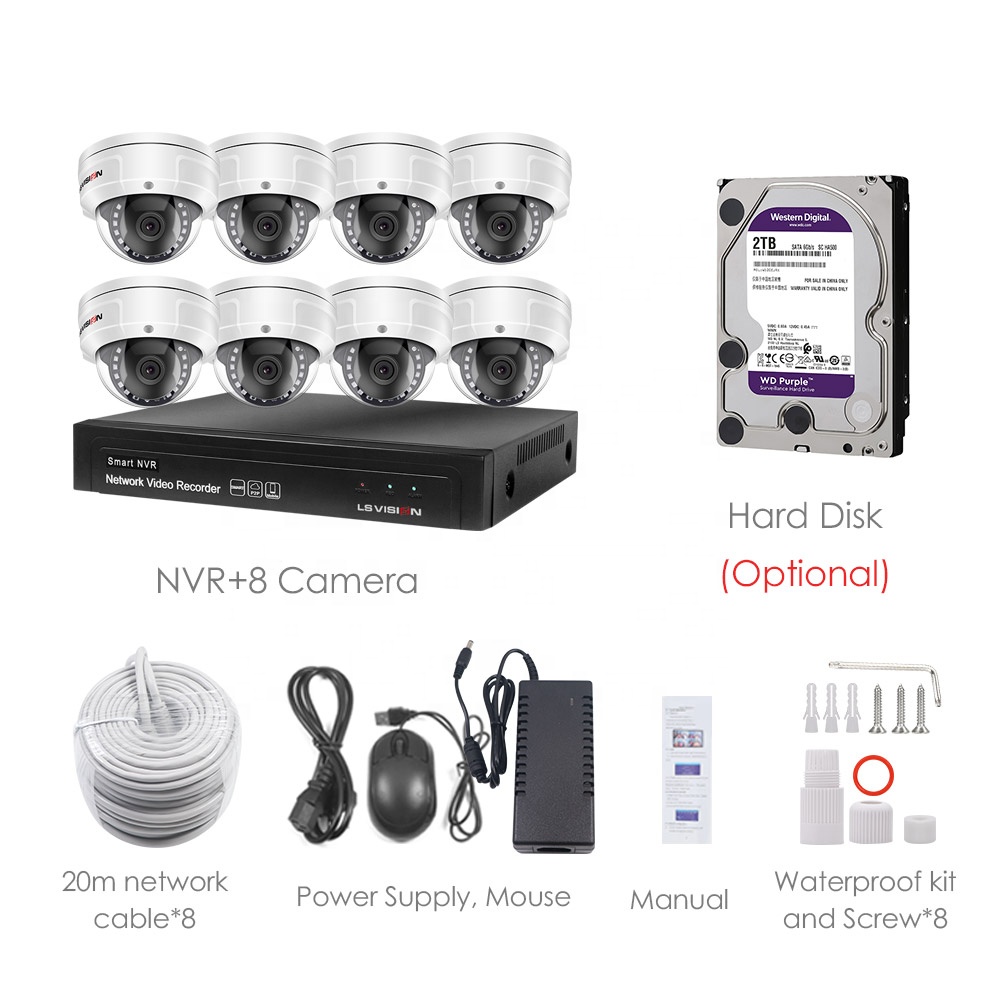

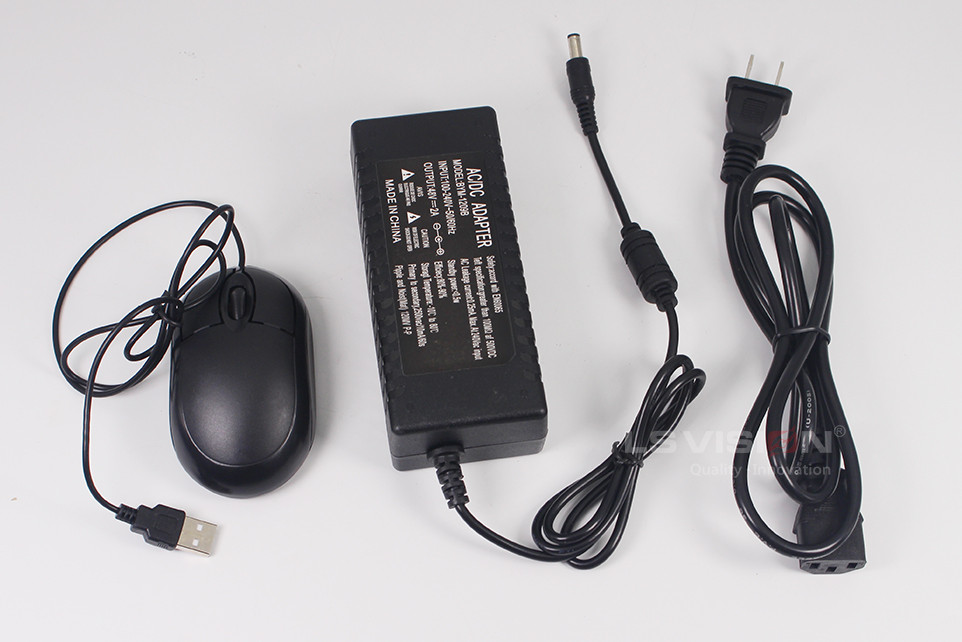

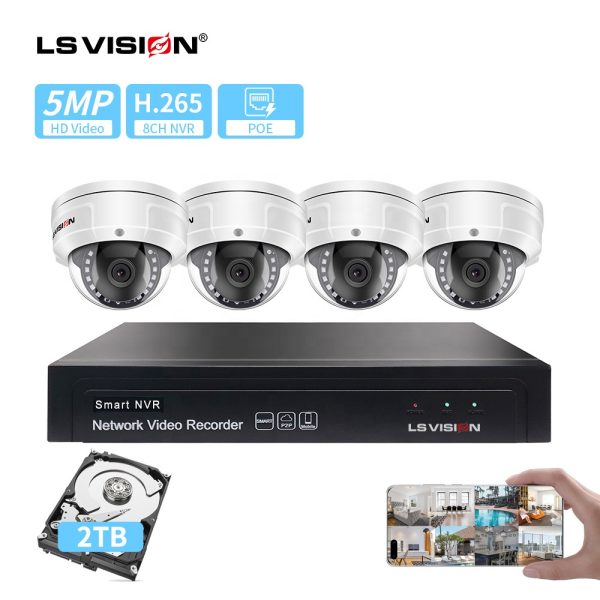

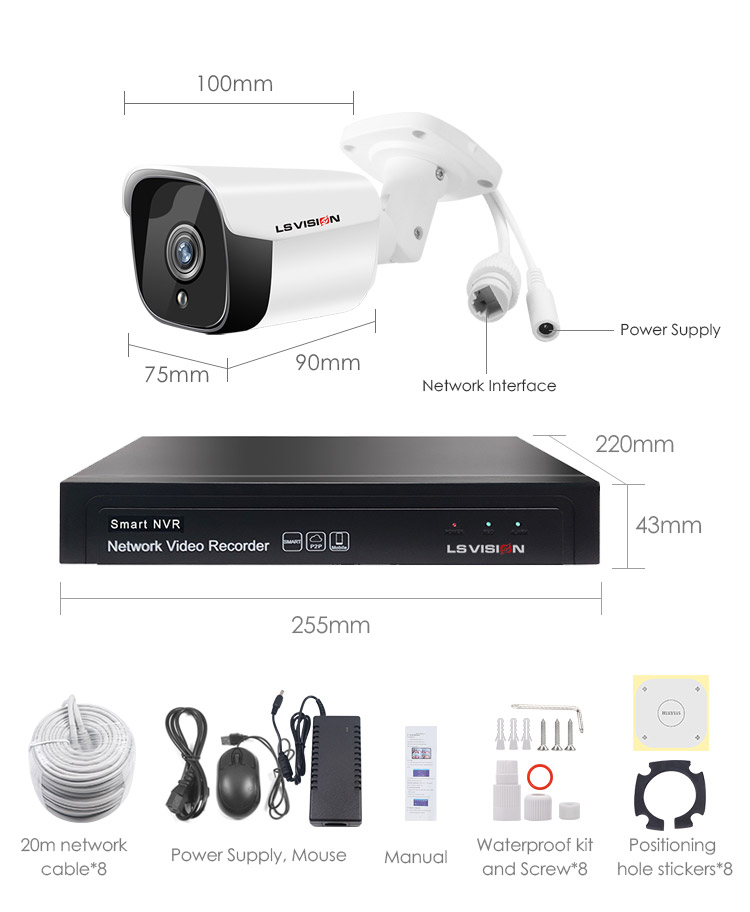

Packing List:
1 X 8 channel NVR built in POE
4 X indoor 5MP ip camera with POE
4X20 meter cable
1Xmouse
1X48v power supply
仕様
|
H.265 POE Kits Technical Parameters:
|
||
|
Product
|
LS-PK2504/LS-PK2514/LS-PK2804/LS-PK2814
|
|
|
Main Processor
|
Latest Industrial Embedded Microcontrollers(MSR620Q)
|
|
|
operating system
|
Embedded LINUX operating system
|
|
|
system resource
|
Simultaneous multi-channel real-time recording, real-time playback, multiple multi-user network operations, USB backup
|
|
|
Operation interface
|
24-bit true color graphic menu operator interface with mouse operation
|
|
|
Screen display
|
1/4 Screen
|
|
|
Image coding
|
BaseLine Profile / Main Profile / High Profile
|
|
|
Playback quality
|
5MP
|
|
|
Video access
|
8-way 5MP device access storage
|
|
|
モーション検知
|
396 (22*18) detection areas per screen; sensitivity can be set
|
|
|
Audio compression
|
G711.A,G711.U
|
|
|
monitor
|
not support
|
|
|
Record mode
|
Manual> Alarm> Motion Detection> Timing
|
|
|
Local playback
|
8-way 5MP playback
|
|
|
Video search
|
Point-in-time search, calendar search, event search, channel search
|
|
|
Backup method
|
USB,Mobile hard disk
|
|
|
Video output
|
1 VGA, 1
|
|
|
Audio output
|
1
|
|
|
ネットワーク
|
1*RJ45 10M/100M Adaptive Ethernet port
|
|
|
USB
|
2 USB 2.0
|
|
|
hard disk
|
1 SATA(Maximum support 6T hard drive)
|
|
|
antenna
|
2 150MbpsAntenna interface
|
|
|
power supply
|
DC 12V 2A
|
|
|
weight
|
1.0kg(Without hard disk)
|
|
|
Working humidity
|
10%-90%
|
|
|
動作温度
|
-10℃–50℃
|
|
|
size
|
483*89*433(mm)
|
|
|
H.265 IPC Technical Parameters:
|
||
|
Product
|
POE Camera Kits
|
|
|
有効画素数
|
5MP, 2592(H)*1944(V)
|
|
|
sensor
|
1/2.9″CMOS
|
|
|
最低照度
|
0.05Lux/F1.2(color);0.01Lux/F1.2(B&W)
|
|
|
Electronic shutter
|
NTSC:1/30—1/10000 second;PAL:1/25—1/10000 second
|
|
|
Day & night conversion mode
|
ICR IR_CUT
|
|
|
Video compression standard
|
Latest Technology
|
|
|
Coding type
|
PROFILE_BASELINE
|
|
|
Image format
|
2592*1944
|
|
|
フレームレート
|
50Hz:15fps/60Hz:15fps
|
|
|
Masking settings
|
Supports 4 sets of masking block settings
|
|
|
Image settings
|
Brightness, Contrast, Saturation, Gain, Shutter, White Balance, etc. Adjustable
|
|
|
Color to black
|
サポート
|
|
|
Smart alarm
|
Motion detection, occlusion alarm, video loss, network cable disconnection, IP address conflict
|
|
|
supporting agreement
|
TCP/IP,DHCP,HTTP,HTTPS,NTP,DNS,RTP,RTSP
|
|
|
General function
|
One-click recovery, dual stream, heartbeat, mirroring, video cover, anonymous access, etc.
|
|
|
Communication Interface
|
One RJ45 10M/100M adaptive Ethernet port
|
|
|
WIFI antenna interface
|
Support 8188EUS etc.
|
|
|
レンズ
|
3.6mm
|
|
|
power supply
|
DC12V
|
|
|
パワー
|
≤6W
|
|
|
working environment
|
-10℃~50℃,30%~80%RH
|
|
|
size
|
175(L)*66(W)*66(H)mm(Without antenna)
|
|

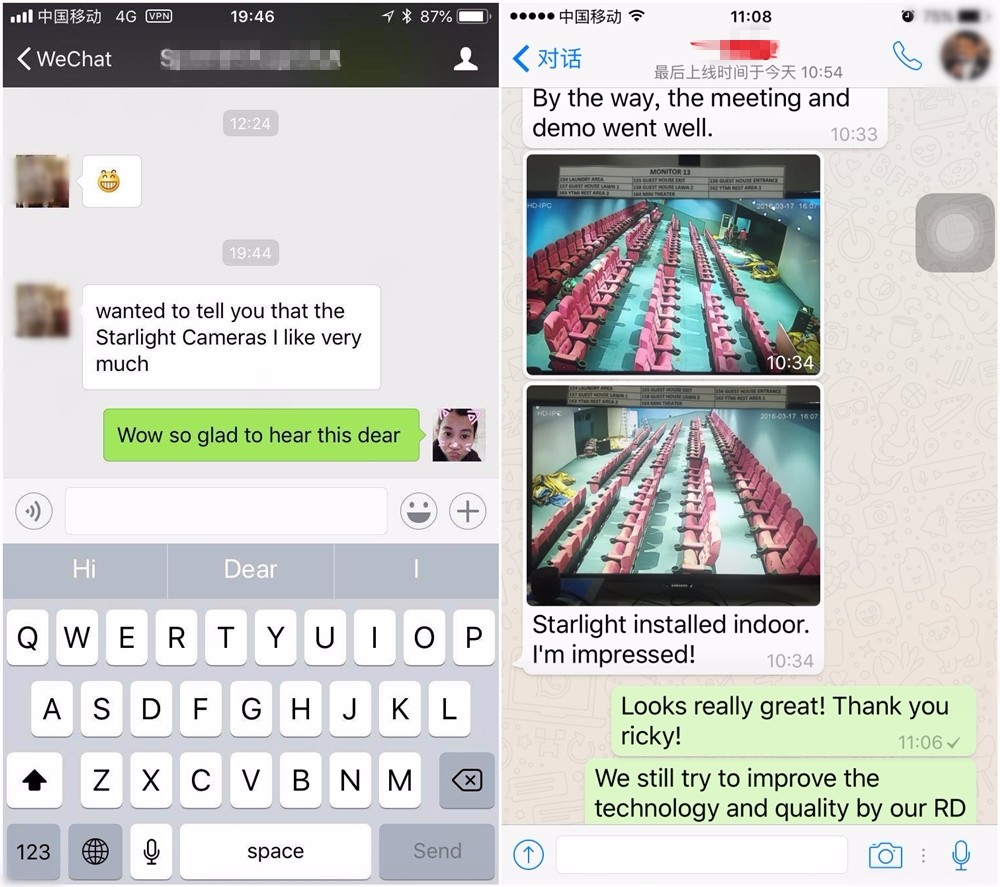

Customer Feedback
