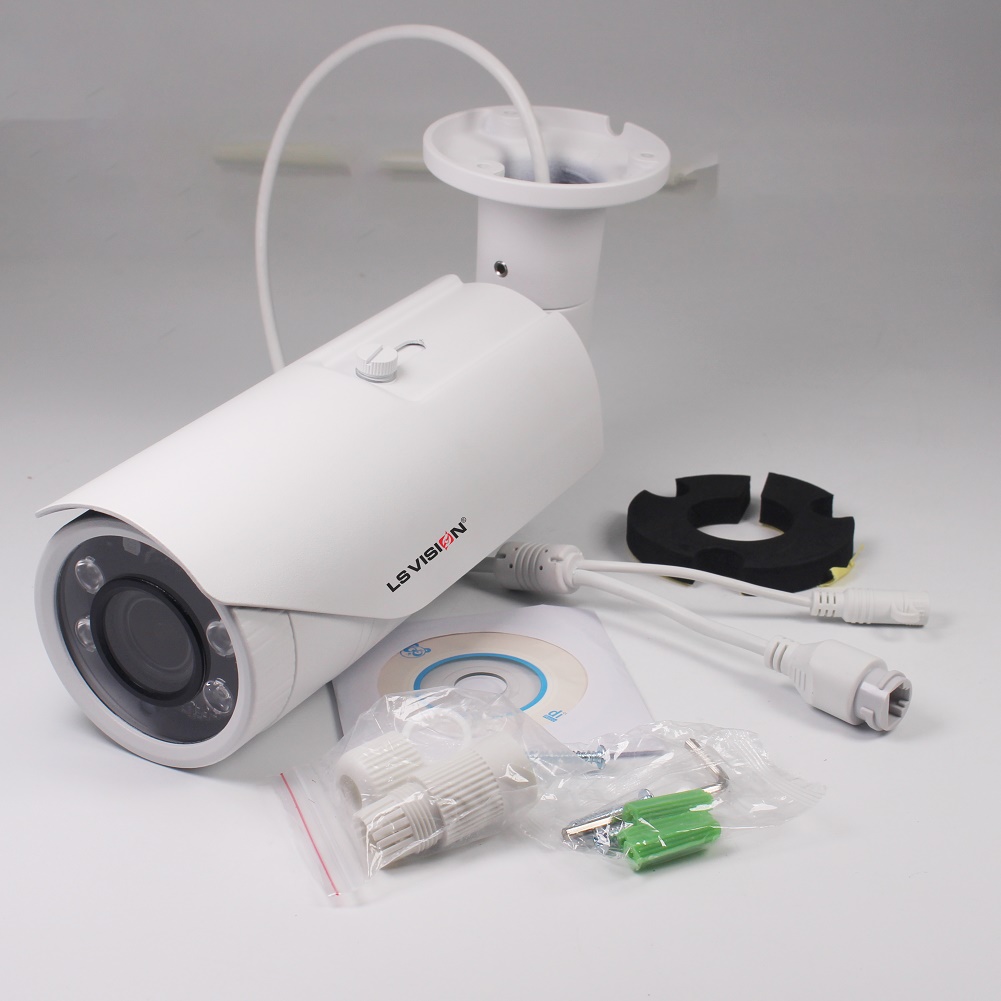

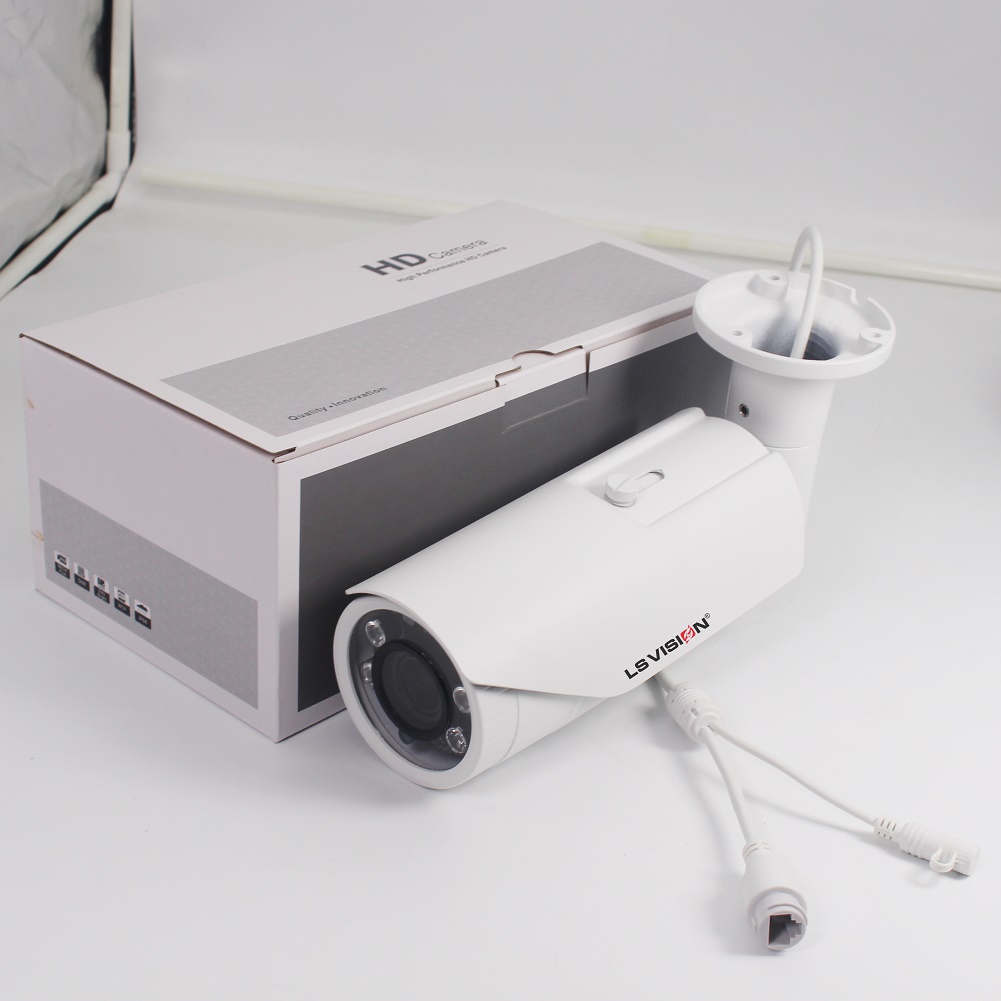

LS VISION Sony Imx307 Black Light Starlight Color Night Vision Algorithm Motion Detection Voice Alarm POE IP Network Camera

2MP , 1/2.8″ CMOS Starlight Sensor
25fps@1920*1080 1080P
low illumination 0.1Lux
Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
D-WDR, Motion Detection, Privacy Mask, Mirror, rotate
RTSP and 2.6 compatible
/H.264 dual-stream media server
Easy-to-use P2P Cloud service
Multi web browser, PC Client software, mobile APP remote access
雷保護 4000V
Strong water-proof housing, IP66
4pcs Leds IR distance 30M, IP66  POE

Standard 2.8-12mm varifocal Lens

Online demo

CMS& IE view

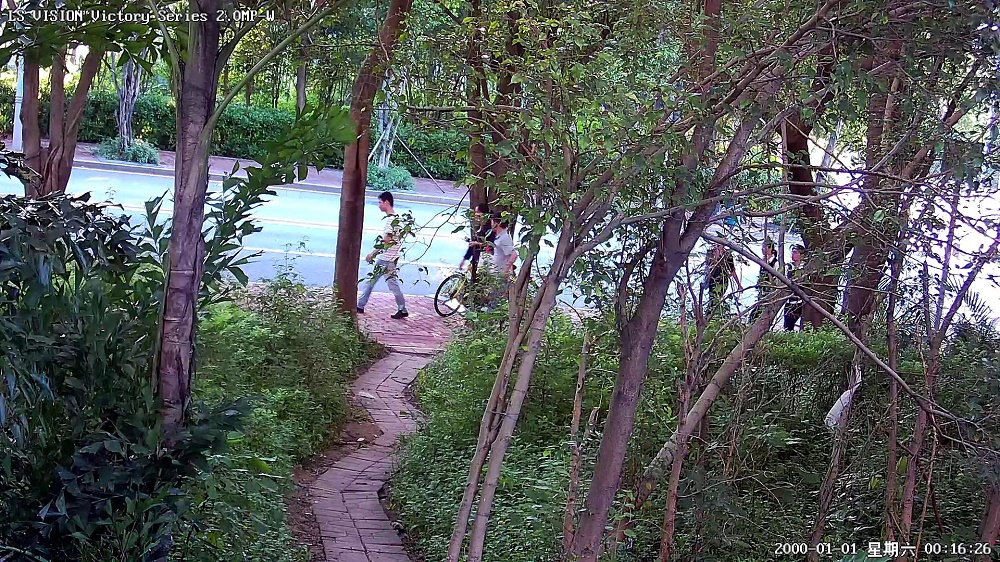

Daytime visual surveillance

夜 Vision with IMX307 Starlight Sensor Monitoring

WDR monitoring Efdfect

Without or Close WDR Monitoring Effect

IP Camera Specification

モデル	LS-NB3204DM
カメラ
イメージセンサー	1/2.8″ CMOS IMX307Starlight Sensor
Effective Pixels	2592(H)×1520 (V)
Electronic Shutter	AUTO, 1/25s ~ 1/100000s
Min. Illumination	0.1Lux@F1.2(AGC ON), 0Lux IR on
Day/Night	Auto/Color/(B/W)/Timing
WDR	Digital WDR
White Balance	オート
AGC/BLC	サポート
DNR	2D/3D DNR
その他	Multi-lines OSD, Motion Detection, Privacy Mask, Mirror, Rotate
エンコード
Embedded Solution	MSC313E
Video Standard	/H.264
Video Resolution	Main Stream:
	25fps@1920*1080
	Sub Stream: VGA(640×480)/360P/QVGA@25fps, etc.
Video Bitrates	32Kbps - 8Mbps, VBR/CBR
Audio Standard	G.711-u
IR Led
IR Led	4pcs Leds
IR Distance	IR distance 50-70M
レンズ
Focal length	2.8-12mm Motorized lens
Optional Function
POE, Audio, etc.
Network Services
プロトコル	HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P	はい
Web	IE , Firefox, etc.
Media	CMS, Android, IOS
	2.6 compatible
General
Network Port	1-RJ45, 100Mbps, POE optional
Power Supply	Support POE 48V 12 VDC ± 10%
Power Consumption	< 8 W
Operating Temp.	-30℃-(+60)℃, 10%-90%RH

certificate

ブランド＆CCTVプロジェクト

LS VISION global brand
Currently, LS VISION partners and customers around the world, including distributors, agents, engineers and security importers, end consumers and other different customer groups in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh , Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries have established a dedicated agency, and we have been working hard to expand our global institutions or distribution areas.

LS VISION Global Security Program
LS VISION products and solutions are used in many countries and regions, such as the Jeddah International Book Fair in Saudi Arabia in 2017 and 2018; the MAKKAH CCTV project in the city center in 2018; the Fath gas station project in 2017, Basamas Square in Peru Projects, major security projects such as Panama Airport have played an important role.

LSビジョン

LS VISION will maintain our quality key value. innovation. Committed to more research on products, bringing more value to partners in 2019.

2019, LS VISION Product Strategy:
業界市場：

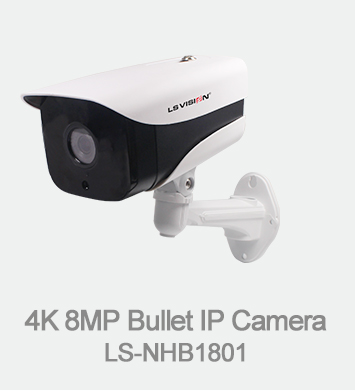

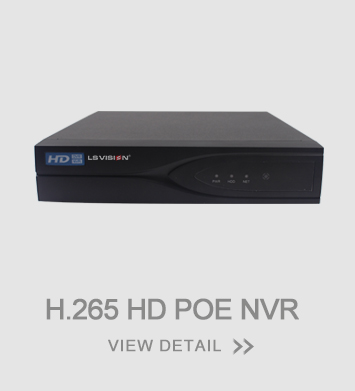

IPC: 2MP to 8 megapixel 4K series IP cameras and HD NVR systems.
アナログHD：2MP～8MPシリーズおよびDVRシステム。
AI Series: Face Recognition Camera and NVR System.
4G solar camera system

consumer market:

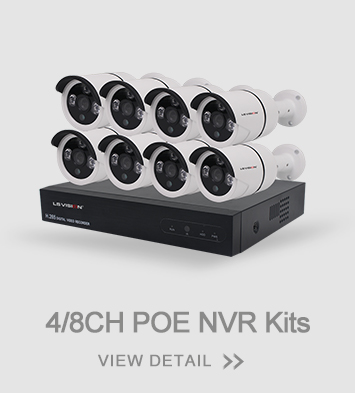

1.3MP to 5MP Wifi NVR kit, POE Nvr kit;
