As a driven company,Shenzhen LSVISION Technology Co., Ltd. has been developing products on our own on a regular basis, one of which is IP Camera/NVR/Solar Camera/Smart Battery Camera.It is the newest product and bound to bring benefits to customers. Having carried out multiple tests, our technical staff has proved the use of technology ensures LS VISION Fixed Remote Control Video Surveillance 1080P IP Security Dome CCTV Camera for Night Vision performance can be fully played out.Customers engaged in the field(s) of CCTV Camera speak highly of our product. We offer a range of design services to help you get exactly what you want.
| 原産地 | 中国・広東省 | ブランド名 | LSビジョン |
| モデル番号 | LS-ND7202C | 保証： | 1 Year |
| 特別な特徴がある： | NIGHT VISION, Motion Detection, Waterproof / Weatherproof | センサー | シーモス |
| スタイル | Dome Camera | 機能： | Two-way Audio |
| ビデオ圧縮フォーマット： | H.265 | データ保管オプション： | Cloud, NVR |
| アプリケーション | Indoor | カスタマイズされたサポート： | Customized logo |
| 主な特徴1： | Mobile phone remote view | 主な特徴2： | 1080P IP Dome CCTV Camera |
| 主な特徴3： | 1/2.8″ IMX307 CMOS Sensor | レンズ | Fixed 3.6mm lens |
| IR Range: | 15 meters | 解決： | 1920*1080 |
| Network protocol: | TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP | Frame Rate: | 25P/30P |
| Network: | 1 RJ45 10M/100M adaptive Ethernet port | 認証だ： | ce, FCC |

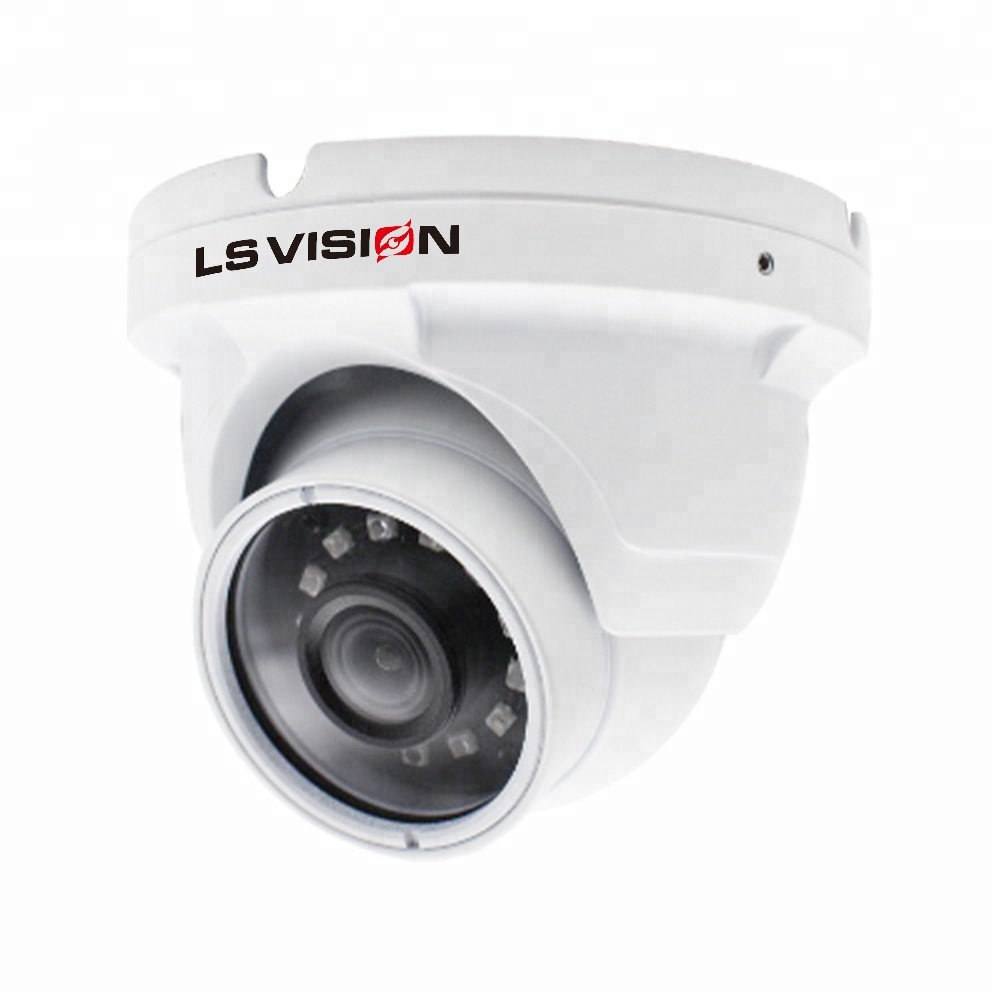

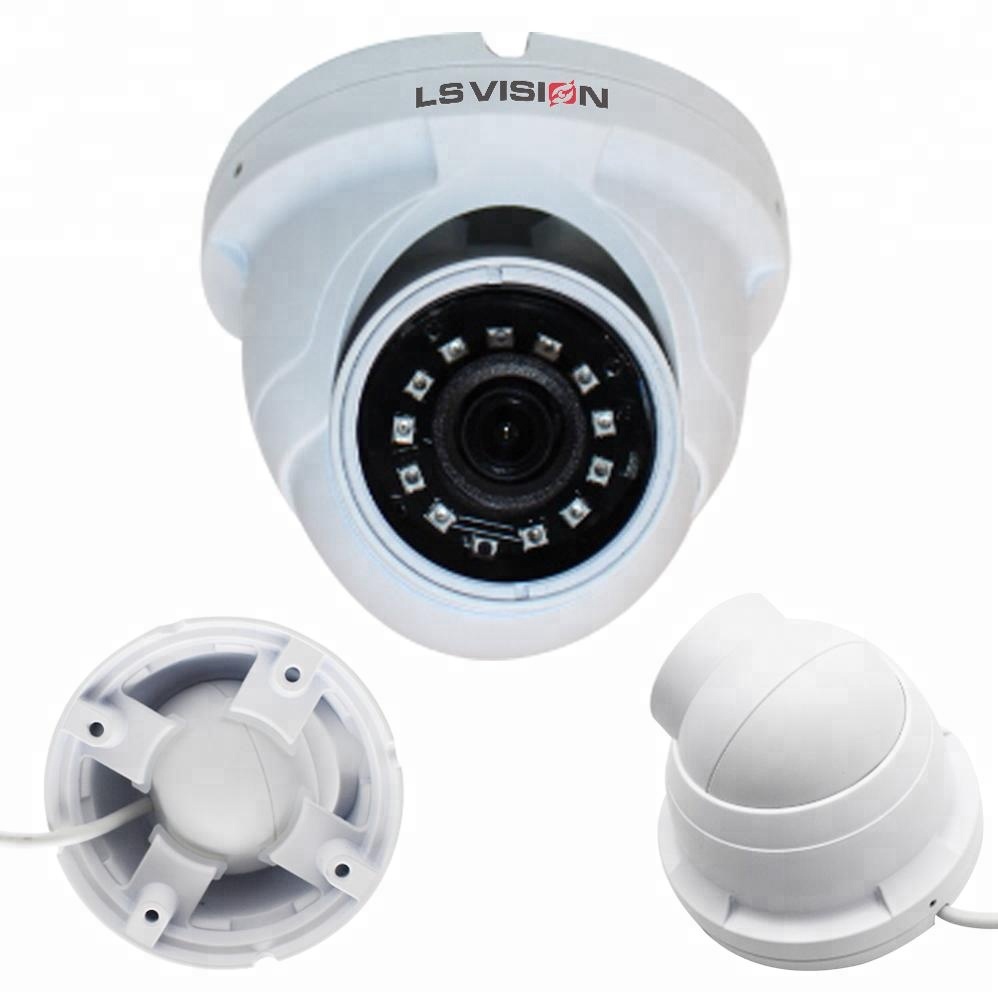

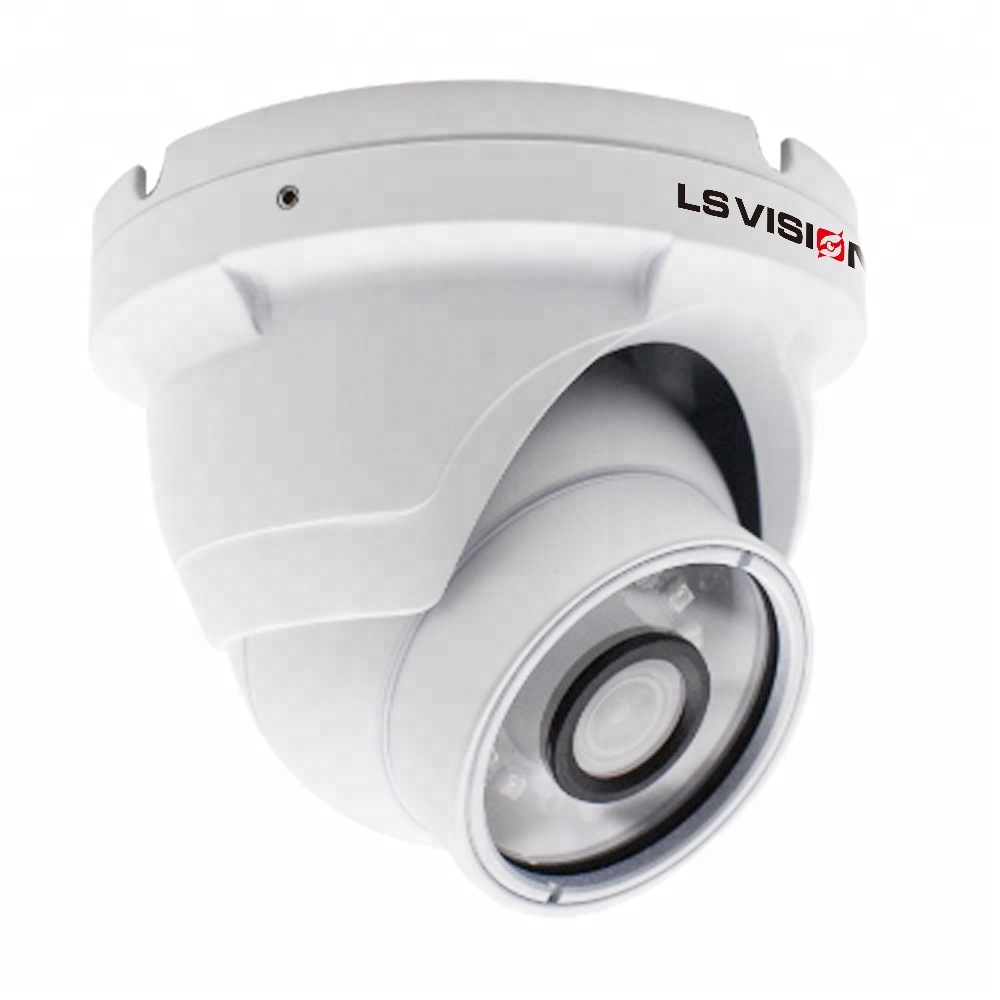

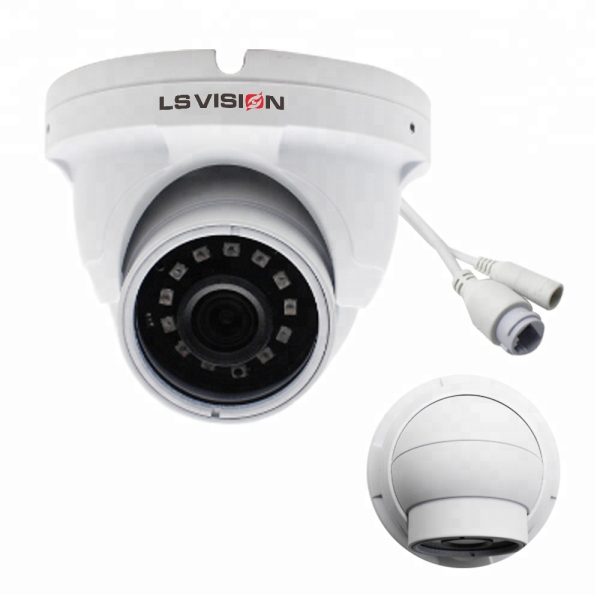

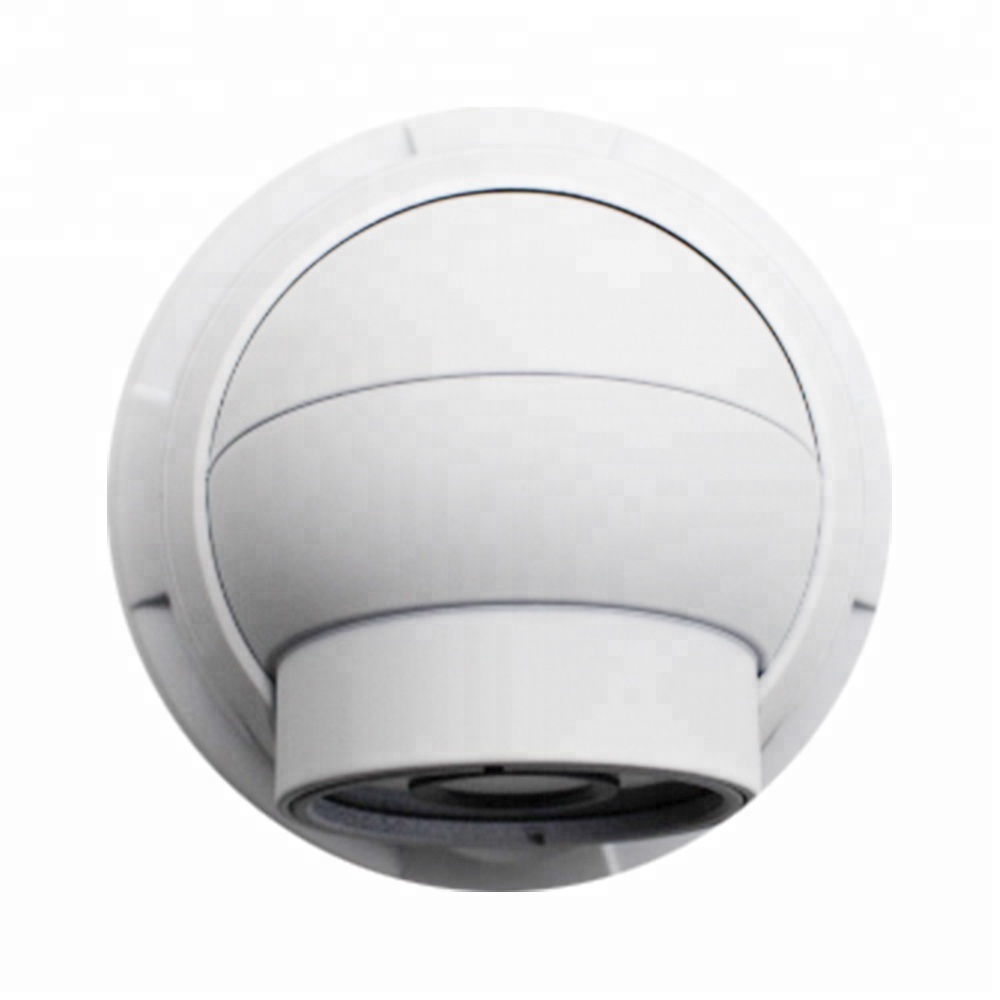

LSVISION Fixed Remote Video Surveillance IP Security Dome Color CCTV Camera for Night Vision
Key Features for IP Dome Color Camera:
1.Ultra low illumination sensor 0.001Lux@ F1.2(AGC ON)
2.Full HD resolution 1920 x 1080P
3.H.264 / H.265 video compression standard, AAC / G.711 audio compression standard
4. Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
5. Rupport variable bit rate, while setting the video image quality, you can also limit the video image compression bitstream
6. RTSP and 2.6 compatible
7. Video code rate 50Kbps-6Mbps continuously adjustable, frame rate 1-30 (1-25) continuously adjustable
8. Dynamic detection support (settable area and sensitivity)
9.Support audio input and output (optional)
10.Support multiple user access at the same time
11. Support client remote monitoring software
12. Support mobile phone monitoring
14. 12 pcs new SMD IR Leds, IR distance 15 meters
|
モデル
|
||
|
カメラ
|
||
|
イメージセンサー
|
1/2.8″ IMX307 CMOS Sensor
|
|
|
有効画素数
|
1920*1080
|
|
|
Image Quality
|
輝度設定、彩度設定、シャープネス設定、コントラスト設定、オートホワイトバランス設定、マニュアルホワイトバランス設定、逆光補正設定、光量抑制設定、自動露出、2D/3Dノイズリダクション強度設定、フォグモード設定、WDRモード強度設定
|
|
|
最小照度
|
0.001Lux@ F1.2(AGC ON)
|
|
|
昼／夜
|
オート/カラー/（白黒）/タイミング
|
|
|
ホワイトバランス
|
Auto/Indoor/Outdoor
|
|
|
AGC
|
サポート
|
|
|
DNR
|
2D/3D DNR
|
|
|
その他
|
マルチラインOSD、モーション検出、プライバシーマスク、ミラー、回転
|
|
|
レンズ
|
||
|
焦点距離
|
3.6mm Fixed lens
|
|
|
Zoom
|
No
|
|
|
エンコード
|
||
|
組み込みソリューション
|
MSC313E
|
|
|
ビデオ規格
|
H.265/H.264 Double code
|
|
|
Video Resolution
|
Main stream: 1080P@20fps / 720P/D1@30fps Sub stream: 360P/CIF@30fpsfps
|
|
|
Video Bitrates
|
500Kbps -4Mbps, VBR/CBR
|
|
|
オーディオ規格
|
G.711-u
|
|
|
赤外線LED
|
||
|
赤外線LED
|
12 pcs IR Leds
|
|
|
IR距離
|
15M
|
|
|
ネットワークサービス
|
||
|
プロトコル
|
HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/P2P/UPNP
|
|
|
P2P
|
はい
|
|
|
ウェブ
|
IE、Firefoxなど。
|
|
|
Media
|
CMS, Android, IOS
|
|
|
2.6 compatible
|
||
|
一般
|
||
|
ネットワークポート
|
1-RJ45, 10/100Mbps
|
|
|
電源
|
Support POE 48V 12 VDC ± 10%
|
|
|
消費電力
|
< 5 W
|
|
|
動作温度
|
-30℃-(+70)℃, 10%-90%RH
|
|
|
Waterproof level
|
IP66
|
|
LS Vision Booth:Hall 5,5F49.

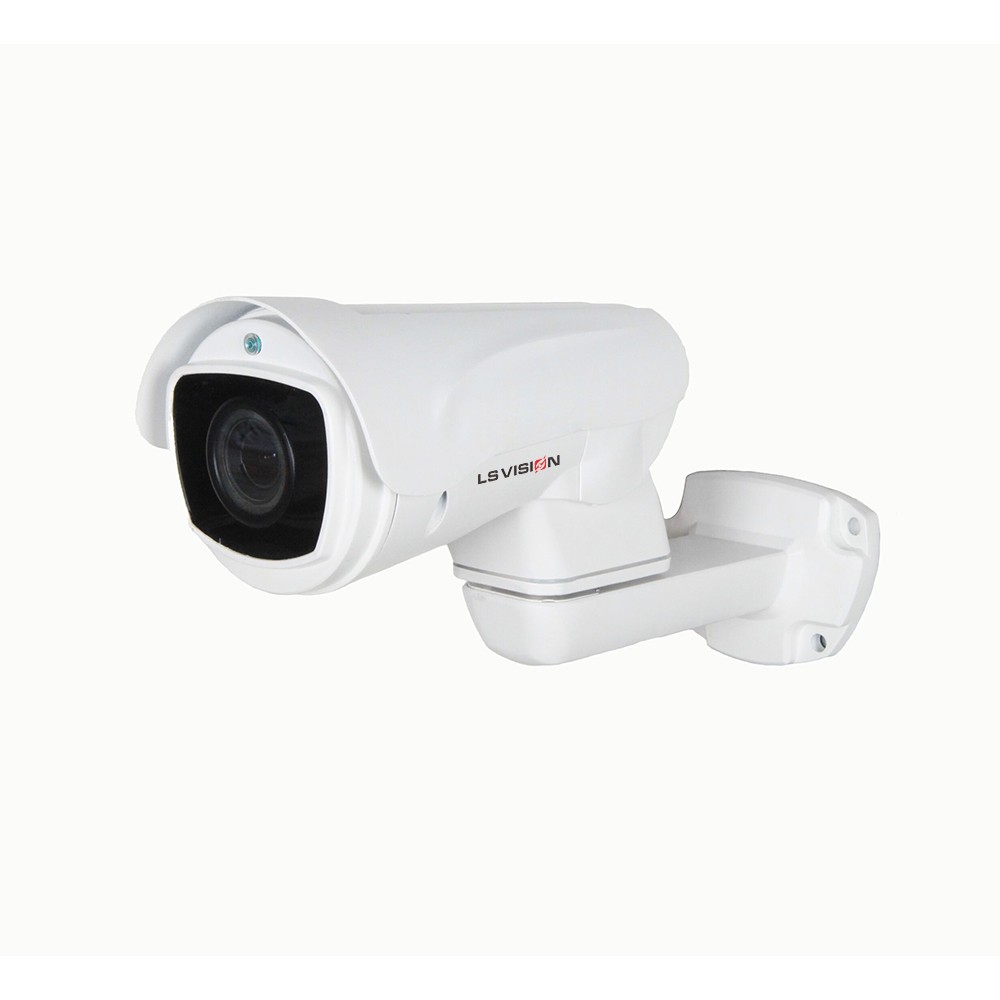

2mp 4mp IP PTZ Bullet Camera

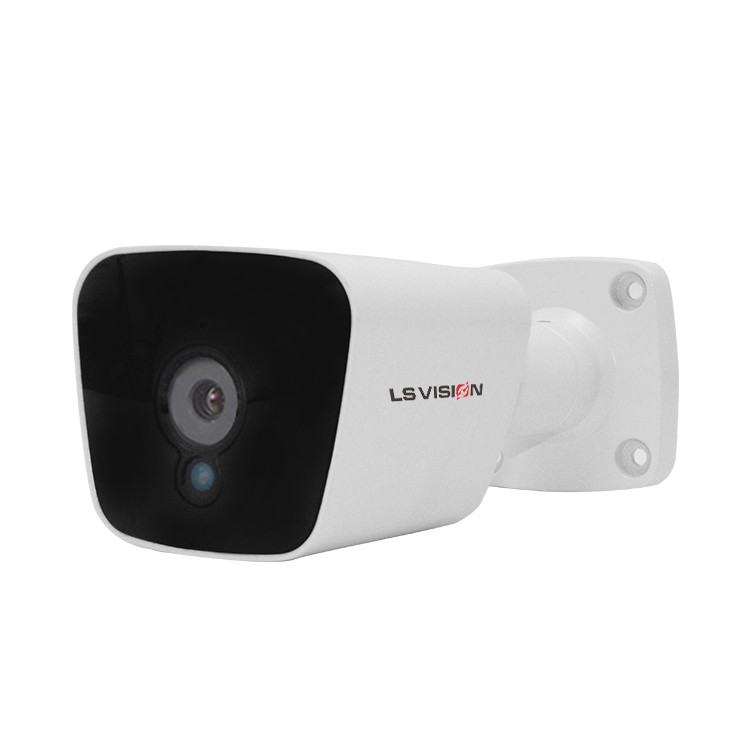

2mp Starlight low light IP camera

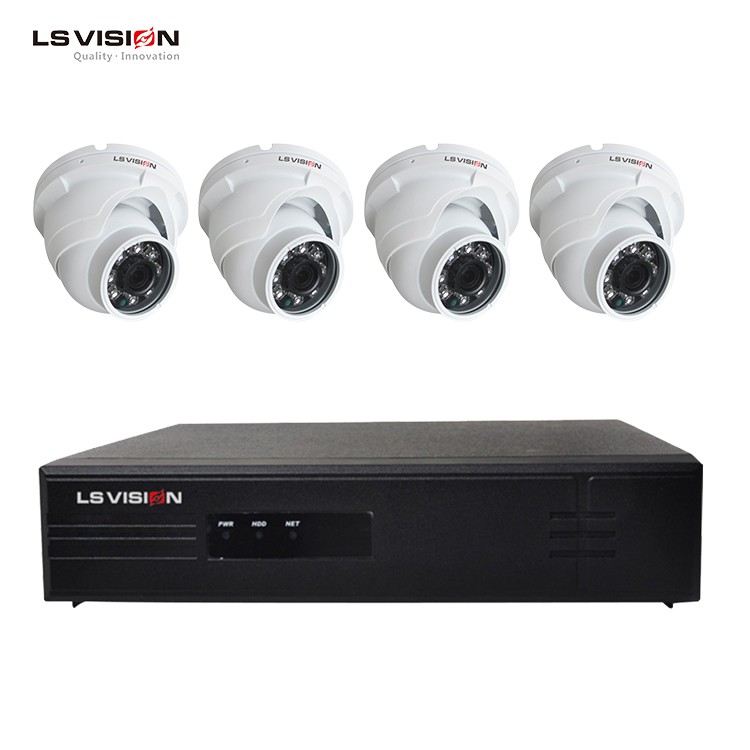

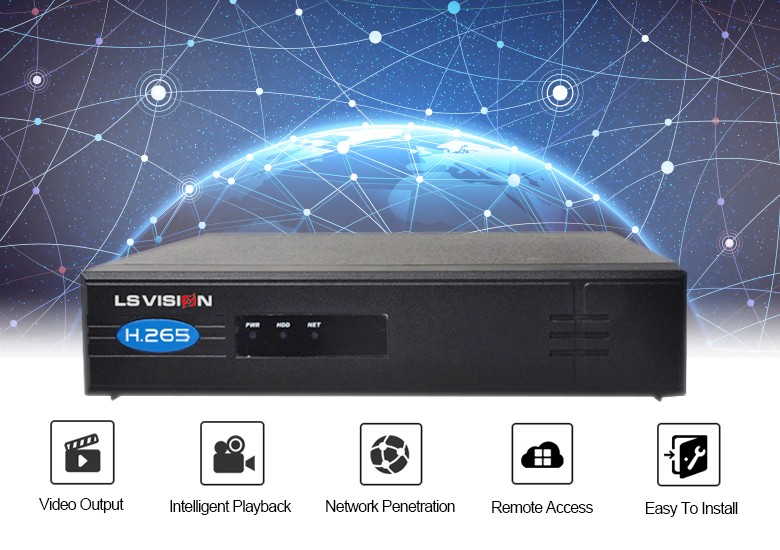

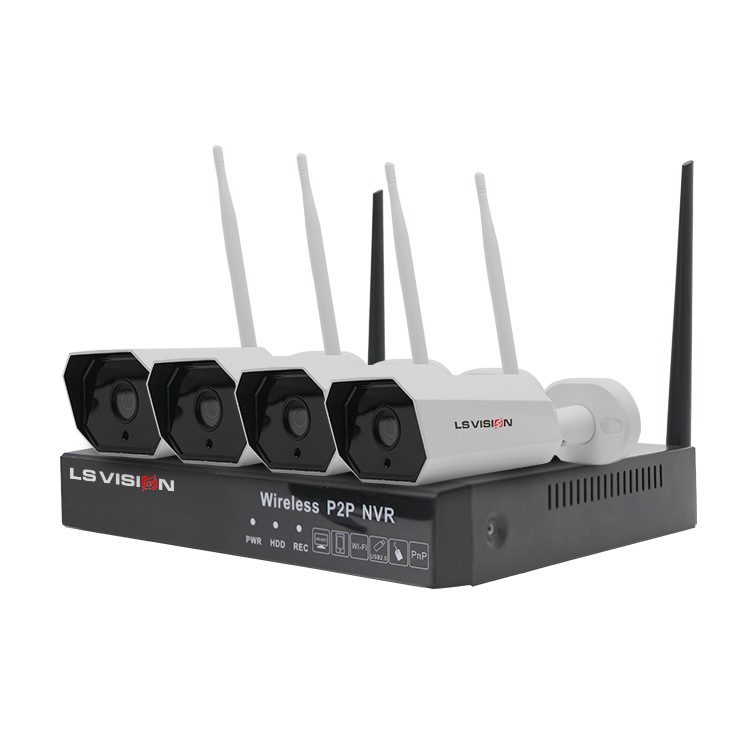

H.265 2mp Wifi nvr kit
Why LS VISION will be your first choice in the market?
LS VISION Technology Co., Ltd. (Own Brand: LS VISION). LS VISION is China No.1 IP Camera professional Supplier for Tough Environment. LS VISION always uphold the corporate culture – “Only for Quality Life” and focused on quality and service. Aim to provide top quality security products, professional service and best customer experience.
LSビジョン main product include High Quality IP Camera, HD Network Camera, PTZ Bullet Camera,HD NVR, and H.265 WIFI NVR Kits etc.

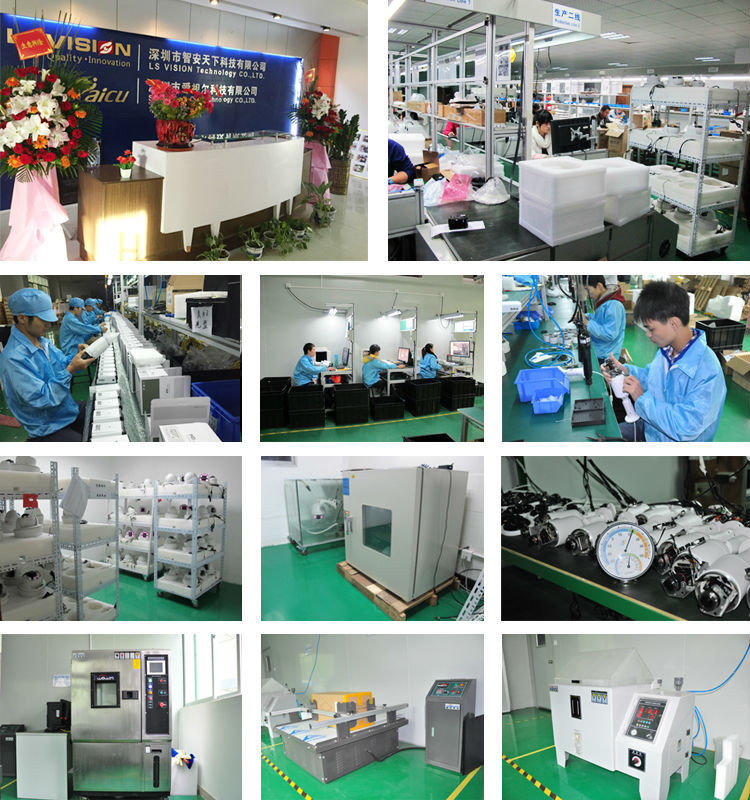

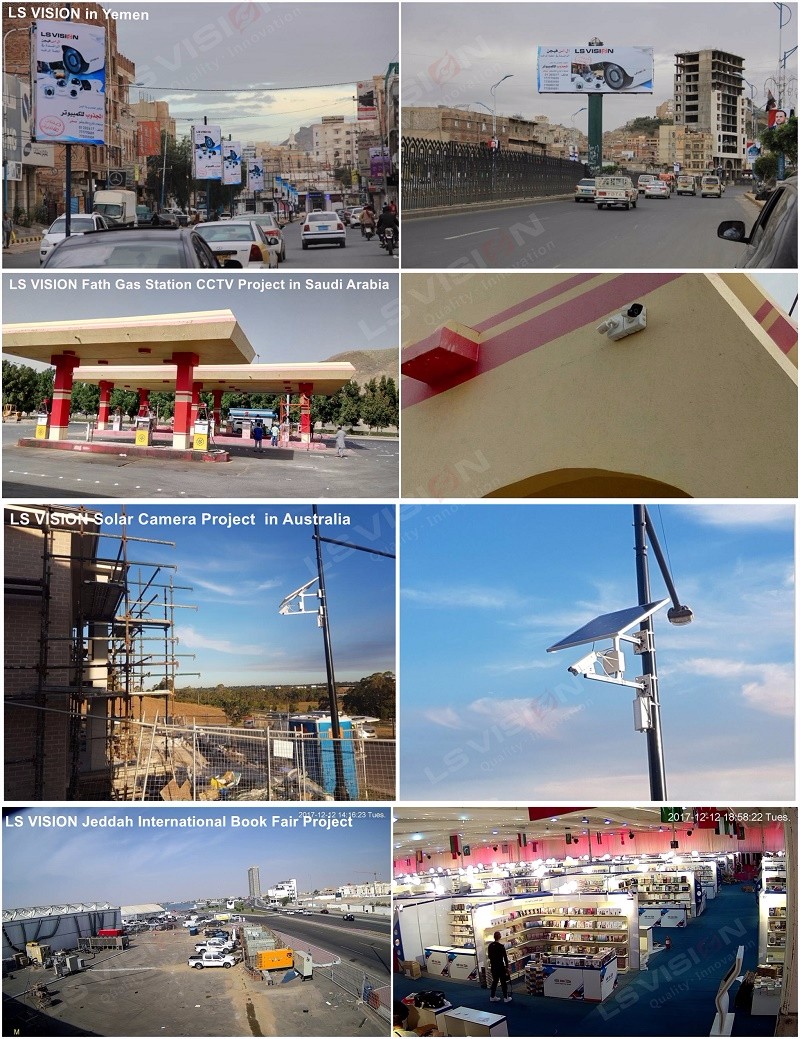

LS Vision established since 2012, with fast growing, so far we have 20 engineers R&D team, 20 person sales team and 10 marketing team. LS VISION factory has around 30 workers in production line. and the production capacity can be 15,000pcs in each month. LS Vision’s products are widely used in many fields, such as banking, public security, energy infrastructure, telecommunication, intelligent-building, and intelligent-transportation.
Now our team is keeping on research new products, Such as 4K H.265 Face Recognition IP Camera, Starlight IP Camera, 360 degree Panoramic IP Camera and body camera.
OEM and ODM service will be provided beyond your imagine.
LS Vision is definitely a worthwhile cooperation for you.
