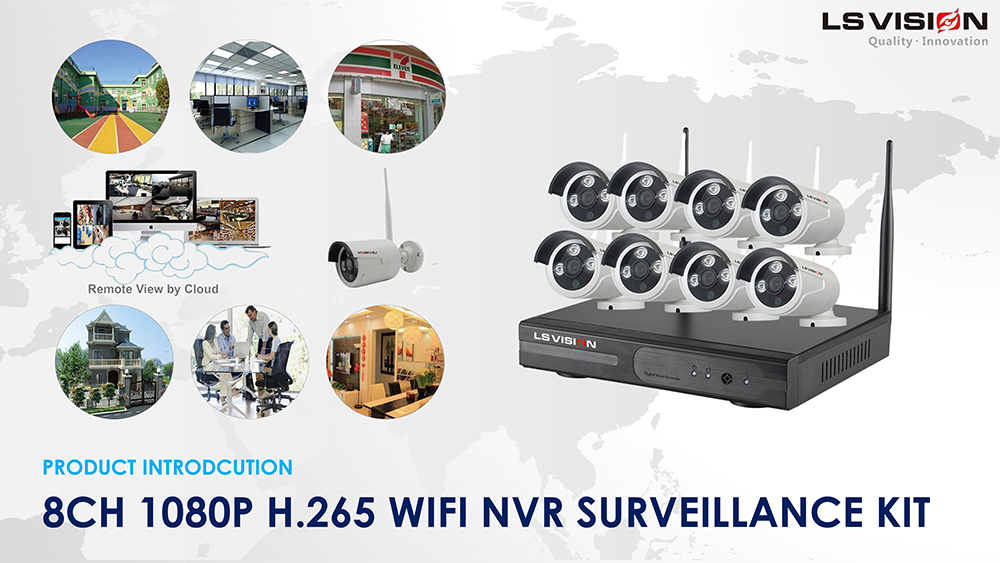

H.265 8CH 2MP 1080P HD P2P Wireless NVR CCTV System Infrared Outdoor Waterproof Home Motion Alarm Wifi Security Surveillance Kit

Thanks to the utilization of technology, our product is flawlessly manufactured and tested.At present, in the industry of CCTV Camera and other fields, the product is extremely popular.

공유 대상:

H.265 8CH 2MP 1080P HD P2P Wireless NVR CCTV System Infrared Outdoor Waterproof Home Motion Alarm Wifi Security Surveillance Kit is designed in different styles and varied sizes. H.265 8CH 2MP 1080P HD P2P Wireless NVR CCTV System Infrared Outdoor Waterproof Home Motion Alarm Wifi Security Surveillance Kit Shenzhen LSVISION Technology Co., Ltd. will strive toward excellence by building our working principles of guaranteeing quality for survival and seeking innovation for development, into everything we deliver. We are confident that we will overcome all the difficulties and obstacles to make a success in the end.

원산지:	광동, 중국	브랜드 이름:	LS VISION
모델 번호:	LS-WK7208	보증:	1 년
특별한 기능:	Two-way Audio, Motion Detection, Waterproof / Weatherproof	센서:	CMOS, 1/3″ Progressive Scan Sensor
네트워크:	Wi-Fi	기능:	양방향 오디오
동영상 압축 형식:	H.265	데이터 저장 옵션:	Cloud, NVR
애플리케이션:	실내	맞춤형 지원:	Customized logo
Accessory:	With 8pcs 1080P IR bullet cameras, with 5dbi antenna	Signal System:	PAL/NTSC
해상도:	H.265 encoding 8CH 1080P wifi NVR kit	나이트 비전:	3pcs IR Array LED, IR distance 20m

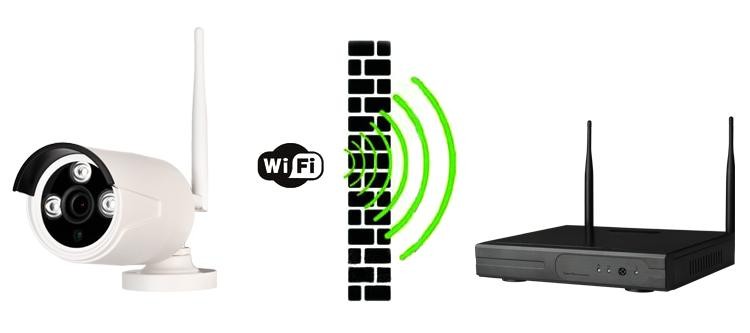

Video:	8CH 1080P video input and 8CH sync playback	Wireless:	802.11b/g/n ;300Mbps;2.4G wireless
저장소:	Support VGA;1 SATA max 4T	인터페이스:	Support 1 RJ45;1 USB interface;2pcs 5dbi detachable wifi antenna
채널:	4	인증:	ce, FCC

더 많은 추천

제품 설명

Technical Parameter

모델	LS-WK8104-N
운영 체제	임베디드 Linux OS
DSP	Hi3536D V200
압축	H.265
AV (video) input
네트워크 비디오	8CH
네트워크 비디오 입력 브로드뱅크	20Mbps
AV (video) output
input	1ch,resolution: 1024×768,1366×768,1440×900,1920x1080p
VGA 출력	1ch,resolution: 1024×768,1366×768,1440×900,1920x1080p
AV CODEC Specification
비디오 해상도	D1/1080P
동기화 재생	8CH
Video Control
비디오/캡처 모드	Manual,Time,Motion,Alarm
재생 모드	Real time,Routine,Event
백업	USB 백업
Alarm
Alarm Input	4ch (optional)
Alarm Output	1ch (optional)
Hard Disk
유형	1*SATA 인터페이스
Max Capacity	4 TB at most for each
External Interface
네트워크 인터페이스	1 RJ45 10M/100M, (1pcs WAN+3 pcs LAN)
USB 인터페이스	1 USB 2.0
Network Control
프로토콜	UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) DHCP (Automatically obtain an IP address), etc…
Others
전원 공급 장치	DC12V3A
Power Consumption (W)	≤5W(Without HDD)
Operate Temperature (°C)	-10℃~+55℃
Working Humidity (%) RH	10%~90%
크기	257mm(W)×210mm(V)×45mm(H)
Weight(excluding HDD)	≤2Kg

모델	IPC Specification:
센서	1/3″ Progressive Scan Sensor
압축	H.265
DSP	Hi3518E+2232
신호 시스템	PAL/NTSC
해상도	1920*1080 16 : 9 High Defination
최소 조명	Color: 0.1 Lux; B/W: 0.01 Lux
셔터	1/25s to 1/25,000s
렌즈	3.6mm)
OSD	Date Time & Title
화이트 밸런스	자동
Day&Night	자동 / 컬러 / BW
3D-DNR	자동
Mirror/Flip	On / Off
Frame Specification	H.265 1920×1080@30fps or below
S/N	H.265 640×480@30fps or below
인터페이스	> 39.1 Db
General Specification
Anti-thunder Level	Standard IEC61000-4-5
Ambient Temperature/Humidity	-10℃ to +50℃ / 30% to 80% RH
Working Temperature/Humidity	-20℃ to +60℃ / 20% to 90% RH
Power Input	DC12V-1A
전력 소비	≤6W
크기	205(L)×70(W)×55 (H)mm
무게	0.5Kg

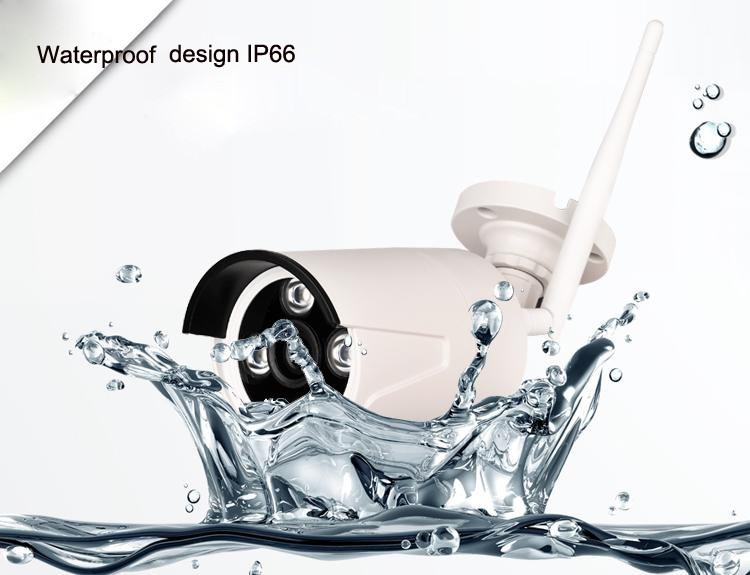

Level of Protection	IP66
