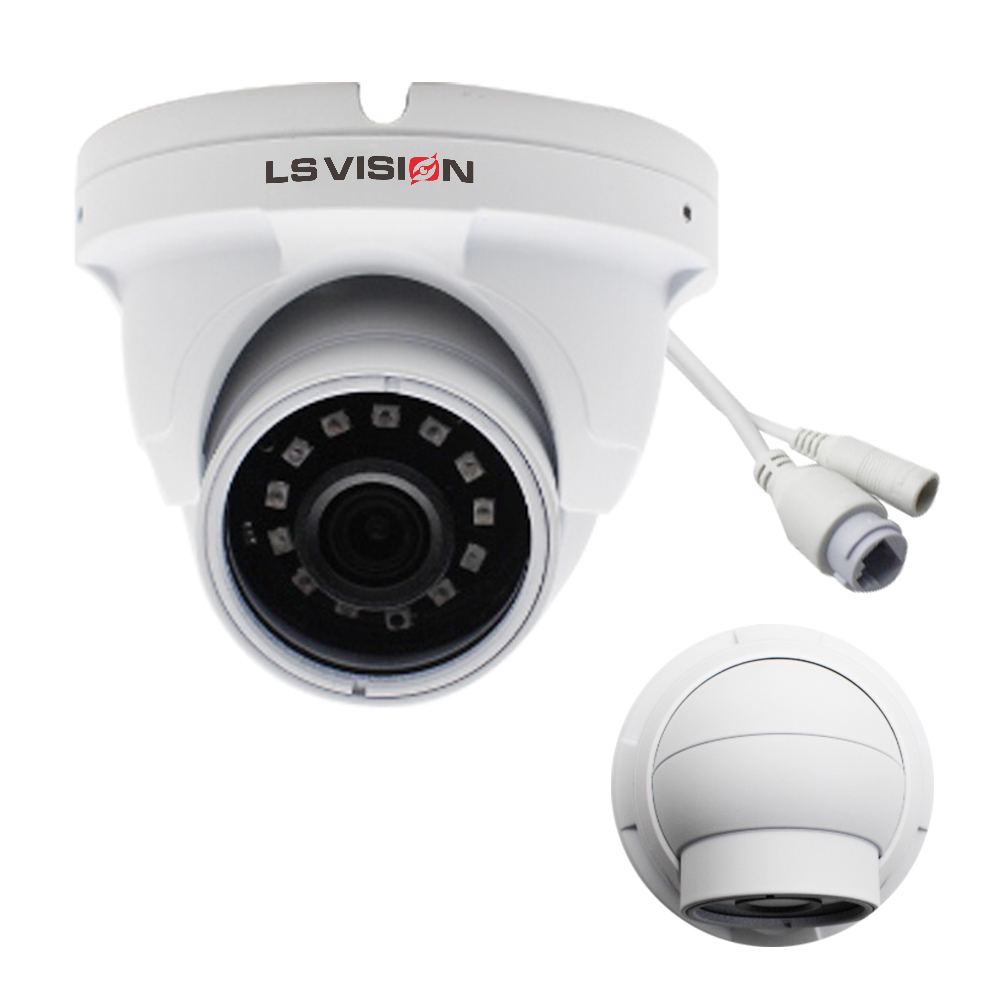

LS VISION 실내 고정 렌즈 2MP HD 1080P 스타비스 소니 Imx307 스타라이트 POE 오디오 돔 IP 카메라

공유 대상:

LS VISION Outdoor Wireless Security Camera

LS VISION 4CH 8CH 16CH 32CH 4K IP Camera

LS VISION WIFI NVR Kits with LCD Monitor

LS VISION Sony IMX307 CMOS Starlight Fixed Lens 1080P Video Surveillance POE Waterproof Bullet Security IP Camera

IP Camera Feature

2MP, 1/2.8″ CMOS Starlight Sensor
25fps@1920*1080 1080P
low illumination 0.1Lux
Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
D-WDR, Motion Detection, Privacy Mask, Mirror, rotate
RTSP and 2.6 compatible
/H.264 dual-stream media server
Easy-to-use P2P Cloud service
Multi web browser, PC Client software, mobile APP remote access
Lightning protection 4000V
12pcs Leds IR distance 15M , IP66 POE
Standard Fixed lens 3.6mm, Optional 6/8mm lens

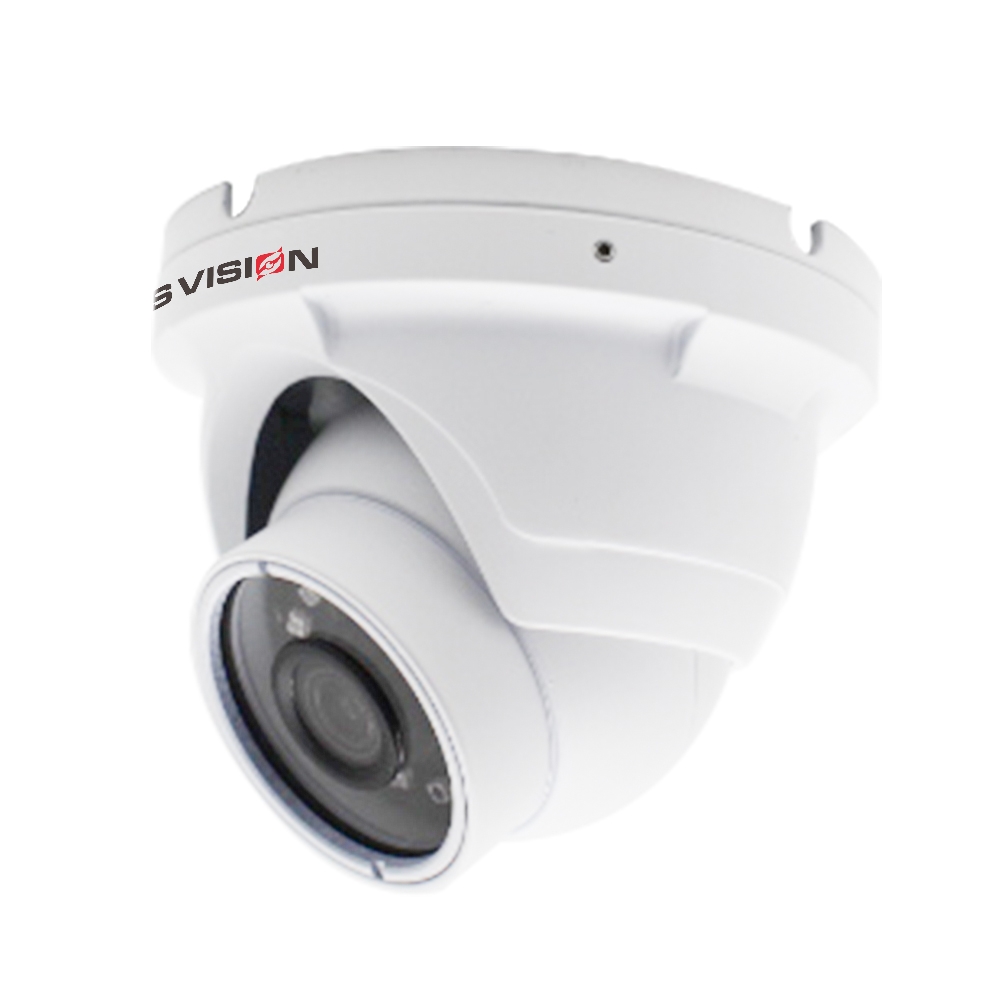

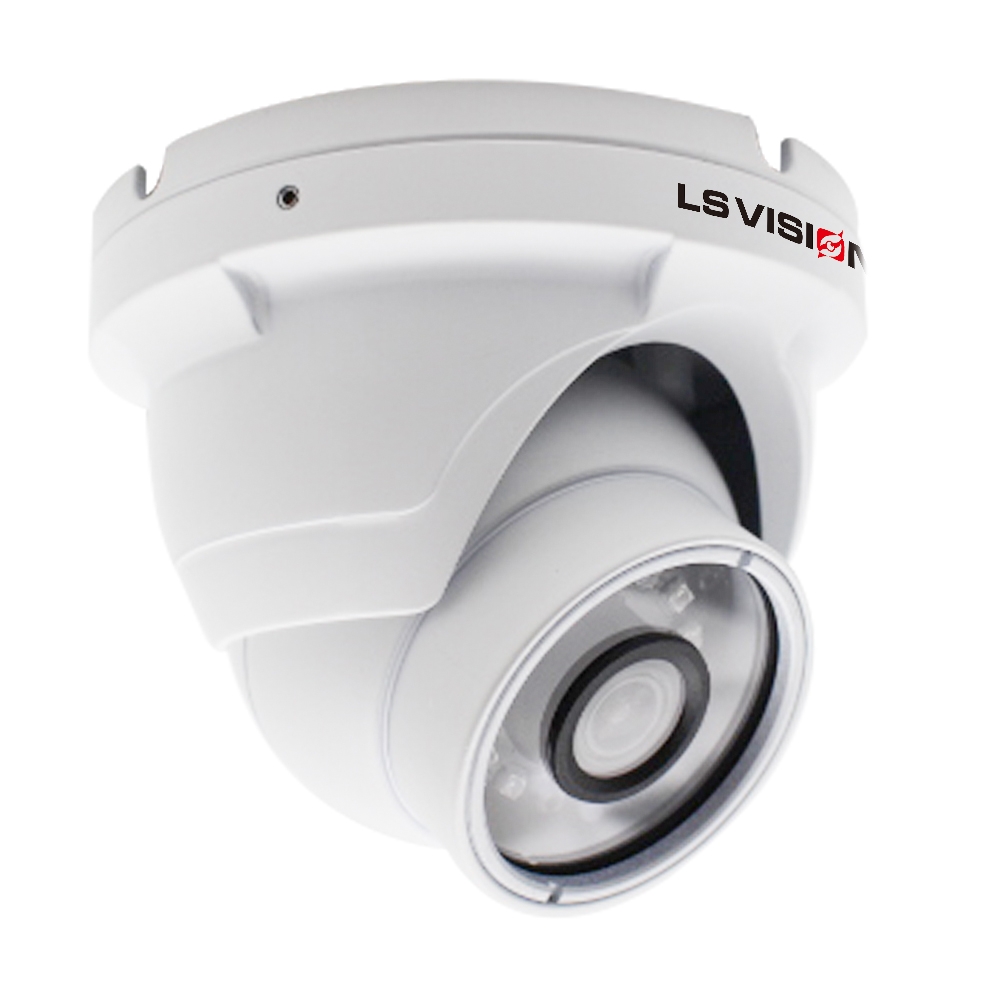

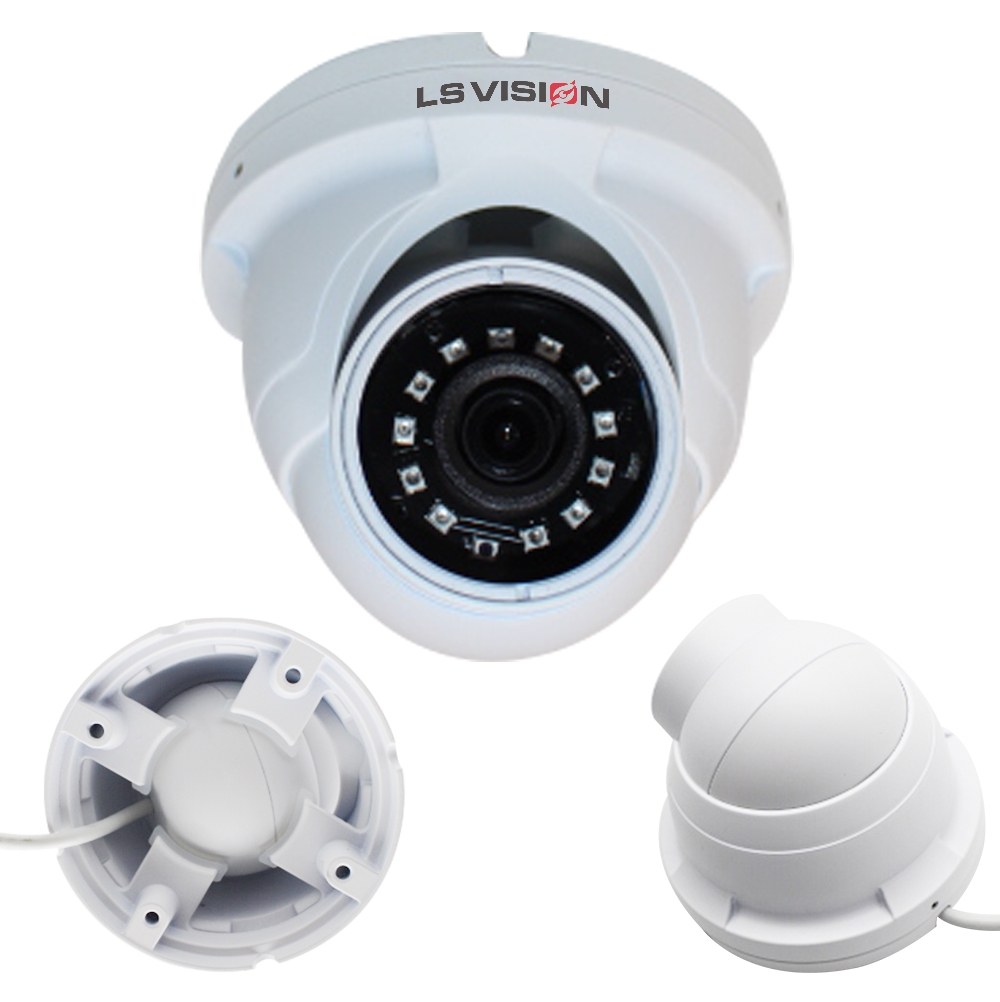

Security Camera Detail

Online demo

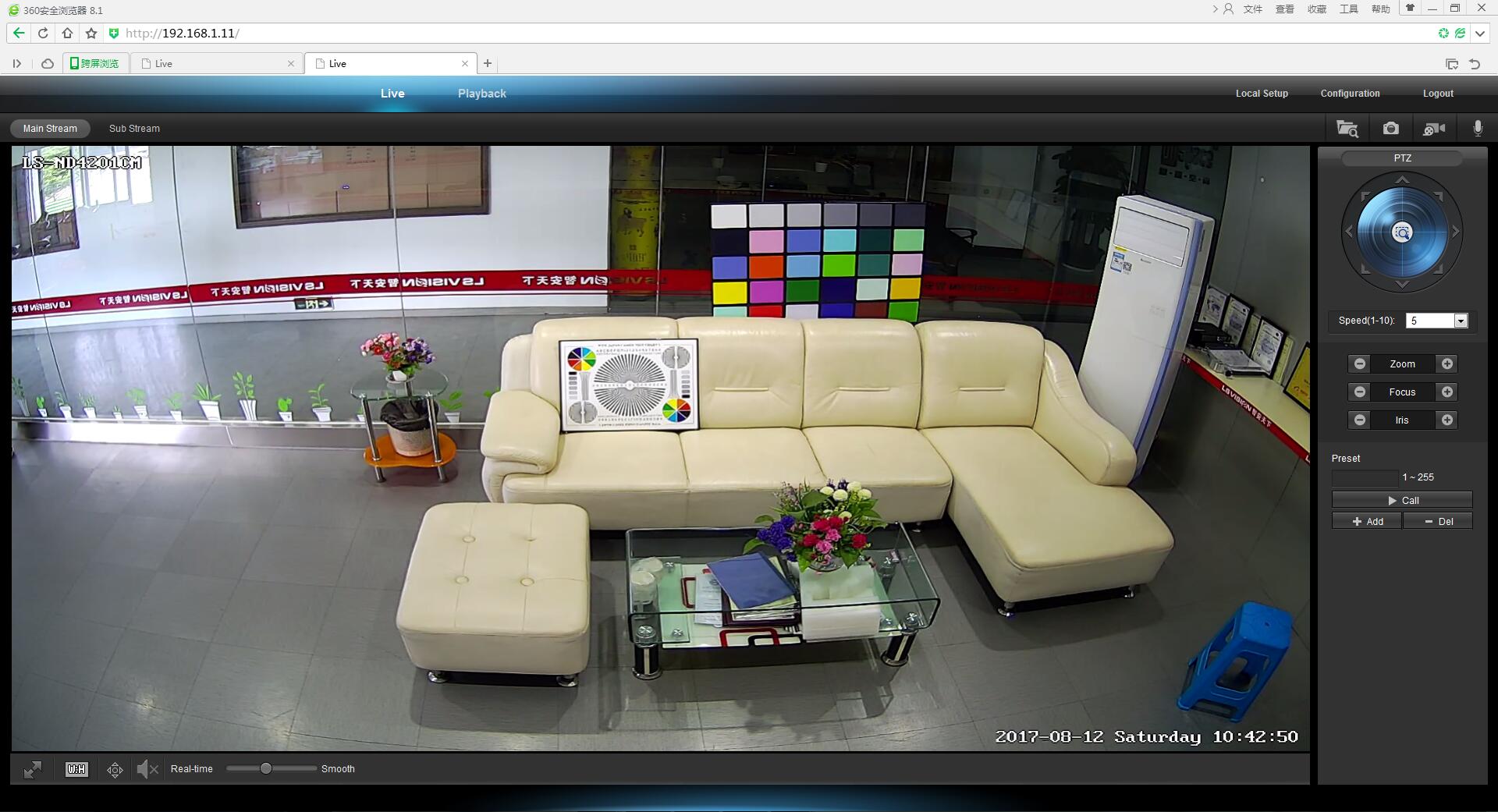

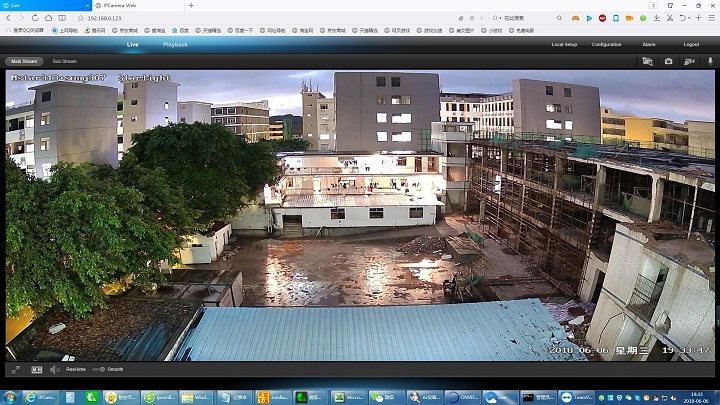

CMS& IE view

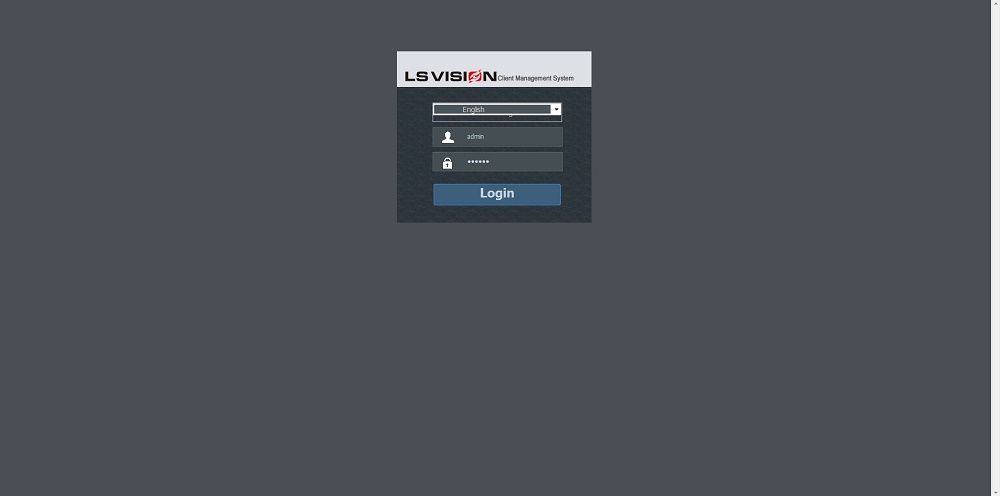

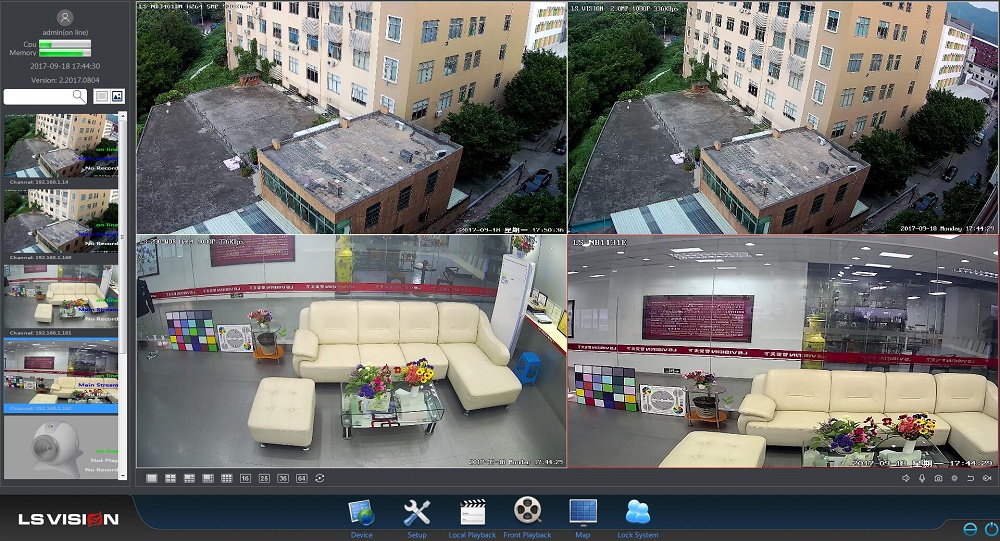

LS VISION IP Camera CMS Software

Day Vision Surveillance of China CCTV 4.0M IP Camera

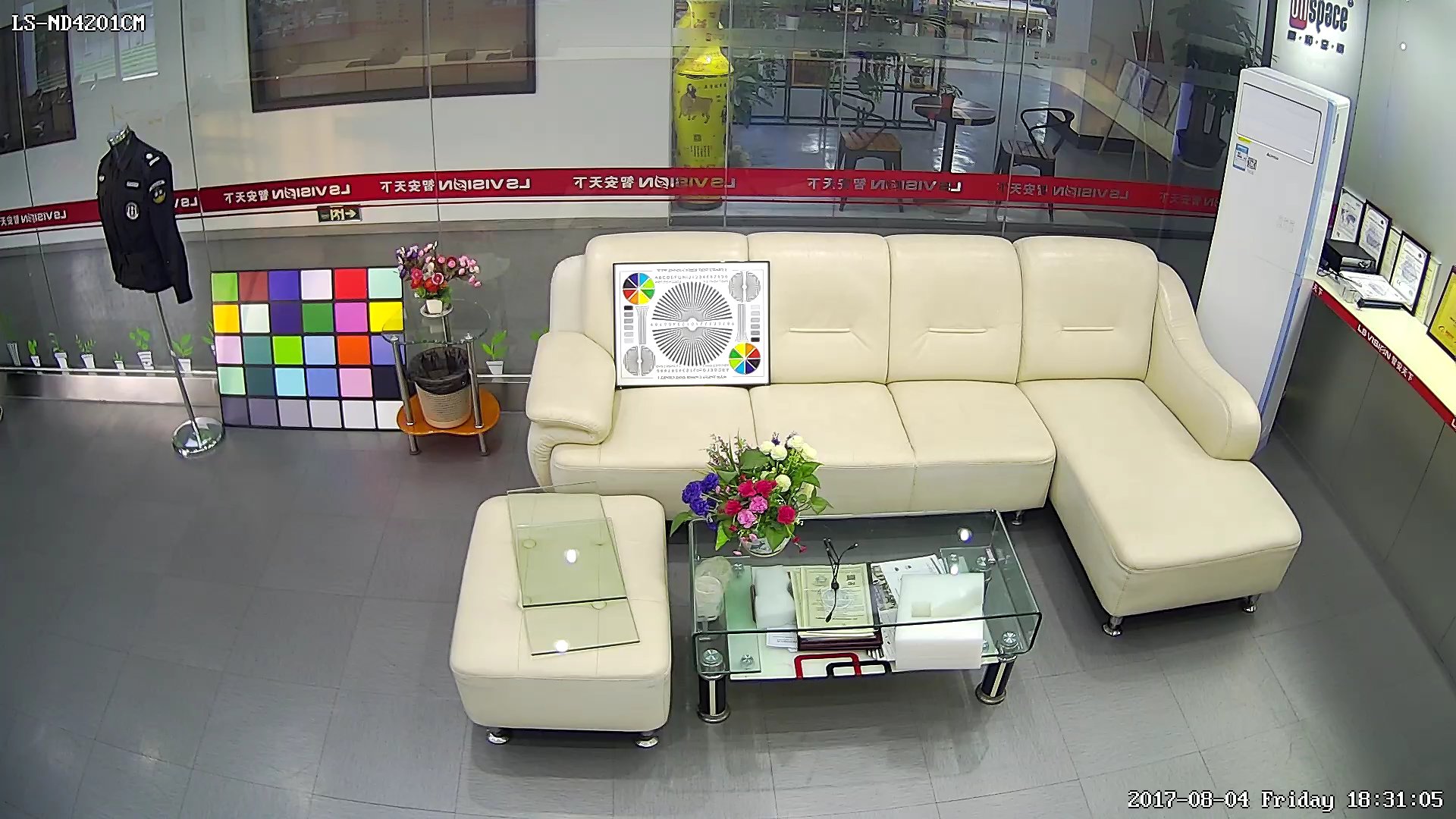

Daytime visual surveillance

Day Vision Surveillance of 5MP UHD CCTV Camera

Day Vision Surveillance of 5MP UHD Security Camera

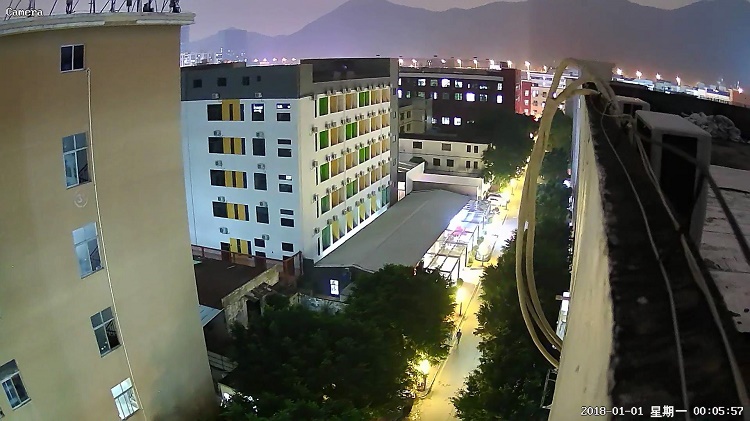

밤 Vision with IMX307 Starlight Sensor Monitoring

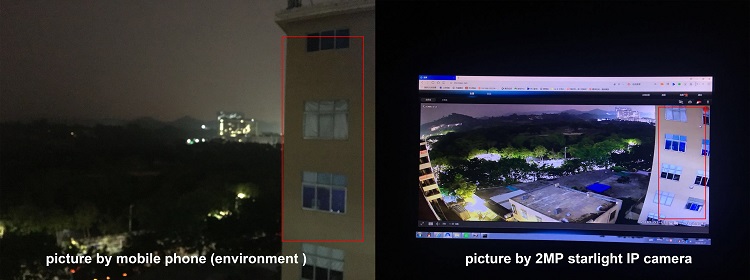

IMX307 Starlight Sensor IP Camera with night vision

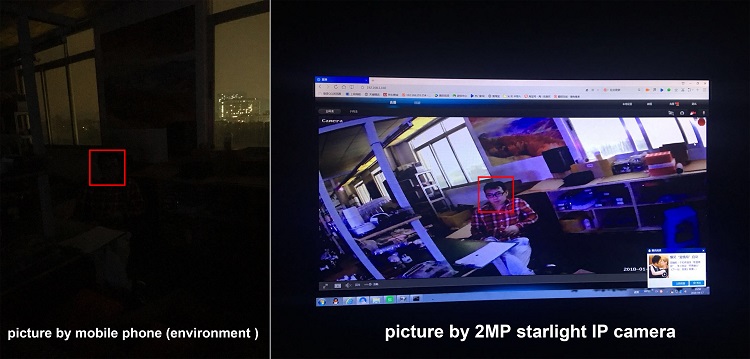

IMX307 Starlight night vision IP Camera

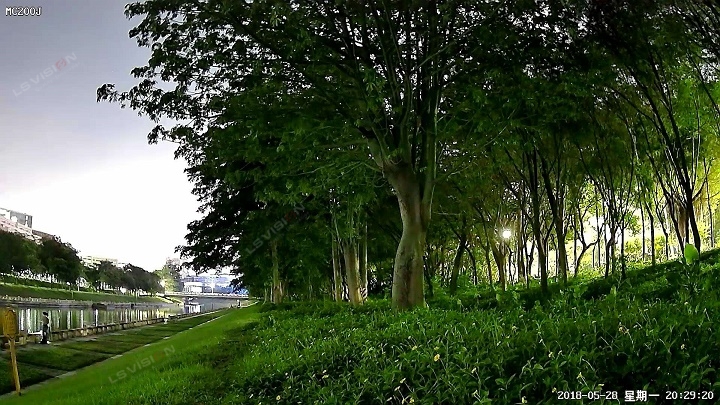

MSC313E and IMX307 Starlight Sensor IP Camera

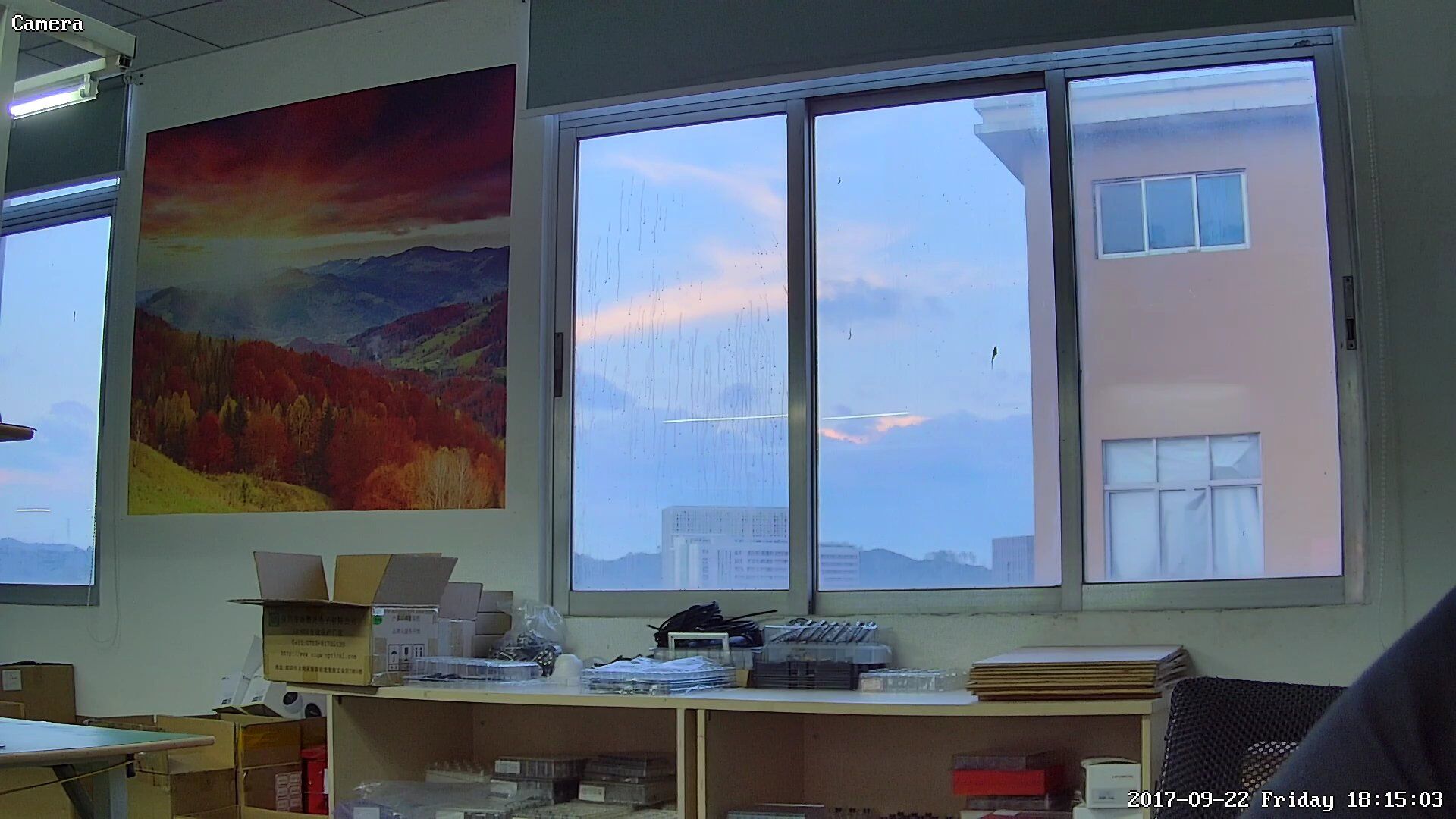

WDR monitoring Efdfect

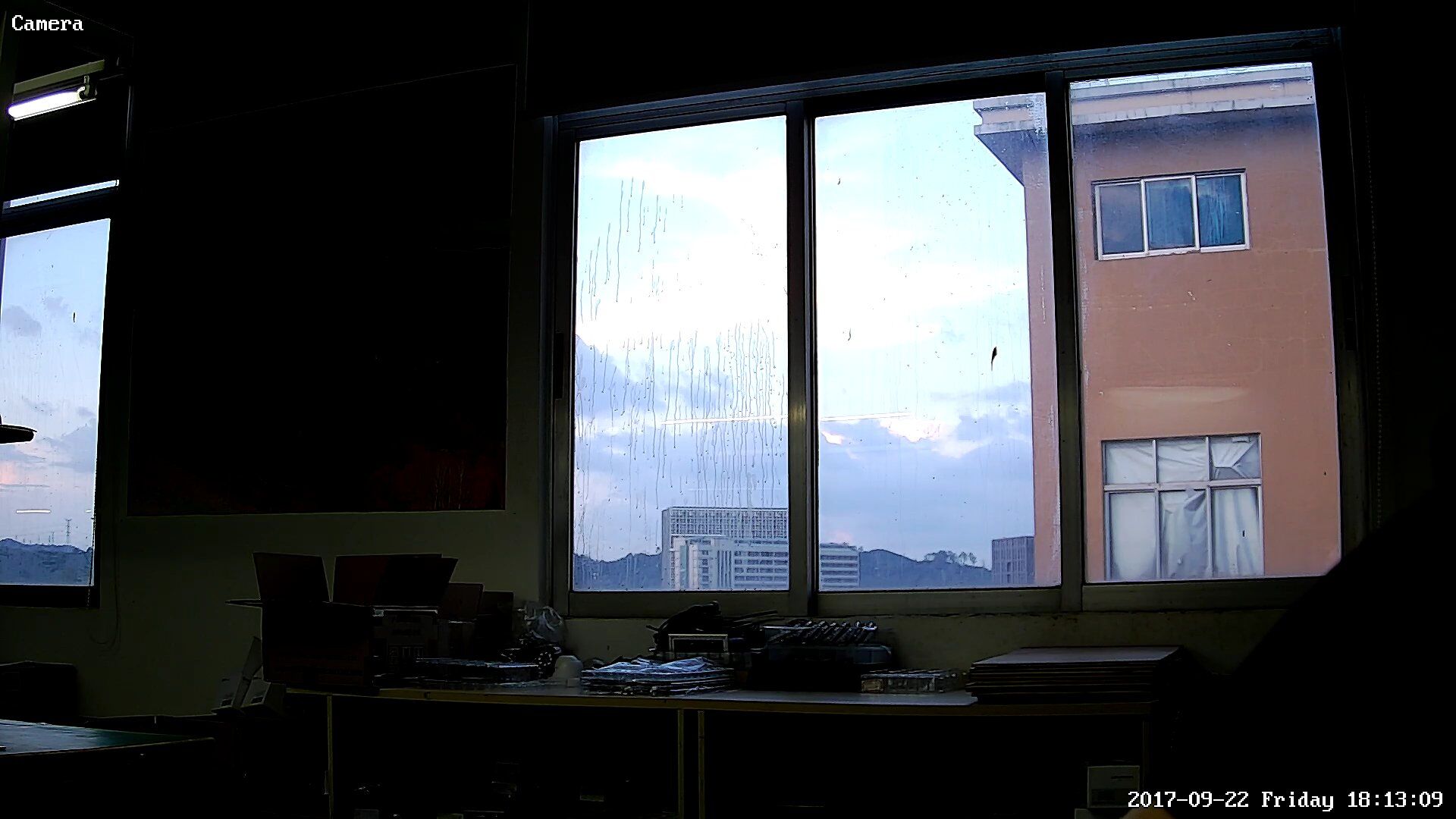

Without or Close WDR Monitoring Effect

IP Camera Specification

모델	LS-ND7202C
카메라
이미지 센서	1/2.8″ CMOS IMX307Starlight Sensor
Effective Pixels	2592(H)×1520 (V)
Electronic Shutter	AUTO, 1/25s ~ 1/100000s
Min. Illumination	0.1Lux@F1.2(AGC ON), 0Lux IR on
Day/Night	Auto/Color/(B/W)/Timing
WDR	Digital WDR
White Balance	자동
AGC/BLC	지원
DNR	2D/3D DNR
기타	Multi-lines OSD, Motion Detection, Privacy Mask, Mirror, Rotate
Encode
Embedded Solution	MSC313E
Video Standard	/H.264
Video Resolution	Main Stream:
	25fps@1920*1080
	Sub Stream: VGA(640×480)/360P/QVGA@25fps, etc.
Video Bitrates	32Kbps - 8Mbps, VBR/CBR
Audio Standard	G.711-u
IR Led
IR Led	12pcs Leds
IR Distance	IR distance 15M
렌즈
Focal length	Standard Fixed lens 3.6mm, Optional 2.8/6/8mm lens
Optional Function
Lens, Audio, etc.
Network Services
프로토콜	HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, etc.
P2P	예
Web	IE , Firefox, etc.
Media	CMS, Android, IOS
	2.6 compatible
General
Network Port	1-RJ45, 100Mbps, POE
Power Supply	Support POE 48V 12 VDC ± 10%
Power Consumption	< 8 W
Operating Temp.	-30℃-(+60)℃, 10%-90%RH

certificate

LS VISION Security Certificate and Supplier Evaluation

브랜드 및 CCTV 프로젝트

LS VISION global brand
Currently, LS VISION partners and customers around the world, including distributors, agents, engineers and security importers, end consumers and other different customer groups in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh , Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries have established a dedicated agency, and we have been working hard to expand our global institutions or distribution areas.
LS VISION 글로벌 브랜드

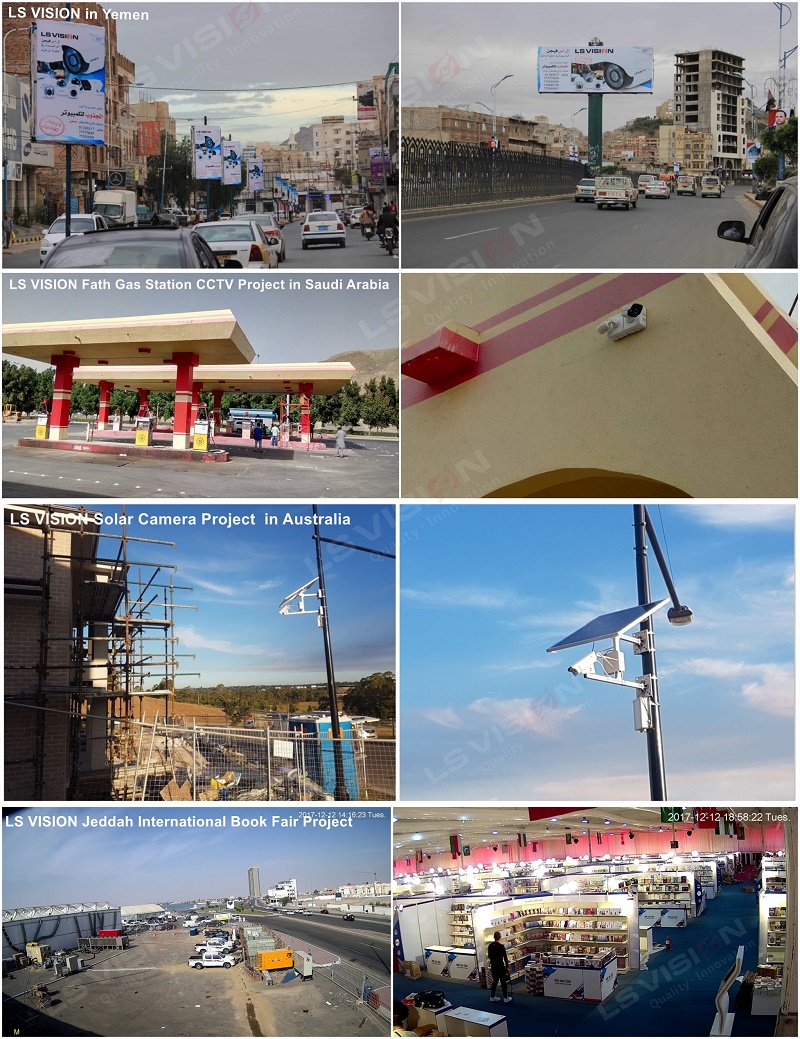

LS VISION Global Security Program
LS VISION products and solutions are used in many countries and regions, such as the Jeddah International Book Fair in Saudi Arabia in 2017 and 2018; the MAKKAH CCTV project in the city center in 2018; the Fath gas station project in 2017, Basamas Square in Peru Projects, major security projects such as Panama Airport have played an important role.

LS VISION CCTV Security Project

LS VISION

LS VISION will maintain our quality key value. innovation. Committed to more research on products, bringing more value to partners in 2019.

2019, LS VISION Product Strategy:
산업 시장:
IPC: 2MP to 8 megapixel 4K series IP cameras and HD NVR systems.
아날로그 HD: 2MP~8MP 시리즈 및 DVR 시스템.
AI Series: Face Recognition Camera and NVR System.
4G solar camera system

consumer market:
1.3MP to 5MP Wifi NVR kit, POE Nvr kit;
Wifi battery camera, wifi camera, smart doorbell, etc.
