LSVISION – LS VISION 4G Solar Powered Camera System Accessories with 50W 70W Solar Panel 12V 30AH lithium Battery and Mounting Bracket Solar Camera

Technology is applied to the manufacturing process of the products.Characterized by versatile features and perfect applicability,LS VISION 4G Solar Powered Camera System Accessories with 50W 70W Solar Panel 12V 30AH lithium Battery and Mounting Bracket can be widely seen in the field(s) of CCTV Camera.

공유 대상:

Utilizing technology makes the manufacturing process go smoothly and efficiently.With regard to the product advantages, the product can be widely found in the field(s) of LS VISION 4G Solar Powered Camera System Accessories with 50W 70W Solar Panel 12V 30AH lithium Battery and Mounting Bracket. It is designed to meet the industry criterion. Reflecting the latest industry trend and development, our LS VISION 4G Solar Powered Camera System Accessories with 50W 70W Solar Panel 12V 30AH lithium Battery and Mounting Bracket is designed to be attractive enough to catch people’s attention. Moreover, it has some excellent characteristics, which makes it more value-added. In this competitive market, this CCTV Camera has the greatest appreciation space.

원산지:	광동, 중국	브랜드 이름:	LSVISION Or OEM
모델 번호:	LS-K5020	보증:	1 년
특별한 기능:	Two-way Audio, Motion Detection, Waterproof / Weatherproof	센서:	CMOS
스타일:	불렛 카메라	기능:	Wide Angle, Two-way Audio, PAN-TILT
동영상 압축 형식:	H.265	데이터 저장 옵션:	클라우드
애플리케이션:	Outdoor	맞춤형 지원:	Customized logo
Feature1:	using high-performance monocrystalline silicon solar panels,	Feature2:	high strength tempered glass floor;
Feature3:	monitoring and integration of solar aluminum alloy stent	solar photo voltaic board size (70W):	77067125mm
solar photo voltaic board size (50W):	63054018mm	Bracket:	solar panels with metal wall bracket
Standard accessory:	with Solar Panel, 12V / 30AH lithium Battery, Mounting Bracket	application:	for solar camera LS-MB6200S & LS-MB6201
방수:	IP 66	인증:	ce, FCC

더 많은 추천

주요 기능

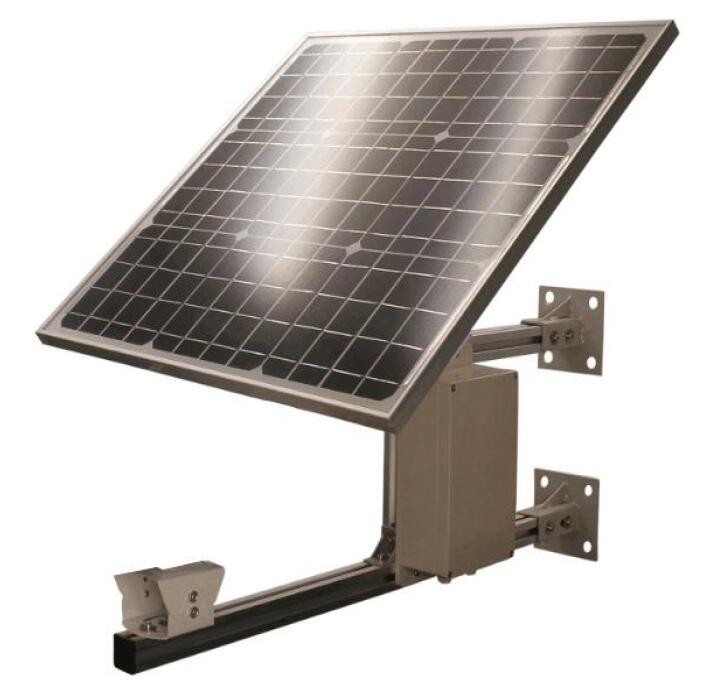

50W solar panel + 12V / 20AH lithium battery+Bracket

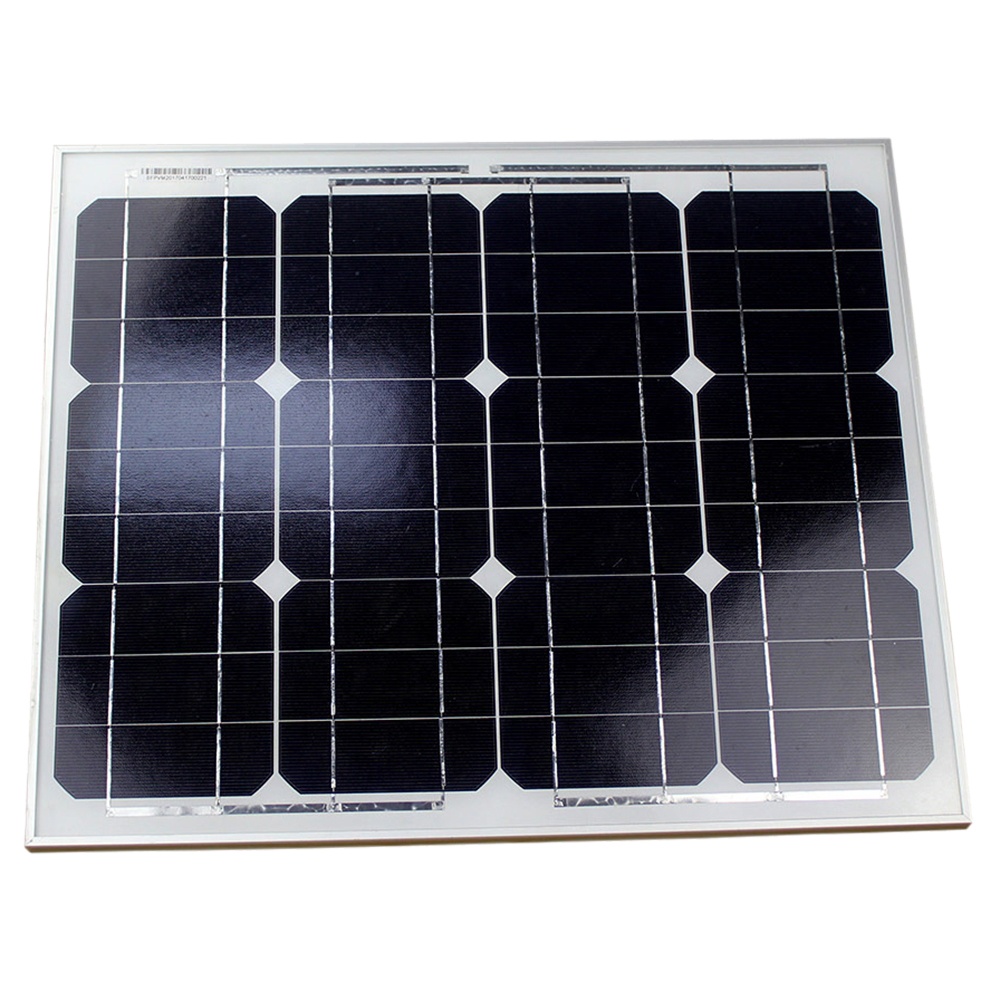

→ using high-performance monocrystalline silicon solar panels, aluminum alloy frame;
→ high strength tempered glass floor;
→ solar panels with metal wall bracket, with duckbill stent can be adjusted to the direction of solar energy;
→ solar photovoltaic board size: 50W: 630*540*18mm

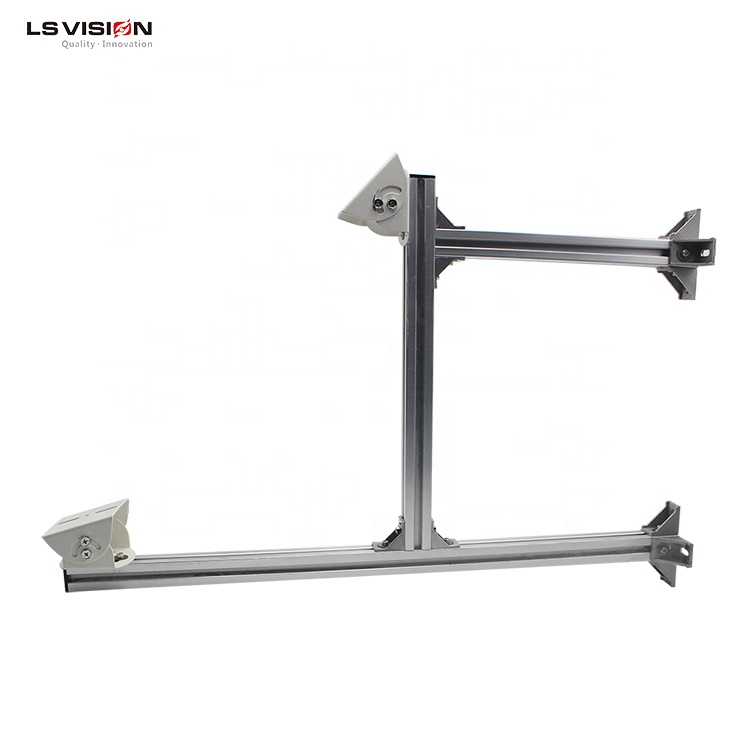

→ Bracket size: 700mm*430mm*30mm
→ monitoring and integration of solar aluminum alloy stent.
→ complete 3-stage PWM charge management, dual MOS anti-floodingcircuit;
→ built-in over-current / short circuit protection, open circuit protection, reverse protection, are self-recovery type, no damage to the controller;
→ automatic temperature compensation, charge and discharge hours accumulated function;
→battery reverse discharge protection, overload protection, battery under voltage protection, battery reverse protection.
Package Size: 780mm*650mm*260mm

70W solar panel + 12V / 20AH lithium battery+Bracket

→ using high-performance monocrystalline silicon solar panels, aluminum alloy frame;
→ high strength tempered glass floor;
→ solar panels with metal wall bracket, with duckbill stent can be adjusted to the direction of solar energy;
→ solar photovoltaic board size: 70W: 770*671*25mm
→Bracket size: 700mm*430mm*30mm
→ monitoring and integration of solar aluminum alloy stent.
→ complete 3-stage PWM charge management, dual MOS anti-flooding circuit;
→ built-in over-current / short circuit protection, open circuit protection, reverse protection, are self-recovery type, no damage to the controller;
→ automatic temperature compensation, charge and discharge hours accumulated function;
→battery reverse discharge protection, overload protection, battery under voltage protection, battery reverse protection.
Package Size: 840mm*770mm*220mm

* Note: This accessory standard with 50W or 70W Solar Panel + 12V / 20AH lithium Battery + Bracket.

Only for 4G Solar Camera LS-MB6201 & LS-MB6200S

제품 설명

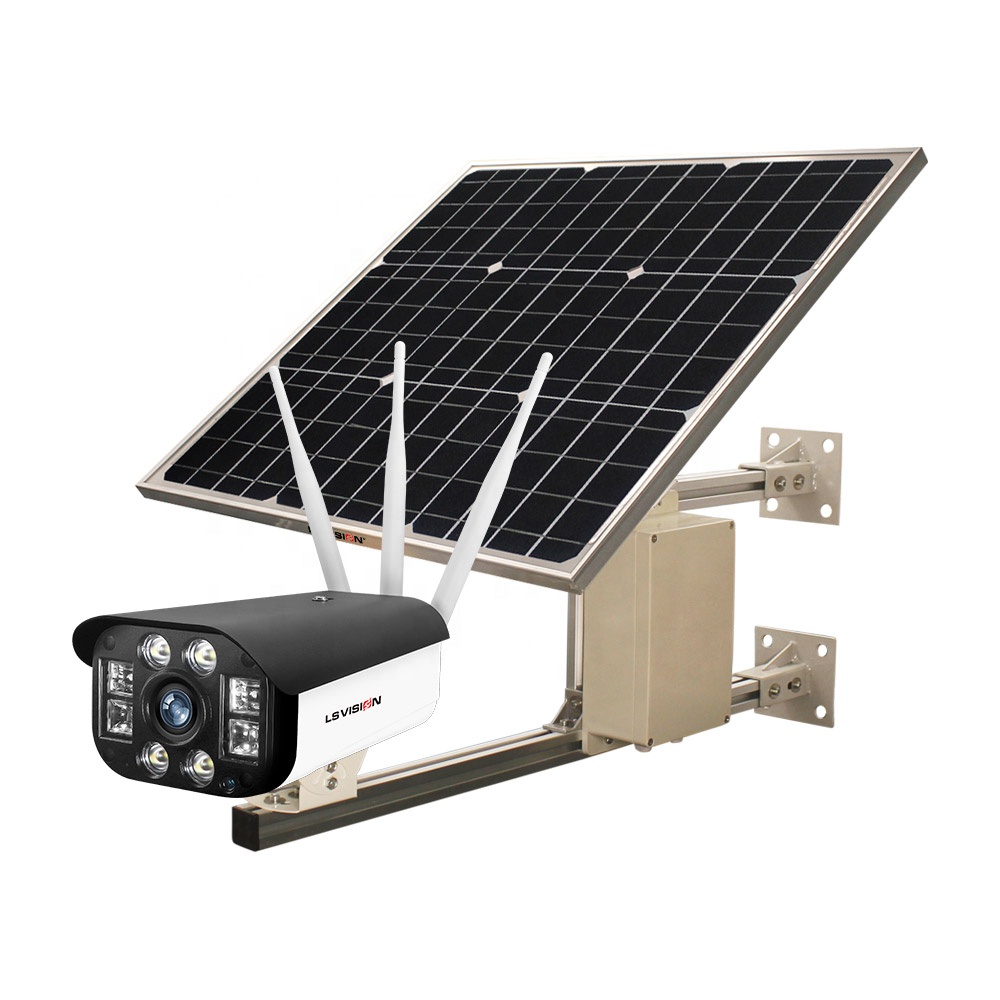

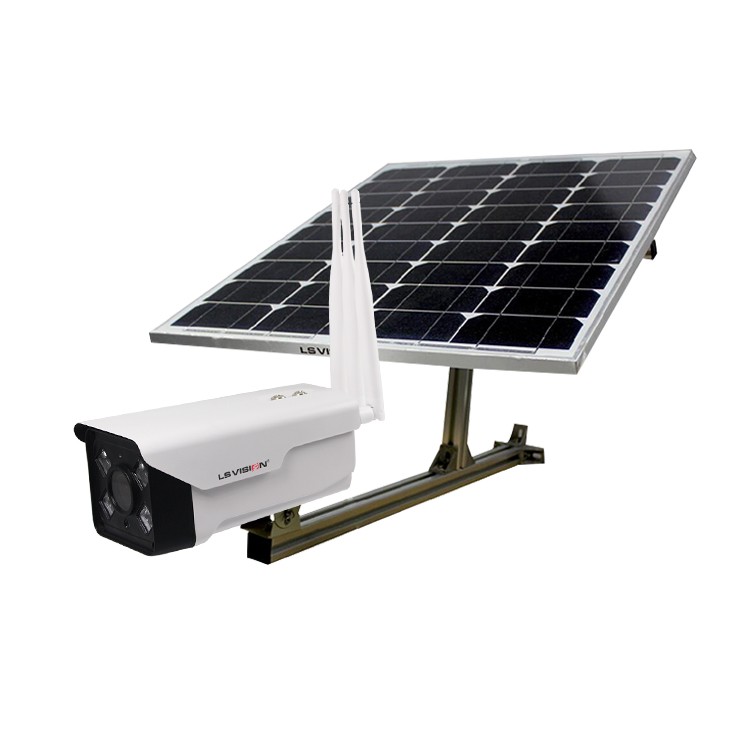

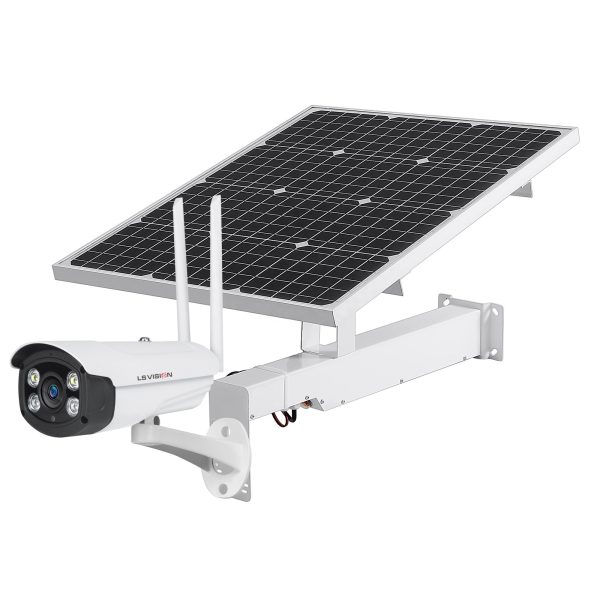

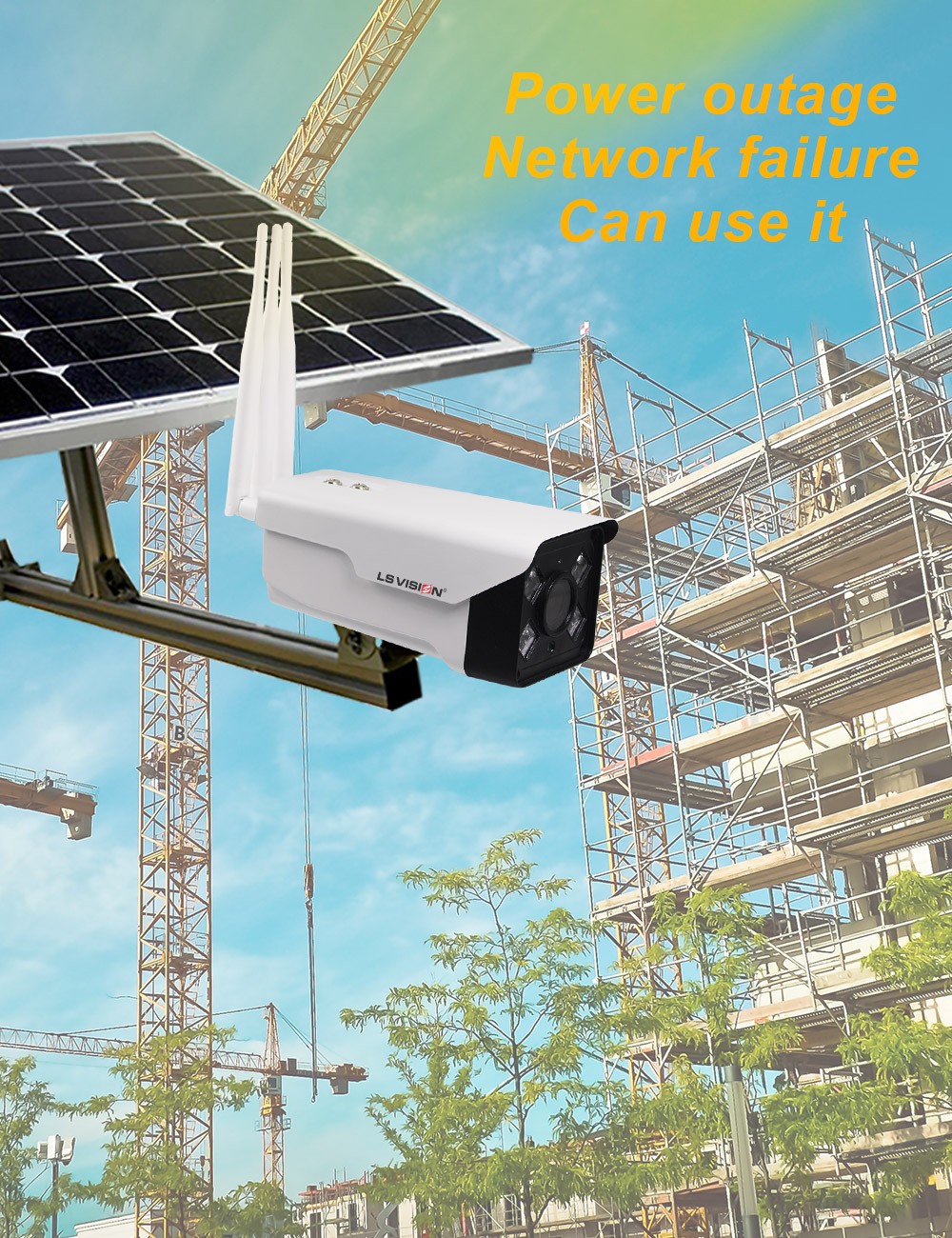

Solar Camera with Bracket, Battery & Solar Panel LS-K5020(50W) or LS-K7020 (70W)

Note: standard without Bracket, Battery and Solar Panel

solar panels with metal wall bracket, with duckbill stent can be
adjusted to the direction of solar energy

→ solar photovoltaic board size: 50W: 630*540*18mm
→ Bracket size: 700*430*30mm

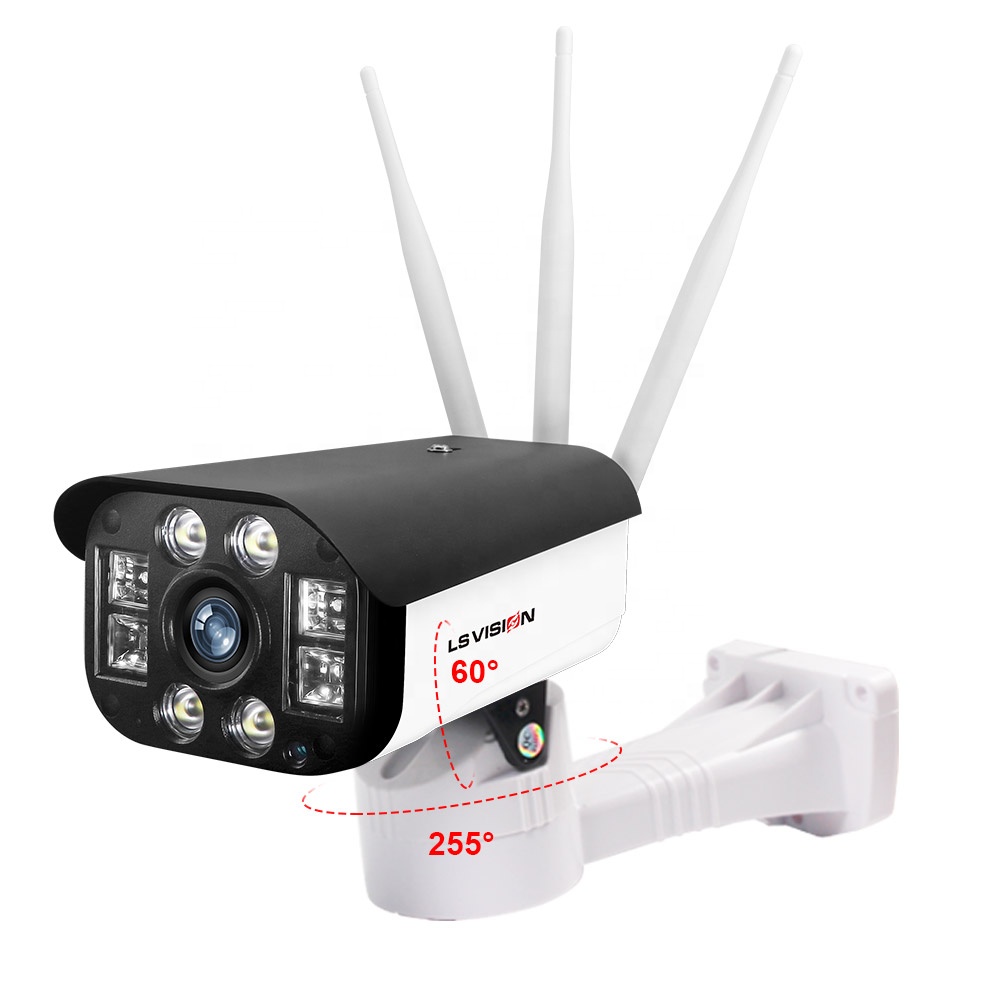

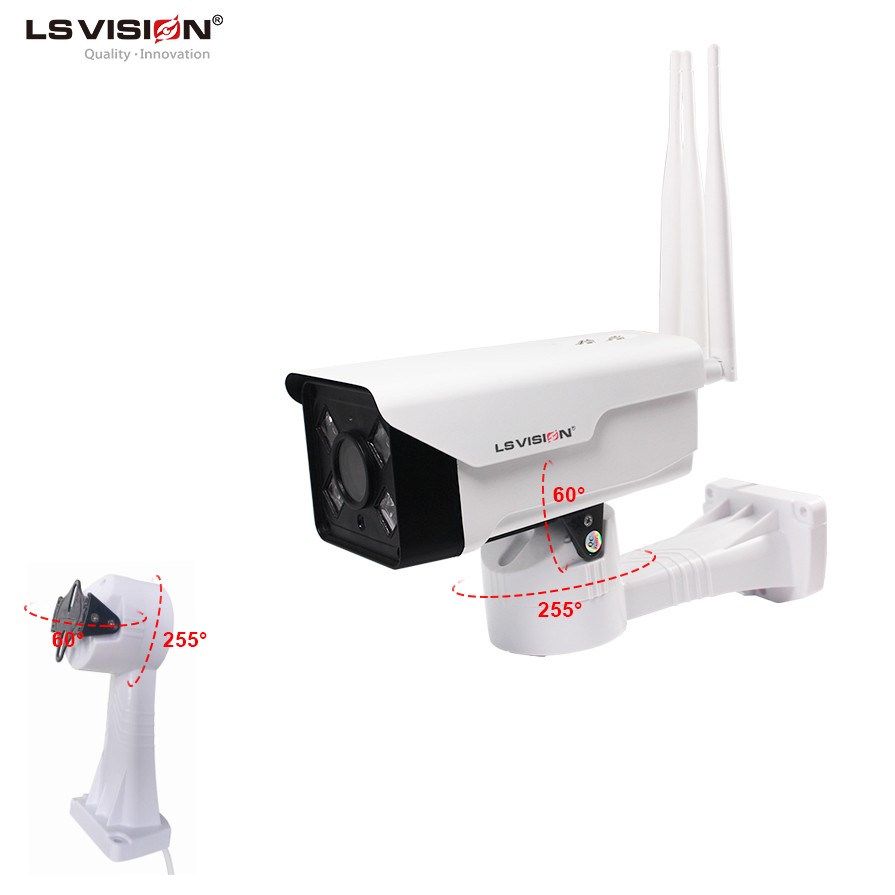

Solar Camera with Rotating bracket LS-ZJ03

Note: standard without Rotating bracket

Rotating brackets are not supported if the camera is equipped with a solar panel with LS-K5020&LS-K7030.(Unable to install)

255 degree horizontal rotation, 60 degree vertical rotation

애플리케이션

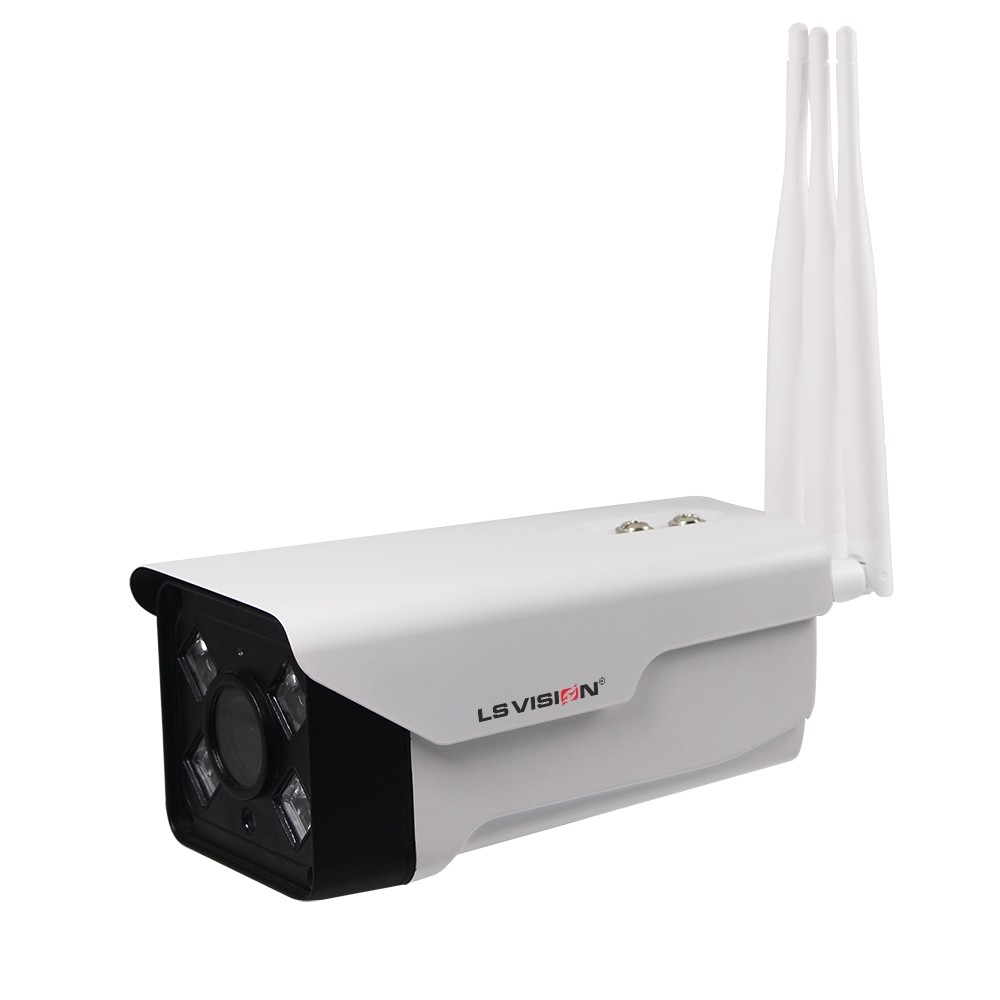

4G Solar Camera LS-MB6200S

* 1080P Hi3516E+ 1 / 2.8″ IMX307 Starlight sensor

0.001LUX,H.265/H.264

* Metal case,4 dot matrix light source IR distance 25 meters;

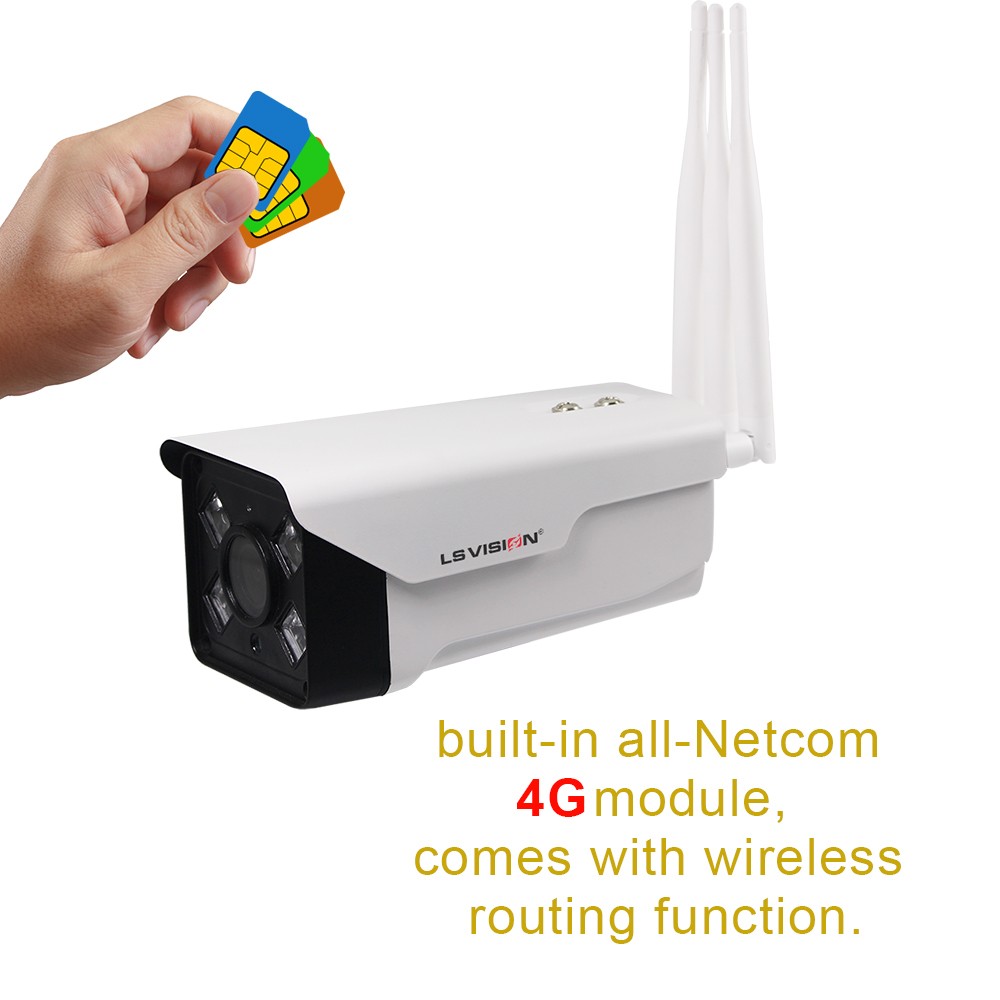

* built-in all-Netcom 4G module, comes with wireless routing function;
* comes standard with TF memory card slot

(support 128GB TF card);
* 2 5DB 4G antenna, 1 5DB WIFI antenna;
* software: P2P remote, low code cloud platform ;
* Standard lens: F1.2 4mm Starlight lens

4G Solar Camera LS-MB6201

1080P Hi3516E+ 1 / 2.7″SC2232 0.05LUX,H.265/H.264

* Metal case, 4 dot matrix light source IR distance25 meters;
* built-in all-Netcom 4G module, come with wireless routing function;
* comes standard with TF memory card slot

(support 128GB TF card);
* 2 5DB 4G antenna, 1 5DB WIFI antenna;
* software: P2P remote, low code cloud platform ;
* Standard lens: 3.6mm Fixed lens

인증

브랜드 및 CCTV 프로젝트

LS VISION 글로벌 브랜드

현재 러시아, 예멘, 필리핀, 마다가스카르, 나이지리아, 튀니지, 방글라데시, 사우디아라비아, 베트남, 가나, 방글라데시 및 기타 국가 지역의 딜러, 대리점, 엔지니어 및 보안 수입업체, 최종 소비자 등 다양한 고객군을 포함한 전 세계 LS VISION 파트너 및 고객들이 독점 대리점을 설립하고 글로벌 대리점 및 유통 영역을 확장하기 위해 많은 노력을 기울이고 있다.

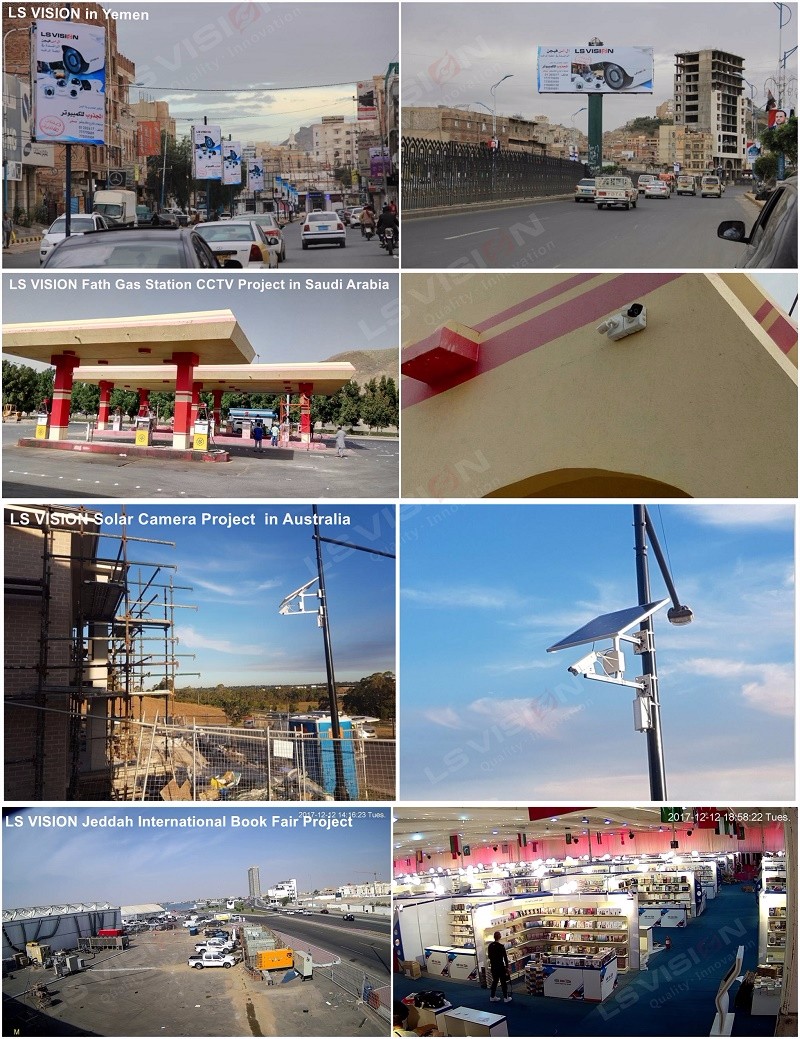

LS VISION 글로벌 보안 프로젝트

2017년과 2018년 사우디아라비아 제다 국제 도서전 프로젝트, 2018년 시티센터 마카(MAKKAH) CCTV 프로젝트, 2017년 파스 주유소 프로젝트, 페루 바스 아마스 플라자 프로젝트, 파나마 공항 및 기타 주요 보안 프로젝트 등 여러 국가와 지역에서 LS산전의 제품과 솔루션이 중요한 역할을 수행했습니다.

LS VISION

LS VISION은 다음과 같은 핵심 가치를 지켜나갈 것입니다. 품질. 혁신. 헌신 2019년에는 파트너에게 더 많은 가치를 제공할 수 있는 제품을 위해 더 많은 연구를 할 계획입니다.

2019년 LS VISION 제품 전략:
산업 시장:
IPC: 2MP~8MP 4K 시리즈 IP 카메라 및 HD NVR 시스템.
아날로그 HD: 2MP~8MP 시리즈 및 DVR 시스템.
AI 시리즈: 얼굴 인식 카메라 및 NVR 시스템.
4G 태양광 카메라 시스템

소비자 시장:

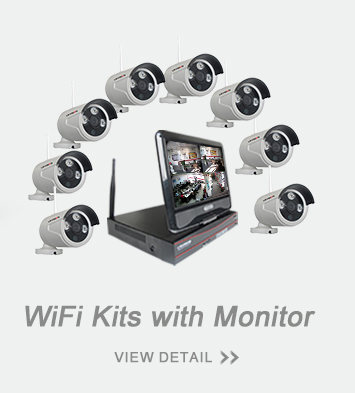

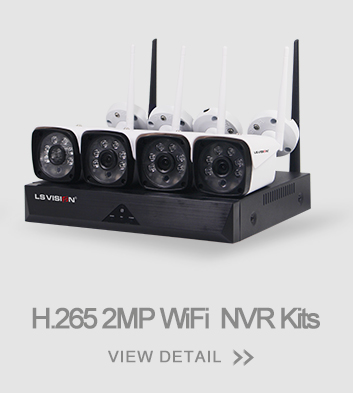

Wi-Fi NVR 키트, POE NVR 키트;
