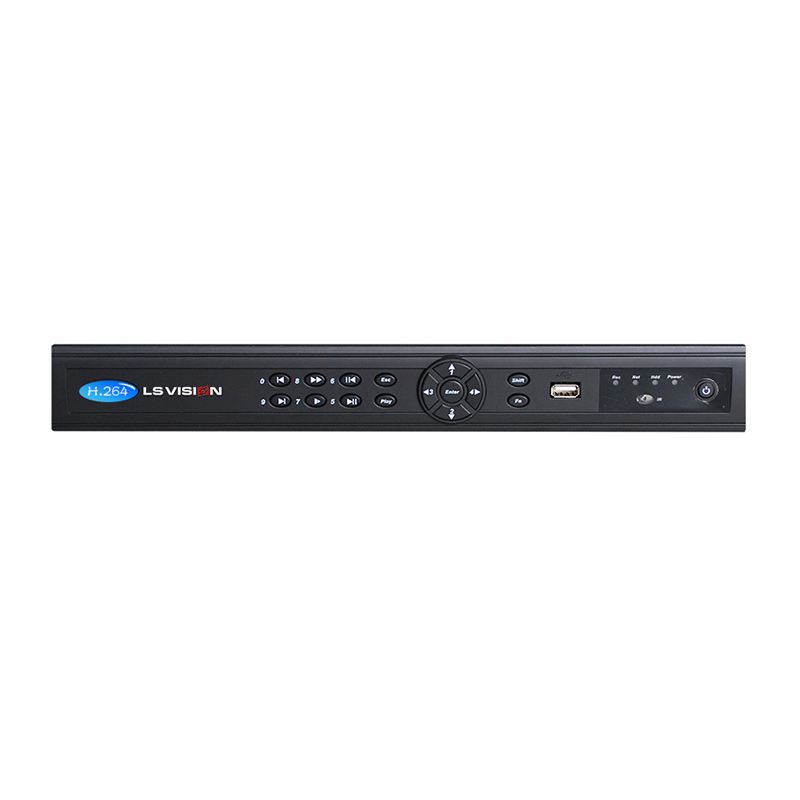

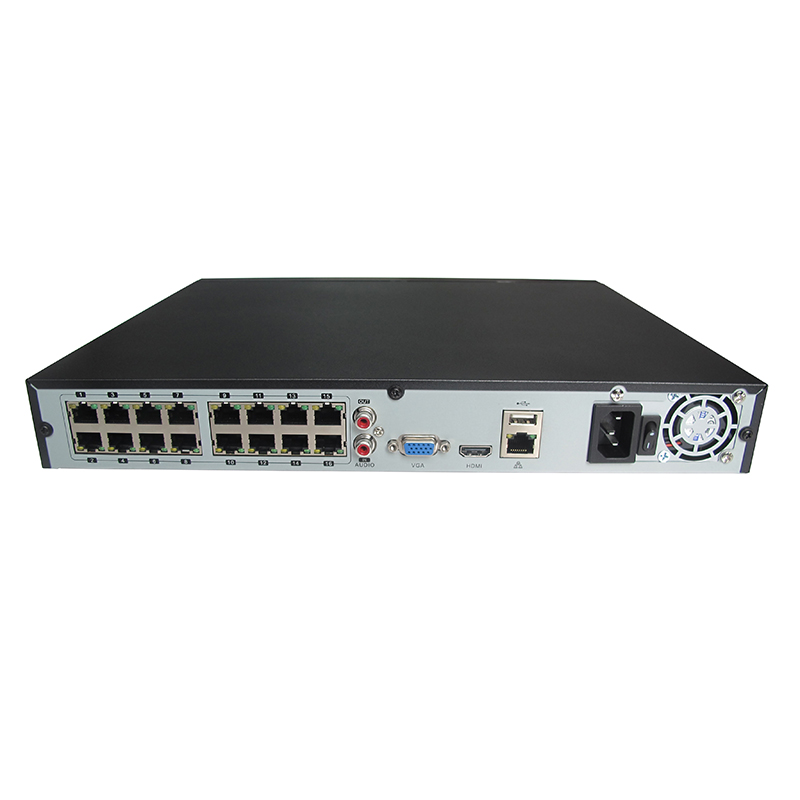

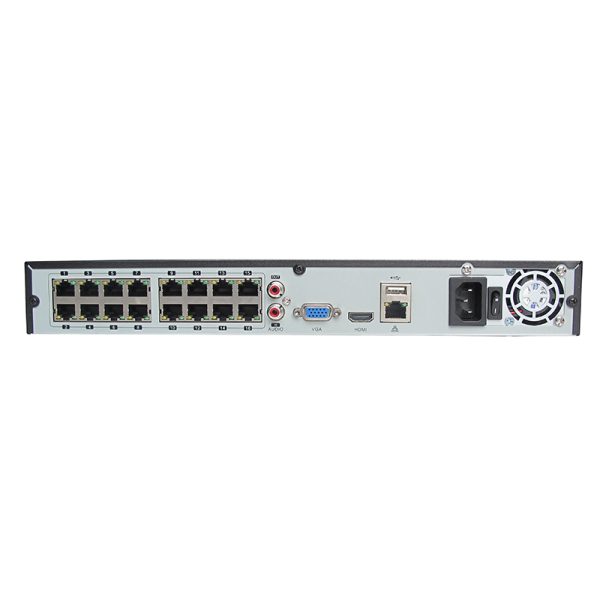

LSVISION - LSVISION H.265 5MP 2HD NVR 16채널 POE 지원 P2P Onvif2.4 얼굴 감지 음성 인터콤 16채널 NVR

Technologies are essential to the manufacturing of LSVISION H.265 5MP 2HDD NVR 16ch POE Support P2P Onvif2.4 Face Detection Voice Intercom.After being upgraded for several generations, the newest product has been proved to have more extensive uses in CCTV Camera and other fields.

공유 대상:

Shenzhen LSVISION Technology Co., Ltd. boasts strong R&D capabilities and has been working on product development for years. LSVISION H.265 5MP 2HDD NVR 16ch POE Support P2P Onvif2.4 Face Detection Voice Intercom is our newly-developed product and goes on sale starting now. Technology is usually adopted for the design and manufacturing of the product.With regard to its serviceability and practicality,LSVISION H.265 5MP 2HDD NVR 16ch POE Support P2P Onvif2.4 Face Detection Voice Intercom can be commonly seen in the field(s) of CCTV Camera. Shenzhen LSVISION Technology Co., Ltd. will keep focusing on customers’ needs and keep up with the industry trends so as to develop LSVISION H.265 5MP 2HDD NVR 16ch POE Support P2P Onvif2.4 Face Detection Voice Intercom that better satisfy customers. Our wish is to cover a wide range of global markets and win wider recognition from customers all over the world.

원산지:	광동, 중국	브랜드 이름:	LS VISION
모델 번호:	LS-NF5216P	특별한 기능:	Black color
센서:	CMOS	스타일:	Metal
기술:	네트워크	유형:	NVR
OS:	임베디드 Linux	Master chip:	Hi3536
액세스 대역폭:	192M	HDD:	2 SATA
IPC Input:	(Up to 16CH 1080P@8M)	Audio output:	1CH,BNC(Line out,2Vpp,300ohms)
Network Interface:	RJ45 10M/100M/1000M 적응형 이더넷 인터페이스 1개	전원 공급 장치:	110V~220V±10% 47Hz~63Hz
Working Temperature:	-10℃–+55℃	Consumption:	10W(without HDD and POE)

제품 설명

주요 기능:

High performance and industrial-grade SOC chip with low power consumption and steady system. Triple watchdog circuit protection system ensures no crashes phenomenon.

With embedded Linux system, a 16-bit colored image enhancement technology, a consummate UI operation interface style.

Support ONVIF 2.4 protocol.

Full HDMI output, support HDMI, VGA, CVBS synchronization output.

With hard disk dormancy and Wake-on-LAN technology, which lower power consumption, improve the stability and prolong the hard disk life.

With hard disk S.M.A.R.T management technology; capacity is unlimited and health status of hard disk can be monitored at any time.

Hard disk dual redundant technology with data backup effectively ensures video security.

Network QOS automatically adjusting the code flow and network transmission strategy ensures the Network transmission reliability.

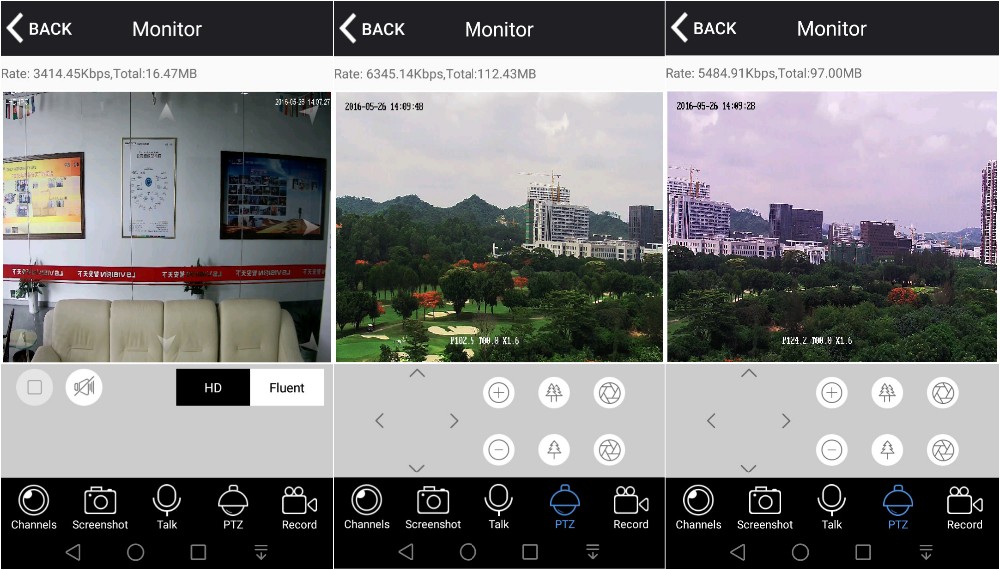

Plug and play, support P2P function, cloud services and cloud storage is provided.

Supports Iphone、Windows Mobile、Symbian、Andriod、Blackberry

16ch POE port built-in

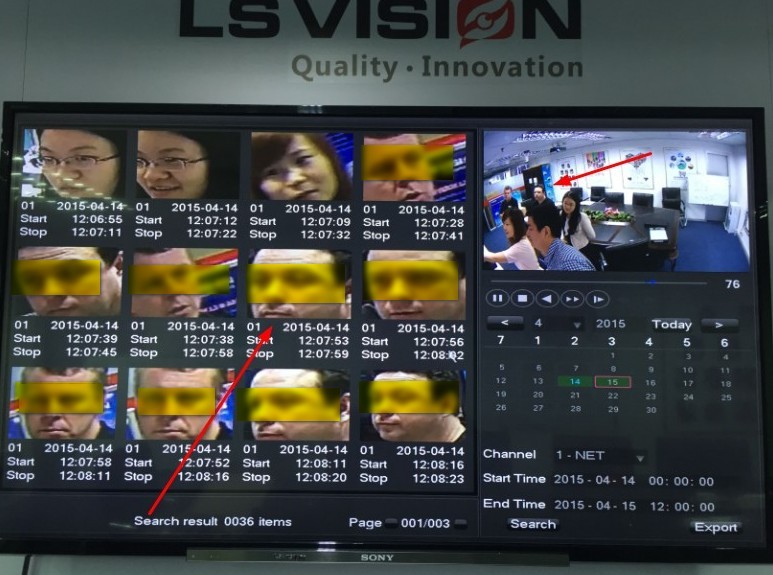

Intelligent features: 1CH face detection, 2ch boundary analysis

사양

Module		LS-NF5216P
OS		임베디드 Linux
master chip		Hi3536
Access Bandwidth		192M
Video&Audio Input	Bidirectional Talk	1 CH(Line in,2Vpp,1Kohms)
	IPC Input	(Up to 16CH 1080P@8M)

Video&Audio Output	CVBS Output	1CH,BNC(1.0Vp-p,75ohms)
	VGA	1CH,Resolution 1920×1080,1280×1024, 1280×720,1024×768,800×600
	HDMI	Standard 1.4a
	HDMI	3840×2160，1920×1080,1280×1024,1280×720,1024×768
	Audio Output	1CH,BNC(Line out,2Vpp,300ohms)
Video&Audio Encoding	오디오 압축	G711A
Video&Audio Encoding	Audio Bit Rate	64Kbps
Video&Audio codes	IP Resolution	Main stream:up to 4096*3072 Sub stream: no more than D1
	Video bitrate	Up to 2Mbps D1, 4Mbps 720P, 8Mbps 1080P
	Video decoding	H.265/H.264(Up to High Profile Level4.2）
	Synchronous Playback	Up to 16CH
Other Function	Bidirectional Talk	Two-way voice intercom function
	동작 감지	Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
	Picture Capture	Local Capture&Web Capture
HDD Interface	SATA	2
HDD Interface	ESATA	0
POE	POE Interface	8 port POE
External Interface	네트워크 인터페이스	RJ45 10M/100M/1000M 적응형 이더넷 인터페이스 1개
External Interface	USB	2 USB 2.0 Interfaces
일반	치수	405365123mm
	무게	3Kg(without HDD)
	전원 공급 장치	110V~220V±10% 47Hz～63Hz
	작동 온도	-10℃–＋55℃
	작동 습도	10％–90％
	Consumption	10W(without HDD and POE)
