LSVISION – LSVISION Security Wifi Ip Camera System 1.3 Megapixel P2p Cloud H.264 8 Channel Wireless Nvr Kit 1.3MP WIFI NVR Kits

To achieve the stable performance of the LSVISION,high-quality reliable raw materials are used. LSVISION Security Wifi Ip Camera System 1.3 Megapixel P2p Cloud H.264 8 Channel Wireless Nvr Kit has all the superior performance of those raw materials such as durability and stability. In summary, IP Camera/NVR/Solar Camera/Smart Battery Camera has the excellent characteristics. Once it is applied in the industries, its great role will be fully played out.

공유 대상:

With strong ability of product research and development, Shenzhen LSVISION Technology Co., Ltd. ensures new products are launched on a regular basis. Our new product LSVISION Security Wifi Ip Camera System 1.3 Megapixel P2p Cloud H.264 8 Channel Wireless Nvr Kit is a totally new series and has different features. Our product can be tailored to suit you perfectly. In aspect of the product design, our design team always pays close attention to the customers’ taste and industry trends. Thanks to this, our LSVISION Security Wifi Ip Camera System 1.3 Megapixel P2p Cloud H.264 8 Channel Wireless Nvr Kit can fully attract people’s attention with its unique appearance. Moreover, it is excellent performance, making it worth the investment.

원산지:	광동, 중국	브랜드 이름:	LSVISION
모델 번호:	LS-NFWK8108	채널:	8CH WIFI NVR
해상도:	960P 130megapixel	압축:	H.264
IR Led:	8PCS Array Leds	IR 거리:	60 Meters
HDD:	1*8T	전원 공급 장치:	DC12V
방수:	IP 66	인증서:	CE FCC RoHS
보증:	2 Years

제품 설명

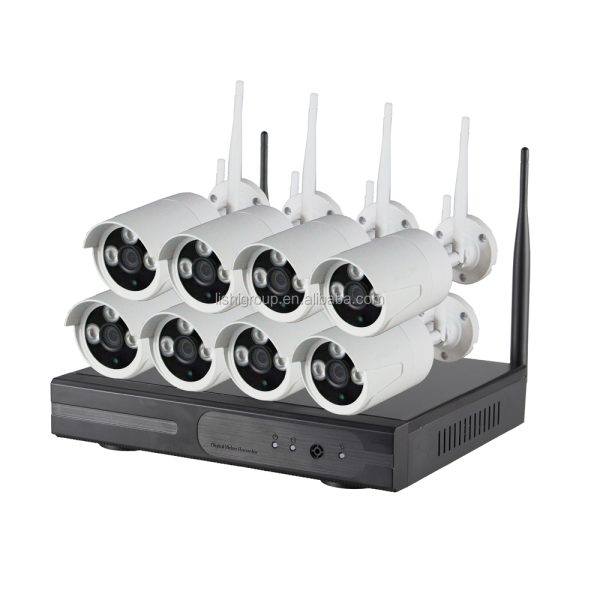

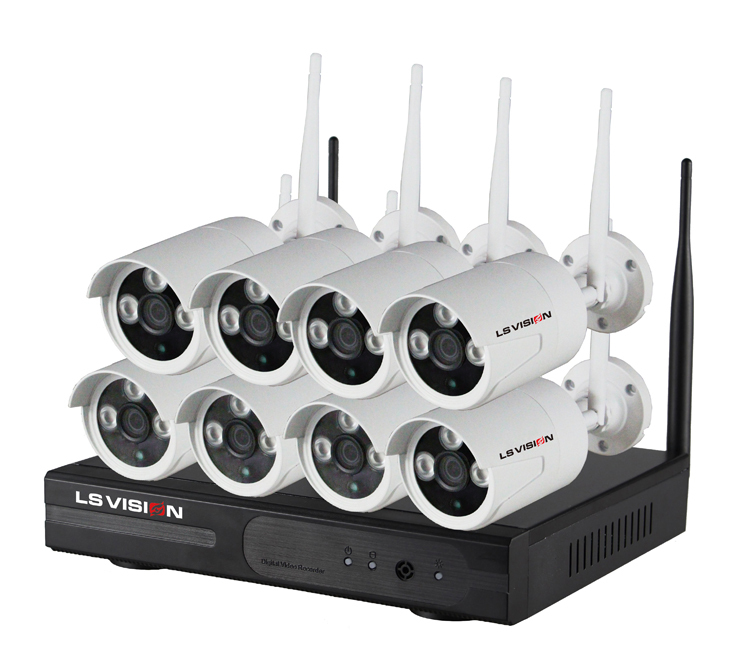

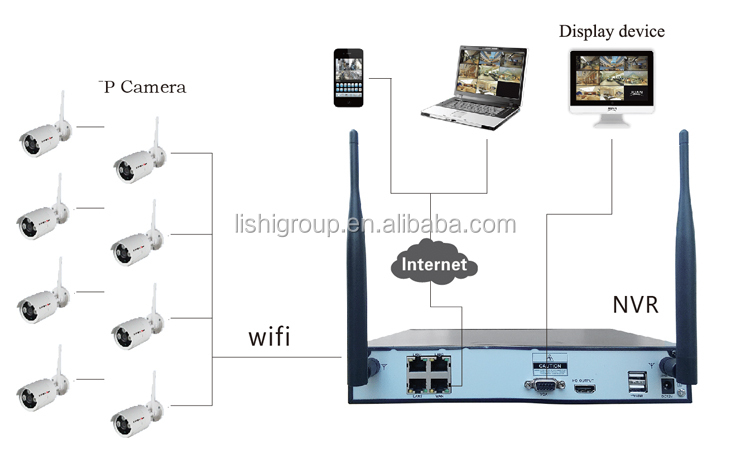

-8CH 960P wifi NVR + 8pcs 960P wifi IP cameras

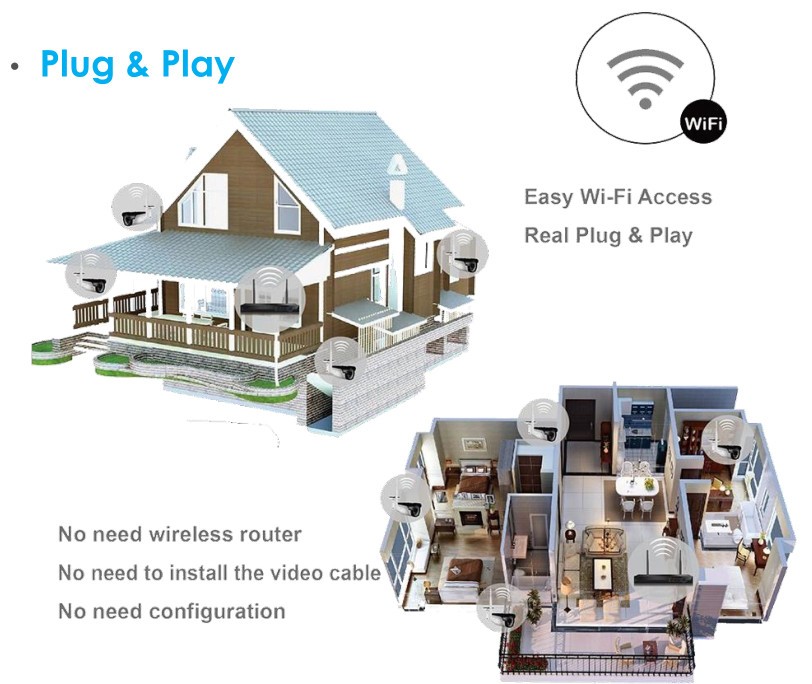

-Convenient Installation

-Plug and play

-P2P, offer friendly APP

-Support 1 SATA HDD

-Wireless transmission stability:2.4G wireless

-960P HD Video

-Special and separate network for wireless transmission

-Wifi wild working distance up to 60 Meters

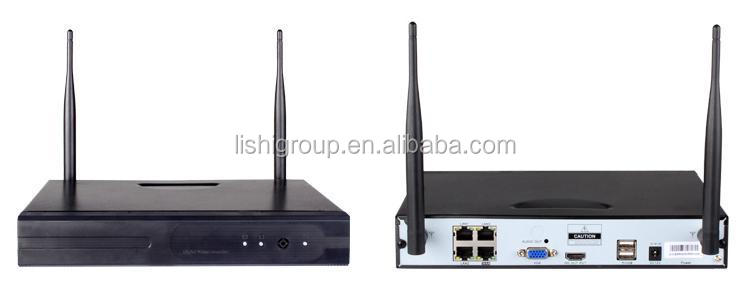

NVR Specification

모델	LS-NFWK8108
운영 체제	임베디드 Linux OS
AV(video)input
네트워크 비디오	8CH
네트워크 비디오 입력 브로드뱅크	20Mbps
AV (video) output
HDMI input	1ch,resolution:1024×768,1366×768,1440×900,1920x1080p
VGA 출력	1ch,resolution:1024×768,1366×768,1440×900,1920x1080p
AV CODEC Specification
비디오 해상도	D1/960P
동기화 재생	8CH
Video Control
비디오/캡처 모드	Manual,Time,Motion,Alarm
재생 모드	Real time,Routine,Event
백업	USB 백업
Alarm
Alarm Input	4ch (optional)
Alarm Output	1ch (optional)
Hard Disk
유형	1*SATA 인터페이스
Max Capacity	4 TB at most for each
External Interface
네트워크 인터페이스	1 adaptable RJ45 10M/100M, 1 WIFI interface
USB 인터페이스	2 USB 2.0
Network Control
프로토콜	UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) DHCP (Automatically obtain an IP address), etc…
Others
전원 공급 장치	DC12V3A
Power Consumption (W)	≤5W(Without HDD)
Operate Temperature (°C)	-10℃~+55℃
Working Humidity (%) RH	10%~90%
크기	257mm(W)×210mm(V)×45mm(H)
Weight(excluding HDD)	≤1Kg

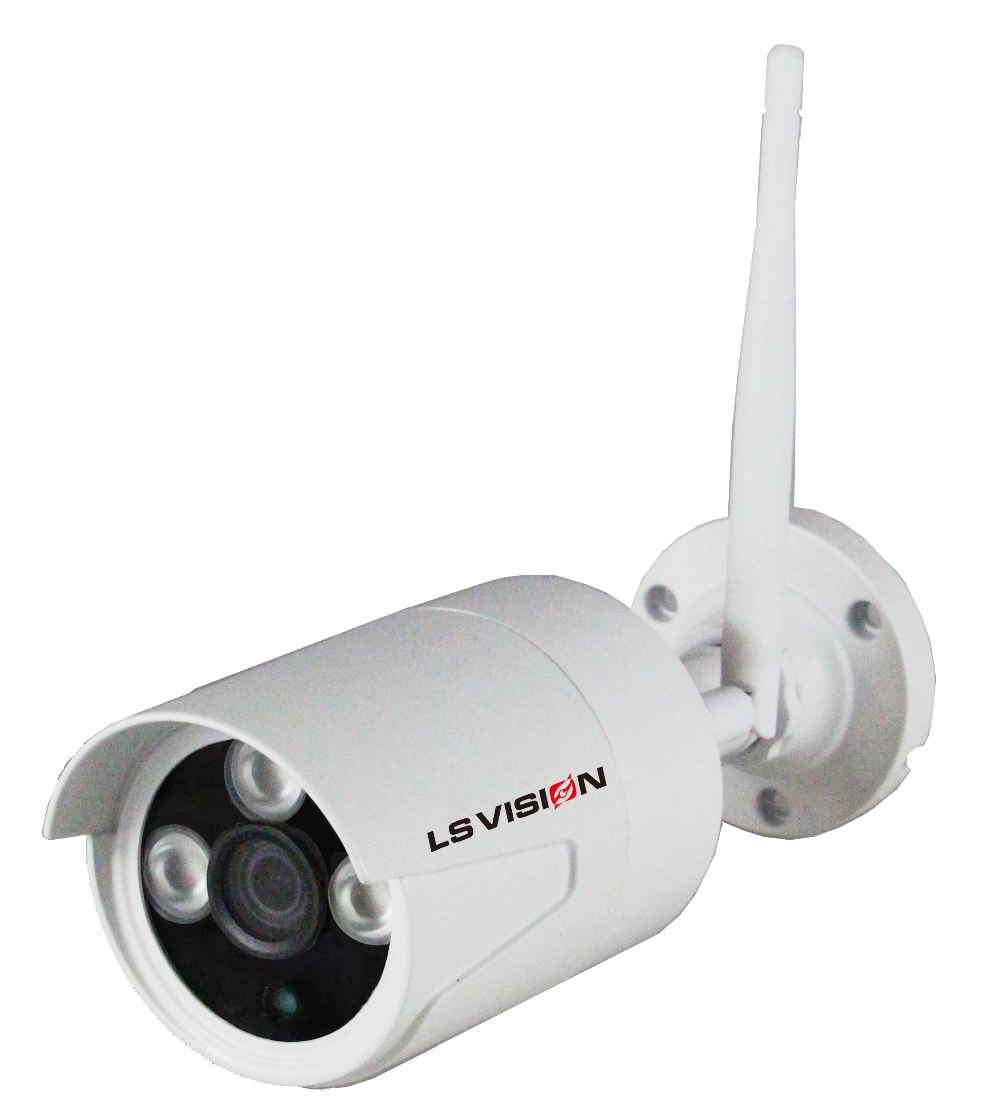

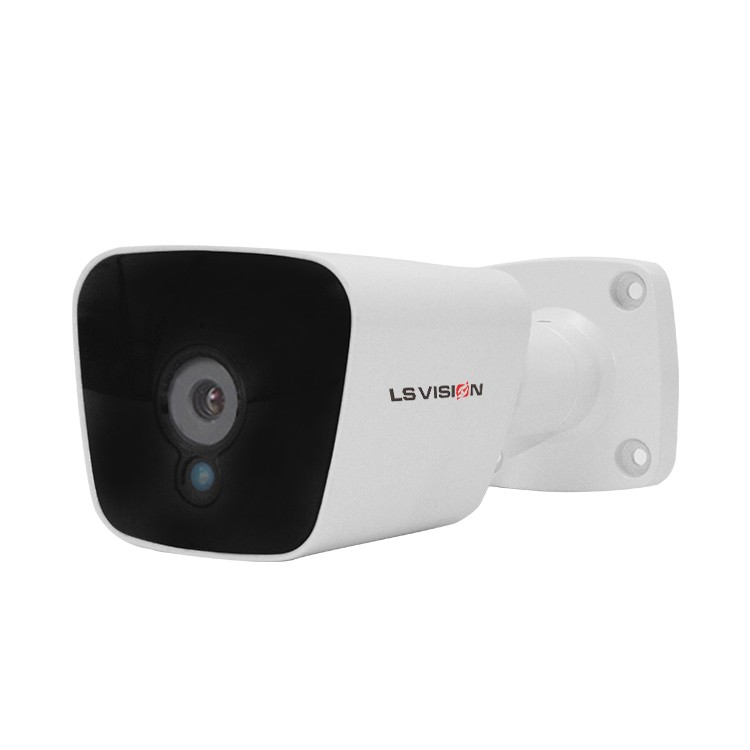

IPC Specification

모델	LS-FW130
Technical Parameters
센서	1/3″ Progressive Scan Sensor
신호 시스템	PAL/NTSC
해상도	960P; 1280 x 960 16 : 9 High Defination
최소 조명	Color: 0.1 Lux; B/W: 0.01 Lux
셔터	1/25s to 1/25,000s
렌즈	3.6/4/6mm (optional)
OSD	Date Time & Title
화이트 밸런스	자동
Day&Night	자동 / 컬러 / BW
3D-DNR	자동
Mirror/Flip	On / Off
Frame Specification	Three Streaming at the Same Time: H.264 1280×960@30fps or below H.264 640×480@30fps or below
S/N	> 39.1 Db
인터페이스	RJ45 / WIFI 802.11b/g/n
일반 사양
Anti-thunder Level	Standard IEC61000-4-5
Ambient
Ambient Temperature/Humidity	-10℃ to +50℃ / 30% to 80% RH
Working Temperature/Humidity	-20℃ to +60℃ / 20% to 90% RH
Power Input	DC12V-1A
전력 소비	≤6W
크기	205(L)×70(W)×55 (H)mm
무게	0.5Kg

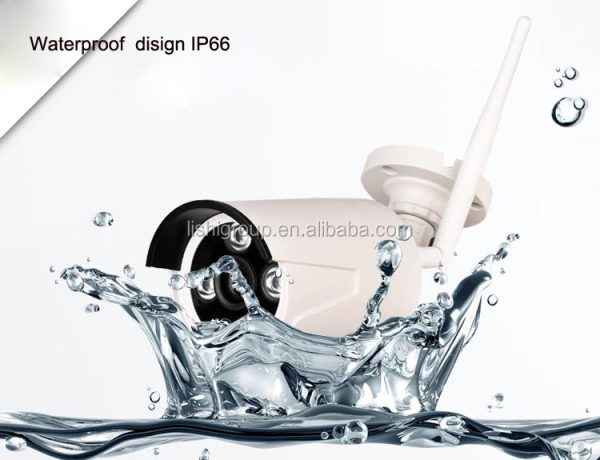

Level of Protection	IP66

인증

기타 제품

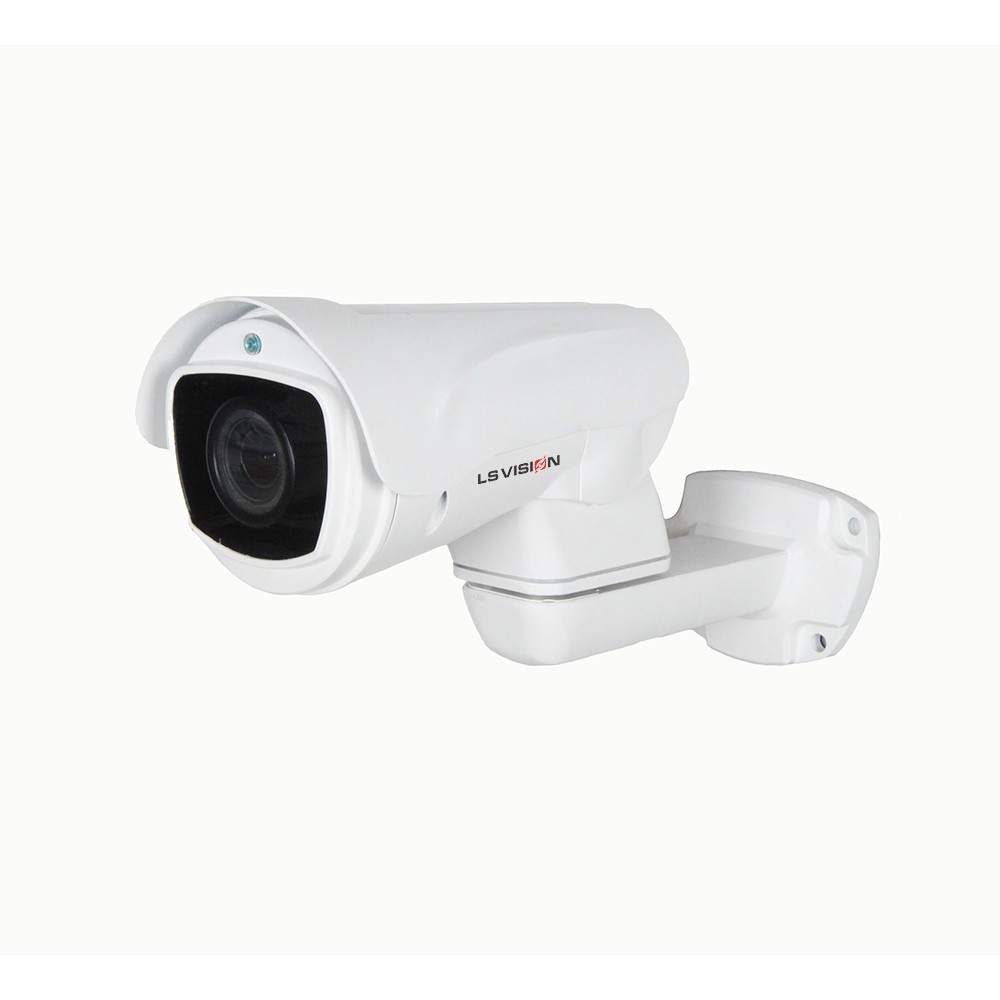

2mp 4mp IP PTZ Bullet Camera
