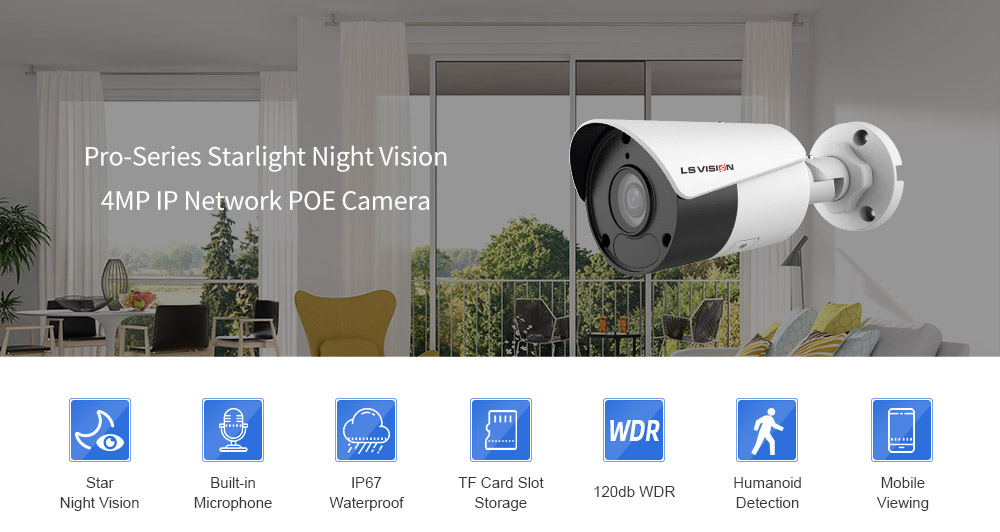

4MP Night Vision POE IP Starlight CCTV Camera Monitor System Build-in Microphone

High-level technologies are adopted to manufacture the product now. It is those technologies that contributes to the manufacturing of high-quality and multi-functional 4MP Night Vision POE IP Starlight CCTV Camera Monitor System Build-in Microphone.In the application field(s) of CCTV Camera , the product is commonly seen and widely used.

Deel naar:

Shenzhen LSVISION Technology Co., Ltd. has become a recognized leader in the CCTV Camera industry with its high-quality product and excellent service. At Shenzhen LSVISION Technology Co., Ltd., it is our goal to provide the highest quality products and superior service to our customers, both being our top priority. At present, Shenzhen LSVISION Technology Co., Ltd. are still a growing enterprise with a strong ambition to become one of the most competitive enterprises in the market. We will continue to research and develop new technologies for the birth of new products. Also, we will grasp the precious tide of opening up and reform to attract customers all over the world.

Plaats van herkomst:	Guangdong, China	Merknaam:	LS VISIE
Modelnummer:	LS-PB20201/LS-PB21401/LS-PD22201/LS-PD22401	Garantie:	1 Year, 1year
Speciale kenmerken:	Human Motion Tracking, NIGHT VISION, Motion Detection, Waterproof / Weatherproof, Two-way Audio	Sensor:	CMOS
Stijl:	Dome Camera, BULLET CAMERA	Functie:	Two-way Audio, Built-in Mic, NIGHT VISION
Videocompressieformaat:	H.265	Opties voor gegevensopslag:	NVR, Memory Card
Toepassing:	Outdoor, Indoor	Ondersteuning op maat:	Customized logo, OEM, ODM
Name:	5MP IP POE Camera	IR-afstand:	20 meters
P2P:	Guard Viewer	Lens:	2.8mm
POE:	Ondersteuning	Night vision:	Ja
Humanoid detection:	Ja	Microphone:	Ja
Waterdicht:	IP 67

4MP Night Vision POE IP Starlight CCTV Camera Monitor System Build-in Microphone

Products Description

1.High quality image with 2MP, 1/2.7″CMOS sensor
2.2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
3.Ultra 265, H.265, H.264, MJPEG
4.120dB true WDR technology enables clear image in strong light scene
5.Support 9:16 Corridor Mode
6.Built-in Mic
7.Smart IR, up to 20m IR distance

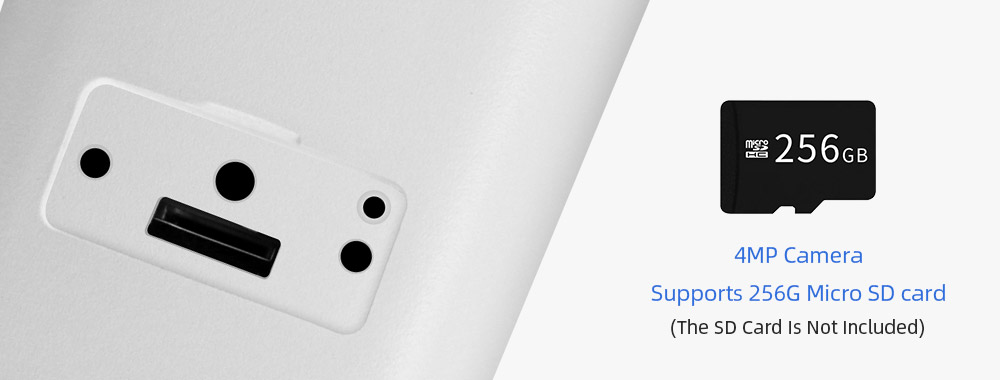

8.Supports 128 G Micro SD card
9.Support PoE power supply
10.3-Axis

Specificatie

LS-PB20201

Camera

Sensor

1/2.7″, 2.0 megapixel, progressive scan, CMOS

Lens

2.8mm@F2.0

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

42.0

16.8

8.4

4.2

Angle of View (H)

112.9°

Angle of View (V)

59.1°

Angle of View (O)

121.2°

Adjustment Angle

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotate: 0° ~ 360°

Sluiter

Auto/Manual, 1 ~ 1/100000s

Minimale verlichting

Colour: 0.01Lux ( F2.0, AGC ON)
0Lux with IR

Dag/Nacht

IR-cut filter with auto switch (ICR)

Digital Noise Reduction

2D/3D DNR

S/N

>52 dB

IR Range

Up to 20m IR range

Wavelength

850nm

IR On/Off Control

Auto/Handmatig

Defog

Digital Defog

WDR

120dB

Video

Videocompressie

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main profile, High profile

Framerate

Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max
30fps;

Video Bit Rate

128 Kbps~6144 kbps

9:16 Corridor Mode

Supported

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 8 areas

Bewegingsdetectie

Up to 4 areas


Witbalans

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital Noise Reduction

2D/3D DNR

Smart IR

Supported

Flip

Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping

N.V.T.

HLC

Supported

BLC

Supported

Smart

Behavior Detection

Cross line, intrusion(based on human body detection)

motion detection, tampering alarm, audio detection

Algemene functie

Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication

Netwerk

Protocollen

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL, SNMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T)

Web Browser

Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below

Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Audio

Audio compressie

G.711

Suppression

Supported

Sampling Rate

8KHZ

Opslag

Edge Storage

Micro SD, up to 128GB

Network Storage

ANR,NAS(NFS)

Interface

Netwerk

10/100M Base-TX Ethernet

Built-in Mic

Supported

Algemeen

Stroom

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 7.0W

Materiaal

Metal + plastic

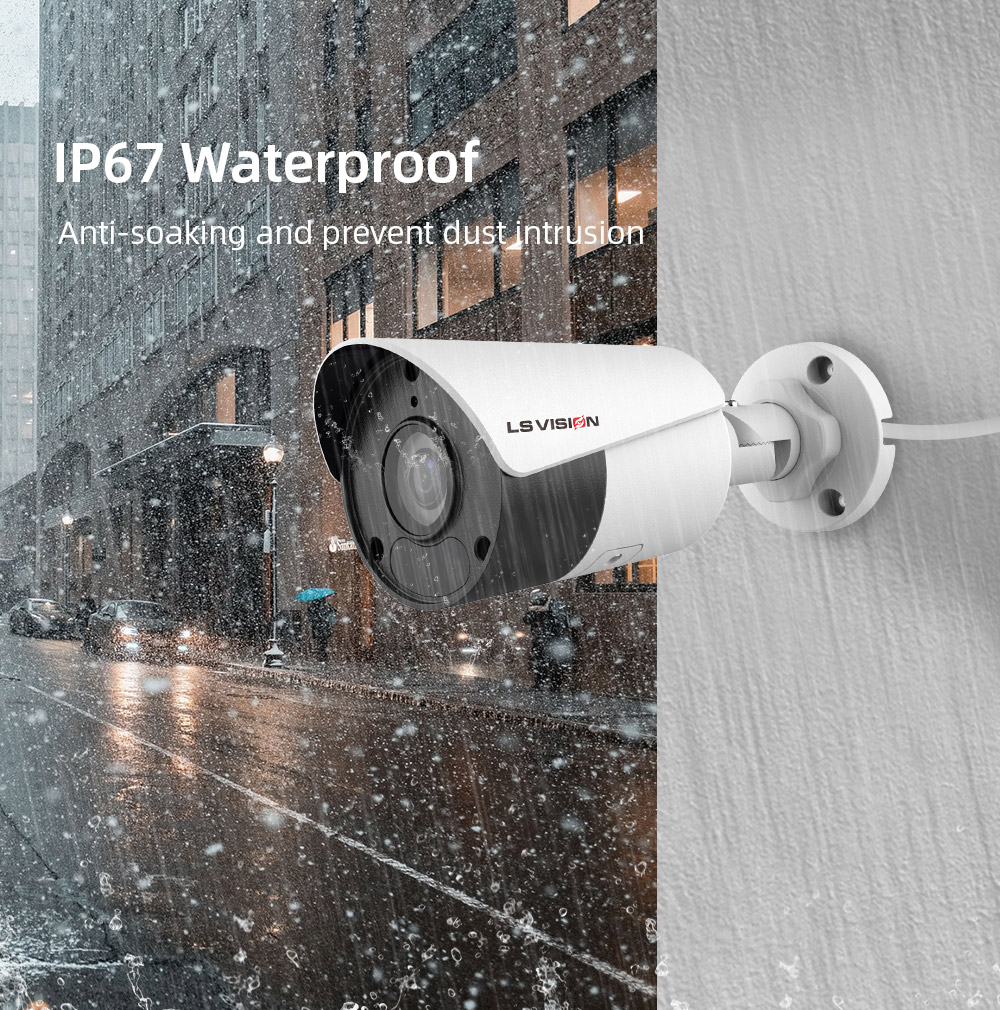

waterdicht

IP67

Working Environment

-30°C ~ 60°C (-22°F ~ 140°F), Vochtigheid: ≤95% RH (niet-condenserend)

Strorage Environment

-30°C ~ 60°C (-22°F ~ 140°F), Vochtigheid: ≤95% RH (niet-condenserend)

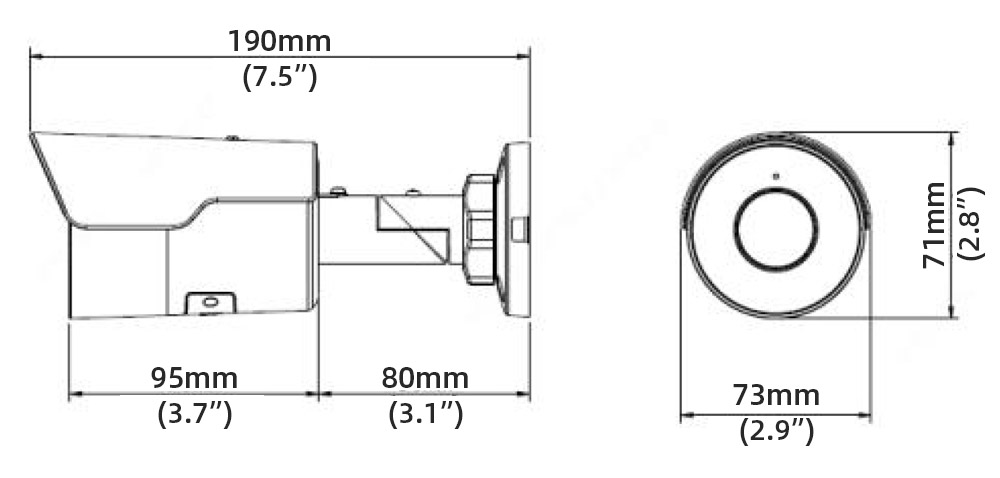

Product size/weight

165 × 63 × 62mm/0.39kg

Verpakkingsgrootte/gewicht

190 × 110 × 97mm/0.59kg

Logistics

LS VISIE

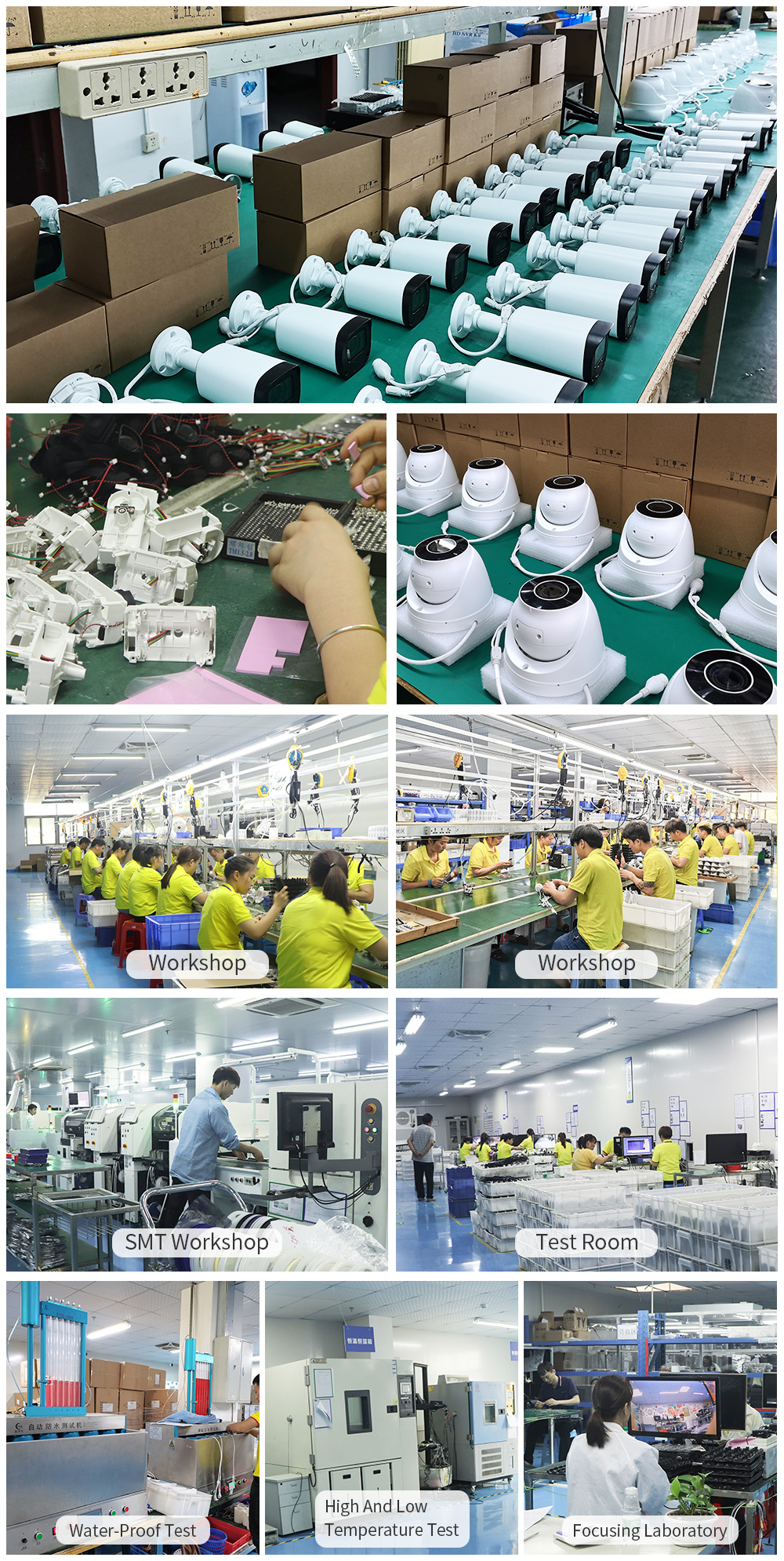

Shenzhen ls vision Technology Co.

LS VISION richt zich sinds 2010 op beveiligingsoplossingen.
We hebben de titel van "China High-Tech Enterprises".
Gecombineerd met bewakingshardware en -software,
voor de wereldwijde gebruiker om beveiliging, Smart Home-oplossingen en -diensten aan te bieden.
Het bedrijf zet zich in voor de Smart Security en Smart Home industrie.
LS VISIE Kernwaarde: "Kwaliteit, innovatie, toewijding".
LS VISIE Missie: "Een veiligere en groene wereld creëren".
