Since launched,IP Camera/NVR/Solar Camera/Smart Battery Camera has been named as one of the best and popular products in our company. It caters to the foreign markets. Shenzhen LSVISION Technology Co., Ltd. intend to gather more industry talents because people’s wisdom is driven source for us to advance forward. We plan to allocate a large amount of money for product development and technology upgrades. What’s more, we aim to become an influential enterprise in the global market.
| Plaats van herkomst: | Guangdong, China | Merknaam: | LS VISIE |
| Modelnummer: | LS-PB23201M,LS-PB23401M | Garantie: | 1 Year, 1Year |
| Speciale kenmerken: | NIGHT VISION, Motion Detection, Waterproof / Weatherproof | Sensor: | CMOS |
| Stijl: | BULLET CAMERA | Functie: | Waterproof / Weatherproof, NIGHT VISION, Built-in Mic |
| Videocompressieformaat: | H.265 | Opties voor gegevensopslag: | NVR, Micro SD card |
| Toepassing: | Outdoor, Indoor | Ondersteuning op maat: | Customized logo |
| Resolutie: | 2MP Or 4MP | IR-afstand: | Up to 40m IR range |
| POE: | Ondersteuning | WDR: | 120dB |
| Material: | Metaal | Waterdicht: | IP67 |
| Lens: | 2.7-13.5mm | APP: | Guard Viewer |
| Memory: | Max 128GB Micro SD Card | Certificering: | ce, FCC |
LS-PB23201M:
Solution: Mstar Chip+1/2.7″ CMOS
2MP , 1920×1080@30fps
Standard Motorized lens 2.8-12mm
H.265, H.264, MJPEG, double streams
Built-in microphone, 120db WDR ,TF card slot, Humanoid detection
DC12V&POE, IR distance up to 40M
LS-PB23401M:
Solution: Mstar Chip+1/3″ CMOS
4MP, 2688×1520 @30fps
Standard Motorized lens 2.8-12mm
H.265, H.264, MJPEG, double streams
Built-in microphone, 120db WDR ,TF card slot, Humanoid detection
DC12V&POE, IR distance up to 40M
|
Model
|
LS-PB23201M/LS-PB23401M
|
|||||||||
|
Camera
|
||||||||||
|
Sensor
|
1/2.7″, 2.0 megapixel, progressive scan, CMOS
|
|||||||||
|
Lens
|
2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
|
|||||||||
|
DORI Distance
|
Lens (mm)
|
Detect (m)
|
Observe (m)
|
Recognize (m)
|
Identify (m)
|
|||||
|
2.8
|
42.0
|
16.8
|
8.4
|
4.2
|
||||||
|
12
|
180
|
72
|
36
|
18
|
||||||
|
Angle of View (H)
|
108.05°~ 32.59°
|
|||||||||
|
Angle of View (V)
|
56.81°~ 18.36°
|
|||||||||
|
Angle of View (O)
|
111.91°~36.53°
|
|||||||||
|
Adjustment Angle
|
Pan: 0° ~ 360°
|
Tilt: 0° ~ 90°
|
Rotate: 0° ~ 360°
|
Rotate: 0° ~ 360°
|
||||||
|
Sluiter
|
Auto/Manual, 1 ~ 1/100000s
|
|||||||||
|
Minimum
Illumination |
Colour: 0.01Lux ( F1.6, AGC ON)
0Lux with IR |
|||||||||
|
Dag/Nacht
|
IR-cut filter with auto switch (ICR)
|
|||||||||
|
Digital Noise
Reduction |
2D/3D DNR
|
|||||||||
|
S/N
|
>52 dB
|
|||||||||
|
IR Range
|
Up to 40m IR range
|
|||||||||
|
Wavelength
|
850nm
|
|||||||||
|
IR On/Off Control
|
Auto/Handmatig
|
|||||||||
|
Defog
|
Digital Defog
|
|||||||||
|
WDR
|
120dB
|
|||||||||
|
Video
|
||||||||||
|
Videocompressie
|
Ultra 265, H.265, H.264, MJPEG
|
|||||||||
|
H.264 code profile
|
Baseline profile, Main profile, High profile
|
|||||||||
|
Framerate
|
Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||||||
|
Video Bit Rate
|
128 Kbps~6144 kbps |
|||||||||
|
9:16 Corridor Mode
|
Supported
|
|||||||||
|
OSD
|
Up to 4 OSDs
|
|||||||||
|
Privacy Mask
|
Up to 4 areas
|
|||||||||
|
ROI
|
Up to 8 areas
|
|||||||||
|
Bewegingsdetectie
|
Up to 4 areas
|
|||||||||
|
|
||||||||||
|
Witbalans
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
|||||||||
|
Digital Noise
Reduction |
2D/3D DNR
|
|||||||||
|
Smart IR
|
Supported
|
|||||||||
|
Flip
|
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
|
|||||||||
|
Dewarping
|
N.V.T.
|
|||||||||
|
HLC
|
Supported
|
|||||||||
|
BLC
|
Supported
|
|||||||||
|
Smart
|
||||||||||
|
Behavior Detection
|
Cross line, intrusion(based on human body detection)
|
|||||||||
|
Zoom
|
motion detection, tampering alarm, audio detection
|
|||||||||
|
Algemene functie
|
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user
authentication |
|||||||||
|
Netwerk
|
||||||||||
|
Protocollen
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP,
HTTPS, SMTP, QoS, SSL, SNMP |
|||||||||
|
Compatible
Integration |
ONVIF (Profile S, Profile G, Profile T)
|
|||||||||
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
|
|||||||||
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
|
||||||||||
|
Audio
|
||||||||||
|
Audio compressie
|
G.711
|
|||||||||
|
Suppression
|
Supported
|
|||||||||
|
Sampling Rate
|
8KHZ
|
|||||||||
|
Opslag
|
||||||||||
|
Edge Storage
|
Micro SD, up to 128GB
|
|||||||||
|
Network Storage
|
ANR,NAS(NFS)
|
|||||||||
|
Interface
|
< 5 W
|
|||||||||
|
Netwerk
|
10/100M Base-TX Ethernet
|
|||||||||
|
Built-in Mic
|
Supported
|
|||||||||
|
Algemeen
|
||||||||||
|
Stroom
|
DC 12V±25%, PoE (IEEE 802.3af)
|
|||||||||
|
Power consumption: Max 8.5W
|
||||||||||
|
Materiaal
|
Metaal
|
|||||||||
|
waterdicht
|
IP67
|
|||||||||
|
Werken
Milieu |
-30°C ~ 60°C (-22°F ~ 140°F), Vochtigheid: ≤95% RH (niet-condenserend)
|
|||||||||
|
Strorage
Milieu |
-30°C ~ 60°C (-22°F ~ 140°F), Vochtigheid: ≤95% RH (niet-condenserend)
|
|||||||||
|
Product size/weight
|
206 × 74 × 74mm/0.54kg
|
|||||||||
|
Verpakkingsgrootte/gewicht
|
274 × 155 × 115mm/0.74kg
|
|||||||||
LS VISIE Wereldwijd merk
Op dit moment hebben LS VISION partners en klanten over de hele wereld, met inbegrip van dealers, agenten, ingenieurs en veiligheid importeurs, eindgebruikers en andere verschillende groepen klanten, in Rusland, Jemen, Filippijnen, Madagaskar, Nigeria, Tunesië, Bangladesh, Saoedi-Arabië, Vietnam, Ghana en andere landen regio, het opzetten van een exclusief agentschap, en we hebben zijn het maken van grote inspanningen om onze wereldwijde agentschap of distributiegebied uit te breiden.
LS VISION Wereldwijd veiligheidsproject
LS VISION-producten en -oplossingen gebruikt in een aantal landen en regio's, zoals het Saoedi-Arabische Jeddah International Book Fair Project in 2017 en 2018; CITY Center MAKKAH CCTV Project in 2018; het Fath Gas Station Project in 2017, het Peruaanse Bass Amas Plaza Project, de luchthaven van Panama en andere grote beveiligingsprojecten hebben een belangrijke rol gespeeld.
LS VISION 360 Graden Panoramische Video CCTV Camera Weergave
Waarom LS Vision
LS VISION is professional supplier for HD IP Cameras and Smart Home Solution.
De ingenieurs van ons R&D-team hebben meer dan 15 jaar ervaring met beveiligingsproducten.
LS VISION Core Value: ” Quality, Innovation, Dedication”.
LS VISION Mission: “Only for Quality Life”.
Belangrijkste productlijn:

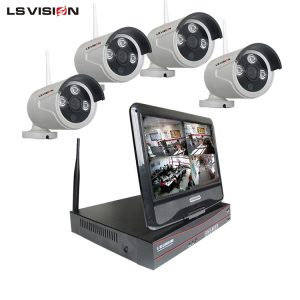

HD IP Cameras, HD NVR, WiFi NVR Kit;
