Shenzhen LSVISION Technology Co., Ltd. is reckoned for manufacturing and supplying 8 Inch LCD Display Facial Recognition Attendance Fever Body Temperature Multiple Languages Wall-Mounted Detection Camera System that is manufactured using supreme quality materials. Technology is the core competitiveness of a company. Since established, we have been researching and developing high-level technologies to make sure highly efficient manufacturing process.It covers a wide range and is commonly seen in the application field(s) of CCTV Camera. Shenzhen LSVISION Technology Co., Ltd. relentlessly strive for innovations and changes, hoping to lead the industry development and improve our products and services in our unique way. We are committed to being one of the best enterprises in the market.
| Local de origem: | Guangdong, China | Nome da marca: | LSVISÃO |
| Número do modelo: | LS-FR102-T | Características especiais: | À prova de água / à prova de intempéries |
| Sensor: | CCD | Formato de compressão de vídeo: | H.265 |
| Product name: | Facial Recognition Attendance Fever Body Temperature Camera | Camera: | Binocular camera supports live detection |
| Effective pixel: | 2Mega pixel,1920*1080 | View angle: | Vertical ±30 degree |
| Range: | 30-45(℃) | Accuracy: | ±0.3(℃) |
| Internet interface: | RJ45 10M/100M Ethernet | Power input: | DC 12V/3A |
| Dimension: | 154(W) * 89(H) *355.4(L)mm | Memory: | Support 22400 face comparison library |

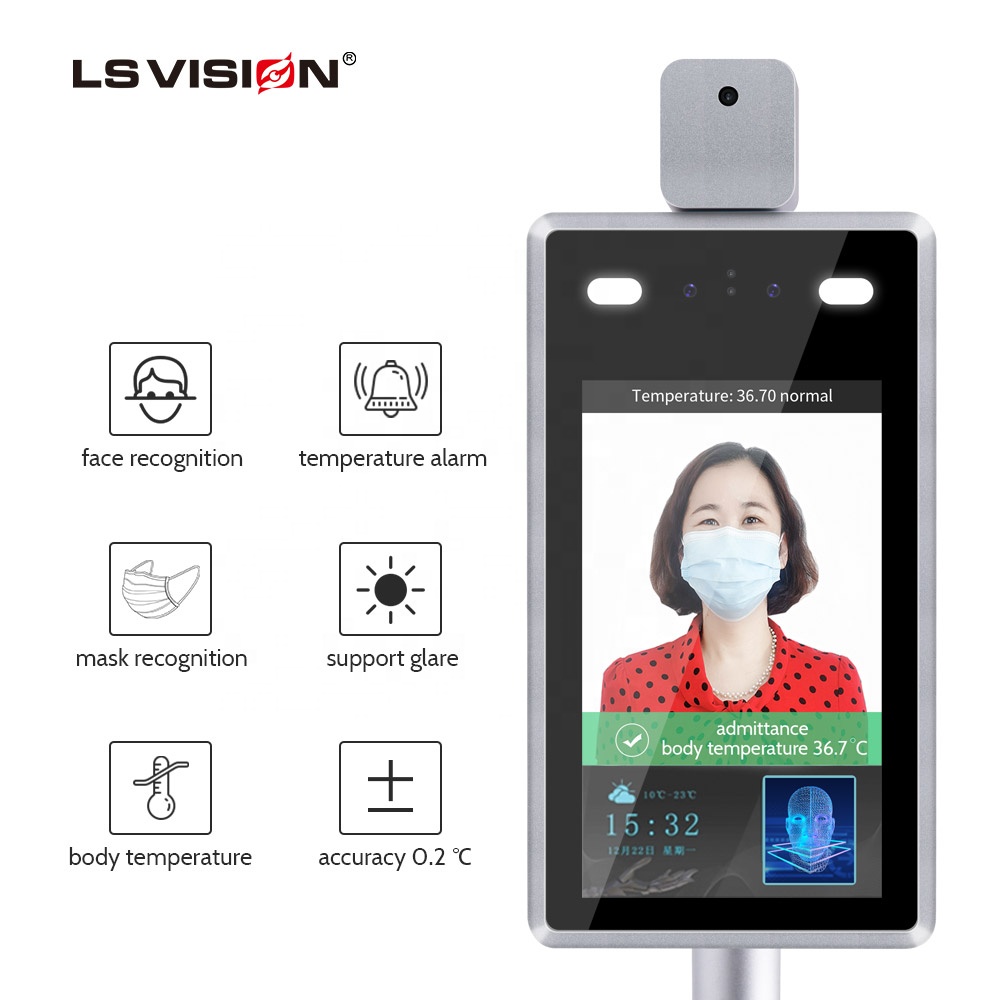

8 Inch LCD Display Facial Recognition Attendance Fever Body Temperature Multiple Languages Wall-Mounted Detection Camera System
|
Modelo
|
LS-FR102-T
|
|
|
Hardware
|
||
|
Chipset
|
Hi3516DV300
|
|
|
Sistema
|
Linux operation system
|
|
|
RAM
|
16G EMMC
|
|
|
Image sensor
|
1/2.7″ CMOS
|
|
|
Lente
|
4.5mm
|
|
|
Field of View
|
35° x 27° (H x V)
|
|
|
Camera Parameters
|
||
|
Câmara
|
Binocular camera supports live detection
|
|
|
Effective pixel
|
2Mega pixel,1920*1080
|
|
|
Min. lux
|
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2
|
|
|
SNR
|
≥50db(AGC OFF)
|
|
|
WDR
|
≥80db
|
|
|
Face Recognition
|
||
|
Height
|
1.2-2.2 M, angle adjustable
|
|
|
Distance
|
0.5-2 Meters
|
|
|
View angle
|
Vertical ±40 degree
|
|
|
Reco. Time
|
<500ms
|
|
|
Temperature
|
|
|
|
Range
|
30-45(℃)
|
|
|
Accuracy
|
±0.3(℃)
|
|
|
Distance
|
0.3-0.8
|
|
|
Response time
|
<300ms
|
|
|
Interface
|
||
|
Internet interface
|
RJ45 10M/100M Ethernet
|
|
|
Weigand port
|
Thermal: 25fps(704 x 576, 352 x 288)
|
|
|
Alarm output
|
1channel relay output
|
|
|
USB port
|
1USB port (Can be connected to ID identifier
|
|
|
Geral
|
||
|
Power input
|
DC 12V/3A
|
|
|
Consumo de energia
|
20W(MAX)
|
|
|
Humidity
|
0℃ ~ +50℃
|
|
|
Dimensão
|
5~90%, no condense
|
|
|
Peso
|
123.5(W) * 84(H) *361.3(L)mm
|
|
|
Column aperture
|
2.1 kg
|
|
|
Column aperture
|
33mm
|
|
