Shenzhen LSVISION Technology Co., Ltd. comes here today with the great news that we have successfully developed IP Camera/NVR/Solar Camera/Smart Battery Camera.It is a kind of new product made by state-of-the-art technologies. Our professional engineers applied technology to product development.The product can be used in a wide range of applications like CCTV Camera requiring very high quality. Shenzhen LSVISION Technology Co., Ltd. have always advocated the customer-centric business concept, aiming to provide customers with specialized, standardized, and diversified services. We focus on technology development and hope to make some innovations backed by strong technical strength.
| Local de origem: | Guangdong, China | Nome da marca: | LSVISÃO |
| Número do modelo: | LS-TI005 | Garantia: | 1 ano |
| Características especiais: | À prova de água / à prova de intempéries | Sensor: | CCD |
| Estilo: | CÂMARA DE BALAS | Função: | Thermal image |
| Formato de compressão de vídeo: | H.265 | Opções de armazenamento de dados: | Full HD |
| Aplicação: | Interior | Suporte personalizado: | Logótipo personalizado |
| Product name: | utomatic Infrared Detect Terminal Camera | Sensor de imagem: | 1920x1080P |
| Sensor type: | 1/2.8″ 2.0M Pixel CMOS | Day& Night: | ModeiR cut filter with auto switch |
| Temperature Measurement: | Support global and local temperature | Web Client Language: | languages English, Chinese |
| Protection Level: | IP66 | NETD: | Less than 60 mK (@25°C.F#=1.1) |
| Field of View: | 35° x 27° (H x V) | Focal Length: | 4mm |
| Certificação: | ce, FCC |

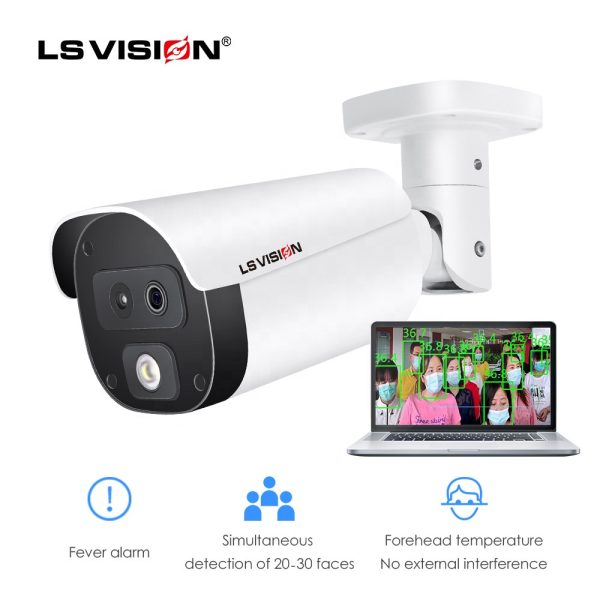

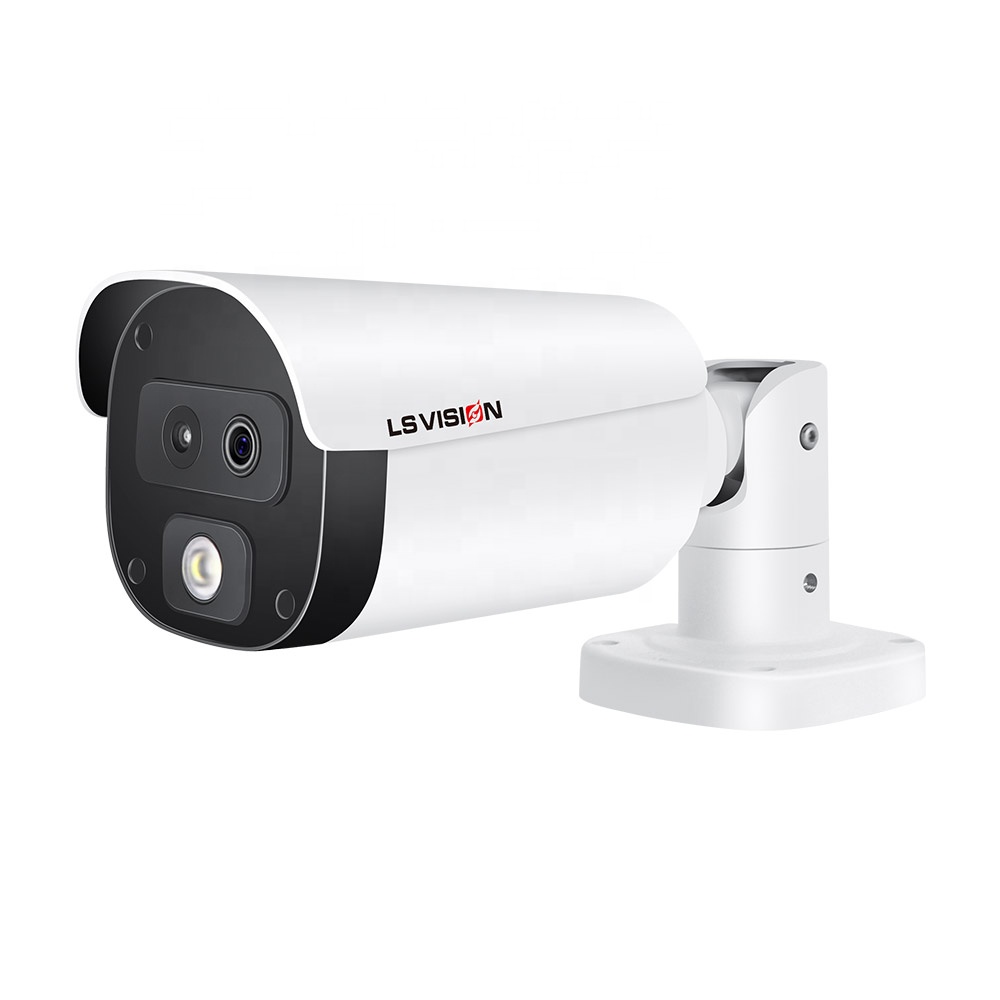

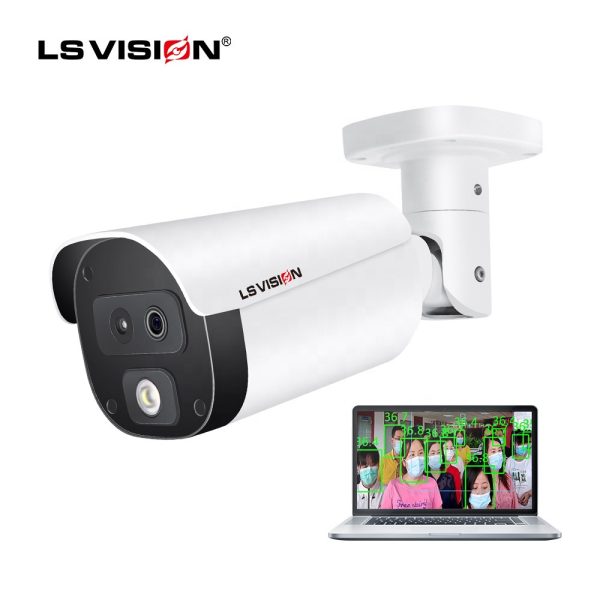

Long Distance Automatic Infrared Detect Terminal 20 Faces Temperature 1080P Cheap Thermal Camera With Temperature Sensor
Descrição do produto
Descrição do produto
|
Modelo
|
LS-TI005
|
|
|
Thermal Camera
|
||
|
Tipo de sensor
|
Vox Uncooled Focal Plane Arrays
|
|
|
Resolução
|
256×192
|
|
|
Pixel Interval
|
12pm
|
|
|
NETD
|
Less than 60 mK (@25°C.F#=1.1)
|
|
|
Aperture
|
F1.0
|
|
|
Field of View
|
35° x 27° (H x V)
|
|
|
Optical
|
||
|
Sensor de imagem
|
1/2.8″ 2.0M Pixel CMOS
|
|
|
Resolução
|
1920x1080P
|
|
|
Min. Iluminação
|
Color: 0.005Lux @ (F1.2, AGC ON), B/W 0.001@ (F1.2, AGC ON)
|
|
|
Field of View
|
84° x 45° (H x V)
|
|
|
Focal Length
|
4mm
|
|
|
Shutter Speed
|
1s to 1/100,000s
|
|
|
Equilíbrio de brancos
|
Auto/Manual/ATW (Auto-tracking White Balance)/lndoor/Outdoor/Daylight Lamp/Sodium Lamp
|
|
|
Day& Night
|
ModeiR cut filter with auto switch
|
|
|
WDR
|
80 dB
|
|
|
Caraterística
|
||
|
Bi-spectrum Image Fusion
|
Fusion view of thermal view and overlaid details of the optical channel
|
|
|
Picture in Picture
|
Combines details of thermal and optical image PIP, overlay thermal image on optical image
|
|
|
Smart Function
|
|
|
|

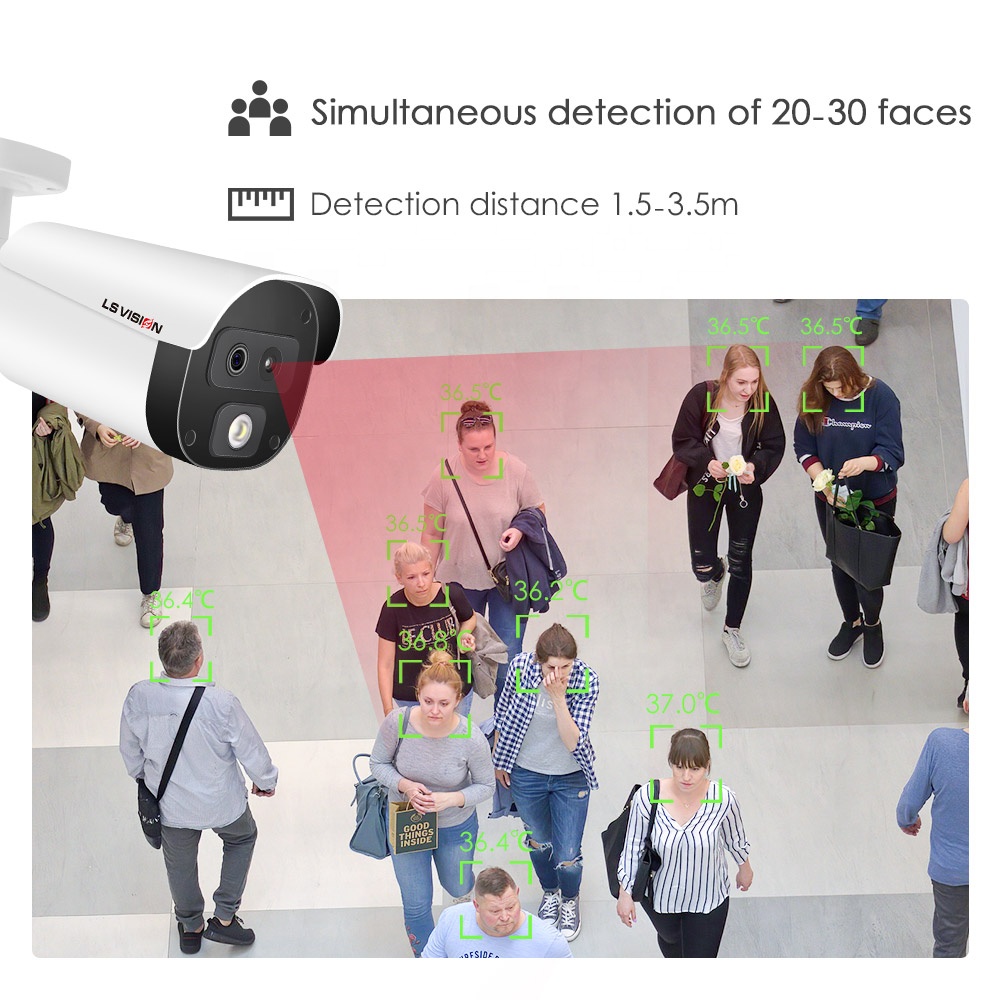

Face snapping
|
Built-in deep learning Al algorithm, Supports simultaneous detection of
20-30 faces |
|
|

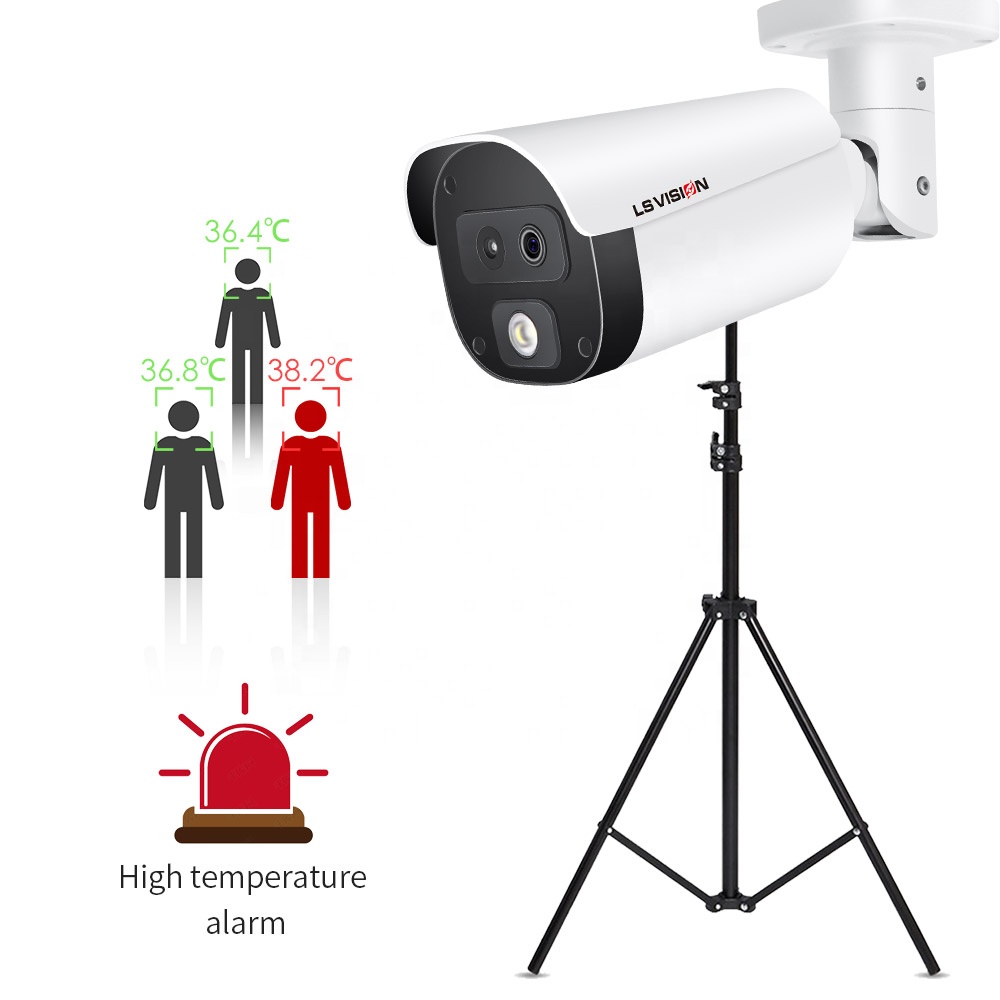

Temperature Measurement
|
Support global and local temperature
|
|
|
Temperature Range
|
From-15°C to +150°C
|
|
|
Temperature Accuracy
|
Target temperature 35°C A 38°C ±0.3 °C
Target temperature 20°C A 33°C ±0.6 °C Target temperature 38°C A 50°C ±0.6 °C |
|
|
Rede
|
||
|
Main Stream
|
Thermal: 25fps(1920 x 1080, 1280 x 720)
|
|
|
Sub Stream
|
Thermal: 25fps(704 x 576, 352 x 288)
|
|
|
Compressão de vídeo
|
H.264 (Baseline/Main/High Profile) /MJPEG/H.265
|
|
|
Compressão de áudio
|
G 711u/G711a/G.7221/MP2L2/G.726/PCM
|
|
|
Protocolos
|
TCP/IP, GB/T 28181, DHCP. RTP, RTSP,PPPoE UPnP, UDP
|
|
|
API
|
(Profile S, Profile G, Profile T), SDK
|
|
|
Geral
|
||
|
Web Client Language
|
languages English, Chinese
|
|
|
Potência
|
DC 12V, 0.65A
|
|
|
Work Temperature/H umidity
|
From -20°C to 55°C; Humidity: 95% or Less
|
|
|
Protection Level
|
IP66
|
|
|
Dimensão
|
246 mm x 101 mm x 81 mm (with bracket)
|
|
|
Peso
|
Approx. 1.0 kg
|
|
