Key Feature |
. 1080P 30fps Recording; 720P 30fps for 4G live view
Total Solution |

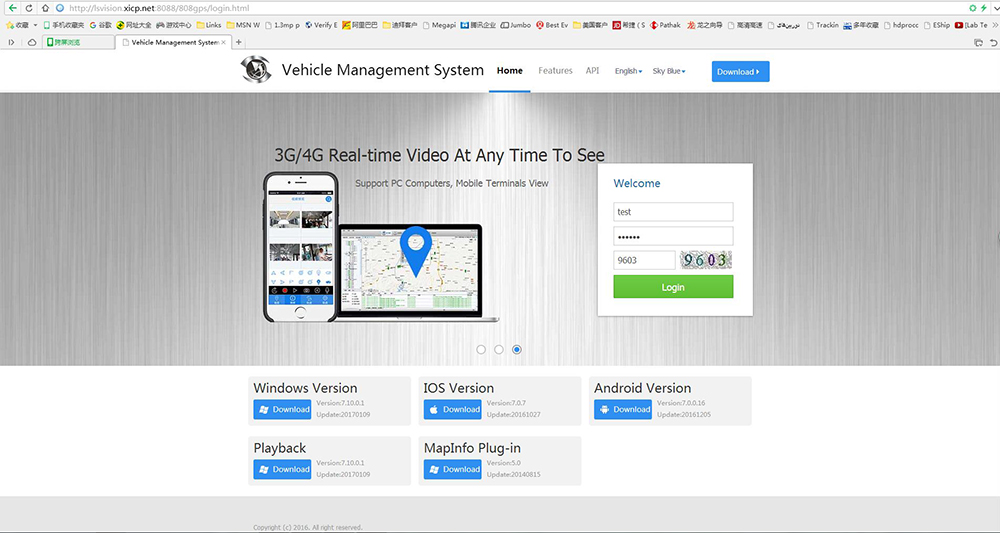

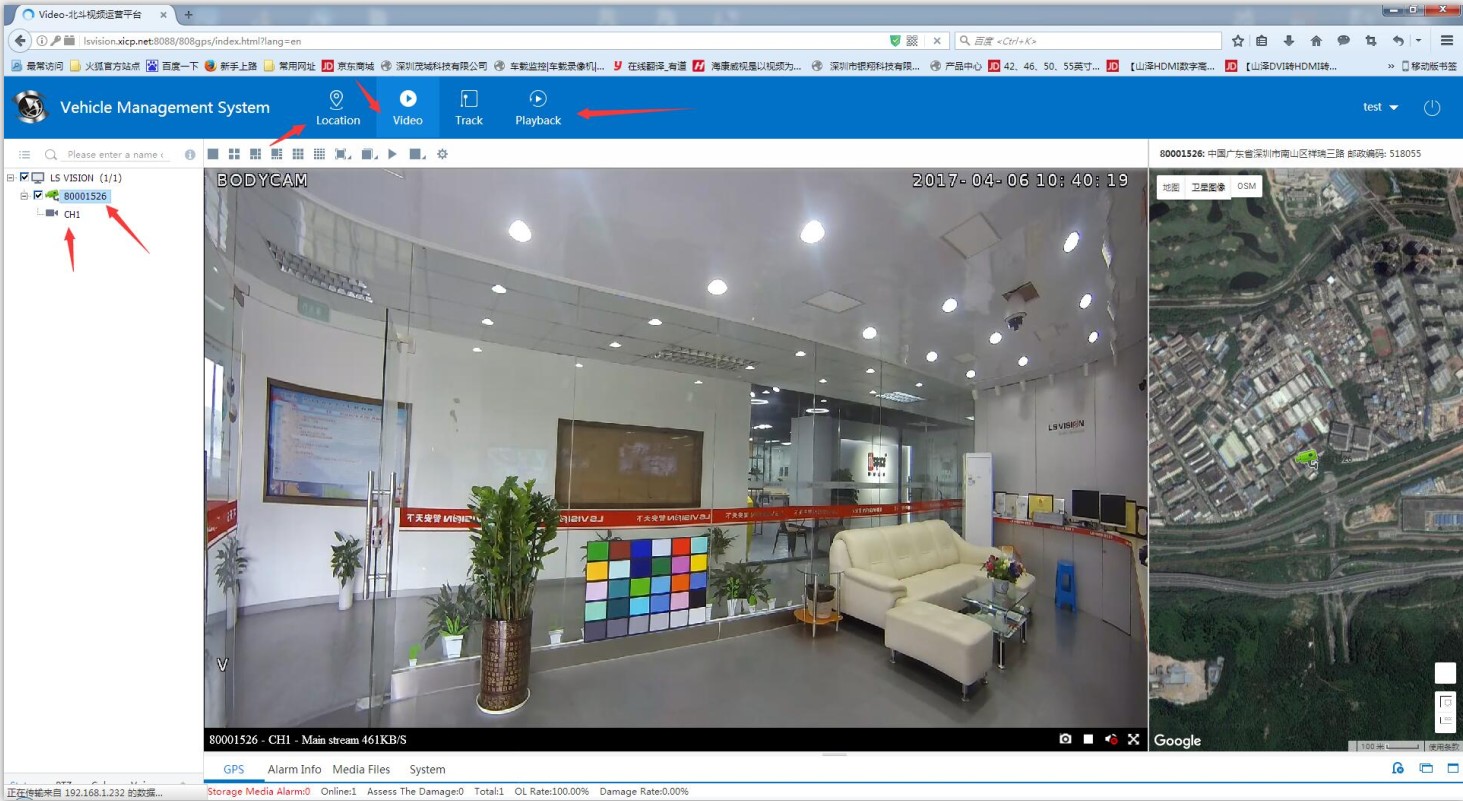

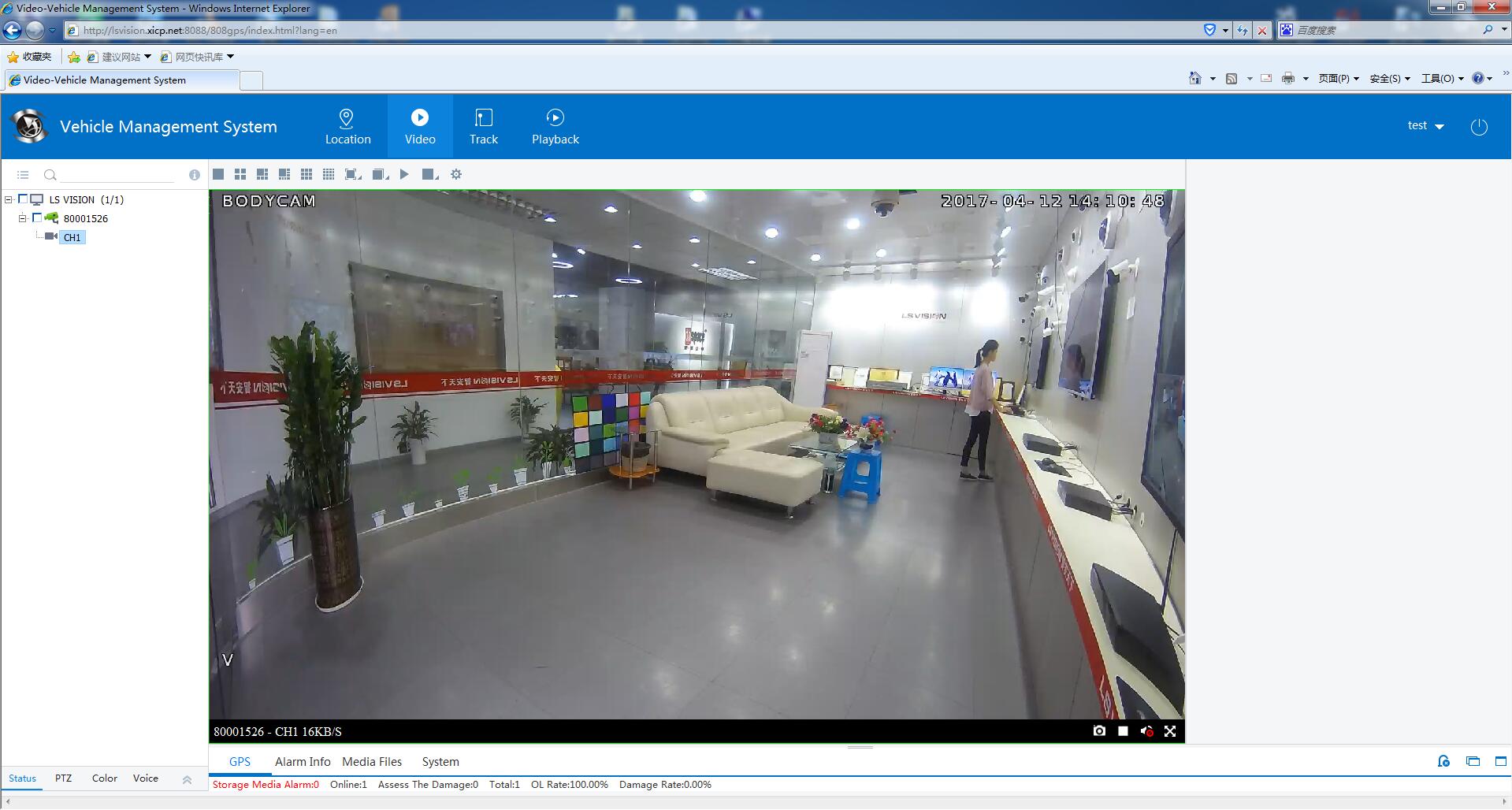

The total solution of 4G wireless transmission include the body worn camera, which support built-in 4G, WIFI and GPS; Center server software and WEB client software.
4G Body Camera Network Diagram |
Specification |
|
1 |
Chip Set |

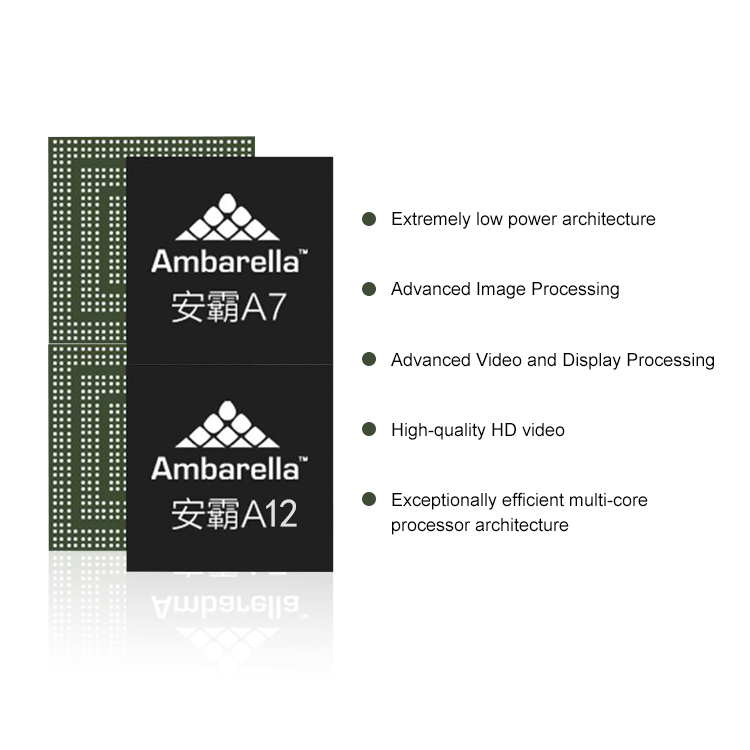

Powerful Ambarella A12 core |
|
2 |
SO |
Linux 3.10.73 |
|
3 |
Startup Time |
< 10 Seconds(From power on recording) |
|
4 |
Image Sensor |
1/2.9″ color CMOS sensor, 4MP |
|
5 |
Image Angle |
HOV ≥125° |
|
6 |
Light Compensation |
Infrared Light, range up to 15 meters, Up to 8 Meters with Visible face image |
|
7 |
IR-Cut |
Automatic |
|
8 |
Snap shot |
JPG, max resolution up to 40M (8640*4752) pixel |
|
9 |
Video Format |
H.264 |
|
10 |
Recording Resolution |
1920×1080p30 for recording and 1280×720p30 for 4G live view |
|
11 |
Low Bit Rate |
Ambabrella Smart AVC technology for volume saving |
|
12 |
FPS |
30fps |
|
13 |
Audio Format |
PCM |
|
14 |
Dewarp |
Dewarp processing for fish eye lens or wide angle lens |
|
15 |
Playback |
32X Fast Forward |
|
16 |
LCD |
320×240, 2.0 inch |
|
17 |
LCD brightness |
>200cd/m² |
|
18 |
Water Mark |
User ID, Time and date Stamp, GPS coordinates Embedded into Video |
|
19 |
Data Port |
Mini USB & 14pin Auxiliary port |
|
20 |
Storage Media |
16GB/32GB/64GB/128GB |
|
21 |
GPS |
Internal GPS module with time synchronize |
|
22 |
Battery |
Replaceable battery, 1950mAh each |
|
23 |
Charging time |
≤4 hours (use the standard power adaptor) |
|
24 |
Low Power Consumption |
<1.2W (without GPS,WIFI,4G LTE working) |
|
25 |
4G standby consumption |
2mA standby current with remote data wake up |
|
26 |
Continuous working time |
6 hours 1080p 30fps recording (with one battery,and turn 4G,WIFI off) |
|
27 |
Build-in Modules |
Optional GPS, WIFI, 3G/4G LTE |
|
28 |
Charging Base |
For battery charging and data transmission |
|
29 |
Dimensão |
86mm*62mm*34mm |
|
30 |
Peso |
165g |
|
31 |
Working Temperature |
-30℃ ~ 55℃ |
|
32 |
Water Proof |
IP65 |
|
33 |
Parameter settings |
LCD menu |
|
34 |
Pre-record |
20s/10s/5s/Off adjustable |
|
35 |
External Camera |
20s/10s/5s/Off adjustable |
|
36 |
Wireless |
WiFi and 3G/4G LTE |
Certificação |
Emergency response
|
Officer can press the emergency button to upload the live info to the monitoring center.
Application |
All the enforcement activities can be monitored by the control center remotely, can be applicated to:

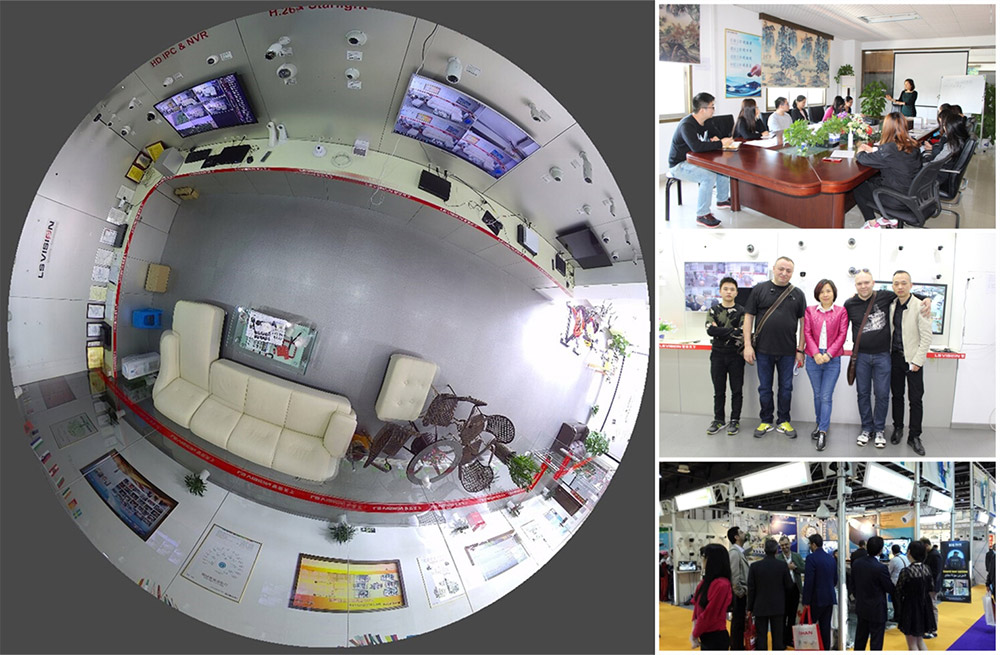

Sobre a LS VISION |
1. LS VISION ‘s camera 4mp 25/30 @fps real time, as you know, it is difficult to reach real time for 3mp cctv camera in the current market;
2. our camera have our unique exterior design with private mold, like LS VISION Saturn Series ip camera;
3. we have 64ch, 128ch nvr, support , it can compatible with many brand ip camera, like samsung, hikvision and dahua
4. we provide CMS management software and app for ip camera, ptz, ahd dvr, tvi dvr, nvr and panoramic camera.
5. support OEM/ODM service for small bulk orders.
6. “Only for quality Life” is our core corporate culture, our camera can be applied to tough environment. (working temperature : -40–70 °C)
7. we offer warranty as long as LS VISION alive.
