By fully understanding the product series and industry dynamics, Shenzhen LSVISION Technology Co., Ltd. adapts ourselves to the development of products very quickly.High Speed Dual Vision Fever Screening Thermal Imaging Body Temperature Camera Alarm Detection Measurement With 0.3 Accuracy is our newest product and is expected to lead industry development. It is delicately designed to comply with the industry standard. Since established, Shenzhen LSVISION Technology Co., Ltd. have always been in strict compliance with international standards and high ethical standards, thus offering customers highly reliable products. We have always been following the business principle of ‘honesty & integrity’, which ensures that the most credible services are delivered to every customer.
| Гарантия: | 1Year, 1 Year | Индивидуальная поддержка: | OEM |
| Место происхождения: | Гуандун, Китай | Название бренда: | LSVISION Or OEM |
| Номер модели: | LS-TI005 | Название продукта: | Dual Vision Body Temperature Fever Screening Thermal Imaging Camera |
| Разрешение: | 1920x1080P | Сертификат: | CE FCC |
| MOQ: | 1 | Источник питания: | DC12V |
| Protection Level: | IP66 | API: | (Profile S, Profile G, Profile T), SDK |
| Field of View: | 35° x 27° (H x V) | Use: | В помещении |
| Сертификация: | CE, FCC |

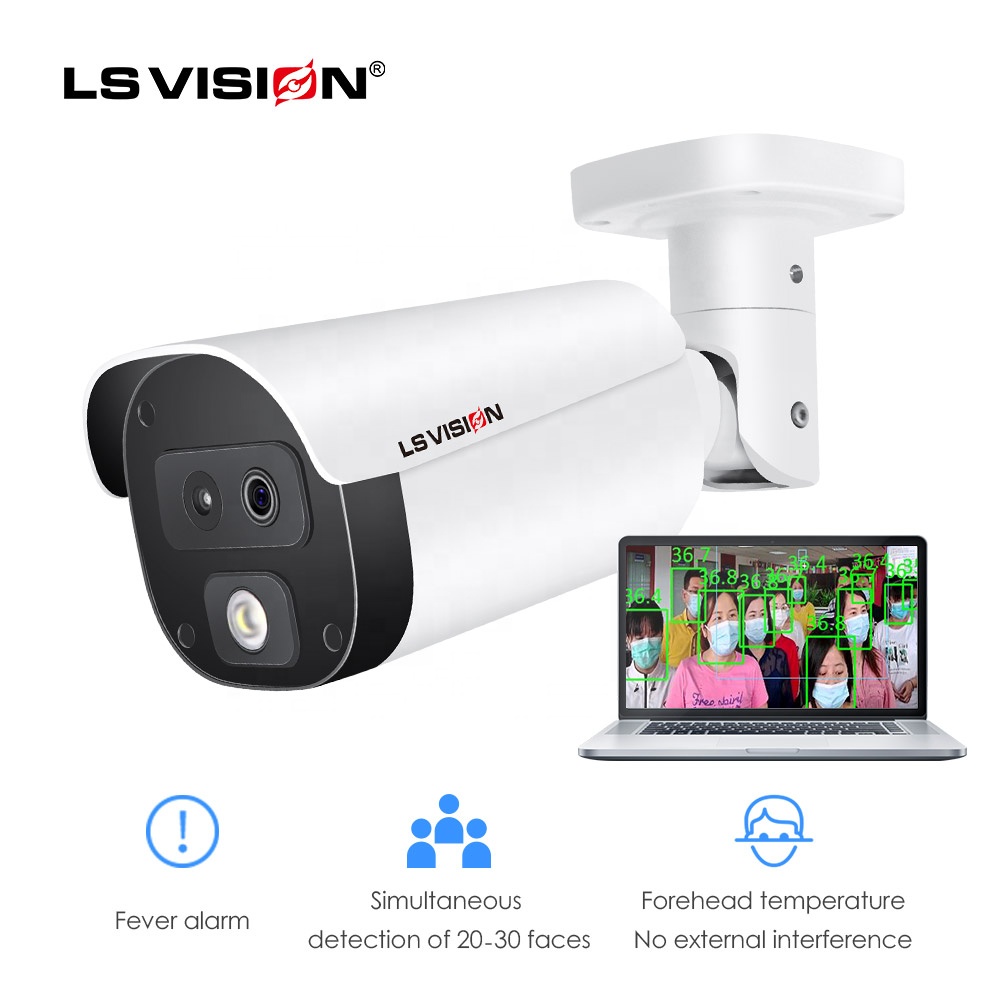

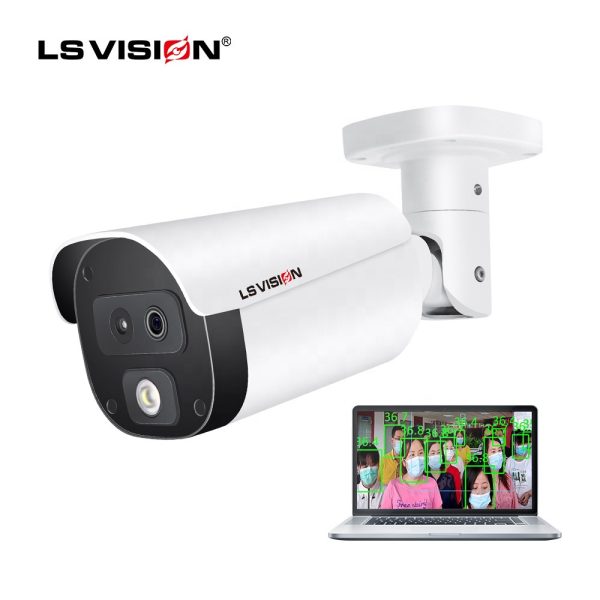

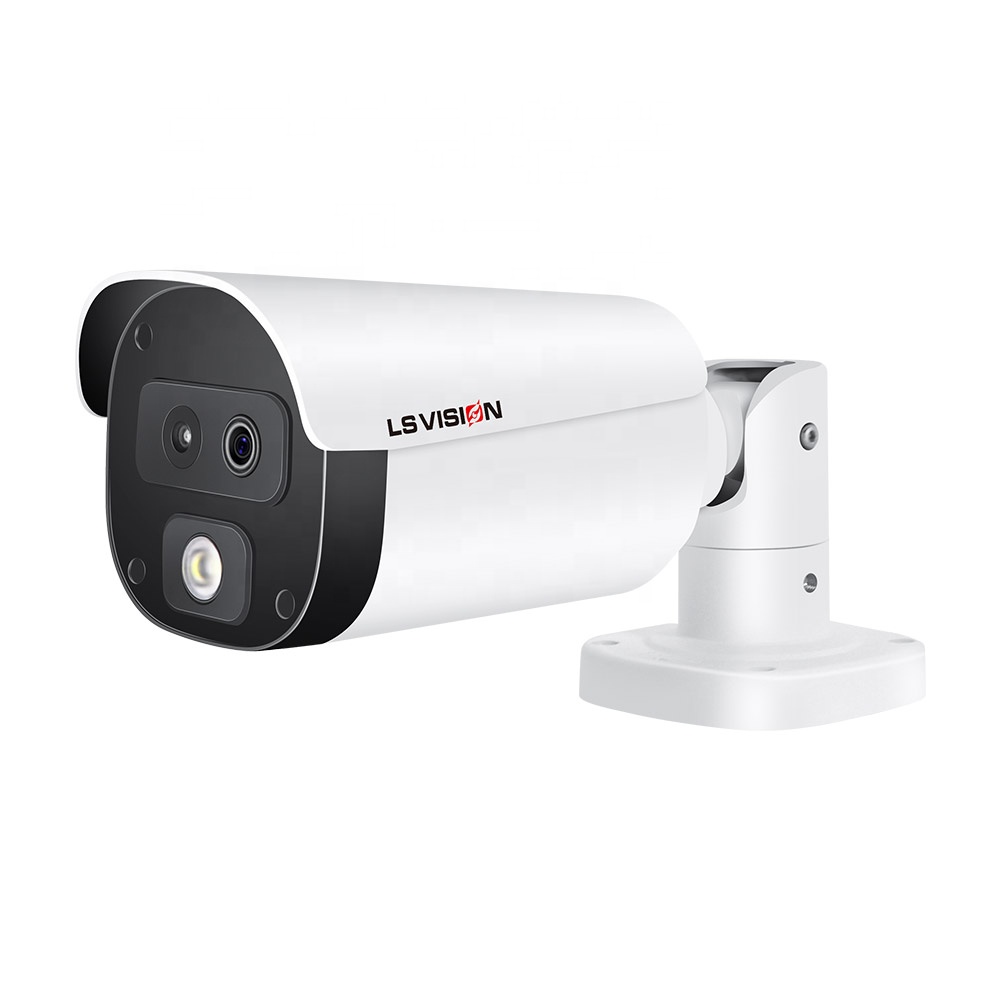

High Speed Dual Vision Fever Screening Thermal Imaging Body Temperature Camera Alarm Detection Measurement With 0.3 Accuracy
|
Модель
|
LS-TI005
|
|
|
Thermal Camera
|
||
|
Тип датчика
|
Vox Uncooled Focal Plane Arrays
|
|
|
Разрешение
|
256×192
|
|
|
Pixel Interval
|
12pm
|
|
|
NETD
|
Less than 60 mK (@25°C.F#=1.1)
|
|
|
Апертура
|
F1.0
|
|
|
Field of View
|
35° x 27° (H x V)
|
|
|
Optical
|
||
|
Датчик изображения
|
1/2.8″ 2.0M Pixel CMOS
|
|
|
Разрешение
|
1920x1080P
|
|
|
Мин. Освещение
|
Color: 0.005Lux @ (F1.2, AGC ON), B/W 0.001 皿@ (F1.2, AGC ON)
|
|
|
Field of View
|
84° x 45° (H x V)
|
|
|
Focal Length
|
4mm
|
|
|
Shutter Speed
|
1s to 1/100,000s
|
|
|
Баланс белого
|
Auto/Manual/ATW (Auto-tracking White Balance)/lndoor/Outdoor/Daylight Lamp/Sodium Lamp
|
|
|
День и ночь
|
ModeiR cut filter with auto switch
|
|
|
WDR
|
80 dB
|
|
|
Характеристика
|
||
|
Bi-spectrum Image Fusion
|
Fusion view of thermal view and overlaid details of the optical channel
|
|
|
Picture in Picture
|
Combines details of thermal and optical image PIP, overlay thermal image on optical image
|
|
|
Smart Function
|
|
|
|
Face snapping
|
Built-in deep learning Al algorithm, Supports simultaneous detection of
20-30 faces |
|
|
Temperature Measurement
|
Support global and local temperature
|
|
|
Temperature Range
|
From-15°C to +150°C
|
|
|
Temperature Accuracy
|
Target temperature 35°C A 38°C ±0.3 °C
Target temperature 20°C A 33°C ±0.6 °C Target temperature 38°C A 50°C ±0.6 °C |
|
|
Сеть
|
||
|
Основной поток
|
Thermal: 25fps(1920 x 1080, 1280 x 720)
|
|
|
Sub Stream
|
Thermal: 25fps(704 x 576, 352 x 288)
|
|
|
Сжатие видео
|
H.264 (Baseline/Main/High Profile) /MJPEG/H.265
|
|
|
Сжатие звука
|
G 711u/G711a/G.7221/MP2L2/G.726/PCM
|
|
|
Протоколы
|
TCP/IP, GB/T 28181, DHCP. RTP, RTSP,PPPoE UPnP, UDP
|
|
|
API
|
(Profile S, Profile G, Profile T), SDK
|
|
|
Общие сведения
|
||
|
Web Client Language
|
languages English, Chinese
|
|
|
Мощность
|
DC 12V, 0.65A
|
|
|
Work Temperature/H umidity
|
From -20°C to 55°C; Humidity: 95% or Less
|
|
|
Protection Level
|
IP66
|
|
|
Размер
|
246 mm x 101 mm x 81 mm (with bracket)
|
|
|
Вес
|
Approx. 1.0 kg
|
|
