Shenzhen LSVISION Technology Co., Ltd. has set up a team which is mainly engaged in product development. Thanks to their efforts, we have successfully developed IP Camera/NVR/Solar Camera/Smart Battery Camera and planned to sell it to the overseas markets. We manufacture it in a variety of color and styles. Shenzhen LSVISION Technology Co., Ltd. are determined that we will invest more in the improvement of R&D strength and gather more talents in the industry, both of which can make great contributions to the long-term development of our company.
| Place of Origin: | Guangdong, China | Brand Name: | LSVISION |
| Model Number: | LS-WB520 | Warranty: | 1 Year, 2 Years |
| Special Features: | NIGHT VISION, Motion Detection | Sensor: | CMOS |
| Style: | BULLET CAMERA | Function: | Waterproof / Weatherproof, Two-way Audio, Support Mobile Remote Viewing |
| Video Compression Format: | H.265 | Data Storage Options: | Cloud |
| Application: | Indoor, Outdoor, Garden | Customized support: | Online technical support, OEM, ODM |
| Product name: | Battery Wifi Indoor Security Camera | Resolution: | 1920*1080P |
| Feature: | IP65 Weatherproof | Lens: | 3.6mm Lens |
| Image Sensor: | 1/3″ CMOS | IR Distance: | 10m |
| Power Supply: | Lithium Battery |
【Smart PIR Human Motion Detection】Our outdoor security wireless camera system uses a high-sensitivity PIR sensor, which can quickly and accurately capture all humanoid or pet-shaped moving events within detection range. Once security camera detected, the alarm information will be pushed to your smartphone Vico Home app along with 10 seconds of video recording.

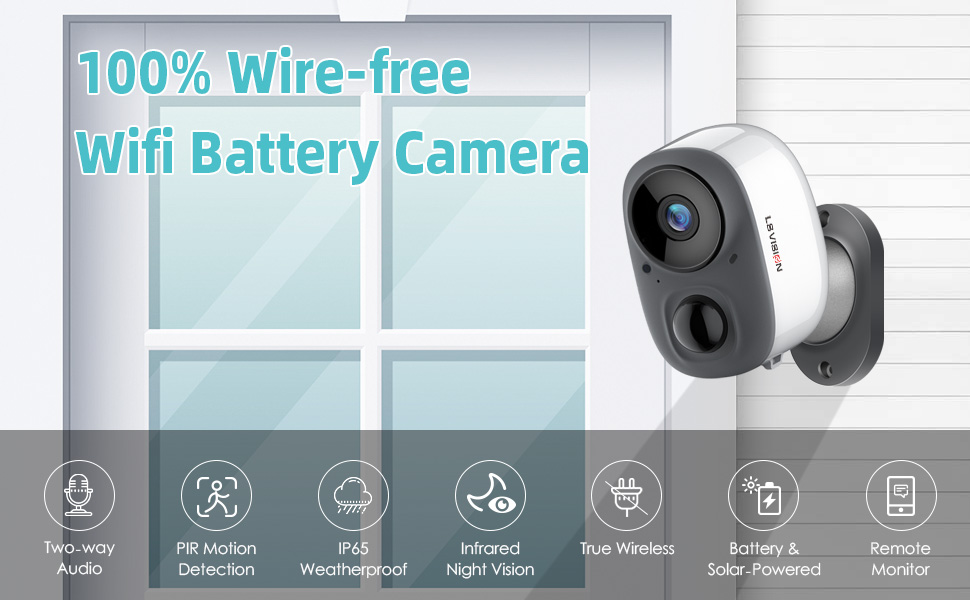

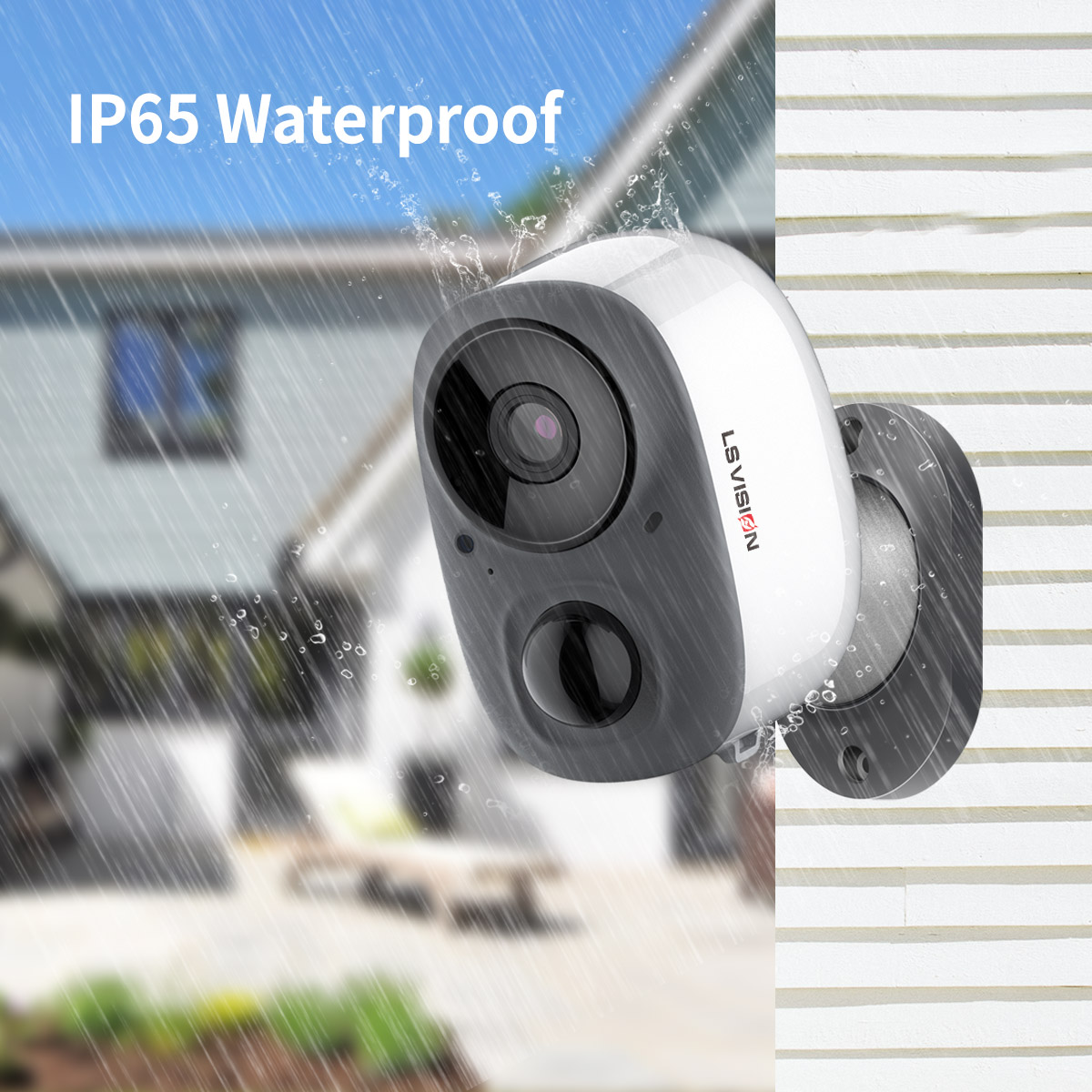

【2-way Audio Intercom & IP65 Waterproof】The battery charged outdoor security camera that supports two-way voice allows you to talk with outdoor wifi camera characters anytime /anywhere on mobile phone applications, providing you with a warm and safe home environment.The battery charged outdoor security camera also support IP65 waterproofing grades, which can be installed directly outside to withstand mild rainstorm weather or directly exposed to sunlight.
|
Specification
|
LS-WB520
|
||
|
Master Processor
|
SOC
|
HI3518E V300: A dominant frequency of 900 MHz
|
|
|
DDR
|
512M
|
||
|
Image Sensor
|
Sensor
|
1/3″ color CMOS Sensor
|
|
|
Lens
|
M12, f: 3.3mm, F2.0, 2-megapixel
|
||
|
Visual angle
|
H (horizontal) 95 degrees; V (vertical) 55 degrees; D (diagonal) 110 degrees
|
||
|
Minimum Illumination
|
0.01 Lux
|
||
|
Audio
|
Input/Output
|
Two-way voice intercom available (built-in Microphone and speaker)
|
|
|
Audio Compressing Method
|
AAC
|
||
|
Video
|
Video Compressing Method
|
H.265
|
|
|
Lighting Frequency
|
50Hz, 60Hz
|
||
|
Image Frame Rate
|
15 fps
|
||
|
Maximum Image Resolution
|
1920*1080P
|
||
|
Light Source for Night Vision
|
IRCUT double optical filter automatic switching, and 8 infrared lights (850nm wavelength)Irradiation distance: 7M
|
||
|
Network
|
Wireless Network
|
2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
|
|
|
Protocols Supported
|
TCP/IP, UDP/IP, DHCP, RTMP, MUTP
|
||
|
IP Address Supported
|
Dynamic IP address supported
|
||
|
AI
|
Intelligent Features
|

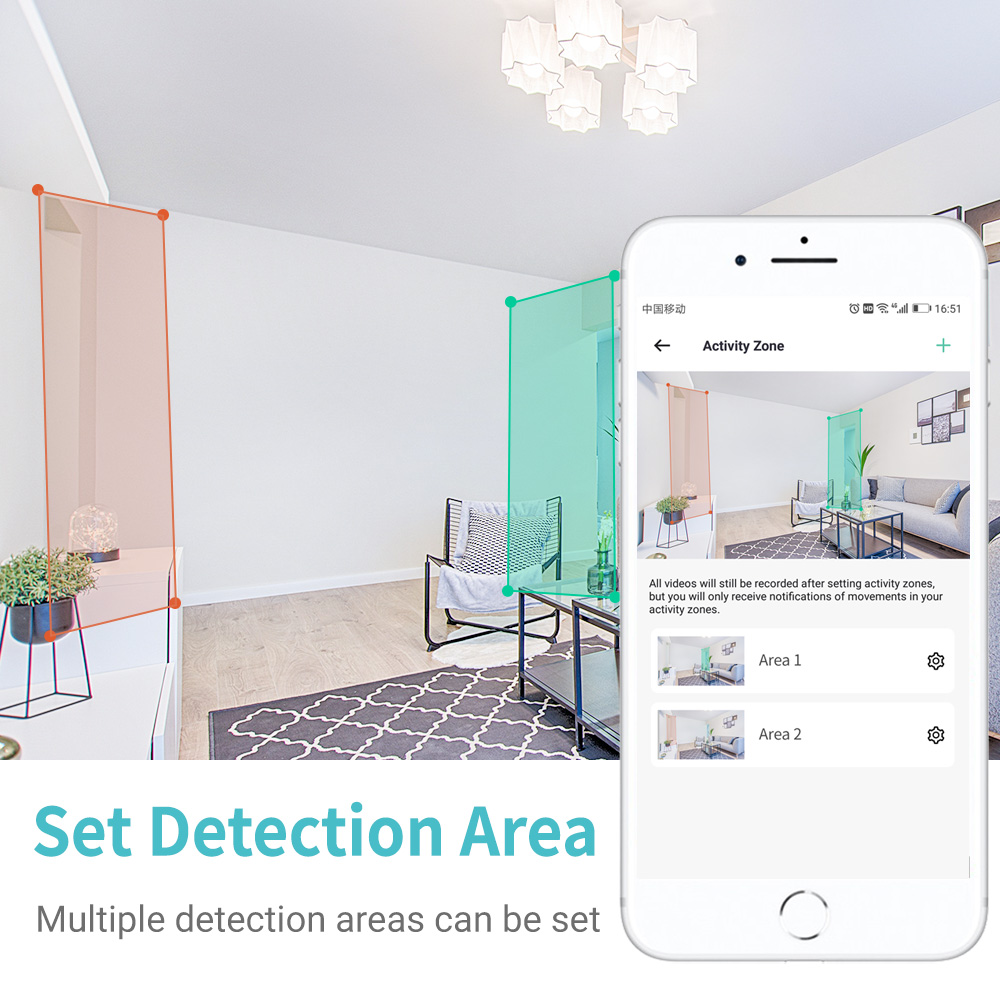

Human contour detection, activity zone,intelligent push, pet snapshot
|
|
|
Alarm Notification
|
Alarm Methods
|
Alarm push by mobile APP, alarm sound
|
|
|
Wake-up
|
Wake-up Method
|
PIR body induction wake-up, and remote positive wake-up
|
|
|
Video Recording
|
Recording Method
|
Alarm triggered recording, and manual recording
|
|
|

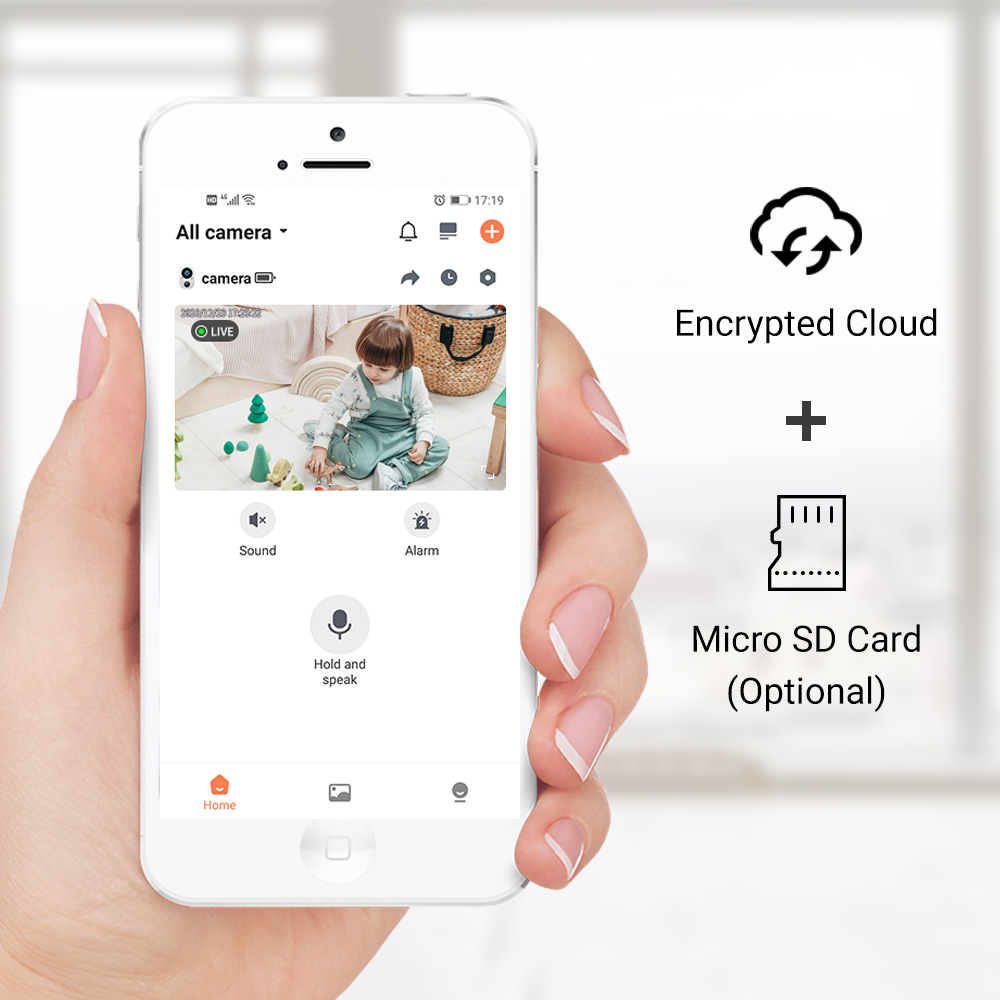

Video Storage
|

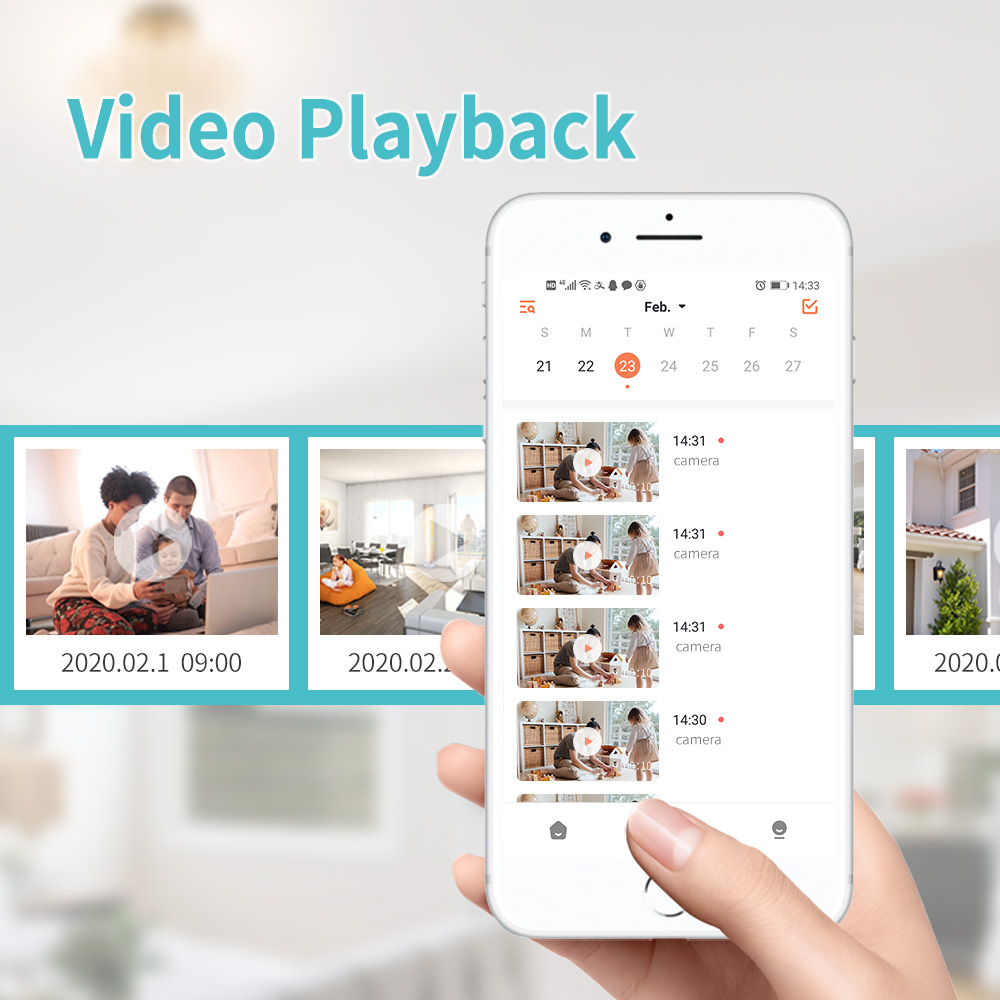

Cloud storage, local Micro SD card, and mobile phone memory
|
||
|
Indicator Lamps
|
LED Indicator
|
RGB tri-color lamp indicating the status of power/network signal/functionality
|
|
|

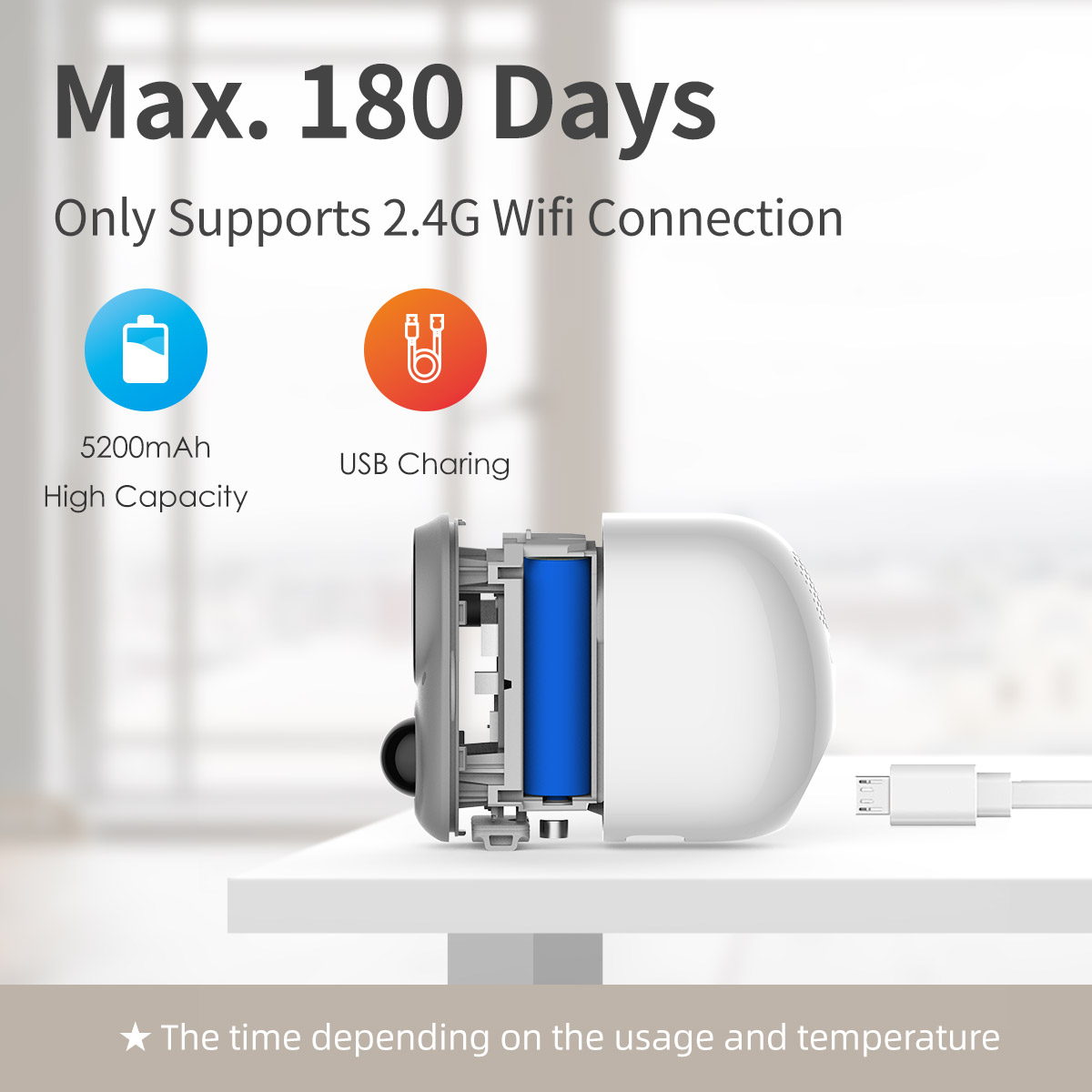

Battery
|
Capacity
|

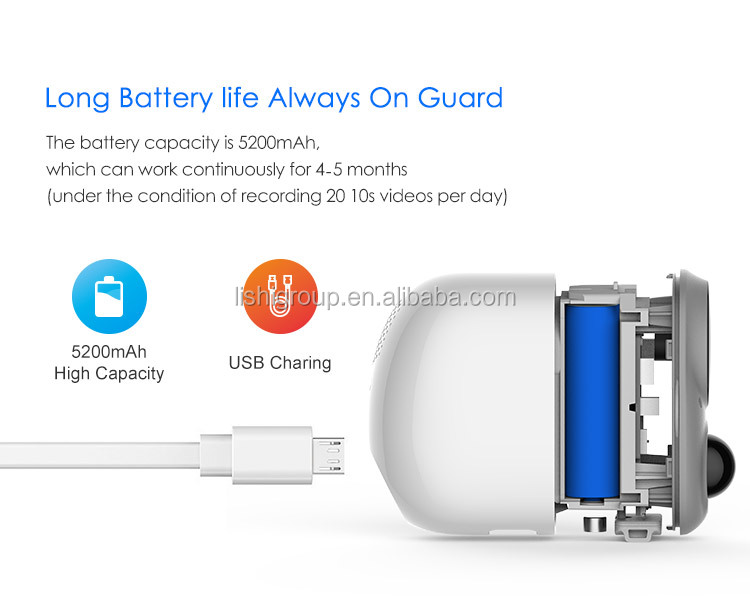

5200mAh/6700mAh
|
|
|
Removability
|
Unremovable
|
||
|
Battery Life
|

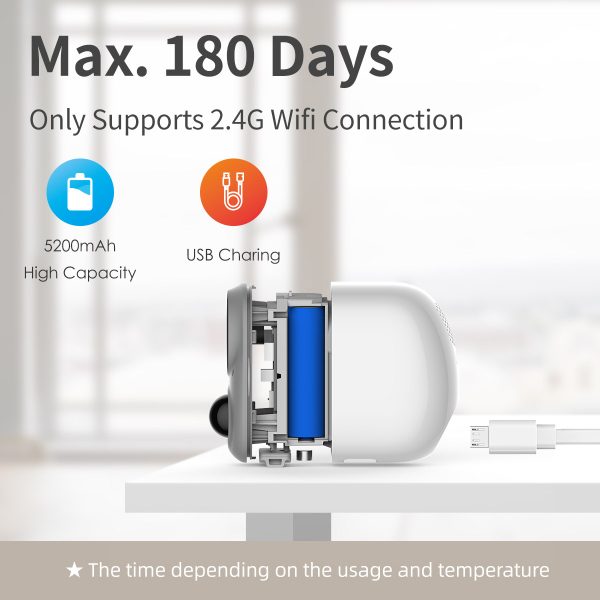

6 months (provided that 20 10s videos are recorded per day)
|
||
|
Standby Time
|
1 year
|
||
|
Charging Voltage
|
DV 5V+-5%/1.5A
|
||
|
Charge Time
|
Within 8 hours
|
||
|
Protection Method
|
over-current/over-discharge/over-charge/short circuit/charging protection at high & low temperatures
|
||
|
Power Consumption
|
Standby Power Consumption
|
1.68mW(4V 0.42mA）
|
|
|
Power Consumption of Daytime Operation
|
1W((3.8V 264mA）
|
||
|
Power Consumption of Operation at Night
|
2.17W((3.8V 571mA）
|
||
|
Interfaces
|
Power Supply
|
1 Micro USB interface
|
|
|
SD Card
|
1 Micro SD card (up to 128GB supported)
|
||
|
Keys
|
1 reboot key and 1 on/off key
|
||
|
Installation Method
|
Installation Method
|

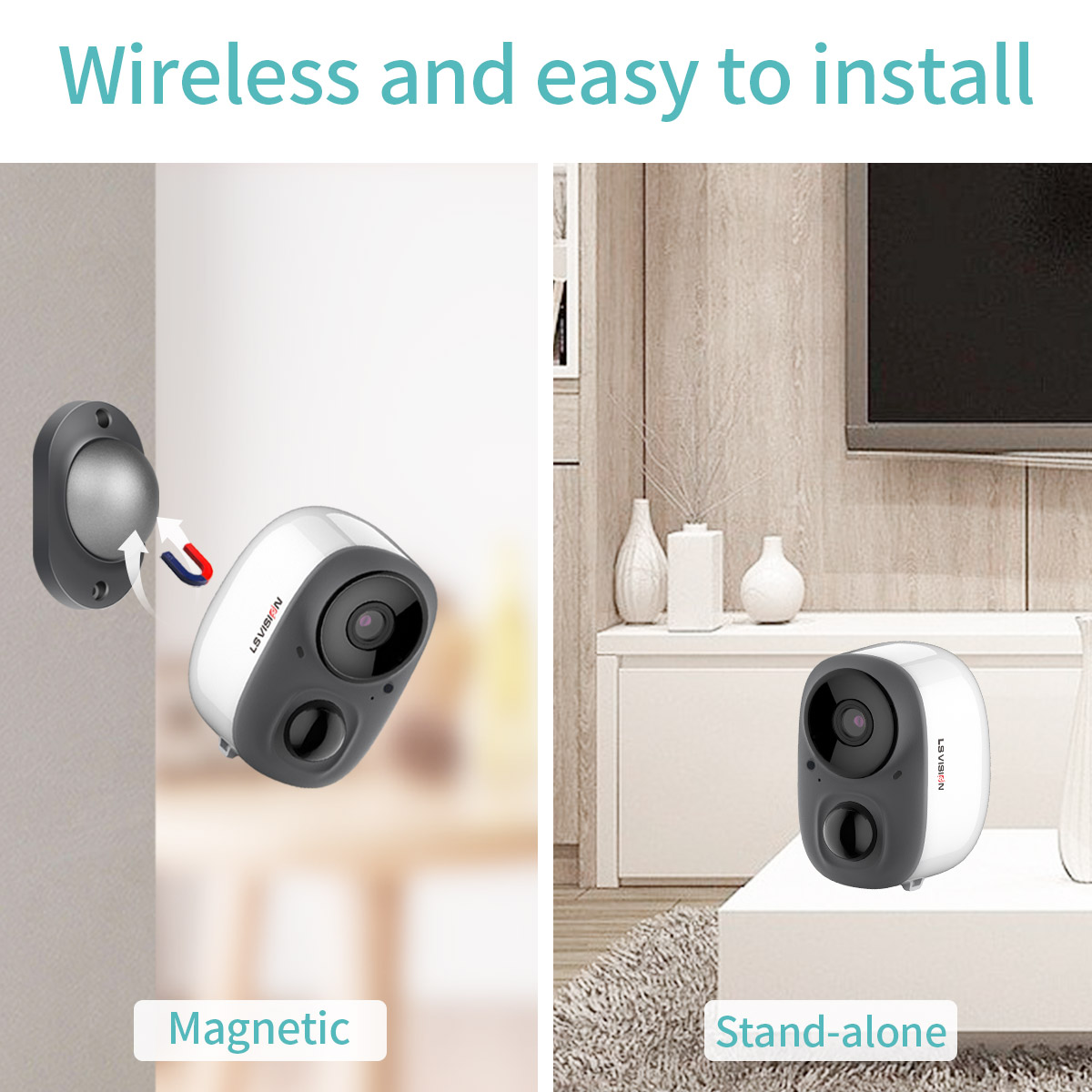

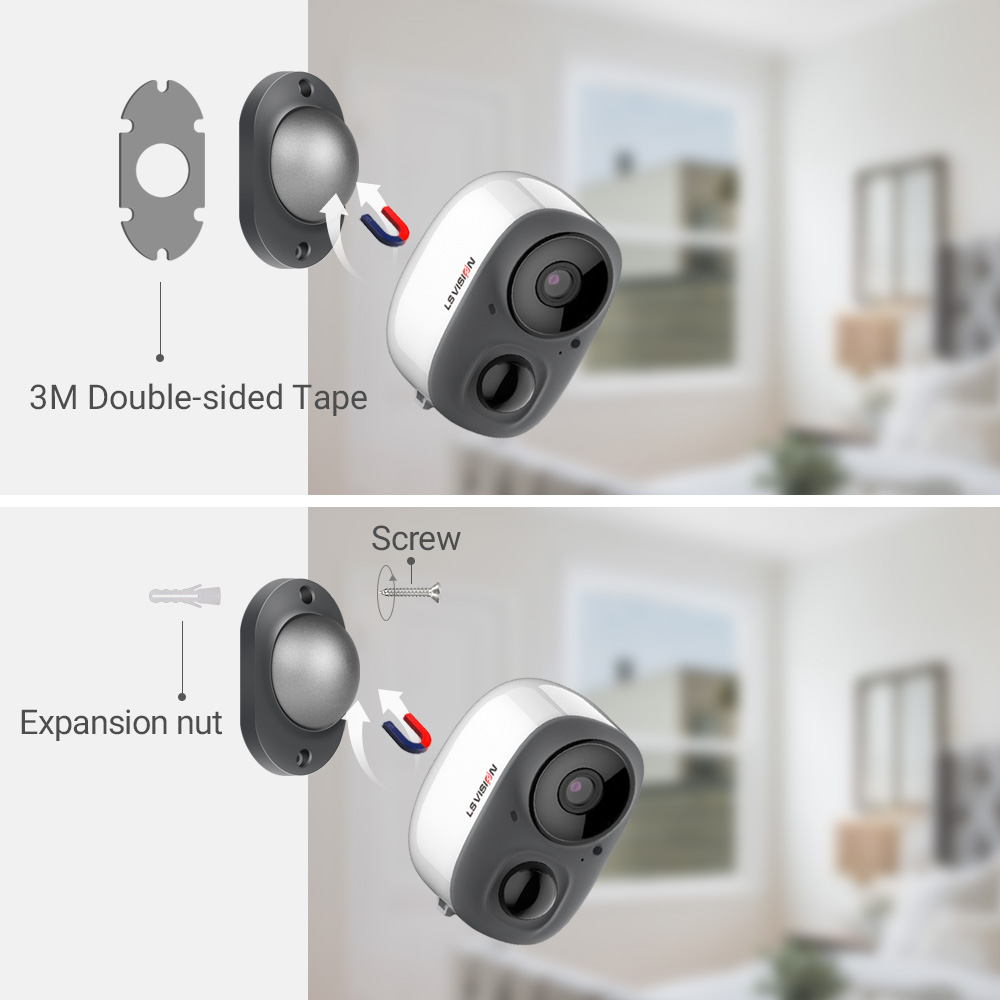

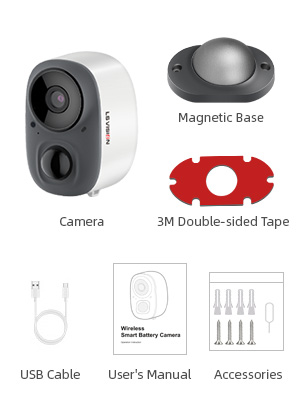

Magnet and 1/4 universal screw holes
|
|
|
Environment
|
Dustproof and waterproof
|
None
|
|
|
Operating Environment
|
-10° ~ 45°C /10% ~ 80% (no condensation)
|
||
|
Storage Environment
|
-20°C ~ 60° /0% ~ 90% (no condensation)
|
||
|
Specifications
|

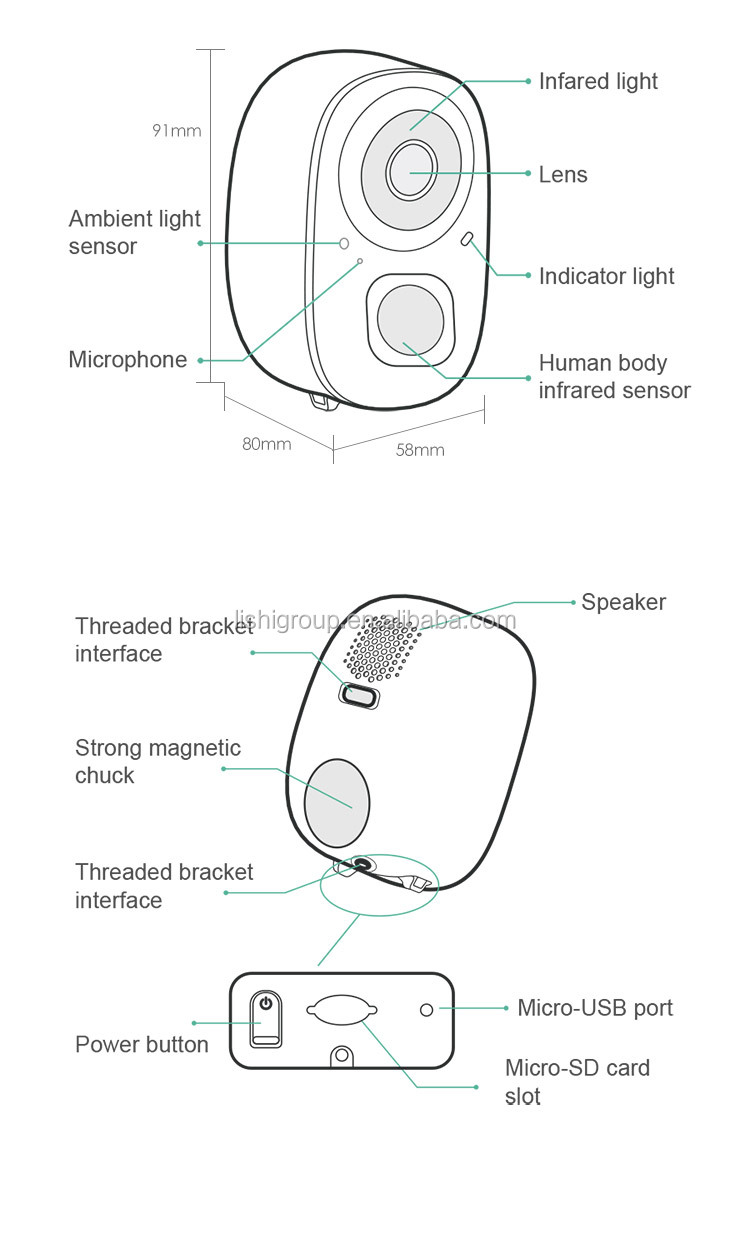

Size (LxWxH)
|
58mm*84mm*91mm(with bracket excluded)
|
|
|
Net Weight of Bare Machine
|
Approx. 267g
|
||
|
Finished weight
|
Approx. 500g
|
||
|
Material + Process
|
ABS
|
||
|
Color
|
White with high gloss
|
||
