LS VISION 4CH H.265 2MP 1080P Real Time HD Video Record Outdoor Monitoring Alarm System Home Security Wireless IP Camera Nvr Kit

Technologies are the strong backbone of our company.With those performance, LS VISION 4CH H.265 2MP 1080P Real Time HD Video Record Outdoor Monitoring Alarm System Home Security Wireless IP Camera Nvr Kit is widely used by people engaged in the field(s) of CCTV System.

Share to:

Always insist on taking the technology as the first productivity to improve our R&D strength, Shenzhen LSVISION Technology Co., Ltd. has successfully developed LS VISION 4CH H.265 2MP 1080P Real Time HD Video Record Outdoor Monitoring Alarm System Home Security Wireless IP Camera Nvr Kit. We manufacture it in a variety of color and styles. Since established, Shenzhen LSVISION Technology Co., Ltd. have always been in strict compliance with international standards and high ethical standards, thus offering customers highly reliable products. We have always been following the business principle of ‘honesty & integrity’, which ensures that the most credible services are delivered to every customer.

Place of Origin:	Guangdong, China	Brand Name:	LS VISION
Model Number:	LS-WK6204	Key Feature1:	Motion Detection Alarm
Key Feature2:	Plug and Play	Key Feature3:	300M Wifi Signal and indoor pass trough 3 walls
Resolution:	1080P; 1280 x 960 16 : 9 High Defination	Lens:	4mm (optional)
Level of Protection:	IP66	Power Input:	DC12V-1A
Power consumption:	≤6W	Packing size:	352028cm
Certificate:	CE FCC RoHs

Product Description

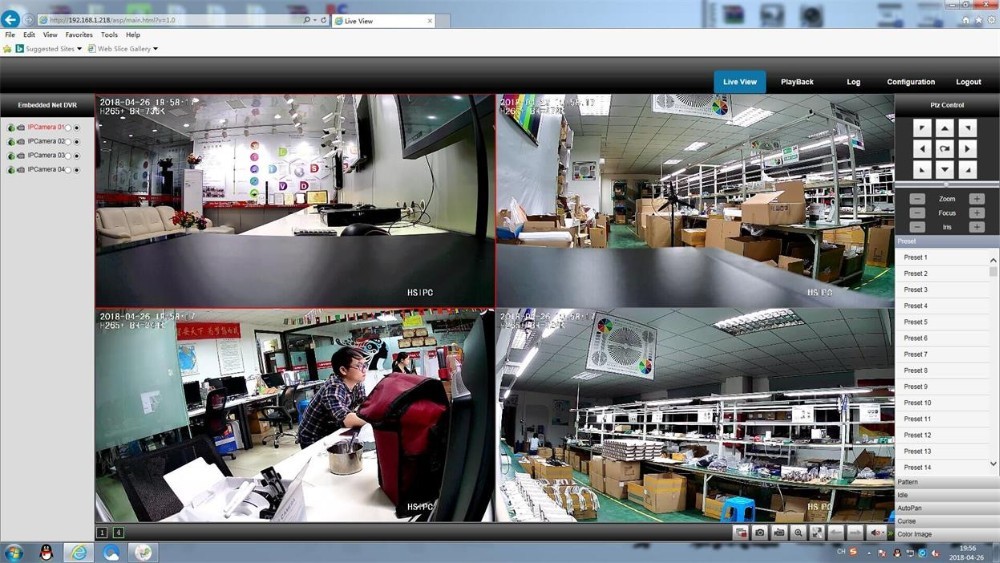

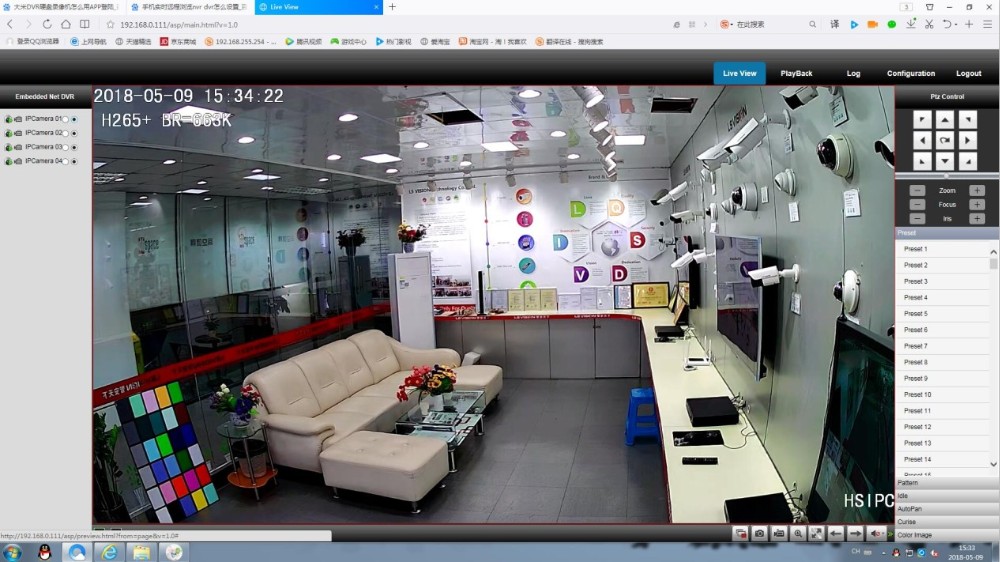

IE Brower and CMS Software Effect

Danale APP Video and Image Effect

Detail

LS VISION CCTV Home Wi Fi IP Security Camera Waterproof Outdoor 2.4G Wireless 4CH 1080P Wifi NVR Kits

* H.265 1080P
* 2.4G wireless
* 400M Stable Wifi Signal in the Open Air and Pass through 3 walls indoor
* Support HDMI/VGA;1 SATA max 6T
* Support 1 RJ45;2 USB interface;2pcs 5dbi detachable wifi antenna

* With 1m reticle*1;Power adaptor*5;USB Mouse*1 ;1 network port;
* With 4pcs 1080P IR bullet cameras, 1/2.7″ 2.0MP sensor, 4mm lens, with 5dbi antenna
* 4pcs IR Array LED, IR distance 20 meters

Waterproof Camera

H.265 1080P

Aluminum Housing with great thermal conductivity

4pcs LED with 15-20M IR

IP66 Waterproof

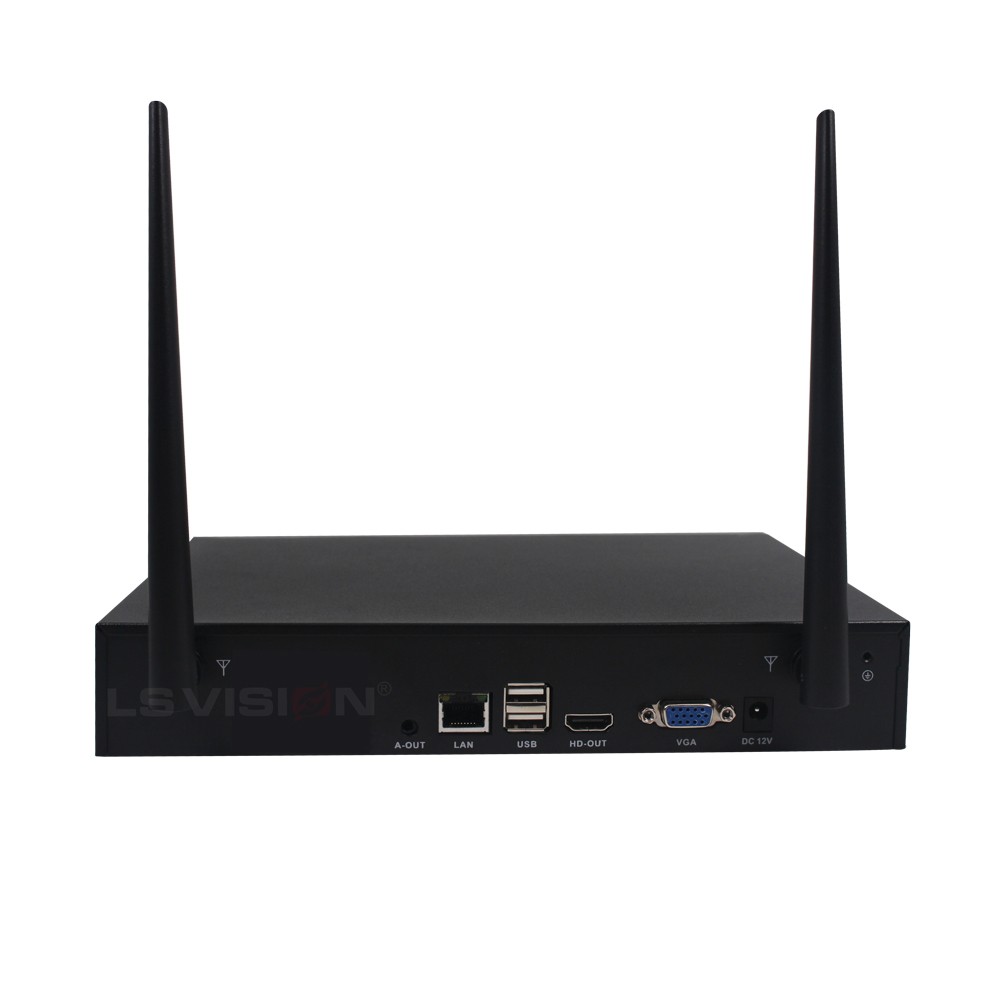

H.265 NVR

Record space saving half than H.264

Support 1 sata, max 6TB HDD
HDMI & VGA Output

WAN port to P2P remote control

Specification

H.265 WIFI NVR Technical Parameters:
Product	H.265 WIFI NVR
Main Processor	Latest Industrial Embedded Microcontrollers(MSR620Q)
operating system	Embedded LINUX operating system
system resource	Simultaneous multi-channel real-time recording, real-time playback, multiple multi-user network operations, USB backup
Operation interface	24-bit true color graphic menu operator interface with mouse operation
Screen display	1/4 Screen
Image coding	BaseLine Profile / Main Profile / High Profile
Playback quality	1080P
Video access	4-way 1080P device access storage
Motion Detection	396 (22*18) detection areas per screen; sensitivity can be set
Audio compression	G711.A,G711.U
monitor	not support
Record mode	Manual> Alarm> Motion Detection> Timing
Local playback	4-way 1080P playback
Video search	Point-in-time search, calendar search, event search, channel search
Backup method	USB,Mobile hard disk
Video output	1 VGA, 1 HDMI
Audio output	1
Network	1*RJ45 10M/100M Adaptive Ethernet port
USB	2 USB 2.0
hard disk	1 SATA(Maximum support 6T hard drive)
antenna	2 150MbpsAntenna interface
power supply	DC 12V 2A
weight	1.0kg(Without hard disk)
Working humidity	10%-90%
Operating temperature	-10℃–50℃
size	48389433(mm)

H.265 WIFI IPC Technical Parameters:
Product	H.265 WIFI IP Camera
Effective Pixels	2MP, 1920(H)*1080(V)
sensor	1/2.7″CMOS
Minimum illumination	0.05Lux/F1.2(color);0.01Lux/F1.2(B&W)
Electronic shutter	NTSC:1/30—1/10000 second;PAL:1/25—1/10000 second
Day & night conversion mode	ICR IR_CUT
Video compression standard	H.265
H.265 Coding type	PROFILE_BASELINE
Image format	1920*1080(1080P)
Frame rate	50Hz:15fps/60Hz:15fps
Masking settings	Supports 4 sets of masking block settings
Image settings	Brightness, Contrast, Saturation, Gain, Shutter, White Balance, etc. Adjustable
Color to black	support
Smart alarm	Motion detection, occlusion alarm, video loss, network cable disconnection, IP address conflict
supporting agreement	TCP/IP,DHCP,HTTP,HTTPS,NTP,DNS,RTP,RTSP
General function	One-click recovery, dual stream, heartbeat, mirroring, video cover, anonymous access, etc.
Communication Interface	One RJ45 10M/100M adaptive Ethernet port
WIFI antenna interface	Support 8188EUS etc.
Lens	4mm
power supply	DC12V
Power	≤6W
working environment	-10℃~50℃,30%~80%RH
size	175(L)66(W)66(H)mm(Without antenna)

Customer Feedback

Certification

Brand & CCTV Project

LS VISION Global Brand

At present, LS VISION partners and customers all over the world, including dealers, agents, engineers and security importers, end consumers and other different customer groups, in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh, Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries region, set up an exclusive agency, and we have been have been making great efforts to expend our global agency or distribution area.

LS VISION Global Security Project

LS VISION products and solutions used in a number of countries and regions, Such as the Saudi Arabian Jeddah International Book Fair Project in 2017 and 2018; CITY Center MAKKAH CCTV Project in 2018; the Fath Gas Station Project in 2017, the Peruvian Bass Amas Plaza Project, the Panama Airport and other major security projects have played an important role.

LS VISION

LS VISION will keep our key value of Quality. Innovation. Dedication to do more research for the products to bring more value for our partners in the 2019.

In 2019, LS VISION products strategy:
Industry market:
IPC: 2MP to 8MP 4K Series IP Camera and HD NVR system.
Analog HD: 2MP to 8MP series and DVR system.
AI series: Face recognition camera and NVR system.
4G Solar Camera system

Consumer Market:
Wifi NVR Kit, POE Nvr Kit;
wifi Battery Cameras, wifi PTZ Camera, Smart Doorbell etc.

Welcome To Be LS VISION Partners

LS VISION: For a Better World
