In order to better adapt to the diversified needs of customers,Shenzhen LSVISION Technology Co., Ltd. has been working hard to develop products. It has been proved that techniques can efficiently improve work efficiency and ensure product performance.It has extensive uses in the application field(s) of CCTV Camera. It is technologies that keep a company stands out from other competitors.Shenzhen LSVISION Technology Co., Ltd. will focus on improving our currently-used manufacturing technologies and will never stop innovating and developing our own core technologies. We hope that one day we will become a leader in the industry.
| Place of Origin: | Guangdong, China | Brand Name: | LSVISION |
| Model Number: | LS-PB23401M | Warranty: | 1 years |
| Special Features: | Human Motion Tracking, NIGHT VISION, Motion Detection, Waterproof / Weatherproof | Sensor: | CMOS |
| Style: | BULLET CAMERA | Function: | Waterproof / Weatherproof, NIGHT VISION, Built-in Mic |
| Video Compression Format: | H.265 | Data Storage Options: | Cloud, NVR, Micro SD card |
| Application: | Indoor, Outdoor | Customized support: | Online technical support, Customized logo, OEM, ODM, Software reengineering |
| Model: | LS-PB23401M | Image Sensor: | 1/3″ CMOS |
| Pixels: | 2MP/4MP | Lens: | 2.8-12 mm lens |
| Video Streaming: | 2688×1520 @30fps | System: | Lite OS |
| IR Distance: | 40M | Network: | Ip |
| Storage: | NVR/Memory card |

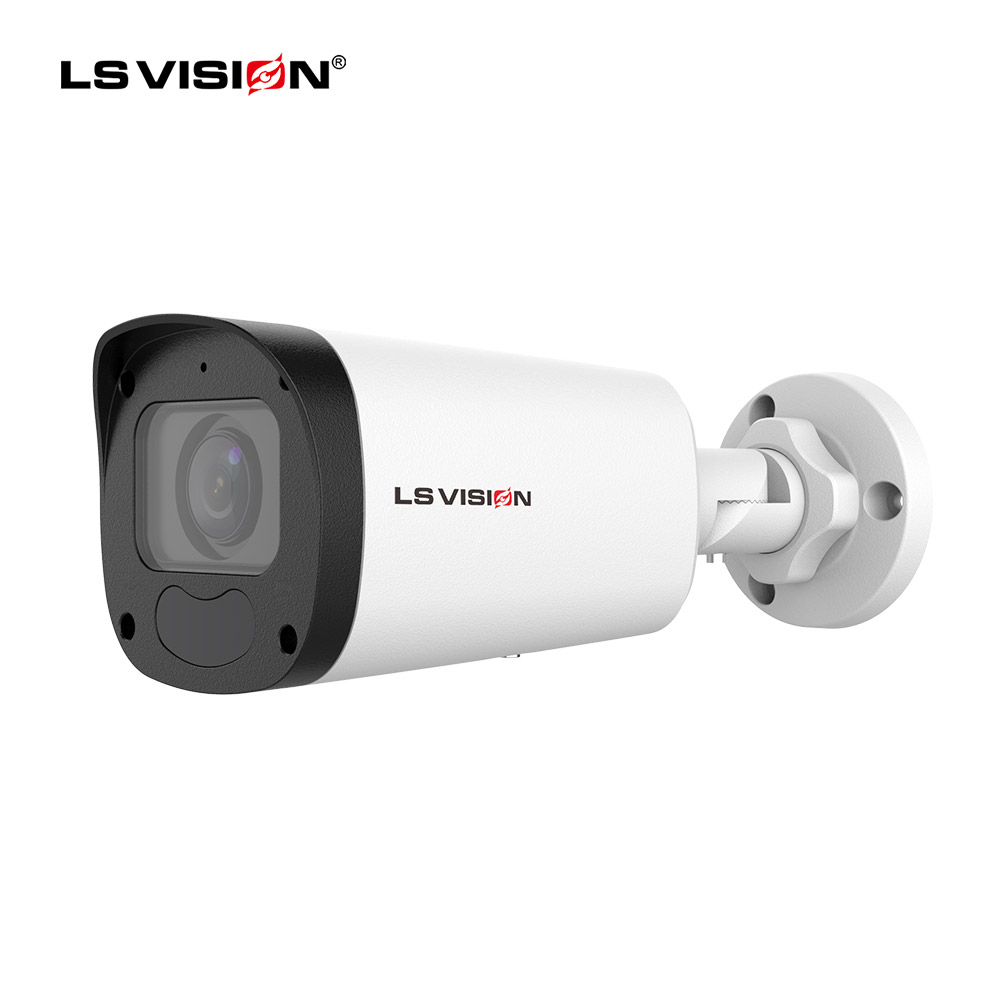

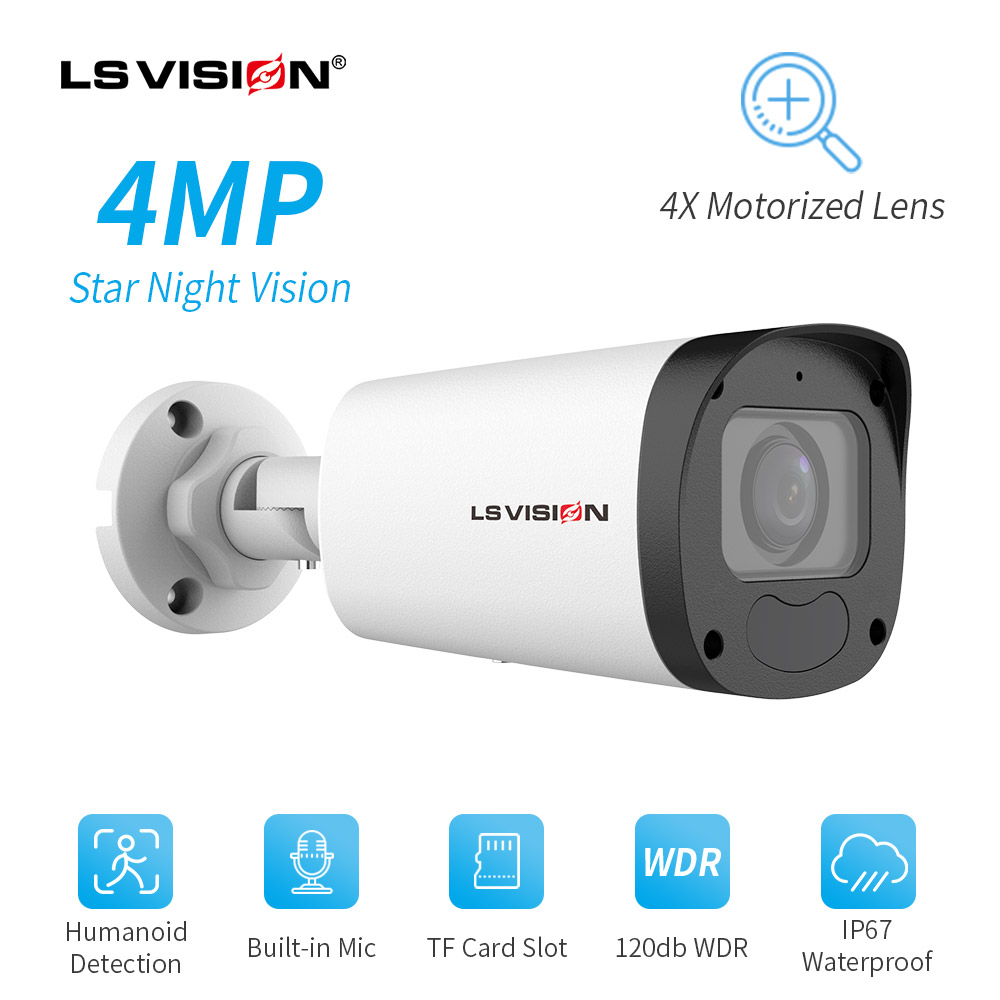

LS VISION CCTV Security camera WDR 2MP/4MP Motorized lens color nigh vision Humanoid detection POE camera system
More Recommendation
Product Description
|
Model
|
LS-PB23401M
|
||
|
Camera
|
1/3″, 4.0 megapixel, progressive scan, CMOS
|
||
|
Lens
|
2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
|
||
|
Shutter
|
Auto/Manual, 1 ~ 1/100000s
|
||
|
Effective Pixels
|
2688*1520
|
||
|
Minimum
Illumination |
Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON)
0Lux with IR |
||
|
Day/Night
|
IR-cut filter with auto switch (ICR)
|
||
|
Digital Noise
Reduction |
2D/3D DNR
|
||
|
S/N
|
>56dB
|
||
|
IR Range
|
Up to 40m IR range
|
||
|
Wavelength
|
850nm
|
||
|
IR On/Off Control
|
Auto/Manual
|
||
|
Defog
|
Digital Defog
|
||
|
WDR
|
120dB
|
||
|
Video
|
|||
|
Video Compression
|
Ultra 265, H.265, H.264, MJPEG
|
||
|
H.264 Code Profile
|
Baseline profile, Main profile, High profile
|
||
|
Frame Rate
|
Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max
30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
||
|
Video Bit Rate
|
128 Kbps~16 Mbps
|
||
|
9:16 Corridor Mode
|
Supported
|
||
|
OSD
|
Up to 4 OSDs
|
||
|
Privacy Mask
|
Up to 4 areas
|
||
|
ROI
|
Up to 8 areas
|
||
|
Motion Detection
|
Up to 4 areas
|
||
|
|
|||
|
White Balance
|
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
|
||
|
Digital Noise
Reduction |
2D/3D DNR
|
||
|
Smart IR
|
Support
|
||
|
Flip
|
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
|
||
|
Dewarping
|
N/A
|
||
|
HLC
|
Supported
|
||
|
BLC
|
Supported
|
||
|
Audio
|
|||
|
Audio Compression
|
G.711
|
||
|
Suppression
|
Supported
|
||
|
Sampling Rate
|
8KHZ
|
||
|
Storage
|
|||
|
Edge Storage
|
Micro SD, up to 256GB
|
||
|
Network Storage
|
ANR, NAS(NFS)
|
||
|
Smart
|
|||
|
Behavior Detection
|
Cross line, intrusion(based on human body detection)
motion detection, tampering alarm, audio detection
|
||
|
General Function
|
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication,
HTTP authentication |
||
|
Network
|
|||
|
Protocols
|
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP,
HTTPS, SMTP, SSL, 802.1x, SNMP |
||
|
Compatible
Integration |
SDK (Profile S, Profile G, Profile T)
|
||
|
Web Browser
|
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
|
||
|
Interface
|
|||
|
Network
|
10/100M Base-TX Ethernet
|
||
|
Built-in Mic
|
Supported
|
||
|
General
|
|||
|
Power
|
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.50W
|
||
|
Material
|
Metal
|
||
|

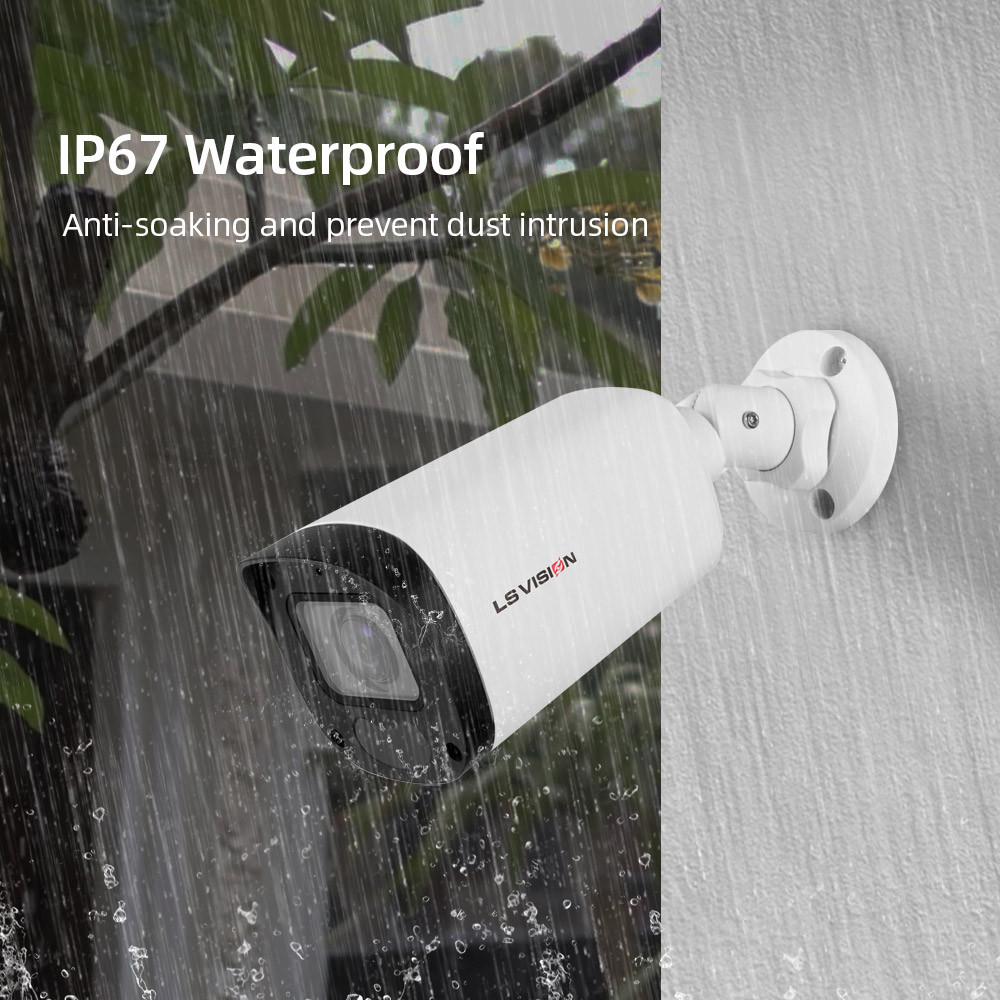

waterproof
|
IP67
|
||
|
Working
Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
||
|
Strorage
Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
|
||
|
Product
size/weight |
206 × 74 × 74mm/0.54kg
|
||
|
Packing size/weight
|
274 × 155 × 115mm/0.74kg
|
||
