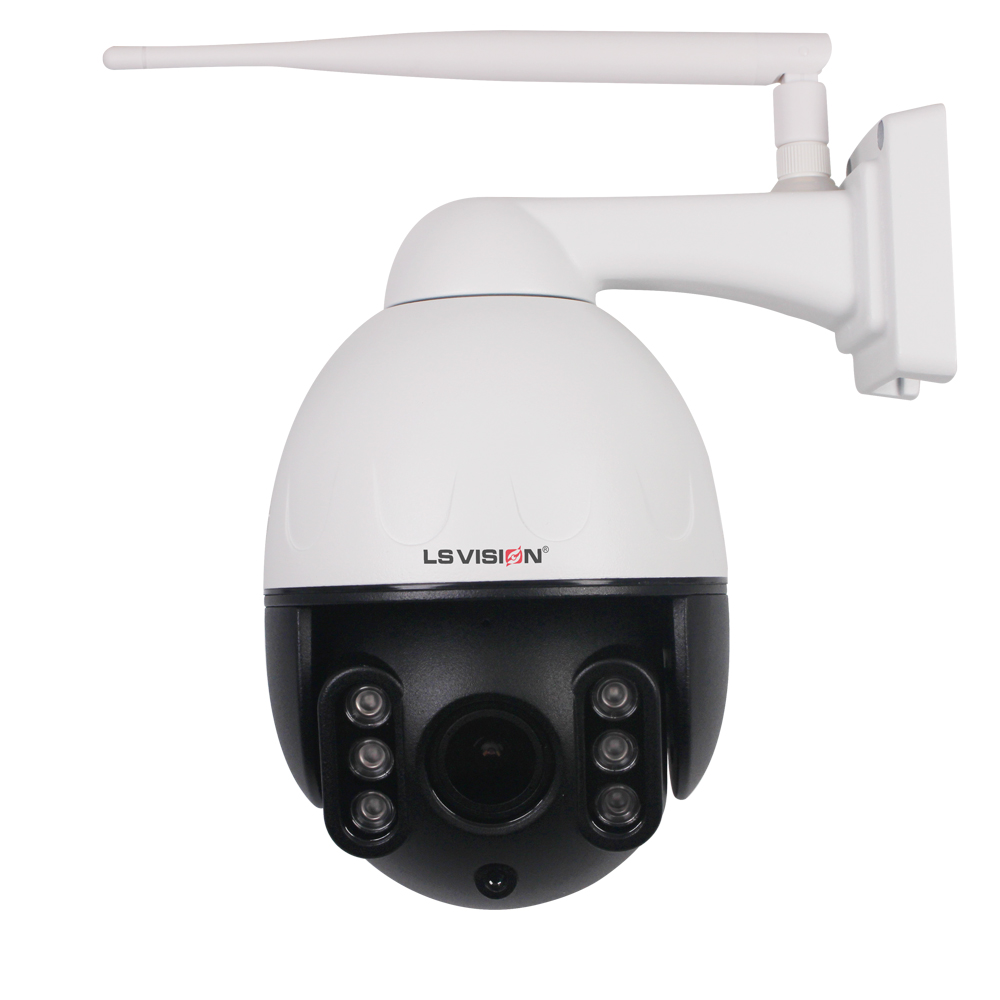

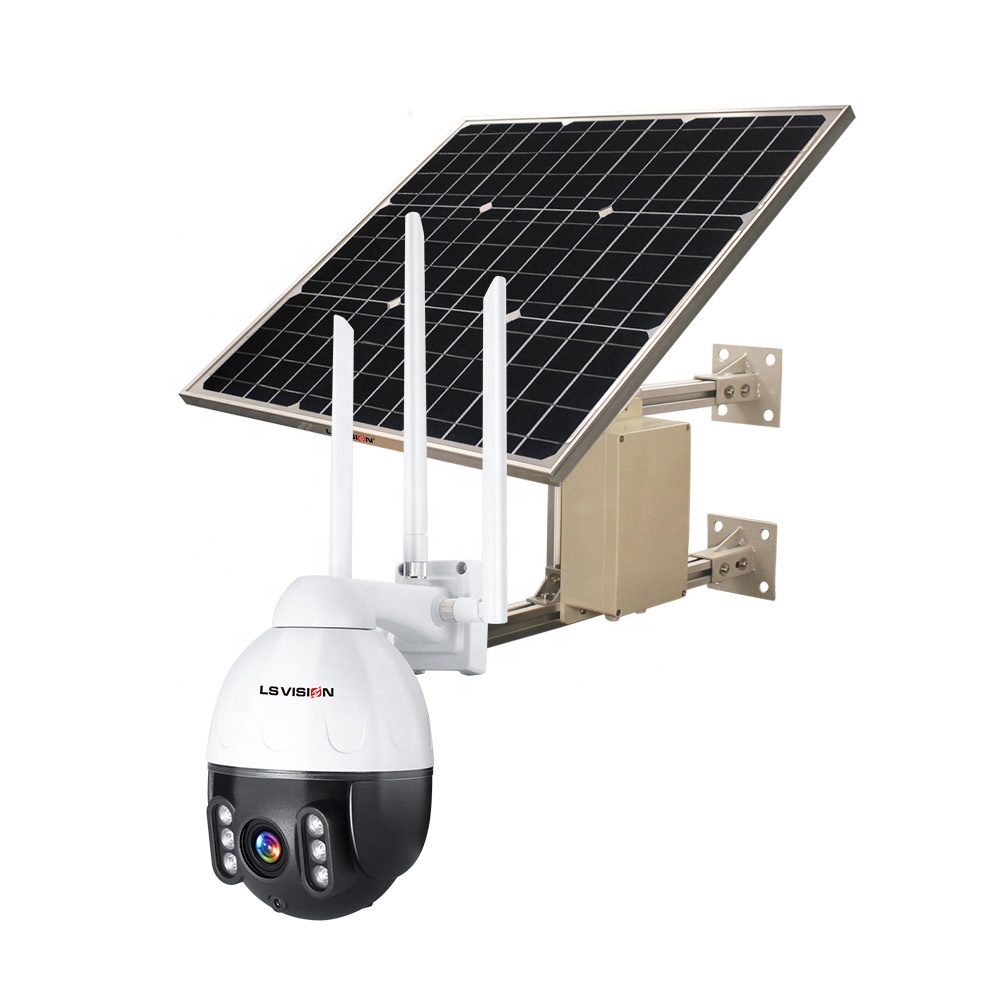

Considering the industry development and customers’ requirements, Shenzhen LSVISION Technology Co., Ltd. has dedicated to the product development and we’ve made great achievements. LS VISION H.265/H.264 1080P Starlight Sensor Outdoor High Speed Dome Ptz Solar Powered WIFI Security Camera Since the beginning,Shenzhen LSVISION Technology Co., Ltd. have been sticking to the business principle of ‘integrity’ and bearing the mind of ‘offering customers the best of us’. We are fully confident that we will make a great success in the future.
| Place of Origin: | Guangdong, China | Brand Name: | LS Vision |
| Model Number: | LS-MP1202 | Warranty: | 1 Year |
| Sensor: | CMOS | Network: | Ip |
| Function: | Two-way Audio | Video Compression Format: | H.265 |
| Data Storage Options: | Cloud, Memory Card, NVR | Application: | Outdoor |
| Customized support: | Customized logo | Technology: | Infrared |
| Compression format: | H.265/H.264 | Image Sensor: | 1 / 2.8″ IMX307 Starlight sensor |
| Lens: | Fixed 3.6mm lens, motorized lens optional | Resolution: | 2MP, 5MP Optional |
| IR Range: | 30m IR distance | SNR: | 60dB> >60dB |
| Day/Night: | Auto(ICR) / Color / B/W / Extend | Lumination: | 0.001LUX |
| SD card: | Max 128gb | Channels: | No |
| Certification: | No |
Hi3516E+ 1 / 2.8“ IMX307 Starlight sensor 0.001LUX，H.265/H.264

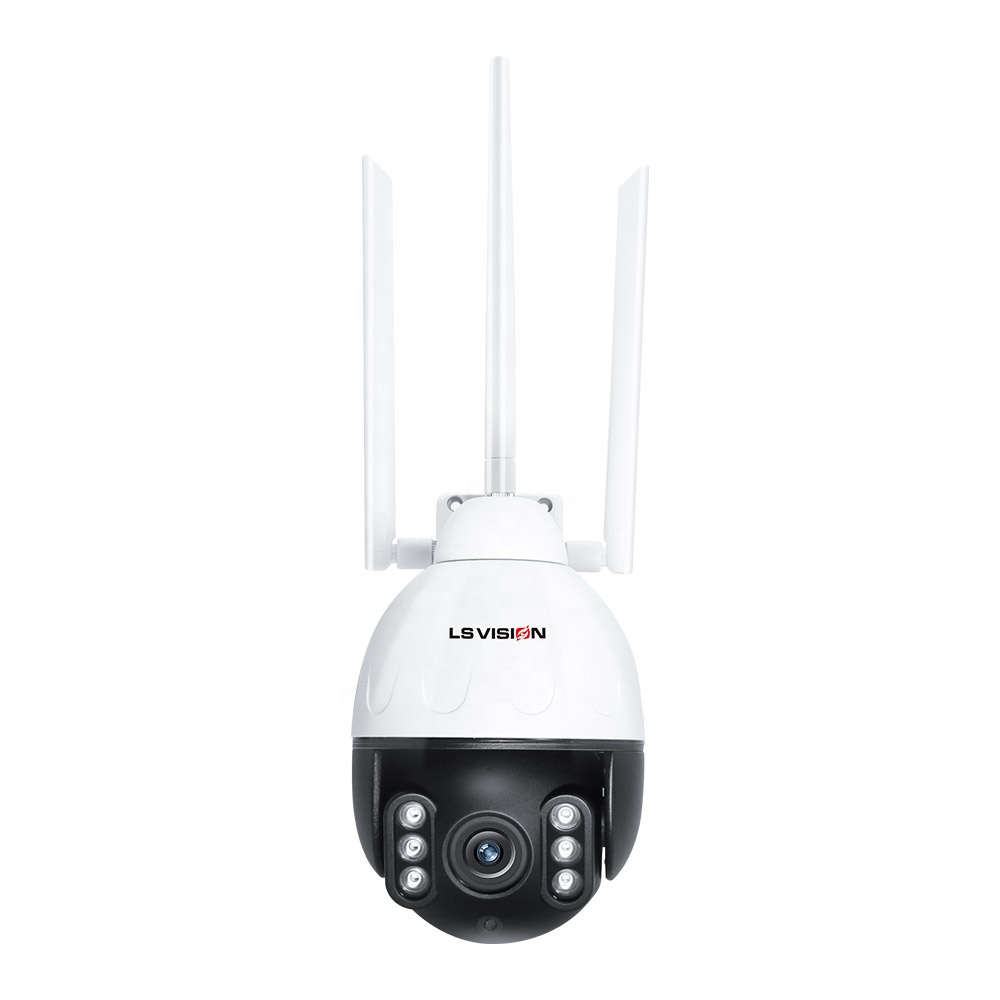

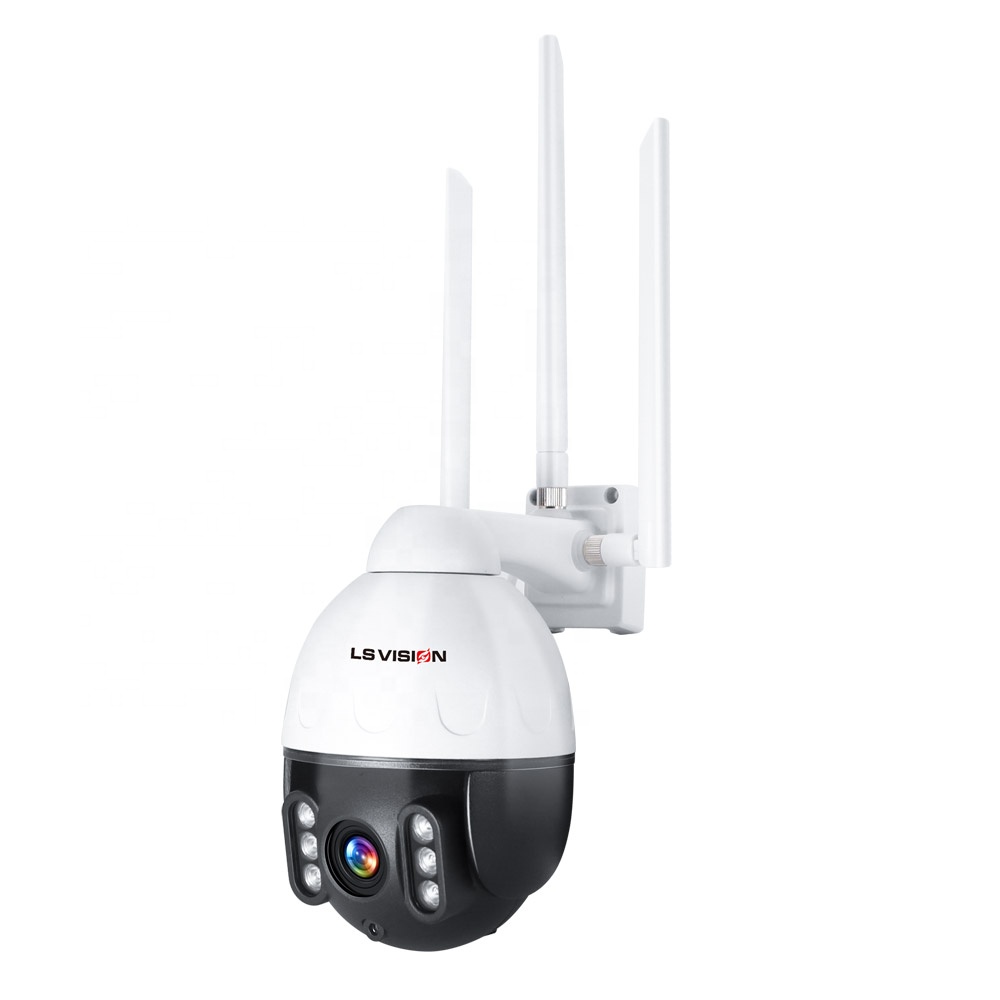

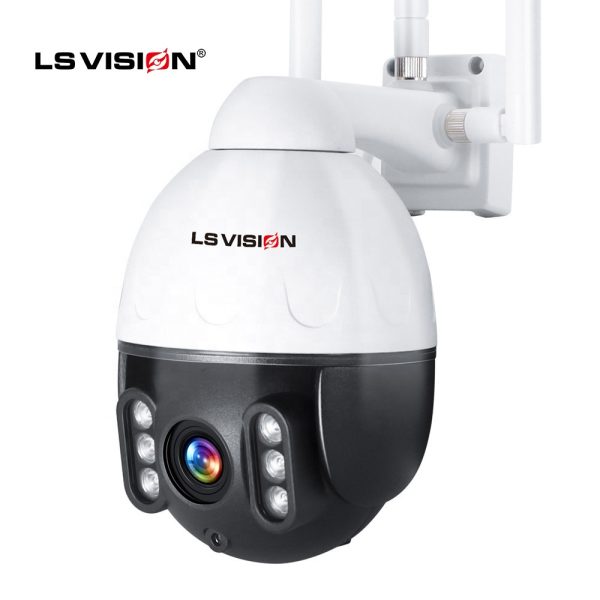

4G WIFI PTZ camera
2.4 megapixel Resolution 1280 x 1080

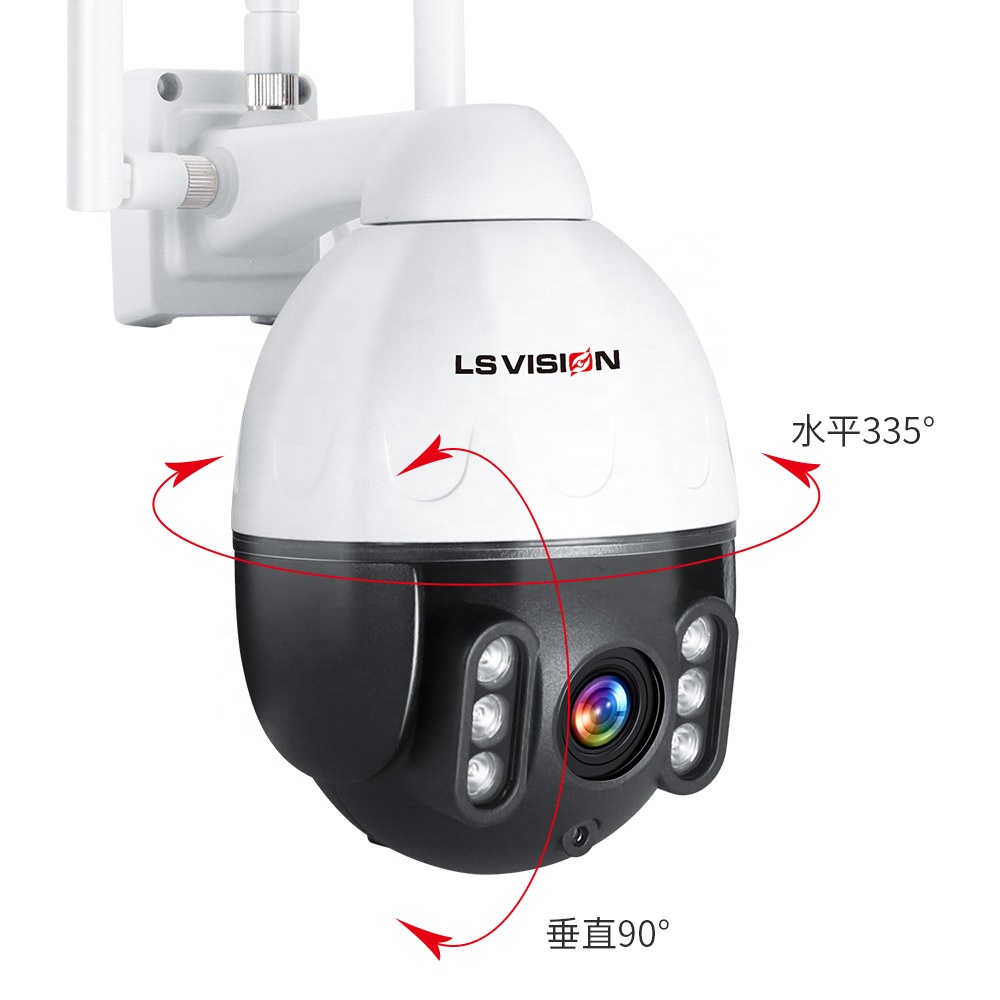

H.265, Onvif ,horizontal rotate 355 degree
TF card slot / POE / Alarm interface
Fixed 3.6mm lens as default
6 pcs imported SEL powerful SDM array IR
30 meters in darkenvironment effective night vision
DC 12V power supply/POE IEEE802.3af
|
LS-MP1200S
|
||
|
Media Processor
|
Hi3516E+ 1 / 2.8“IMX307
|
|
|
Image Sensor
|
1/2.8″ HD CMOS
|
|
|
Varifocal Lens
|
Fixed 3.6mm lens as default
|
|
|
Day&Night
|
IR cut filter with auto switch
|
|
|
Video Compression
|
H.265/H.264
|
|
|
Resolution
|
1920 x 1080
|
|
|
Automatically recognize protocol
|
PELCO D / PELCO P
|
|
|
Alarm Trigger
|
Motion detection, tampering alarm, network disconnect, storage exception
|
|
|
Protocols
|
IPv4/IPv6,RTSP/RTP/RTCP,TCP/UDP,HTTP,
DHCP,DNS,FTP,DDNS,PPPoE,SMTP,
QOS ,Onvif
|
|
|
Onvif
|
V2.4 Version
|
|
|
Browser
|
IE(8,9,10,11),Chrome,Firefox,Safaribetc,etc
|
|
|
Reset
|
A reset button (press and hold 3 seconds valid)
|
|
|
Operating Conditions
|
-40℃ ~ 70℃,humidty less than 95%
|
|
|
Power Supply
|
DC12V±10%, PoE (802.3af)
|
|
|
Power Consumption
|
<2.5W
|
|
|
Weather proof rating
|
IP66
|
|
|
Optional function
|
TF card slot / POE / Alarm interface / 2.8-12mm lens
|
|

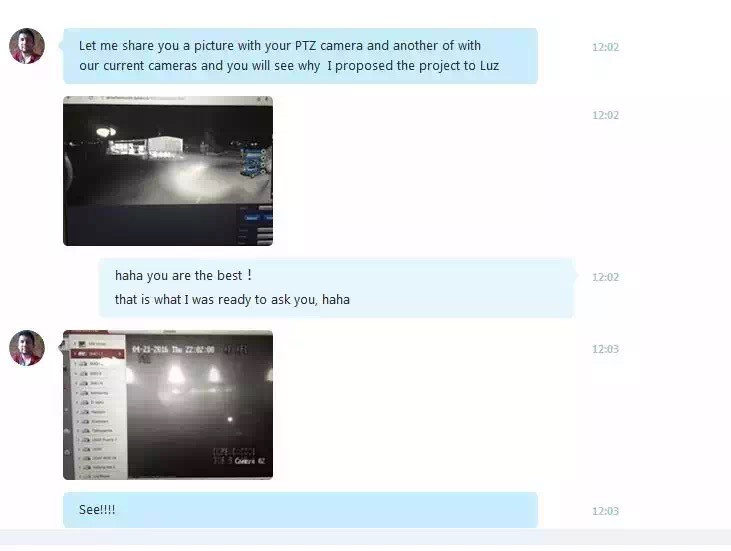

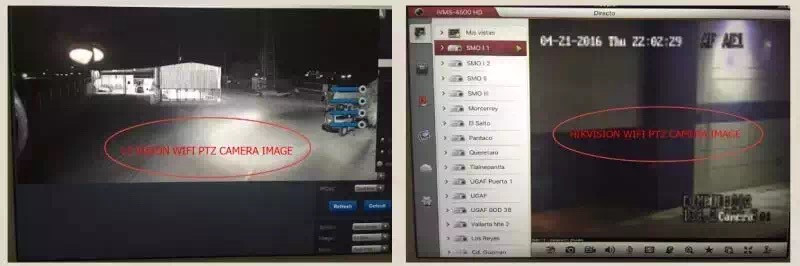

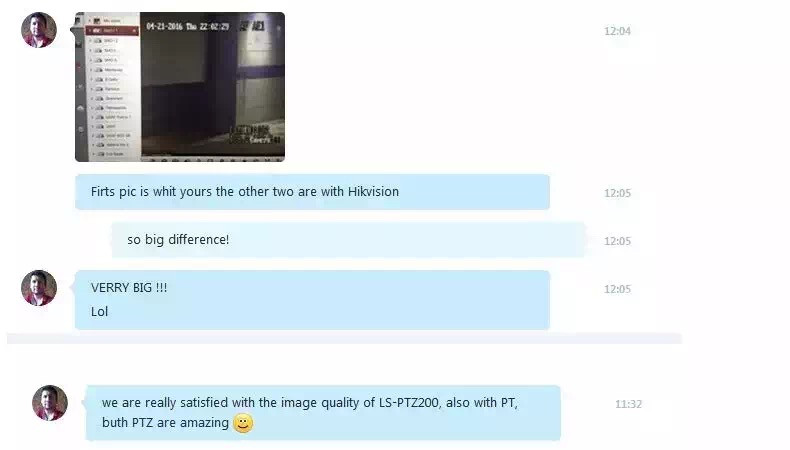

Compared with HIKVISION WIFI PTZ
LS VISION Global Brand
At present, LS VISION partners and customers all over the world, including dealers, agents, engineers and security importers, end consumers and other different customer groups, in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh, Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries region, set up an exclusive agency, and we have been have been making great efforts to expend our global agency or distribution area.
LS VISION Global Security Project

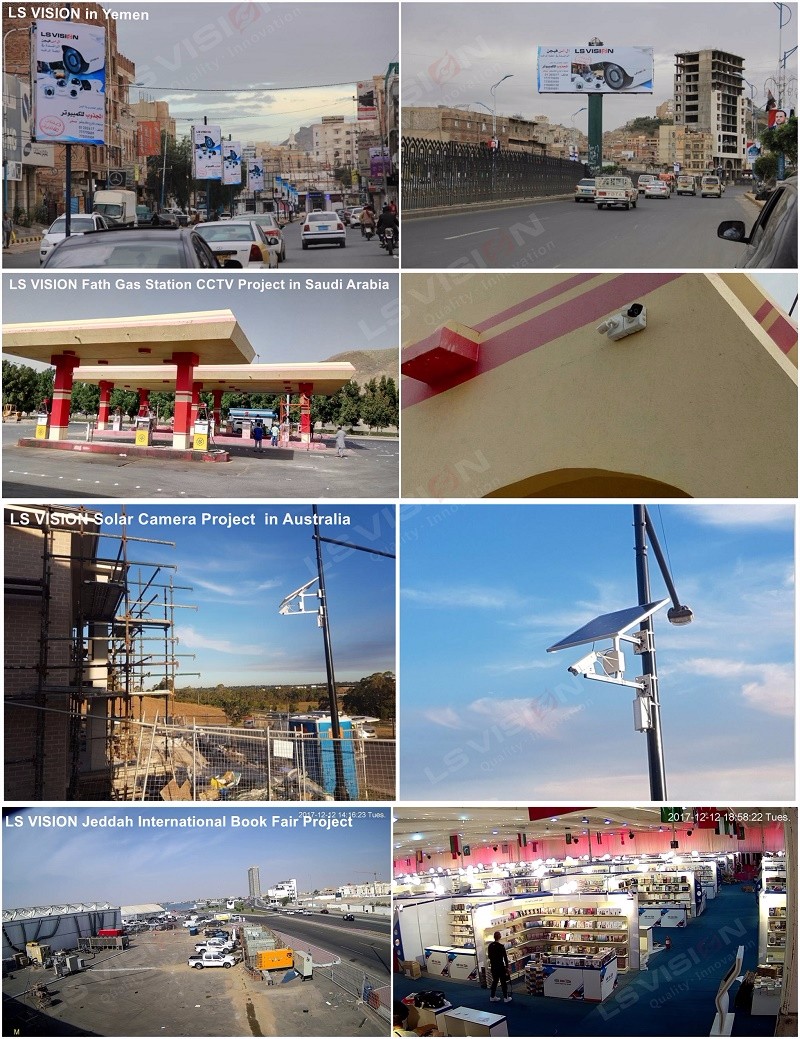

LS VISION products and solutions used in a number of countries and regions, Such as the Saudi Arabian Jeddah International Book Fair Project in 2017 and 2018; CITY Center MAKKAH CCTV Project in 2018; the Fath Gas Station Project in 2017, the Peruvian Bass Amas Plaza Project, the Panama Airport and other major security projects have played an important role.
LS VISION will keep our key value of Quality. Innovation. Dedication to do more research for the products to bring more value for our partners in the 2019.
In 2019, LS VISION products strategy:
Industry market:

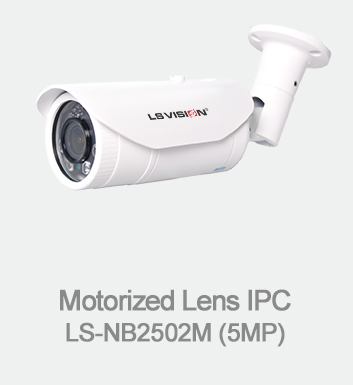

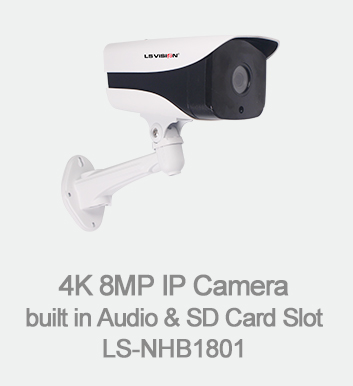

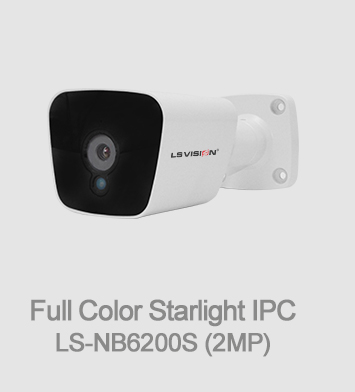

IPC: 2MP to 8MP 4K Series IP Camera and HD NVR system.
Analog HD: 2MP to 8MP series and DVR system.
AI series: Face recognition camera and NVR system.

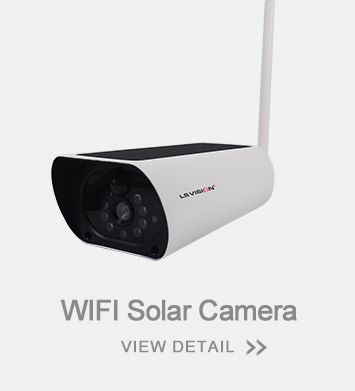

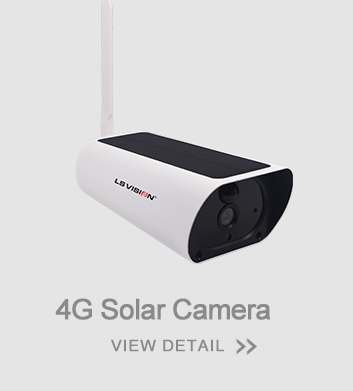

4G Solar Camera system
Consumer Market:

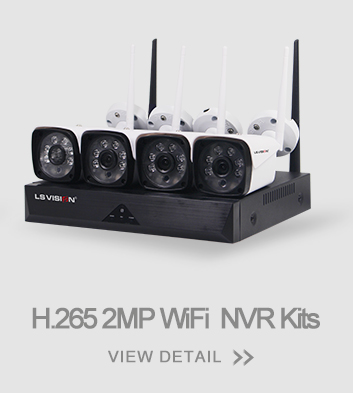

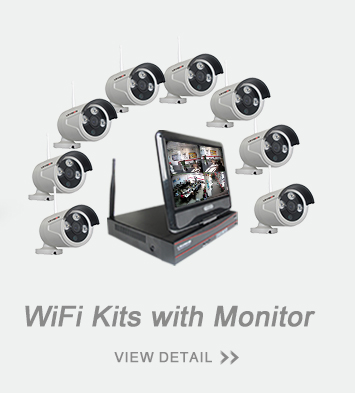

Wifi NVR Kit, POE Nvr Kit;
wifi Battery Cameras, wifi PTZ Camera, Smart Doorbell etc.
