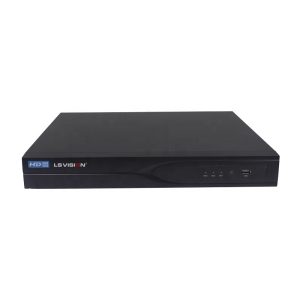

Thanks to the efforts of our employees including technicians and designers, Shenzhen LSVISION Technology Co., Ltd. is able to introduce our .LS VISION H265 Mobile APP P2P Remote View Alarm Face Detection 16 Channel Network Video Recorder 5MP 8MP 4K 16CH NVR to the public. After years of growth and development, we have been mastering the manufacturing technologies maturely. As its advantages continue to be discovered, it is continually used in more field(s) such as . It is technologies that keep a company stands out from other competitors.Shenzhen LSVISION Technology Co., Ltd. will focus on improving our currently-used manufacturing technologies and will never stop innovating and developing our own core technologies. We hope that one day we will become a leader in the industry.
| Place of Origin: | Guangdong, China | Brand Name: | LS VISION |
| Model Number: | LS-NF5216 | Channel: | 16CH NVR |
| Feature2: | 96M Access Bandwidth | Video Output: | CVBS, VGA |
| Video Decoding: | H.265/ H.264 | POE port: | NON |
| HDD: | 2 Sata | Max IP channel resolution: | 3264×2448 |
| Main Processor: | Hi3536 | Audio: | Support |
| P2P: | Support | Video Compression Format: | H.265 |
H.265 compression
Access capability 1 – 5 megapixel ip camera
Support ONVIF 2.4
Support 2 SATA
Full HDMI output, support HDMI, VGA, CVBS synchronization output
How to do the connection of LS VISION POE NVR ?
|
Module
|
LS-NF5216 16CH NVR
|
|
OS
|
Embedded Linux
|
|
Master chip
|
Hi3536
|
|
Video Copression
|
H.265
|
|
Access Bandwidth
|
96M
|
|
Bidirectional Talk
|
1 CH(Line in,2Vpp,1Kohms)
|
|
Audio Output
|
1CH,BNC(Line out,2Vpp,300ohms)
|
|
IP Resolution
|
Main stream:up to 5632×4224
Sub stream: no more than D1 |
|
Synchronous Playback
|
Up to 16CH
|
|
Bidirectional Talk
|
Two-way voice intercom function
|
|
Motion Detection
|
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
|
|
Intelligent features
|
1CH face detection, 2ch boundary analysis (optional)
|
|
Network Interface
|
1 RJ45 10M/100M/1000M adaptive Ethernet interface
|
|
HDD
|
Support 2 SATA
|
|
Weight
|
3.0 Kg(without HDD)
|
|
Power Supply
|
DC12V
|
|
Working Temperature
|
-10℃–+55℃
|
|
Working Humidity
|
10%–90%
|
|
Consumption
|
10W(without HDD)
|
IP Camera Series Package
NVR Series Package
LS VISION Global Brand
At present, LS VISION partners and customers all over the world, including dealers, agents, engineers and security importers, end consumers and other different customer groups, in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh, Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries region, set up an exclusive agency, and we have been have been making great efforts to expend our global agency or distribution area.
LS VISION Global Security Project
LS VISION products and solutions used in a number of countries and regions, Such as the Saudi Arabian Jeddah International Book Fair Project in 2017 and 2018; CITY Center MAKKAH CCTV Project in 2018; the Fath Gas Station Project in 2017, the Peruvian Bass Amas Plaza Project, the Panama Airport and other major security projects have played an important role.
LS VISION will keep our key value of Quality. Innovation. Dedication to do more research for the products to bring more value for our partners in the 2019.
In 2019, LS VISION products strategy:
Industry market:
IPC: 2MP to 8MP 4K Series IP Camera and HD NVR system.
Analog HD: 2MP to 8MP series and DVR system.
AI series: Face recognition camera and NVR system.
4G Solar Camera system
Consumer Market:
Wifi NVR Kit, POE Nvr Kit;
wifi Battery Cameras, wifi PTZ Camera, Smart Doorbell etc.
