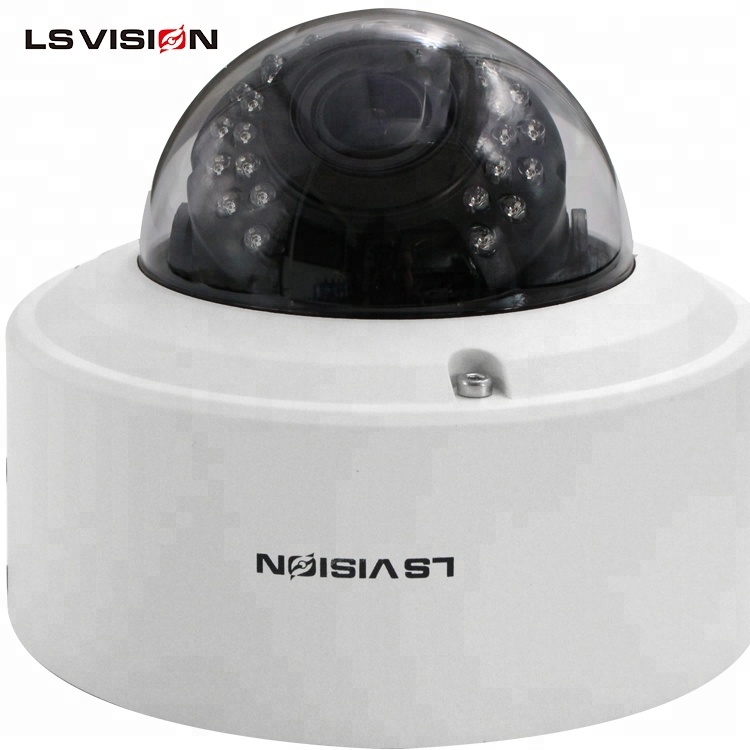

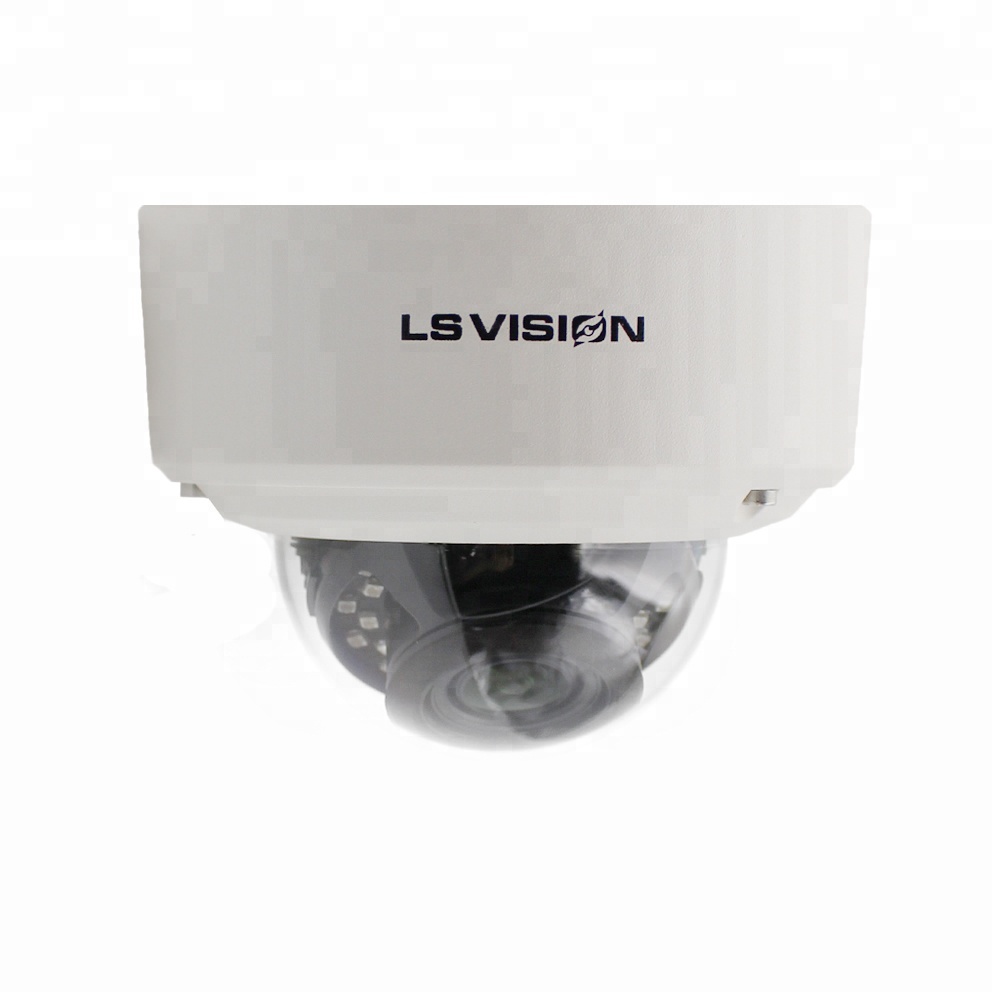

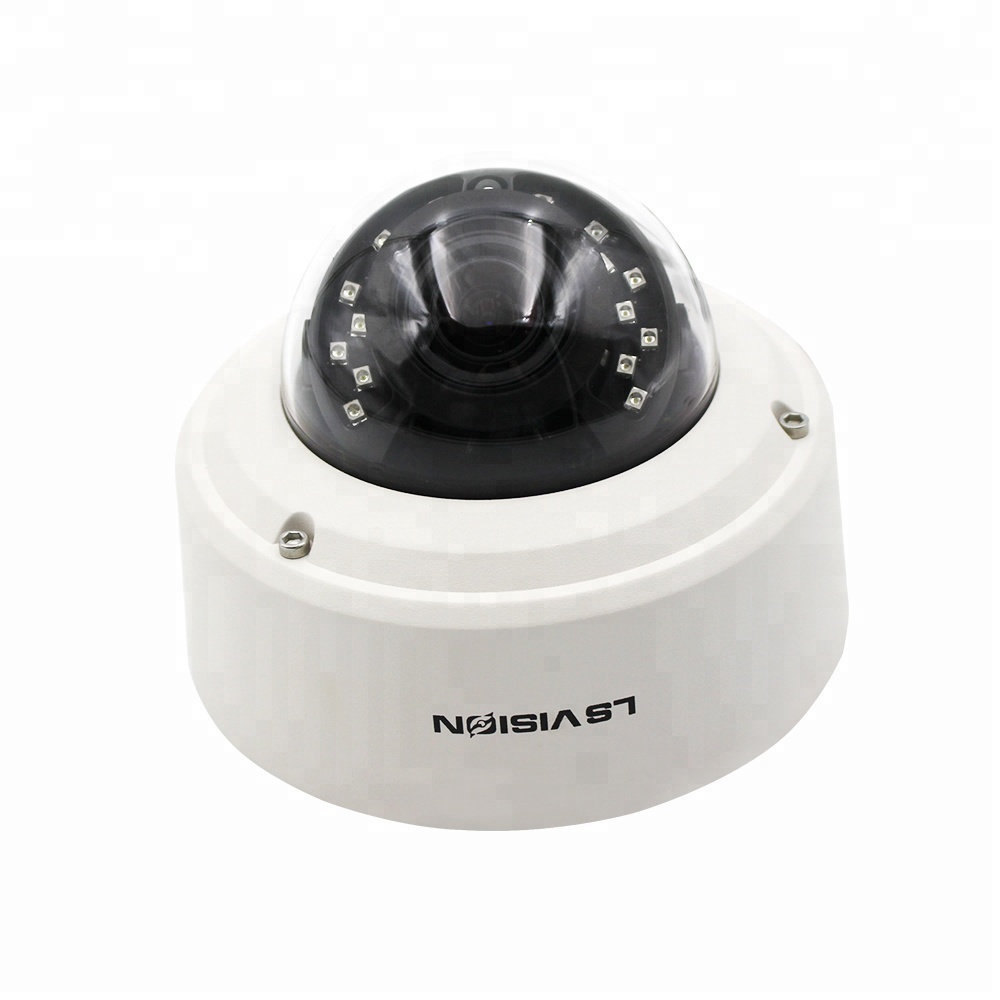

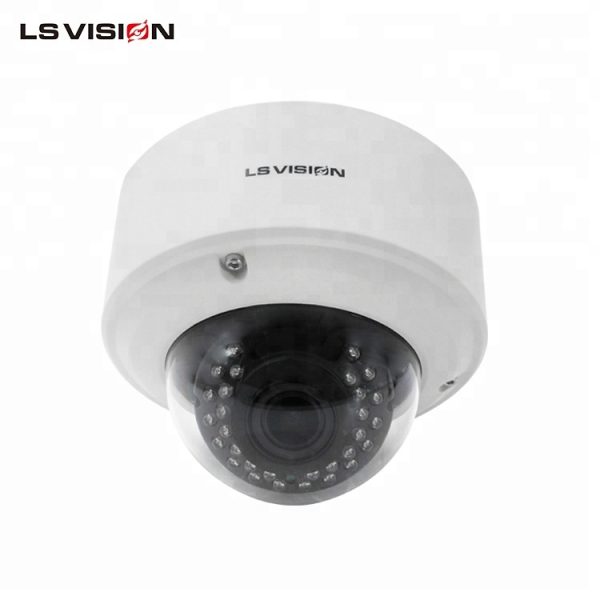

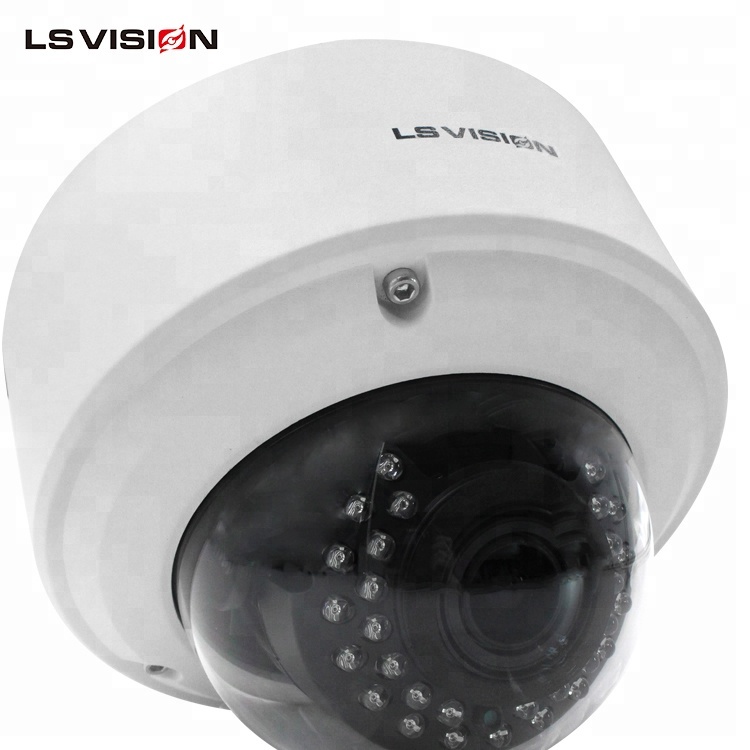

LS VISION Professional Waterproof Surveillance System 4X Motorized Zoom 120DB WDR P2P POE H.265 8MP UHD Dome IP 4K Video Camera

Driven by the competitive market, we have improved our technologies and been skilled at utilizing technology to manufacture the product. It has been proved that the product can be used in the application field(s) of CCTV Camera and has an extensive application prospect.

Share to:

For manufacturing LS VISION Professional Waterproof Surveillance System 4X Motorized Zoom 120DB WDR P2P POE H.265 8MP UHD Dome IP 4K Video Camera requiring flexible craftsmanship and high-end technologies.The product is suitable for a wide range of industries like CCTV Camera. It is designed to meet the industry standard. Our expertise and technologies enable tailor-made solutions for every customer.

Place of Origin:	Guangdong, China	Brand Name:	LS VISION
Model Number:	LS-NDB803M	Warranty:	1 Year
Special Features:	NIGHT VISION, Motion Detection, Waterproof / Weatherproof	Sensor:	CMOS, 1/2.5″ IMX274 CMOS,Hi3516A
Style:	BULLET CAMERA	Function:	Waterproof / Weatherproof, NIGHT VISION
Video Compression Format:	H.265	Data Storage Options:	Cloud, NVR
Application:	Outdoor	Customized support:	Customized logo
Key Feature1:	IR cut filter with auto switch	Key Feature3:	8 Megapixels
Lens:	4x Motorized Lens	Electronic Shutter:	AUTO, 1/25s ~ 1/100000s
POE:	Support	IR Range:	20-25 meters
WDR:	Support	Waterproof:	IP66
Certification:	ce, FCC

Hot Models

More Recommendation

Product Description

LSVISION Motorised Lens 120DB WDR P2P POE H.265 8mp UHD Professional Video Camera 4k Waterproof

Key Features:

-1/2.5″ CMOS sensor

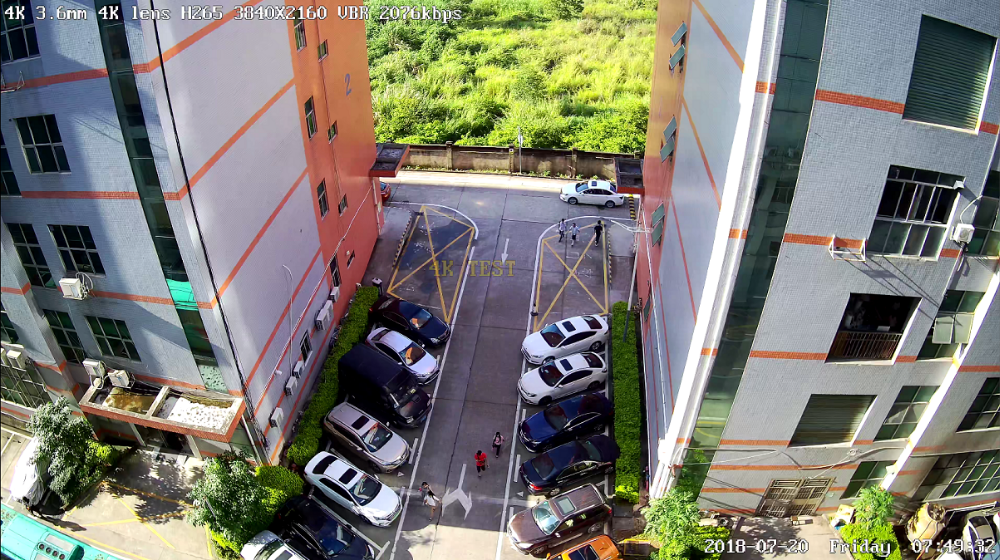

-4K resolution 3840 x 2160P

-Low illumination 0.01Lux

-Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT

-D-WDR,Mirror, rotate, Defogging

-Multiply Style OSD Overlay,Motion Detection, Privacy Mask

-RTSP and compatible with many third-party NVR

-H.264/H.265 dual-stream media server

-Easy-to-use P2P Cloud service

-Support user authentication, video data encryption

-Support Alarm Snapshot to Email and FTP

-Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access

-Lightning protection 4000V

-Strong water-proof housing IP66

-24 pcs SMD IR Led, IR distance 25-30 meters

Specification

Product name:	LS-NDB803M 4K Video Camera
Image Sensor	1/2.5″ IMX274 CMOS
Effective Pixels	8 megapixels
Electronic Shutter	AUTO, 1/25s ~ 1/100000s

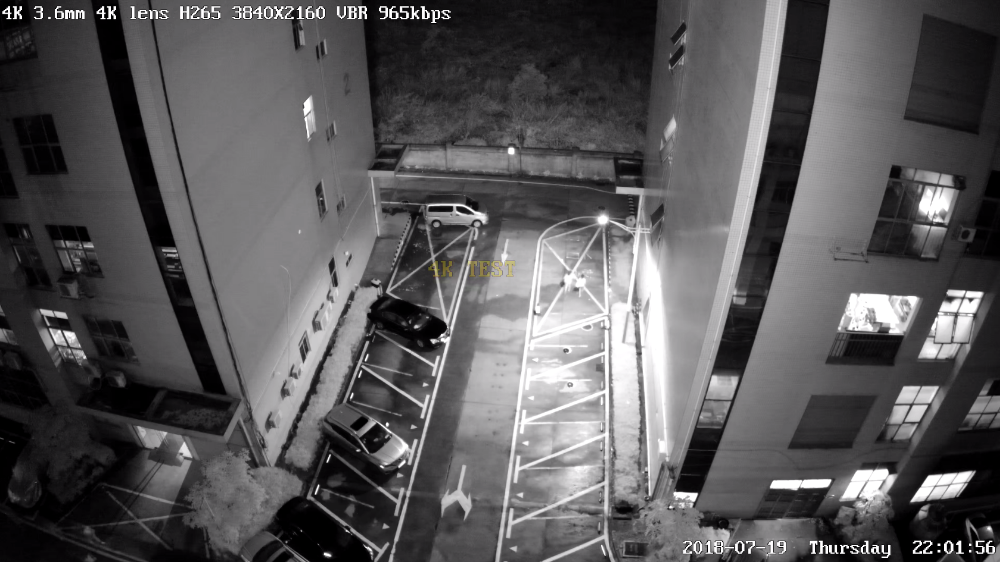

Min. Illumination	0.01Lux@ F1.2(AGC ON), 0Lux IR on
Day/Night	Auto/Color/(B/W)/Timing
WDR	Digital WDR
White Balance	Auto/Manual
BLC /HLC	Support
DNR	2D/3D DNR
Other	AGC,Motion Detection,Privacy Mask,Flip,Rotate,RIO,OSD overlay
Embedded Solution	Hi3516A
Video Standard	H.264/H.265
Video Resolution	MainStream:15fps@8MP(3840×2160),30fps@6MP(3072×2048)/5MP(2592×1520)/ 3MP/1080P/720P,etc. Sub stream: 720×480/VGA(640×480)/360P/QVGA@30fps,etc.
Video Bitrates	512Kbps – 12Mbps, VBR/CBR
Audio Standard	G.711-u/G.711-a
OSD Overlay	Title and Time overlay ,custom color adjustable
IR Led	24pcs Array leds
IR Distance	25-30 Meters
Focal length	3.3 -12 mm Motorized Lens
Zoom	4x optical zoom
Protocol	HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP/NFS, etc.
P2P	Yes
Web	IE , Firefox 32bit ESR
Media	CMS, Android, IOS
	17.06 compatible
Network Port	1-RJ45, 100Mbps, POE optional
Power Supply	12 VDC ± 10%
Power Consumption	< 8 W
Operating Temp.	-30℃-(+60)℃, 10%-90%RH
