Thanks to the efforts of our employees including technicians and designers, Shenzhen LSVISION Technology Co., Ltd. is able to introduce our .LSVISION H.265 IP POE 1080P Starlight Sensor 50M Night Vision Infrared CCTV Security Camera Support Motorized Optical Zoom to the public. Designed by professional designers, LSVISION H.265 IP POE 1080P Starlight Sensor 50M Night Vision Infrared CCTV Security Camera Support Motorized Optical Zoom is attractive in its appearance. In essence, product performance and its quality are largely decided by its raw materials. In terms of raw materials of LSVISION H.265 IP POE 1080P Starlight Sensor 50M Night Vision Infrared CCTV Security Camera Support Motorized Optical Zoom, they have gone through plenty of tests on their chemical components and performance. In this way, the IP Camera/NVR/Solar Camera/Smart Battery Camera quality is guaranteed from the source.
Place of Origin: | Guangdong, China | Brand Name: | LS VISION |
Model Number: | LS-NPT1202MS-4X | Special Features: | Waterproof / Weatherproof |
Sensor: | CMOS | Key Fearure1: | PTZ Camera, 4x optical zoom |
Key Fearure2: | Support level 30°/S rotation, vertical 25°/S rotation | Key Fearure3: | Supports presets, patrol scans, linear scans and watch functions |
Image sensor: | MSC313E+1/2.8″ CMOS SONY307 | Resolution: | 1920*1080@20fps ; 1920*720@30fps |
Lens: | 2.8-12 mm motorized lens | Day& Night: | Color/(B/W)/Timing |
Audio: | Optional, if you choose audio, you can’t have a built-in POE. | IR distance: | 50m IR distance |
Function: | IP66, POE, WDR |

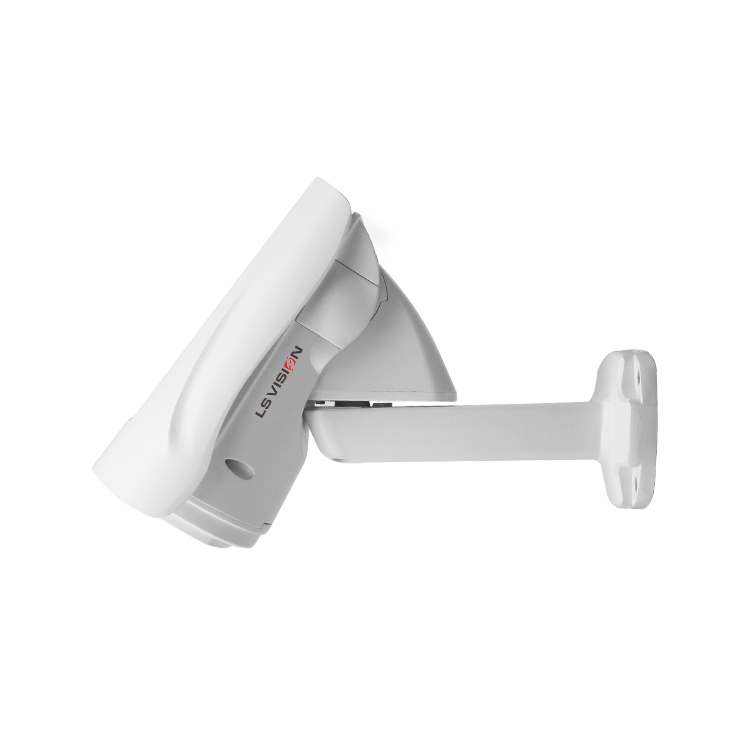

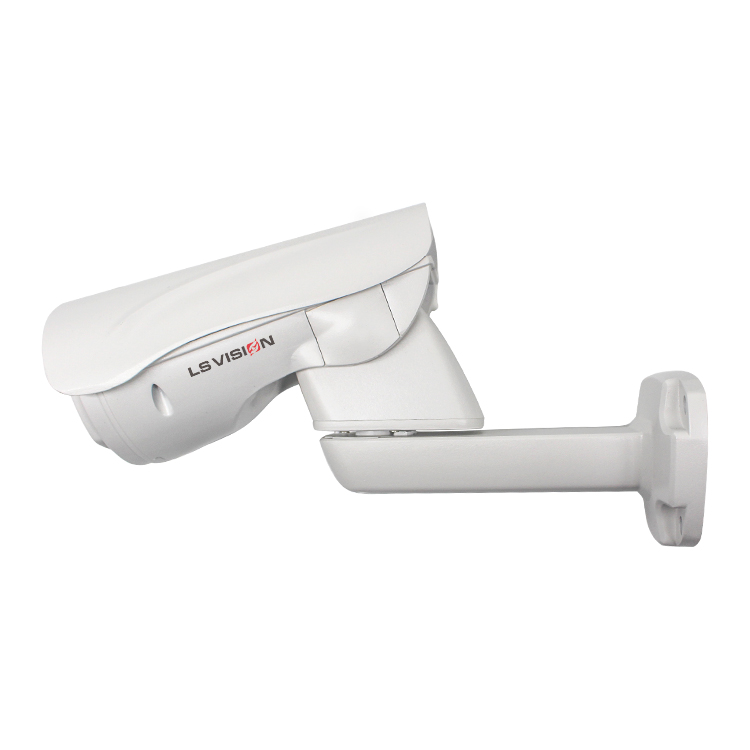

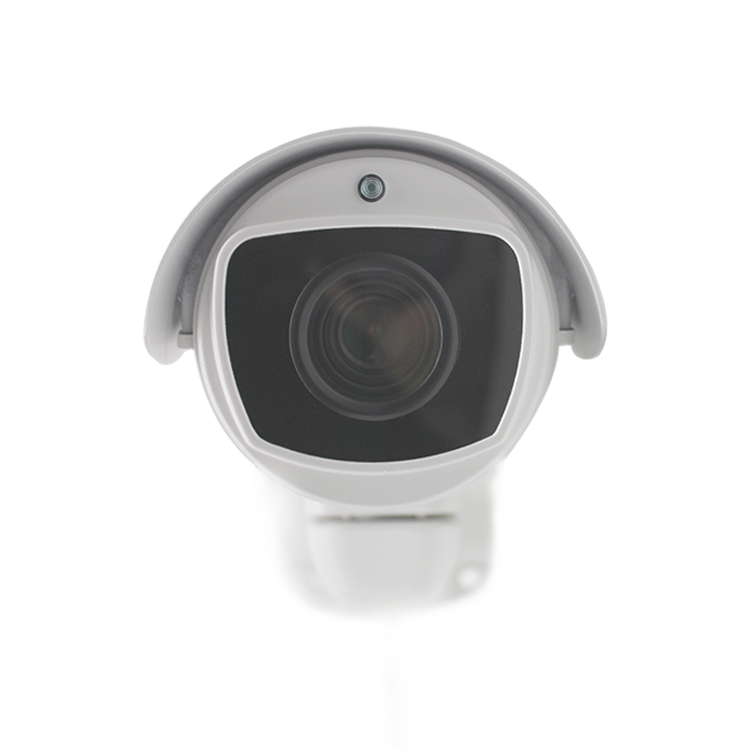

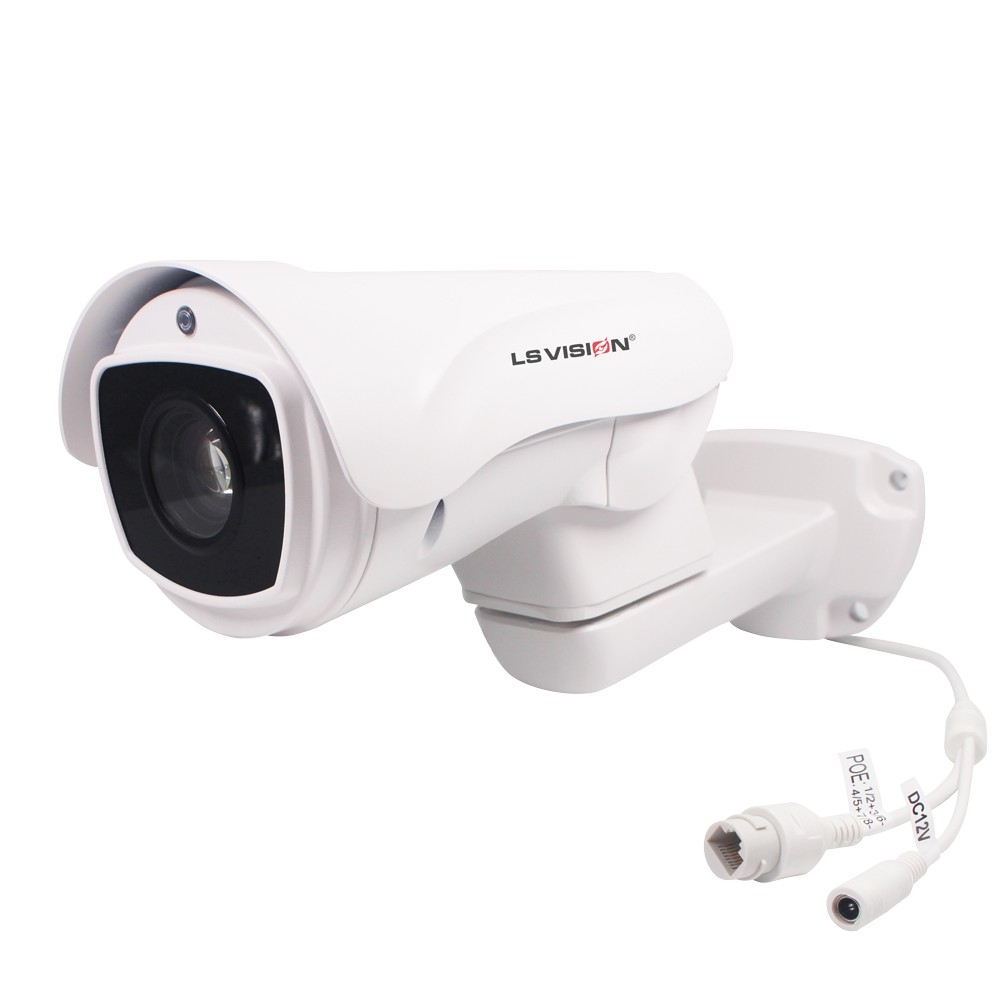

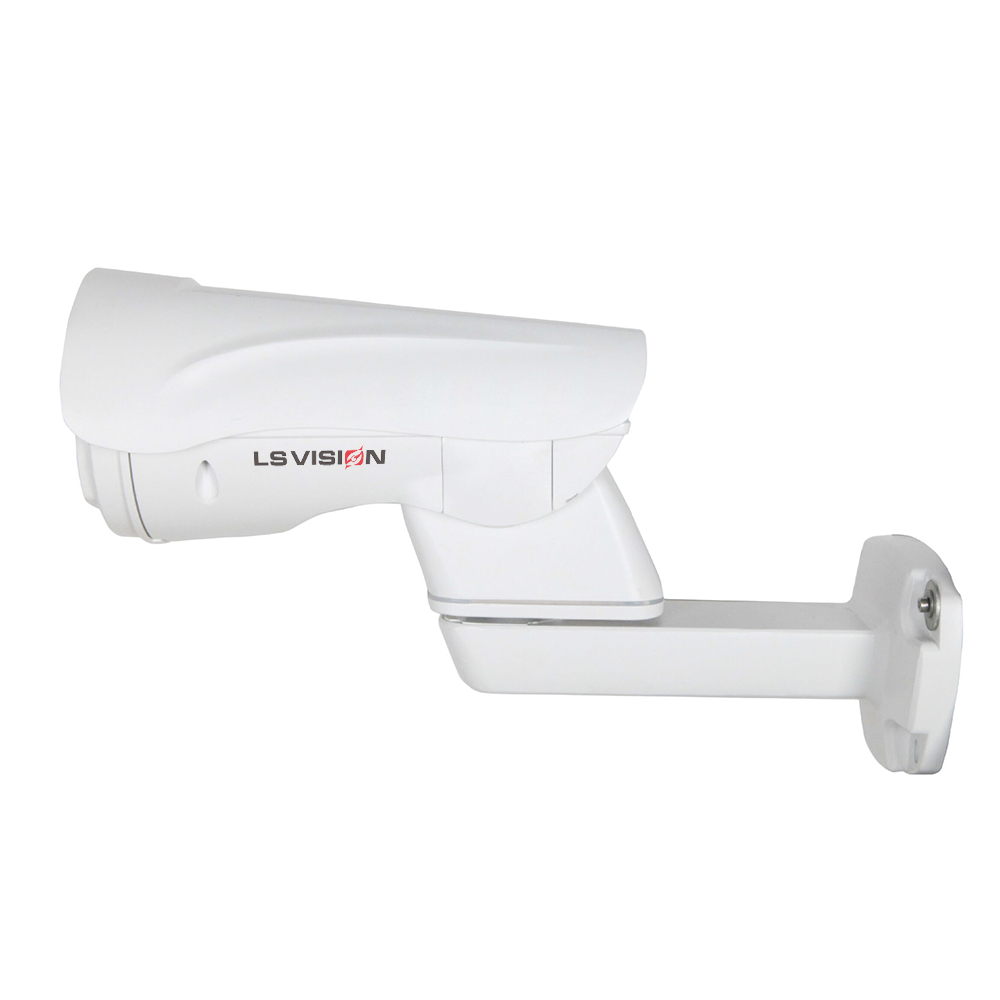

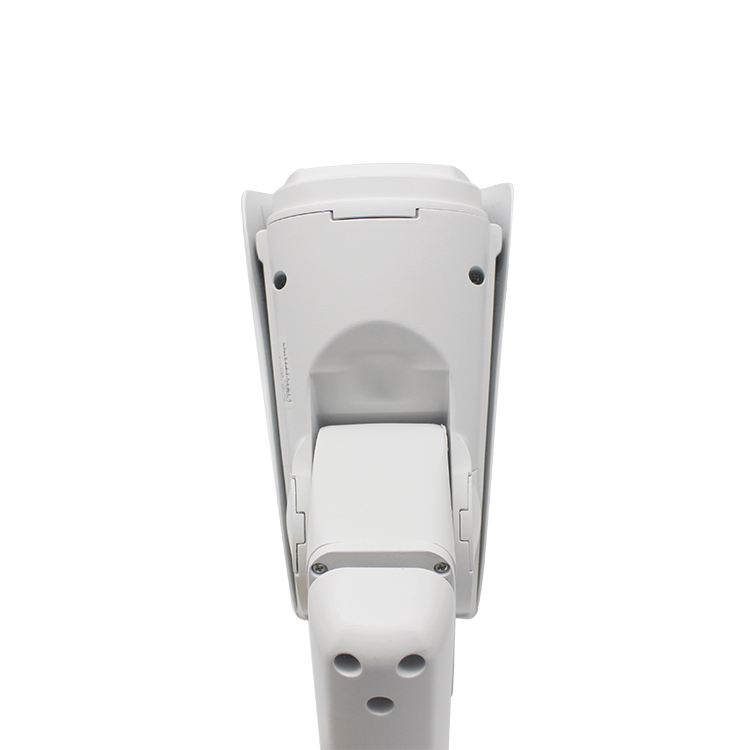

LSVISION 1080P Starlight 50M Night Vision Infrared Bullet CCTV HD IP PTZ POE Security Camera
Key Features for 2mp IP PTZ Bullet Camera:
2,All-metal structure, craftsmanship
3,PTZ camera, 4x optical zoom
4,3D digital noise reduction, electronic image stabilization, auto iris, autofocus and other functions
5,Support level 30°/S rotation, vertical 25°/S rotation
6,Supports presets, patrol scans, linear scans and watch functions
7,Support OSD menu operation and prompt function
8,Support power off memory function
9,Support P2P mobile phone monitoring, ONVIF protocol
10,Lightning, Surge, Surge Protection, IP66 Protection Rating










Product name
|

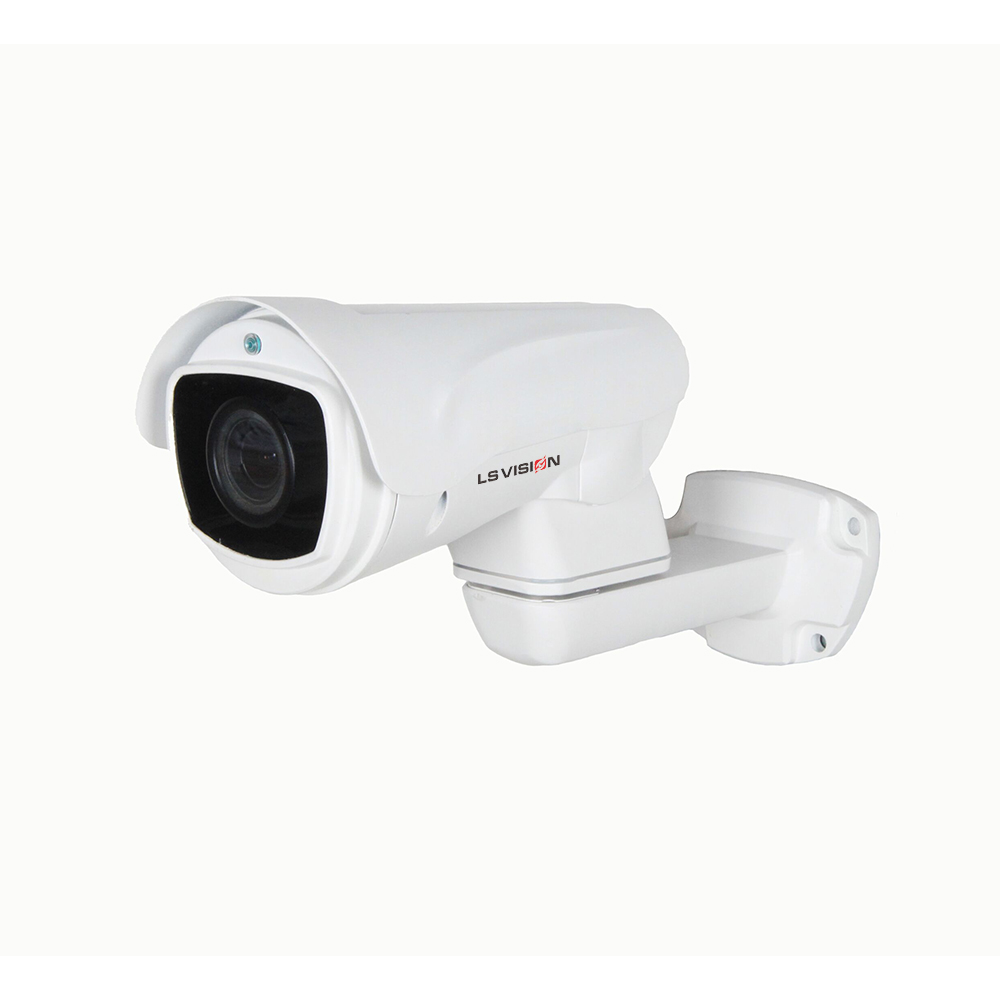

LS-NPT1202MS-4X Starlight IP PTZ Bullet camera
|
Hardware solution
|
MSC313E+1/2.8″ CMOS SONY307 Sensor
|

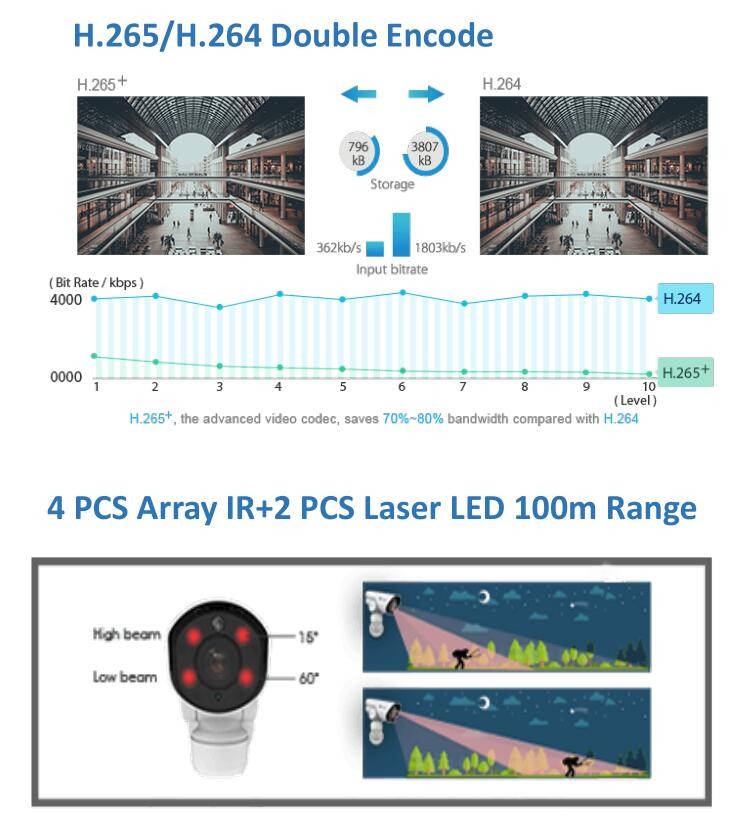

Video Standard
|
H.265/H.264 Double code
|
Video Resolution
|
Main stream:1920*1080@20fps ; 1920*720@30fps Sub stream: 640*480/640*360 ,1-30fps
|
Image Quality
|
Brightness setting, Saturation setting, Sharpness setting, Contrast setting, Auto white balance, Manual white balance setting, Backlight compensation setting, Light suppression setting, Auto exposure, 2D/3D noise reduction intensity setting, Fog mode setting, WDR mode Strength setting
|
Day/Night
|
Color/(B/W)/Timing
|
WDR
|
Digital WDR
|
White Balance
|
Auto
|
AGC/BLC
|
Support
|
DNR
|
2D/3D DNR
|
Other
|
Multi-lines OSD, Motion Detection, Privacy Mask, Mirror, Rotate
|
Audio
|
Optional
|
Focal length
|
2.8-12 mm motorized lens
|
Zoom
|
4x
|
IR Led
|
4 PCS Array IR+2 PCS Laser LED
|
IR Distance
|
50 meters
|
Preset Points
|
220pcs presets(dwell time 01-60s interval available)
|
Guard Tours
|
8 groups( Max.16 points, dwell time user selectable)
|
AB scan range
|

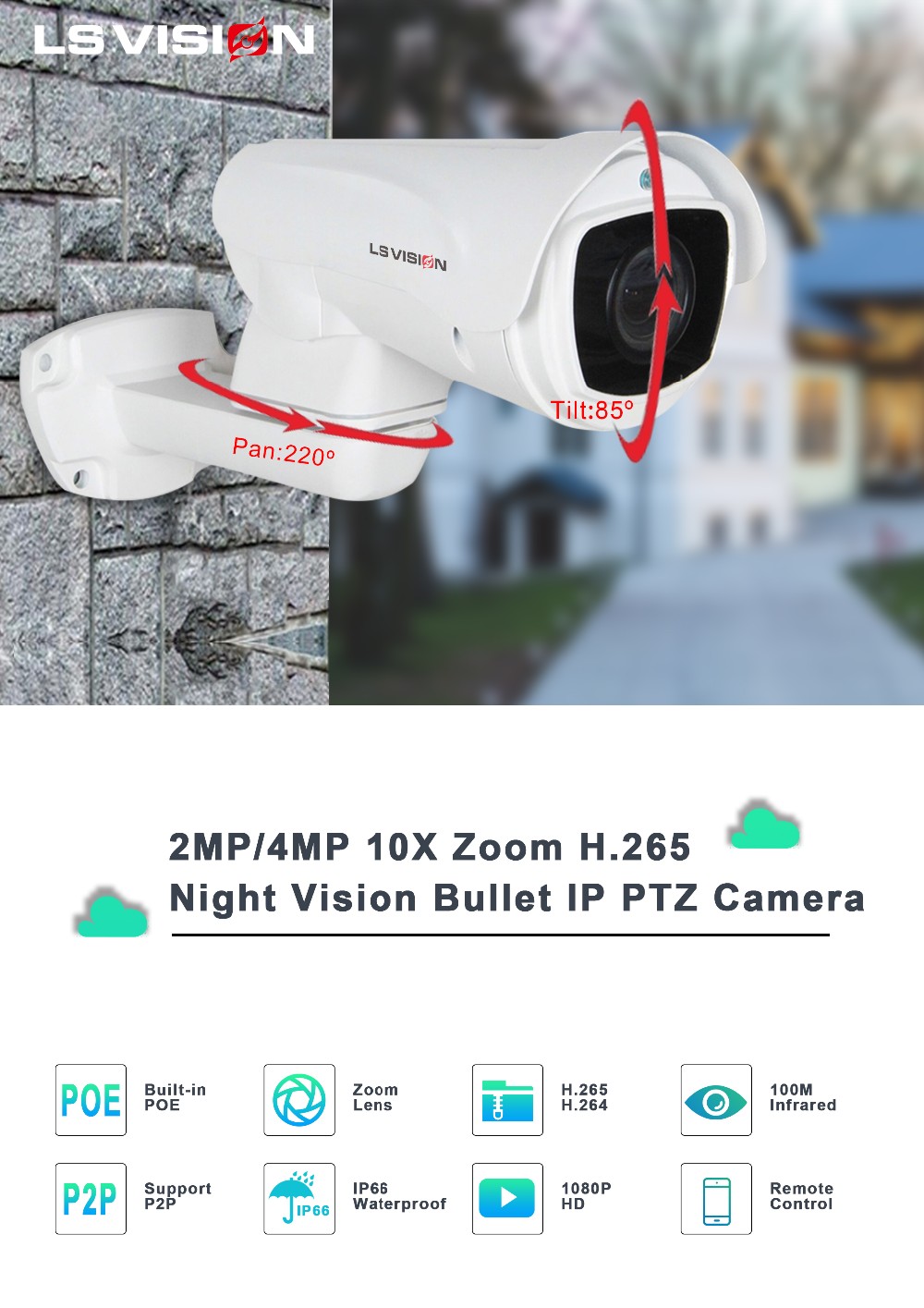

Any point in range:-45º~40º and 0º~200º
|
AB scan speed
|
1-9 grades
|
Operation menu
|
English
|
Lightning Protection
|
Transient voltage 6000V
|
IR Led
|
4 PCS Array IR+2 PCS Laser LED
|
IR Distance
|
50 meters
|
Protocol
|
HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P/UPNP
|
P2P
|
Yes
|
Web
|
IE , Firefox, etc.
|
Media
|
CMS, Android, IOS
|
ONVIF
|
2.6 compatible
|
Network Port
|
1-RJ45, 10/100Mbps
|
Power Supply
|
Support POE 48V 12 VDC ± 10%
|
Power Consumption
|
< 15 W
|
Operating Temp.
|
-30℃-(+70)℃, 10%-90%RH
|










LS VISION Global Brand
At present, LS VISION partners and customers all over the world, including dealers, agents, engineers and security importers, end consumers and other different customer groups, in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh, Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries region, set up an exclusive agency, and we have been have been making great efforts to expend our global agency or distribution area.

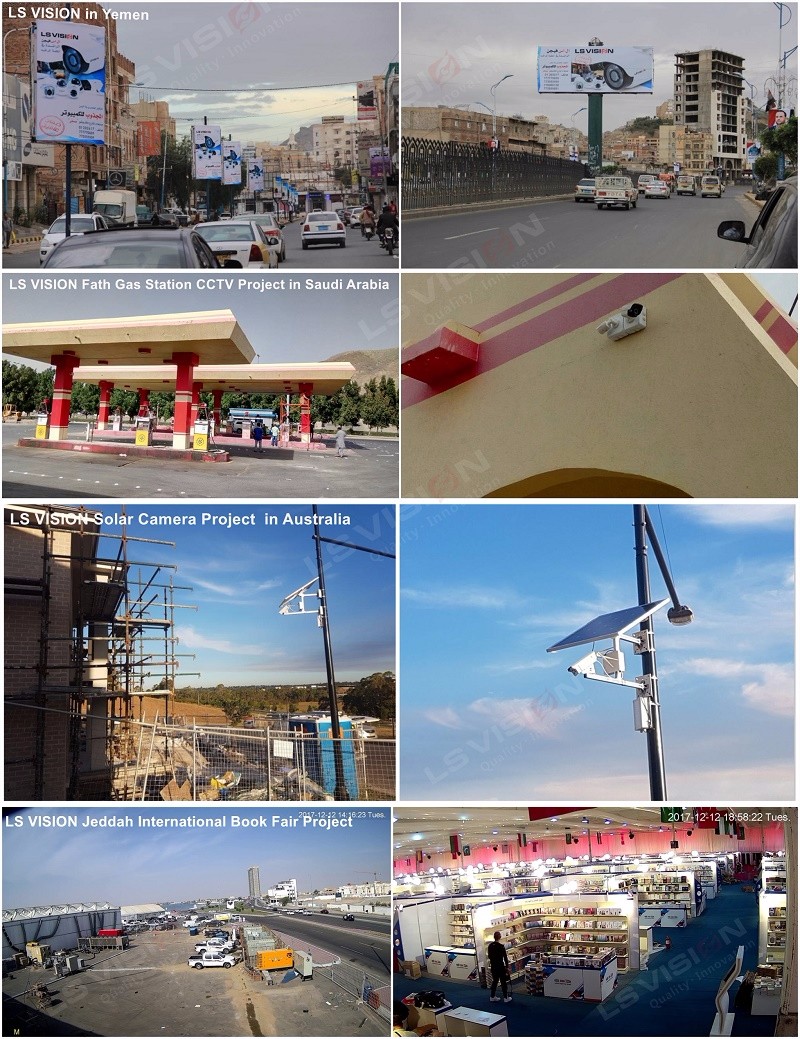

LS VISION Global Security Project
LS VISION products and solutions used in a number of countries and regions, Such as the Saudi Arabian Jeddah International Book Fair Project in 2017 and 2018; CITY Center MAKKAH CCTV Project in 2018; the Fath Gas Station Project in 2017, the Peruvian Bass Amas Plaza Project, the Panama Airport and other major security projects have played an important role.




LS VISION will keep our key value of Quality. Innovation. Dedication to do more research for the products to bring more value for our partners in the 2019.
In 2019, LS VISION products strategy:
Industry market:
IPC: 2MP to 8MP 4K Series IP Camera and HD NVR system.
Analog HD: 2MP to 8MP series and DVR system.

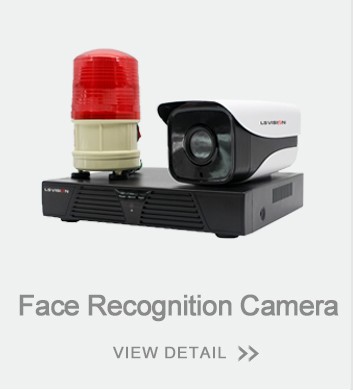

AI series: Face recognition camera and NVR system.

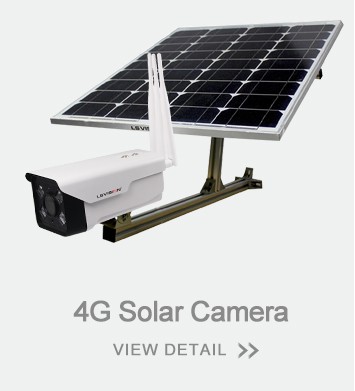

4G Solar Camera system
Consumer Market:

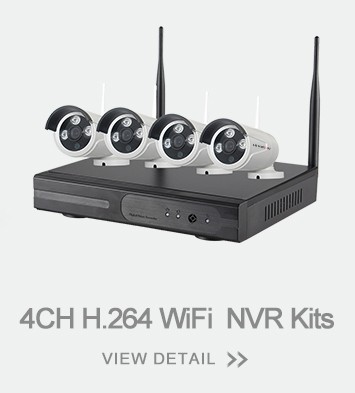

Wifi NVR Kit, POE Nvr Kit;

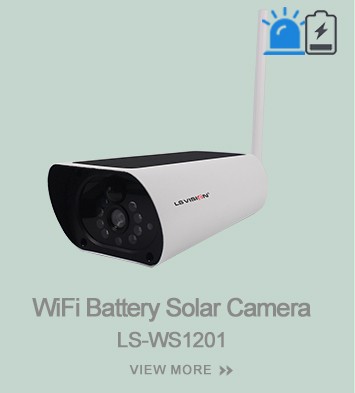

wifi Battery Cameras, wifi PTZ Camera, Smart Doorbell etc.
