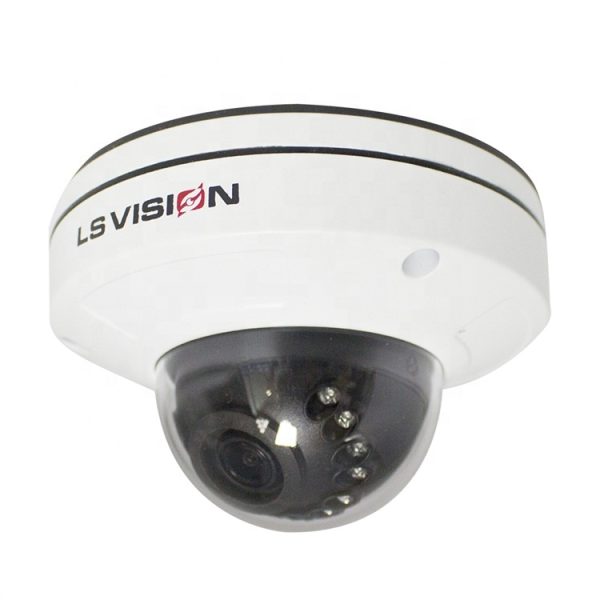

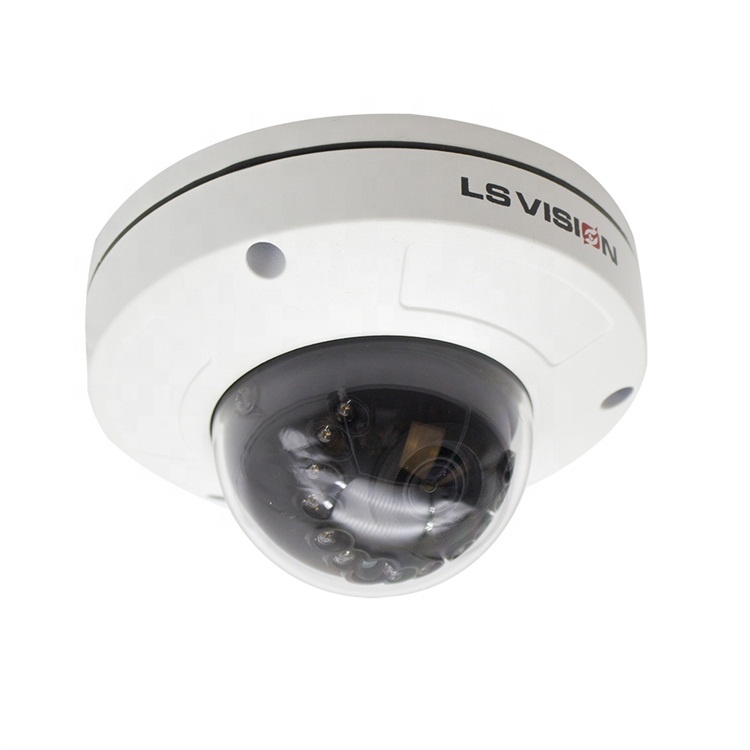

LSVISION – LS VISION Intelligent Facial Detection and Perimeter Low illumination WDR IR Fixed Lens 2MP Dome IP Network Camera Smart IP Camera

Driven by the competitive market, we have improved our technologies and been skilled at utilizing technology to manufacture the product. It has been proved that the product can be used in the application field(s) of CCTV Camera and has an extensive application prospect.

Share to:

Shenzhen LSVISION Technology Co., Ltd. can provide the most efficient services and LS VISION Intelligent Facial Detection and Perimeter Low illumination WDR IR Fixed Lens 2MP Dome IP Network Camera with the highest quality and most affordable price. The advancement in technology brings us unlimited benefits which include expanded product advantages.LS VISION Intelligent Facial Detection and Perimeter Low illumination WDR IR Fixed Lens 2MP Dome IP Network Camera is perfect for the area(s) of CCTV Camera. Shenzhen LSVISION Technology Co., Ltd. will continue to adopt scientific and advanced marketing strategies to focus on market expansion, forming a complete sales network across the world. Moreover, we will pay more attention to the talents gathering, ensuring innovative and competitive wisdom is distilled for the long-term development of our company.

Place of Origin:	Guangdong, China	Brand Name:	LS VISION
Model Number:	LS-NHD2202	Warranty:	1 Year
Special Features:	Motion Detection, Waterproof / Weatherproof	Sensor:	CMOS
Style:	Dome Camera	Function:	Waterproof / Weatherproof, NIGHT VISION, Low illumination
Video Compression Format:	H.265	Data Storage Options:	Cloud, NVR
Application:	Indoor	Customized support:	Customized logo
Smart Function:	Face detection and perimeter	Solution:	Hi3516CV300+IMX307
Image Sensor:	2 MP , 1/2.8″ CMOS Sensor	Resolution:	1920*1080@30fps
Video Standard:	H.265/H.264	Night vision:	12pcs Leds IR distance 15M
Power Supply:	support POE	Channels:	4
Certification:	ce, FCC

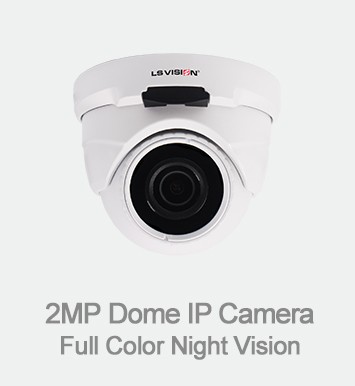

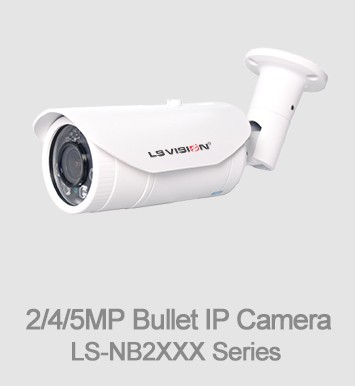

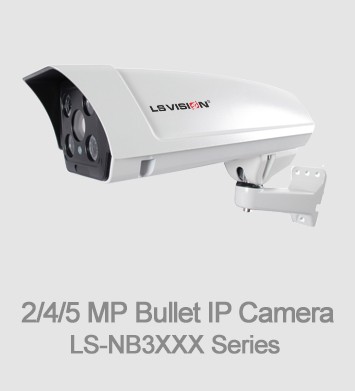

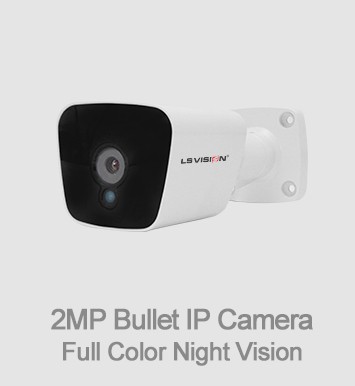

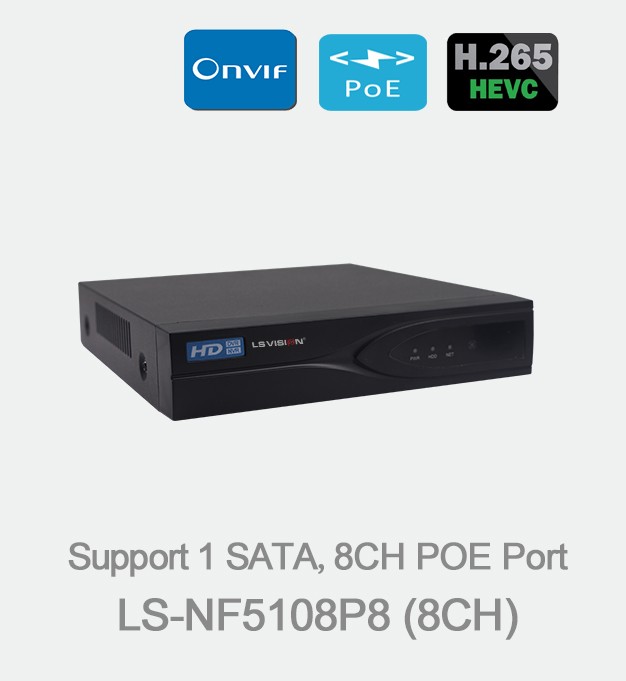

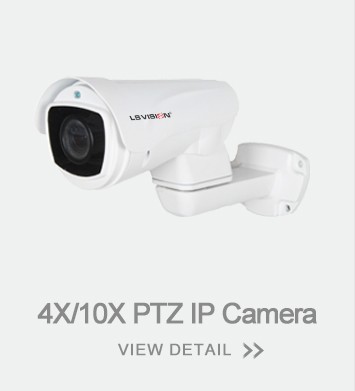

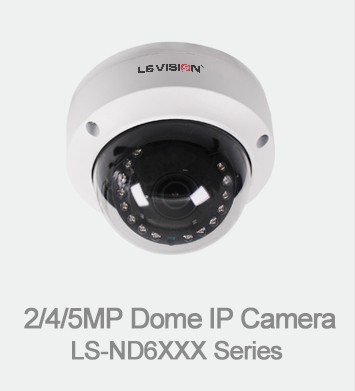

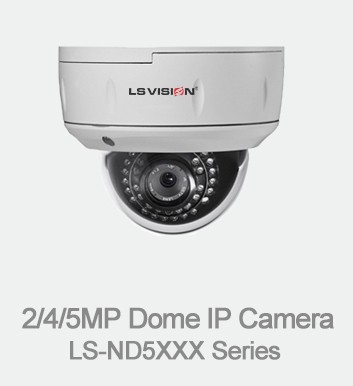

More Recommendation

Key Feature

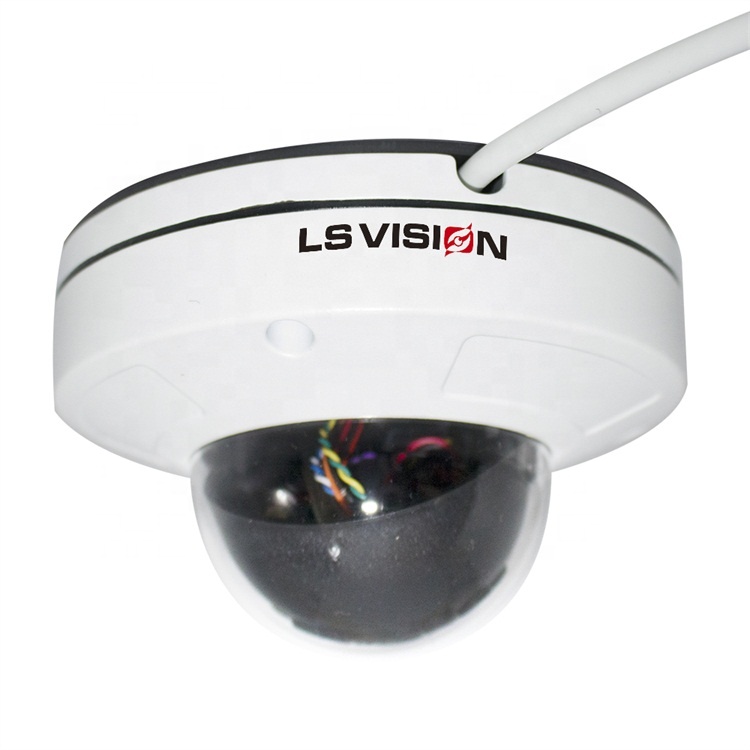

LS VISION Intelligent Facial Detection and Perimeter Low illumination WDR IR Fixed Lens 2MP Dome IP Network Camera

* 1/2.8″ CMOS sensor maximum resolution 1920*1080@25/30fps

* Support IR_CUT(IR cut filter with auto switch)

* Support Three-Stream technology.

* Support 3D DNR, 120DB Ture WDR

* Support P2P and cross-browser access.

* WDR 120DB & Low illumination

* Smart Function:Face Detection and Perimeter

* Standard Fixed lens 3.6mm, Optional 6/8mm lens

* Optional Audio, Lens

* Lightning protection 4000V

* Strong water-proof housing, IP66

* Support built-in POE 48V

Online Demo

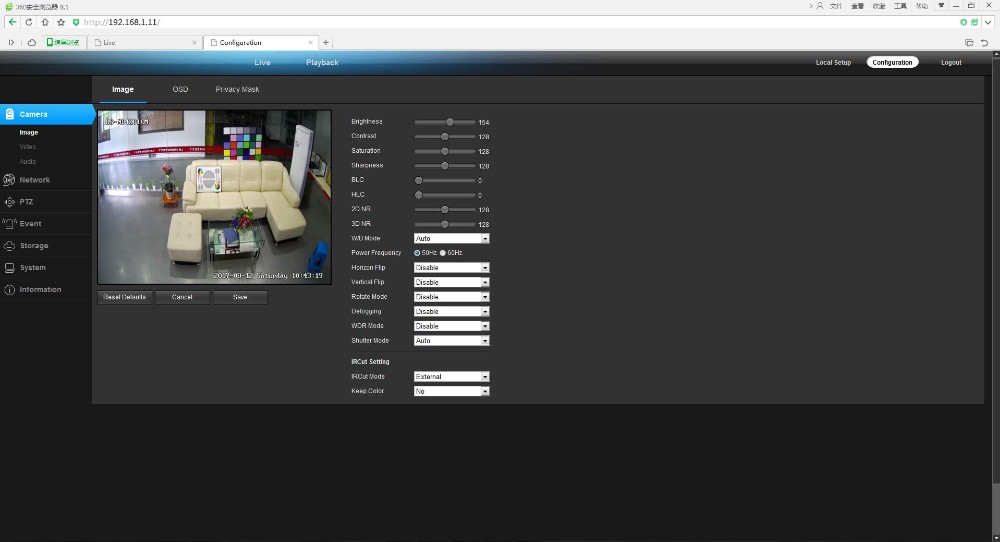

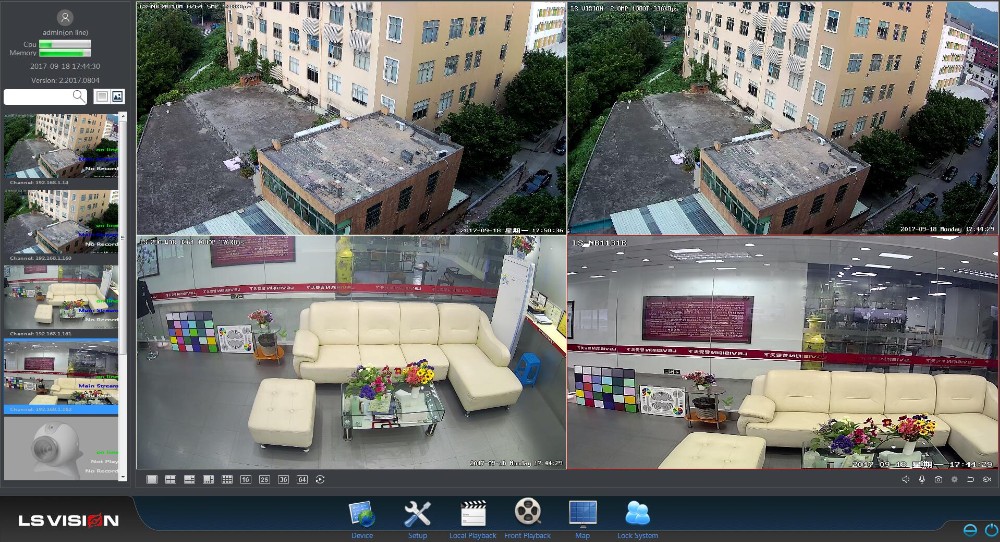

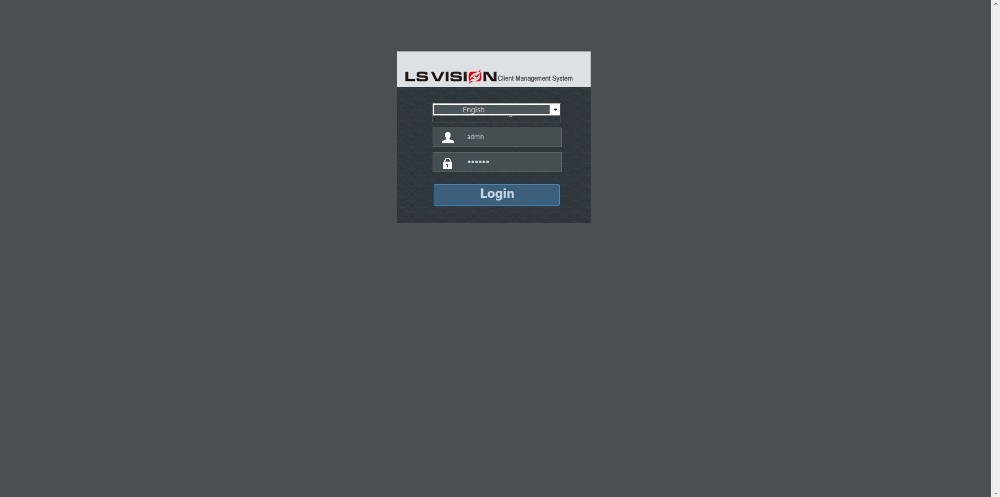

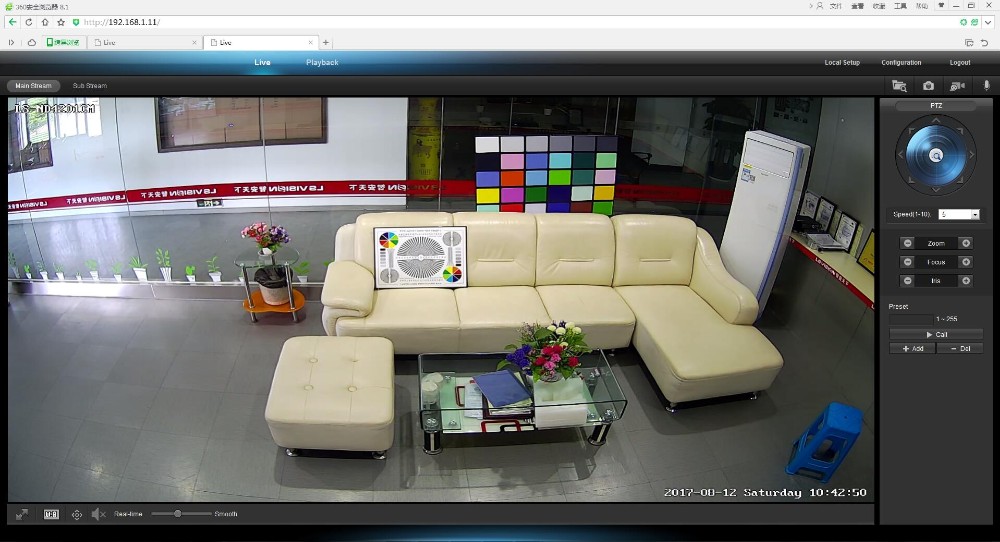

CMS & IE Browser View

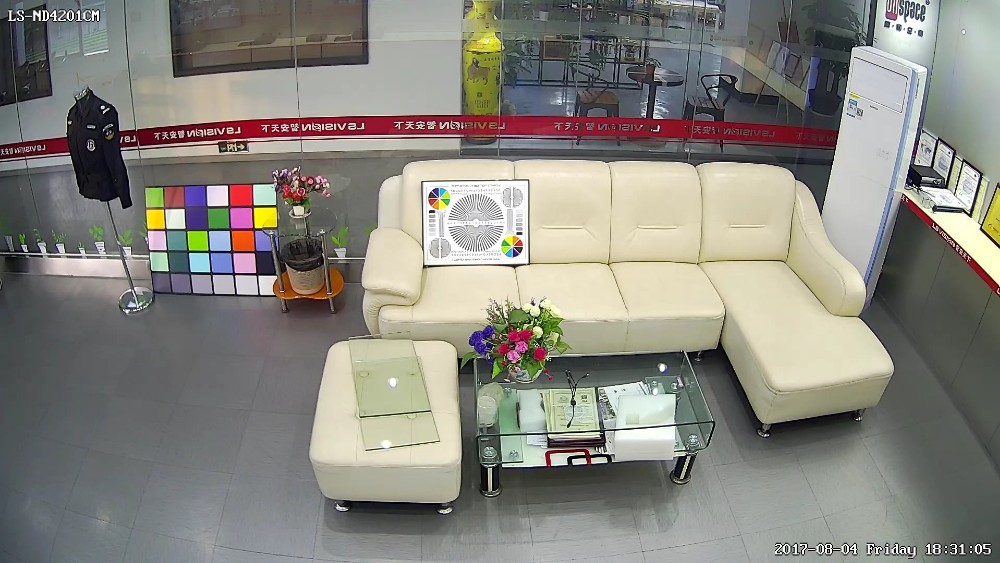

Indoor Surveillance

Outdoor Surveillance

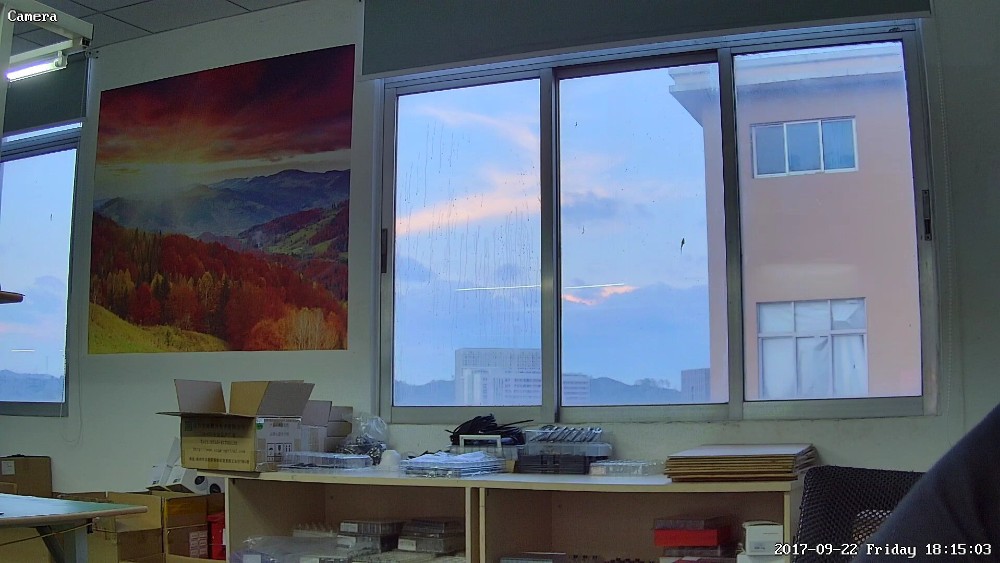

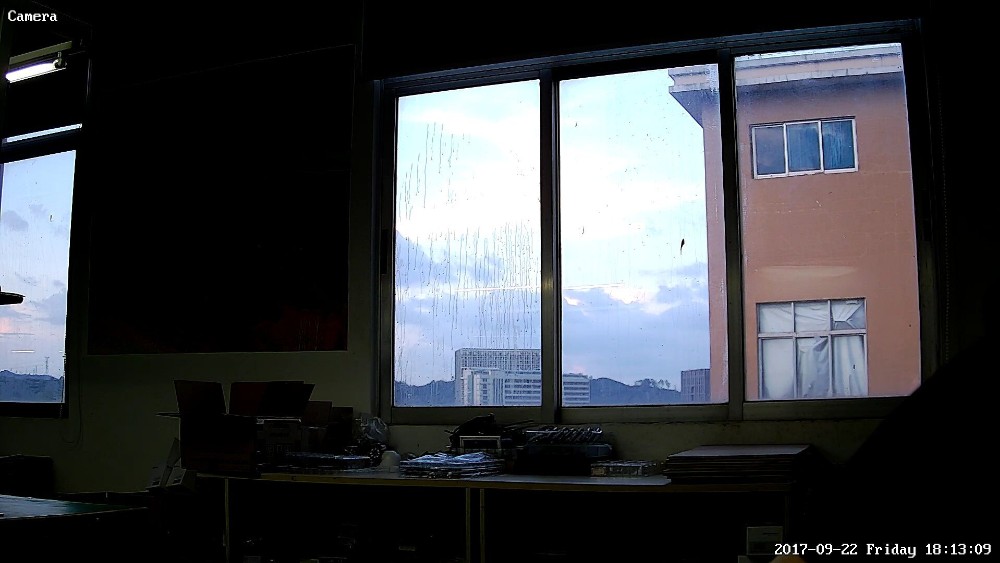

WDR Function

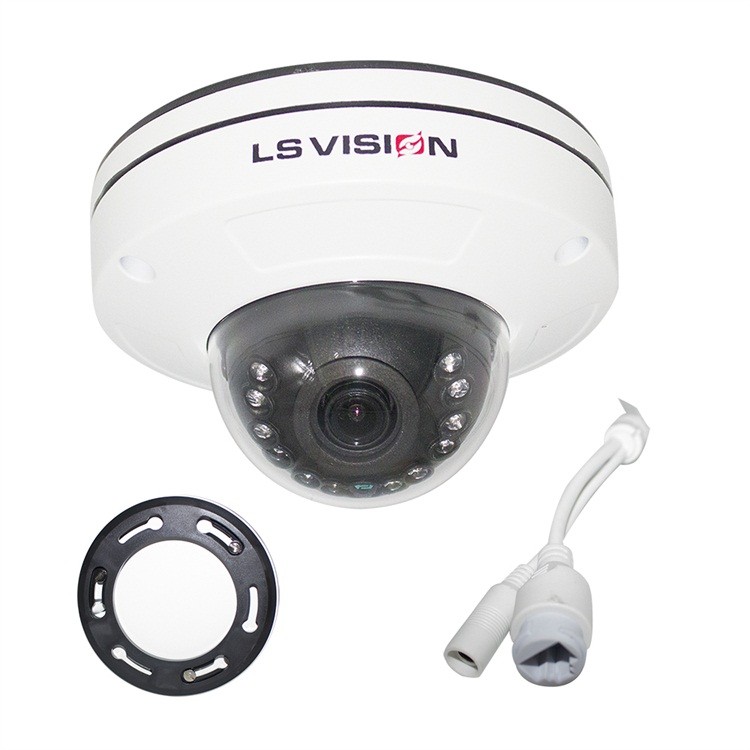

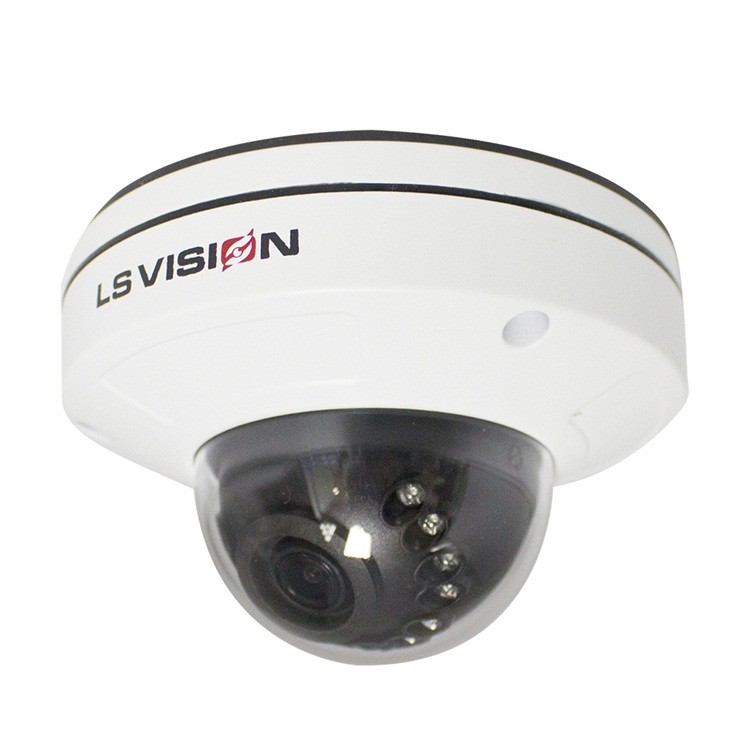

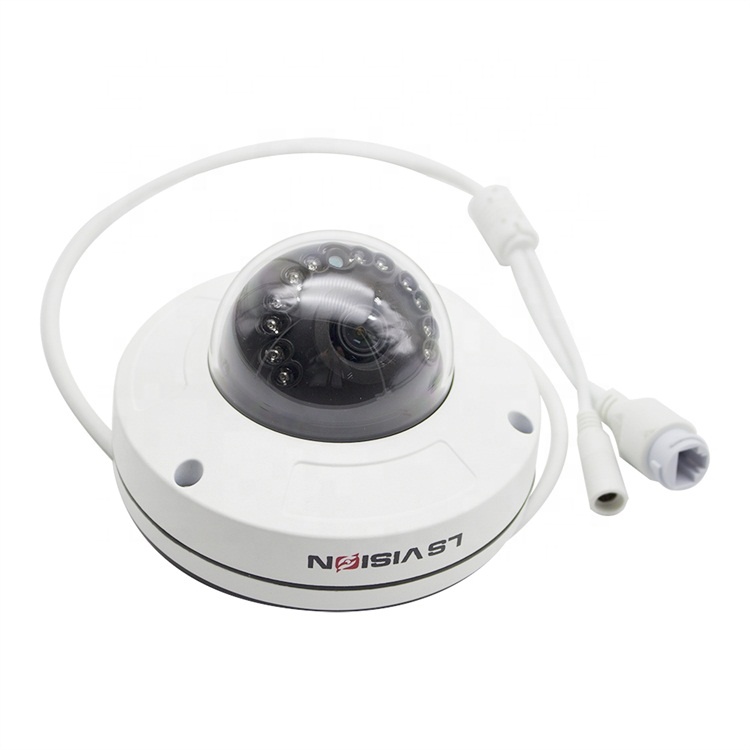

Detailed Images

Technical Parameter

Model	LS-NHD2202
System Structure	DSP	Embedded RTOS, DSP(Hi3516C V300)
System Structure	Sensor	1/2.8″ CMOS sensor( IMX307)
Video Encoding	Video Encoding	H.265/
		H.264High Profile/Main Profile/
		Base Line Profile/ MJPEG
		H.265+/
		H.264High Profile+/Main Profile+/
		Base Line Profile+
	Maximum Image Output	Main stream:1920*1080 @25/30fps ;
		Auxiliary stream 1: 704*576 @25/30fps;
		Auxiliary stream 2: 1280*720 @14/3fps ;
	Streaming transmission	Three stream
	Video Bite rate	32Kbps~8MKbps
Image Enhancement	Min. illumination	Color0.01Lux @F1.2(AGC ON);
	Min. illumination	black and white0.001Lux @F1.2(AGC ON)
	Electronic shutter	Auto(1/3 to 1/10000)
	Day/Night switch	color/B&W/Light sensitive switch/Mixed mode switch
	white balance	Auto / Lock white balance / fluorescent lamp /filament lamp /fluorescent lamp /HM
	DNR	2D and 3D DNR
	WDR	Support 120DB Ture WDR
	Video Adjust	Sharpness, Brightness, Saturation, Contrast, chroma adjustable
	image model	Transparent /real
	color pattern	Standard /gorgeous
	Corridor pattern	support
	backlight compensation	support
	FLC	support
	penetrating fog	support
	image distortion rectifying	support
	Smart IR	support
Configuration	IR Led	12pcs IR Leds
	IR Distance	15M
	Focal length	Standard Fixed lens 3.6mm, 2.8/6/8mm lens
	Optional	Audio, Lens
Functions	Motion detection	Multiple detection zones, variable sensitivity levels
	Capture function	JPEG,capture resolution is the max coding resolution
	Security	Password protection and water marker
	OSD	Support Channel Name and Time
		Support custom character superposition
		Support image overlay
	storage	Support FTP storage
	Smart function	Tripwire;Regional invasion;Items stolen;Items move;Through the fence ;Retrograde motion detection ;Face Capture
	Smart alarm	Network abnormal, cover alarm etc.
	Mobile client	VSSMOBILE for both iPhone and Android system phone
	Protocol support	TCP/IP;UDP;HTTP;IGMP ;ICMP;DHCP;RTP/RTSP;DNS;DDNS;FTP;NTP;PPPOE;UPNP;SMTP;SNMP
	Reverse the registered	support
	Interface protocol	2.6/CGI/GB28181
General	Network Port	1-RJ45, 100Mbps,POE
	Power Supply	Support POE 48V 12 VDC ± 10%
	Power Consumption	< 7 W
	Operating Temp.	-30℃-(+60)℃, 10%-90%RH

Certification

Brand & CCTV Project

LS VISION Global Brand

At present, LS VISION partners and customers all over the world, including dealers, agents, engineers and security importers, end consumers and other different customer groups, in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh, Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries region, set up an exclusive agency, and we have been have been making great efforts to expend our global agency or distribution area.

LS VISION Global Security Project

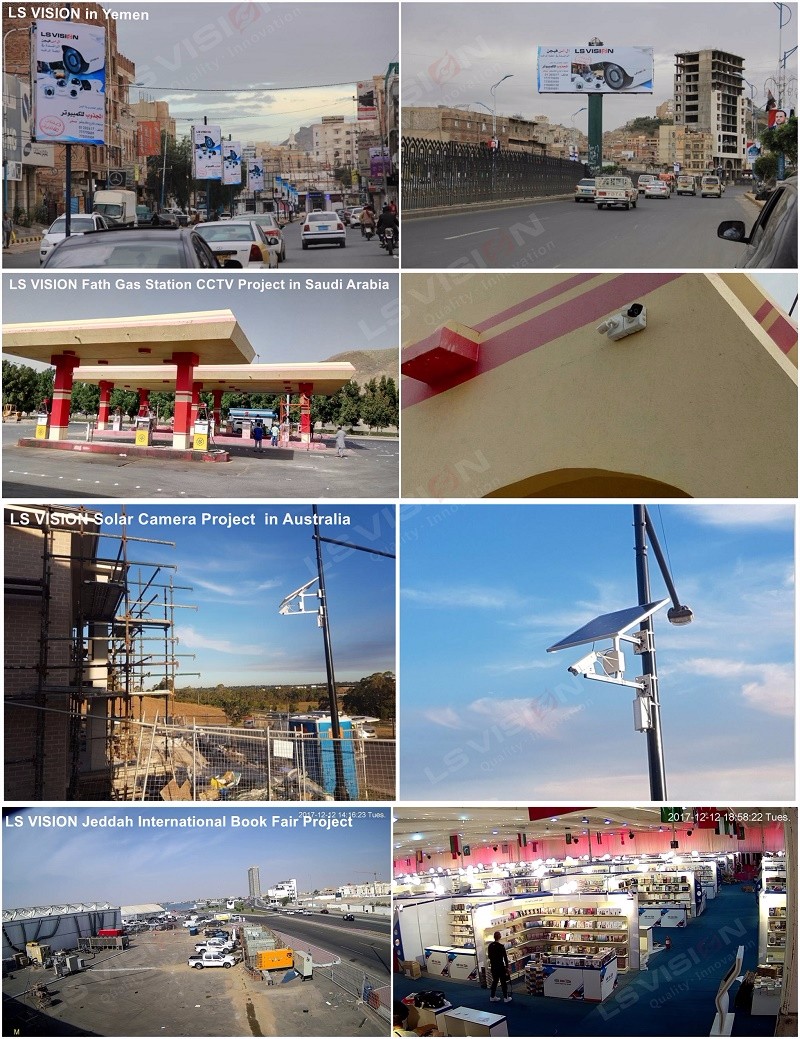

LS VISION products and solutions used in a number of countries and regions, Such as the Saudi Arabian Jeddah International Book Fair Project in 2017 and 2018; CITY Center MAKKAH CCTV Project in 2018; the Fath Gas Station Project in 2017, the Peruvian Bass Amas Plaza Project, the Panama Airport and other major security projects have played an important role.
