Having been through countless days and nights,Shenzhen LSVISION Technology Co., Ltd. has successfully developed LSVISION H.265 Network Video Recorder 5mp Linux Embedded 16ch Face Detection 4K POE NVR. It is bound to catch people’s eyeballs in various fields. 16ch NVR We regard LSVISION H.265 Network Video Recorder 5mp Linux Embedded 16ch Face Detection 4K POE NVR product features as its core competitiveness. Adopting high-quality raw materials purchased from reliable suppliers,LSVISION has the guaranteed quality and advantages of IP Camera/NVR/Solar Camera/Smart Battery Camera. Moreover, it has a look designed by our creative designers, making it highly attractive in its appearance.
| Ort der Herkunft: | Guangdong, China | Markenname: | LSVision |
| Modellnummer: | LS-NF5216 | Name des Produkts: | LS-NF5216 5mp 16CH NVR |
| IP Resolution: | Main stream:Up to 3264×2448 | Main Processor: | HI3536 Chip |
| Zugangsbandbreite: | 192M | Internal HDD: | 2 SATA HDD Port |
| Face Detection: | 1CH | Boundary Analysis: | 2CH |
| Zertifikat: | CE FCC RoHS | Netzwerk-Schnittstelle: | 1 RJ45 10M/100M/1000M adaptive Ethernet-Schnittstelle |
| Audio Bit Rate: | 64Kbps |

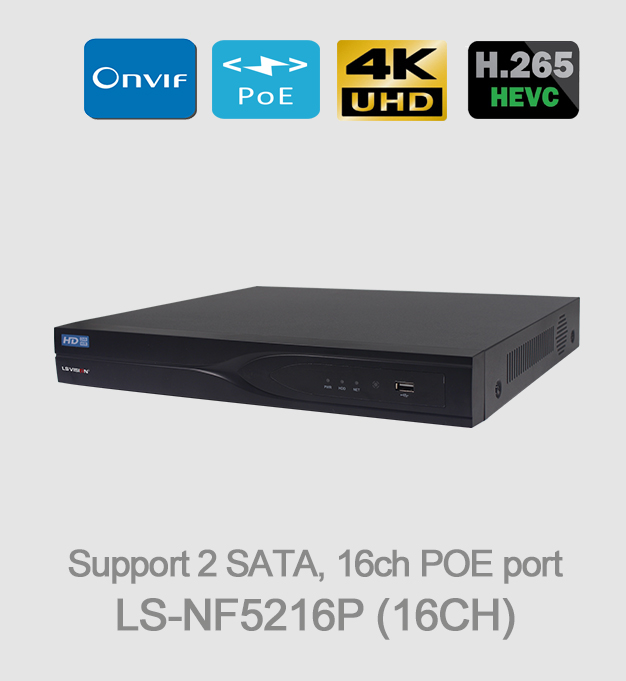

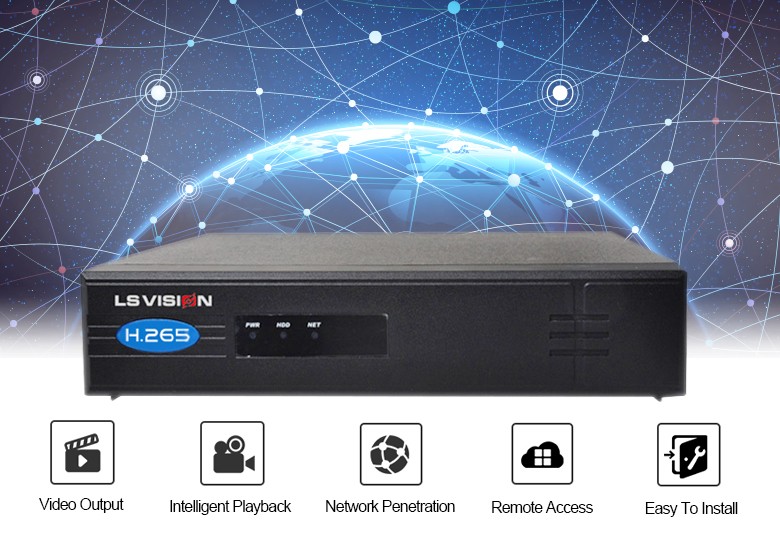

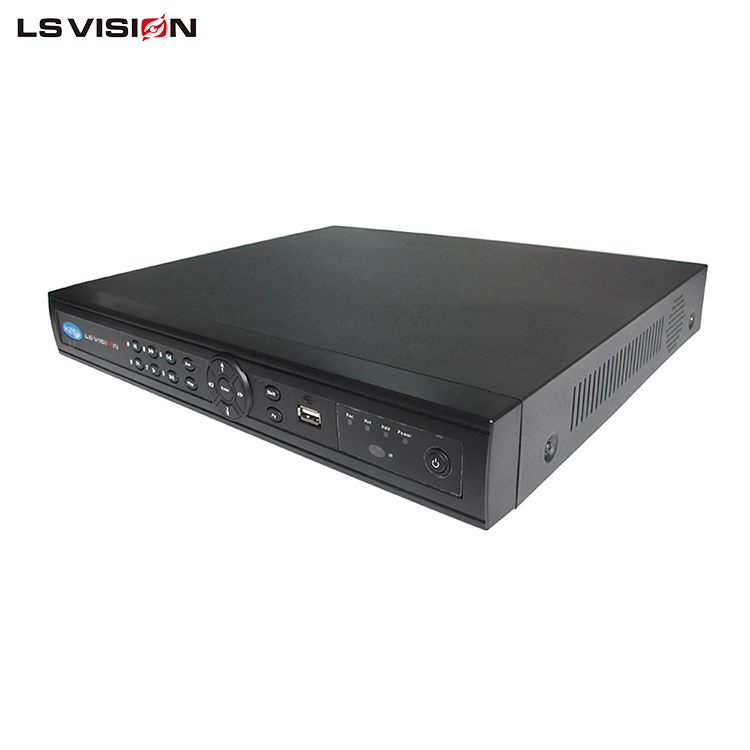

LSVISION H.265 Network Video Recorder 5mp Linux Embedded 16ch Face Recognition NVR

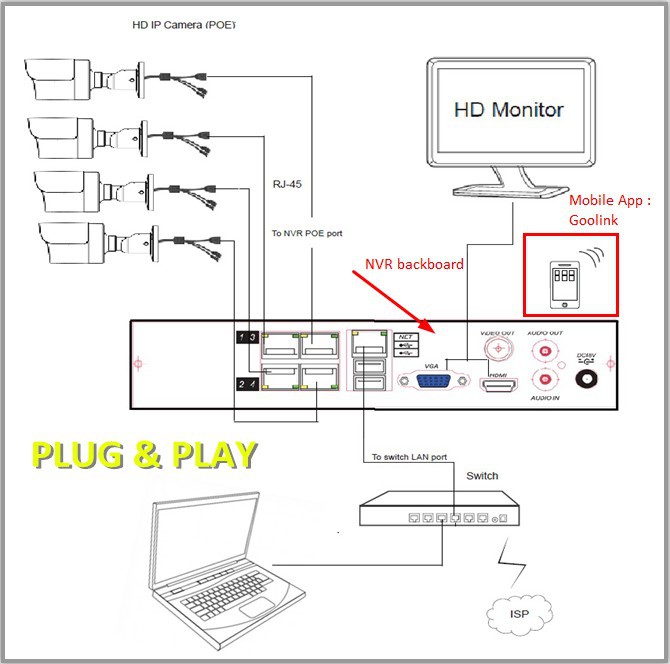

A Network Video Recorder (NVR) is a video recorder that is connected to your computer network and records video footage from the IP cameras also connected to that network. It allows you to manage an IP camera system via existing computers and IT hardware.
Key Features for 16ch NVR:

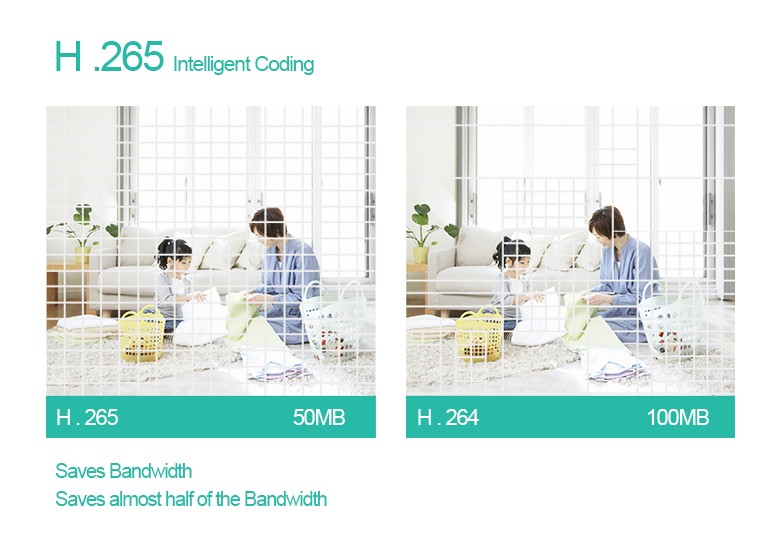

1. H.265/H.264 adaptive network camera
2. 16ch 1080p@30fps(6Mbps)/16ch 3MP@20fps(6Mbps)/16ch 5MP@10fps(6Mbps) video input
3. 6ch 1080P real time/4CH 3MP@20fps(6Mbps)/2CH 5MP@10fps(6Mbps) Playback
4. Support 2 SATA, 1 RJ45 10M / 100M/ 1000M adaptive Ethernet interface

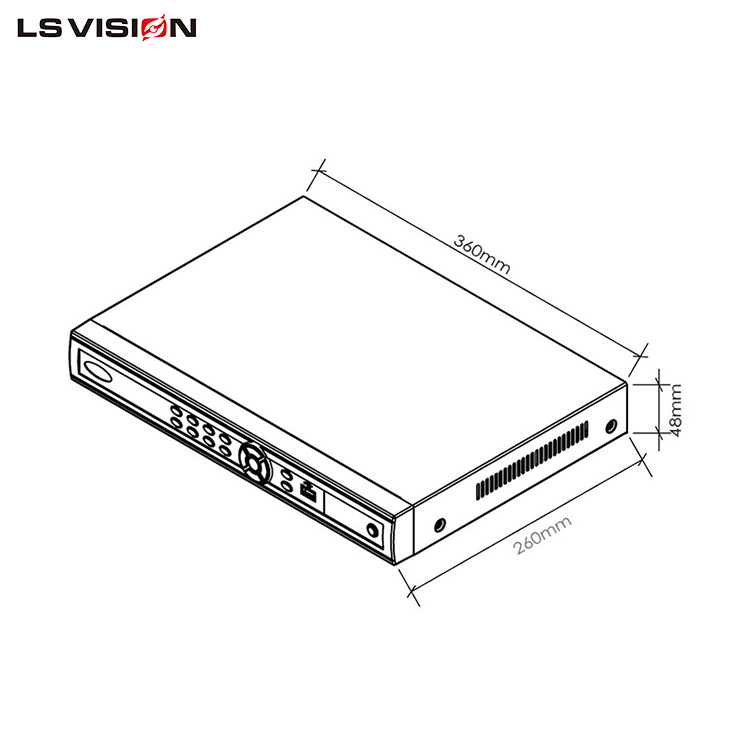

5. Two-way voice intercom,small size: 360×311.5x48mm
6. Intelligent features: 1CH face detection, 2ch boundary analysis (optional)
|
Modul
|
LS-NF5216 5MP 16ch NVR
|
|
OS
|
Eingebettetes Linux
|
|
Master-Chip
|
Hi3536
|
|
Zugangsbandbreite
|
192M
|
|
Bidirektionales Gespräch
|
1 CH(Leitungseingang,2Vpp,1Kohms)
|
|
IPC-Eingang
|
(Up to 16CH 1080P@6M)
|
|
CVBS-Ausgang
|
1CH,BNC(1.0Vp-p,75ohms)
|
|
VGA
|
1CH,1920×1080,1280×1024,1280×720,1024×768
|
|
HDMI
|
Norm 1.4a
|
|
3840×2160,1920×1080,1280×1024,1280×720,1024×768
|
|
|
Audio-Ausgang
|
1CH,BNC(Leitungsausgang,2Vpp,300ohms)
|
|
Audio-Kompression
|
G711A
|
|
Audio-Bitrate
|
64Kbps
|
|
IR Resolution
|
Main stream:up to 3264×2448
Teilstrom: nicht mehr als D1 |
|
Video-Bitrate
|
Bis zu 2Mbps@ D1, 4Mbps@ 720P, 8Mbps@ 1080P
|
|
Video-Dekodierung
|
H.265(Main Profile@ L5.0 High-tie)/H.264(Up to High Profile@ Level5.0)
|
|
Synchrone Wiedergabe
|
Bis zu 16CH
|
|
Bidirektionales Gespräch
|
Zwei-Wege-Gegensprechfunktion
|
|
Bewegungserkennung
|
Zonen: 396(22×18), Empfindlichkeit: 1~6 (Stufe 6 ist die höchste)
|
|
Bildaufzeichnung
|
Lokales Capture&Web Capture
|
|
SATA
|
2
|
|
ESATA
|
0
|
|
Netzwerk-Schnittstelle
|
1 RJ45 10M/100M/1000M adaptive Ethernet-Schnittstelle
|
|
USB
|
2 USB 2.0-Schnittstellen
|
|
Abmessungen
|
405*365*123mm
|
|
Gewicht
|
3.0 Kg(without HDD)
|
|
Stromversorgung
|
110V~220V±10% 47Hz~63Hz
|
|
Arbeitstemperatur
|
-10℃–+55℃
|
|
Luftfeuchtigkeit bei der Arbeit
|
10%–90%
|
LS VISION wird unseren wichtigsten Wert beibehalten, nämlich Qualität. Innovation. Hingabe mehr Forschung für die Produkte zu betreiben, um unseren Partnern im Jahr 2019 einen größeren Nutzen zu bieten.
Im Jahr 2019 wird die LS VISION Produktstrategie:
Industriemarkt:
IPC: 2MP bis 8MP 4K Serie IP Kamera und HD NVR System.
Analoges HD: 2MP bis 8MP Serie und DVR-System.
AI-Serie: Gesichtserkennungskamera und NVR-System.
4G Solar-Kamera-System
Verbrauchermarkt:
Wifi NVR Kit, POE Nvr Kit;
WiFi-Batterie-Kameras, WiFi-PTZ-Kamera, intelligente Türklingel usw.
