LSVISION – LS VISION High Speed Dome 360 Degree 15MP 5 Lens Panoramic Rotation CCTV Camera Multi-Sensor Panoramic IP Camera

Shenzhen LSVISION Technology Co., Ltd. are confident that we will make great achievements in the future. We will unite all the elites and talents in the industry and rely on their wisdom and experience to help us upgrade our existing products and develop new products. This will make great contributions to the company development.

Compartir con:

In order to better adapt to the diversified needs of customers,Shenzhen LSVISION Technology Co., Ltd. has been working hard to develop products. LS VISION High Speed Dome 360 Degree 15MP 5 Lens Panoramic Rotation CCTV Camera is made available in a varied range of specifications. Contact us directly by email or phone call to get more information about our products or services.

Lugar de origen:	Guangdong, China	Marca:	VISIÓN LS
Número de modelo:	LS-Q53	Garantía:	1 año
Características especiales:	Two-way Audio, Motion Detection, Waterproof / Weatherproof	Sensor:	CMOS
Estilo:	Cámara domo	Función:	Waterproof / Weatherproof, Two-way Audio
Formato de compresión de vídeo:	H.265	Opciones de almacenamiento de datos:	Nube
Aplicación:	Outdoor	Asistencia personalizada:	Logotipo personalizado
Tecnología:	Red	DSP:	HI3516D+ IMX123
Sensor Type:	1/2.8″ Progressive Scan CMOS	Number of sensor:	5
Obturador electrónico:	Manual/Auto;1/5s to 1/50,000s	3D Noise Reduction:	Ayuda
Lente:	F2.8mm/F1.8	Viewing angle(H):	360
Canales:	4	Certificación:	ce, FCC

Descripción del producto

LS VISION High Speed Dome 360 Degree 15MP 5 Lens Panoramic Rotation CCTV Camera

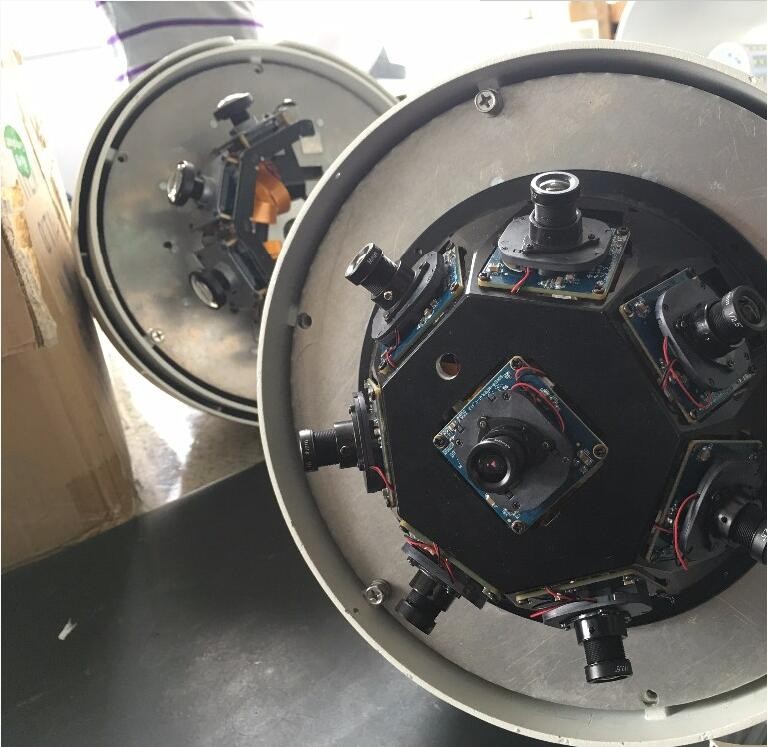

Based on 5 l sensor patchwork of 360 ° panoramic view

Efficient economic standalone installation mode

Industrial-grade high-quality optical lens

To adapt to the different temperature and humidity of
outdoor scene

Support level IP66 waterproof and dustproof, IK10 riot level design

Especificación

15MP 360º Panorama
Sensor	1/2.8” Progressive Scan CMOS
Iluminación mínima	Color:0.01 Lux@(F1.2,AGC ON);B/W:0.001 Lux@(F1.2,AGC ON)
Lente	F2.8mm/F1.8
FOV	Horizontal:360º,Vertical:180º
3D Noise Reduction	Ayuda
Relación señal/ruido	≥50dB
Image Processing	Auto white balance,automatic again,auto shutter
Video Compresion Standard	H.264,H.264 coding,support Baseline/Main Profile/High Profile
Maximum Resolution	2048×1536×5
Resolution and Frame	Main stream: 50Hz:25fps 2048×1536×5 60Hz:30fps 2048×1536×5 Sub stream: 50Hz:25fps 288×352×5 60Hz:30fps 240×352×
3D Operation	Fastly choose any monitor angle through mouse operation to control zoom in and zoom out
Programmatic Interface	,CGI,SDK
Protocolo de red	TCP/IP, HTTP, HTTPS, DHCP, UDP, RTP, RTCP, RTSP, SNMP, 802.1x, UPnP, DDNS, SMTP, Bonjour
Peripheral Interface
General	Onekey Recovery
Interfaz de red	Built in RJ45 ethrnet port,support10M/100M/1000M network data
Serial Interface	RS485
Alarm Input /Output	1 channel alarm input and output
Work Temperature and humidity	-40℃~60℃/95%RH
Protection Level	IP66,6000V lightning protection ,surge protection,IK10
Power/ Consumption	DC12V,Maxium power consumption ;20W
Installation Way	Hoisting,Wall mounting
Dimensión	Φ228×330mm
Peso	4.0kg

Aplicaciones

LS VISION Info

Why LS VISION will be your first choice in the market?

LS VISION Technology Co., Ltd. (Own Brand: LS VISION). LS VISION is China No.1 IP Camera professional Supplier for Tough Environment. LS VISION always uphold the corporate culture – “Only for Quality Life” and focused on quality and service. Aim to provide top quality security products, professional service and best customer experience.

VISIÓN LS main product include High Quality IP Camera, HD Network Camera, PTZ Camera, AHD Camera, HD-TVI Camera, AHD DVR, TVI DVR, Hybrid Camera Dvr, HD NVR, and WIFI NVR Kits etc.

LS Vision established since 2012, with fast growing, so far we have 20 engineers R&D team, 20 person sales team and 10 marketing team. LS VISION factory has around 30 workers in production line. and the production capacity can be 15,000pcs in each month. LS Vision’s products are widely used in many fields, such as banking, public security, energy infrastructure, telecommunication, intelligent-building, and intelligent-transportation.

Now our team is keeping on research new products, Such as 4K H.265 IP Camera, Starlight IP Camera, 360 degree Panoramic IP Camera and body camera.

OEM and ODM service will be provided beyond your imagine.

LS Vision is definitely a worthwhile cooperation for you.

Certificación

Global Agent

Successful Case

In Arabia, in Australia, in Philippines, in New Zealand, in korea,in the underground parking , in large shopping malls, in the wild…Day and night,the world is in our eyes, waiting for you to witness with LS-VISION!
