Technologies matter a lot in the manufacturing process of the product. By applying technology, we have successfully upgraded the product.It is popular in the application scenario(s) of CCTV Camera now. CCTV Camera Looking back to the good old days,Shenzhen LSVISION Technology Co., Ltd. have done our best to achieve our goal of serving customers with the best quality products and services. In the future, we will keep improving our capabilities and upgrading technologies to provide more and better products to satisfy the growing needs of customers.
| Lugar de origen: | Guangdong, China | Marca: | LSVISION |
| Número de modelo: | LS-TI006 | Garantía: | 1 año |
| Sensor: | CCD | Red: | Ip |
| Función: | Waterproof / Weatherproof, Wide Angle, Thermal image | Formato de compresión de vídeo: | H.265 |
| Opciones de almacenamiento de datos: | Tarjeta SD | Aplicación: | Interior, Exterior |
| Asistencia personalizada: | Logotipo personalizado, OEM, ODM, reingeniería de software | Nombre del producto: | AI Face Imagination Scanning Analysic IP Thermal Camera |
| Sensor type: | 1/2.8″ 2.0M Pixel CMOS | Día y noche: | ModeiR cut filter with auto switch |
| Temperature Measurement: | Support global and local temperature | Web Client Language: | languages English, Chinese |

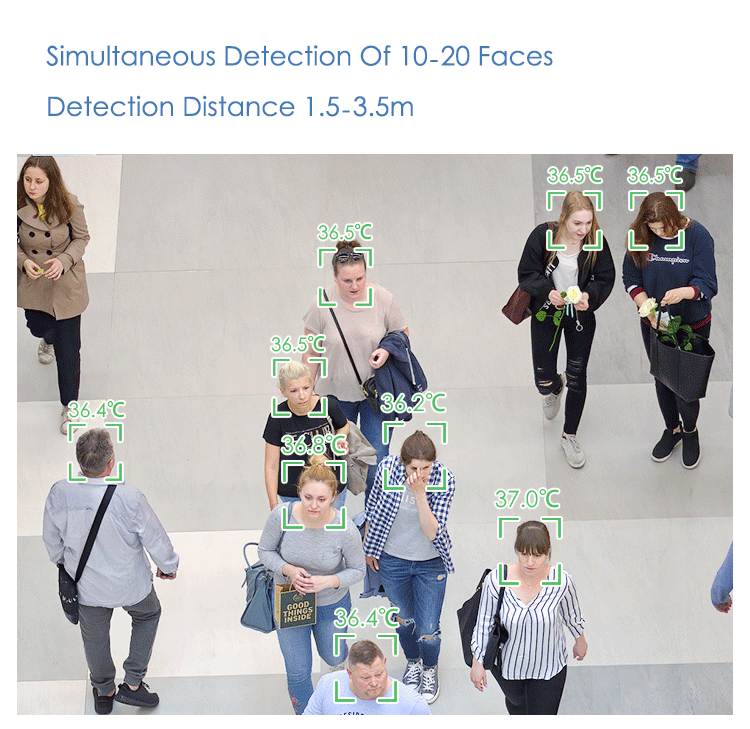

| Face snapping: | Built-in Al algorithm, Supports simultaneous detection of 20 faces | Temperature Range: | From-15°C to +150°C |
| Field of View: | 84° x 45° (H x V) | Distancia focal: | 4 mm |
| Características especiales: | Impermeable / Resistente a la intemperie | Canales: | 1 |
| Certificación: | CE FCC |

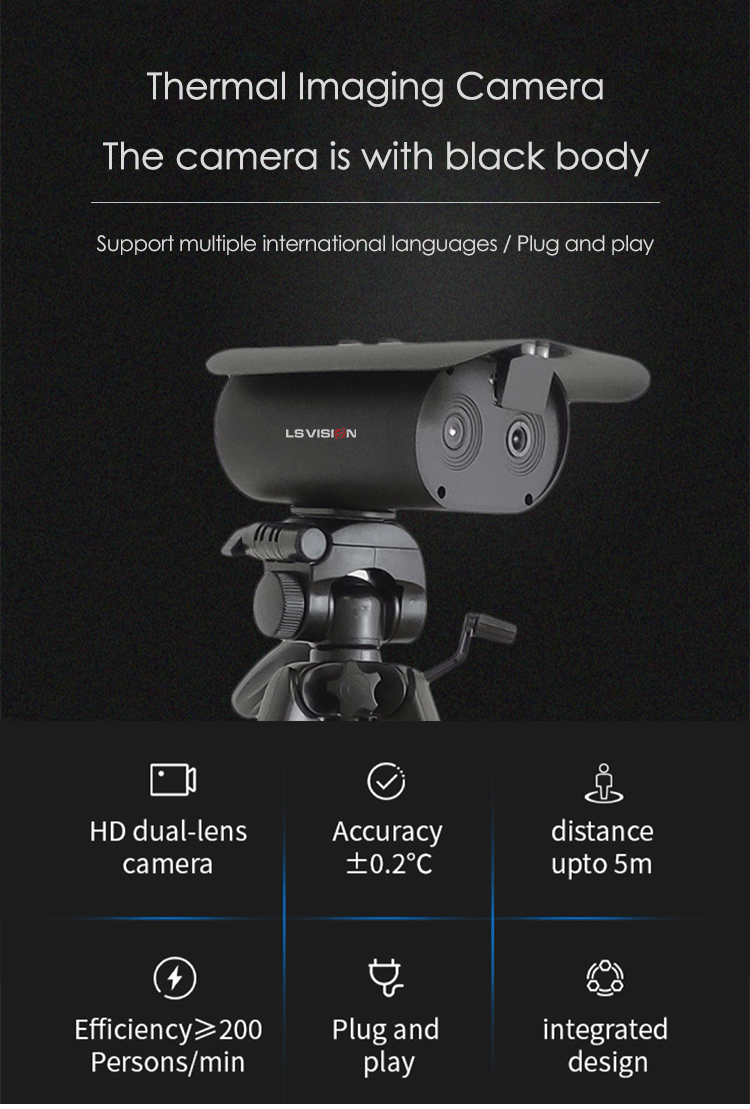

WDR AI Cámara de Imagen Térmica 1080P Máquina Integrada de Medición de Temperatura del Cuerpo Humano a Larga Distancia con Cuerpo Negro

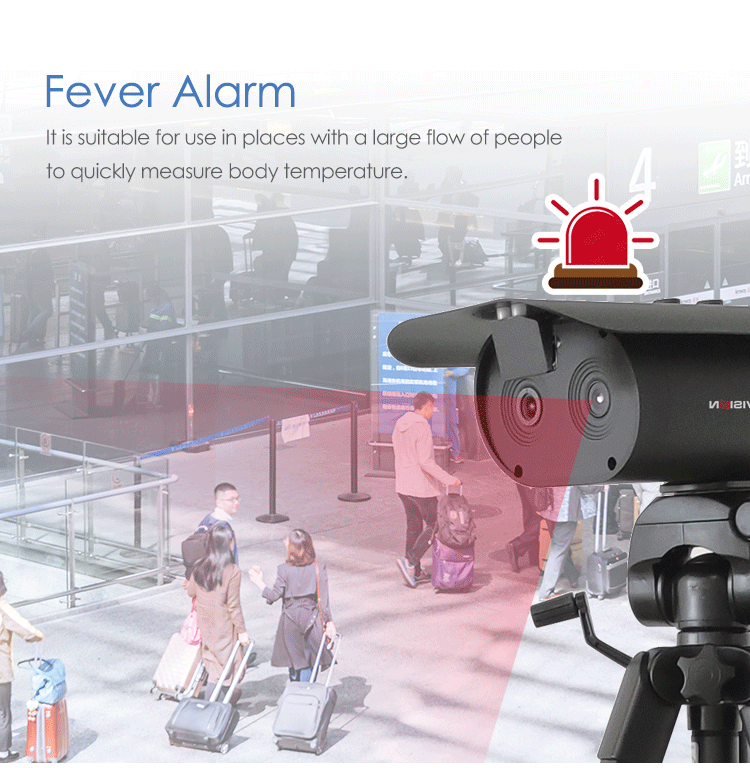

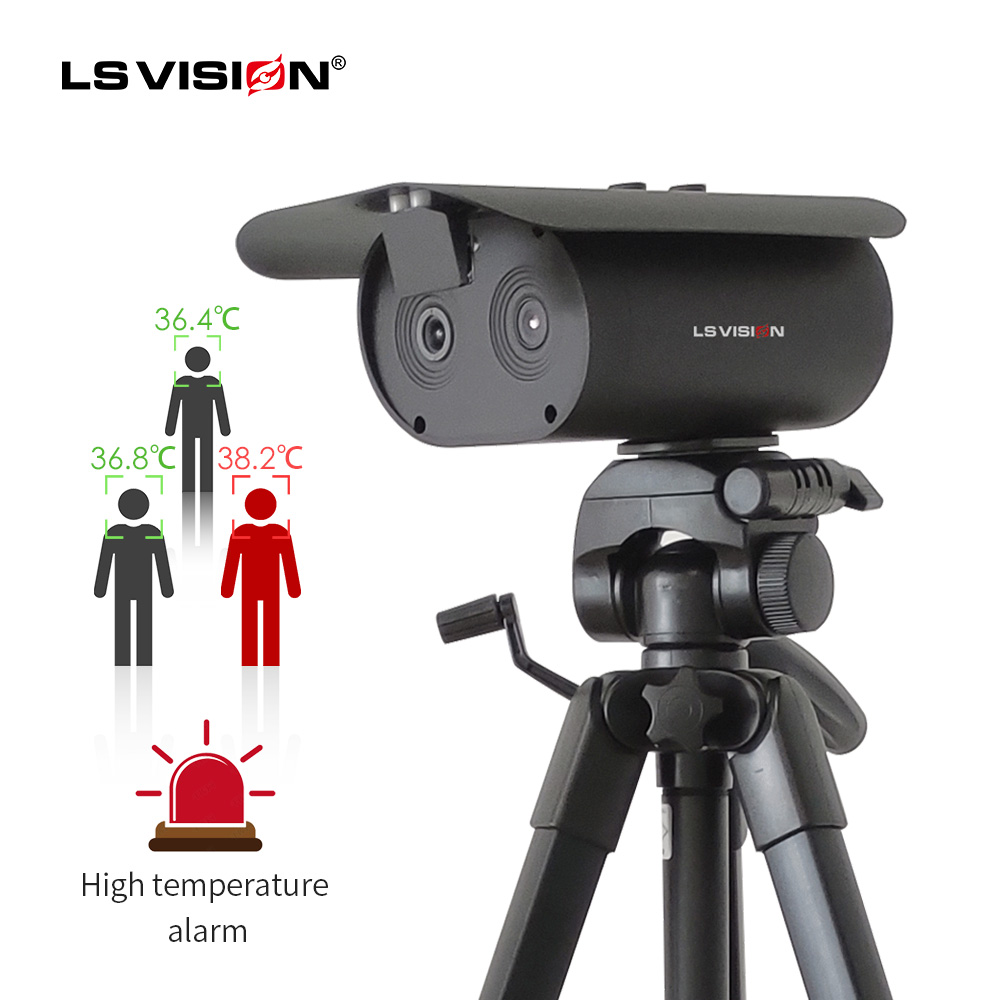

Used for long-distance human body
temperature detection 1.5m~5m;

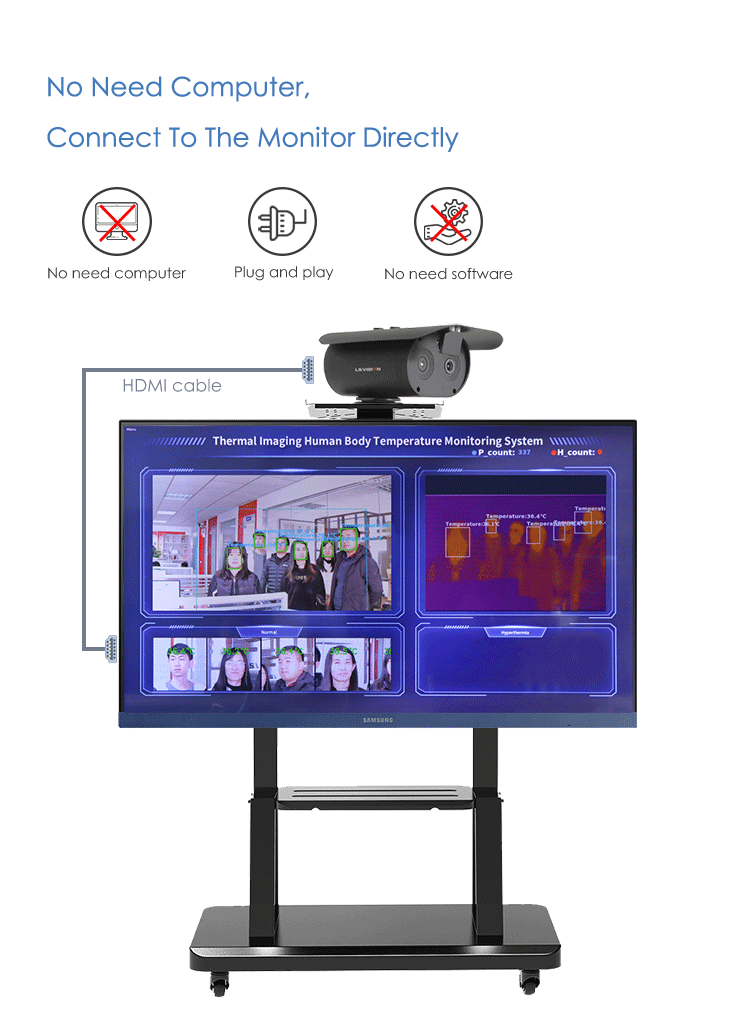

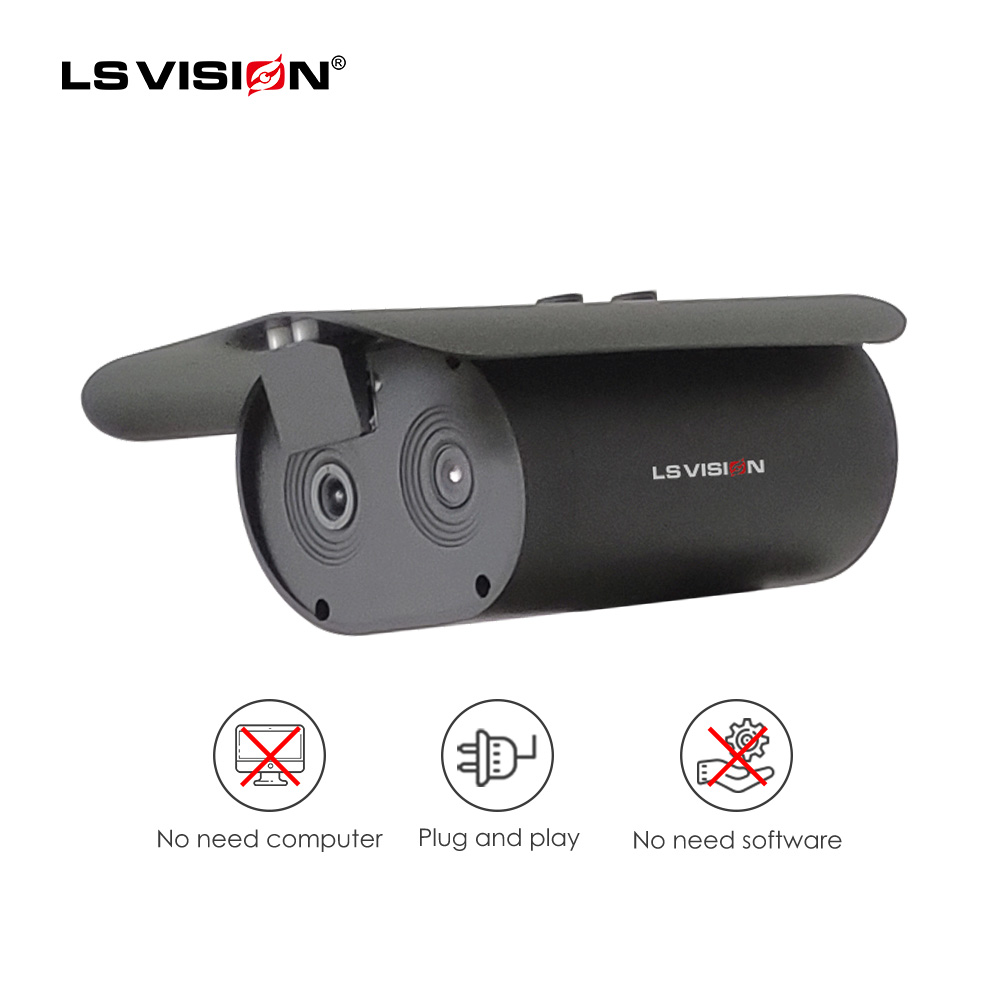

Camera + embedded motherboard + black body integrated structure, no need to configure a computer, directly connected to the
monitor to display and various operations;

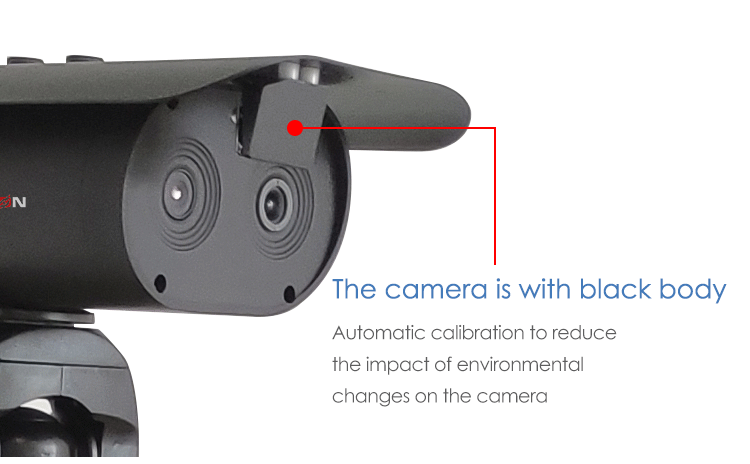

Built-in black body, automatic correction, no fear of the influence of environmental temperature changes on thermal imaging;

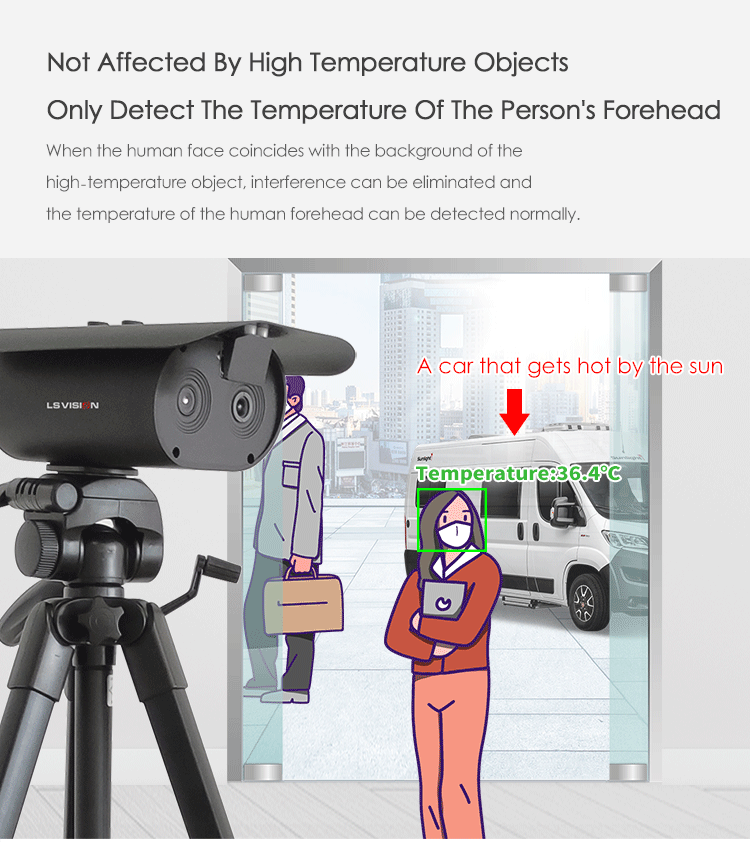

Start-up, fast and convenient, accurate forehead temperature algorithm measurement, filter the background high temperature
influence
Easily connect to the cloud for data analysis.
temperature detection 1.5m~5m;
Camera + embedded motherboard + black body integrated structure, no need to configure a computer, directly connected to the
monitor to display and various operations;
Built-in black body, automatic correction, no fear of the influence of environmental temperature changes on thermal imaging;
Start-up, fast and convenient, accurate forehead temperature algorithm measurement, filter the background high temperature
influence
Easily connect to the cloud for data analysis.
Descripción del producto
Descripción del producto
|
Modelo
|
LS-TI006
|
|
|
Medición de la temperatura
|
||
|
Intervalo de medida
|
20°c -50°c
|
|
|
Ángulo de campo (valor calculado)
|
40°C*30°C
|
|
|
Calibración
|
Autocalibración
|
|
|
Distancia de medición
|
1.5-5m
|
|
|
Cámara de infrarrojos
|
F1.0
|
|
|
Tipo de detector
|
Sensor de infrarrojos de matriz desenrollada
|
|
|
Resolución
|
160X120
|
|
|
Paso de píxeles
|
17μm
|
|
|
NETD
|
≤60mk(F/1,300K, 50Hz)
|
|
|
Frecuencia de imagen
|
15 Hz
|
|
|
Salida de datos de medición de temperatura
|
Salida de temperatura de rango completo
|
|
|
Personas por segundo
|
200 personas en un minuto
|
|
|
Visual Camera
|
1s to 1/100,000s
|
|
|
Resolución
|
1920*1080(2 millones de píxeles)
|
|
|
Dispositivo de imagen
|
CMOS de 1/2,7 pulgadas
|
|
|
Iluminancia mínima0,01
|
Lu(Color Mode),0.001Lux(Black and White Mode)
|
|
|
Relación señal/ruido
|
>56 dB
|
|
|
Otros parámetros
|
HAIRCUT Automatic Switching, Backlight Compensation,
Strong Light Suppression, Automatic White Balance |
|
|
Black Body
|
Combines details of thermal and optical image PIP, overlay thermal image on optical image
|
|
|
Diámetro de la superficie del blanco negro
|
20mm*30mm
|
|
|
Emisividad efectiva
|
0.96 ±0.02
|
|
|
rango de temperatura
|
(Temperatura ambiente+5°C)~(50°C)
|
|
|
Resolución de temperatura
|
0.01°C
|
|
|
Estabilidad térmica
|
>±0,1°C/60min
|
|
|
Tiempo de calentamiento
|
<2 minute
|
|
|
Parámetros de la placa base
|
Thermal: 25fps(1920 x 1080, 1280 x 720)
|
|
|
SOC
|
Broad com BCM2711
|
|
|
CPU
|
64 bits 1,5GHz Estabilidad de temperatura (28nm)
|
|
|
Bluetooth
|
5.0
|
|
|
USB
|
USB 2.0*2/USB 3.0*2
|
|
|
Micro *2 support 4K60
|
||
|
Desarrollado por
|
Hype C(5V 3A)
|
|
|
Red
|
Wi-Fi 802.11AC,Gigabit
|
|
|
multimedia
|
H.265(4Kp60 decode)
H.264(1080p60 decode,1080p30 encode) Opening es,3.0 graphics) |
|
|
Otros parámetros
|
From -20°C to 55°C; Humidity: 95% or Less
|
|
|
Entorno de instalación
|
Interior o exterior
|
|
|

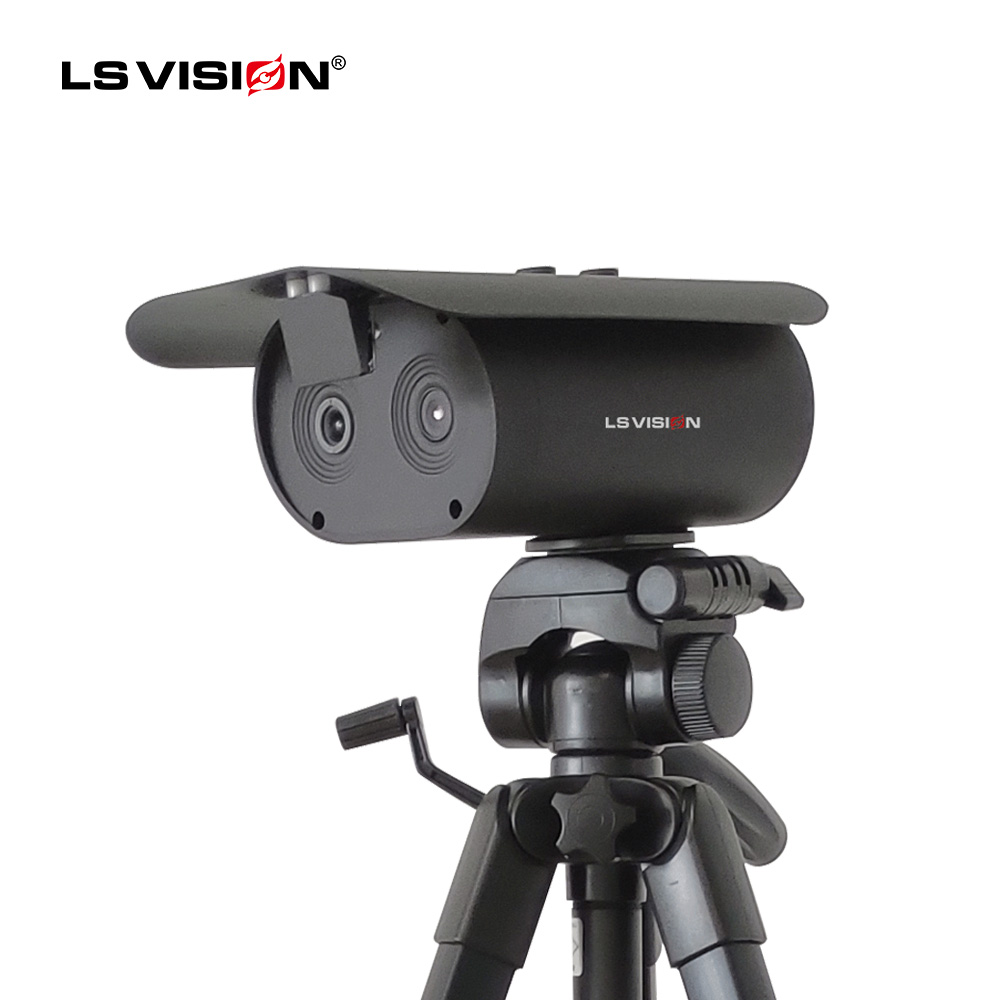

Método castellations
|
Soporte, montaje en pared, elevación
|
|
|
Temperatura de trabajo
|
0℃~40℃
|
|
|

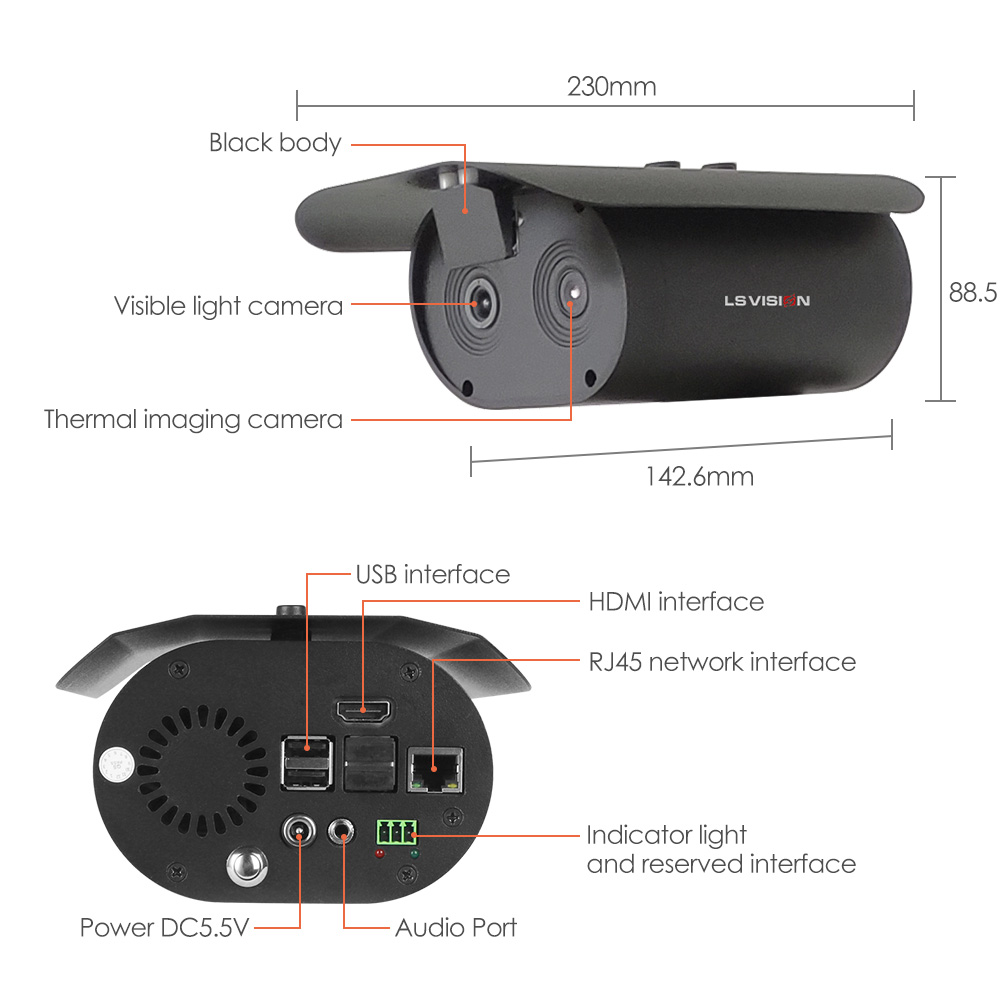

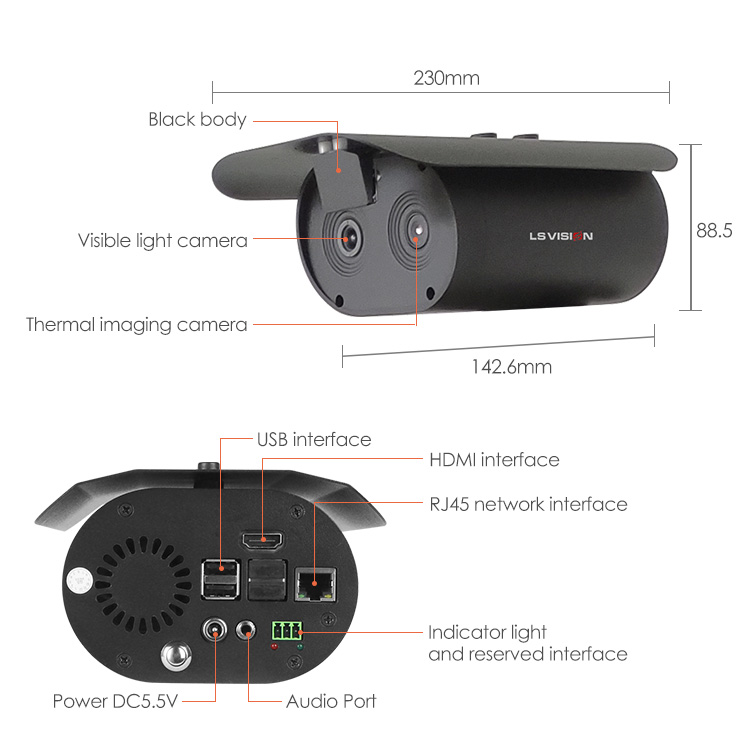

Talla
|
230 mm x 142,6 mm x 88,5 mm
|
|
|
tamaño del embalaje
|
265 (largo) * 270 (ancho) * 150 (alto) mm
|
|
|
peso
|
1,5 KG
|
|
