LSVISION – LS VISION Ambarella 3G 4G WFI GPS Two Battery Rechargeable Security Body Camera Support Audio Remotely App Real Time Stream Body Worn Camera

Applied in our manufacturing process, the technologies have speeded up the whole process and guaranteed the LS VISION Ambarella 3G 4G WFI GPS Two Battery Rechargeable Security Body Camera Support Audio Remotely App Real Time Stream quality.In the application range(s) of CCTV Camera, the product is of great use.

Bagikan ke:

Shenzhen LSVISION Technology Co., Ltd. is engaged in offering a broad assortment of CCTV Camera. The development of technology enables us to exploit more product advantages.Due to its practical use and versatile functions, the product is suitable for a wide range of industries such as CCTV Camera. At present, Shenzhen LSVISION Technology Co., Ltd. are still a growing enterprise with a strong ambition to become one of the most competitive enterprises in the market. We will continue to research and develop new technologies for the birth of new products. Also, we will grasp the precious tide of opening up and reform to attract customers all over the world.

Tempat Asal:	Guangdong, Tiongkok	Nama Merek:	LSVISION
Nomor Model:	LS-BC4G216	Fitur Khusus:	Tahan air / Tahan Cuaca
Sensor:	CMOS	Feature 1:	Support 3G/4G-LTE Live Streaming
Feature 2:	WiFi For wireless video/audio transmission;	Feature 3:	IP68 waterproof and 2m drop resistant
wide angle:	125° wide angle of view, support DEWARP function	Gaya:	Mini Camera
Recording Resolution:	1920*1080p 30fps	Snap Shot:	JPG, up to 40M(8640*4752) pixel
GPS:	Support GPS Remote Live Tracking	Night Vision:	up to 10 meters with visible face image
Screen:	2 inch TFT-LED high-resolution color display

4G Series Body Camera.

. Ambarella A12

. Built-in GPS: Remote Live Tracking
. Built-in 3G / LTE-4G/Live Streaming

. WIFI Wireless Video/Audio transmission;

. 1080P 30fps Record; 720P 30fps for 4G live view

. 16G/32G/64G/128G

4G Series Body Worn Camera

. Ambarella A12 and OV4689 senor (4MP)

. Up to 1920x1080P 30fps video resolution
. Support H.264/H.265, 4G LTE;
. Support night vision;
. IP68 waterproof and 2m drop resistant
. Pre-record and Post-record
. Support encrypt recording video function
. 16G/32G/64G/128G

Normal Series Body Worn Camera

. Ambarella A7 dan OV4689 senor (5MP)
. Sudut pandang lebar 140°
. with GPS & Night Vision Function
. support 11 hours 720P 30fps recording
. IP67 waterproof and 1m drop resistant
. Pre-record and Post-record
. 16G/32G/64G

Normal Series Police Body Camera

. Ambarella A7 and 5MP CMOS Sensor
. 2304x1296p 30fps for recording
. 140 degree Wide Angle

. . with GPS & Night Vision Function

. Pre-record(max 45s) & Post-record(10min)

. 16G/32G/64G/128G

Simple Series Body Worn Wearable Camera

. Ambarella A12 and OV4689 senor (5MP)

. with GPS & WiFi & Bluethooth & Night Vision Function

. without LCD display

. 16G/32G/64G/128G

Simple Series Body Camera (GPS)

. Ambarella A7 dan OV4689 senor (5MP)
. Sudut pandang lebar 140°

. Mendukung GPS
. support 8 hours 720P 30fps recording
. Tidak ada layar LCD

16G/32G/64G/128G

Fitur Utama

LS VISION Ambarella A12 3G 4G WFI GPS Two Battery Rechargable Security Body Camera Support Audio Remotely App Real Time Stream

Ambarella A12S2L and OV4689 sensor
Up to 1920x1080P 30fps video resolution, support 1080P live view and two-way talk back
Up to 40 million pixels for snap shot
≥125° wide angle of view, support DEWARP function
Support night vision, up to 10 meters with visible shape image
Support GPS(GPS+GLONASS/GPS+BDS optional, add USD13.9)
Support 3G/4G and WiFi
2700mAh replaceable battery capacity for 5 hours 1080P 30fps recording, support 60mAh built-in battery (keep device running during changing battery)
IP68 waterproof and 2m drop resistant
Pre-record(5s/10s/20s) and Post-record(5s/10s/20s)
Support encrypt recording video function
2 inch TFT-LCD high-resolution color display
88mm * 60mm * 34mm and 165g
Server fee: It’s free if you build your own server.

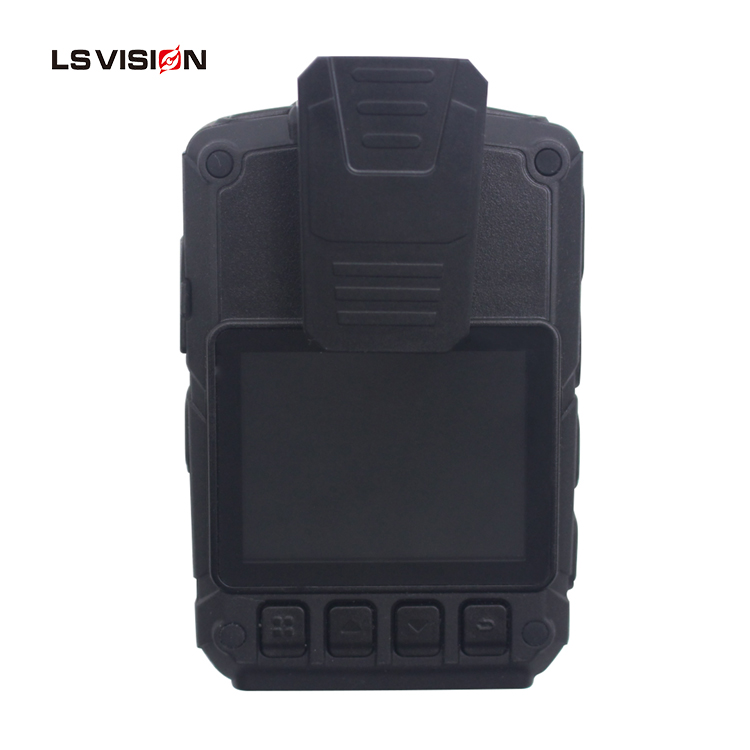

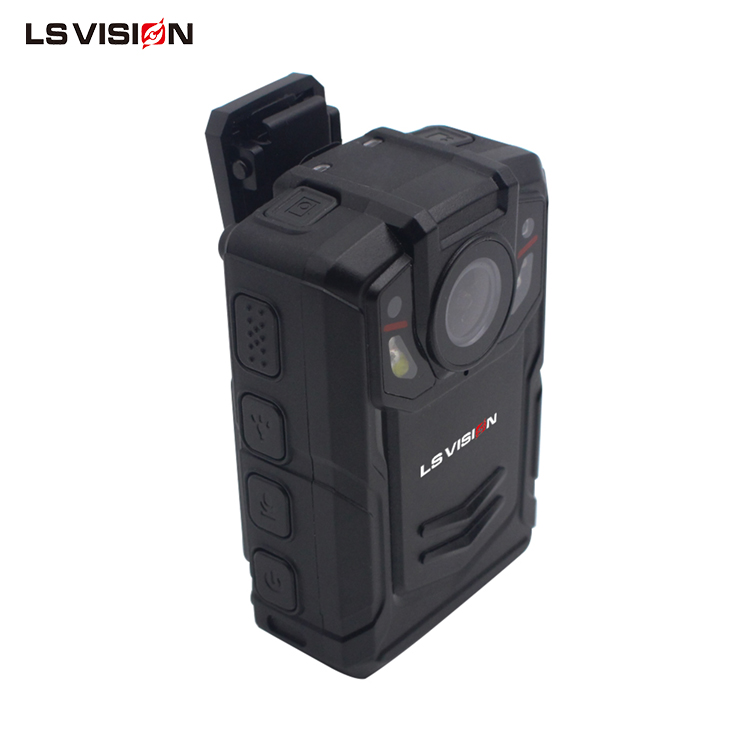

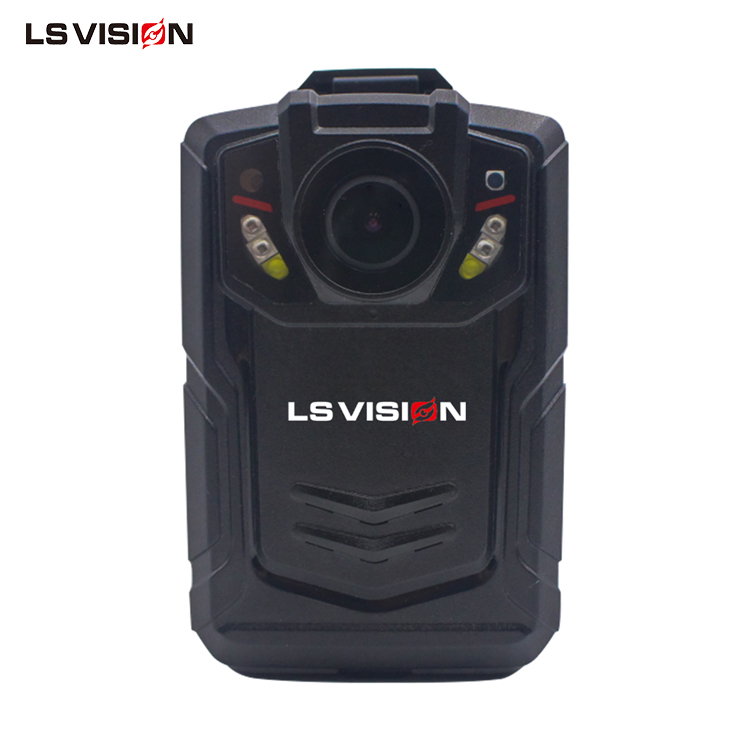

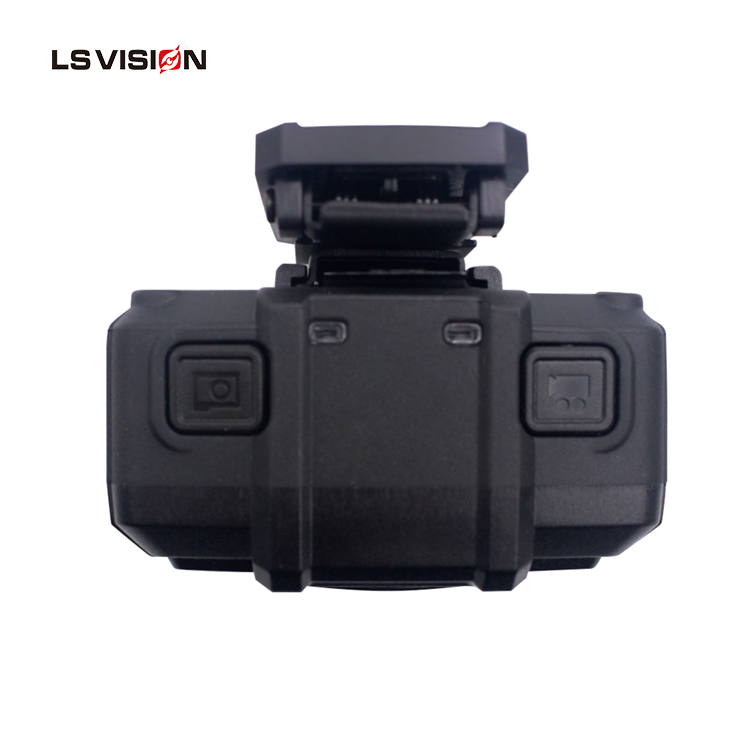

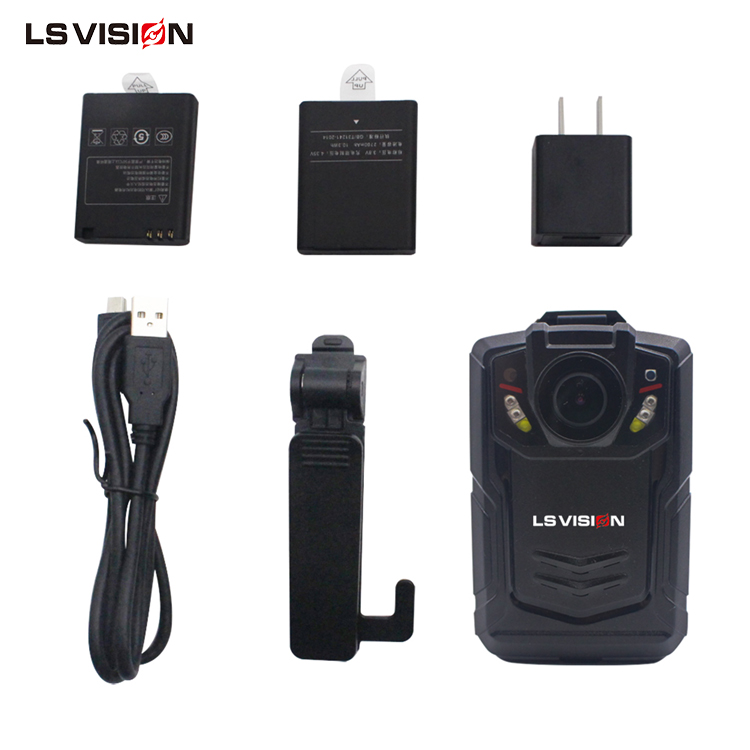

Detailed Pictures

Spesifikasi

Model	LS-BC4G216
Chipset	Ambarella A12
OS	Linux 3.10.73
Startup Time	< 10 Seconds (From power on to recording)
Sensor Gambar	1/2.9″color CMOS sensor,4MP
Image Angle	HOV≧125°
Light Compensation	Infrared Light,range up to 15 Meters
IR-Cut	Automatic
IR Light	4 IR lights
Night Vision	Up to 10 Meters with Visible face image
Snap shot	JPG, up to 40M(8640*4752) pixel
Format Video	H.264
Resolusi Perekaman	1920*1080p 30fps
Low Bit Rate	Ambabrella Smart AVC technology for volume saving
FPS	30fps
Audio Format	PCM
Dewarp	Dewarp processing for fish eye lens or wide angle lens
Playback	32X Fast Forward
LCD	320*240, 2.0 inch TFT-LCD High-Resolution Color Display
LCD brightness	>200cd/m²
Tanda Air	User ID, Time and date Stamp, GPS coordinates Imbedded into Video
Data Port	Mini USB & 14pin Auxiliary port
Storage Media	standard 32GB (16GB/32GB/64GB/128GB optional)
GPS	Internal GPS module with time synchronize
Kapasitas Baterai	2700mAh replaceable battery capacity for 5 hours 1080P 30fps recording, support 60mAh built-in battery (keep device running during changing battery)
Waktu pengisian daya	≤4 hours (use the standard power adaptor)
Charging Base	Untuk pengisian baterai dan transmisi data
Pre-record	20s/10s/5s/Off adjustable
Post-record	20s/10s/5s/Off adjustable
Low Power Consumption	1.2W (without GPS,WIFI,4G LTE Live Streaming working)
Continuous working time	6 hours 1080p 30fps recording(with one battery,and turn 4G,WIFI off)
Build-in Modules	Optional GPS, WIFI, 3G/4G LTE
Dimensi	5930.385mm
Berat	165g
Suhu Kerja	-40℃~60℃
Kelembaban Kerja	40%~80%(RH)
Water Proof	IP68 waterproof and 2m drop resistant
Parameter settings	LCD menu
Nirkabel	WIFI and 3G/4G LTE
Ukuran	88mm * 60mm * 34mm and 165g
