LS VISION 5″ 2MP HD 20X Zoom IR Speed Dome PTZ IP Camera with Audio Alarm Auto Tracking Function

Macchina fotografica

Sensore di immagine:

1/2.8”Progressive Scan CMOS

Effective Pixels:

1920*1080

Optical Zoom:

20X

Lunghezza focale:

f=4.7-94mm

1920(H)x1080(V)

Aperture Range:

F1.6-F3.5

Angle of View:

61.4º-2.9º(Wide-Tele)

Day& Night:

ICR

Modalità di messa a fuoco:

Auto /Manual

S/N Ratio:

>52dB

BLC:

ON/OFF

White Balance:

Auto / Manual

Shutter Time:

1/1s-1/30,000s

AGC:

Auto/Manuale

Min.illumination:

Color:0.05Lux@(F1.6,AGC ON)

B/W: 0.01Lux@(F1.6, AGC on )

Rete

Max.Image

Risoluzione:

1920*1080

Frame Rate:

50Hz: 25 fps (1920×1080), 25 fps (1280×720)   60Hz: 30 fps (1920×1080), 30 fps (1280×720)

Dual Stream:

Supporto

Security Measures:

Password protection, multiuser access control

Protocols:

TCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPOE、NTP、UPNP、SNMP、FTP、802.1x、QoS、HTTPS、IPv6（SIP、SRTP）、

Interface:

1 network interface,1 power input

IR Leds

IR Leds:

8 high power array IR leds

Gamma IR:

120m

IR Action Mode:

Auto/Manual/Camera

IR Led Power:

18W

 Pan & Tilt

Pan Range:

360° endless

Pan Speed:

Pan Manual Speed: 0.01°-120°/s,
Pan Preset Speed: 220°/s

Tilt Range:

-5°-90° (Auto Flip )

Tilt Speed:

Tilt Manual Speed: 0.1°-120°/s,
Tilt Preset Speed:120°/s

Number of Preset:

256

Patrol:

8 patrols, up to 32 presets per patrol

Auto Scan:

8 scans with settable left and right boundaries

Pattern:

4 patterns, up to 500 instructions per pattern

Generale

OSD Menu:

English / Chinese

VAL:

Supporto

Wiper:

Standard Configuration

Power Box:

Opzionale

Power Supply :

DC12V+-10%

Consumo di energia:

38W

Working Temperature /Humidity:

-35°C-+55°C
90% or less(No Condensing)

Livello di protezione:

IP66 standard
Level 2 lightning protection, 4000V surge protection

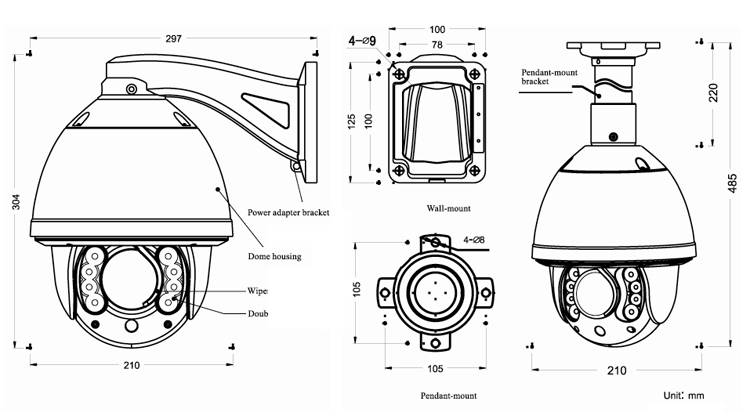

Mounting:

Various mounting modes option:wall-mount,pendant-mount

Weight(approx.):

5.8kg

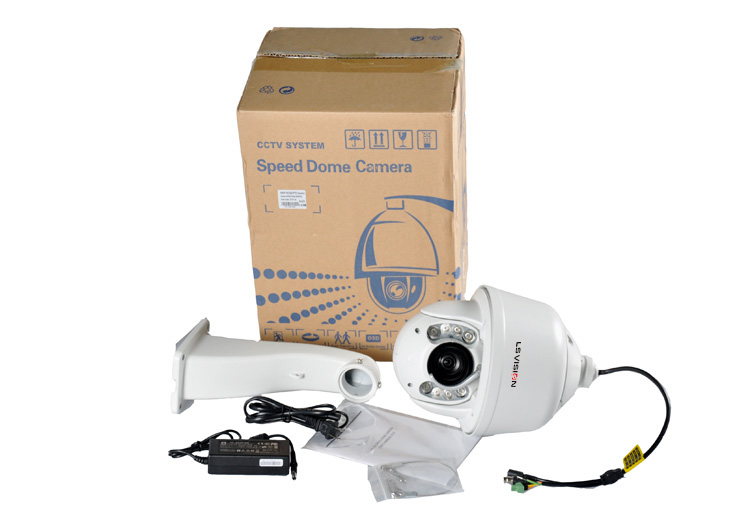

Accessories:

Wall-mount bracket,Power adapter(DC12v)
