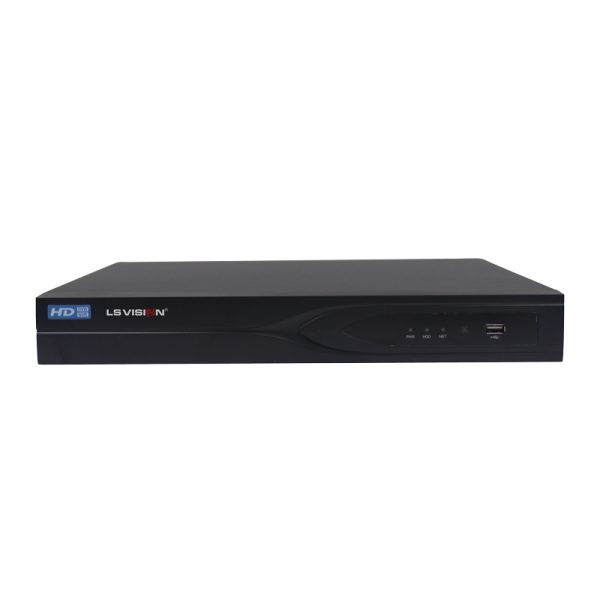

LS VISION Face Detection IP System HDMI VGA Real Time Video Record 16 Channel 4K Ultra HD NVR Built-in PoE
| Zdjęcie |
LS VISION HD NVR Connection Installation Principle
LS VISION HD NVR Series (4CH/8CH/16CH/32CH/64CH; POE or Not; support 1/2 Sata)
| Specyfikacja |
Kluczowe cechy:
* H.264/ High performance and industrial-grade SOC chip with low power consumption and steady system. Triple watchdog circuit protection system ensures no crashes phenomenon.
* With embedded Linux system, a 16-bit colored image enhancement technology, a consummate UI operation interface style.
* Support 2.4 protocol.
* Full HDMI output, support HDMI, VGA, CVBS synchronization output.
* With hard disk dormancy and Wake-on-LAN technology, which lower power consumption, improve the stability and prolong the hard disk life.
* With hard disk S.M.A.R.T management technology; capacity is unlimited and health status of hard disk can be monitored at any time.
* Hard disk dual redundant technology with data backup effectively ensures video security.
* Network QOS automatically adjusting the code flow and network transmission strategy ensures the Network transmission reliability.
* Plug and play, support P2P function, cloud services and cloud storage is provided.
* Supports Iphone、Windows Mobile、Symbian、Andriod、Blackberry
* 4ch POE port built-in
* Intelligent features: 1CH face detection, 2ch boundary analysis
Specification:
|
Module |
LS-NF5116P |
|
|
OS |
Embedded Linux |
|
|
master chip |
Hi3798M |
|
|
Access Bandwidth |
64M |
|
|
Video&Audio input |
Bidirectional Talk |
1 CH(Line in,2Vpp,1Kohms) |
|
IPC Input |
(Up to 16CH 1080P@6M) |
|
|
Video&Audio output |
CVBS Output |
1CH,BNC(1.0Vp-p,75ohms) |
|
VGA |
1CH,1920×1080,1280×1024,1280×720,1024×768 |
|
|
HDMI |
Standard 1.4a |
|
|
3840×2160，1920×1080,1280×1024,1280×720,1024×768 |
||
|
Audio Output |
1CH,BNC(Line out,2Vpp,300ohms) |
|
|
Video&Audio encoding |
Kompresja dźwięku |
G711A |
|
Audio Bit Rate |
64Kbps |
|
|
Video&Audio codecs |
IP Resolution |
Main stream:Up to 4096*3072 Auxiliary stream:D1 |
|
Video bitrate |
Up to 2Mbps@D1, 4Mbps@720P, 8Mbps@1080P |
|
|
Video decoding |
（Main Profile@L5.0 High-tie）/H.264(Up to High Profile@Level5.0） |
|
|
Synchronous Playback |
Up to 16CH |
|
|
Other Function |
Bidirectional Talk |
Two-way voice intercom function |
|
Wykrywanie ruchu |
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest) |
|
|
Picture Capture |
Local Capture&Web Capture |
|
|
HDD Interface |
SATA |
1 |
|
ESATA |
0 |
|
|

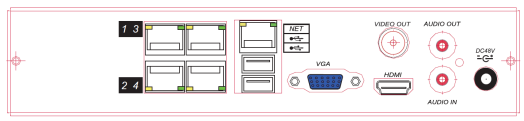

POE |
POE interface |
4ch POE –RJ-45 10/100 Mbps self-adaptive Ethernet interface
|
|
External Interface |
Network Interface |
1 RJ45 10M/100M/1000M adaptive Ethernet interface |
|
USB |
2 USB 2.0 Interfaces |
|
|
Ogólne |
Dimensions |
410*293*60mm |
|
Waga |
1.7Kg(without HDD) |
|
|
Power Supply |
DC 48V /1.35A |
|
|
Working Temperature |
-10℃–＋55℃ |
|
|
Working Humidity |
10％–90％ |
|
|
Consumption |
7W(without HDD and POE) |
|
