LS VISION Latest Style 32ch HD NVR CCTV Security System Network Video Recorder Support 8 SATA

Paylaşmak için:

Hisilicon Çözüm IP Kamera Motorized Lens IP Camera 4 in 1 Hybrid Cameras

Starlight IP Kamera IP Kamera 360 Derece Panoramik Kamera

Temel Özellikler

. High performance and industrial-grade SOC chip with low power consumption and steady system. Triple watchdog circuit protection system ensures no crashes phenomenon.

. With embedded Linux system, a 16-bit colored image enhancement technology, a consummate UI operation interface style.

. With an access capability to HD network cameras from 1 -5 megapixel.

. Support 2.4 protocol.

. Full HDMI output, support HDMI, VGA, CVBS synchronization output.

. With hard disk dormancy and Wake-on-LAN technology, which lower power consumption, improve the stability and prolong the hard disk life.

. With hard disk S.M.A.R.T management technology; capacity is unlimited and health status of hard disk can be monitored at any time.

. Hard disk dual redundant technology with data backup effectively ensures video security.

. Network QOS automatically adjusting the code flow and network transmission strategy ensures the Network transmission reliability.

. Plug and play, support P2P function, cloud services and cloud storage is provided.

. P2P function: Supports Iphone、Windows Mobile、Symbian、Andriod、Blackberry

Resim

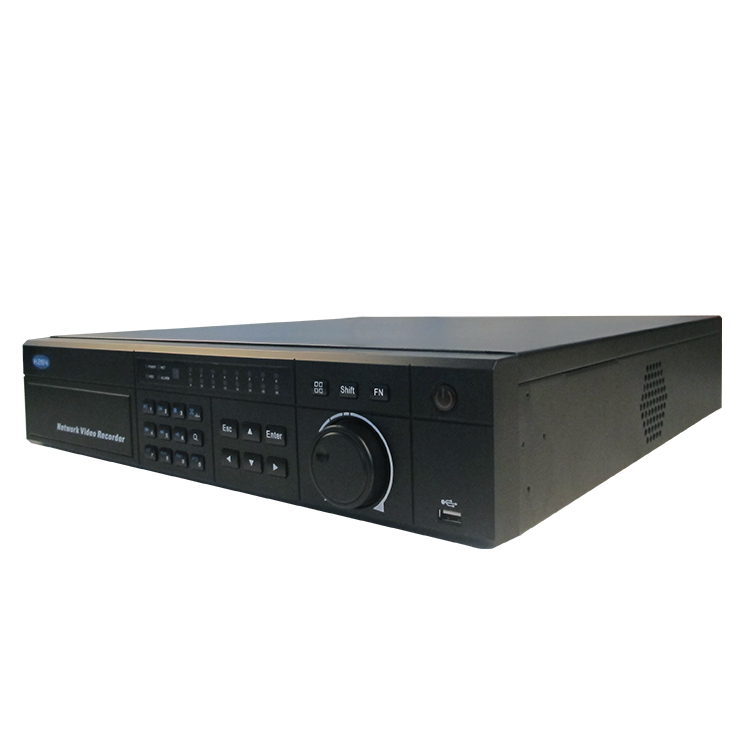

LS VISION Latest Style CCTV Security System NVR Support 8SATA

Şartname

Modül		LS-NF7832
İŞLETIM SISTEMI		Embedded Linux
master chip		Hi3535
Bant Genişliğine Erişim		160M
Video&Audio input	Bidirectional Talk	1 CH(Line in,2Vpp,1Kohms)
Video&Audio input	IPC Input	up to 32ch D1@30fps（2Mbps）or 32ch 720P@30fps(4Mbps) or 16ch 1080P@30fps(8Mbps) or 32ch 1080P@30fps(4Mbps) or 16ch 3MP@20fps(8Mbps) or 10ch 5MP@10fps(12Mbps)
Video&Audio output	CVBS Output	1CH,BNC(1.0Vp-p,75ohms）
	VGA	1CH,Resolution 1920×1080,1440×900,1280×1024,1024×768,800×600
	HDMI	Standard 1.3a
	HDMI	Resolution 1920×1080,1440×900,1280×1024,1280×720,1024×768,800×600
	Audio Output	1CH,BNC(Line out,2Vpp,300ohms)
Video&Audio encoding	Audio Compression	G711A
Video&Audio encoding	Audio Bit Rate	64Kbps
Video&Audio codecs	IP Resolution	Main stream:up to 5632×4224 Auxiliary stream:4CIF
	Video bitrate	Up to 2Mbps@D1,4Mbps@720P,8Mbps@1080P
	Video decoding	MPEG-4/H.264(Up to High Profile@Level5.0）
	Synchronous Playback	Up to 16CH
resource capacity	D1 Play back	16CH
	720P Play back	13CH
	1080P Play back	6CH
	switch for 3.0MP IPC	16CH 3MP@20fps(8Mbps)
	3.0MP Play back	4CH
	switch for 5.0MP IPC	10CH 5MP@10fps(12Mbps)
	5.0MP Play back	2CH
Other Function	Bidirectional Talk	Two-way voice intercom function
	Motion Detection	Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
	Picture Capture	Local Capture&Web Capture
HDD Interface	SATA	8
HDD Interface	ESATA	1
POE	POE interface	N/A
External Interface	Network Interface	2 RJ45 10M / 100M /1000M adaptive Ethernet interface
	USB	2 USB 2.0 Interfaces
	Alarm Input	16CH
	Alarm Output	4CH
	RS-232	1RS-232 interface
	RS-485	1RS-485 interface
Genel	Boyutlar	445x440x89mm(W×D× H)
	Ağırlık	7Kg(without HDD)
	Power Supply	220V±10% 47Hz～63Hz
	Working Temperature	-10℃–＋55℃
	Working Humidity	10％–90％
	Tüketim	20W(without HDD)

Boyut

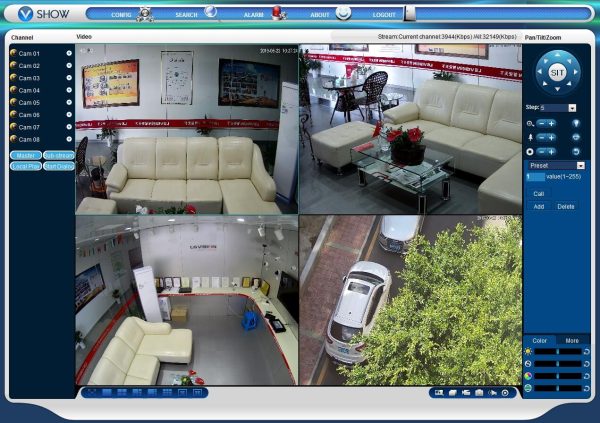

IE Arayüzü

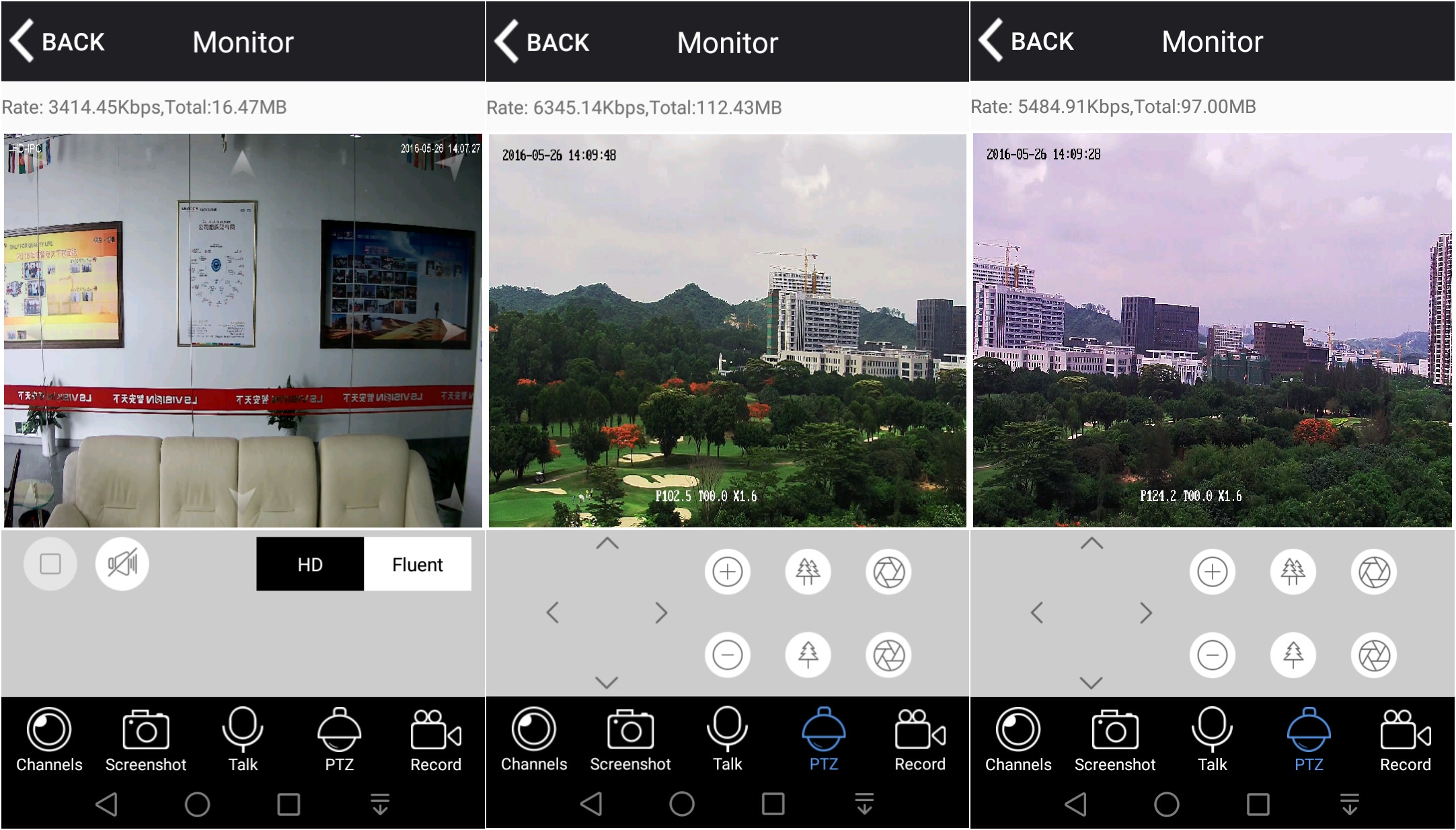

P2P Mobile App for Android & IOS : VSS MOBILE of NVR

LS VISION NVR Feedback from Customer

LS VISION CCTV Kamera Sertifikaları

LS VISION HD NVR Series

LS VISION HD NVR Series support SATA
