LSVISION HD CCTV 8ch Ağ Kaydedici 1.3MP Kablosuz Kamera 8ch 960P Wifi NVR Kiti

Since inception, we have been constantly upgrading the manufacturing technologies.Thanks to those technologies, product performance has also improved a lot. It has a wide application and now can be found in the field(s) of CCTV Camera.

Paylaşmak için:

Applying the technology to the manufacturing process of the product turns out to be highly helpful. Featuring stability and durability,LSVISION HD CCTV 8ch Network Recorder 1.3MP Wireless Camera 8ch 960P Wifi NVR Kit is suitable for the field(s) of CCTV Camera. Modern technologies innovate means are adopted for the flawless manufacturing of LSVISION HD CCTV 8ch Network Recorder 1.3MP Wireless Camera 8ch 960P Wifi NVR Kit.So far, the application areas of the product have been expanded to the CCTV Camera. Driven by the corporate vision of ‘being the most professional manufacturer and the most reliable exporter in the international market’, Shenzhen LSVISION Technology Co., Ltd. will pay more attention to enhancing R&D strength, continually upgrade technologies, and optimize organization structure. We encourage all the staff to unite together in this process for creating a better future for the company.

Menşe Yeri:	Guangdong, Çin	Marka adı:	LS VİZYONU
Model Numarası:	LS-NFWK8108	Özel Özellikler:	Wifi
Sensör:	Hisilicone chipset	Stil:	bullet
Technology:	Diğer	Tip:	wifi nvr kit
DSP:	Hi3535	Operating system:	Embedded Linux OS
Network Video:	8ch	Network video input broad bank:	20Mbps
Video Çözünürlüğü:	D1/960P	Synch-playback:	8ch
Video/Capture mode:	Manual,Time,Motion,Alarm	Playback mode:	Real time,Routine,Event
Backup:	USB backup	HDD:	1 SATA

Ürün Açıklaması

Şartname

8CH 960P WIFI NVR Kit Model :LS-NFWK8108

Temel Özellikler:

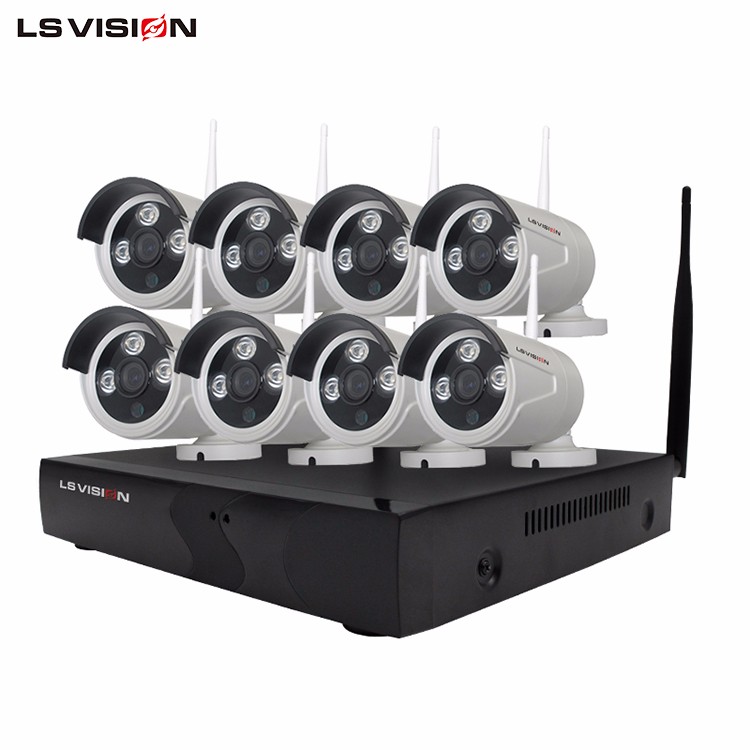

8CH 960P wifi NVR + 8pcs 960P wifi IP cameras

Convenient Installation

Plug and play

P2P, offer friendly APP

Support 1 SATA HDD

Wireless transmission stability:2.4G wireless

960P HD Video

Special and separate network for wireless transmission

Wifi wild working distance up to 60M

Quick setup, with built-in multilingual management page

Model	LS-NFWK8108
Operating System	Embedded Linux OS
AV(video)input
DSP	Hi3535
Network Video	8CH
Network video input broad bank	20Mbps
AV (video) output
HDMI input	1ch，resolution：1024×768，1366×768，1440×900,1920x1080p
VGA output	1ch，resolution：1024×768，1366×768，1440×900,1920x1080p
AV CODEC Specification
Video Çözünürlüğü	D1/960P
synch-playback	8CH
Video Control
Video/Capture mode	Manual、Time、Motion、Alarm
Playback mode	Real time、Routine、Event
Backup	USB backup
Alarm
Alarm Input	4ch (optional)
Alarm Çıkışı	1ch (optional)
Hard Disk
Type	1*SATA interface
Max Capacity	4 TB at most for each
Harici Arayüz
Ağ Arayüzü	1 adaptable RJ45 10M/100M, 1 WIFI interface
USB Interface	2 USB 2.0
Network Control
Protokol	UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) DHCP (Automatically obtain an IP address), etc…
Diğerleri
Güç Kaynağı	DC12V3A
Power Consumption (W)	≤5W（Without HDD）
Operate Temperature (°C)	-10℃~+55℃
Working Humidity (%) RH	10%~90%
Size	257mm（W）×210mm（V）×45mm（H）
Weight（excluding HDD）	≤1Kg

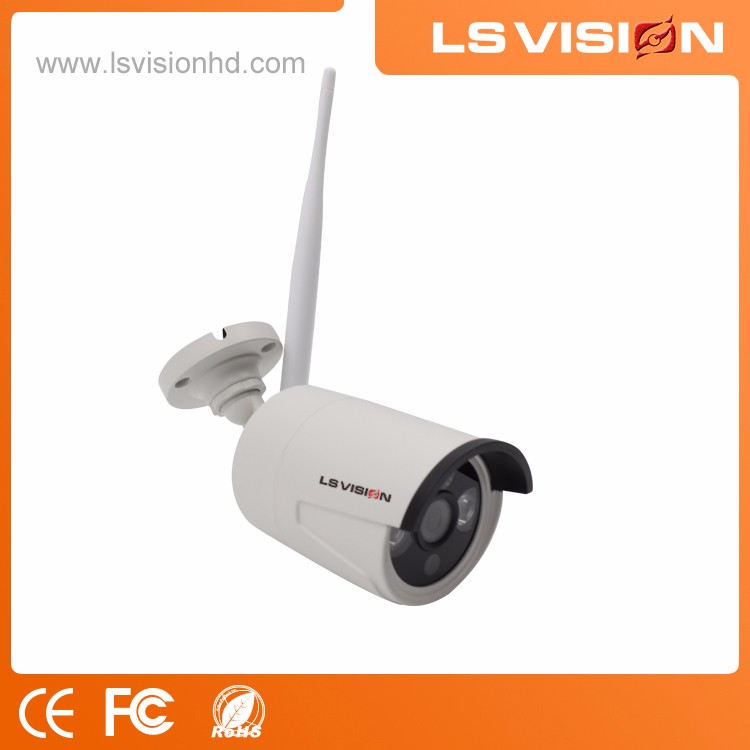

IPC Specification:
Model	/
Sensör	1/3” Progressive Scan Sensor
DSP	Hi3518E+STW1135
Signal System	PAL/NTSC
Çözünürlük	960P; 1280 x 960 16 : 9 High Defination
Minimum illumination	Color: 0.1 Lux; B/W: 0.01 Lux
Shutter	1/25s to 1/25,000s
Lens	3.6/4/6mm (optional)
OSD	Date Time & Title
Beyaz Dengesi	Otomatik
Day&Night	Auto / Color / BW
3D-DNR	Otomatik
Mirror/Flip	On / Off
Frame Specification	Three Streaming at the Same Time: H.264 1280×960@30fps or belowH.264 640×480@30fps or below
	Below
S/N	> 39.1 Db
Arayüz	RJ45 / WIFI 802.11b/g/n
General Specification
Anti-thunder Level	Standard IEC61000-4-5
Ambient Temperature/Humidity	-10℃ to +50℃ / 30% to 80% RH
Working Temperature/Humidity	-20℃ to +60℃ / 20% to 90% RH
Power Input	DC12V-1A
Güç tüketimi	≤6W
Size	205(L)×70(W)×55 (H)mm
Ağırlık	0.5Kg
Level of Protection	IP66

Uygulamalar

Other Products

LS VISION Info

Why LS VISION will be your first choice in the market?

LS VISION Technology Co., Ltd. (Own Brand: LS VISION). LS VISION is China No.1 IP Camera professional Supplier for Tough Environment. LS VISION always uphold the corporate culture – “Only for Quality Life” and focused on quality and service. Aim to provide top quality security products, professional service and best customer experience.

LS VİZYONU main product include High Quality IP Camera, HD Network Camera, PTZ Camera, AHD Camera, HD-TVI Camera, AHD DVR, TVI DVR, Hybrid Camera Dvr, HD NVR, and WIFI NVR Kits etc.

LS Vision established since 2012, with fast growing, so far we have 20 engineers R&D team, 20 person sales team and 10 marketing team. LS VISION factory has around 30 workers in production line. and the production capacity can be 15,000pcs in each month. LS Vision’s products are widely used in many fields, such as banking, public security, energy infrastructure, telecommunication, intelligent-building, and intelligent-transportation.

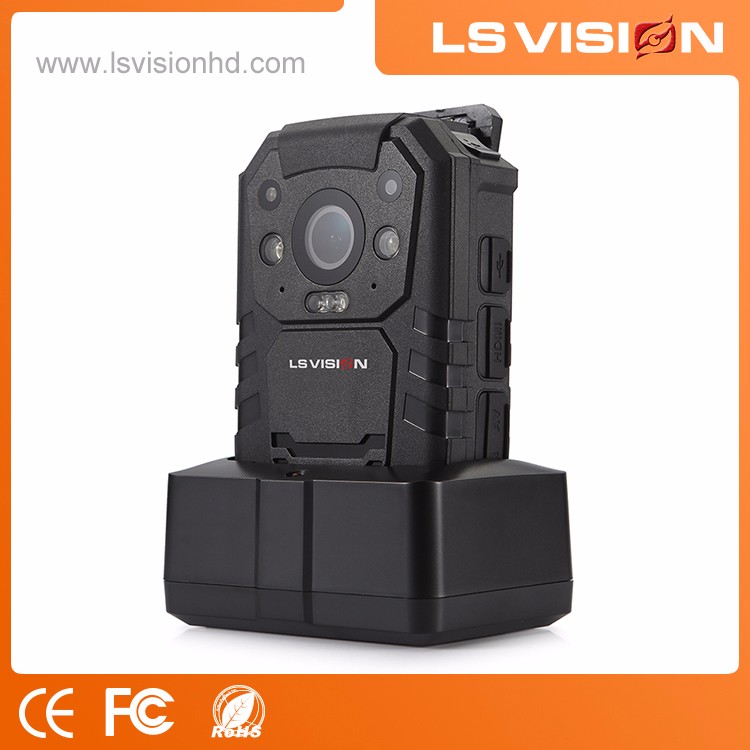

Now our team is keeping on research new products, Such as 4K H.265 IP Camera, Starlight IP Camera, 360 degree Panoramic IP Camera and body camera.

OEM and ODM service will be provided beyond your imagine.

LS Vision is definitely a worthwhile cooperation for you.

Sertifikasyon

Global Agent

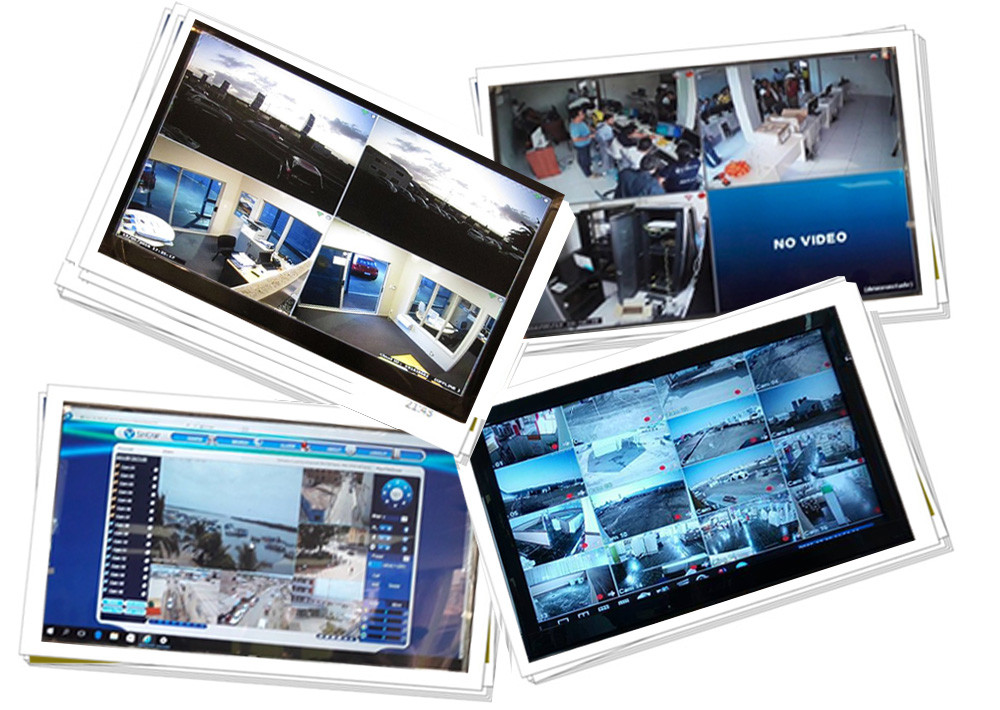

Successful Case

In Arabia, in Australia, in Philippines, in New Zealand, in korea,in the underground parking , in large shopping malls, in the wild…Day and night,the world is in our eyes, waiting for you to witness with LS-VISION！
