It is AI tuya nvr 4ch 8ch cctv home security p2p 1080P 2MP 4 8 channel wifi wireless nvr camera system kit features and appearance that differentiates it from other products in the market. We pay close attention to the selection of raw materials and the use of manufacturing technologies. In this way, the quality and performance of IP Camera/NVR/Solar Camera/Smart Battery Camera can be better guaranteed. At Shenzhen LSVISION Technology Co., Ltd., it is our goal to provide the highest quality products and superior service to our customers, both being our top priority. Relying on our excellent products and sensible marketing strategy,Shenzhen LSVISION Technology Co., Ltd. hold a firm belief that we will take a large market share in the future and benefit our stakeholders as well.
| Lugar de origen: | Guangdong, China | Marca: | LSVISION |
| Número de modelo: | LS-WK4214 | Característica clave1: | Plug and Play, remote control |
| Característica clave2: | Waterproof, support APP, CMS and IE Browser View | Main processor: | Hi3536D |
| Garantía: | 2 Years Warranty kit video surveillance wireless | DISCO DURO: | support 1 SATA max 6T |
| Lente: | 3.6mm Fixed lens | Wifi Signal: | 100-150M |

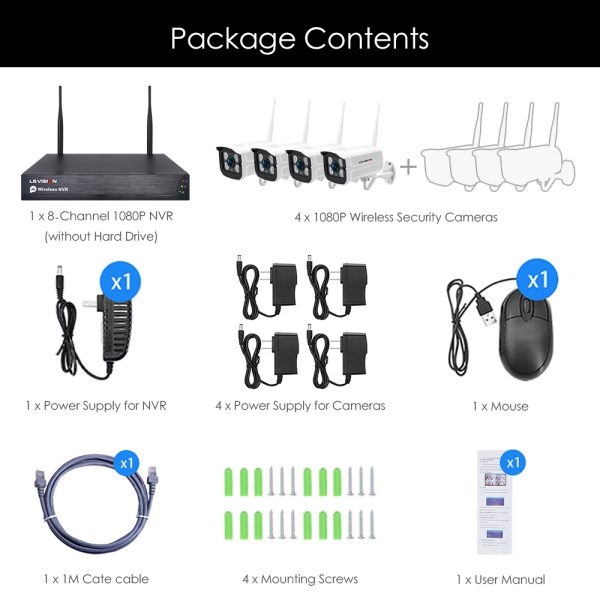

| Night Vision: | 20 Meters IR Distance for Night Vision | Accesorios: | With 1 meter reticle*1 ;Power adaptor*9;Mouse*1 |
| Certificado: | CE ROHS FCC |

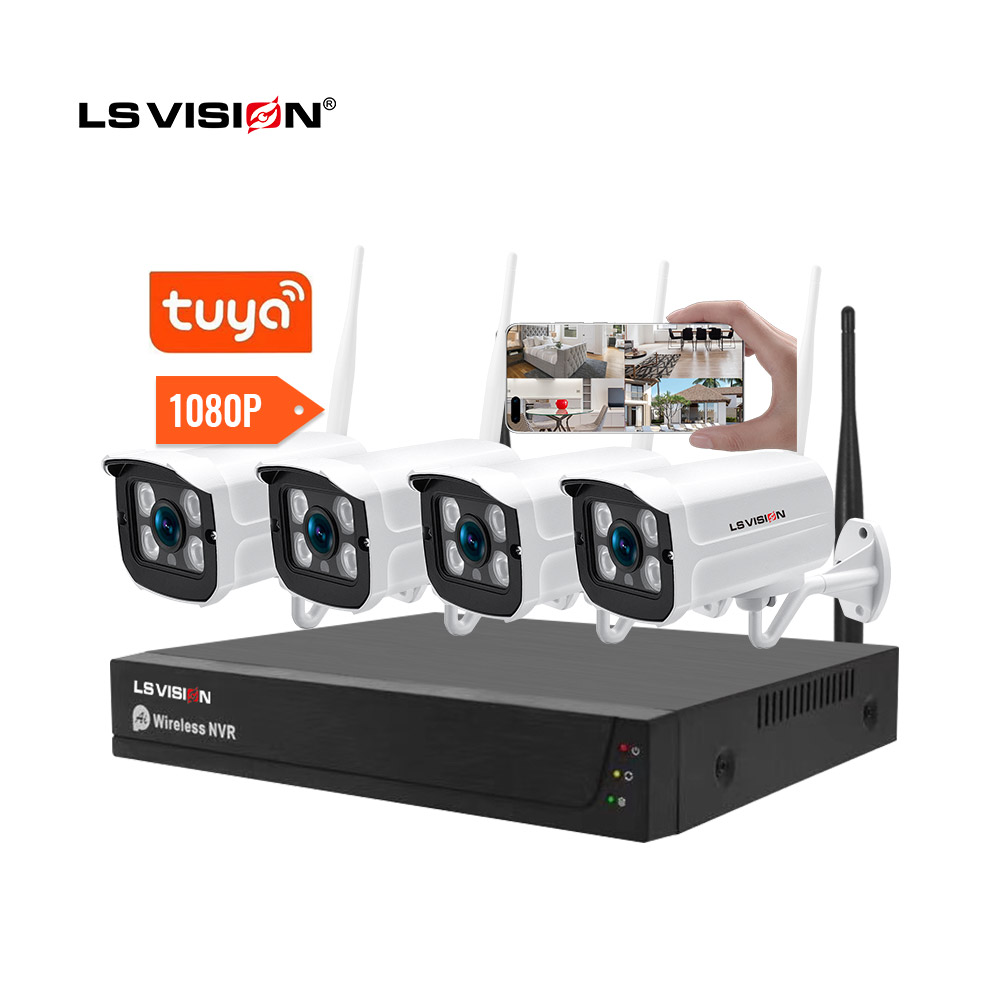

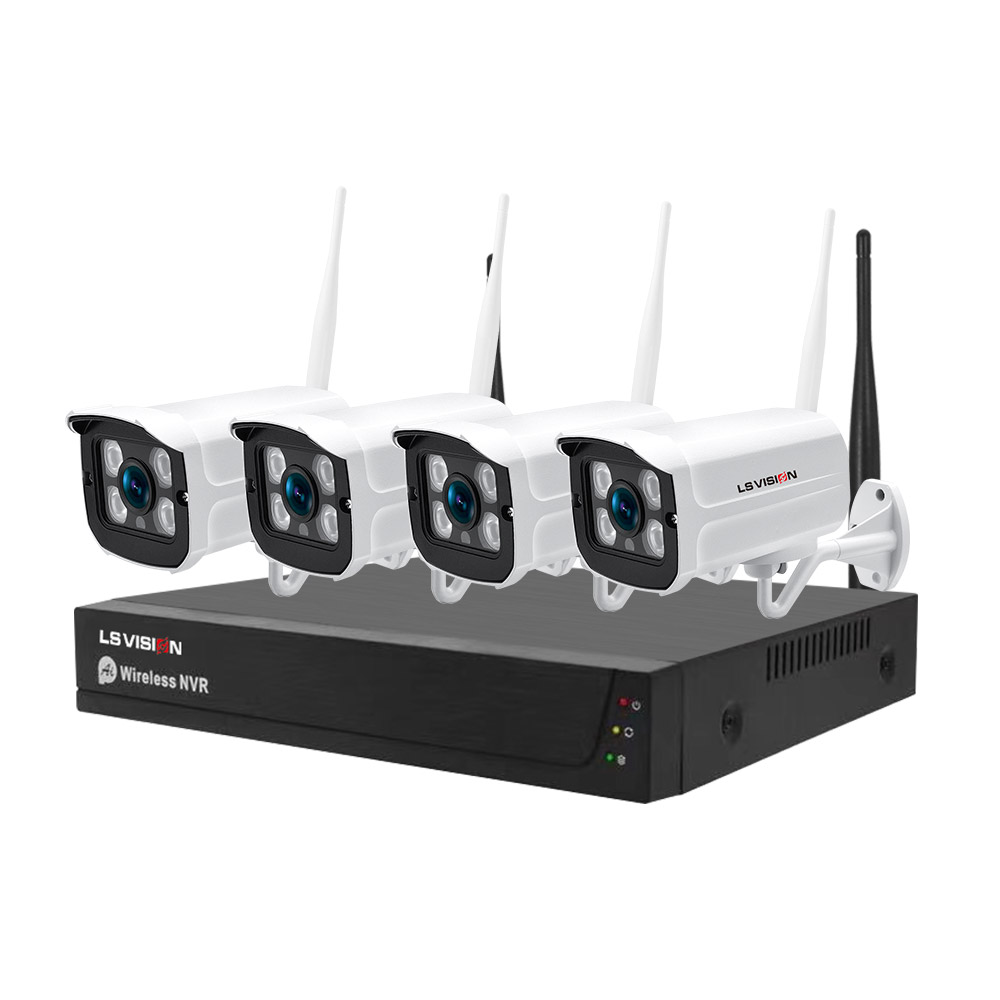

AI tuya nvr 4ch 8ch cctv home security p2p 1080P 2MP 4 8 channel wifi wireless nvr camera system kit
Más recomendaciones
Descripción del producto
|
Modelo
|
LS-WK4214
|
|||
|
NVR Specification
|
||||
|
Sistema |
Main processor
|
Hi3536D
|
||
|
Sistema operativo
|
Linux integrado
|
|||
|
Vídeo
|
Video compression
|
H.265 High Profile/ H.264 Main Profile
|
||
|
Salida de vídeo
|
720P60,XGA,1080P60
|
|||
|
Video input(IP)
|
8*1080P/8*960P/8*720P
|
|||
|
Audio
|
Compresión de audio
|
G.711
|
||
|
intercom
|
Ninguno
|
|||
|
Record & playback
|
Recording mode
|
Manual/Alarm/Video Detection/Continuous
|
||
|
Local Playback
|
1*1080P
|
|||
|
Storage & Backup
|
Record Storage
|
network
|
||
|
Backup mode
|
Network backup, USB hard disk
|
|||
|
Control de red
|
Protocolo
|
TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP,P2P
|
||
|
Inalámbrico
|
Frequency
|
2.4G
|
||
|
Antenna Structure
|
2 × 2MIMO
|
|||
|
Distance
|
More than 200 meters with no obstacle，more than 40 meters if penetrate the wall， the actual transmission distance according to the
situation |
|||
|
Interfaz
|
Salida de vídeo
|
1ch VGA output
|
||
|
Audio I/O
|
Ninguno
|
|||
|
Alarm I/O
|
Ninguno
|
|||
|
Network interface
|
1*Puerto Ethernet adaptable RJ45 10M/100M
|
|||
|
USB
|
2*USB 2.0 port
|
|||
|
Hard disk
|
1 SATA(Up to 4TB)
|
|||
|
Oter
|
Power supply
|
DC +12V /3A
|
||
|
Consumo de energía
|
5W（Without HDD）
|
|||
|
Entorno de trabajo
|
Temperature:-10℃－＋55℃, Humidity:10%-90%RH
|
|||
|
IP Camera Specification
|
||||
|
Modelo
|
/
|
|||
|
2.0Mp Wireless IP Camera
|
||||
|
Image sensor
|
1/2.9″ 2.0M Pixel CMOS
|
|||
|
Lente
|
3.6 mm
|
|||
|
Lens Mount
|
M12
|
|||
|
Min. Iluminación
|
Color：0.01Lux@(F1.2，AGC ON) B/W：0.001Lux@(F1.2，AGC ON）,0Lux @（IRled ON)
|
|||
|
S / N ratio
|
≥39dB
|
|||
|
Velocidad de obturación
|
1/5 – 1/20,000s，
|
|||
|
Day & Night
|
Day / Night / External control（IR Cut Filter）
|
|||
|
AGC
|
Auto / Manual
|
|||
|
White balance
|
Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
|
|||
|
Wide dynamic range
|
Digtal Wide dynamic range
|
|||
|
Digital noise Reduction
|
2DNR,3DNR
|
|||
|
Compresión de vídeo
|
H.265 Main Profile/H.264 Main Profile/M-JPEG
|
|||
|
Compresión de audio
|
G711，PCM
|
|||
|
Max.Image Resolution
|
1920×1080@20fps
|
|||
|
Image Resolution
|
Main stream （1920×1080、1280×960、1280×720、720×576、640×480）
|
|||
|
sub-stream （640×480、352×288、320×240、176×144）
|
||||
|
Bitrate
|
CBR/VBR, bitrate：32Kbps~10Mbps variable
|
|||
|
Motion detect
|
Ayuda
|
|||
|
AI
|
Human detection
|
|||
|
Privacy Zone Masking
|
4 privacy masks programmable
|
|||
|
P2P
|
Android、IOS
|
|||
|
Protocolos
|
TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS， P2P
|
|||
|
Onvif
|
Non- Support
|
|||
|
Inalámbrico
|
Frequency:2.4G
|
|||
|
Transmission distance :More than 200 meters with no obstacle， More than 30 meters if penetrate the wall， The actual transmission
distance according to the situation |
||||
|
Potencia
|
12VDC
|
|||
|
Dimensiones
|
38x38x5mm
|
|||
|
Temperatura de trabajo
|
-30°C ~60°C, Humidity≤90%RH(Unsupport-condensing)
|
|||
