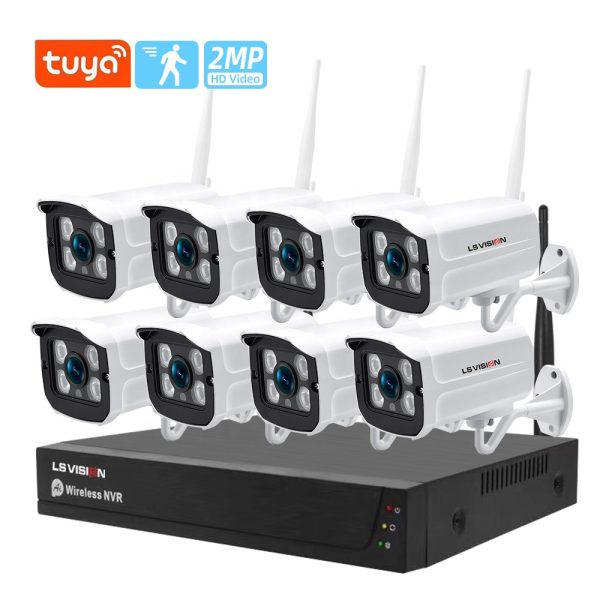

LSVISION – H.265 Tuya Home Security CCTV Home Security IP Camera System Wireless 2MP P2P Waterproof CMOS Sensor Night Vision WiFi NVR Kit H.264 Wifi NVR Kits

We are proud to provide consistent quality product and dependable service for many years. The product is endowed with stable and multi-functional performance. It is mainly used in the application field(s) of CCTV Camera. Thanks to our creative designers,LS VISION has the appearance which is designed to catch up with the latest industry trend. Adopting reliable raw materials which have passed the tests of our QC inspectors, H.265 Tuya Home Security CCTV Home Security IP Camera System Wireless 2MP P2P Waterproof CMOS Sensor Night Vision WiFi NVR Kit has some reliable performance.

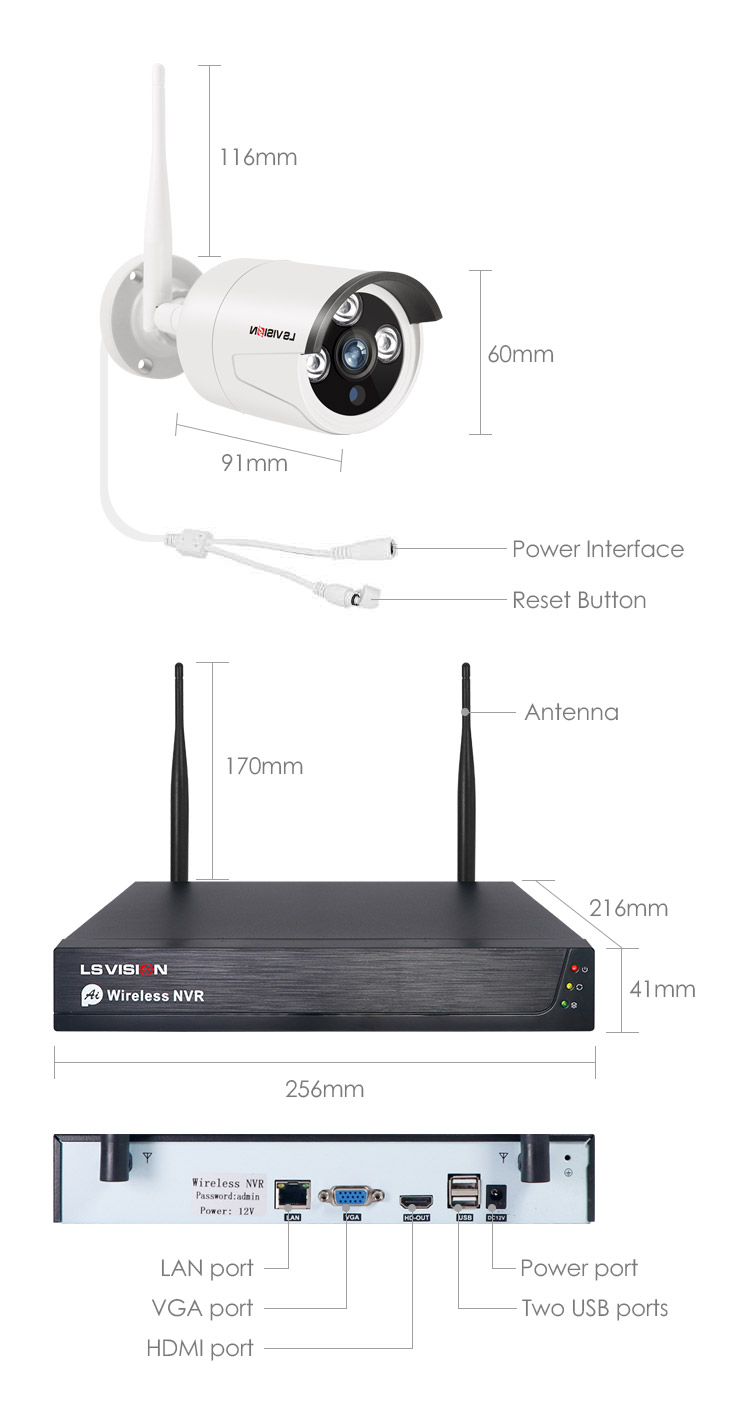

Detailed Image

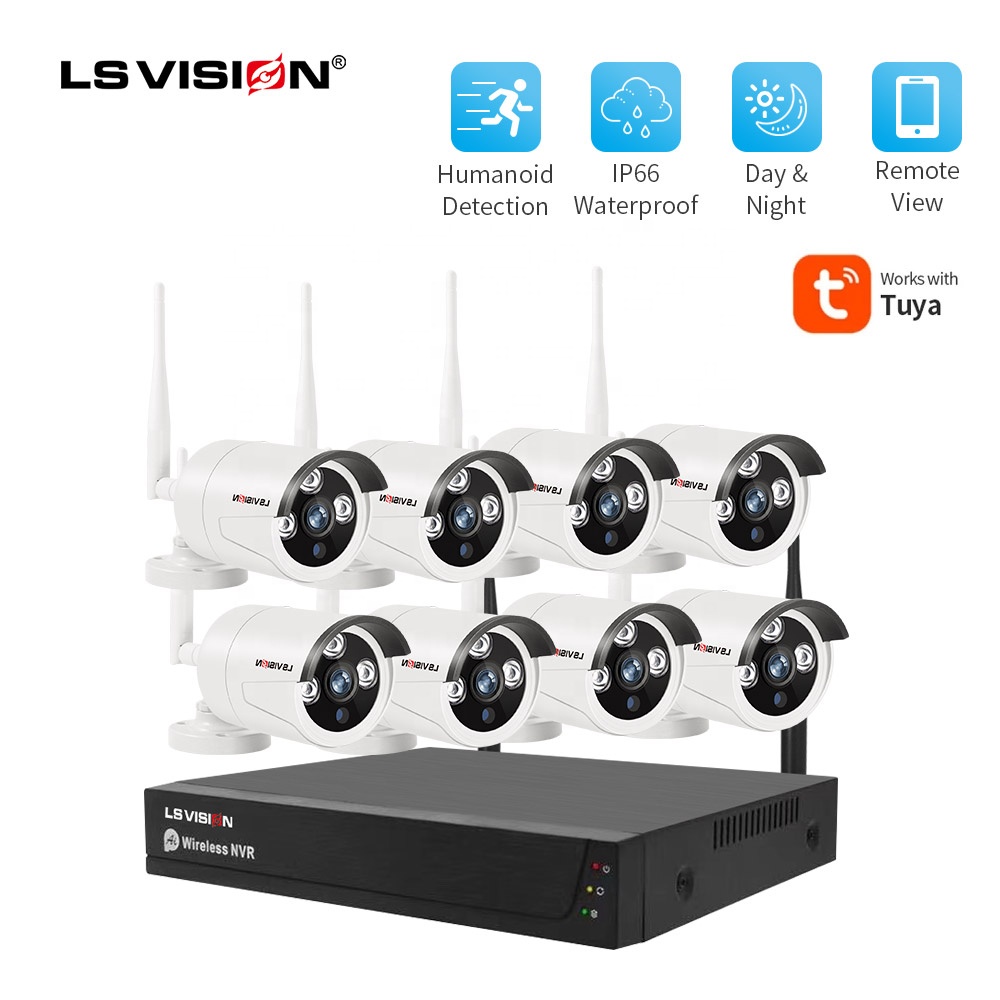

Home Security CCTV Home Security IP Camera System Wireless 2MP P2P Waterproof CMOS Sensor Night Vision WiFi NVR Kit

Descripción del producto

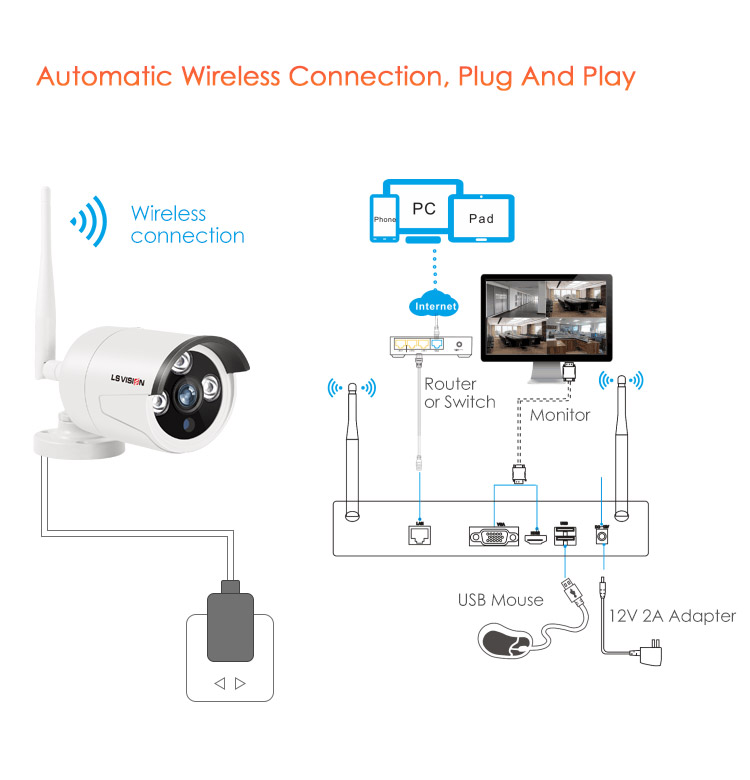

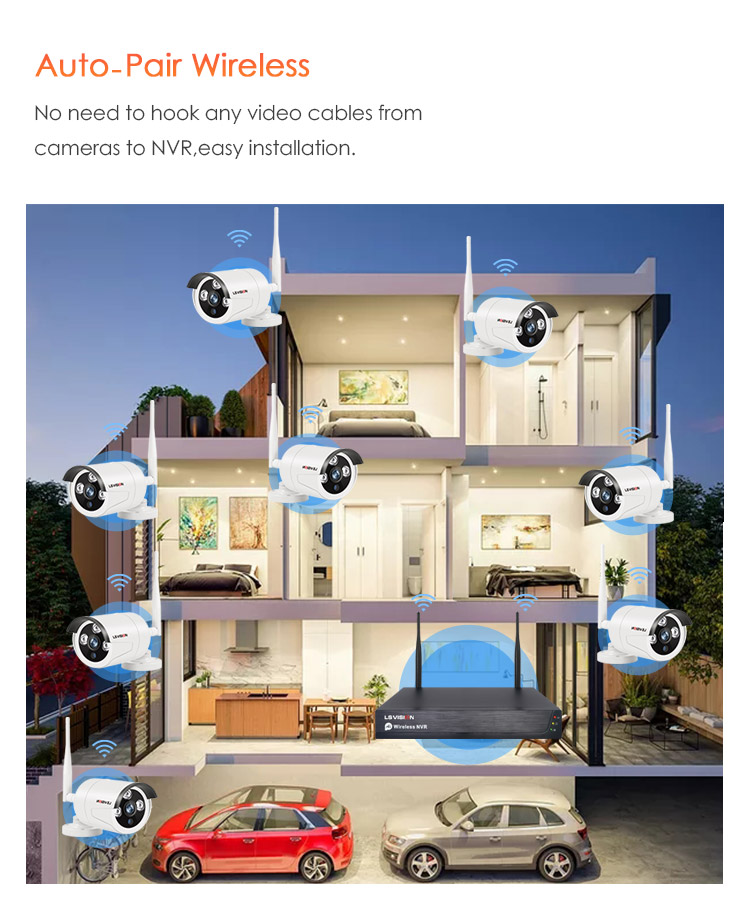

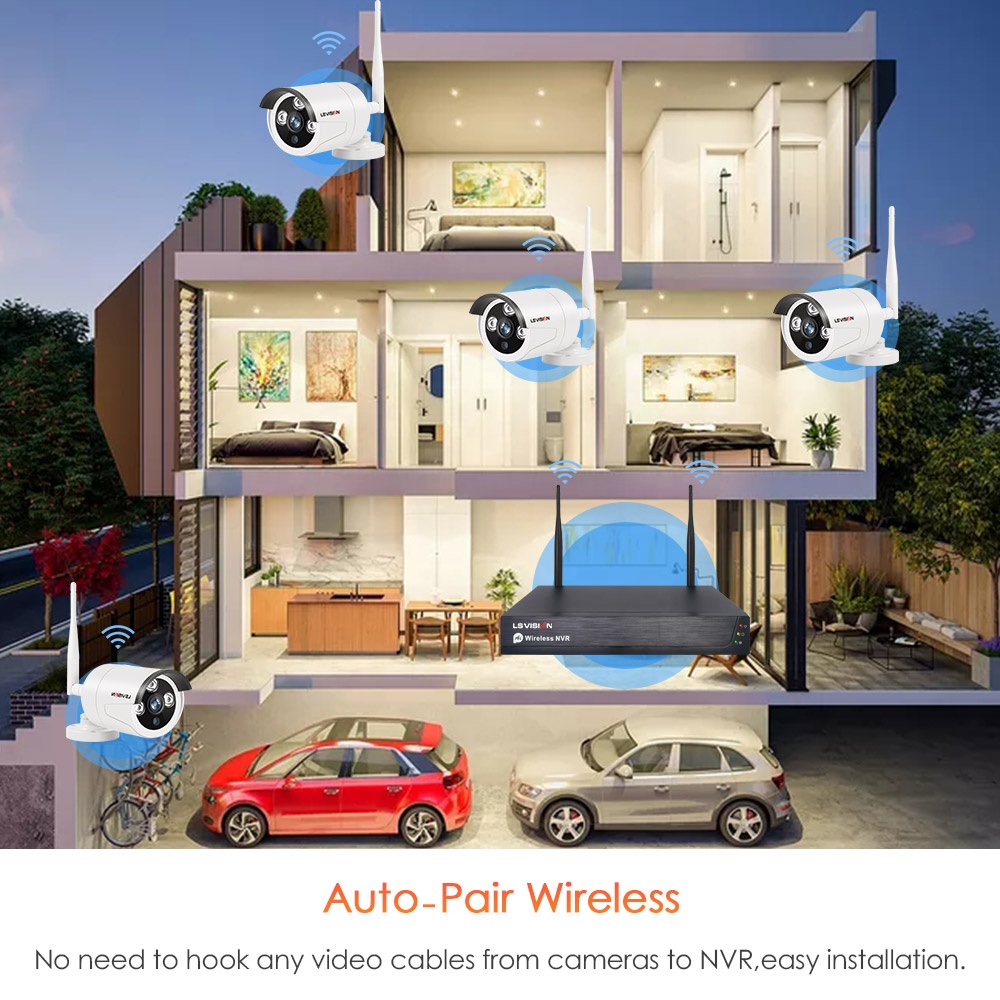

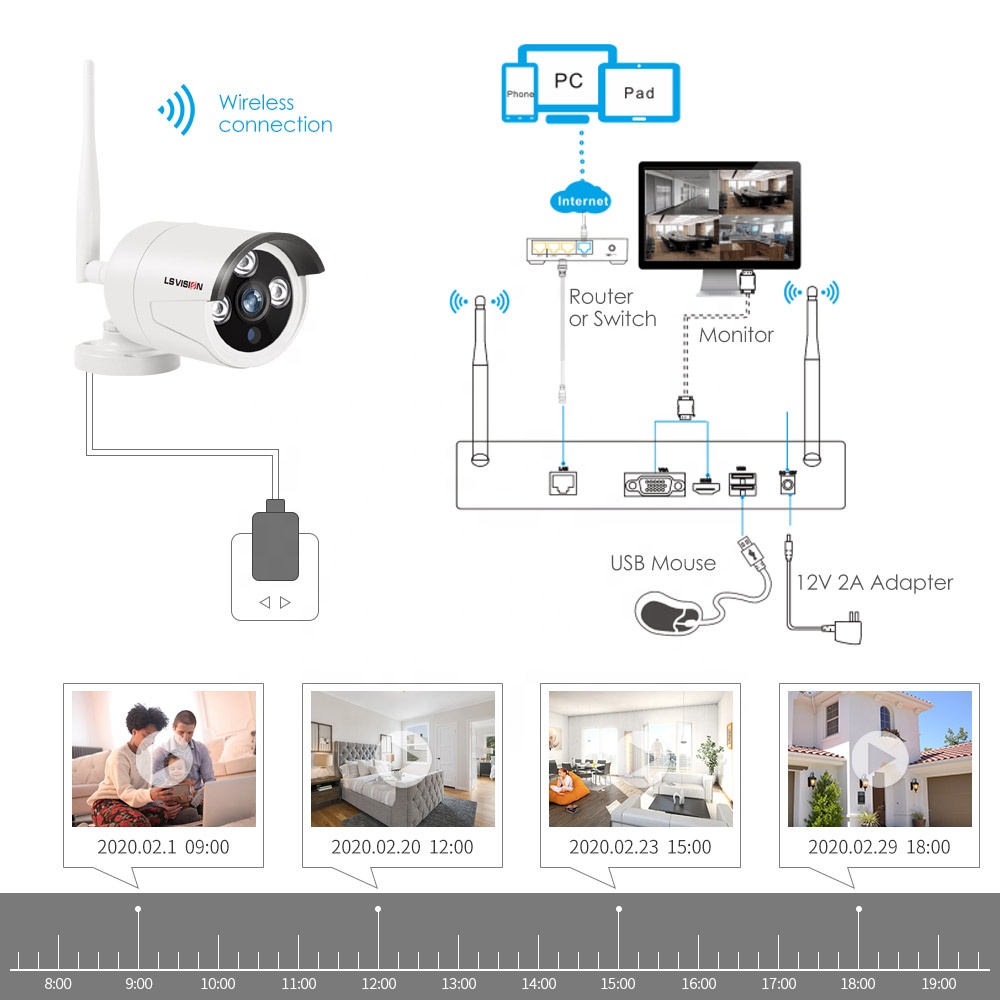

* Automatic Wireless Connection, plug and play
* 1080P H.265+ wireless network recorder and 4 1080P wireless cameras

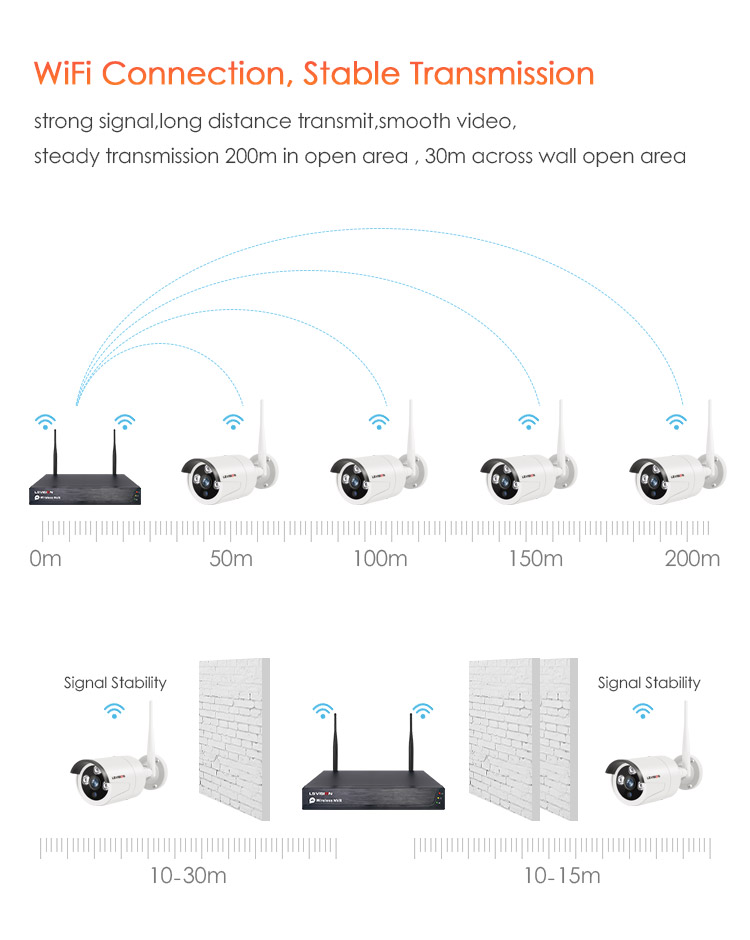

* In open space without itrefere transmission distance up to 200 meters
*Insert professional surveillance Wireless board, with stonger anti-interfere ability
* One-push to configure
* Support alarm push motion detection and alarm output(voice/email/ FTP etc.)
* AI Human detection
* Support Android/Apple cell phone or pad by LAN & WAN visit and control
* Support Tuya APP, fluent and fast remote access
* Suit to homes, offices, small businesses & retail stores
* Easy to Install, User-Friendly Operation

Modelo	LS-WK4208		LS-WK4204 4CH Wireless 1080P HD-NVR
NVR Specification
Sistema	Main processor	Hi3536D
	Lente	Sistema operativo	Linux integrado
Vídeo	Video compression	H.265 High Profile/ H.264 Main Profile
	Wifi Signal	Salida de vídeo	720P60,XGA,1080P60
	Day&Night	Video input(IP)	4*1080P/4*960P/4*720P
Audio	Compresión de audio	G.711
	Stream	intercom	Ninguno

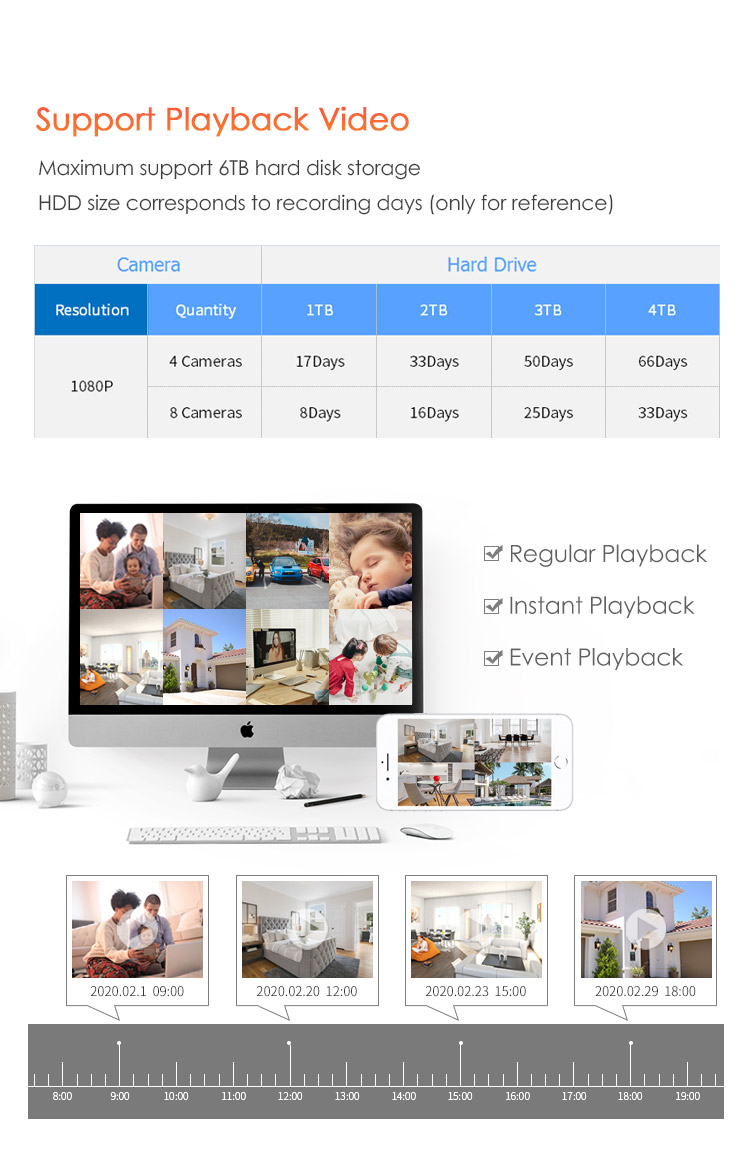

Record & playback	Recording mode	Manual/Alarm/Video Detection/Continuous
	HDD	Local Playback	1*1080P
Storage & Backup	Record Storage	network
	Mobile app	Backup mode	Network backup, USB hard disk
Control de red	Protocolo	TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP,P2P
Inalámbrico	Frequency	2.4G
		Antenna Structure	2 × 2MIMO
		Distance	More than 200 meters with no obstacle，more than 40 meters if penetrate the wall， the actual transmission distance according to the situation
Interfaz	Salida de vídeo	1ch HDMI, 1ch VGA output
		Audio I/O	Ninguno
		Alarm I/O	Ninguno
		Network interface	1*Puerto Ethernet adaptable RJ45 10M/100M
		USB	2*USB 2.0 port
		Hard disk	1 SATA(Up to 4TB)
Oter	Power supply	DC +12V /3A
		Consumo de energía	5W（Without HDD）
		Entorno de trabajo	Temperature:-10℃－＋55℃, Humidity:10%-90%RH
IP Camera Specification
Modelo	/
		2.0Mp Wireless IP Camera
Image sensor	1/2.9″ 2.0M Pixel CMOS
Lente	3.6 mm
Lens Mount	M12
Min. Iluminación	Color：0.01Lux@(F1.2，AGC ON) B/W：0.001Lux@(F1.2，AGC ON）,0Lux @（IRled ON)
S / N ratio	≥39dB
Velocidad de obturación	1/5 – 1/20,000s，
Day & Night	Day / Night / External control（IR Cut Filter）
AGC	Auto / Manual
White balance	Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Wide dynamic range	Digtal Wide dynamic range
Digital noise Reduction	2DNR,3DNR
Compresión de vídeo	H.265 Main Profile/H.264 Main Profile/M-JPEG
Compresión de audio	G711，PCM
Max.Image Resolution	1920×1080@20fps
Image Resolution	Main stream （1920×1080、1280×960、1280×720、720×576、640×480）
		sub-stream （640×480、352×288、320×240、176×144）
Bitrate	CBR/VBR, bitrate：32Kbps~10Mbps variable
Motion detect	Ayuda
AI	Human detection
Privacy Zone Masking	4 privacy masks programmable
P2P	Android、IOS
Protocolos	TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS， P2P
Onvif	Non- Support
Inalámbrico	Frequency:2.4G
	Inalámbrico	Transmission distance :More than 200 meters with no obstacle， More than 30 meters if penetrate the wall， The actual transmission distance according to the situation
Potencia	12VDC
Dimensiones	38x38x5mm
Temperatura de trabajo	-30°C ~60°C, Humidity≤90%RH(Unsupport-condensing)

Logistics

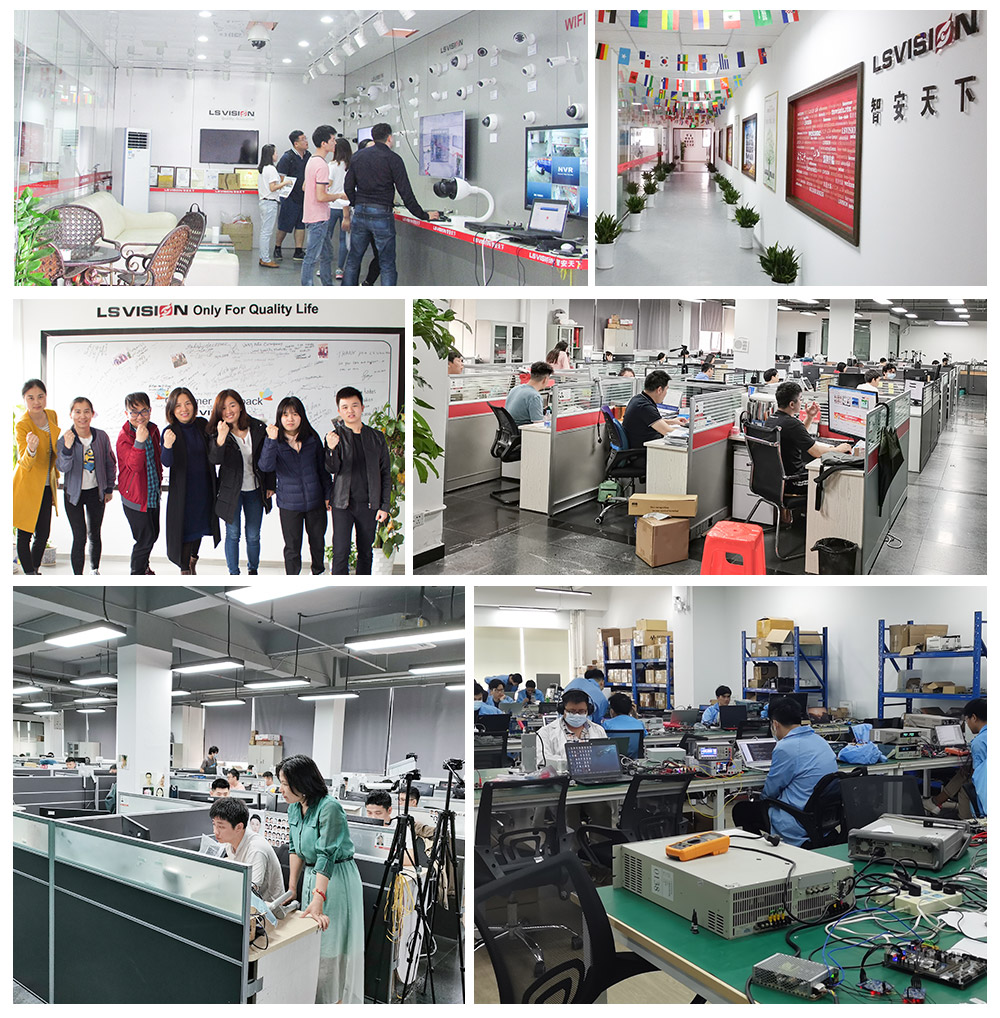

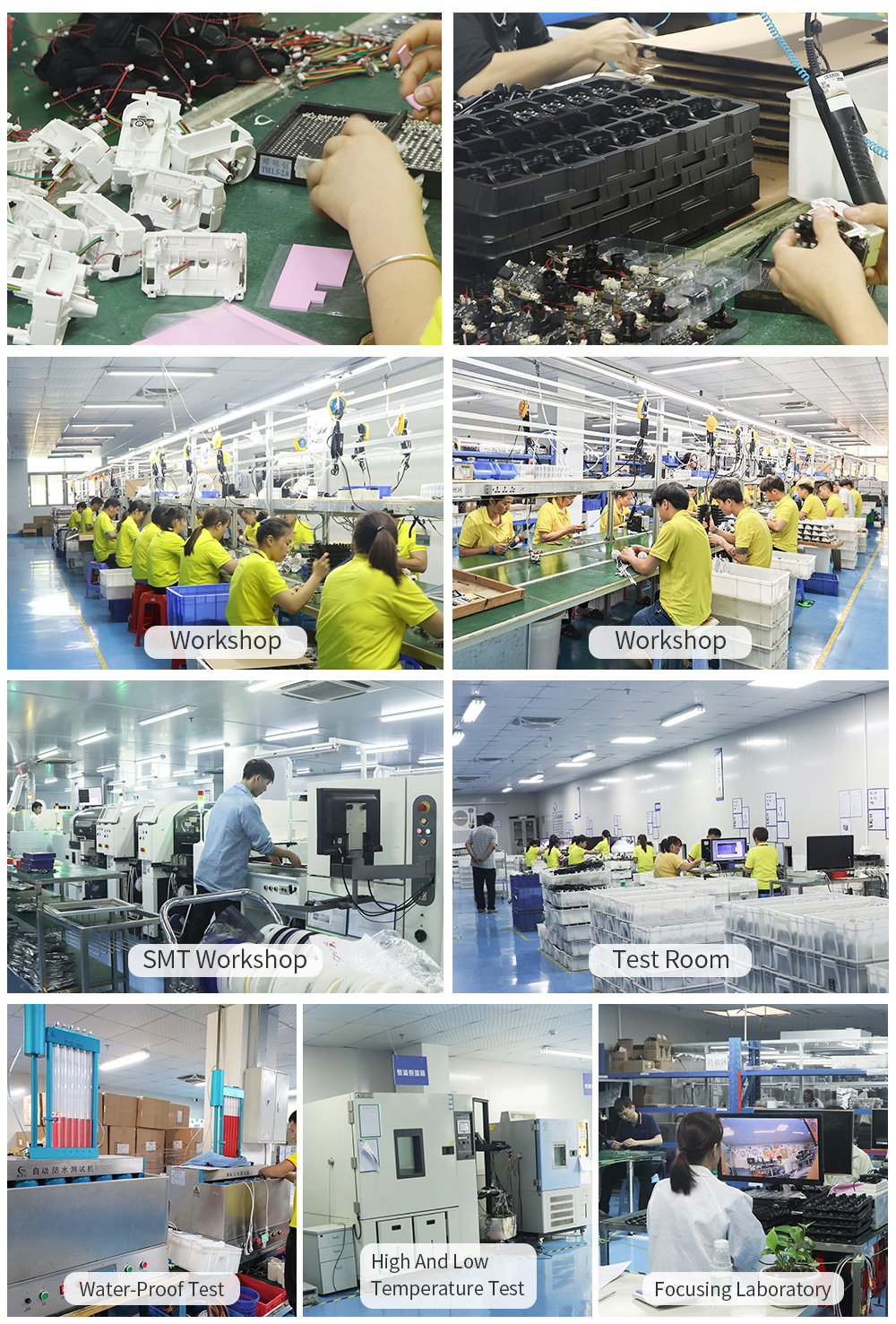

Nuestra fábrica
