Key Feature |
4G /3G Features:
1. Use of industrial 4G module, stable, long life,Anti-interference ability;
2. 4G main chip: ZX297520M， WIFI chip: RTL8192ES-CG
3. 4G all Netcom, support telecommunications, Unicom, mobile 4G/3G/2G, support Europe US Japan African 4G standards;
4. Network type: FDD-LTE, TDD-LTE, WCDMA/HSPA+, TD-SCDMA, GSM/GPRS/EDGE
5. Operating frequency : LTE B1/B3/B8/B38/B39/B40/B41, WCDMA, 2100/900MHz, TD-SCDMA B34/B39, GSM/GPRS/EDGE: 900/1800MHz
6. Rate：FDD-LTE/TDD-LTE: up speed 50M / down speed 150Mbps
HSPA+：up speed 5.76M / down speed 21Mbps;
TD-SCDMA: up speed 2.2Mbps / down speed 2.8Mbps;
7. Support network equipment using wired and wireless WIFI two access methods;
8. WiFi：2412MHz-2472MHz，802.11b/g/n，The maximum transfer rate is up to 72Mbp
9. USIM/SIM card ：Micro SIM card
10. Built-in WEB client, Can view the 4G signal strength, modify the login password, wireless access password and others
IP Camera Features：
1. Professional design for 4G/3G IP camera, easy assembly 4G card and TF card
2. 3.0 megapixel HD lens + IR-CUT auto swith in day and night, 3.6mm/6mm lens, 2.8-12mm and 6-22mm auto focus lens as optional
3. Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image;
4. Standard SD/TF memory card slot (support 64G card);
5. Standard 1 X 5DB 4G antenna, one 5DB WIFI antenna;
6. Power consumption: day 4W / night 9.8W, the whole day power consumption about 12V 13.8AH
7. Support P2P remote check

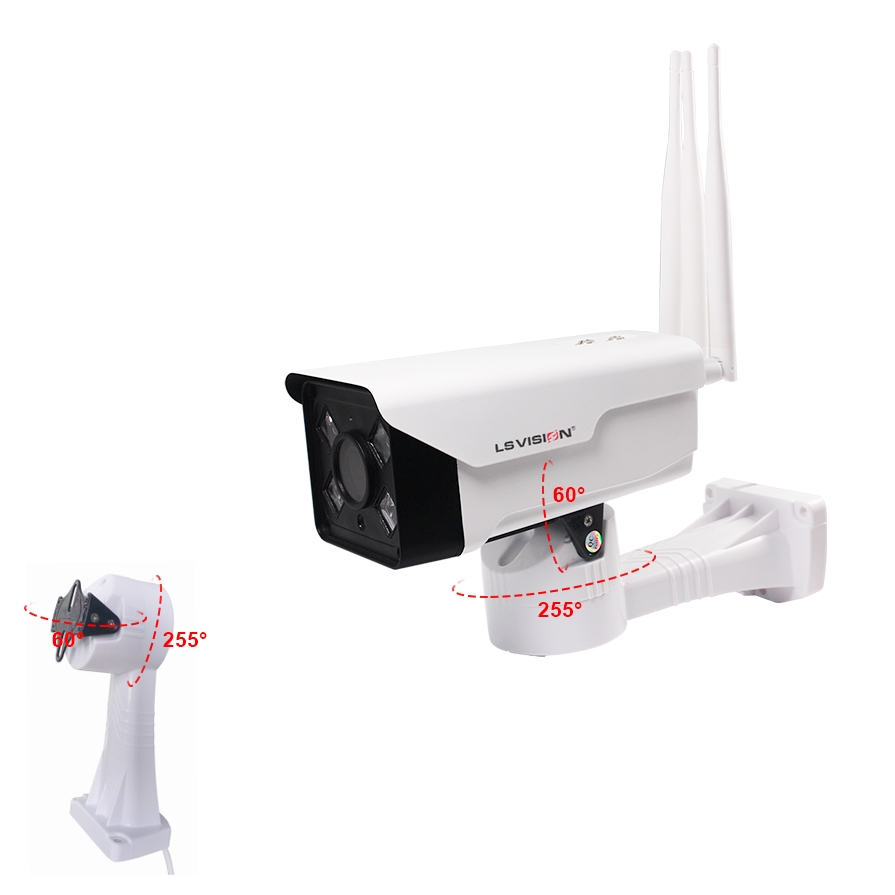

8. Optional function: audio jack , pan tilt rotating bracket
9. Support protocol, can provide the SDK

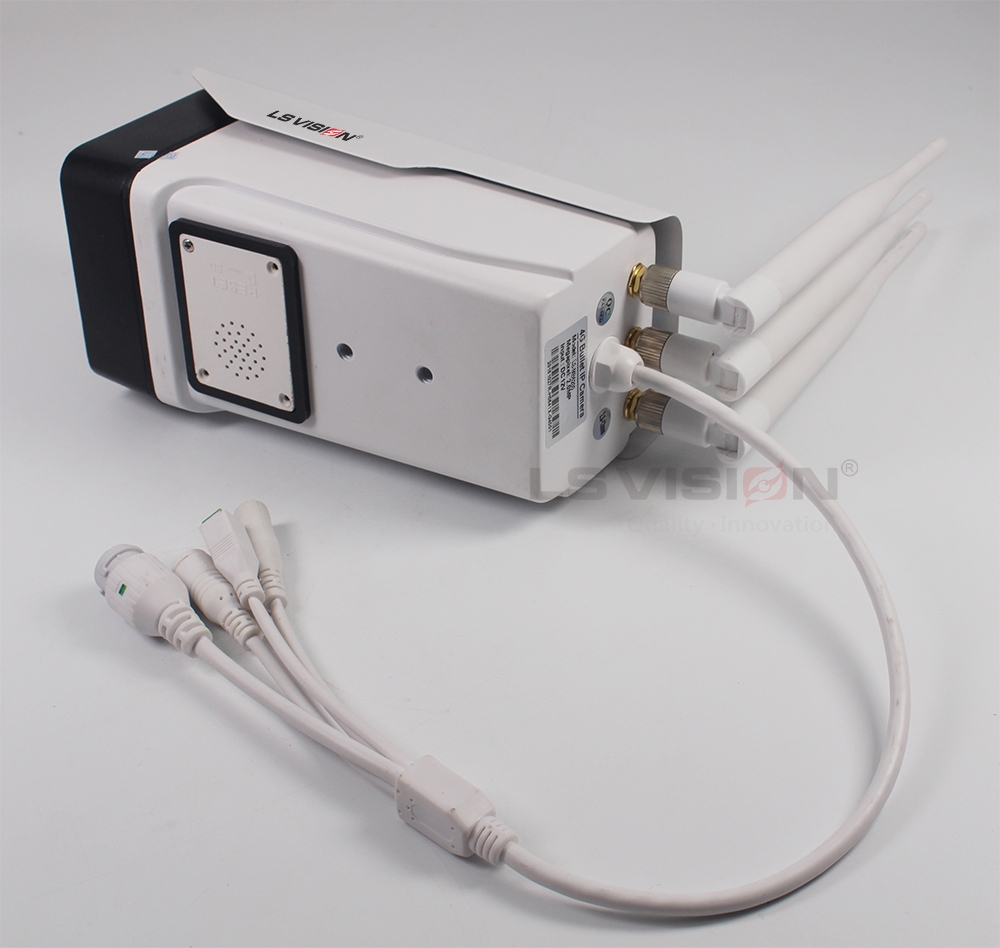

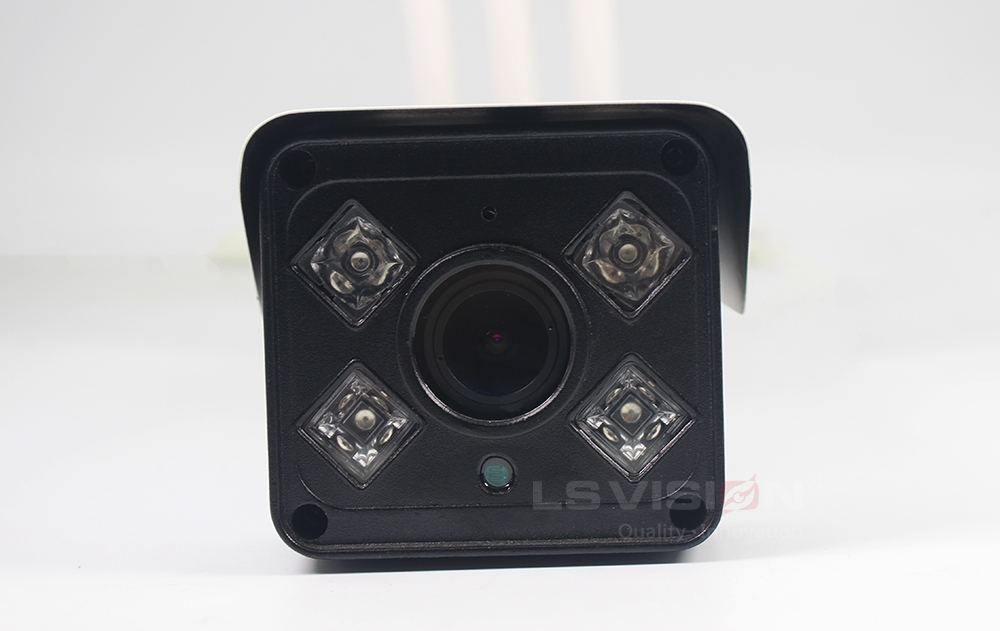

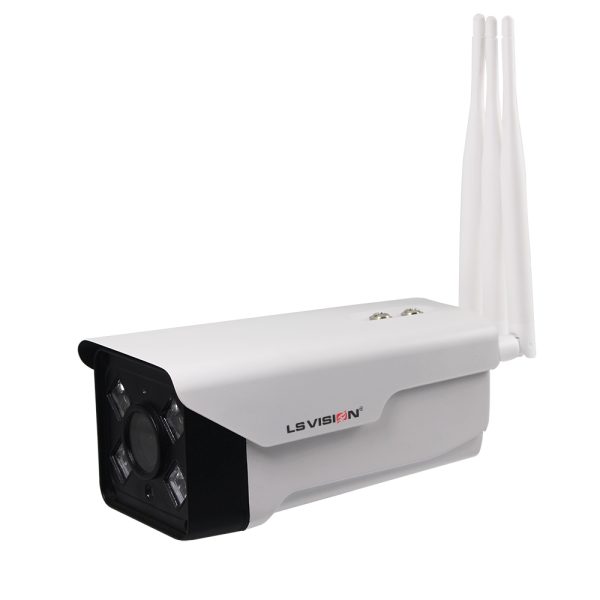

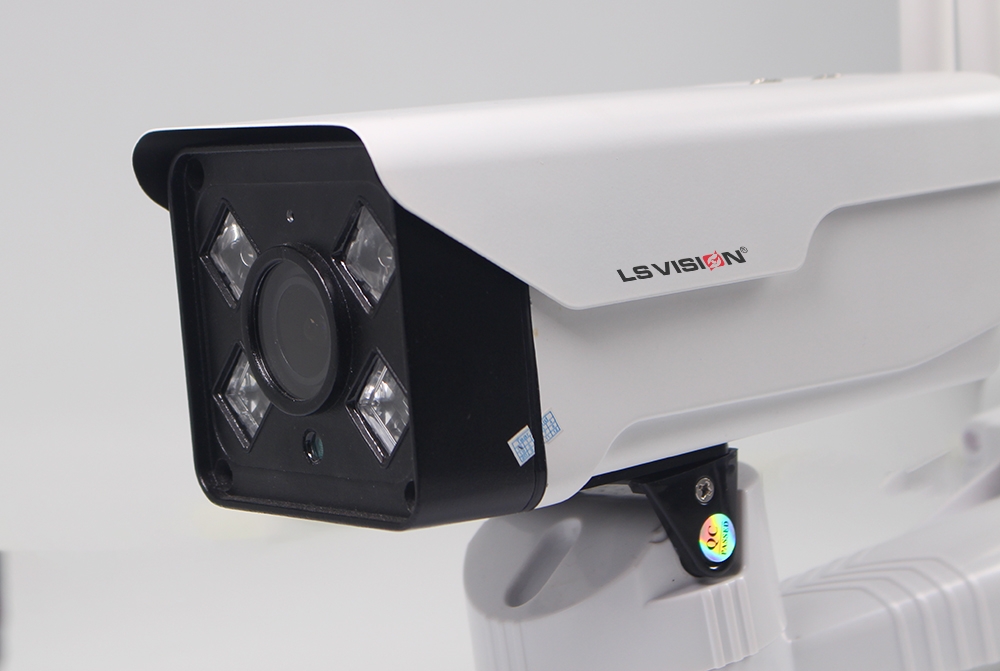

4G WIFI Solar Powered CCTV Camera Picture |
4G Solar Powered Security Camera Specification |
|
Model： |
LS-MB6201 |
|
|
camera |
Imaging sensor： |
Hi3516E+ 1/2.7” SC2232 |
|
Single system： |
PAL / NTSC adjustable |
|
|
Scanning mode： |
Progressive scanning |
|
|
Illumination: |
0.05LUX |
|
|
Lens: |
Standard with 3.0 megapixel, F1.2 3.6mm lens |
|
|
Day and night switch: |
IR-CUT dual optical filters auto switch in day and night |
|
|
Electronic shutter: |
Manual / auto ( adjustable, 1 / 25 ~ 1 / 4000 seconds) |
|
|
White balance: |
Auto / manual |
|
|
DNR |
3D-DNR |
|
|
IR source: |
4pcs array IR |
|
|
IR distance: |
30- 50meters |
|
|
4G |
FDD-LTE |
B1/B2/B3/B4/B7/B8/B12/B13B/B18/B19/B20/B26 |
|
TDD-LTE |
B38/B39/B40/B41 |
|
|
WCDMA/TD-SCDMA |
B1/B2/B4/B5/B8/B34/B39 |
|
|
GSM/GPRS/EDGE |
900/ 1800MHz |
|
|
Standard compression |
Imageing compression |
|
|
Video bit rate |
128 Kbps — 8 Mbps; CBR / VBR adjustable |
|
|
image |
Max image size |
1984*1225 |
|
Frame size |
1920 x 1080 @ 30 fps; 1280 x 960 @ 30 fps; 1280 x 720 @ 30 fps; 704 x 576 @ 25 fps; 640 x 360 @ 25 fps; 352 x 88 @ 25 fps |
|
|
Image adjustment |
Through IE can adjust Saturation, brightness, contrast,sharpness |
|
|
Image mirroring |
Horizontal mirroring, vertical mirroring |
|
|
scene |
Auto, indoor, outdoor |
|
|
Digital enlarge |
Can achieve through NVR, P2P HDmonitoring management software |
|
|
Function |
Storage |
Support TF card storage 64G |
|
Interface protocol |
|
|
|
Support protocol |
TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1x, QoS, IPv6, Bonjour (SIP, SRTP optional) |
|
|
Intelligent alarm |
Motion detection, mask alarm, network cable break , IP address conflict, storage card is full, storage device is wrong |
|
|
wifi |
Support WIFI function |
|
|
interface |
Communication interface |
1pc RJ45 10M / 100M Adaptive Ethernet port |
|
Basic parameter |
Power input |
DC 12V±10% |
|
Power mption |
day 4W / night 12W, the day power consumption of about 12V16AH |
|
|
Work environment |
35℃; – 60℃, humidity is less than 95% (no condensation) |
|
|
size |
183mm*91mm*66mm |
|
Application |
| certificate |
| Brand & CCTV Project |
Currently, LS VISION partners and customers around the world, including distributors, agents, engineers and security importers, end consumers and other different customer groups in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh , Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries have established a dedicated agency, and we have been working hard to expand our global institutions or distribution areas.
LS VISION Global Security Program
LS VISION products and solutions are used in many countries and regions, such as the Jeddah International Book Fair in Saudi Arabia in 2017 and 2018; the MAKKAH CCTV project in the city center in 2018; the Fath gas station project in 2017, Basamas Square in Peru Projects, major security projects such as Panama Airport have played an important role.
| LS VISION |
2019, LS VISION Product Strategy:
Industry market:
IPC: 2MP to 8 megapixel 4K series IP cameras and HD NVR systems.
Analog HD: 2MP to 8MP series and DVR system.
AI Series: Face Recognition Camera and NVR System.
4G solar camera system
consumer market:
1.3MP to 5MP Wifi NVR kit, POE Nvr kit;
Wifi battery camera, wifi camera, smart doorbell, etc.
