Thanks to the efforts of our employees including technicians and designers, Shenzhen LSVISION Technology Co., Ltd. is able to introduce our .LS VISION Tuya Smart 1080P Motion Detection Alarm Auto Tracking 360 Panoramic WiFi PTZ IP Camera support Alexa Google Assistant to the public. LS VISION Tuya Smart 1080P Motion Detection Alarm Auto Tracking 360 Panoramic WiFi PTZ IP Camera support Alexa Google Assistant provides not only excellent quality, but also very favorable price. Compared with the traditional ones, it better meets the market demands.
Place of Origin: | Guangdong, China | Brand Name: | LS VISION |
Model Number: | LS-W320-TY | Special Features: | Compatible Voice Service, Like Alexa and Google Assistant and others |
Sensor: | CMOS, 1/2.7 “(1080P) color CMOS Sensor | Key Feature1: | Intelligent Automatic Tracking PTZ Function |
Key Feature2: | Motion Detection, Mobile Alarm Push | Key Feature3: | Two Way Audio (Smart Life App) |
APP Compatible Voice Service: | Smart Home Platform, support Alexa and Google Assistant and others | Night Vision: | IR Cut, Infrared Night Vision 8-10 meters |
PTZ Function: | Horizontal: 355 degree, Vertical: 155 degree | Local Storage: | Tuya Cloud Stoarge / TF Card(up to 64G) |

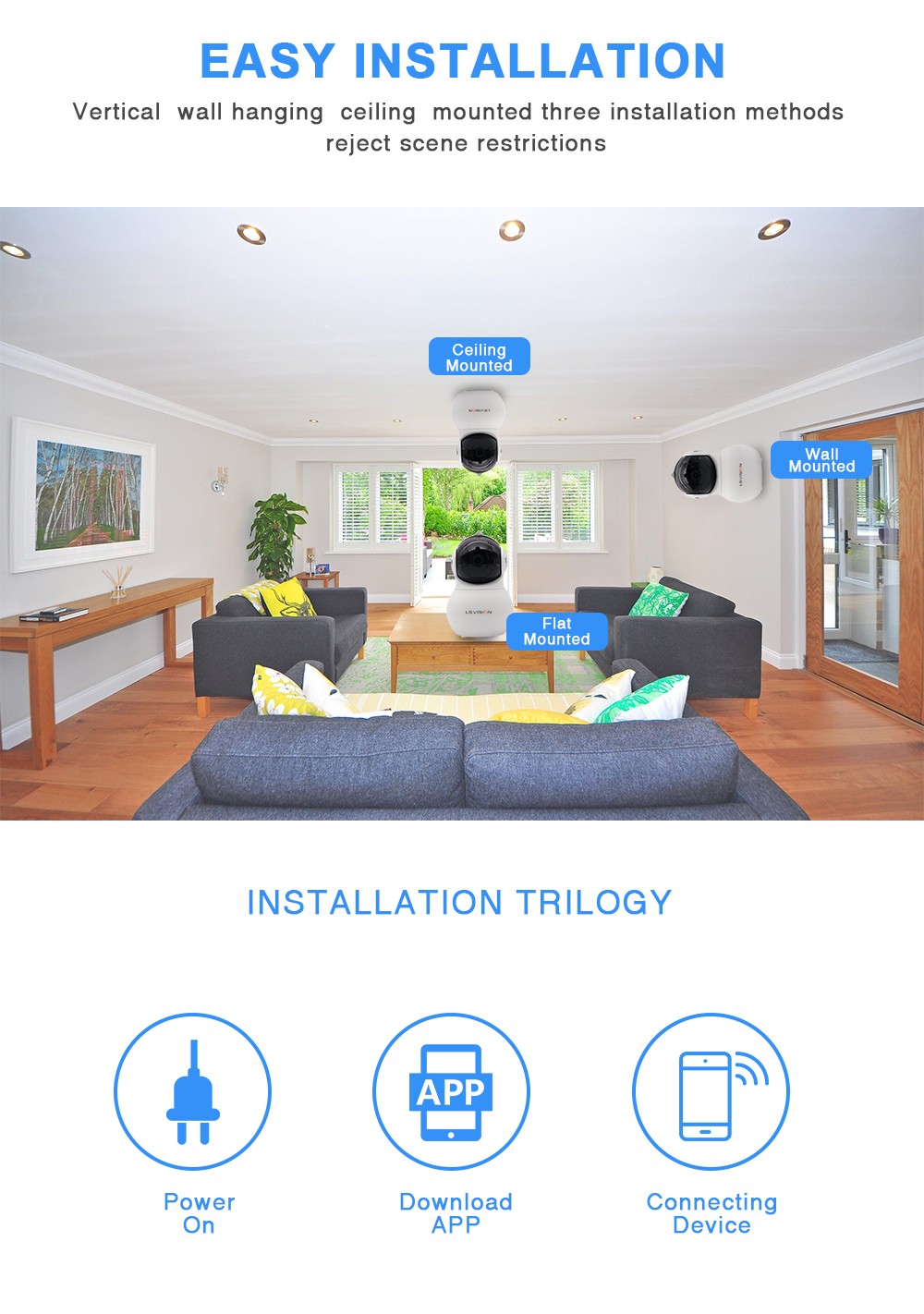

APP: | Tuya Smart / Smart Life | Mounting Method: | Vertical, wall mounted, ceiling mounted |

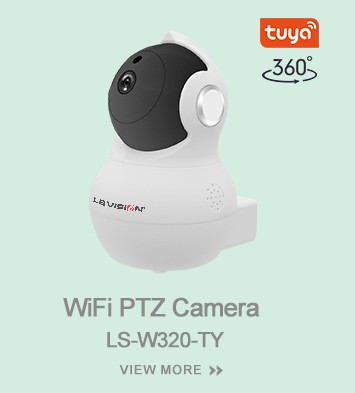

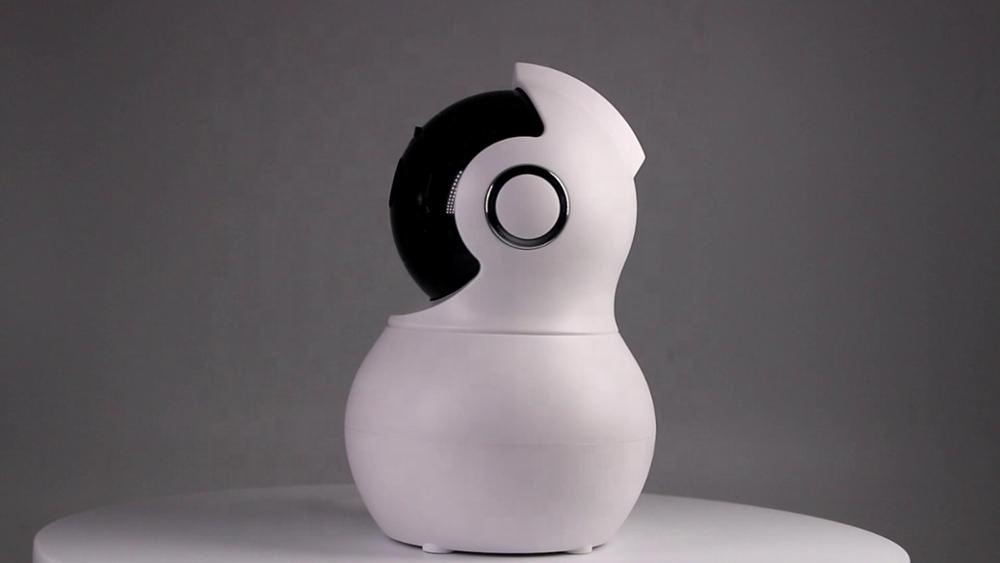

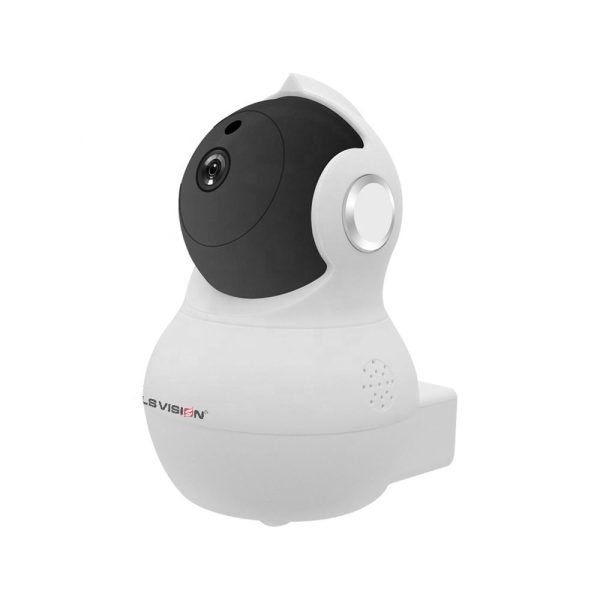

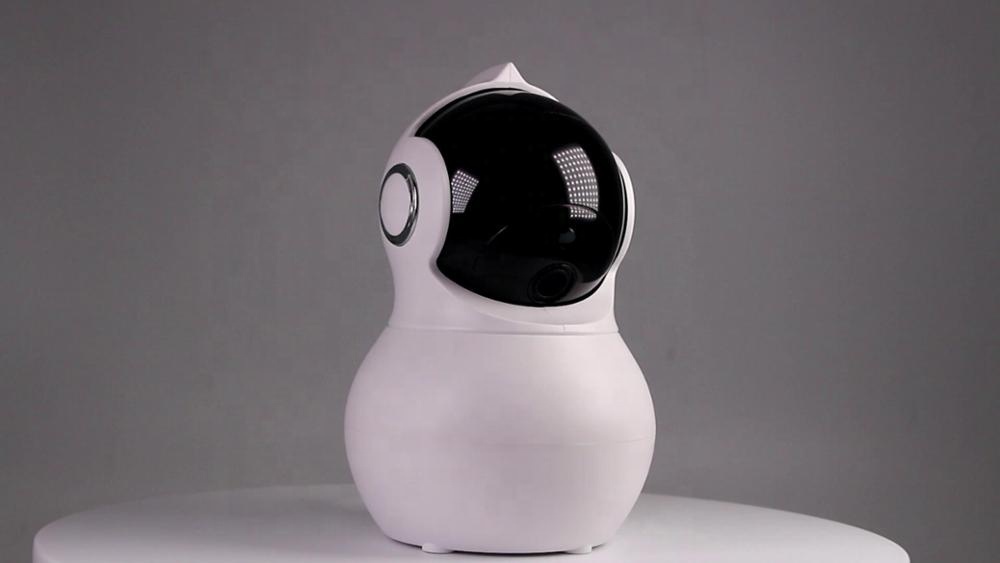

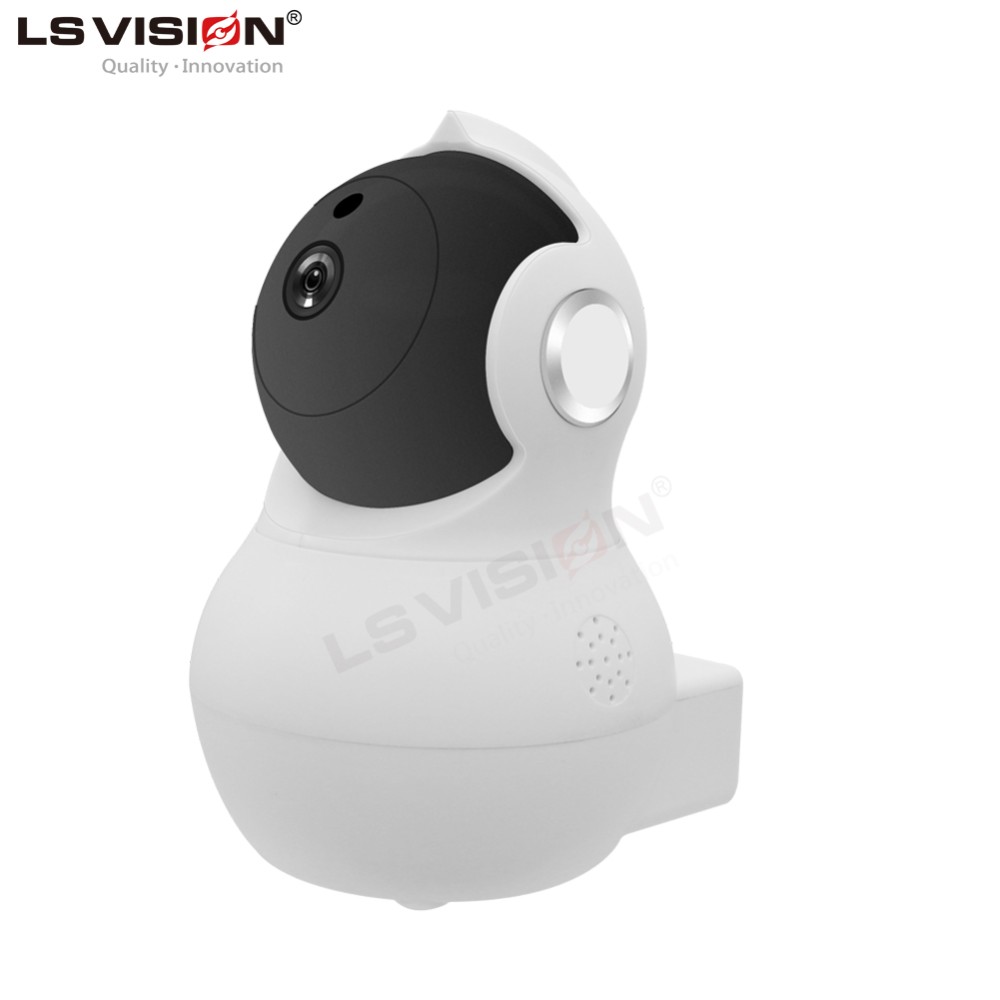

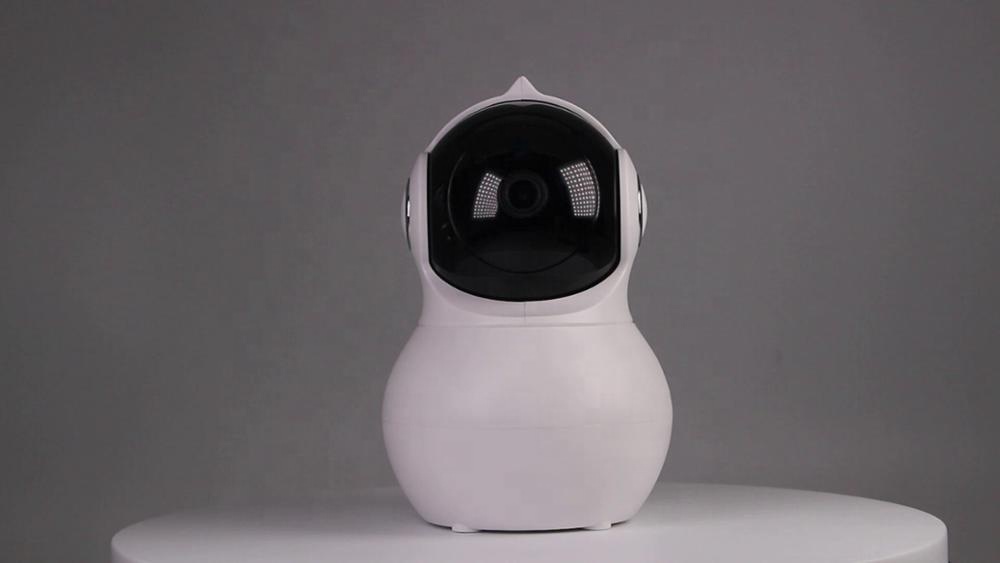

Tuya Smart Panoramic PTZ Camera
→1080P WIFI Camera

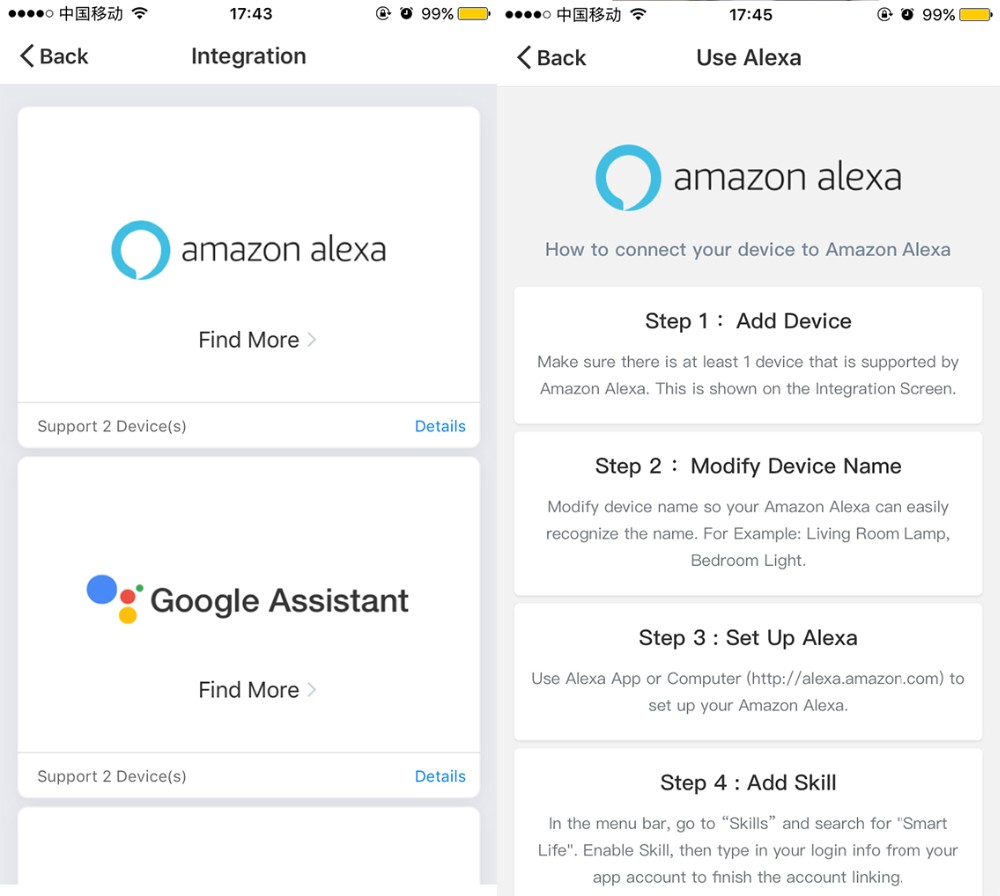

→Tuya smart home platform, support Amazon Alexa and Google Assistant and other voice
→1/4 “(720P) and 1/2.7 “(1080P) color CMOS sensor
→Intelligent automatic tracking function

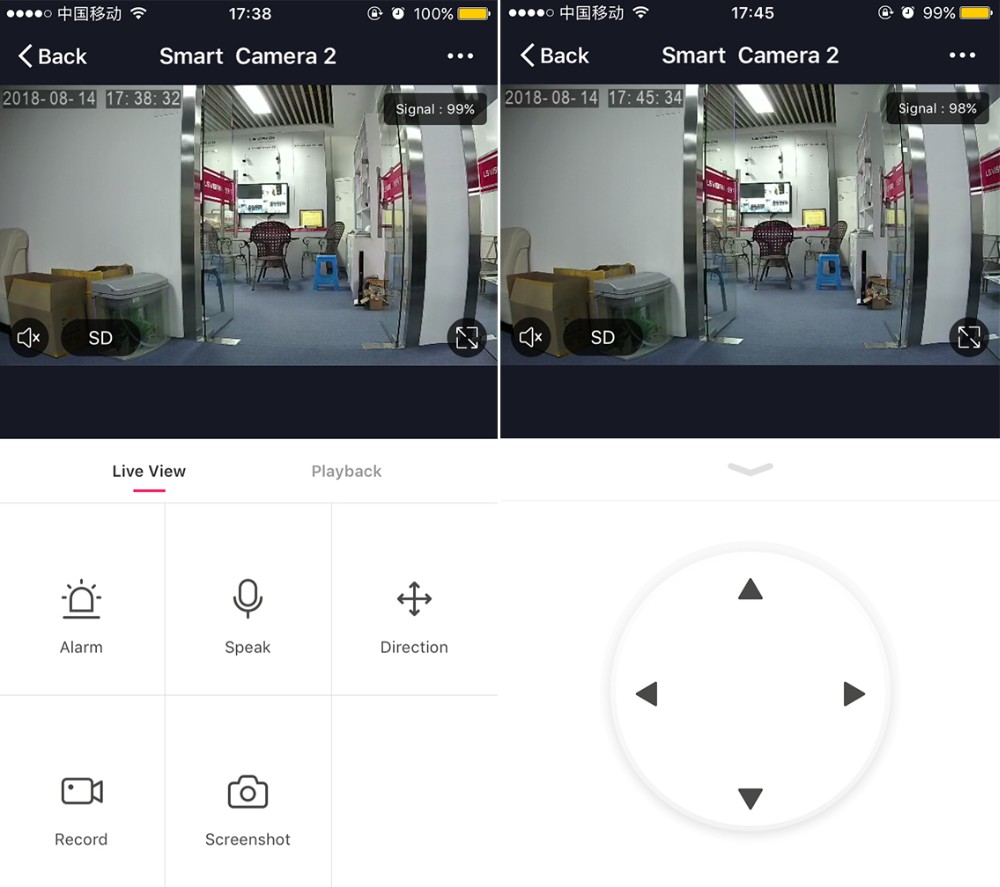

→Support real-time video, two-way audio
→Support accurate remote control PTZ function

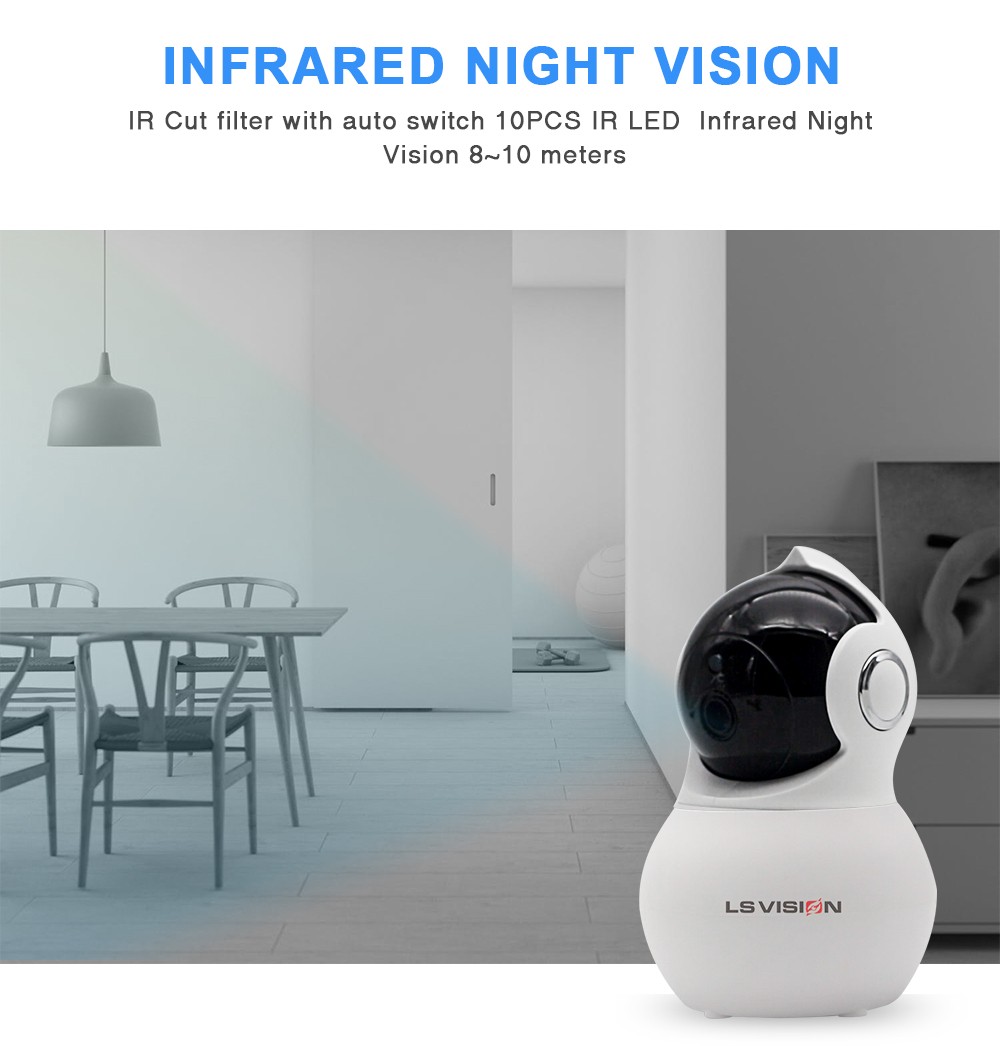

→Night Vision, 8-10 meters
→Support Cloud Storage, TF Card(max to 64G)
→Support motion detection alarm
→3D digital noise reduction and WDR
→Network Interface: WiFi(802.b/g/n) and RJ-45
























Camera
|
|
Model
|
LS-W320-TY (1080P)
|
Image sensor
|
1/2.7 (1080P) CMOS
|
Lens
|
3.6mm fixed
|
IR LED quantity
|
10
|
Minimum illumination
|
0.01Lux
|
Night vision range
|
8-10 meters
|
IR cut filter
|
IR cut filter with auto switch
|
PIR Motion sensor
|
Yes
|
Dimensions
|
81*79*117mm
|
2.Video/image
|
|
Resolution
|
1080P / 2MP
|
Compression
|
H.264 High profile
|
Effective number of pixels
|
1920x1080P(1280*720P)
|
Viewing angle
|
80 degree
|
Frame rate
|
15FPS
|
Mirrow flip
|
Yes
|
Image processing
|
3D digital noise reduction and WDR
|
View mode
|
HD & SD (dual-stream)
|

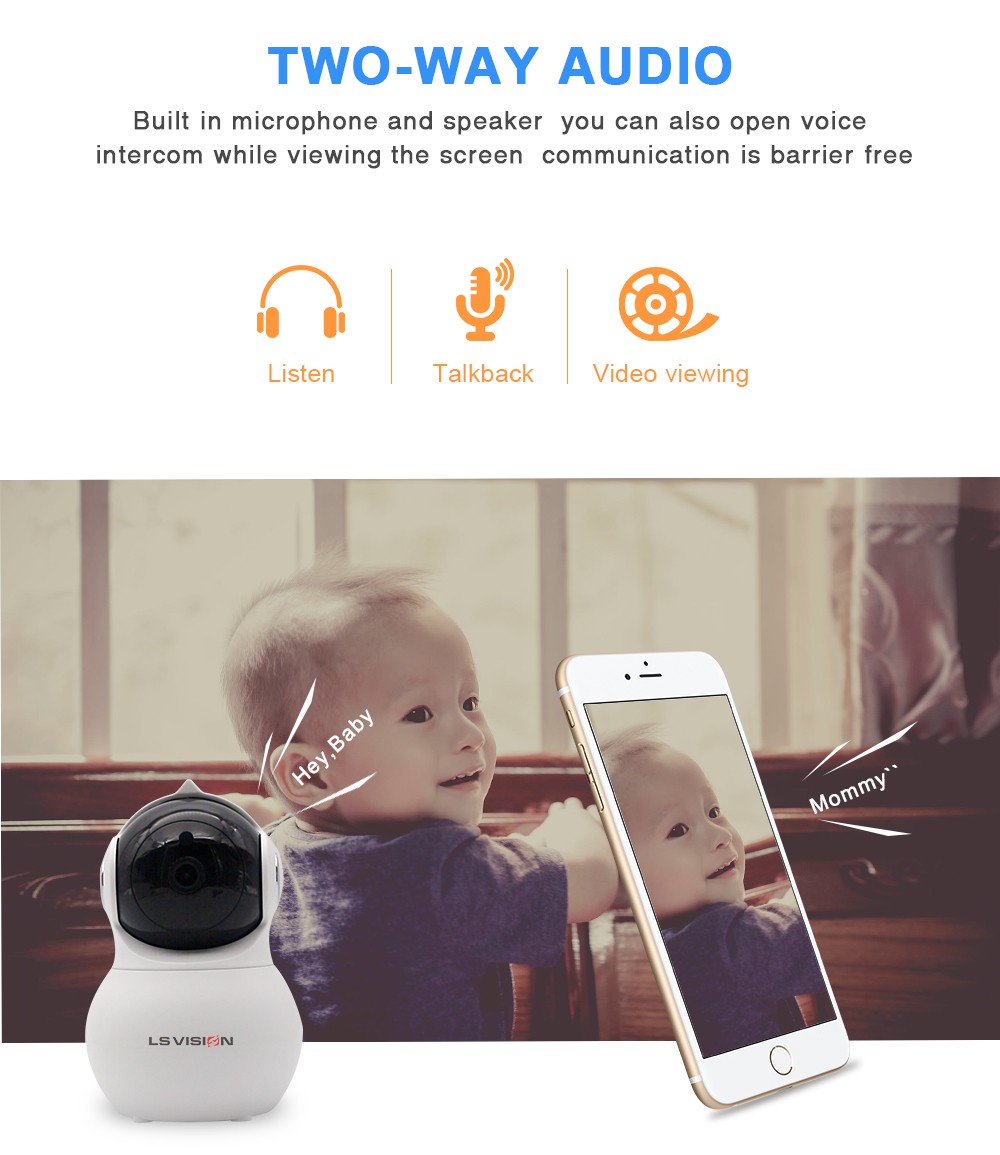

3.Audio
|
|
Communication
|
two way audio
|
Input
|
built in MIC
|
Output
|
built in Speaker
|
4.Network
|
|

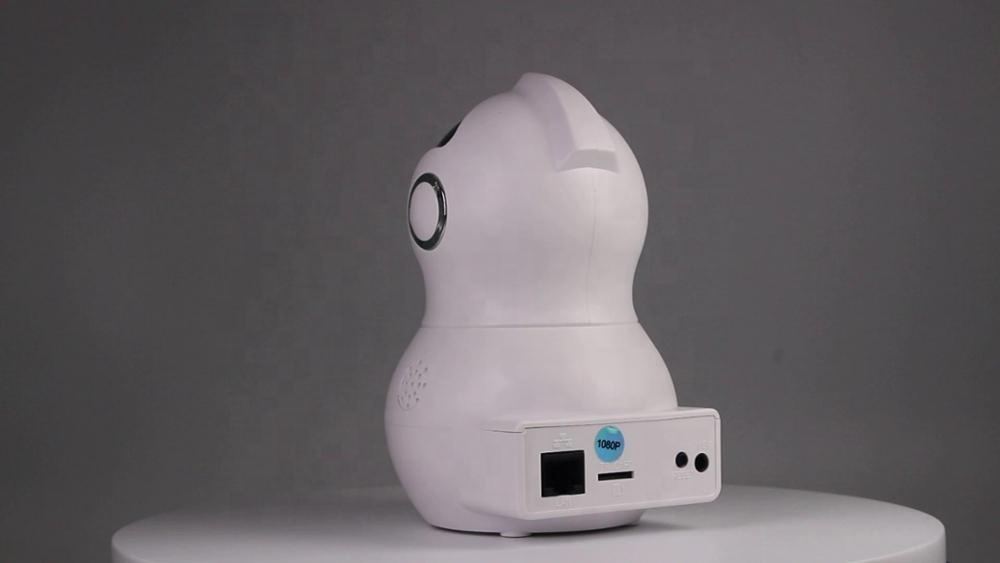

Interface
|
RJ45
|
Supported protocols
|
IP, TCP, DHCP, WPS
|
Dynamic DNS
|
Yes
|
Port forwarding
|
P2P
|
Steam
|
Dual Stream
|
DHCP
|
Automatic
|
5. Wireless
|
|
Standards
|
IEEE 802.11n: 150Mbps
IEEE 802.11g: 54Mbps IEEE 802.11b: 11Mbps |
Frequency
|
2.4GHz
|
Antennas
|
One, Omnidirectional
|
Antenna gain
|
3dBi
|
Network security
|
WEP, WPA, WPA2
|

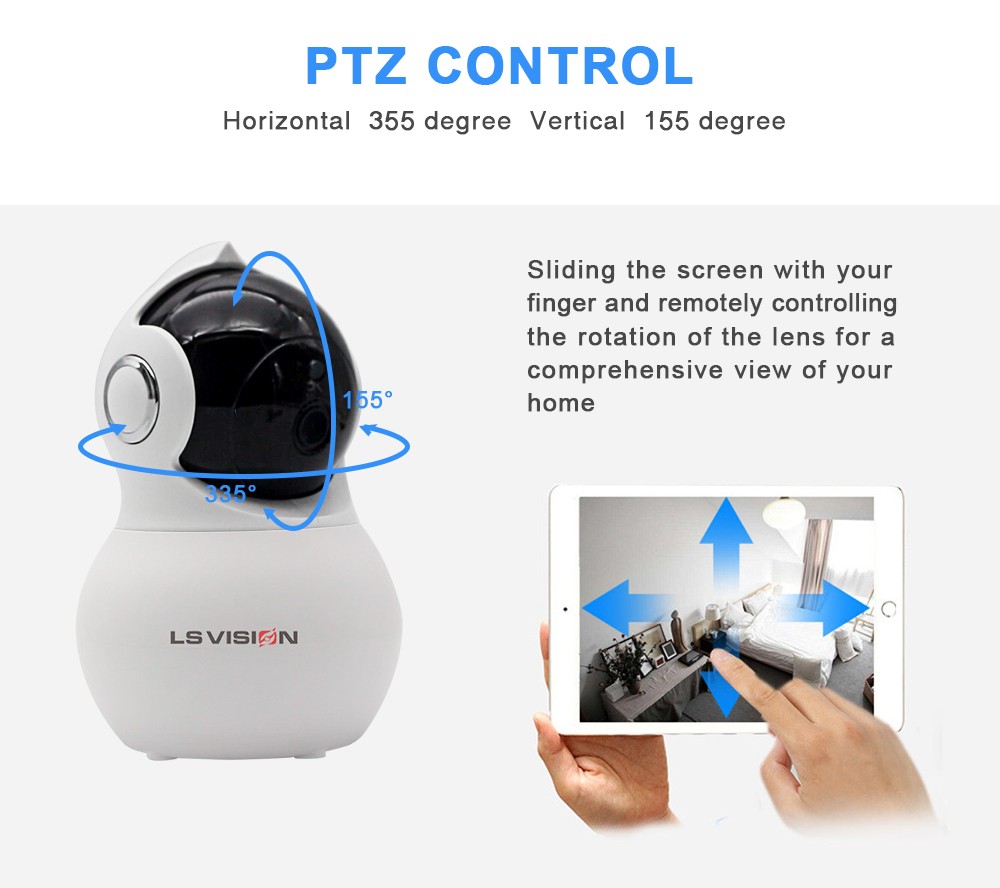

6. Pan/Tilt
|
|
Range
|
Horizontal: 355 degree
Vertical: 155 degree |
7. Surveillance management
|
|
Remote management
|
app remote
|
Multiple user management
|
N/A
|
Mobile app
|
IOS & Android
|
9. Alarm and notifications
|
|
Motion detection
|
Yes
|
Motion track
|
Yes
|
Notification method
|
mobile push
|
Notification scheduling
|
time scheduled
|
10.Additional information
|
|
Warranty and tech support
|
1 year
|
Certifications
|
CE,FCC,ETL,UL(option)
|

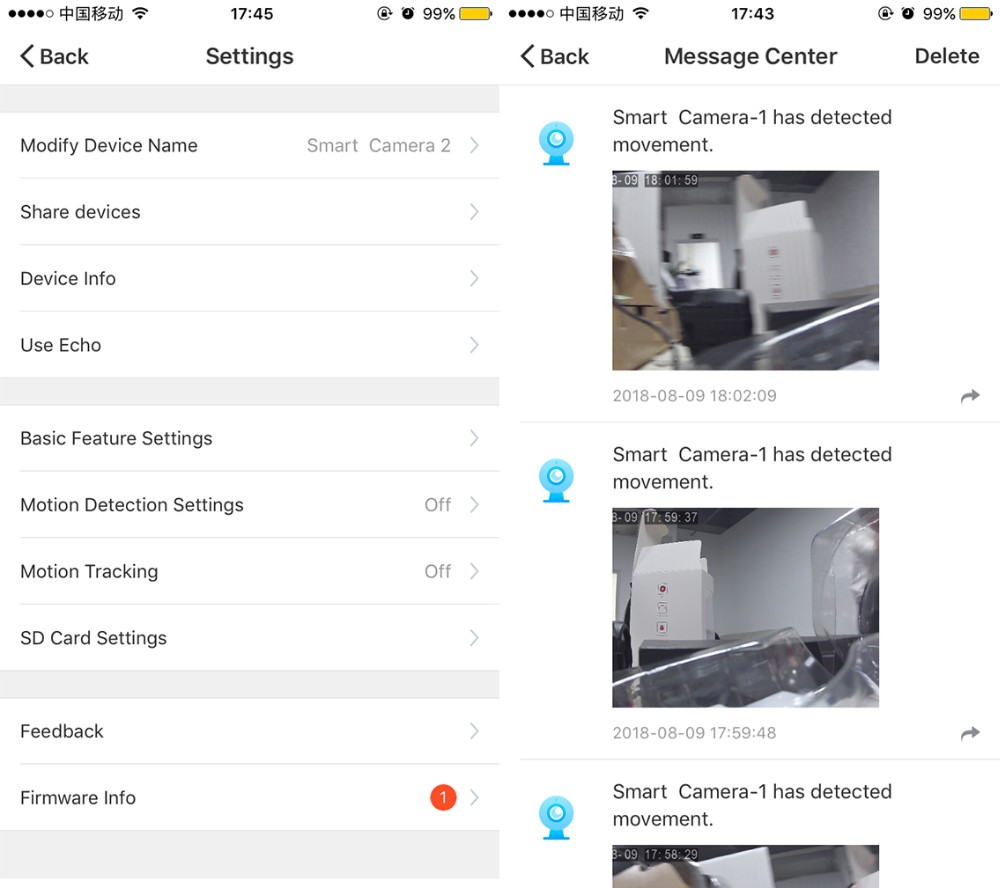

Smart APP
|
Smart Life / Tuya Smart
(Tuya smart home platform) |

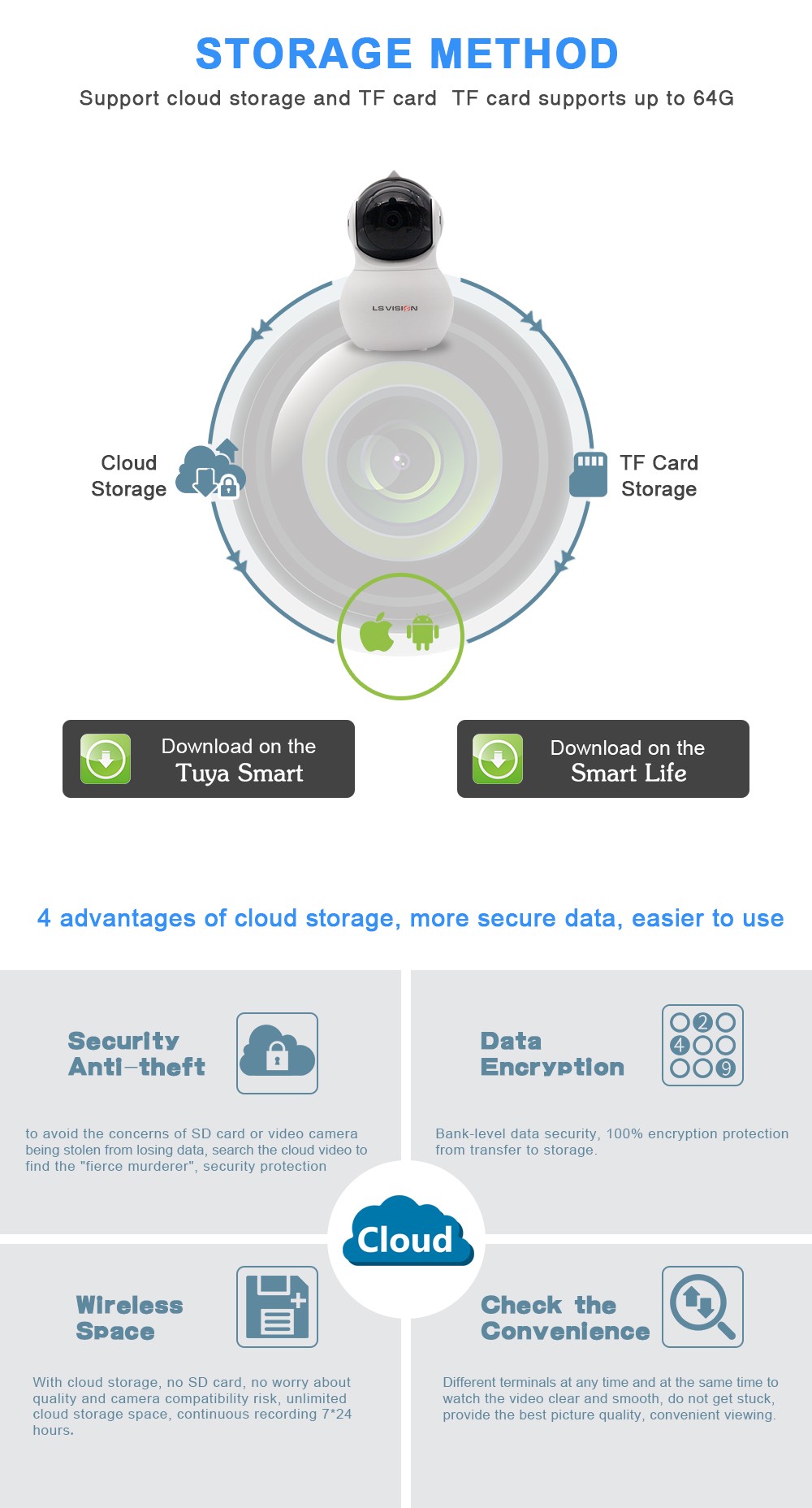

Storage mode
|
Tuya Cloud / TF card(up to 64G)
|
Power parameters
|
5V 1A
|
Compatible with
|
Amazon Alexa and
Google Assistant |


LS VISION Global Brand
At present, LS VISION partners and customers all over the world, including dealers, agents, engineers and security importers, end consumers and other different customer groups, in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh, Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries region, set up an exclusive agency, and we have been have been making great efforts to expend our global agency or distribution area.

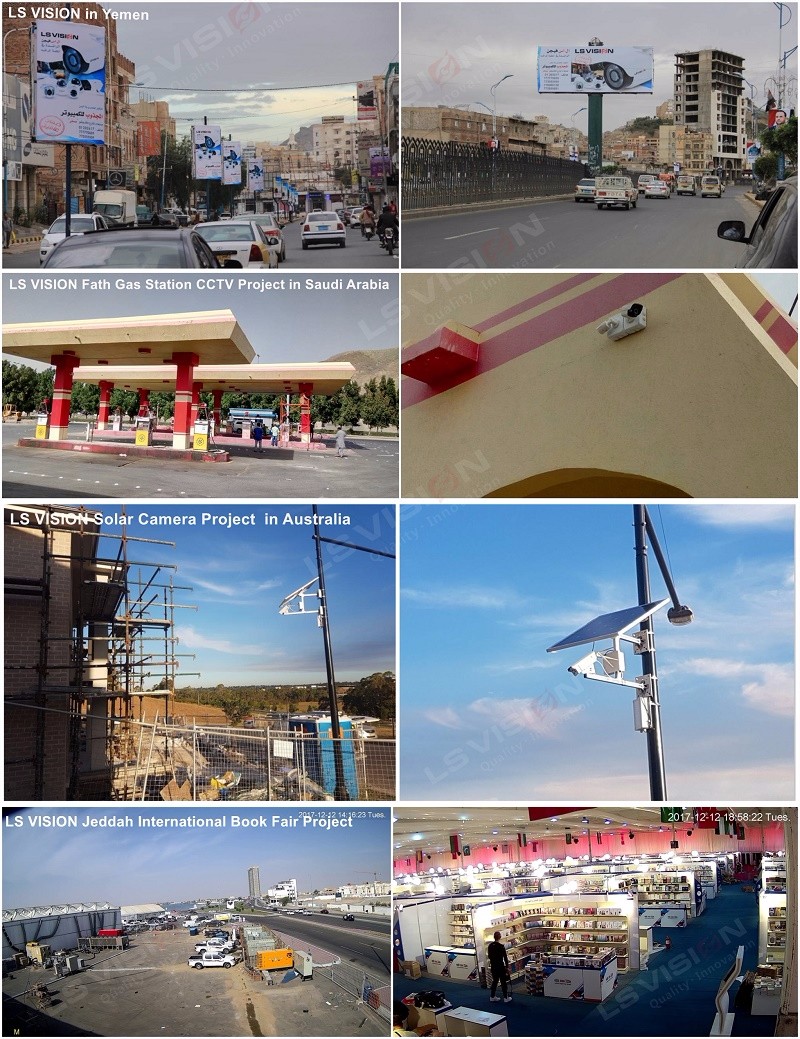

LS VISION Global Security Project
