LSVISION – LS VISION 2952*1944 High Resolution 5MPX IP66 Outside IP Tube Bullet Camera H.265 POE IP Camera

Technology is applied to the manufacturing process of the products.Characterized by versatile features and perfect applicability,LS VISION 2952*1944 High Resolution 5MPX IP66 Outside IP Tube Bullet Camera can be widely seen in the field(s) of CCTV Camera.

Share to:

In the fierce market competition, Shenzhen LSVISION Technology Co., Ltd. has grown continuously. We invest in R&D to find better solutions in the CCTV Camera industry. The advancement in technology brings us unlimited benefits which include expanded product advantages.LS VISION 2952*1944 High Resolution 5MPX IP66 Outside IP Tube Bullet Camera is perfect for the area(s) of CCTV Camera. Get in touch with us – call, fill in our online form or connect via live chat, we are always happy to help.

Place of Origin: Guangdong, China Brand Name: LS VISION
Model Number: LS-NB10501 Special Features: Waterproof / Weatherproof
Sensor: CMOS Video Compression Format: others
Data Storage Options: NVR Key Feature1: Bullet IP66 Waterproof
Key Feature2: 5mp Key Feature3: IP Bullet Camera
Lens: 2.8mm Resolution: 2952*1944
IR: 20 IP: IP66
Network protocol: TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP Power: 4W
Network: 1 RJ45 10M/100M adaptive Ethernet port

Super 2019

4CH 1080P POE Kits with 25M Cat5 Cable

8CH 1080P POE Kits with 25M Cat5 Cable

4K/8MP IP66 Bullet Camera

5mp Motorised Lens Dome

5mp Motorised Lens Bullet

4/10X bullet PTZ with 2mp and 4mp

IP Series
Product Description

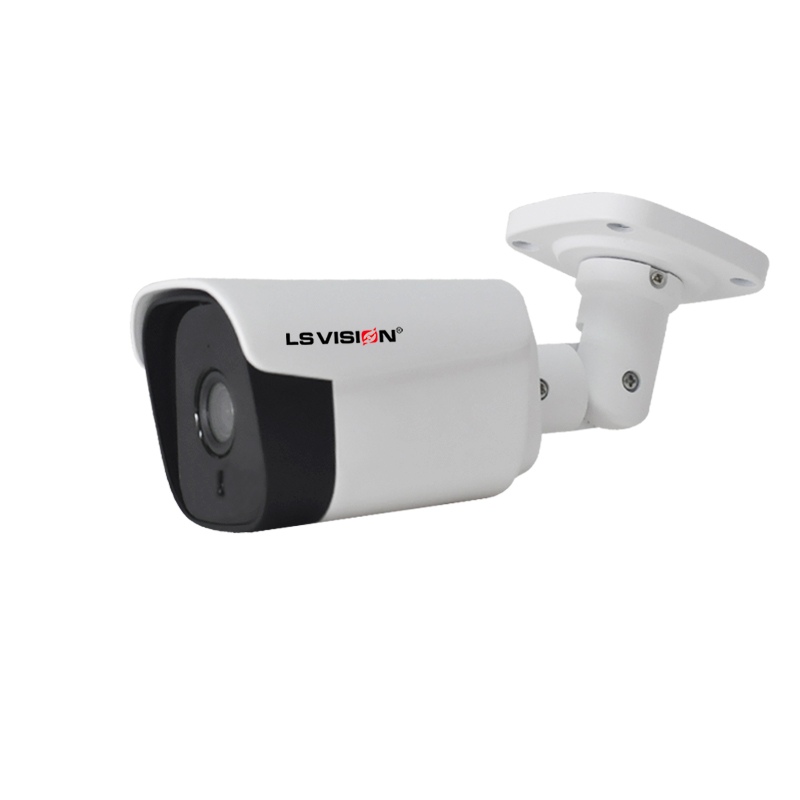

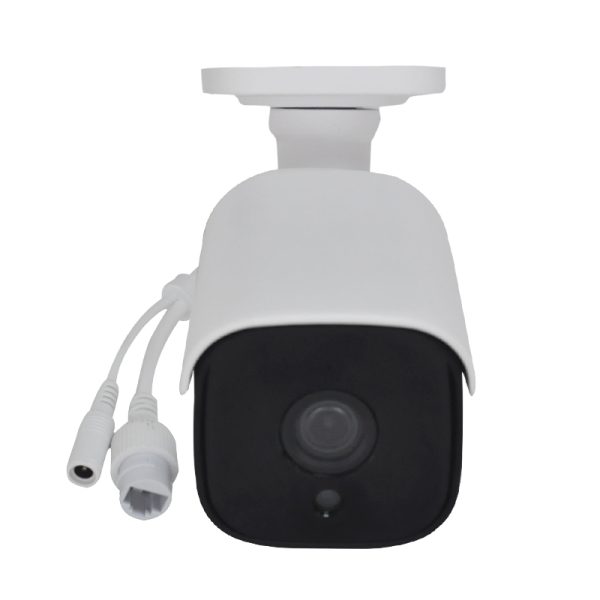

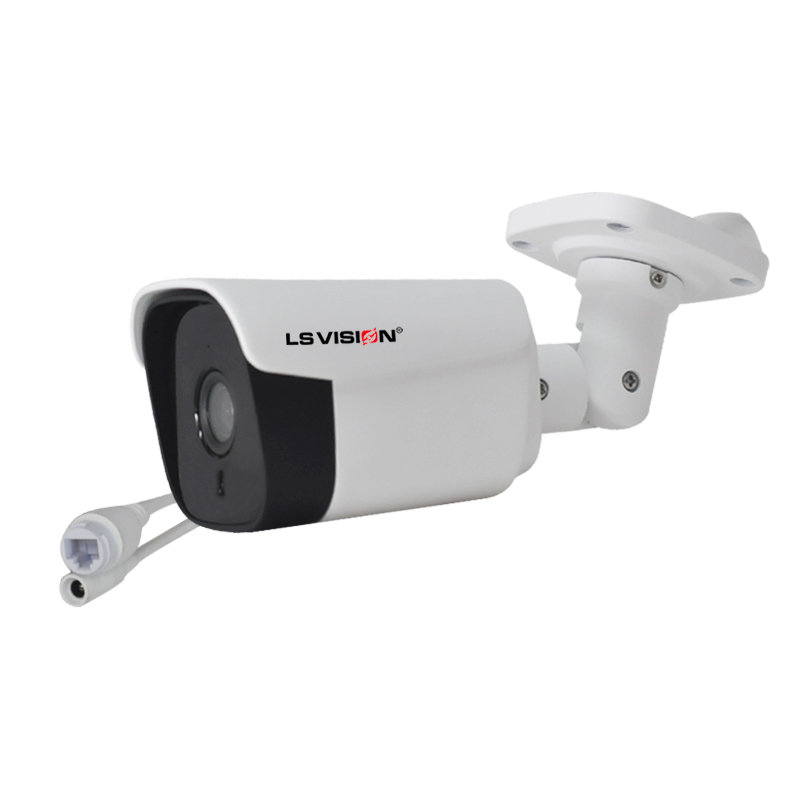

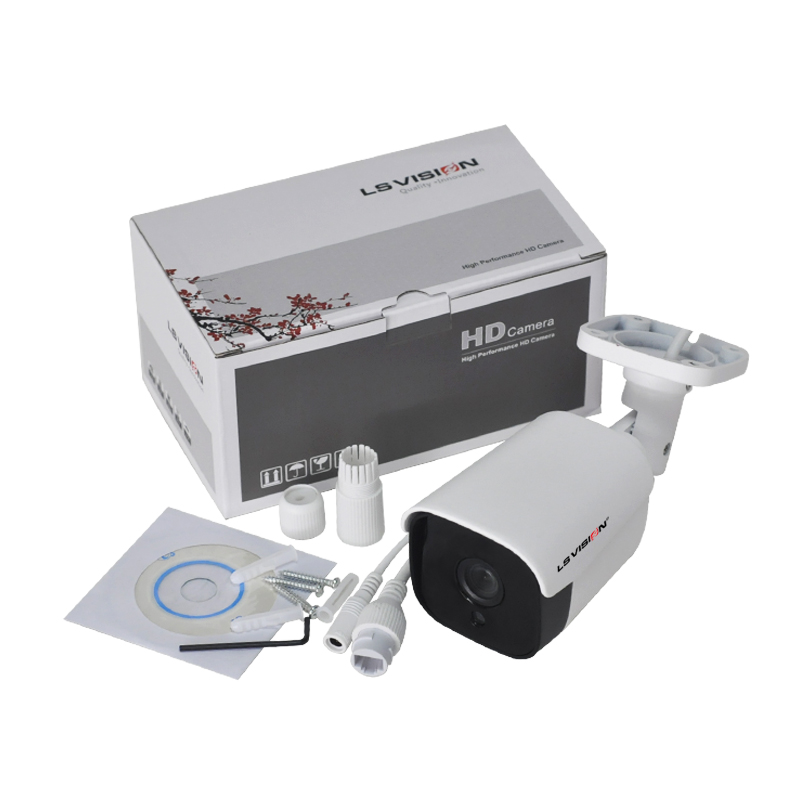

LS VISION 2952*1944 High Resolution 5MPX IP66 Outside IP Tube Bullet Camera

Key Features for 5mp IP POE Bullet Security Camera:

-5mp Resolution

– IMX335 Sony Sensor

-IP66 Outsider Waterproof

-18pcs Small Led with 20 Meters IR Distance

-POE

-2.8mm Fixed Lens for Option





Privite Model

Metal case IP66 for outdoor use

6/8mm lens for option

18pcs LED Light with 10-15M IR Vision Best Vision Distance

 With audio function

Specification
Product name
LS-NB10501 CCTV IP POE Bullet Camera
Image Sensor
1/2.8″ Sony IMX335 CMOS Sensor
Effective Pixels
2592(H)×1944(V)
Electronic Shutter
AUTO, 1/25s ~ 1/100000s
Min. Illumination
Embedded Solution
Day/Night
Video Standard
White Balance
Video Resolution
AGC
Sub stream: 360P/CIF@30fps
DNR
2D/3D DNR
Other
Motion Detection, Privacy Mask, Mirror, Flip
Embedded Solution
MSC316DM
Video Standard
Latest Technology
Video Resolution
Main stream: 5MP@15fps / 720P/D1@30fps   Sub stream: 360P/CIF@30fps
Video Bitrates
500Kbps -4Mbps, VBR/CBR
Audio Standard
G.711-u
IR Led
18 pcs IR Leds
IR Distance
15 Meters
Focal length
3.6mm Fixed lens
Protocol
RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
P2P
Yes
Web
IE , Firefox, etc.
Media
CMS, Android, IOS
Technology
Latest
Network Port
1-RJ45, 100Mbps
Power Supply
Support POE 48V 12 VDC ± 10%
Applications



LS VISION Can Supply a full IP System.

We do proprietary protocol on NVR, support one-key connection,which makes easier to use this system

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Why choose us
1. Our camera have our unique exterior design with private mold, like LS VISION Saturn Series ip camera;

2. We have 64ch, 128ch nvr, support onvif, it can compatible with many brand ip camera, like samsung, hikvision and dahua

3. we provide CMS management software and app for IP POE camera,Super Starlight IP Camera,bullet ptz, ahd dvr, tvi dvr, nvr and panoramic camera.


4. “Only for quality Life” is our core corporate culture, our camera can be applied to tough environment. (working temperature : -40–70 °C)

5. we offer warranty as long as LS VISION alive.


6.In 2018, We will release the Intelligent security system like the IP Camera with Face recognition function.
