LSVISION – LS VISION 4CH Smart Video Surveillance Face Facial Recognition Security CCTV Camera Nvr System support 500,000 Face Analysis Face Recognition Security Camera

The core competitiveness of a product is its features. Our product is made of raw materials that have passed the strict tests carried out by professional staff. The product is made to be of and other superior advantages. Moreover, its appearance design is highly emphasized because it may lead the industry trend.

Share to:

As an innovation-driven company,Shenzhen LSVISION Technology Co., Ltd. has been devoted to product development for years. We are proud and excited as well to announce that we have successfully developed LS VISION 4CH Smart Video Surveillance Face Facial Recognition Security CCTV Camera Nvr System support 500,000 Face Analysis. Our professional engineers applied technology to product development.The product can be used in a wide range of applications like CCTV DVR requiring very high quality. To make us continue to thrive in the next decade and beyond, we must focus on improving our technology capabilities and gathering more talents in the industry. With our full efforts, Shenzhen LSVISION Technology Co., Ltd. believe that we will stay ahead of other competitors in the future.

Place of Origin:	Guangdong, China	Brand Name:	LS VISION
Model Number:	LS-FRN0404	Key Feature1:	Support 4-channel capture camera
Key Feature2:	Support for up to 22,400 face libraries	Key Feature3:	3 face list library (black / white list / VIP list);
Video Standard:	H.264, H.265, H.265+	port:	1 /2 RJ45 port / 2 USB ports
IP Channel:	4CH face capture camera / HD camera	Storage:	4 SATA(maximum 8TB)
playback function:	Support face playback,	Alarm:	16 in 4 out alarm interface
Audio:	1 channel audio input 1 channel audio output	Video Compression Format:	H.265

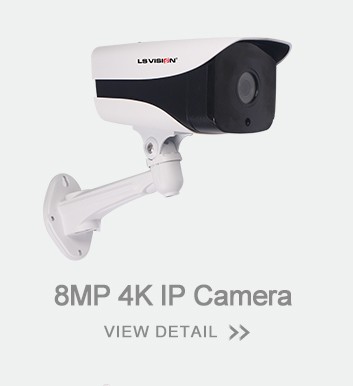

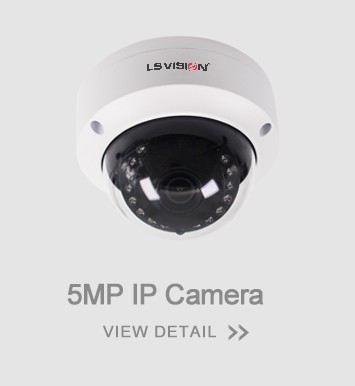

More Recommendation

Product Description

Face Recognition Camera and Nvr Alarm Kit

.Face recognition application integrated package, can be used to prevent thieves, anti-theft, anti-customary stealing, early warning of dangerous personnel, is your store security butler!

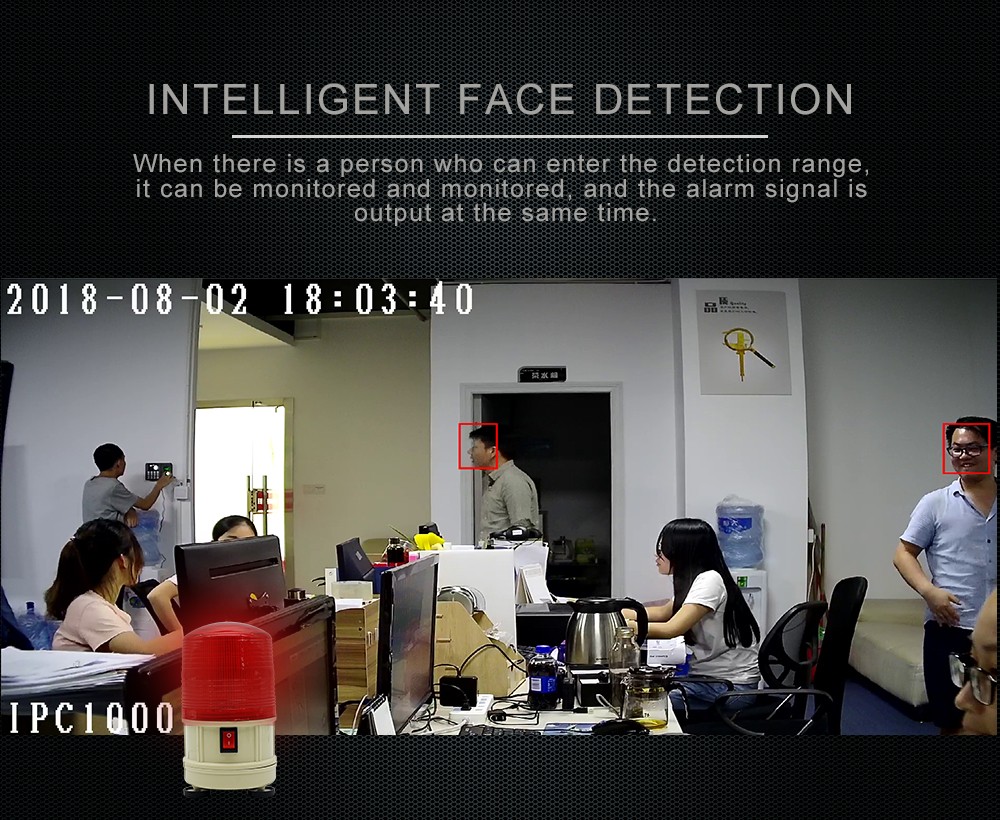

· Built-in intelligent face algorithm to support face capture in complex environments; support face tracking, face exposure mode, face automatic filtering; front face database storage, recommended to import 22400 digital photos, black and white list can be set To achieve real-time comparison of front-end faces.

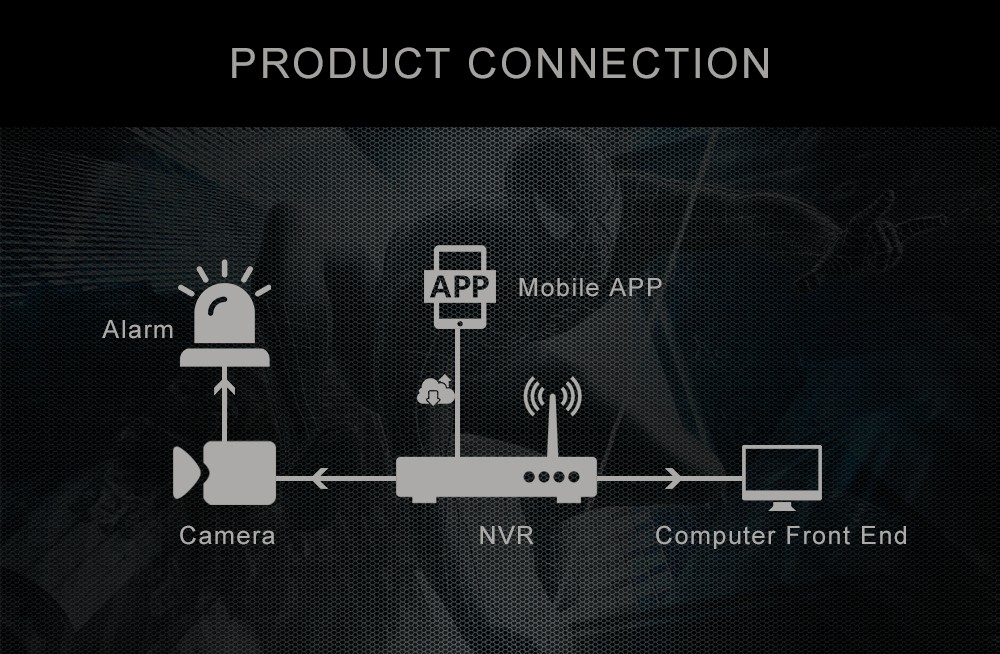

· The mobile terminal can realize real-time image preview of the hard disk recorder, network camera, remote video playback, local picture and video storage, and alarm push information management through the wireless network;

Application:
Applicable to school, supermarket, hospital, community, etc. for face monitoring and monitoring!
Realize face monitoring, control, black and white list setting, face-based search query!

* Stranger (Non-Whitelist) Alarm

IP Camera

Hi3519+1/1.8″ 2.0MP 385 CMOS;
H.265/H.264/MJPEG Coding;
Motorized lens 9-22mm;
4pcs IR led,IR distance 30 meter;
> 120dB Digital WDR;
3D Digital Noise Reduction;
Up to two face databases management;
Support 6400 face image inventory;
Support POE(802.3at) &mobile app

NVR

Hi3520DV200
H.264 Coding;
Support 1CH 1080P Face Recognition IPC +3CH 1080P;
ordinary IPC video Input;
1 CH 1080P Playback;
VGA Interface 1CH,Interface 1CH;
2 CH USB2.0 Interface,1CH SATA(2 T) Interface;
Support face comparison details query;
Support face playback;

Alarm :Sound and light alarm

Key Features

•Face recognition NVR adopts embedded design and embedded deep learning algorithm, which integrates IP Camera access, storage, control and intelligent analysis to achieve accurate face analysis, including face image capture, comparison, retrieval, etc;

•Local support for importing a total of 24,400 face libraries for black, white and vip;

•Support real-time face matching, attribute extraction, list alarm, face saving, Search for pictures by image,Search for video by image,etc;

•Support output, full HD 1080P;

•2U chassis, 4 SATA interfaces (single maximum support 8T);

•1 Gigabit adaptive Ethernet ports, RJ45 interface;

•Support automatic networking, one-click addition;

•Support Onvif protocol, which can connect to third-party devices;

•Support for Domain Name Service (ARSP) for remote access;

•Support for DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP search, alarm center, etc.

•Support web access;

•Perfect protection circuit, unique triple watchdog function;

Specification

Model	LS-FRN0404
System
System chip	Hi3536
operating system	Linux
Access
IP channel	4-channel face capture camera / 4-channel HD camera

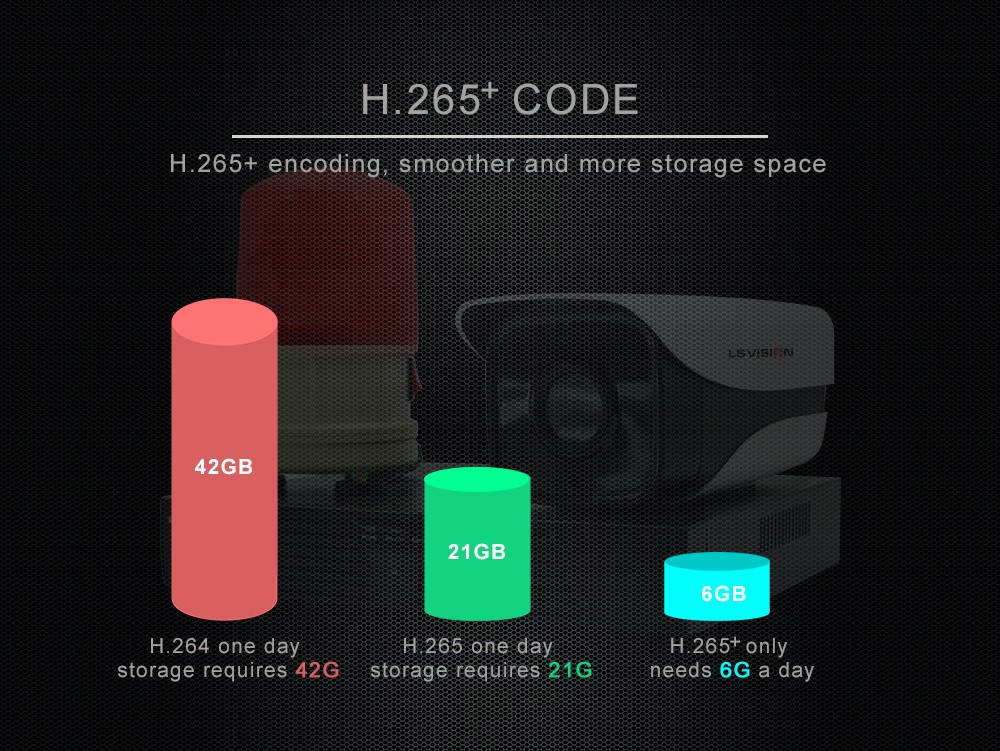

Decoding type	H.264, H.265, H.265+
Audio
Compressed mode	G.711A
Video management
Record method	Manual Recording > Alarm Recording > Dynamic Detection Recording > Normal Recording
Record search	Channel search, calendar search, event search, time search
Record saving	Local hard disk storage
Backup method	USB
SATA	4 SATA(maximum 8TB)
Interface
Video output
Audio output	One audio input, one audio output,
Serial interface	1 RS485 ,1 serial port 232
USB interface	2 USB 3.0
Alarm Output	4 way,Relay contact (1A@ 24VDC), NO / NC programmable, green terminal interface
Alarm input	16 way,Active low, green terminal interface
Network

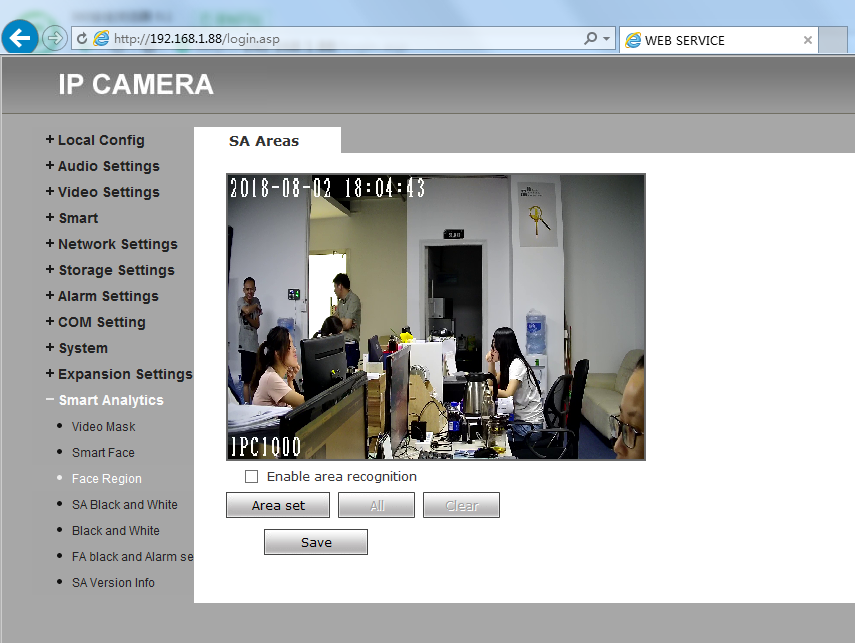

Network Interface	support face recognition area selection
Network protocol	private protocol, hokang protocol, FTP upload
Other specifications
power supply	12V/6A
Power consumption	≤125W
Operating temperature	-10°C ~60°C
Working humidity	10% ~ 90%RH
size	L400 * W428 * H88.5mm
weight	≤13Kg

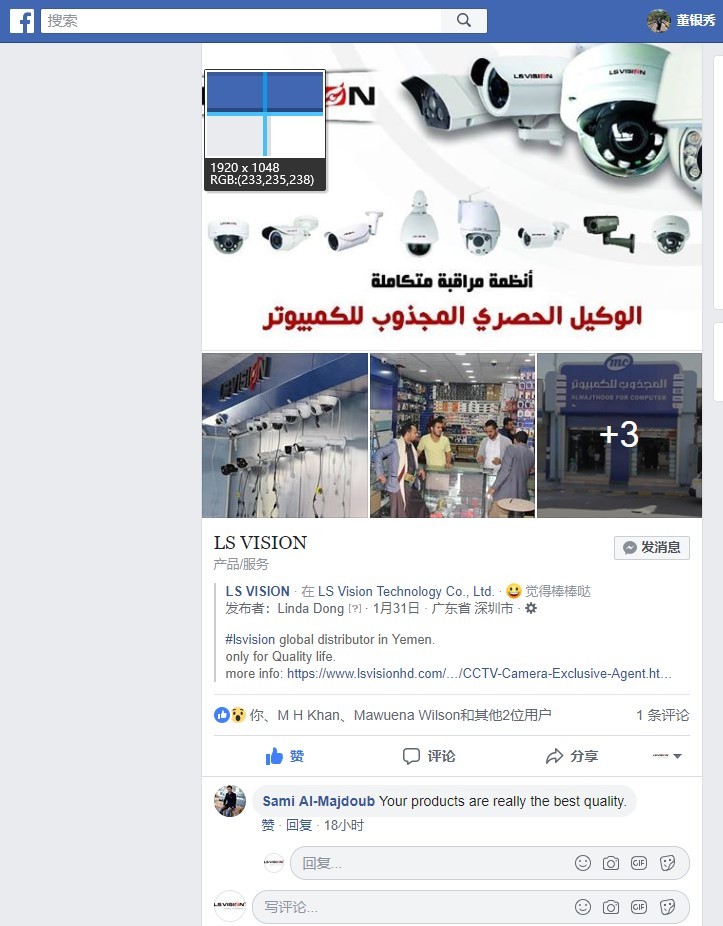

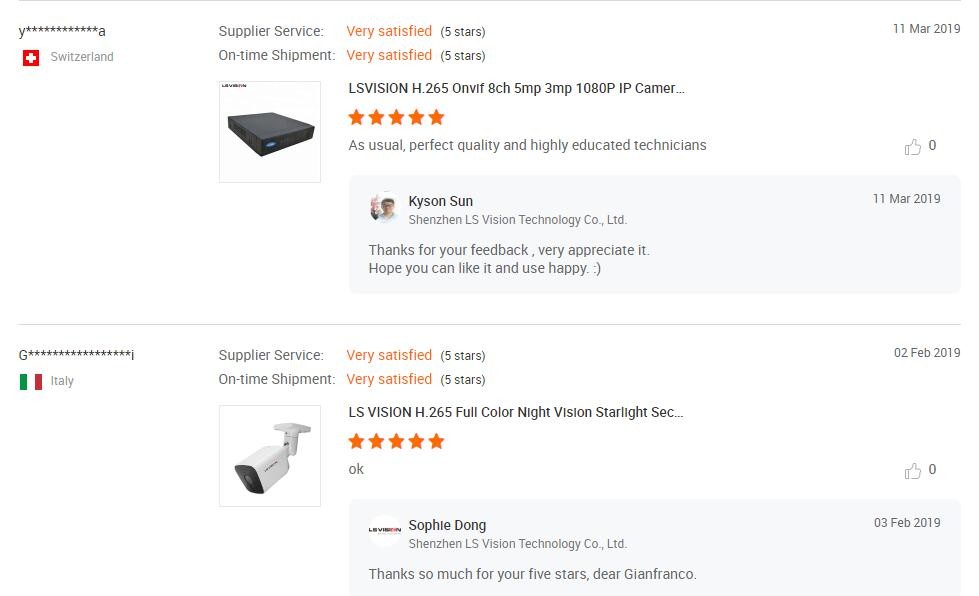

Customers Feedback

Brand & CCTV Project

LS VISION Global Brand

At present, LS VISION partners and customers all over the world, including dealers, agents, engineers and security importers, end consumers and other different customer groups, in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh, Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries region, set up an exclusive agency, and we have been have been making great efforts to expend our global agency or distribution area.

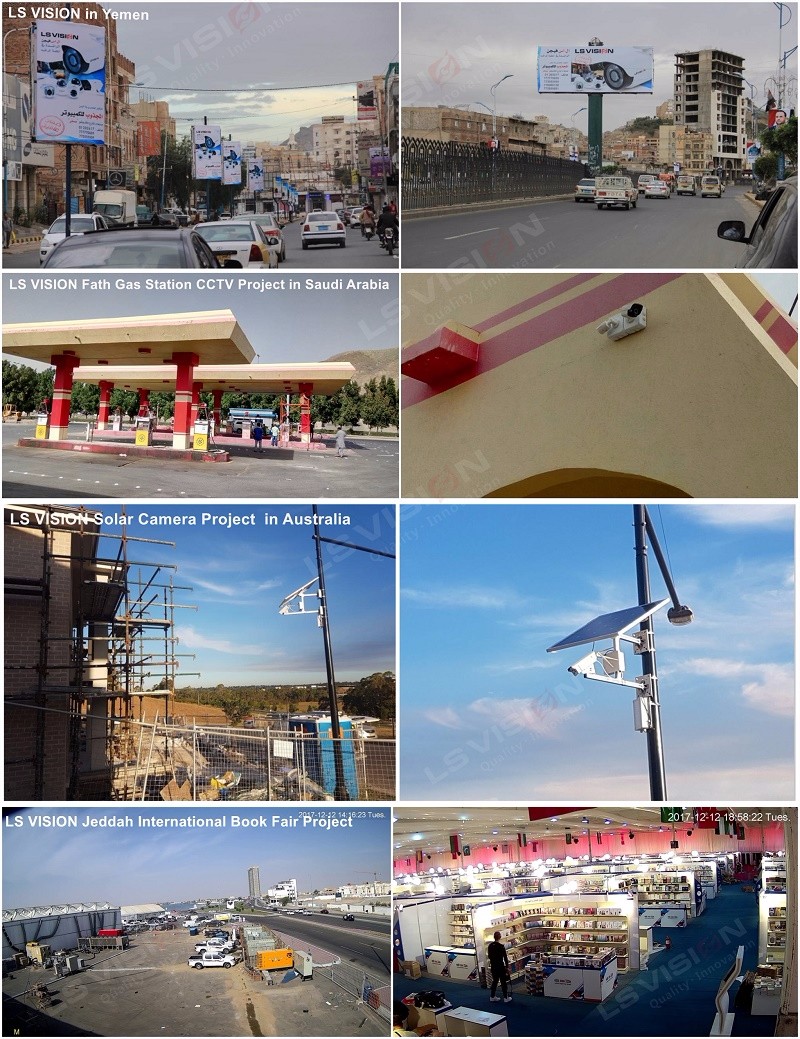

LS VISION Global Security Project

LS VISION products and solutions used in a number of countries and regions, Such as the Saudi Arabian Jeddah International Book Fair Project in 2017 and 2018; CITY Center MAKKAH CCTV Project in 2018; the Fath Gas Station Project in 2017, the Peruvian Bass Amas Plaza Project, the Panama Airport and other major security projects have played an important role.

LS VISION

LS VISION will keep our key value of Quality. Innovation. Dedication to do more research for the products to bring more value for our partners in the 2019.

In 2019, LS VISION products strategy:
Industry market:
IPC: 2MP to 8MP 4K Series IP Camera and HD NVR system.
Analog HD: 2MP to 8MP series and DVR system.
AI series: Face recognition camera and NVR system.

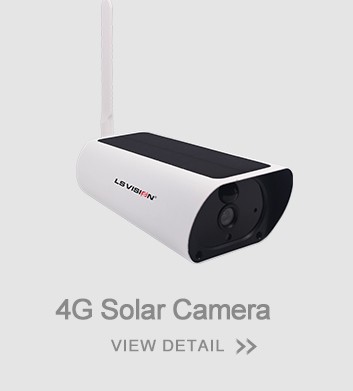

4G Solar Camera system
