LSVISION – Ubox Low Power Solar Energy Power Wireless WIFI Security Alert PTZ Micro USB Camera Long Range Outdoor Cellular 4G LTE Network WIFI Battery Power Solar Cam

Shenzhen LSVISION Technology Co., Ltd. has been focusing on improving technologies to develop new products on a regular basis. We have successfully made Ubox Low Power Solar Energy Power Wireless WIFI Security Alert PTZ Micro USB Camera Long Range Outdoor Cellular 4G LTE Network launch to the public as scheduled. With its new features, IP Camera/NVR/Solar Camera/Smart Battery Camera is expected to lead the industry trend. WIFI Battery Power Solar Cam Our goal is to exceed the quality expectations of our customers. This commitment starts with the top-level management and extends through the entire enterprise. This can be achieved through innovation, technical excellence, and continuous improvement. In this way, Shenzhen LSVISION Technology Co., Ltd. firmly believe that we will satisfy the growing needs of every customer.

Specification

Full Features ：

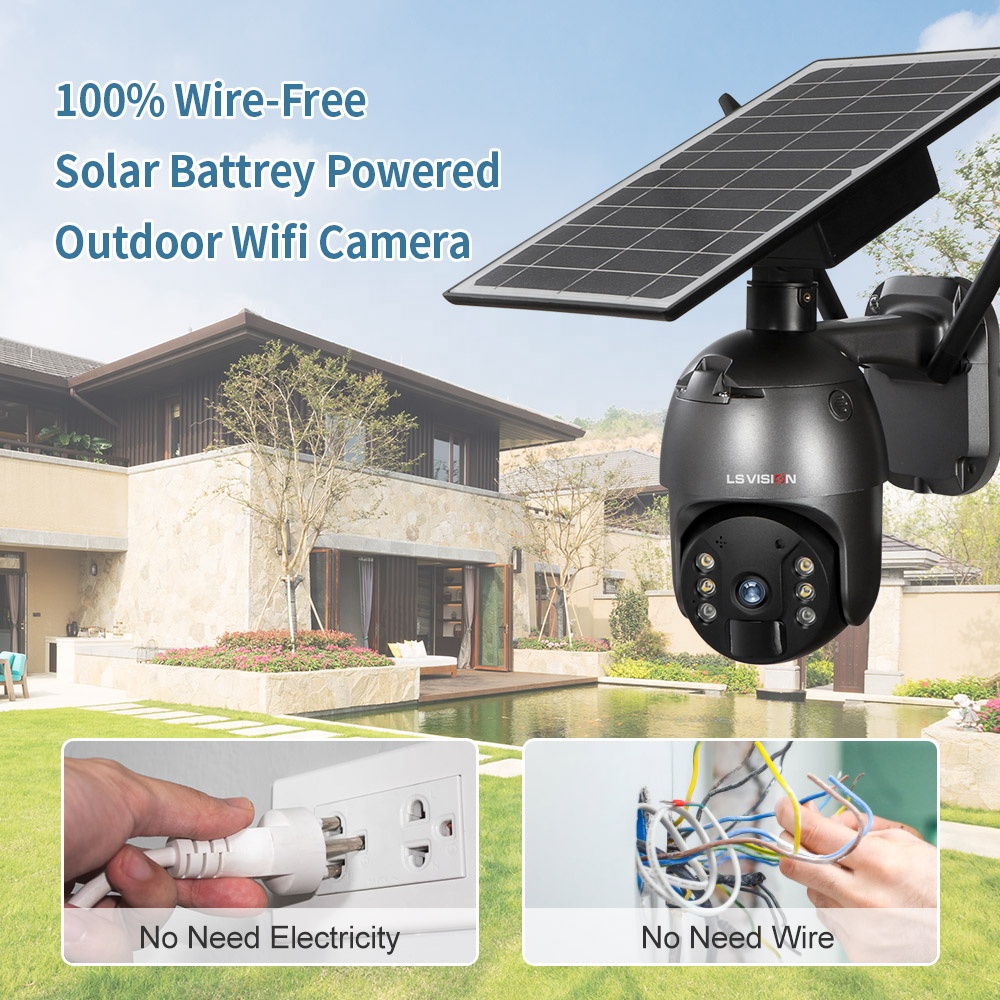

1. No need for external electricity, solar power generation and built-in lithium battery power supply;
2. No need to connect the network cable, built-in 4G module, support 4G frequency band selection in
different countries；

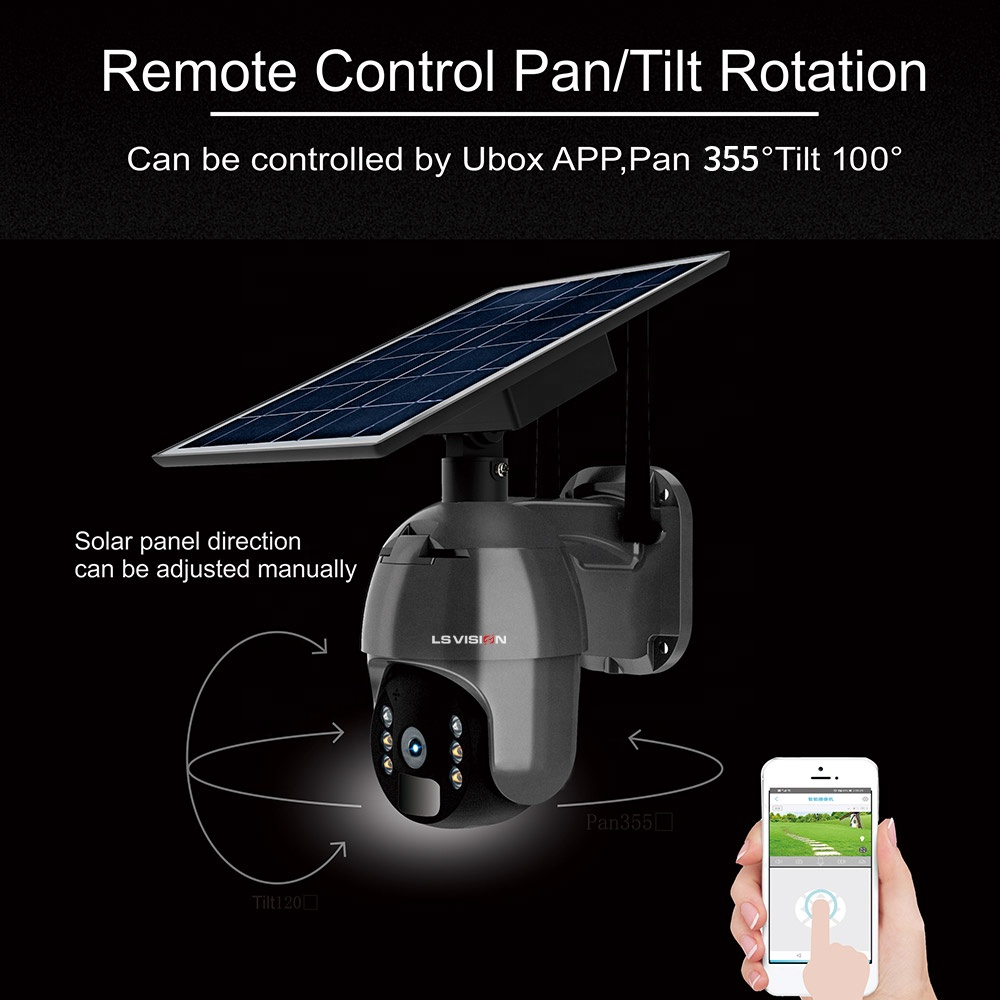

3. Electric rotation angle: Pan 320 degree&Tilt 90 degree;
4. Remote viewing by mobile APP (Ubox);
5. Human body movement triggers alarm and video recording;
6. Local storage, cloud storage;
7. The installation is simple, install by yourself, no need to hire professional construction personnel;
Application scenarios ：
Doors of homes, yards, fish ponds, orchards, farms, mines, construction sites, and all places where
electricity and wiring are not convenient.

Model	LS-WS12/LS-4GS12
Motion	HMD（Human Motion Detection）
Chipset	Ingenic T21Z
Sensor	1/2.7″ CMOS
4G module	Qualcomm SIM7600 Series
4G Band	Choose according to different countries
Protocols	TCP/IP，HTTP，TCP，UDP，SMTP，DHCP，DNS，P2P
SIM Card	Micro SIM card
Pan&Tilt	Pan:320º Tilt:90º
Pixels	2MP
Solution	1920*1080
Lens	3.6mm
Shoot-Distance	0-15M
Shoot-Angle	360º
Wake Time	0.6 Seconds
Battery	15600mAh
Solar Panel	8W
Motion Distance	0-12M
Motion Angle：	120º
TF Card	Maximore 64GB looping Video Recording
Accessories	Camera*1、Solar Panel*1、Bracket*1、Screw Bag*1、Manual Book*1、Tools
Camera Size	220mm*170mm*115mm
Camera Weight	0.52kg
Solar Panel Size	243mm*183mm*45mm
Voice Call	Support
Mobile App	Ubox
Packing Size：	288mm*207mm*148mm
G.W/PCS：	1.72kg（Including 6PCS 18650 Battery）
Outer Box Size：	L770mm*W606mm*H444mm
G.W/CTN：	29.5kg（Including Battery）
Quantiy/CTN：	16PCS/CTN
Solar Panel Weight：	0.87kg（Including 6PCS 18650 Battery）

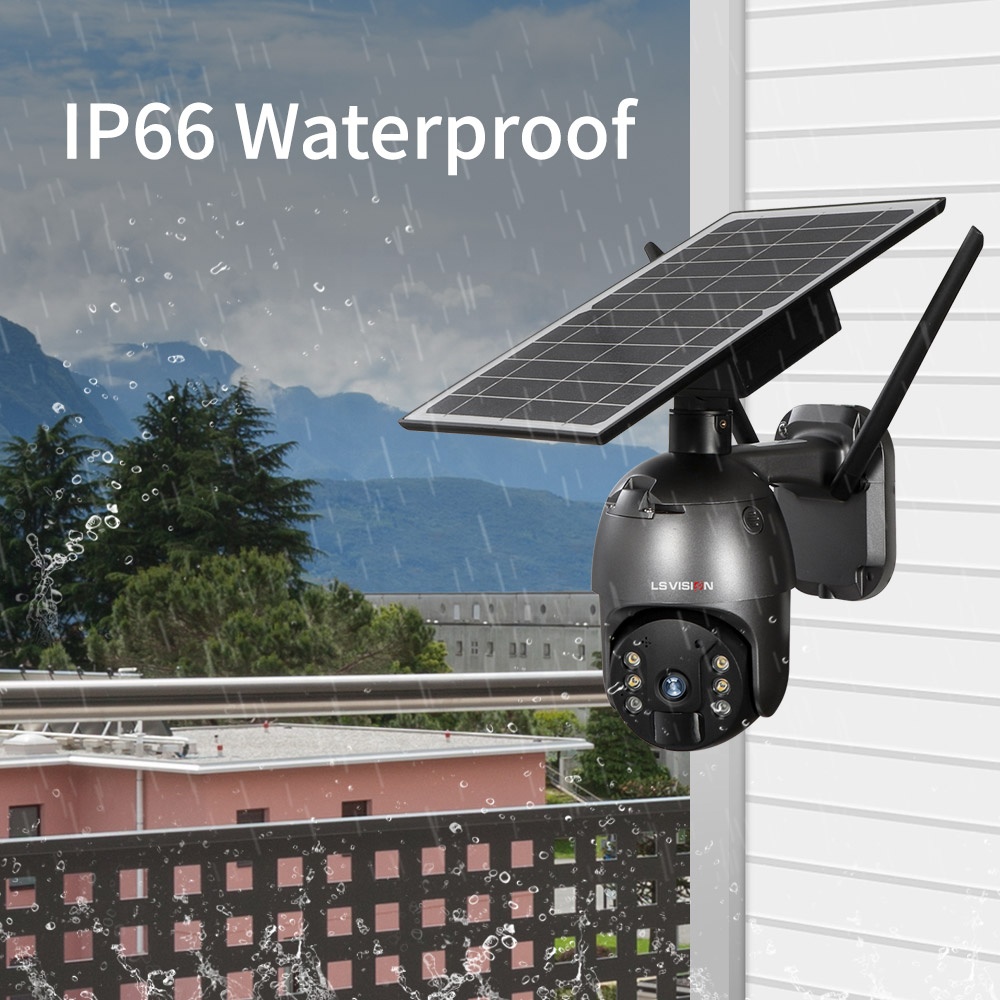

Waterproof：	IP66
Working Power Consumption：	DAY≤2W，NIGHT≤2.8W
Standy Power Consumption：	0.08W
Power：	Solar&Battery
Temperature：	-15℃ TO 60℃
Humidity：	0%-90%RH

Picture Details

Ubox Low Power Solar Energy Power Wireless WIFI Security Alert PTZ Micro USB Camera Long Range Outdoor Cellular 4G LTE Network

Logistics

Our Story

LS VISION

Shenzhen ls vision Technology Co., Ltd.

LS VISION focus on Security Surveillance Solutions since 2010.
We have awarded the title of “China High-Tech Enterprises”.
Combined with Monitoring Hardware and Software Equipment,
for the Global User to Provide Security, Smart Home Solution and Services.
The company is committed to the Smart Security and Smart Home Industry.
LS VISION Core Value: “Quality, Innovation, Dedication”.
LS VISION Mission: “Creating a Safer&Green World”.

Exhibition

Certifications

FAQ

1.-Q:What APP do you use?
A:Default is U-box, also can choose Tuya

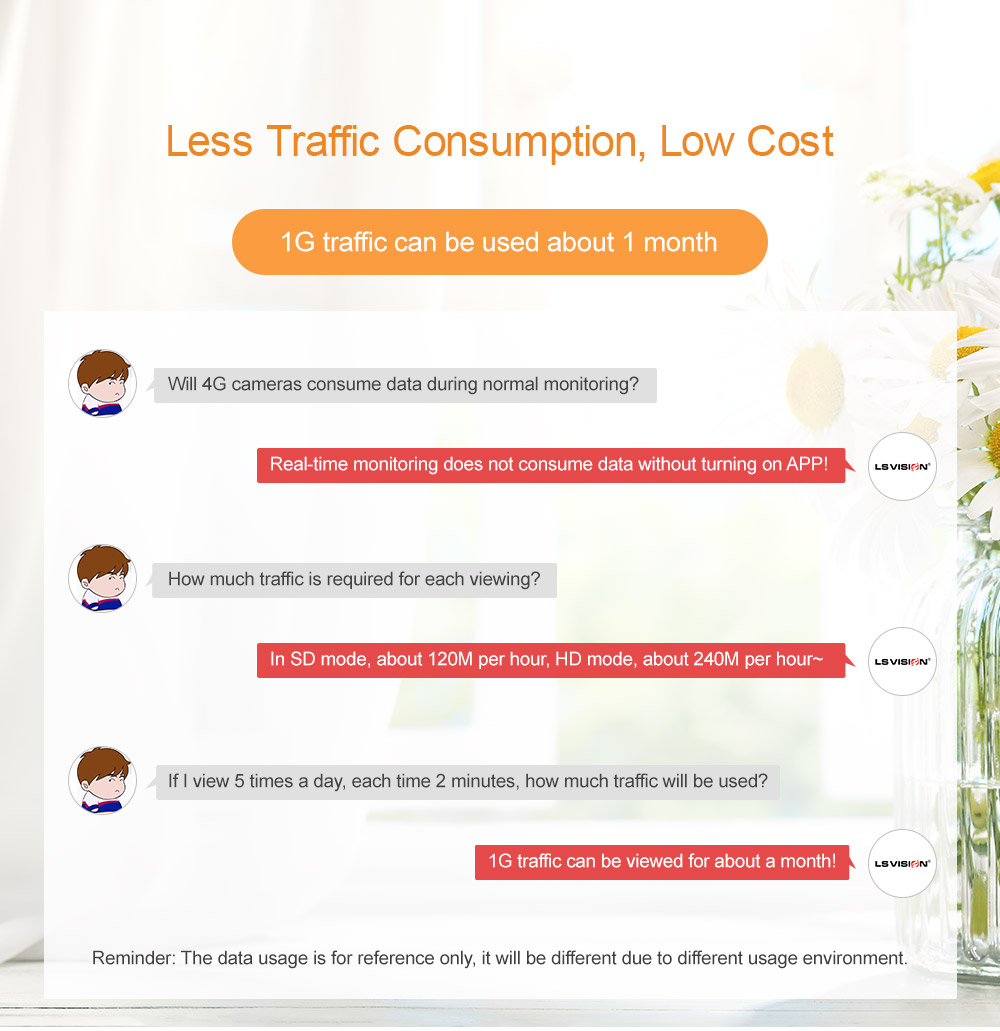

2.-Q:How much data will be consumed each time?
A:In SD mode, it consumes about 0.9-1.9MB/mins
In HD mode, it consumes about 1.9-3.8MB/mins
No data will be consumed if you don’t view on the app
3.-Q:How long can 128G memory card be used?
A:128G about can be used 600hours(25days) in 24 hours recording mode
4.-Q:If i want solar panel installed on the roof, camera installed on eaves, what should I do?
A:Taking into account the better absorption of light, our camera has two installation modes, integrated installation and separate installation, separate installation can also add a 3 meter extension cable to achieve a longer installation distance
5.-Q:Are there requirements for the working environment of the camera?
A:The working environment of solar camera is -10°C-70°C, the more the light is, the longer the camera will continue to work
6.-Q:What if there are many people in my yard who frequently show up during the day and I don’t want the camera to trigger the alarm all the time?
A:Our camera can set Arbitrary arming time, you can set the sleep time of the camera, during the sleep time, even if someone appears, it will not alarm
