Having set up a team who are always involved in the product R&D,Shenzhen LSVISION Technology Co., Ltd. keeps developing products on a regular basis. Our Non-Contact Outdoor Multi-Face Recognition Binocular AI Human Body Thermal Measurement Imaging Camera Scaner Built-in Blackbody is launched to all customers from different fields. CCTV Camera has won high attention and praise from the industry and market. For product inquiries, technical support, and other questions, you can reach us in any way stated on our ‘Contact Us’ page.
| Place of Origin: | Guangdong, China | Brand Name: | LSVISION |
| Model Number: | LS-TI006 | Warranty: | 1 Year |
| Special Features: | Face Recognition, People Counting, Temperature Measurement | Sensor: | CMOS |
| Network: | Ip | Function: | Waterproof / Weatherproof, Thermal image |
| Video Compression Format: | H.265 | Data Storage Options: | Cloud, Memory Card, Computer |
| Application: | Indoor, Outdoor | Customized support: | Customized logo, OEM, ODM |
| Product Name: | Human Body Thermal Infrared Imagimg Temperature Camera | Measurement Range: | -20°C to 50°C |
| Field Angle(Calculated Value): | 40°C-30°C | Calibration: | Self-Calibration |
| Detector Type: | Uncoiled Infrared Array Sensor | Temperature Resolution: | 0.01°C |
| Pixel Pitch: | 17μm | Resolution: | illion Pixels)> 1920*1080(2 M>illion Pixels) |
| Effective emissivity: | 0.96 ±0.02 | Temperature stability: | ±0.1°C/60min> >±0.1°C/60min |
| Channels: | 4 | Certification: | ce, FCC |

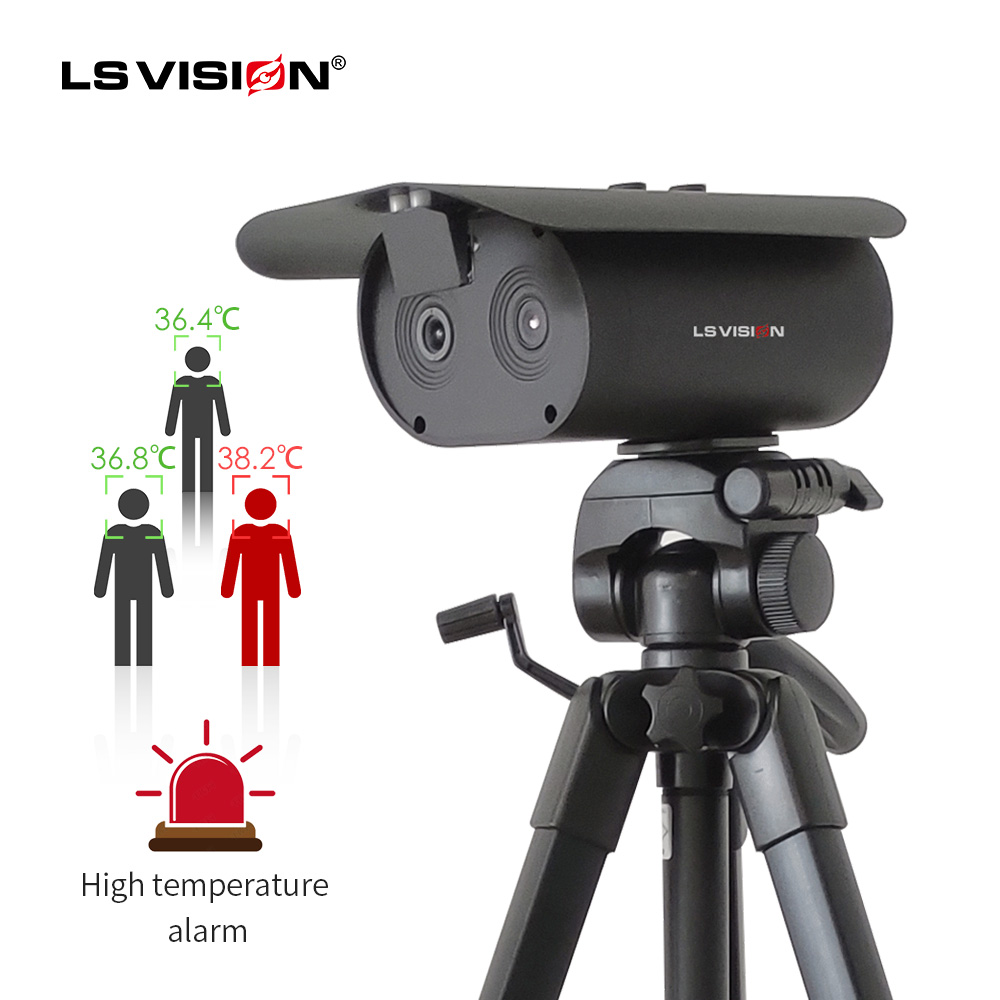

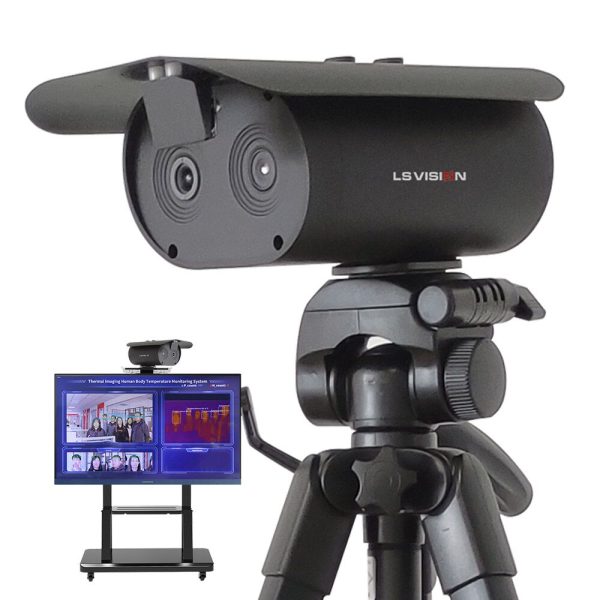

Non-Contact Outdoor Multi-Face Recognition Binocular AI Human Body
Thermal Measurement Imaging Camera Scaner Built-in Blackbody
Product Description
Product Description
Artificial intelligence temperature measurement system
High-sensitivity infrared camera High-definition visible light camera High-precision black body High-performance temperature measurement engine It based on artificial intelligence algorithm and infrared thermal imaging temperature measurement technology.

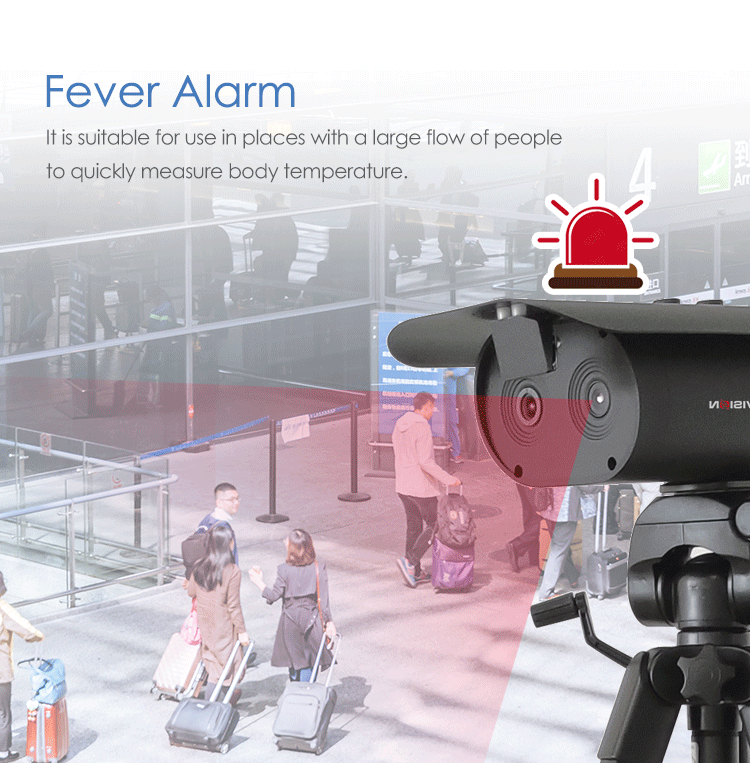

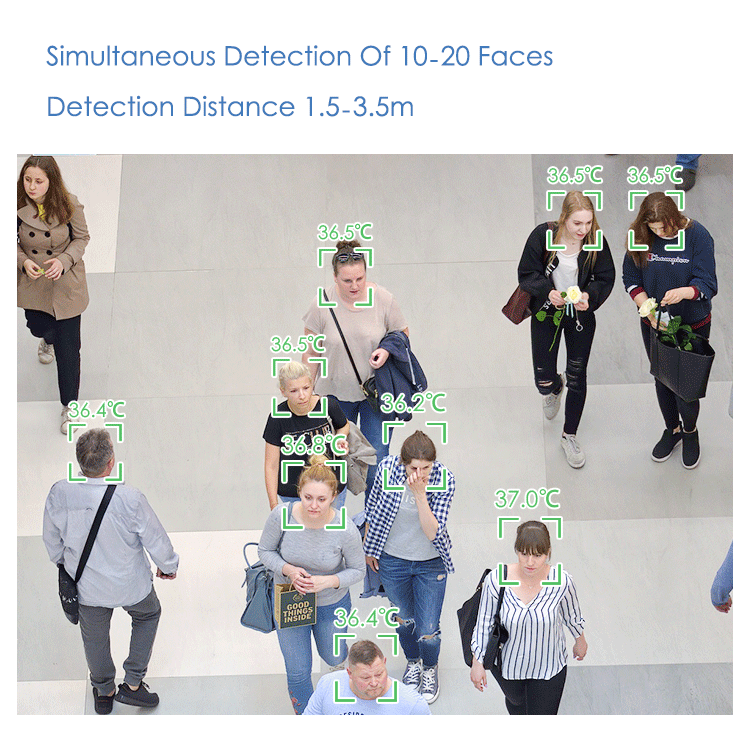

It can quickly check and warn people with fever symptoms in the crowd, andaccurately display the highest temperature value.

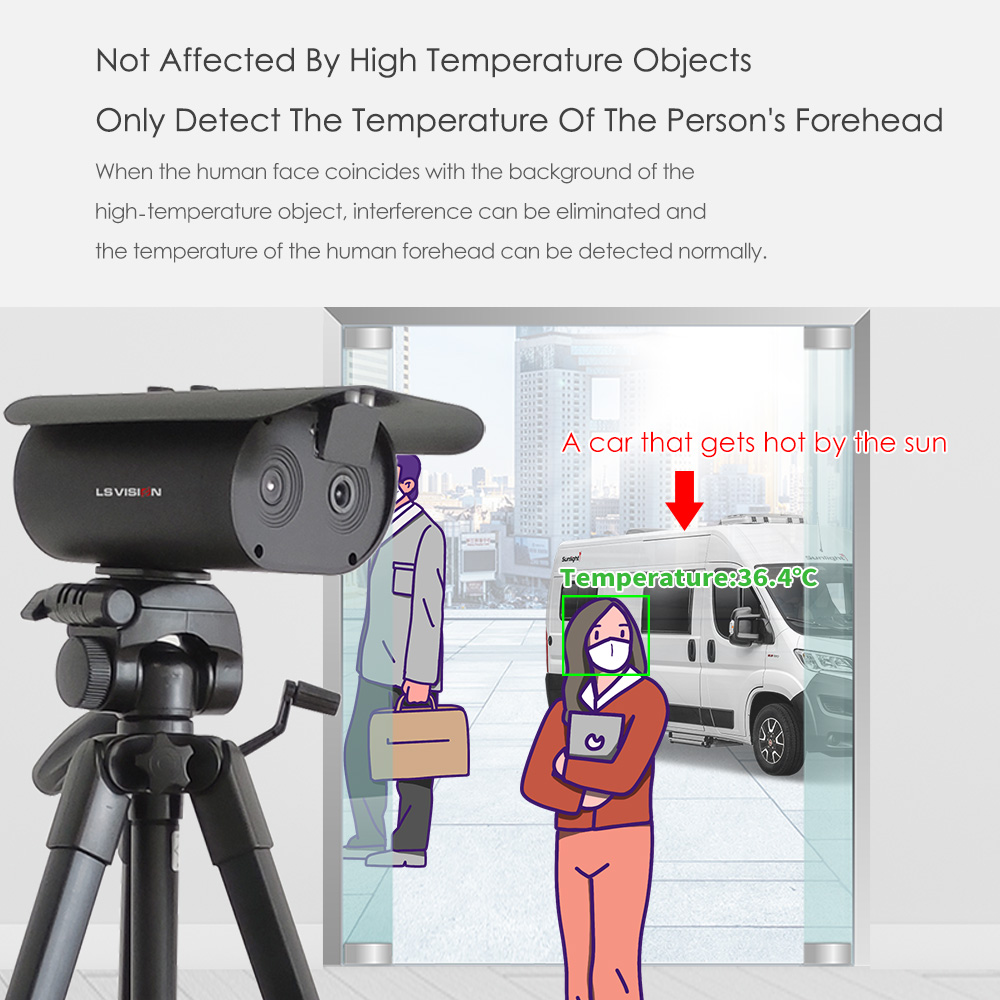

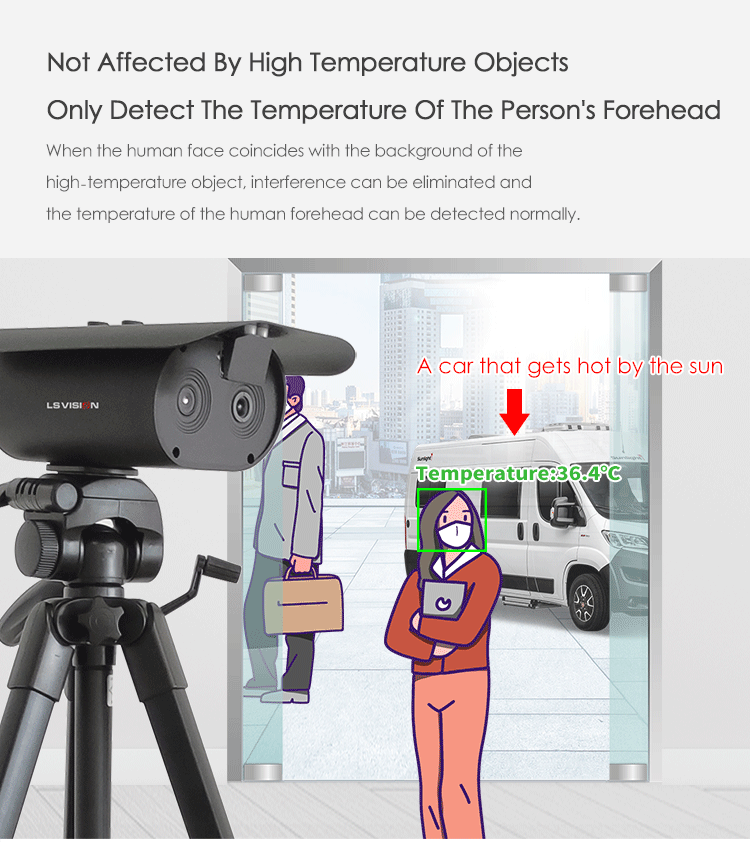

It is equipped with automatic face recognition and capture. Quickly detect the thermal temperature of the forehead in milliseconds,with an accuracy of 0.2°C. Has an automatic temperature algorithm based on artificial intelligence technology, can accurately identify and count the number of people passing . Quickly analyze and display the temperature of individual personnel.
Features:
Quick Detection Large streams of people can be measured and detected with in 0.05 seconds. Sensitivity The temperature resolution of the instrument can reach ± 0.2 ℃ , which is suitable for long distance in high volume traffic areas. Discrete Measurement Measurement can be carried out without the complete knowledge of the detected object.
Great User Experience Mufti-visual presentation with strong curability, affinity, scientific, and technological capabilities.
|
Model
|
LS-TI006
|
|
|
Temperature Measurement
|
||
|
Measurement Range
|
20°c -50°c
|
|
|
Field Angle(Calculated Value)
|
40°C*30°C
|
|
|
Calibration
|
Self-Calibration
|
|
|
Measurement Distance
|
1.5-5m
|
|
|
Infrared Camera
|
||
|
Detector Type
|
Uncoiled Infrared Array Sensor
|
|
|
Resolution
|
160X120
|
|
|
Pixel Pitch
|
17μm
|
|
|
NETD
|
≤60mk(F/1,300K, 50Hz)
|
|
|
Frame Rate
|
15 Hz
|
|
|
Temperature Measurement Data Output
|
Full Range Temperature Output
|
|
|
People Per Second
|
200 people in one minute
|
|
|
Visible Camera
|
||
|
Resolution
|
1920*1080(2 M>illion Pixels)
|
|
|
Imaging Device
|
1/2.7inch CMOS
|
|
|
Minimum Illuminance0.01
|
Lu(Color Mode),0.001Lux(Black and White Mode)
|
|
|
Signal to Noise Ratio
|
>56dB
|
|
|
Other Parameters
|
HAIRCUT Automatic Switching, Backlight Compensation, Strong Light Suppression, Automatic White Balance
|
|
|

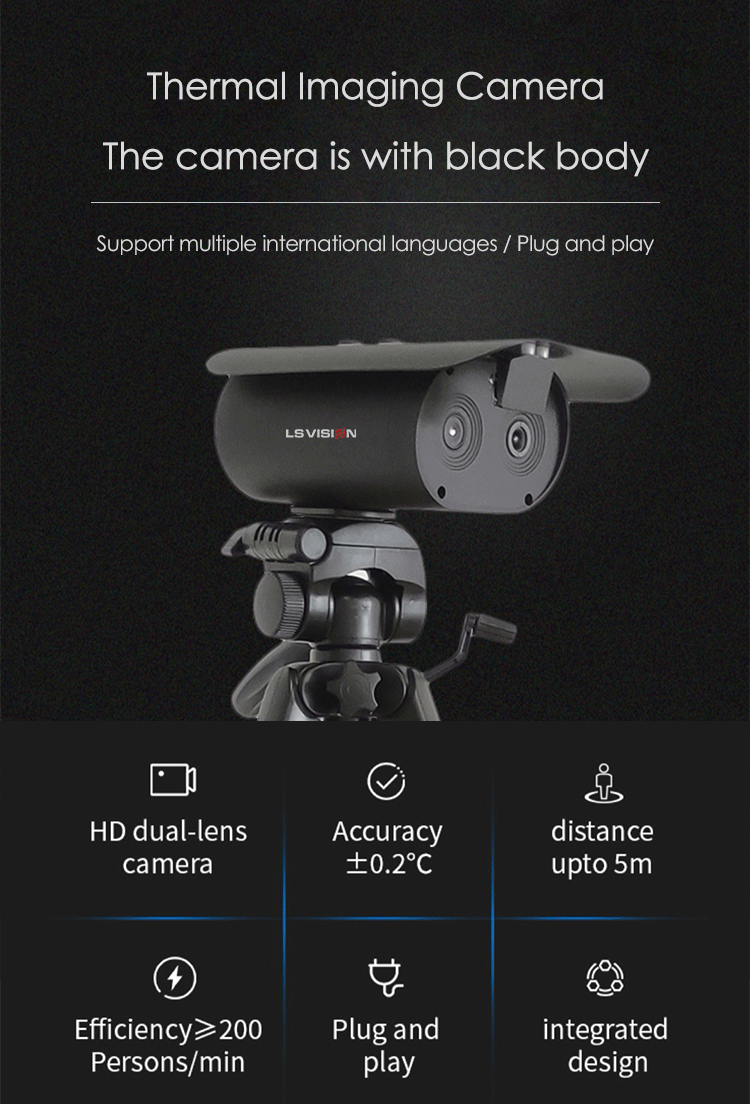

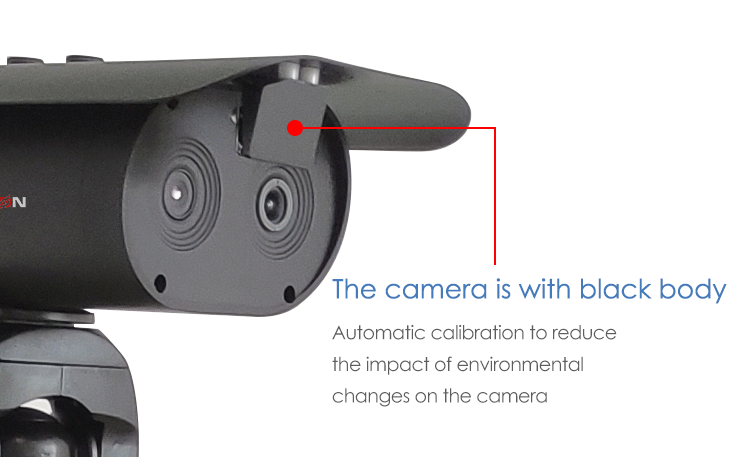

Black body
|
|
|
|
Black target surface diameter
|
20mm*30mm
|
|
|
Effective emissivity
|
0.96 ±0.02
|
|
|
temperature range
|
(Ambient temperature+5°C)~(50°C)
|
|
|
Temperature resolution
|
0.01°C
|
|
|
Temperature stability
|
>±0.1°C/60min
|
|
|
Heating time
|
<2minute
|
|
|
Motherboard parameters
|
||
|
SOC
|
Broad com BCM2711
|
|
|
CPU
|
64 bit 1.5GHz Temperature stability (28nm)
|
|
|
Bluetooth
|
5.0
|
|
|
USB
|
USB 2.0*2/USB 3.0*2
|
|
|
Micro *2 support 4K60
|
||
|
Powered by
|
Hype C(5V 3A)
|
|
|
Network
|
Wi-Fi 802.11AC,Gigabit
|
|
|
multimedia
|
H.265(4Kp60 decode) H.264(1080p60 decode,1080p30 encode) Opening es,3.0 graphics)
|
|
|
Other Parameters
|
||
|

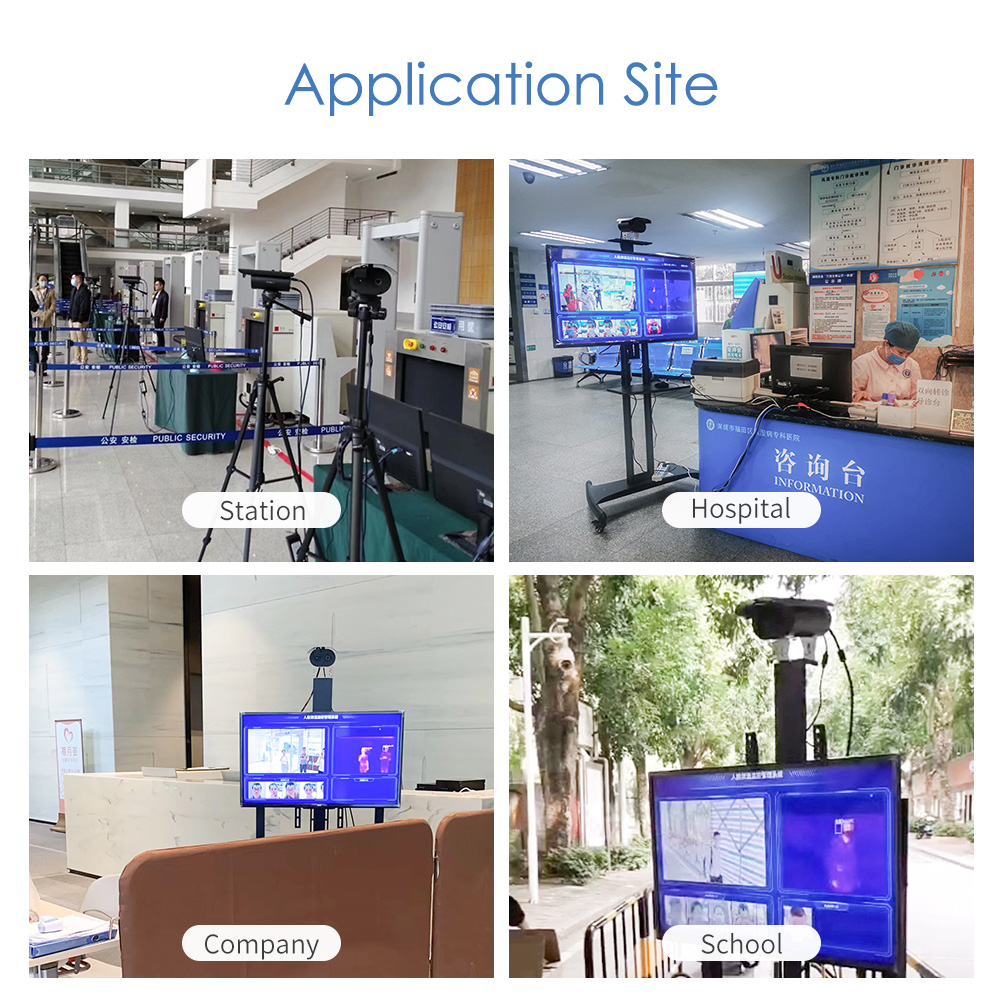

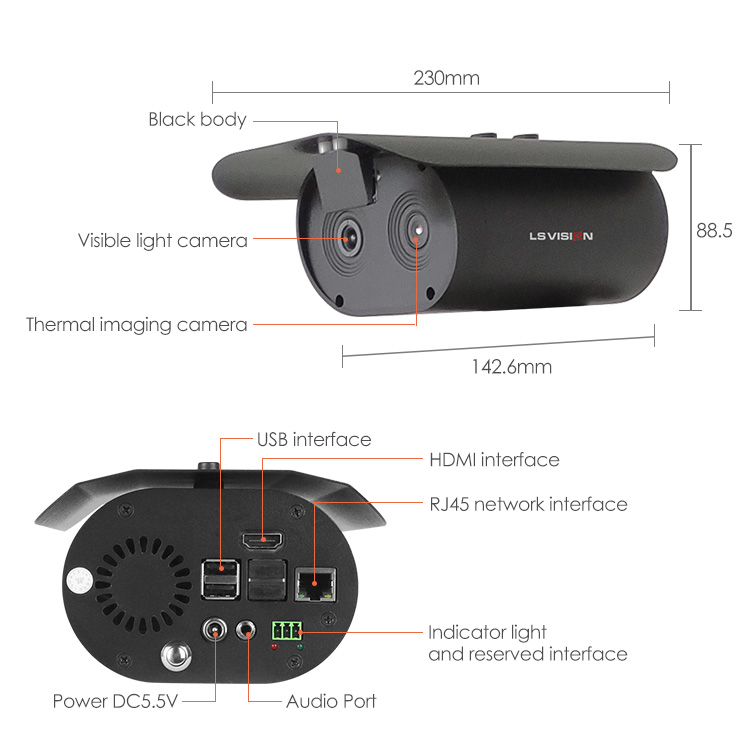

Installation Environment
|
Indoor or Outdoor
|
|
|
castellations Method
|
Support, Wall Mounting, Hoisting
|
|
|
Working Temperature
|
0℃~40℃
|
|
|

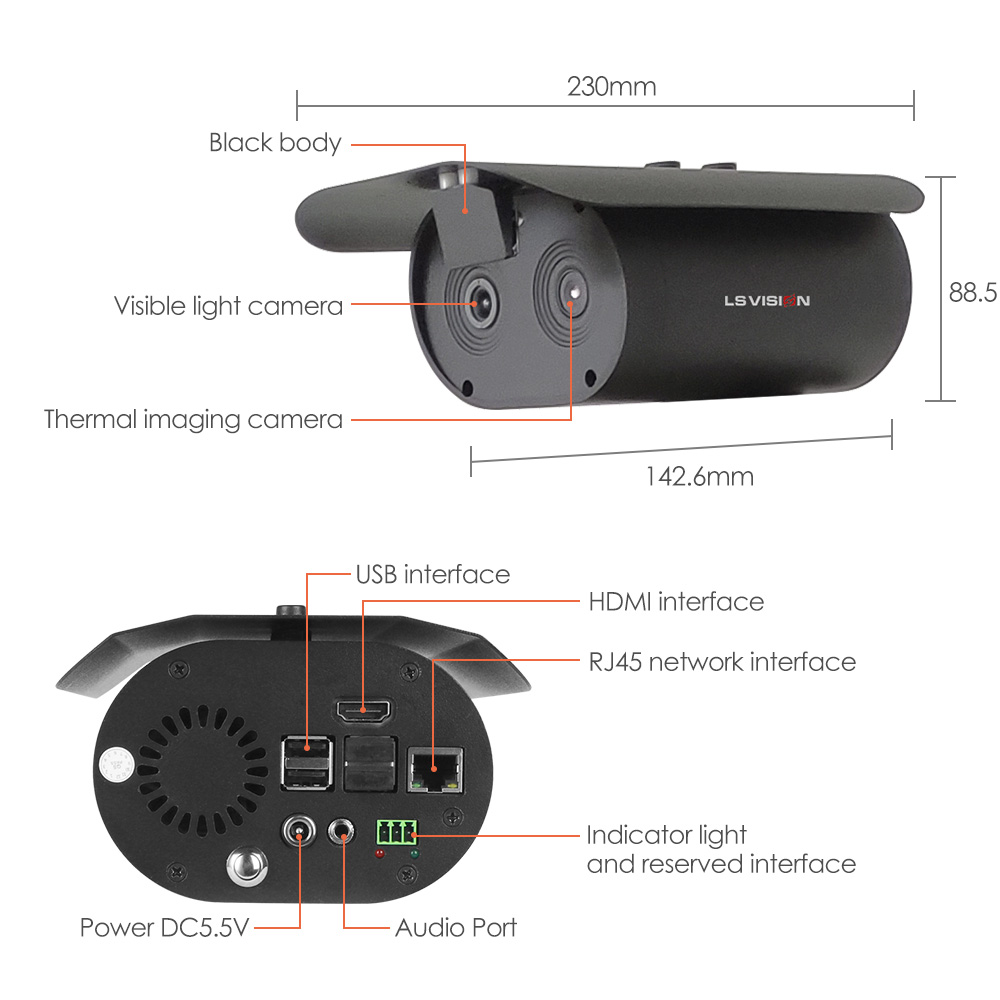

Size
|
230mmx142.6mmx88.5mm
|
|
|
out packing size
|
265 (L) * 270 (W) * 150 (H) mm
|
|
|
Weight
|
1.5 KG
|
|
