LS VISION IR Waterproof Bullet CCTV Surveillance System 2MP 1080P HD 4CH WiFi Wireless IP Camera NVR Kit

 

LS VISION IR Waterproof Bullet CCTV System, 2MP 1080P HD 4CH WiFi Wireless IP Camera NVR Kit

* Through cloud services, it is easy to achieve penetration of various networks,  and remote monitoring can be realized in one step, thus abandoning various complicated network settings. It is simple and easy to use.
* Built-in high-performance, high-stability wireless Wi-Fi routing module supports 802.11b/g/n protocol, 300Mbps bandwidth, and easy to implement 4-way 1080P image without delay wireless access;

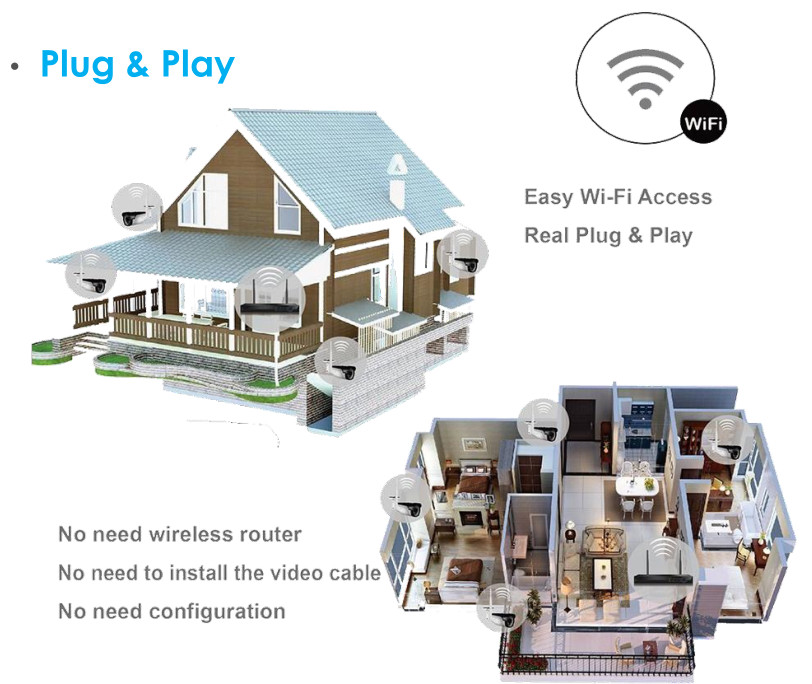

* Automatically access network cameras via wireless technology, without network cabling, and easy and simple installation of the project;
* Plug and play function, wireless package equipment is ready to code when it is shipped from the factory;
* Supports the access and control functions of commonly used mobile phones (iPhone, Android);
* Support video preview/recording/playback/backup function;
* Support IE browser access;
* Supports 2 USB ports for stable operation of USB mouse, backup, and upgrade;
* Support VGA and HDMI simultaneous output, VGA. HDMI full HD 1080P display

* support motion detection, occlusion alarm, video loss, network cable disconnection, IP address conflict smart alarm

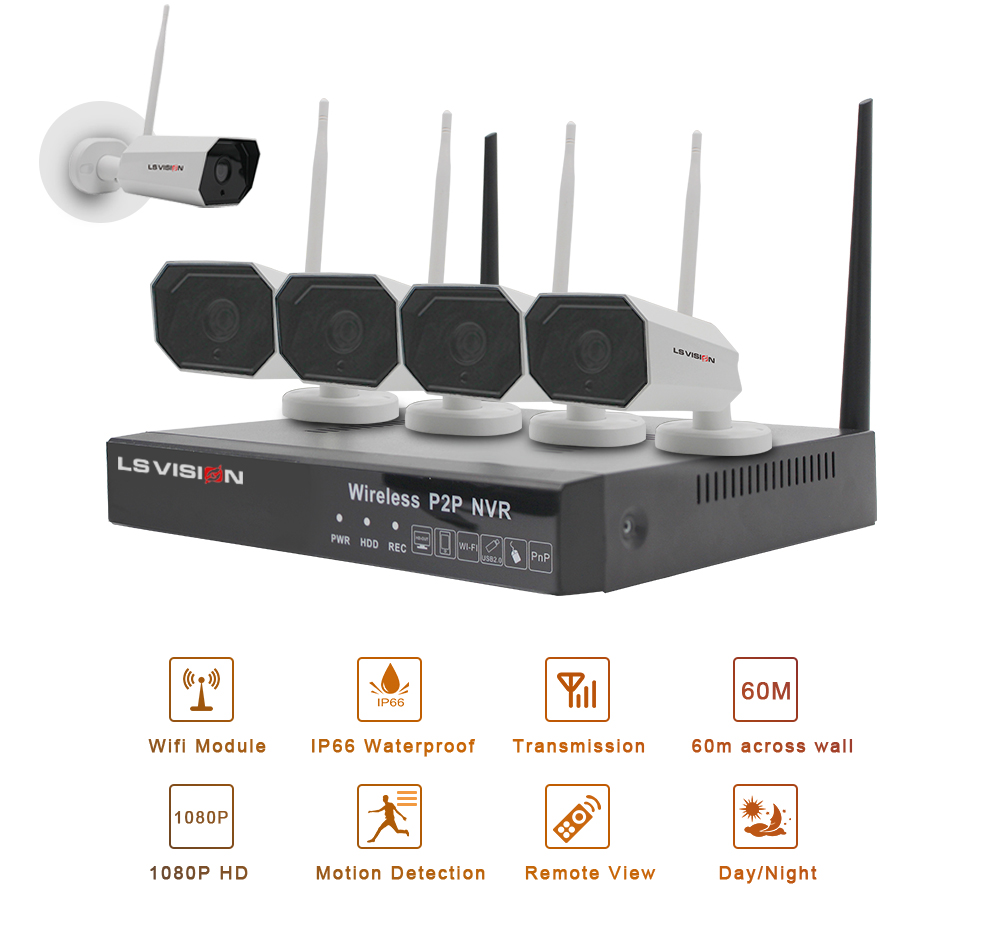

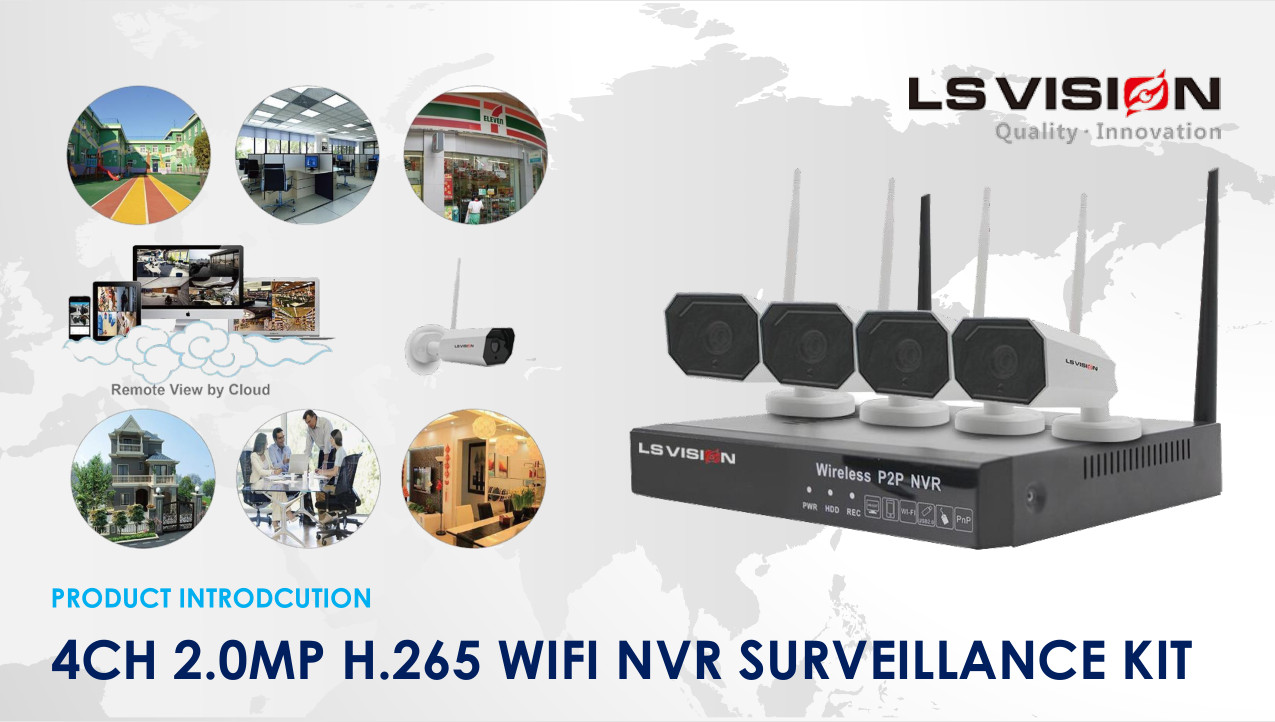

4CH WIFI NVR Kits Detail

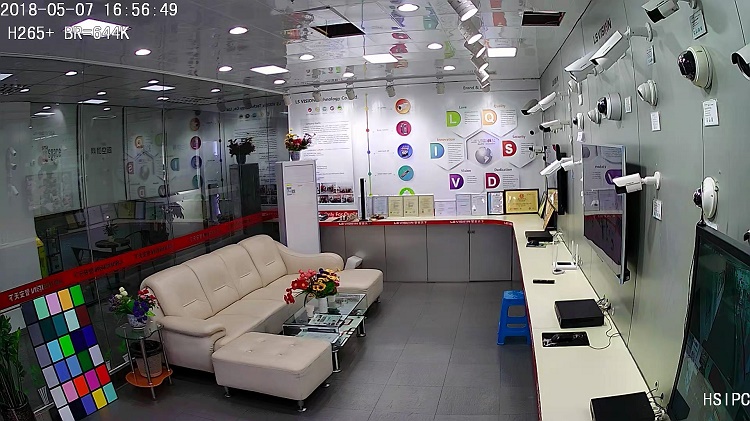

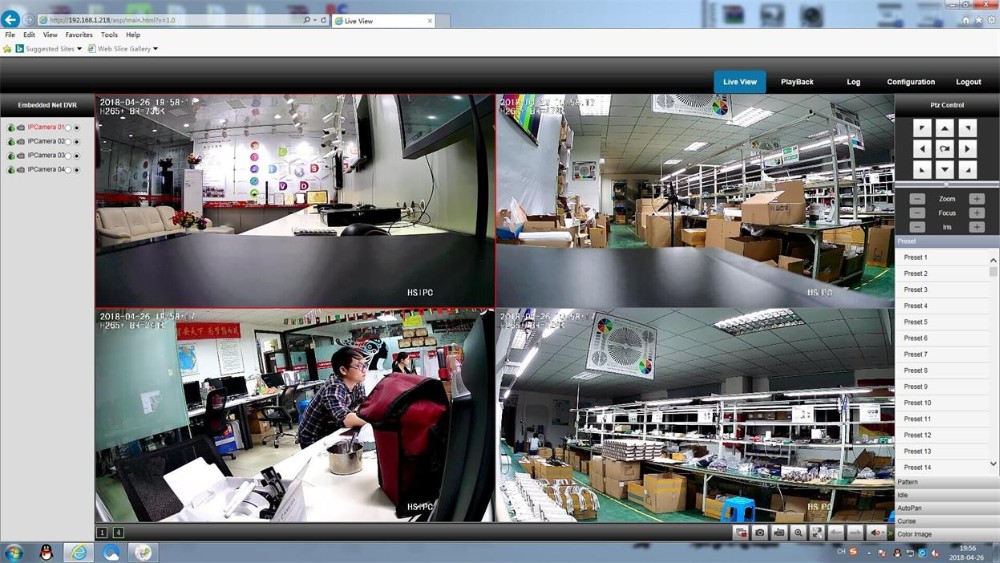

Web Interface Explorer View Effect of 2MP 4CH WIFI NVR System Video Surveillance

CMS View Effect of 2MP 4ch WIFI NVR Kits Video Surveillance for Android & ISO

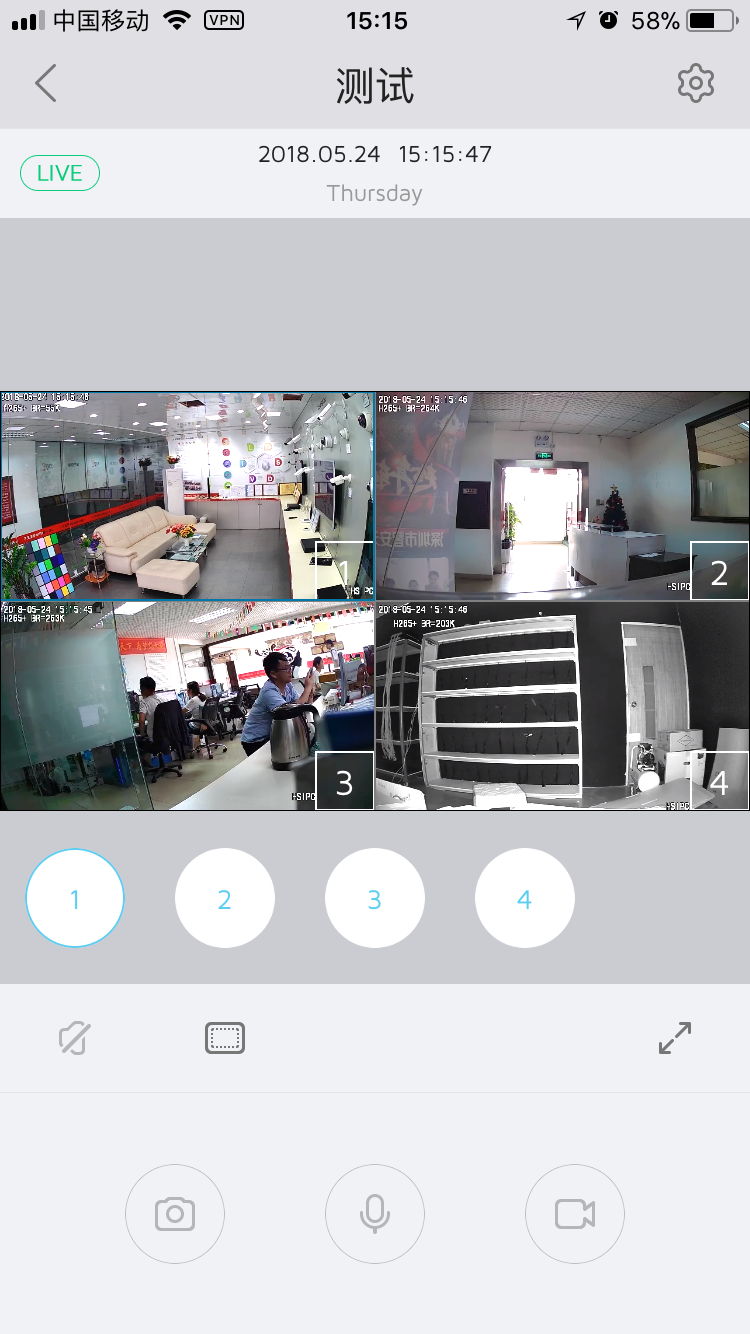

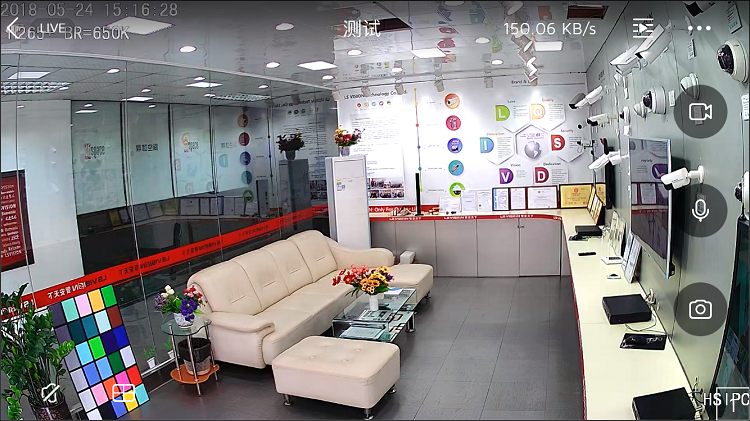

Mobile APP View Effect of 4CH 2MP WIFI IP Camera System Video Surveillance for Android & IOS

Specifikáció

WIFI NVR Technical Parameters		4CH Wireless NVR
System	Main Processor	Latest Industrial Embedded Microcontrollers（MSR620Q）
	operating system	Embedded LINUX operating system
	system resource	Simultaneous multi-channel real-time recording, real-time playback, multiple multi-user network operations, USB backup
UI	Operation interface	24-bit true color graphic menu operator interface with mouse operation
	Screen display	1/4 Screen
	Image coding	BaseLine Profile / Main Profile / High Profile
	Playback quality	1080P
	Video access	4-way 1080P device access storage
	Motion Detection	396 (22*18) detection areas per screen; sensitivity can be set
Audio frequency	Audio compression	G711.A,G711.U
	monitor	not support
Record and playback	Record mode	Manual> Alarm> Motion Detection> Timing
	Local playback	4-way 1080P playback
	Video search	Point-in-time search, calendar search, event search, channel search
	Backup method	USB,Mobile hard disk
interface	Video output	1 VGA, 1 HDMI
	Audio output	1
	Network	1*RJ45 10M/100M Adaptive Ethernet port
	USB	2 USB 2.0
	hard disk	1 SATA（Maximum support 6T hard drive）
	antenna	2 150MbpsAntenna interface
other	power supply	DC 12V 2A
	weight	1.0kg（Without hard disk）
	Working humidity	10%－90%
	Operating temperature	-10℃–50℃
	size	483*89*433(mm)

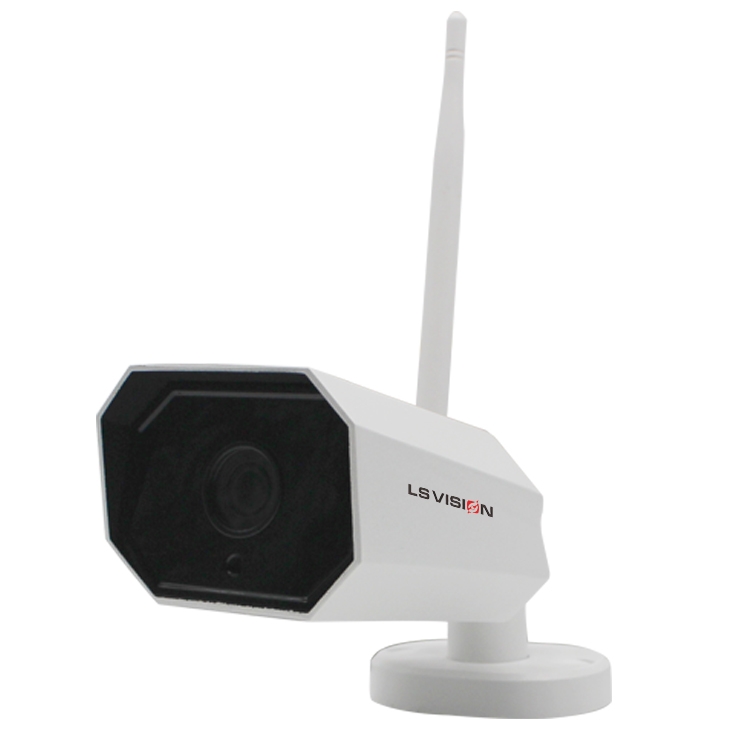

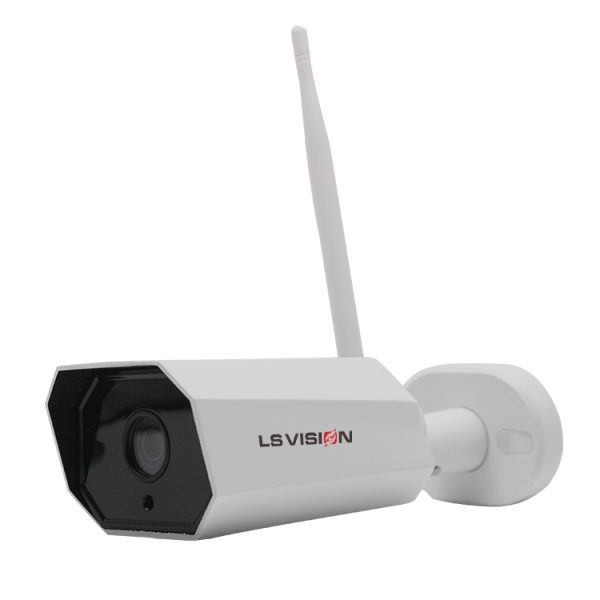

Wifi IP Camera Technical Parameter	WIFI IP kamera
Effective Pixels	200MP,1920(H)*1080(V)
sensor	1/2.7＂CMOS
Minimum illumination	0.05Lux/F1.2(color)；0.01Lux/F1.2(B&W)
Electronic shutter	NTSC：1/30—1/10000 second；PAL：1/25—1/10000 second
Day & night conversion mode	ICR IR_CUT
Video compression standard
Coding type	PROFILE_BASELINE
Image format	1920*1080（1080P）
Frame rate	50Hz：15fps/60Hz：15fps
Masking settings	Supports 4 sets of masking block settings
Image settings	Brightness, Contrast, Saturation, Gain, Shutter, White Balance, etc. Adjustable
Color to black	support
Smart alarm	Motion detection, occlusion alarm, video loss, network cable disconnection, IP address conflict
supporting agreement	TCP/IP、DHCP、HTTP、HTTPS、NTP、DNS、RTP、RTSP
General function	One-click recovery, dual stream, heartbeat, mirroring, video cover, anonymous access, etc.
Communication Interface	One RJ45 10M/100M adaptive Ethernet port
WIFI antenna interface	Support 8188EUS etc.
Lens	4mm
power supply	DC12V
Power	≤6W
working environment	-10℃～50℃,30%～80%RH
size	175(L)*66(W)*66(H)mm(Without antenna)
weight	500g
