As Shenzhen LSVISION Technology Co., Ltd. steps into a more competitive market, we know that the only way to keep us ahead of other competitors is to enhance our R&D strength, improve technologies, and develop new products. It has been proved that high-end technologies can contribute to the high-efficiency manufacturing process.In the field(s) of ,LS VISION 8 Channel CVBS VGA Network Video Recorder HD 8ch 4K NVR With Built in POE is widely accepted by users. After assessing the needs of customers and the market, we have successfully made LS VISION 8 Channel CVBS VGA Network Video Recorder HD 8ch 4K NVR With Built in POE have some wanderful advantages, all of which can help make it stand out in the market. Moreover, its appearance is highly emphasized as well. Our creative designers make the product unique in its appearance by keeping close up with the latest industry trends.
| Place of Origin: | Guangdong, China | Brand Name: | LS VISION |
| Model Number: | LS-NF5108CP | Product name: | LS-NF5108CP poe nvr |
| Master chip: | Hi3536C | Access Bandwidth: | 64M |
| HDD: | 1 SATA | POE Interface: | 8CH RJ45 10M/100M adaptive Ethernet interface |
| IP Resolution: | Main stream:Up to 4096*3072 | Network Interface: | 1 RJ45 10M/100M/1000M adaptive Ethernet interface |
| Power Supply: | DC +12V/4A & DC +48V 1.875A(POE) | Working Temperature: | -10℃–+55℃ |
| Consumption: | 7W(without HDD and POE) | Video Compression Format: | No |

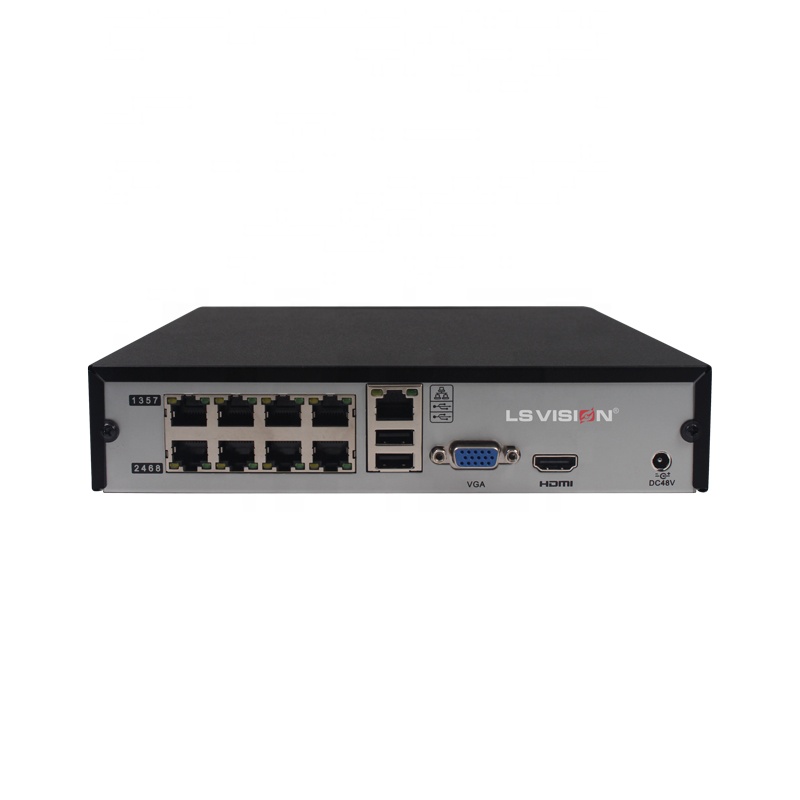

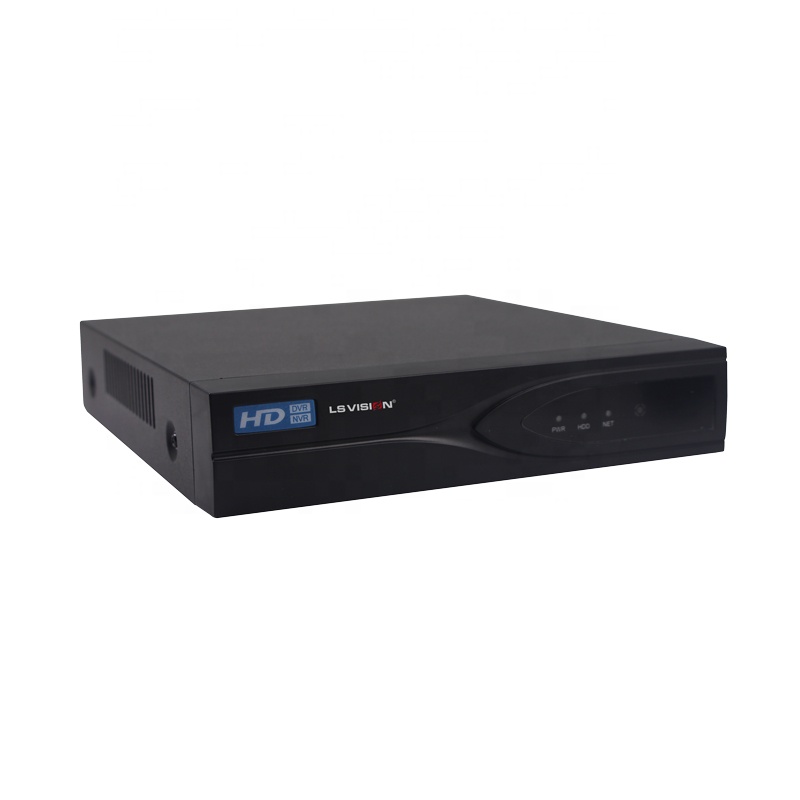

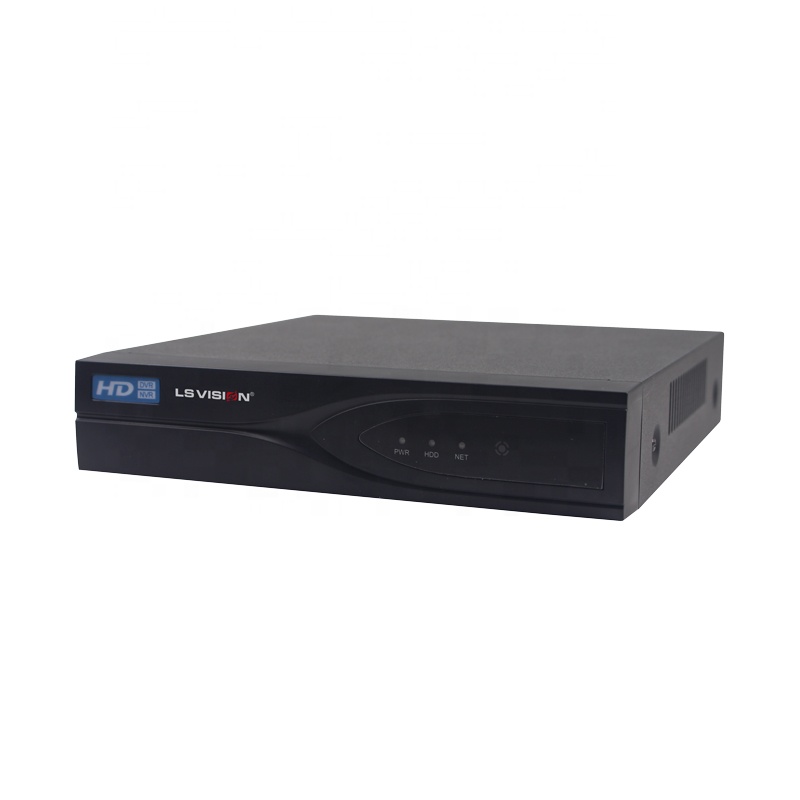

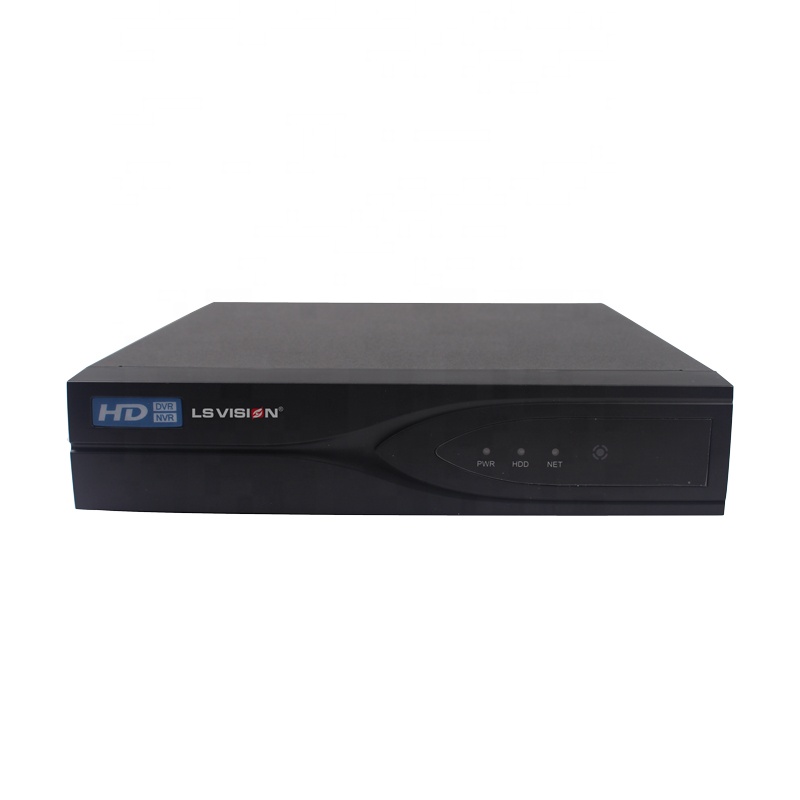

LS VISION 8 Channel 4K Network Video Recorder HD 8ch NVR With Built in POE
Key Features for 8ch POE NVR:
1,High performance and industrial-grade SOC chip with low power consumption and steady system. Triple watchdog circuit protection system ensures no crashes phenomenon.
2,With embedded Linux system, a 16-bit colored image enhancement technology, a consummate UI operation interface style.
3,Support 2.4 protocol.
4,Full HDMI output, support VGA, CVBS synchronization output.
5,With hard disk dormancy and Wake-on-LAN technology, which lower power consumption, improve the stability and prolong the hard disk life.
6,With hard disk S.M.A.R.T management technology; capacity is unlimited and health status of hard disk can be monitored at any time.
7,Hard disk dual redundant technology with data backup effectively ensures video security.
8,Network QOS automatically adjusting the code flow and network transmission strategy ensures the Network transmission reliability.
9,Plug and play, support P2P function, cloud services and cloud storage is provided.
10,Supports Iphone,Windows Mobile,Symbian,Andriod,Blackberry
11,8ch POE port built-in
12,Intelligent features: 1CH face detection, 2ch boundary analysis
|
Module
|
LS-NF5108CP 8ch POE NVR
|
||
|
OS
|
Embedded Linux
|
||
|
master chip
|
Hi3536C
|
||
|
Access Bandwidth
|
64M
|
||
|
Video&Audio Input
|
Bidirectional Talk
|
1 CH(Line in,2Vpp,1Kohms)
|
|
|
IPC Input
|
(Up to 8CH 1080P@6M)
|
||
|
Video&Audio Output
|
CVBS Output
|
1CH,BNC(1.0Vp-p,75ohms)
|
|
|
VGA
|
1CH,1920×1080,1280×1024,1280×720,1024×768
|
||
|
HDMI
|
Standard 1.4a
|
||
|
3840×2160,1920×1080,1280×1024,1280×720,1024×768
|
|||
|
Video&Audio Encoding
|
Audio Compression
|
G711A
|
|
|
Audio Bit Rate
|
64Kbps
|
||
|
Video&Audio codes
|
IP Resolution
|
Main stream:Up to 4096*3072;Auxiliary stream:D1
|
|
|
Video bitrate
|
Up to 2Mbps@D1, 4Mbps@720P, 8Mbps@1080P
|
||
|
Video decoding
|
(Main Profile@ L5.0 High-tie)/(Up to High Profile@ Level5.0)
|
||
|
Synchronous Playback
|
Up to 8CH
|
||
|
Other Function
|
Bidirectional Talk
|
Two-way voice intercom function
|
|
|
Motion Detection
|
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest)
|
||
|
Picture Capture
|
Local Capture&Web Capture
|
||
|
HDD Interface
|
SATA
|
1
|
|
|
ESATA
|
0
|
||
|
POE
|
POE Interface
|
8CH RJ45 10M/100M adaptive Ethernet interface
|
|
|
External Interface
|
Network Interface
|
1 RJ45 10M/100M/1000M adaptive Ethernet interface
|
|
|
USB
|
2 USB 2.0 Interfaces
|
||
|
General
|
Dimensions
|
410x293x60mm
|
|
|
Weight
|
2Kg(without HDD)
|
||
|
Power Supply
|
DC +12V/4A & DC +48V 1.35A(POE)
|
||
|
Working Temperature
|
-10℃–+55℃
|
||
|
Working Humidity
|
10%–90%
|
||
|
Consumption
|
7W(without HDD and POE)
|
||
IP Camera Series Package

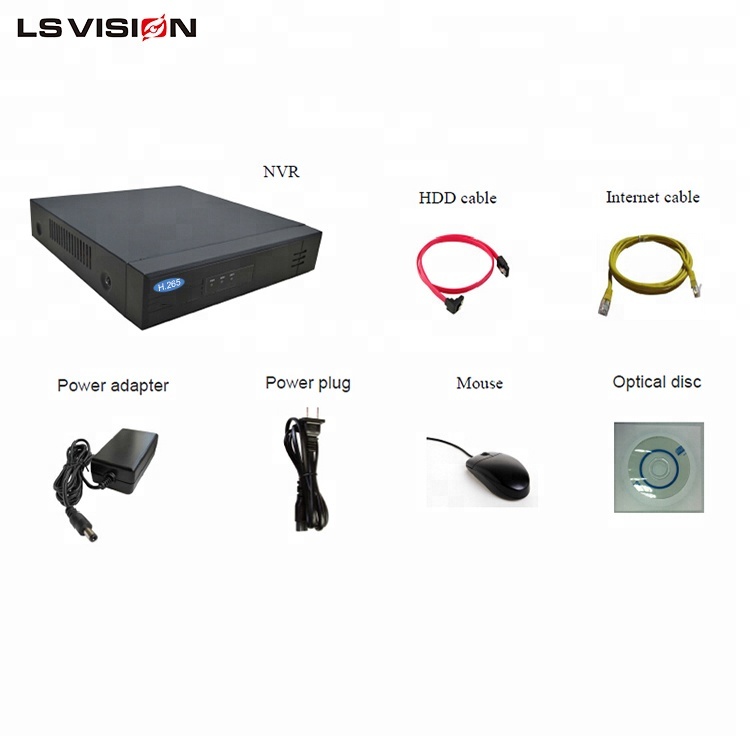

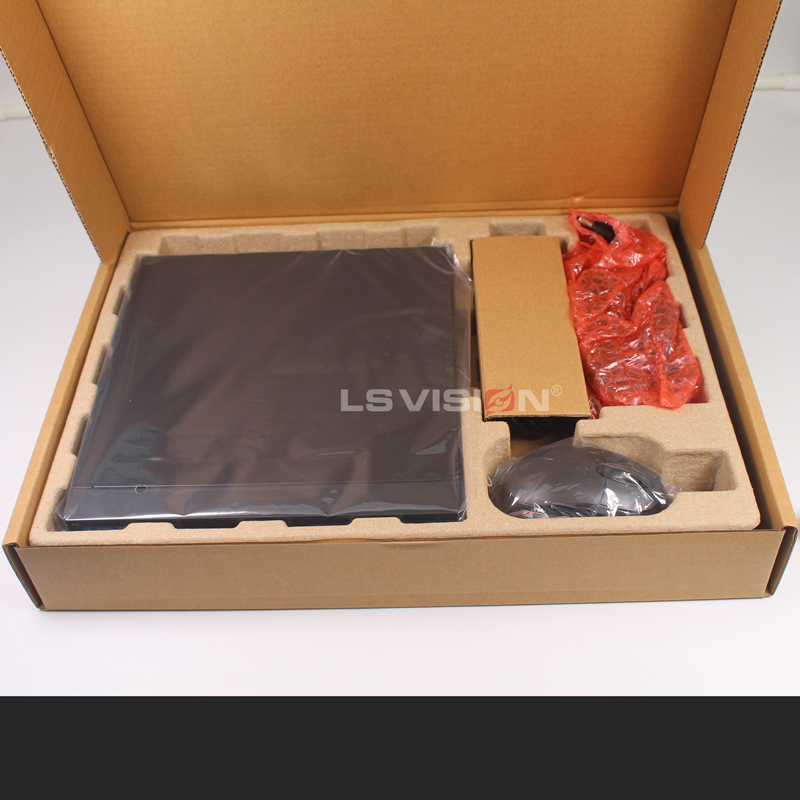

NVR Series Package
LS VISION Global Brand
At present, LS VISION partners and customers all over the world, including dealers, agents, engineers and security importers, end consumers and other different customer groups, in Russia, Yemen, Philippines, Madagascar, Nigeria, Tunisia, Bangladesh, Saudi Arabia, Vietnam, Ghana, Bangladesh and other countries region, set up an exclusive agency, and we have been have been making great efforts to expend our global agency or distribution area.
LS VISION Global Security Project
LS VISION products and solutions used in a number of countries and regions, Such as the Saudi Arabian Jeddah International Book Fair Project in 2017 and 2018; CITY Center MAKKAH CCTV Project in 2018; the Fath Gas Station Project in 2017, the Peruvian Bass Amas Plaza Project, the Panama Airport and other major security projects have played an important role.
LS VISION will keep our key value of Quality. Innovation. Dedication to do more research for the products to bring more value for our partners in the 2019.
In 2019, LS VISION products strategy:
Industry market:
IPC: 2MP to 8MP 4K Series IP Camera and HD NVR system.
Analog HD: 2MP to 8MP series and DVR system.
AI Series: Face recognition camera and NVR system.
4G Solar Camera system；
Police Body Camera
Consumer Market:
Wifi NVR Kit, POE Nvr Kit;
wifi Battery Cameras, WiFi Indoor PTZ Camera, Smart Doorbell etc.
