LS VISION 8ch 1080P Real Rime Two-way voice intercom NVR support 2 SATA
| Units per Carton | |
|---|---|
| Carton Dimensions (mm) | |
| Carton Weight (kg) |
| Key Features |
- High performance and industrial-grade SOC chip with low power consumption and steady system. Triple watchdog circuit protection system ensures no crashes phenomenon.
- With embedded Linux system, a 16-bit colored image enhancement technology, a consummate UI operation interface style.
- Support 2.4 protocol.
- Full HD output, support HD, VGA, CVBS synchronization output.
- With hard disk dormancy and Wake-on-LAN technology, which lower power consumption, improve the stability and prolong the hard disk life.
- With hard disk S.M.A.R.T management technology; capacity is unlimited and health status of hard disk can be monitored at any time.
- Hard disk dual redundant technology with data backup effectively ensures video security.
- Network QOS automatically adjusting the code flow and network transmission strategy ensures the Network transmission reliability.
- Plug and play, support P2P function, cloud services and cloud storage is provided.
- Supports Iphone、Windows Mobile、Symbian、Andriod、Blackberry

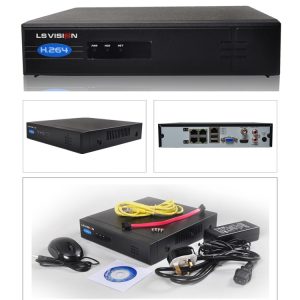

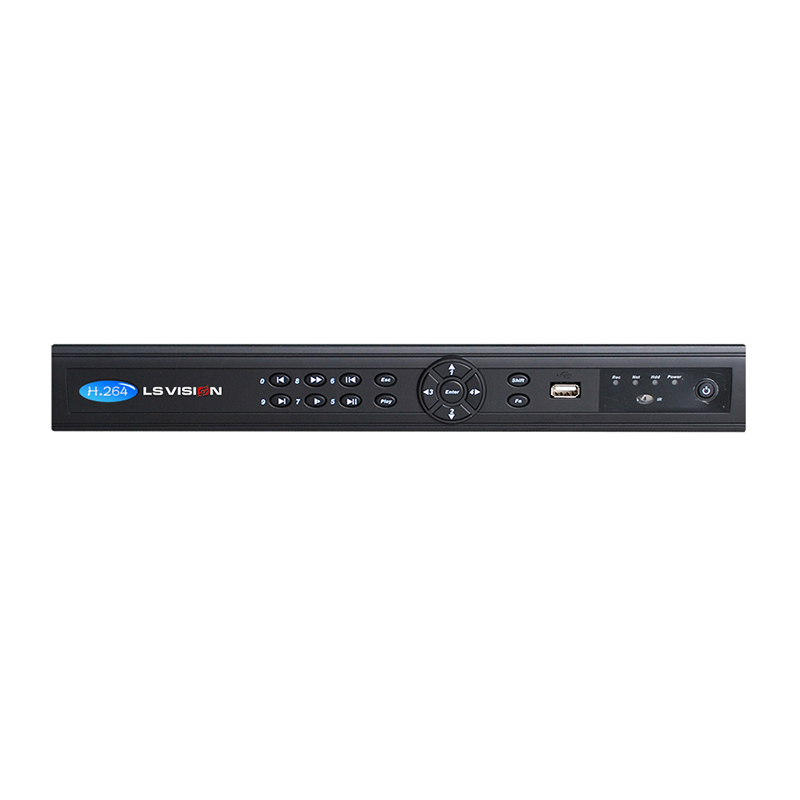

| Picture |
| Specification |
|
Module |
LS-NF7208 |
|
|
OS |
Embedded Linux |
|
|
master chip |
Hi3535 |
|
|
Access Bandwidth |
64M |
|
|
Video&Audio input |
Bidirectional Talk |
1 CH(Line in,2Vpp,1Kohms) |
|
IPC Input |
up to 8ch D1@30fps(2Mbps) or 8ch 3MP@20fps(8Mbps) or 8ch 5MP@10fps(8Mbps) |
|
|
Video&Audio output |
CVBS Output |
1CH,BNC(1.0Vp-p,75ohms） |
|
VGA |
1CH,Resolution |
|
|
HDMI |
Standard 1.3a |
|
|
Resolution 1920×1080,1440×900,1280×1024,1280×720,1024×768,800×600 |
||
|
Audio Output |
1CH,BNC(Line out,2Vpp,300ohms) |
|
|
Video&Audio encoding |
Audio Compression |
G711A |
|
Audio Bit Rate |
64Kbps |
|
|
Video&Audio codecs |
IP Resolution |
Main stream:up to 1920×2048 |
|
Video bitrate |
Up to 2Mbps@D1,4Mbps@720P,8Mbps@1080P |
|
|
Video decoding |
PEG-4/H.264(Up to High Profile@Level4.2） |
|
|
Synchronous Playback |
Up to 4CH |
|
|
resource capacity |
D1 Play back |
8CH |
|
720P Play back |
8CH |
|
|
1080P Play back |
6CH |
|
|
switch for 3.0MP IPC |
8CH 3MP@20fps(8Mbps) |
|
|
3.0MP Play back |
4CH |
|
|
switch for 5.0MP IPC |
8CH 5MP@10fps(8Mbps) |
|
|
5.0MP Play back |
2CH |
|
|
Other Function |
Bidirectional Talk |
Two-way voice intercom function |
|
Motion Detection |
Zones: 396(22×18), Sensitivity: 1~6 (level |
|
|
Picture Capture |
Local Capture&Web Capture |
|
|
HDD Interface |
SATA |
2 |
|
ESATA |
0 |
|
|
POE |
POE interface |
N/A |
|
External Interface |
Network Interface |
1 RJ45 10M / 100M adaptive Ethernet |
|
USB |
2 USB 2.0 Interfaces |
|
|
Alarm Input |
4CH |
|
|
Alarm Output |
1CH |
|
|
RS-232 |
N/A |
|
|
RS-485 |
1RS-485 interface |
|
|
General |
Dimensions |
360x260x48mm(W×D× H) |
|
Weight |
2Kg(without HDD) |
|
|
Power Supply |
12V/4A |
|
|
Working Temperature |
-10℃–＋55℃ |
|
|
Working Humidity |
10％–90％ |
|
|
Consumption |
10W(without HDD) |
|

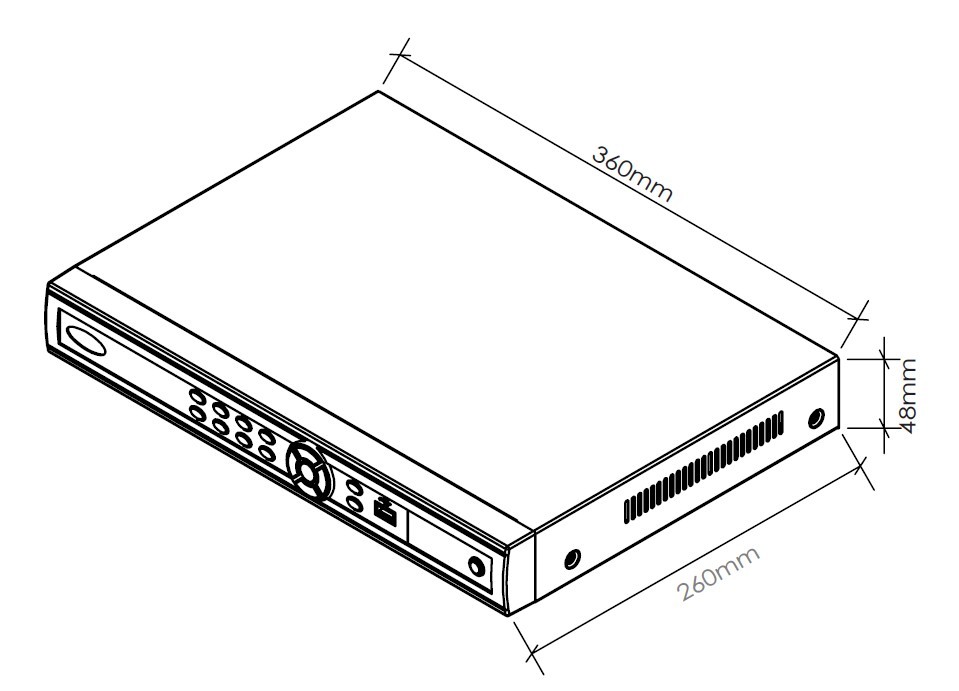

| Dimension |
| IE Interface |
| Features I Face Detection |
| CMS / Free APP |
| LS VISION Certifications of CCTV Camera |
| Company Information |
