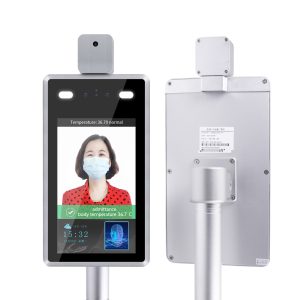

LSVISION – AI Face Imagination Scanning Recognition Screening Terminal Access Control System Body Scanner Analysic IP Thermal Camera Thermal Camera & Face recognition
The use of highly advanced technologies contributes to the safe and efficient manufacturing of the product.At present, AI Face Imagination Scanning Recognition Screening Terminal Access Control System Body Scanner Analysic IP Thermal Camera can be widely seen in the application scope(s) of CCTV Camera.
| Units per Carton | |
|---|---|
| Carton Dimensions (mm) | |
| Carton Weight (kg) |
As an innovation-driven company,Shenzhen LSVISION Technology Co., Ltd. has been devoted to product development for years. We are proud and excited as well to announce that we have successfully developed AI Face Imagination Scanning Recognition Screening Terminal Access Control System Body Scanner Analysic IP Thermal Camera. Shenzhen LSVISION Technology Co., Ltd. is dedicated to ensuring that you receive a top class service, every time. Our expertise and technologies enable tailor-made solutions for every customer.
| Tempat Asal: | Guangdong, Tiongkok | Nama Merek: | LSVISION |
| Nomor Model: | LS-TI003 | Fitur Khusus: | Tahan air / Tahan Cuaca |
| Sensor: | Lainnya | Format Kompresi Video: | H.265 |
| Nama produk: | AI Face Imagination Scanning Analysic IP Thermal Camera | Sensor Gambar: | 1920x1080P |
| Sensor type: | 1/2.8″ 2.0M Pixel CMOS | Day& Night: | ModeiR cut filter with auto switch |
| Temperature Measurement: | Support global and local temperature | Web Client Language: | languages English, Chinese |
| Protection Level: | IP66 | NETD: | Less than 60 mK (@25°C.F#=1.1) |
| Field of View: | 35° x 27° (H x V) | Focal Length: | 4mm |
AI Face Imagination Scanning Recognition Screening Terminal Access Control System Body Scanner Analysic IP Thermal Camera
|
Model
|
LS-TI003
|
|
|
Thermal Camera
|
||
|
Sensor type
|
Vox Uncooled Focal Plane Arrays
|
|
|
Resolusi
|
256×192
|
|
|
Pixel Interval
|
12pm
|
|
|
NETD
|
Less than 60 mK (@25°C.F#=1.1)
|
|
|
Aperture
|
F1.0
|
|
|
Field of View
|
35° x 27° (H x V)
|
|
|
Optical
|
||
|
Sensor Gambar
|
1/2.8″ 2.0M Pixel CMOS
|
|
|
Resolusi
|
1920x1080P
|
|
|
Min. Penerangan
|
Color: 0.005Lux @ (F1.2, AGC ON), B/W 0.001 皿@ (F1.2, AGC ON)
|
|
|
Field of View
|
84° x 45° (H x V)
|
|
|
Focal Length
|
4mm
|
|
|
Shutter Speed
|
1s to 1/100,000s
|
|
|
Keseimbangan Putih
|
Auto/Manual/ATW (Auto-tracking White Balance)/lndoor/Outdoor/Daylight Lamp/Sodium Lamp
|
|
|
Siang & Malam
|
ModeiR cut filter with auto switch
|
|
|
WDR
|
80 dB
|
|
|
Fitur
|
||
|
Bi-spectrum Image Fusion
|
Fusion view of thermal view and overlaid details of the optical channel
|
|
|
Picture in Picture
|
Combines details of thermal and optical image PIP, overlay thermal image on optical image
|
|
|
Fungsi Cerdas
|
|
|
|
Face snapping
|
Built-in deep learning Al algorithm, Supports simultaneous detection of
20-30 faces |
|
|
Temperature Measurement
|
Support global and local temperature
|
|
|
Temperature Range
|
From-15°C to +150°C
|
|
|
Temperature Accuracy
|
Target temperature 35°C A 38°C ±0.3 °C
Target temperature 20°C A 33°C ±0.6 °C Target temperature 38°C A 50°C ±0.6 °C |
|
|
Jaringan
|
||
|
Main Stream
|
Thermal: 25fps(1920 x 1080, 1280 x 720)
|
|
|
Sub Stream
|
Thermal: 25fps(704 x 576, 352 x 288)
|
|
|
Kompresi Video
|
H.264 (Baseline/Main/High Profile) /MJPEG/H.265
|
|
|
Kompresi Audio
|
G 711u/G711a/G.7221/MP2L2/G.726/PCM
|
|
|
Protokol
|
TCP/IP, , GB/T 28181, DHCP. RTP, RTSP,PPPoE UPnP, UDP
|
|
|
API
|
(Profile S, Profile G, Profile T), SDK
|
|
|
Umum
|
||
|
Web Client Language
|
languages English, Chinese
|
|
|
Daya
|
DC 12V, 0.65A
|
|
|
Work Temperature/H umidity
|
From -20°C to 55°C; Humidity: 95% or Less
|
|
|
Protection Level
|
IP66
|
|
|
Dimensi
|
246 mm x 101 mm x 81 mm (with bracket)
|
|
|
Berat
|
Approx. 1.0 kg
|
|
