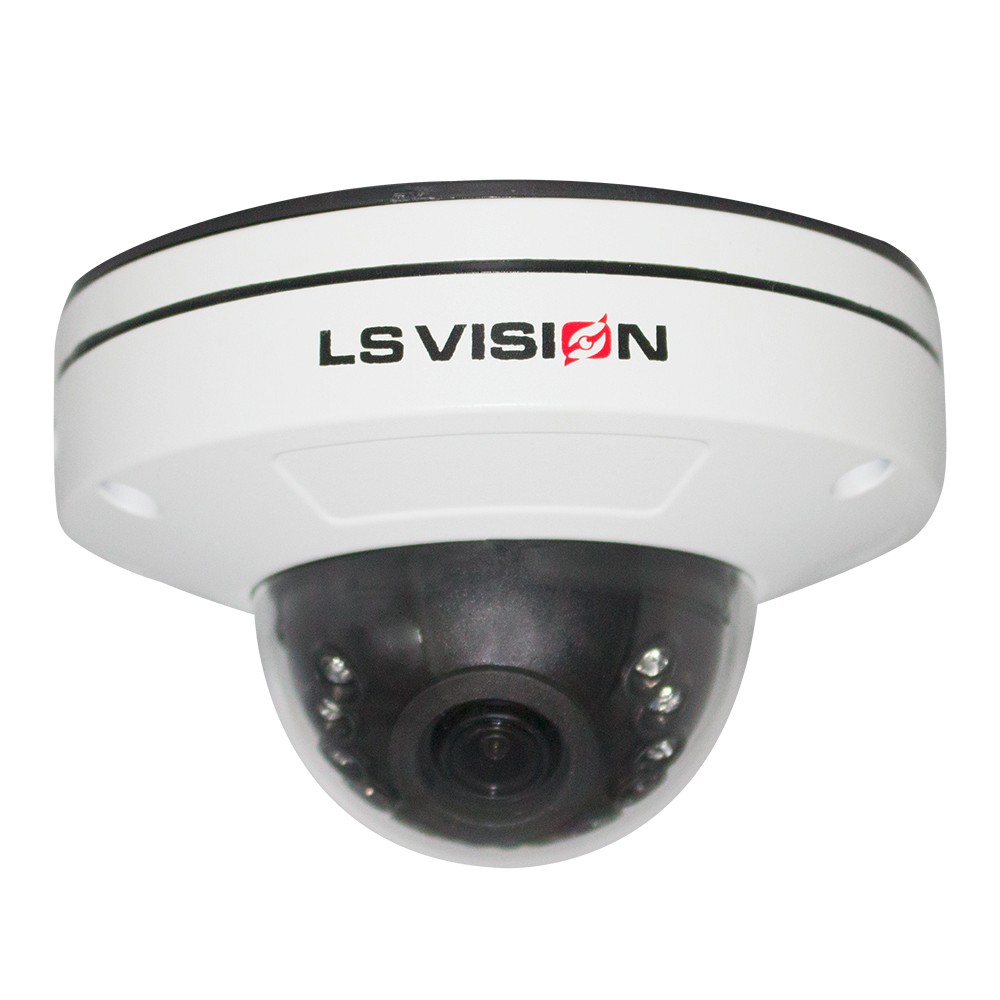

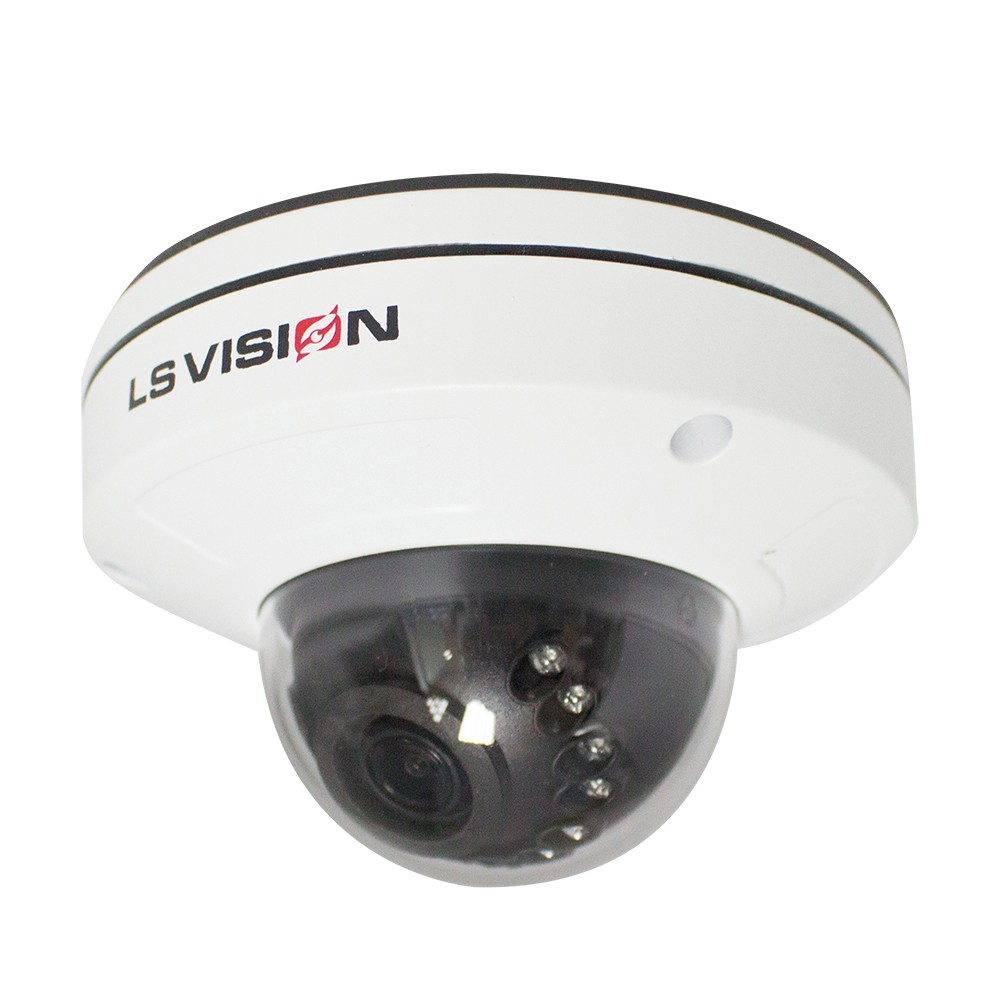

LSVISION Dag en Nacht H.265 4mp P2P POE Beste Chinese Surveillance Lift IP65 Waterdichte IR IP Camera

The tough market condition drives us to improve our competitiveness in technologies. We have carried out multiple tests to improve technologies which make the manufacturing process more time- saving.At present, the product is perfect for the application field(s) of CCTV Camera.

Units per Carton
Carton Dimensions (mm)
Carton Weight (kg)

With strong ability of product research and development, Shenzhen LSVISION Technology Co., Ltd. ensures new products are launched on a regular basis. Our new product LSVISION Day and Night H.265 4mp P2P POE Best Chinese Surveillance Elevator IP65 Waterproof IR IP Camera is a totally new series and has different features. Technology is usually adopted for the design and manufacturing of the product.With regard to its serviceability and practicality,LSVISION Day and Night H.265 4mp P2P POE Best Chinese Surveillance Elevator IP65 Waterproof IR IP Camera can be commonly seen in the field(s) of CCTV Camera. With a comprehensive understanding of the company management system, our employees can better realize their duties, which contributes to higher-efficiency manufacturing and more professional services. Our goal is to be a leading company in the global market.

Plaats van herkomst:	Guangdong, China	Merknaam:	LSVISIE
Modelnummer:	LS-ND2403D	Garantie:	1 jaar
Speciale kenmerken:	Waterproof / Weatherproof	Sensor:	CMOS, 1/3″ OV4689 CMOS Sensor
Stijl:	BULLET CAMERA	Functie:	Two-way Audio
Videocompressieformaat:	H.265	Opties voor gegevensopslag:	NVR
Toepassing:	Binnen	Ondersteuning op maat:	OEM, ODM

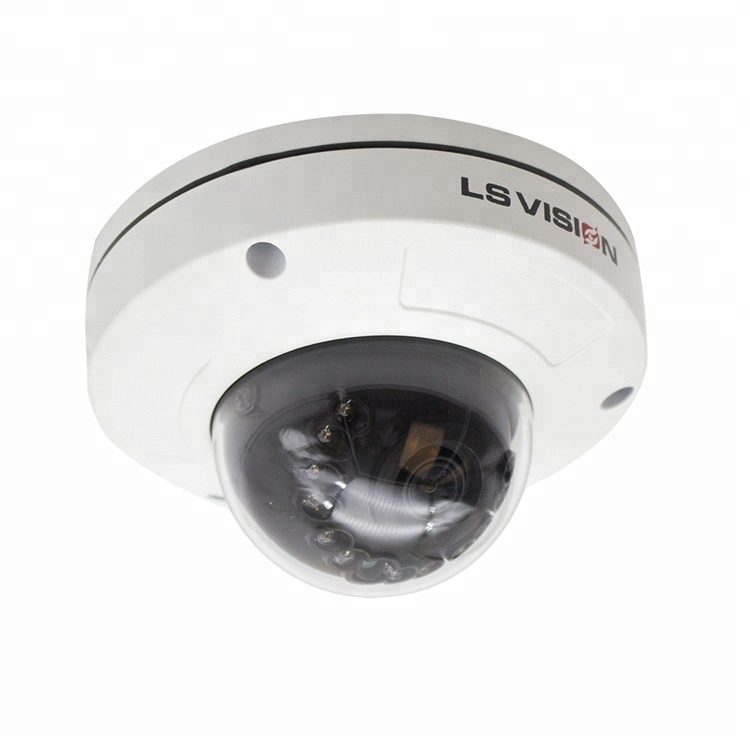

Item:	LS-ND2403D 4mp IP Dome Camera for Elevator	Resolutie:	full high resolution 2592*1520
Min. Illumination:	0.1Lux @F1.2(AGC ON), 0Lux IR on	Video-standaard:	H.265/H.264
Lens:	3.6mm fixed lens	function:	D-WDR, Motion Detection, Privacy Mask, Mirror, rotate
Client:	Multi web browser, PC Client, mobile APP remote access	IR-afstand:	15 meters
Certificering:	ce, FCC

Product Beschrijving

LSVISION Dag en Nacht H.265 4mp P2P POE Beste Chinese Surveillance Lift IP65 Waterdichte IR IP Camera

Key Features for 4mp IP Camera:

1,1/3″ UHD CMOS sensor
2,Max. 4MP resolution 2592 x 1520
3,low illumination 0.1Lux
4,Day/Night (ICR), AWB, 2D/3D-DNR, IR-CUT
5,D-WDR, Motion Detection, Privacy Mask, Mirror, rotate
6,RTSP and 2.4 compatible
7,H.265/H.264 dual-stream media server
8,Easy-to-use P2P Cloud service
9,Multi web browser, PC Client, mobile APP remote access
10,Optional customization Lens/Audio/ POE, etc.
11,Lightning protection 4000V
12,Strong water-proof housing, IP65
13,12 pcs IR Leds, IR distance 15 meters
14,Support POE 48V

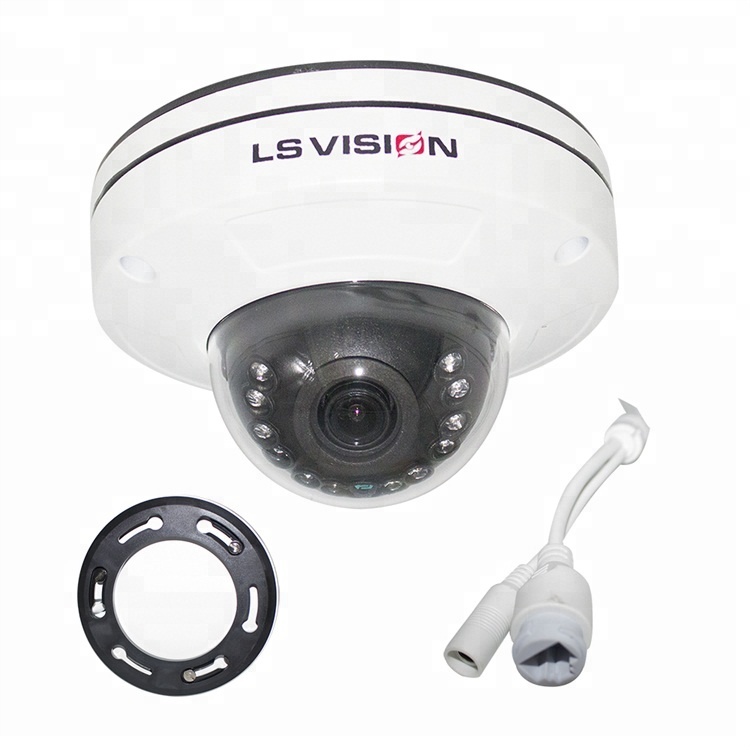

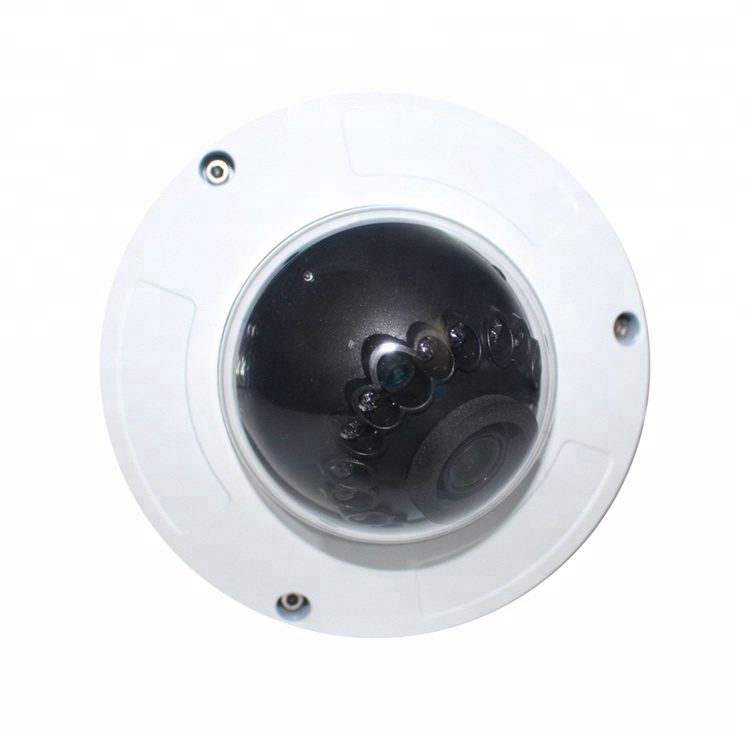

Gedetailleerde afbeeldingen

Specificatie

Model	LS-ND2401D H265 4mp iP Dome camera
Camera
Beeldsensor	1/3″ OV4689 CMOS
Effectieve pixels	2592(H)×1520 (V)
Elektronische sluiter	AUTO, 1/25s ~ 1/100000s
Min. Verlichting	0.1Lux @F1.2(AGC ON), 0Lux IR on
Dag/Nacht	Color/(B/W)/Timing
WDR	Digital WDR
Witbalans	Auto
AGC	Ondersteuning
DNR	2D/3D DNR
Andere	OSD met meerdere lijnen, bewegingsdetectie, privacymasker, spiegelen, roteren
Coderen
Geïntegreerde oplossing	MSC316DM
Video Standaard	H.265/H.264 Double code
Videoresolutie	Main Stream: 15fps @5MP(2592×1944),25fps @4MP(2592×1520),30fps @3MP/1080P/720P Sub Stream: VGA(640×480)/360P/QVGA @25fps, etc.
Video Bitrates	32Kbps – 8Mbps, VBR/CBR
Audio-standaard	G.711-u/G.711-a, built-in microphone
IR Led
IR Led	12pcs IR Leds
IR-afstand	5-15M
Lens
Brandpuntsafstand	3.6 mm Fixed lens
Zoom	No
Optional Function
Audio, etc.
Network Services
Protocol	HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP, enz.
P2P	Ja
Web	IE , Firefox, enz.
Media	CMS, Android, IOS
	2,6 compatibel
General
Netwerkpoort	1-RJ45, 100Mbps, POE optional
Voeding	Ondersteuning POE 48V 12 VDC ± 10%
Stroomverbruik	< 5 W
Bedrijfstemperatuur.	-20℃-(+60)℃, 10%-90%RH
Waterproof Rate	IP65

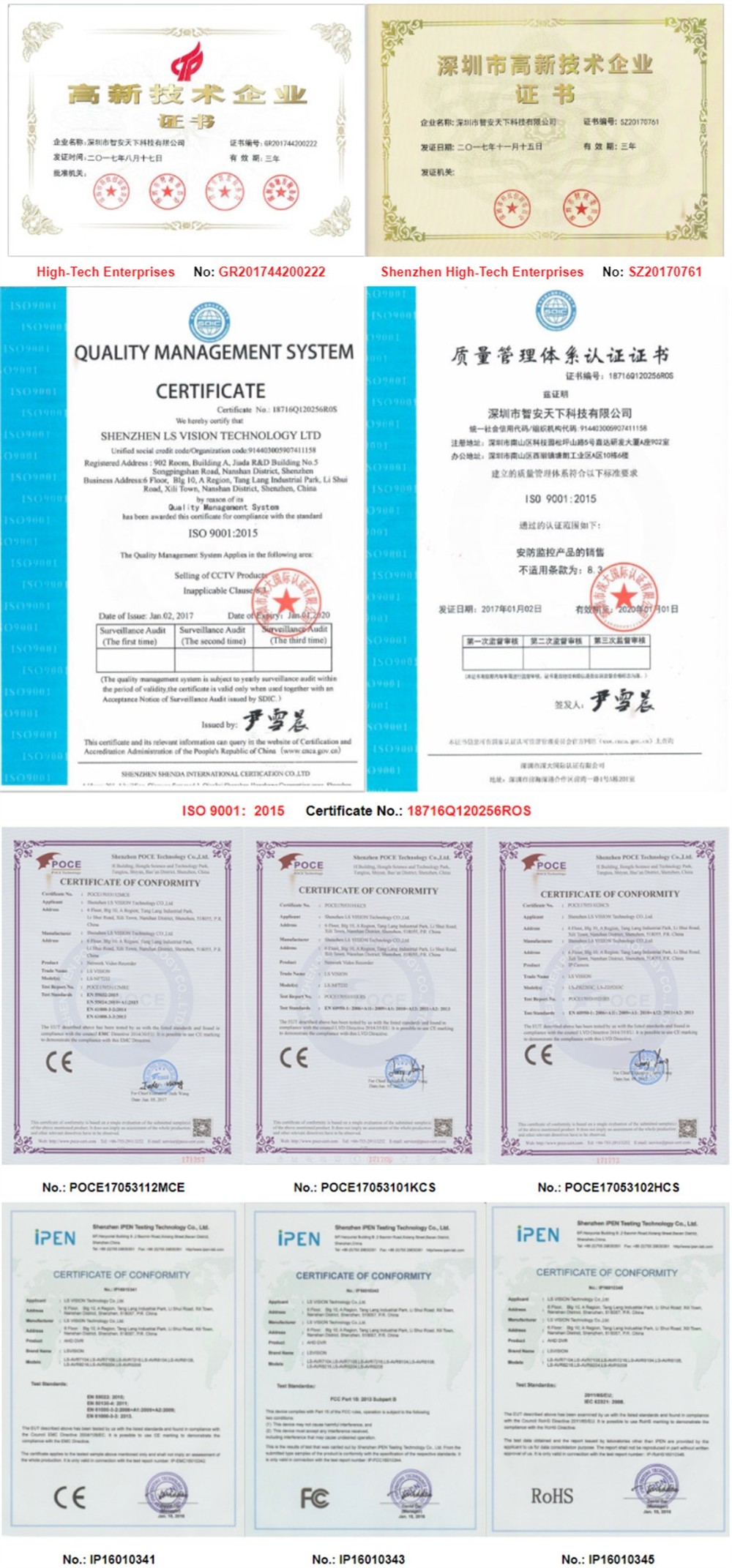

Certificeringen

Hot Products

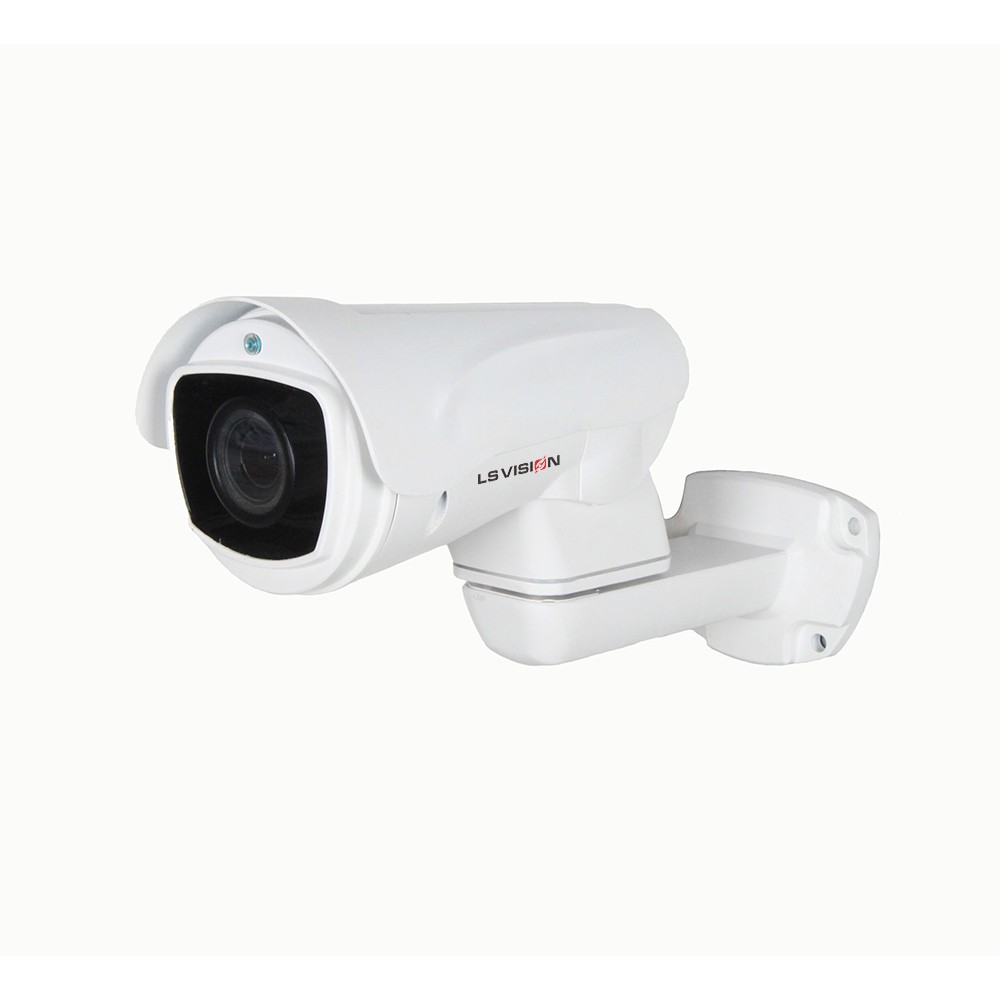

2mp 4mp IP PTZ-bulletcamera

2mp Starlight IP-camera voor weinig licht

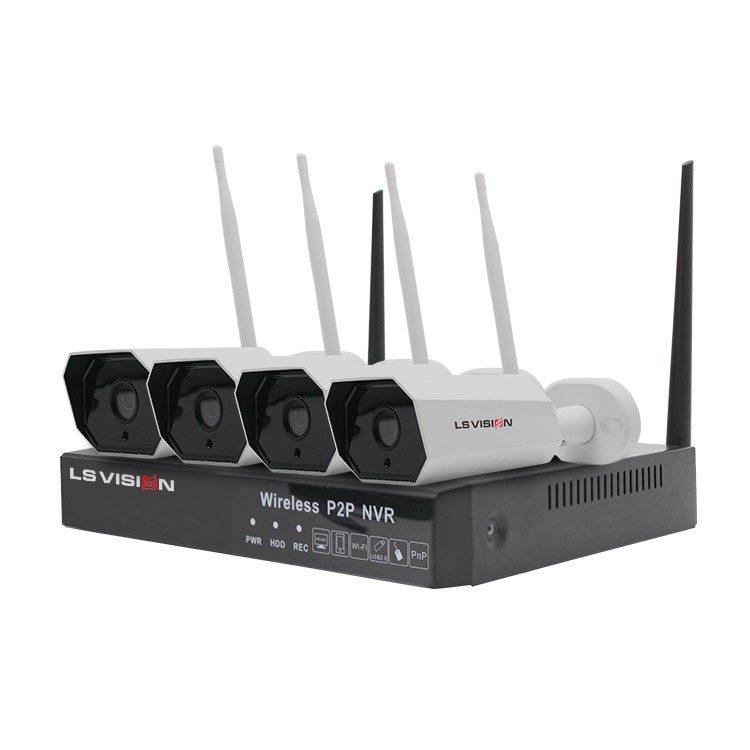

H.265 2mp Wifi nvr kit

LS VISIE

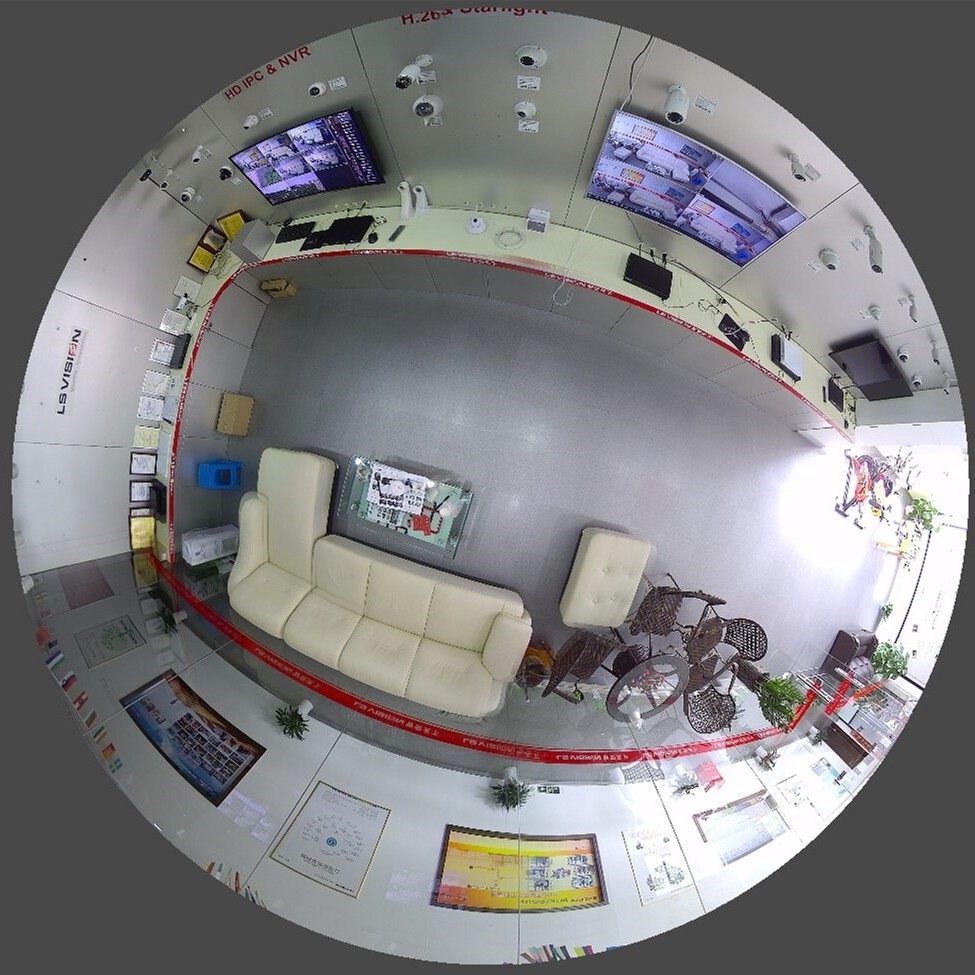

LS VISION 360 Graden Panoramische Video CCTV Camera Weergave
